4-3. Do-it-yourself maintenance
4
Maintenance and care

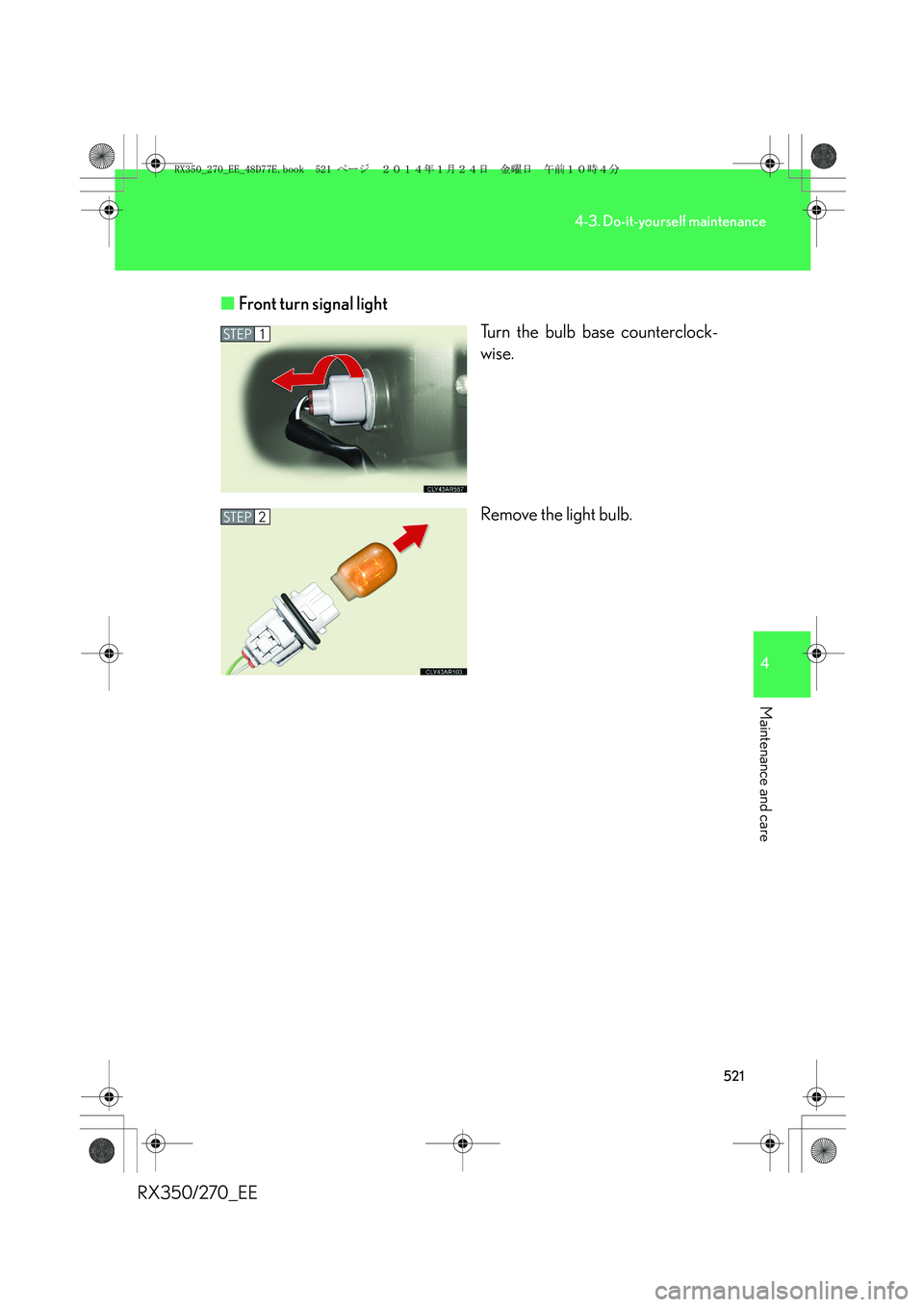

RX350/270_EE■Front turn signal light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
RX350_270_EE_48D77E.book 521 ページ ２０１４年１月２４日　金曜日　午前１０時４分

522
4-3. Do-it-yourself maintenance

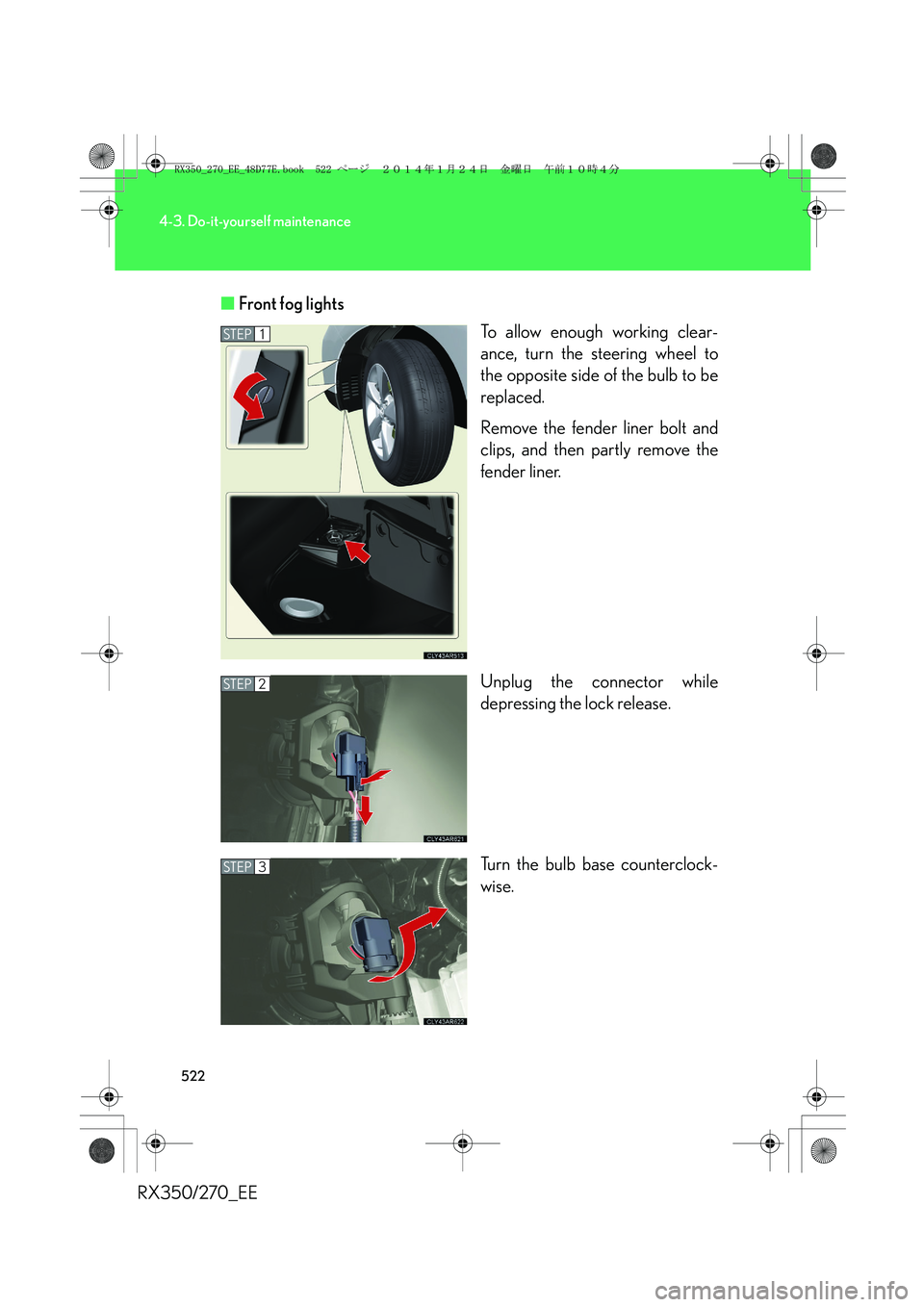

RX350/270_EE■Front fog lights
To allow enough working clear-
ance, turn the steering wheel to
the opposite side of the bulb to be
replaced.
Remove the fender liner bolt and
clips, and then partly remove the
fender liner.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 522 ページ ２０１４年１月２４日　金曜日　午前１０時４分

523
4-3. Do-it-yourself maintenance
4
Maintenance and care

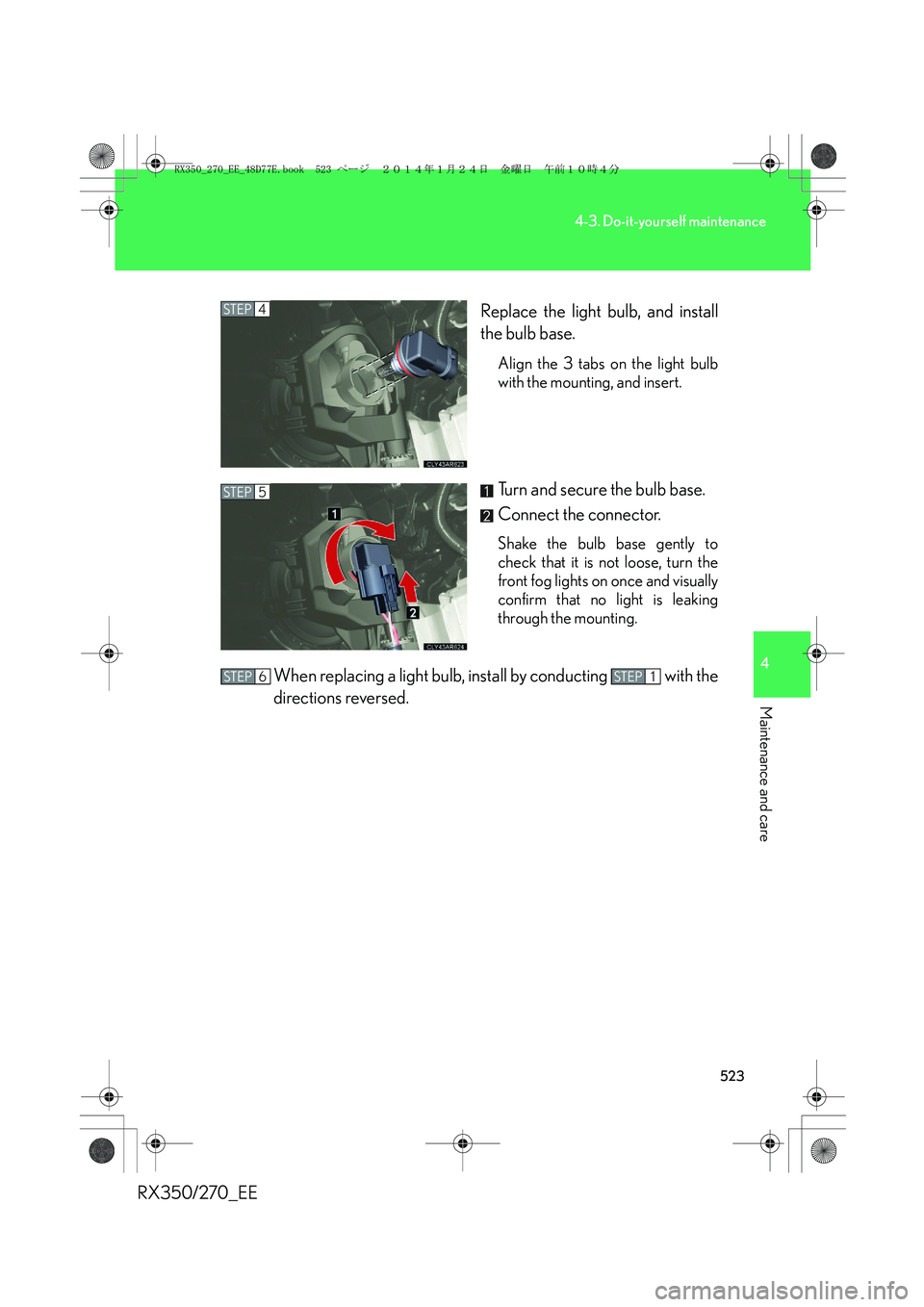

RX350/270_EEReplace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Connect the connector.
Shake the bulb base gently to
check that it is not loose, turn the
front fog lights on once and visually
confirm that no light is leaking
through the mounting.
When replacing a light bulb, install by conducting with the
directions reversed.
STEP4
STEP5
STEP5STEP6STEP5STEP1
RX350_270_EE_48D77E.book 523 ページ ２０１４年１月２４日　金曜日　午前１０時４分

524
4-3. Do-it-yourself maintenance

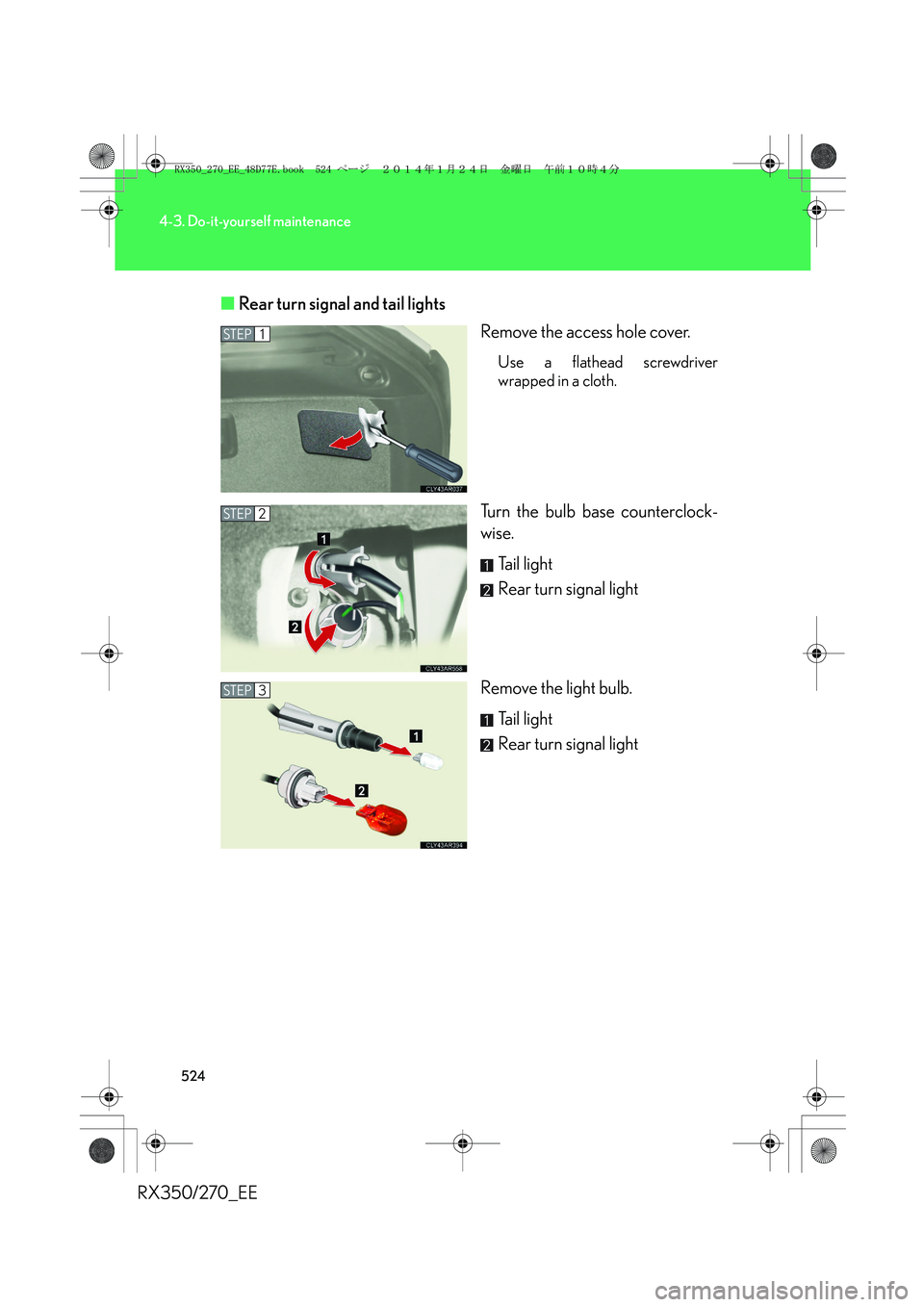

RX350/270_EE■Rear turn signal and tail lights
Remove the access hole cover.
Use a flathead screwdriver
wrapped in a cloth.
Turn the bulb base counterclock-
wise.
Tail light
Rear turn signal light
Remove the light bulb.
Tail light
Rear turn signal light
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 524 ページ ２０１４年１月２４日　金曜日　午前１０時４分

525
4-3. Do-it-yourself maintenance
4
Maintenance and care

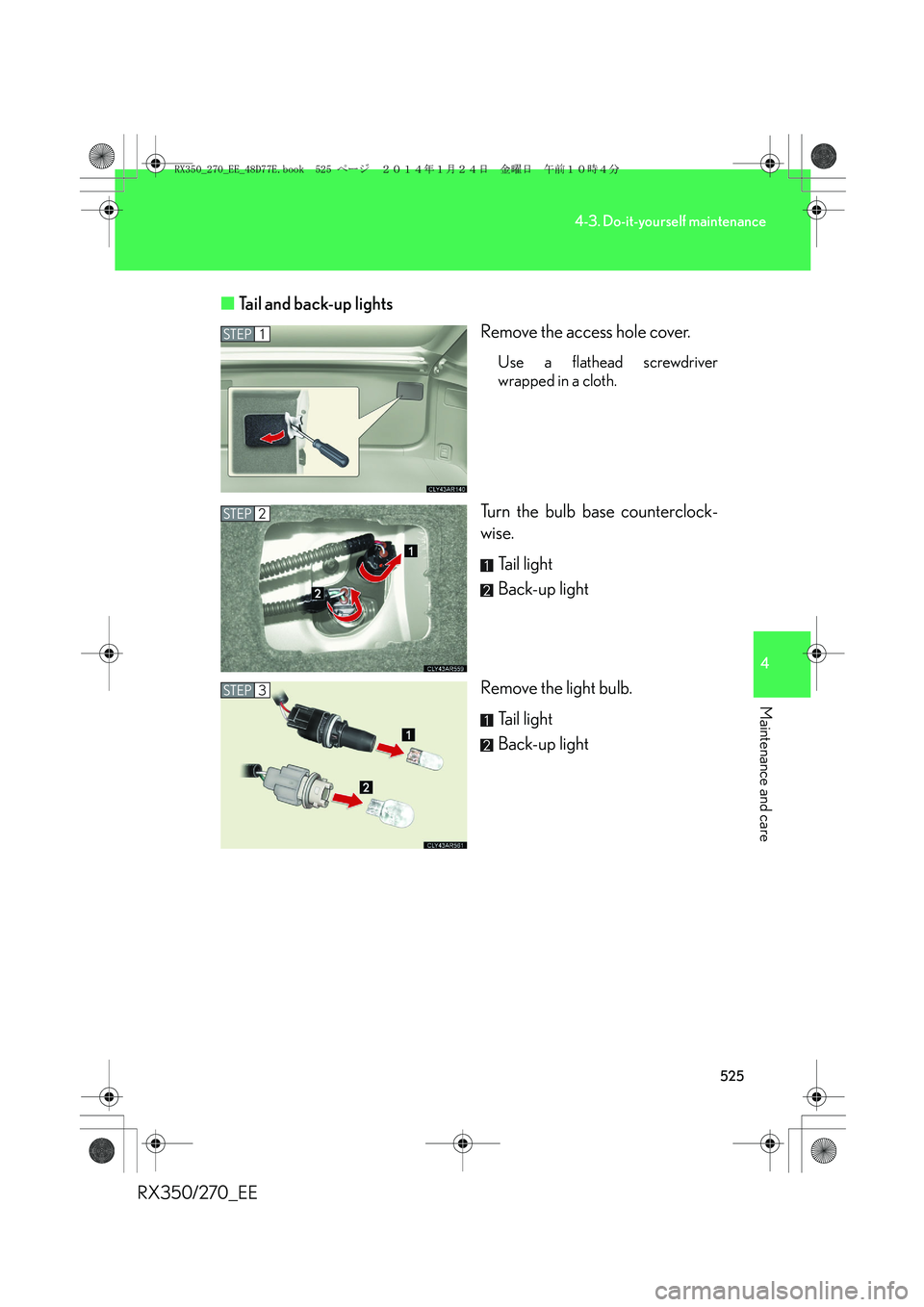

RX350/270_EE■Tail and back-up lights
Remove the access hole cover.
Use a flathead screwdriver
wrapped in a cloth.
Turn the bulb base counterclock-
wise.
Tail light
Back-up light
Remove the light bulb.
Tail light
Back-up light
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 525 ページ ２０１４年１月２４日　金曜日　午前１０時４分

526
4-3. Do-it-yourself maintenance

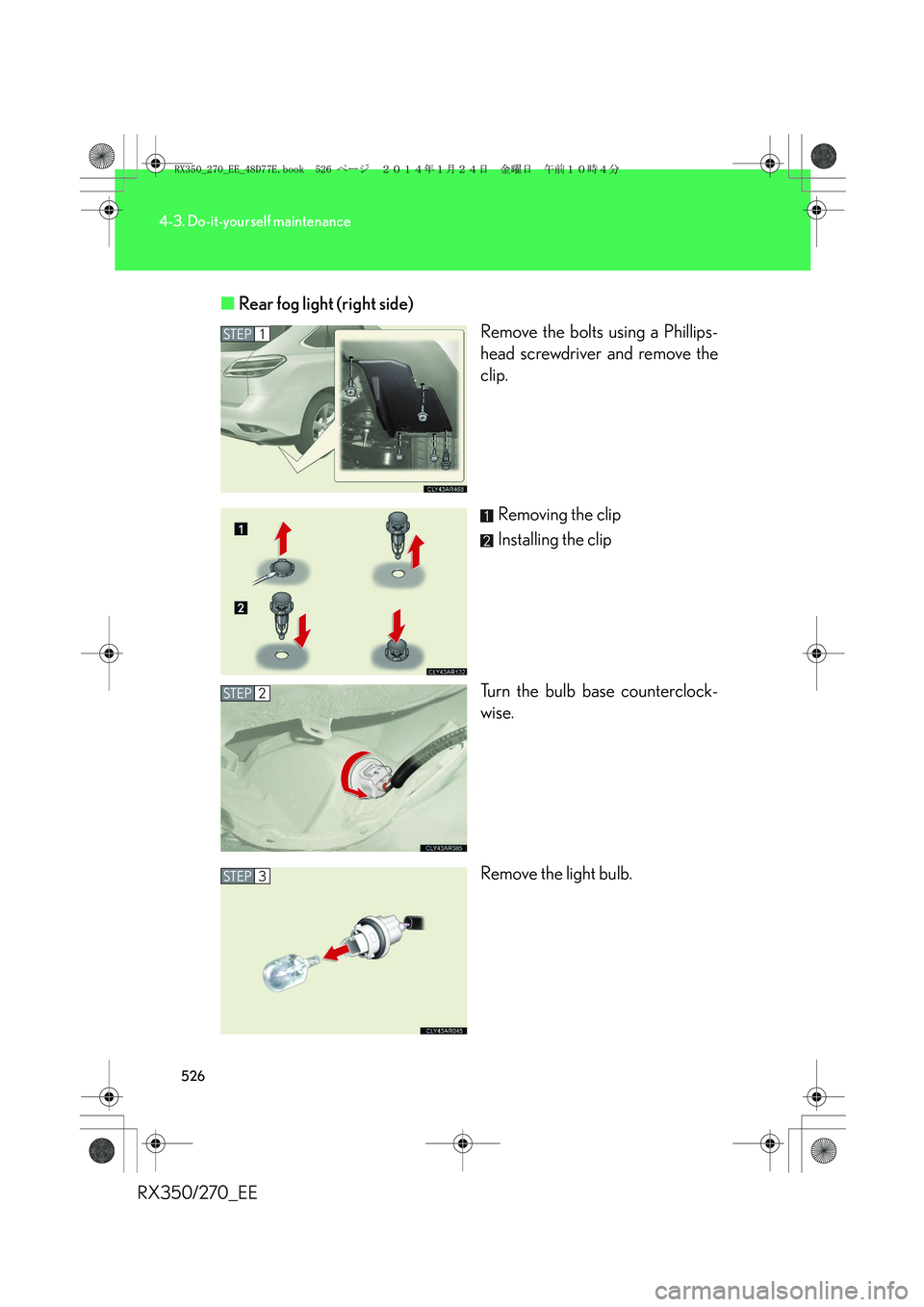

RX350/270_EE■Rear fog light (right side)
Remove the bolts using a Phillips-
head screwdriver and remove the
clip.
Removing the clip
Installing the clip
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 526 ページ ２０１４年１月２４日　金曜日　午前１０時４分

527
4-3. Do-it-yourself maintenance
4
Maintenance and care

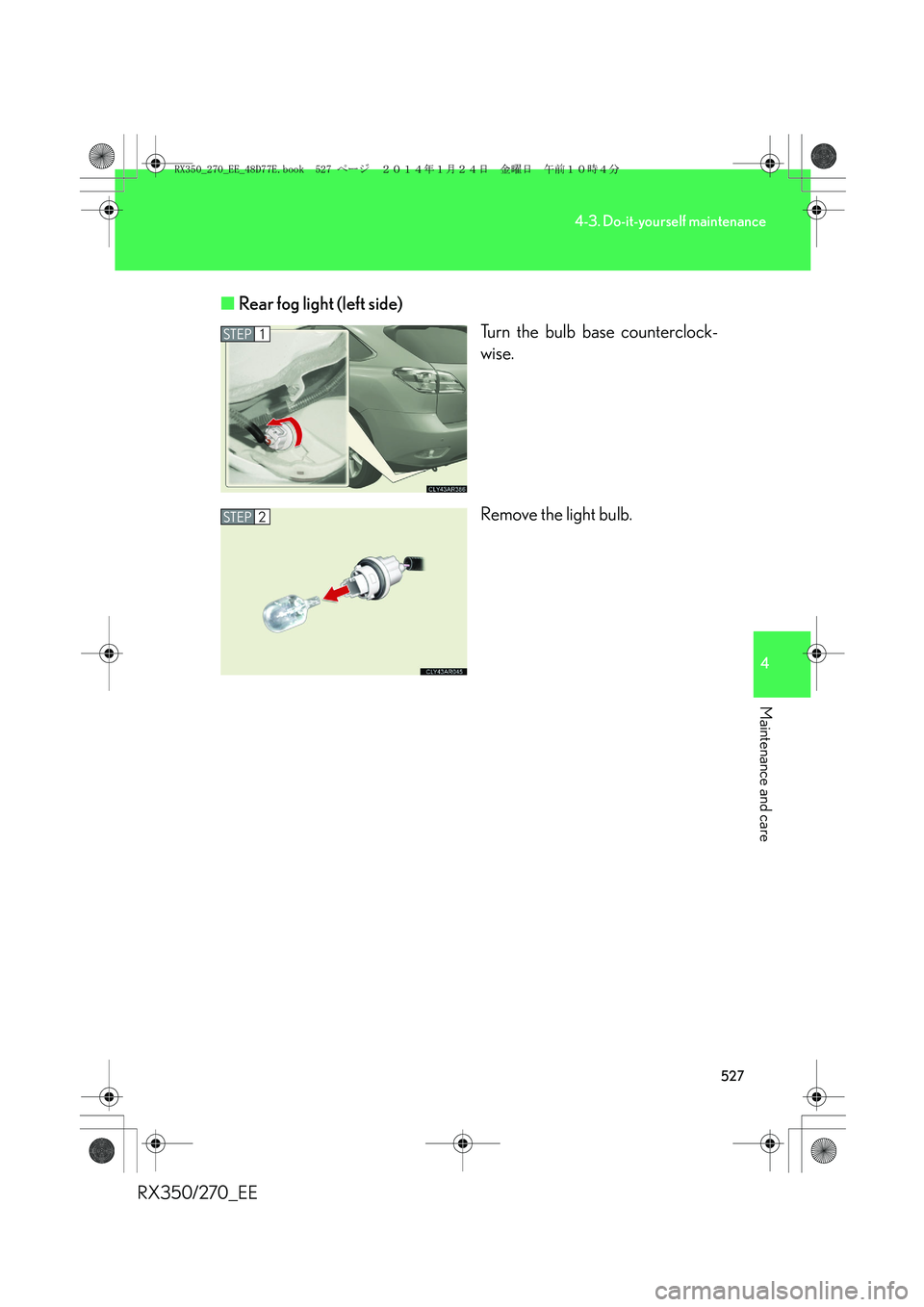

RX350/270_EE■Rear fog light (left side)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
RX350_270_EE_48D77E.book 527 ページ ２０１４年１月２４日　金曜日　午前１０時４分

528
4-3. Do-it-yourself maintenance
RX350/270_EE■Lights other than the above
If any of the lights listed below has burnt out, have it replaced by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●Discharge headlight low beams (if equipped)
●Daytime running lights
●Front position lights
●Side turn signal lights
●Stop lights
●High mounted stoplight
●License plate lights
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED bulbs
The daytime running lights, front position lights, side turn signal lights, stop lights,
high mounted stoplight and license plate lights consist of a number of LEDs. If any of
the LEDs burn out, take your vehicle to any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indi-
cate a malfunction. Contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional, for more information in the following situ-
ations:
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight
RX350_270_EE_48D77E.book 528 ページ ２０１４年１月２４日　金曜日　午前１０時４分

529
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning
off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth to avoid
getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Vehicles with discharge headlights:
While the low beam headlights are turned
on, and for a short time after they have
been turned off, metal components at the
rear of the headlight assembly will be
extremely hot. To prevent burns, do not
touch these metal components until you
are certain they have cooled down.Metal components
RX350_270_EE_48D77E.book 529 ページ ２０１４年１月２４日　金曜日　午前１０時４分

530
4-3. Do-it-yourself maintenance
RX350/270_EE
CAUTION
■Discharge headlights (if equipped)
●Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional, before replacing discharge headlights (including light
bulbs).
●Do not touch the discharge headlight’s high voltage socket when the headlights
are turned on.
An extremely high voltage of 30000 V will be discharged and could result in
serious injury or death by electric shock.
●Do not attempt to take apart or repair the low beam discharge headlight bulbs,
connectors, power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.
