LEXUS RX270 2014 Owners Manual

5
601
5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE

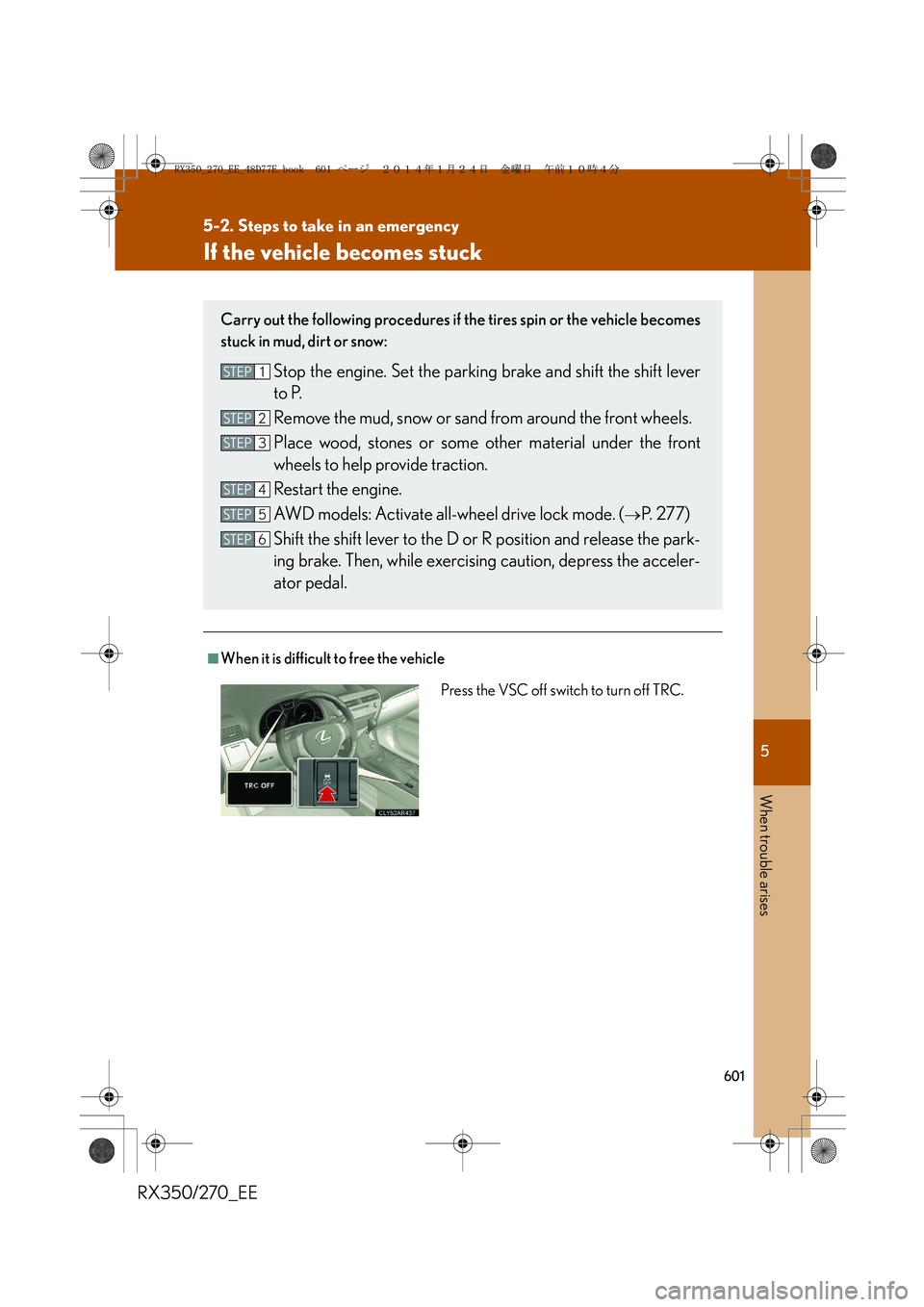

If the vehicle becomes stuck
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Stop the engine. Set the parking brake and shift the shift lever
to P.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front
wheels to help provide traction.
Restart the engine.
AWD models: Activate all-wheel drive lock mode. (
→P. 2 7 7 )
Shift the shift lever to the D or R position and release the park-
ing brake. Then, while exercising caution, depress the acceler-
ator pedal.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
Press the VSC off switch to turn off TRC.
RX350_270_EE_48D77E.book 601 ページ ２０１４年１月２４日　金曜日　午前１０時４分

602
5-2. Steps to take in an emergency
RX350/270_EE

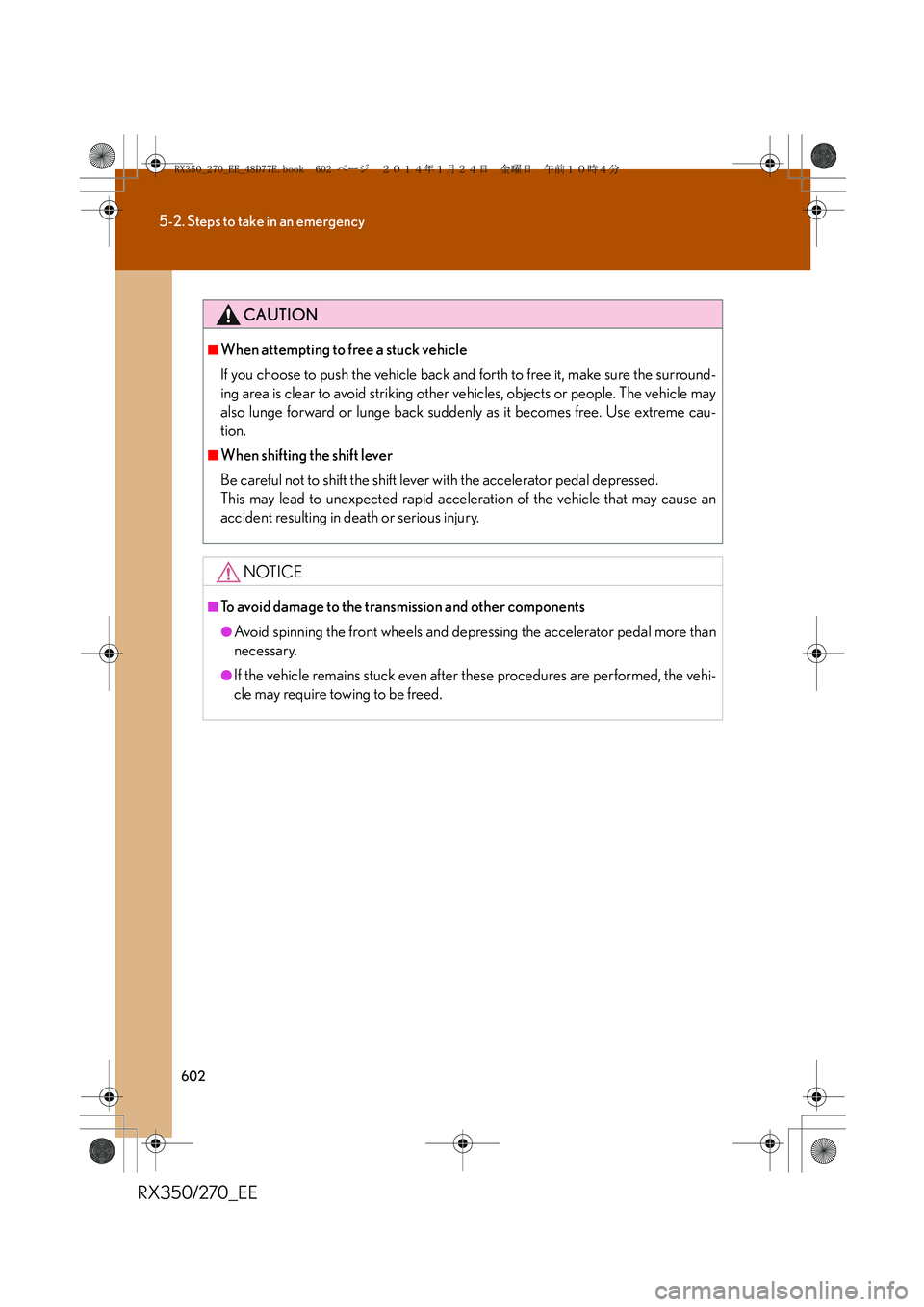

CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surround-
ing area is clear to avoid striking other vehicles, objects or people. The vehicle may
also lunge forward or lunge back suddenly as it becomes free. Use extreme cau-
tion.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident resulting in death or serious injury.
NOTICE
■To avoid damage to the transmission and other components
●Avoid spinning the front wheels and depressing the accelerator pedal more than
necessary.
●If the vehicle remains stuck even after these procedures are performed, the vehi-
cle may require towing to be freed.
RX350_270_EE_48D77E.book 602 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5
603
5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE

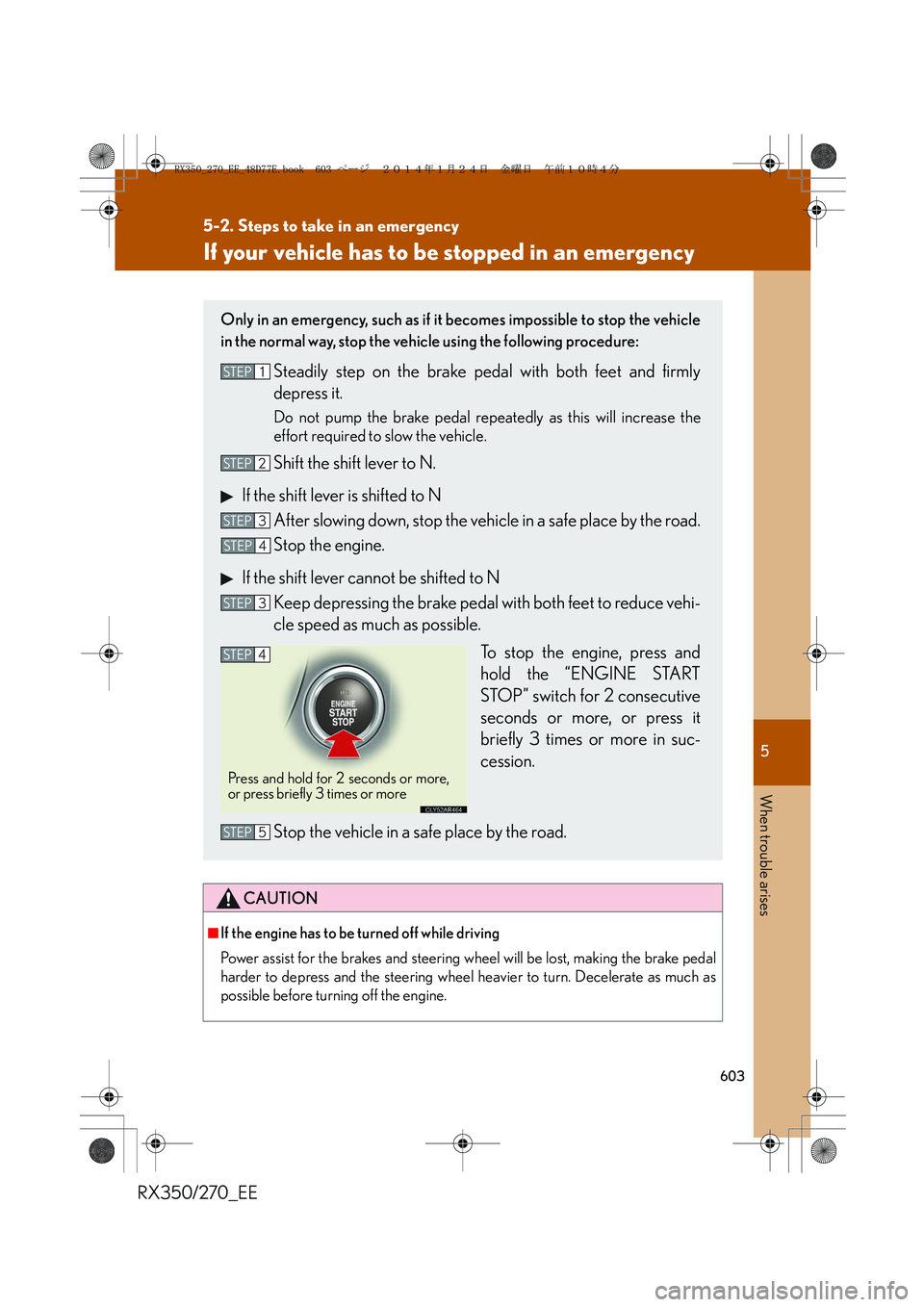

If your vehicle has to be stopped in an emergency
CAUTION
■If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake pedal
harder to depress and the steering wheel heavier to turn. Decelerate as much as
possible before turning off the engine.
Only in an emergency, such as if it becomes impossible to stop the vehicle
in the normal way, stop the vehicle using the following procedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehi-
cle speed as much as possible.
To stop the engine, press and
hold the “ENGINE START
STOP” switch for 2 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
STEP1
STEP2
STEP3
STEP4
STEP3
Press and hold for 2 seconds or more,
or press briefly 3 times or more
STEP4
STEP5
RX350_270_EE_48D77E.book 603 ページ ２０１４年１月２４日　金曜日　午前１０時４分

604
5-2. Steps to take in an emergency
RX350/270_EE
RX350_270_EE_48D77E.book 604 ページ ２０１４年１月２４日　金曜日　午前１０時４分

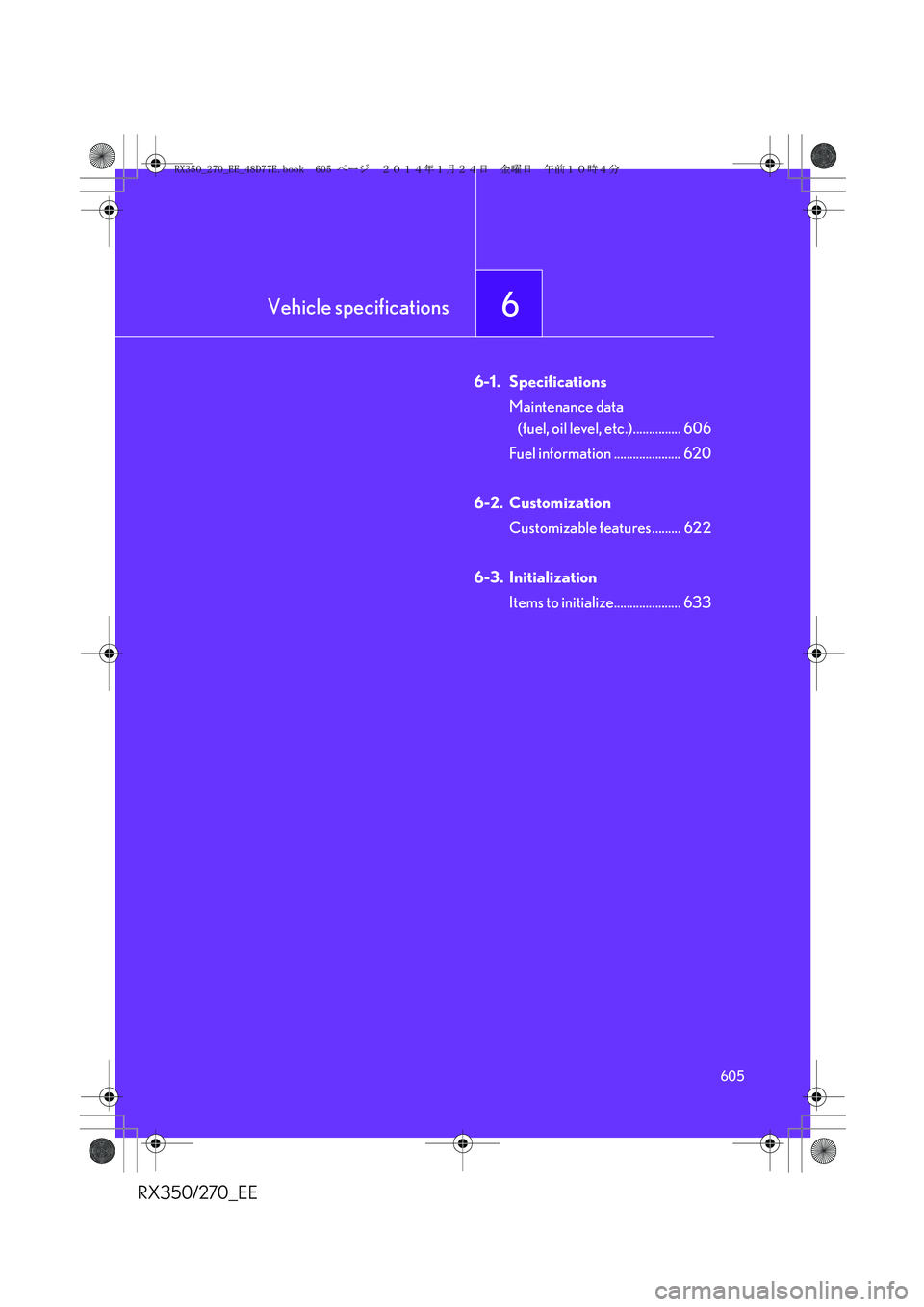

6Vehicle specifications
605
RX350/270_EE
6-1. Specifications
Maintenance data
(fuel, oil level, etc.)............... 606
Fuel information ..................... 620
6-2. Customization
Customizable features......... 622
6-3. Initialization
Items to initialize..................... 633
RX350_270_EE_48D77E.book 605 ページ ２０１４年１月２４日　金曜日　午前１０時４分

606
RX350/270_EE
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicles
*2: Vehicles without panoramic roof and roof rails
*3: Vehicles with panoramic roof
*4: Vehicles with roof rails and electronically modulated air suspension
*5: Vehicles with roof rails but without electronically modulated air suspension
*6: RX350 only
Overall length4770 mm (187.8 in.)
Overall width1885 mm (74.2 in.)
Overall height*1
1685 mm (66.3 in.)*2
1690 mm (66.5 in.)*3
1720 mm (67.7 in.)*4
1725 mm (67.9 in.)*5
Wheelbase2740 mm (107.9 in.)
Tr e a dFront1630 mm (64.1 in.)
Rear1625 mm (64.0 in.)
Gross vehicle mass
RX270
2410 kg (5313 lb.)
RX350
2545 kg (5611 lb.)
Maxi-
mum per-
missible
axle
capacityFront1490 kg (3285 lb.)
Rear1490 kg (3285 lb.)
Drawbar load*680 kg (176 lb.)
To w i n g
capac-
ity
*6
Wi th b rake2000 kg (4409 lb.)
Without brake750 kg (1653 lb.)
RX350_270_EE_48D77E.book 606 ページ ２０１４年１月２４日　金曜日　午前１０時４分

607
6-1. Specifications
6
Vehicle specifications
RX350/270_EE

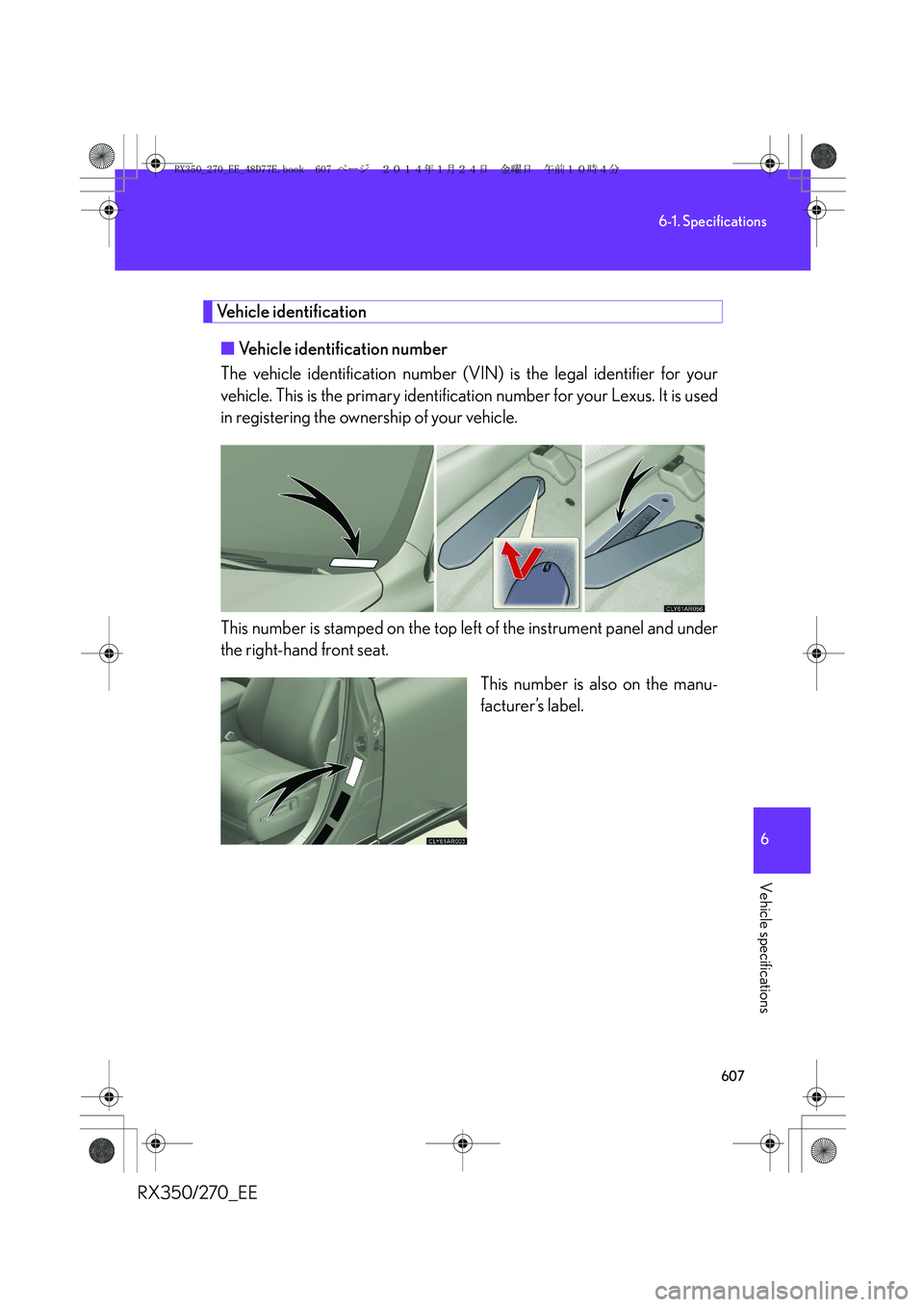

Vehicle identification
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and under
the right-hand front seat.
This number is also on the manu-
facturer’s label.
RX350_270_EE_48D77E.book 607 ページ ２０１４年１月２４日　金曜日　午前１０時４分

608
6-1. Specifications

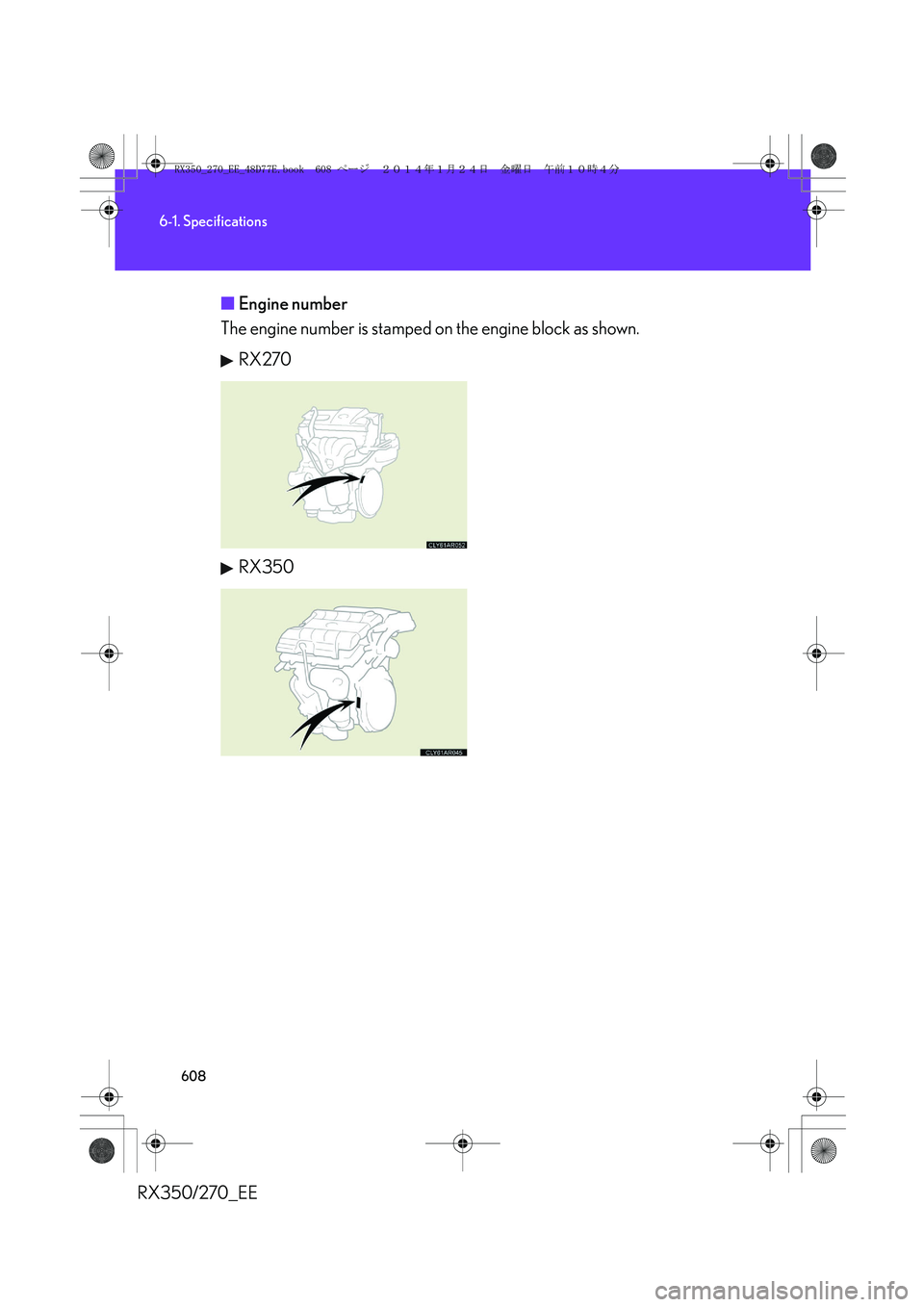

RX350/270_EE■Engine number
The engine number is stamped on the engine block as shown.
RX270
RX350
RX350_270_EE_48D77E.book 608 ページ ２０１４年１月２４日　金曜日　午前１０時４分

609
6-1. Specifications
6
Vehicle specifications
RX350/270_EE

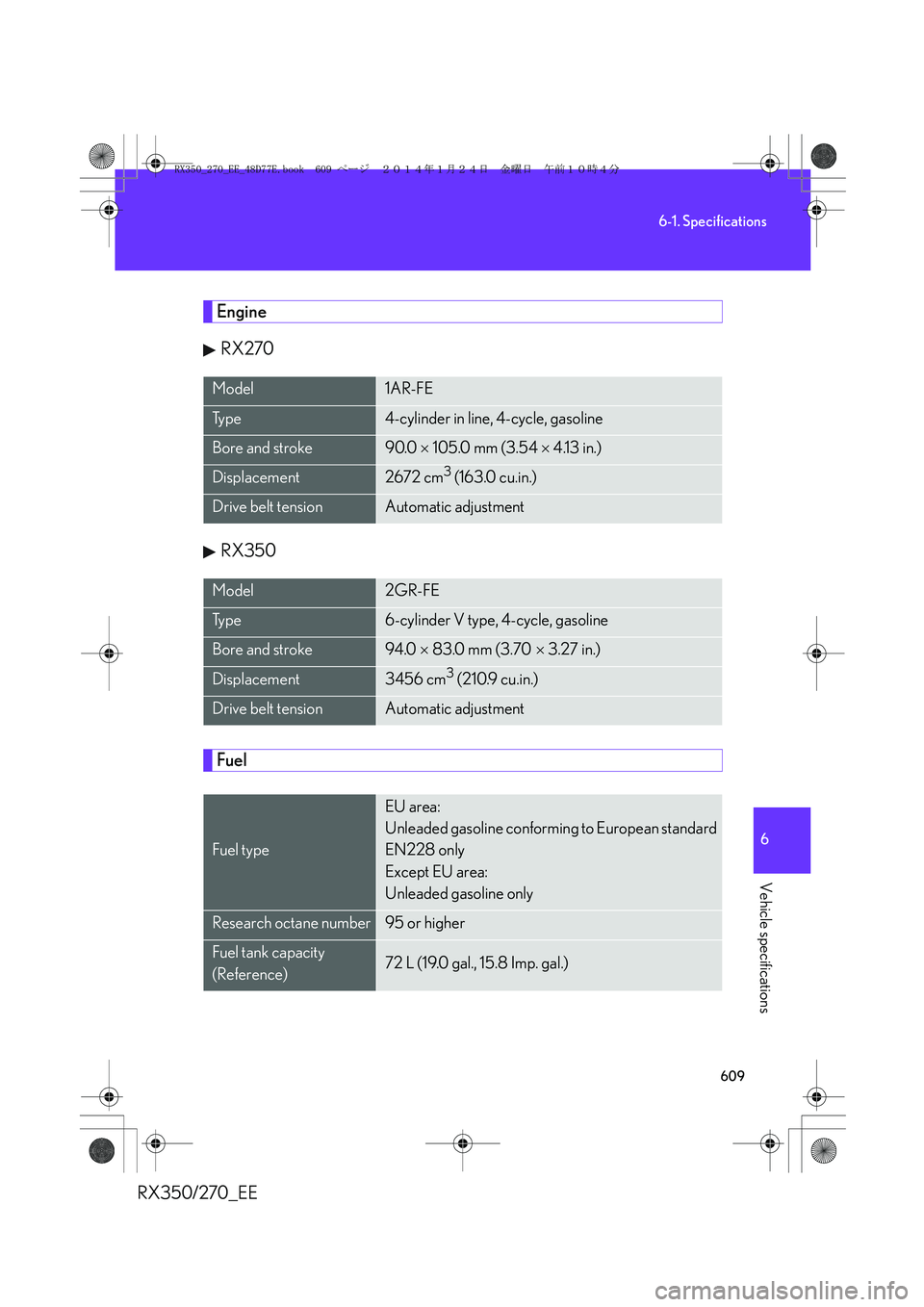

Engine
RX270
RX350
Fuel
Model1AR-FE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke90.0 × 105.0 mm (3.54 × 4.13 in.)
Displacement2672 cm3 (163.0 cu.in.)
Drive belt tensionAutomatic adjustment
Model2GR-FE
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0 × 83.0 mm (3.70 × 3.27 in.)
Displacement3456 cm3 (210.9 cu.in.)
Drive belt tensionAutomatic adjustment
Fuel type
EU area:
Unleaded gasoline conforming to European standard
EN228 only
Except EU area:
Unleaded gasoline only
Research octane number95 or higher
Fuel tank capacity
(Reference)72 L (19.0 gal., 15.8 Imp. gal.)
RX350_270_EE_48D77E.book 609 ページ ２０１４年１月２４日　金曜日　午前１０時４分

610
6-1. Specifications
RX350/270_EE

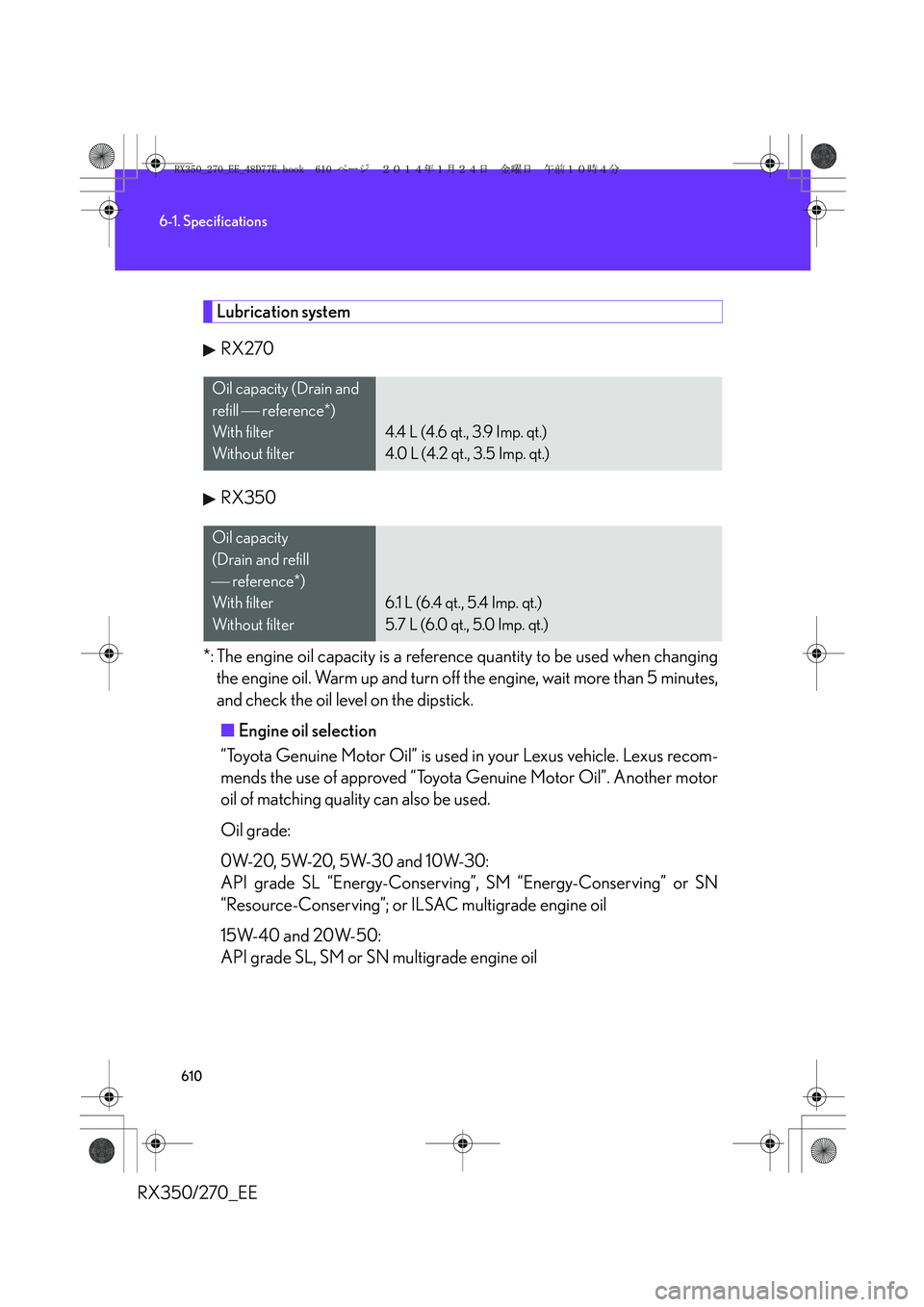

Lubrication system
RX270
RX350
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Genuine Motor Oil”. Another motor
oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Oil capacity (Drain and
refill  reference*)
With filter
Without filter
4.4 L (4.6 qt., 3.9 Imp. qt.)
4.0 L (4.2 qt., 3.5 Imp. qt.)
Oil capacity
(Drain and refill
 reference*)
With filter
Without filter
6.1 L (6.4 qt., 5.4 Imp. qt.)
5.7 L (6.0 qt., 5.0 Imp. qt.)
RX350_270_EE_48D77E.book 610 ページ ２０１４年１月２４日　金曜日　午前１０時４分
