LEXUS RX270 2014 Owners Manual

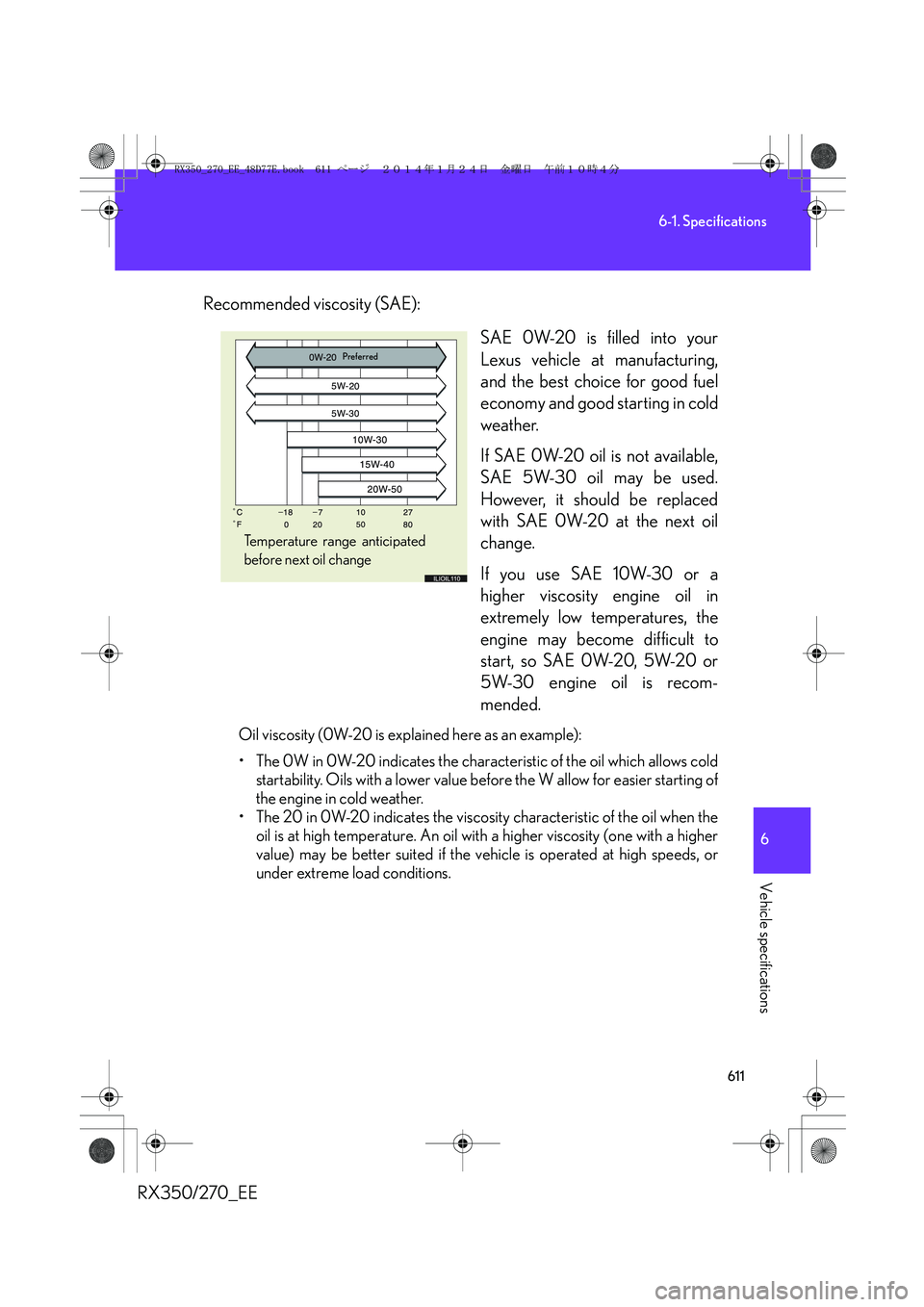

611
6-1. Specifications
6
Vehicle specifications
RX350/270_EERecommended viscosity (SAE):
SAE 0W-20 is filled into your
Lexus vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in cold
weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 0W-20, 5W-20 or
5W-30 engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred
RX350_270_EE_48D77E.book 611 ページ ２０１４年１月２４日　金曜日　午前１０時４分

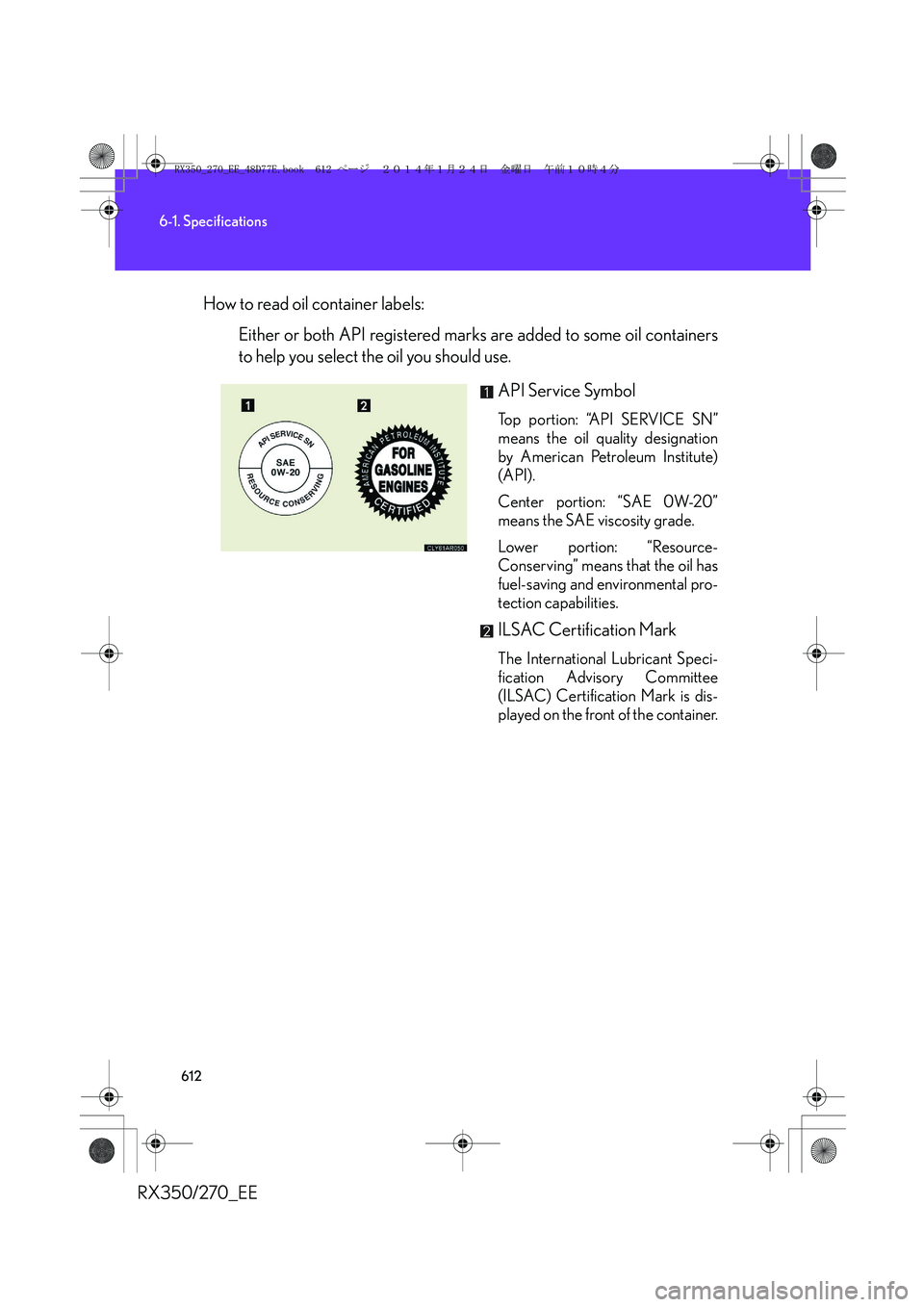

612
6-1. Specifications
RX350/270_EEHow to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation
by American Petroleum Institute)
(API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil has
fuel-saving and environmental pro-
tection capabilities.
ILSAC Certification Mark
The International Lubricant Speci-
fication Advisory Committee
(ILSAC) Certification Mark is dis-
played on the front of the container.
RX350_270_EE_48D77E.book 612 ページ ２０１４年１月２４日　金曜日　午前１０時４分

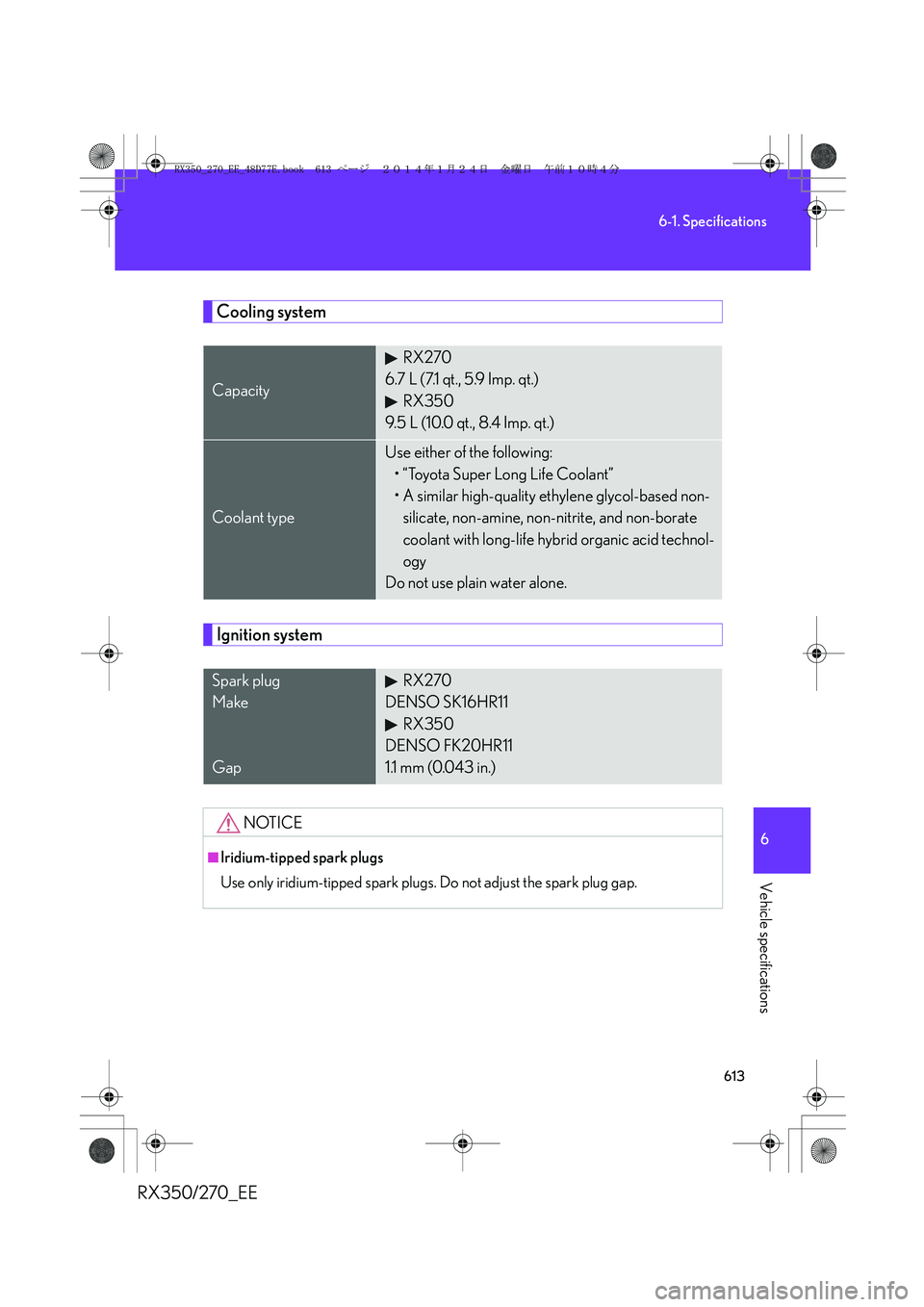

613
6-1. Specifications
6
Vehicle specifications
RX350/270_EE
Cooling system
Ignition system
Capacity
RX270
6.7 L (7.1 qt., 5.9 Imp. qt.)
RX350
9.5 L (10.0 qt., 8.4 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make
GapRX270
DENSO SK16HR11
RX350
DENSO FK20HR11
1.1 mm (0.043 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
RX350_270_EE_48D77E.book 613 ページ ２０１４年１月２４日　金曜日　午前１０時４分

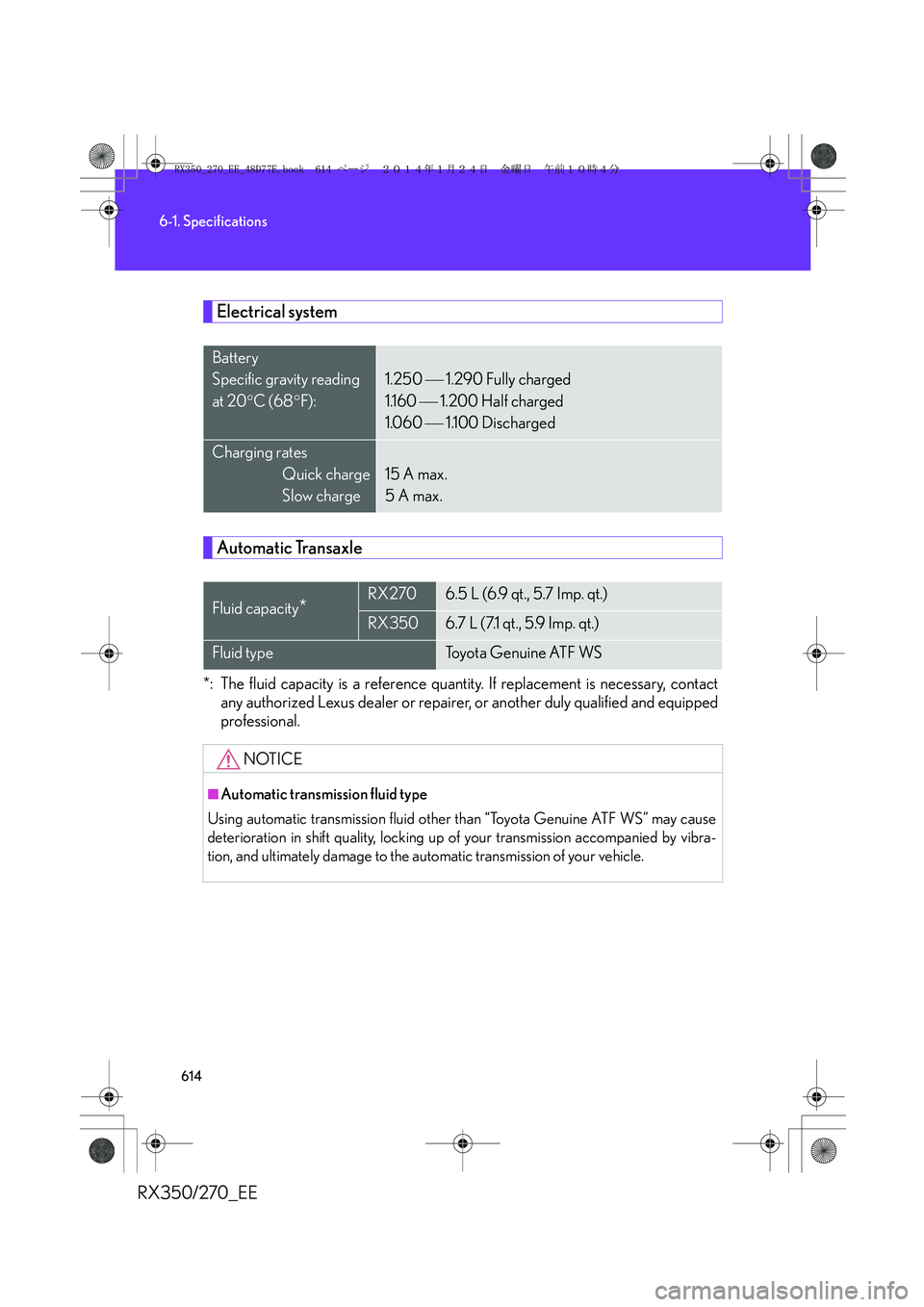

614
6-1. Specifications
RX350/270_EE
Electrical system
Automatic Transaxle
*: The fluid capacity is a reference quantity. If replacement is necessary, contact
any authorized Lexus dealer or repairer, or another duly qualified and equipped
professional.
Battery
Specific gravity reading
at 20°C (68°F):
1.250  1.290 Fully charged
1.160  1.200 Half charged
1.060  1.100 Discharged
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Fluid capacity*RX2706.5 L (6.9 qt., 5.7 Imp. qt.)
RX3506.7 L (7.1 qt., 5.9 Imp. qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Automatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by vibra-
tion, and ultimately damage to the automatic transmission of your vehicle.
RX350_270_EE_48D77E.book 614 ページ ２０１４年１月２４日　金曜日　午前１０時４分

615
6-1. Specifications
6
Vehicle specifications
RX350/270_EE
Transfer (RX350)
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an
equivalent oil of matching quality that satisfies the above specifications. Please
contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional for further details.
Rear differential (RX350)
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an
equivalent oil of matching quality that satisfies the above specifications. Please
contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional for further details.
Oil capacity0.8 L (0.8 qt., 0.7 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Oil capacity0.5 L (0.5 qt., 0.4 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
RX350_270_EE_48D77E.book 615 ページ ２０１４年１月２４日　金曜日　午前１０時４分

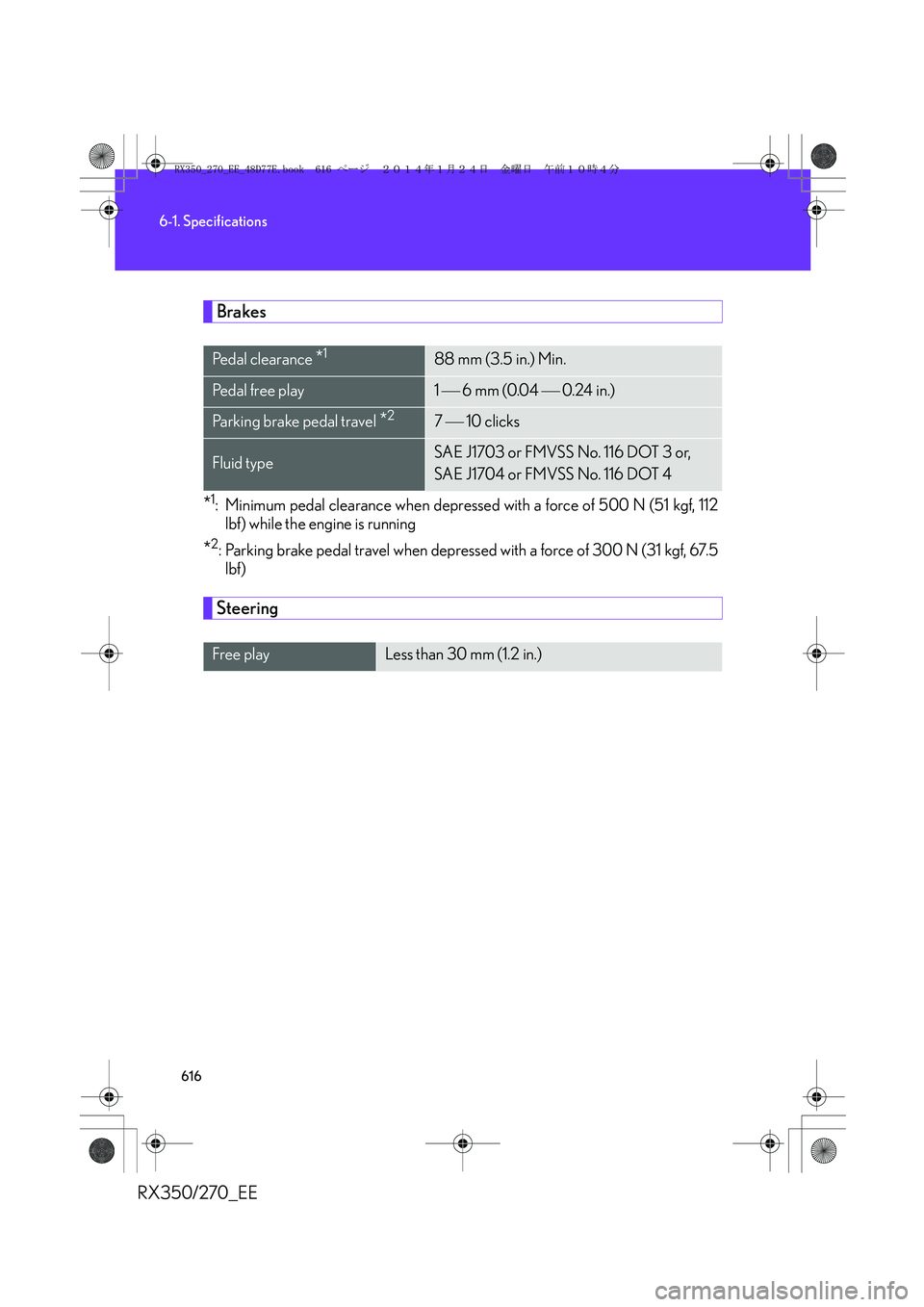

616
6-1. Specifications
RX350/270_EE
Brakes
*1: Minimum pedal clearance when depressed with a force of 500 N (51 kgf, 112
lbf) while the engine is running
*2: Parking brake pedal travel when depressed with a force of 300 N (31 kgf, 67.5
lbf)
Steering
Pe d a l c l e a r a n c e *188 mm (3.5 in.) Min.
Pedal free play1  6 mm (0.04  0.24 in.)
Parking brake pedal travel *27  10 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or,
SAE J1704 or FMVSS No. 116 DOT 4
Free playLess than 30 mm (1.2 in.)
RX350_270_EE_48D77E.book 616 ページ ２０１４年１月２４日　金曜日　午前１０時４分

617
6-1. Specifications
6
Vehicle specifications
RX350/270_EE
Tires and wheels
Type A
Type B
Ti r e s i z e235/60R18 103V, T165/90D18 107M (spare)
Tire inflation pressure
(front and rear)
(recommended cold tire
inflation pressure)
Vehicle speedFront wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 160
km/h (100 mph)240 (2.4, 35)260 (2.6, 38)
160 km/h (100
mph) or less220 (2.2, 32)220 (2.2, 32)
Tire inflation pressure
(spare)
(recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size18 × 7 1 /2J, 18 × 4T (spare)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Ti r e s i z e235/60R18 103V
Tire inflation pressure
(recommended cold tire
inflation pressure)
Vehicle speedFront wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 160
km/h (100 mph)240 (2.4, 35)260 (2.6, 38)
160 km/h (100
mph) or less220 (2.2, 32)220 (2.2, 32)
Wheel size18 × 7 1 /2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
RX350_270_EE_48D77E.book 617 ページ ２０１４年１月２４日　金曜日　午前１０時４分

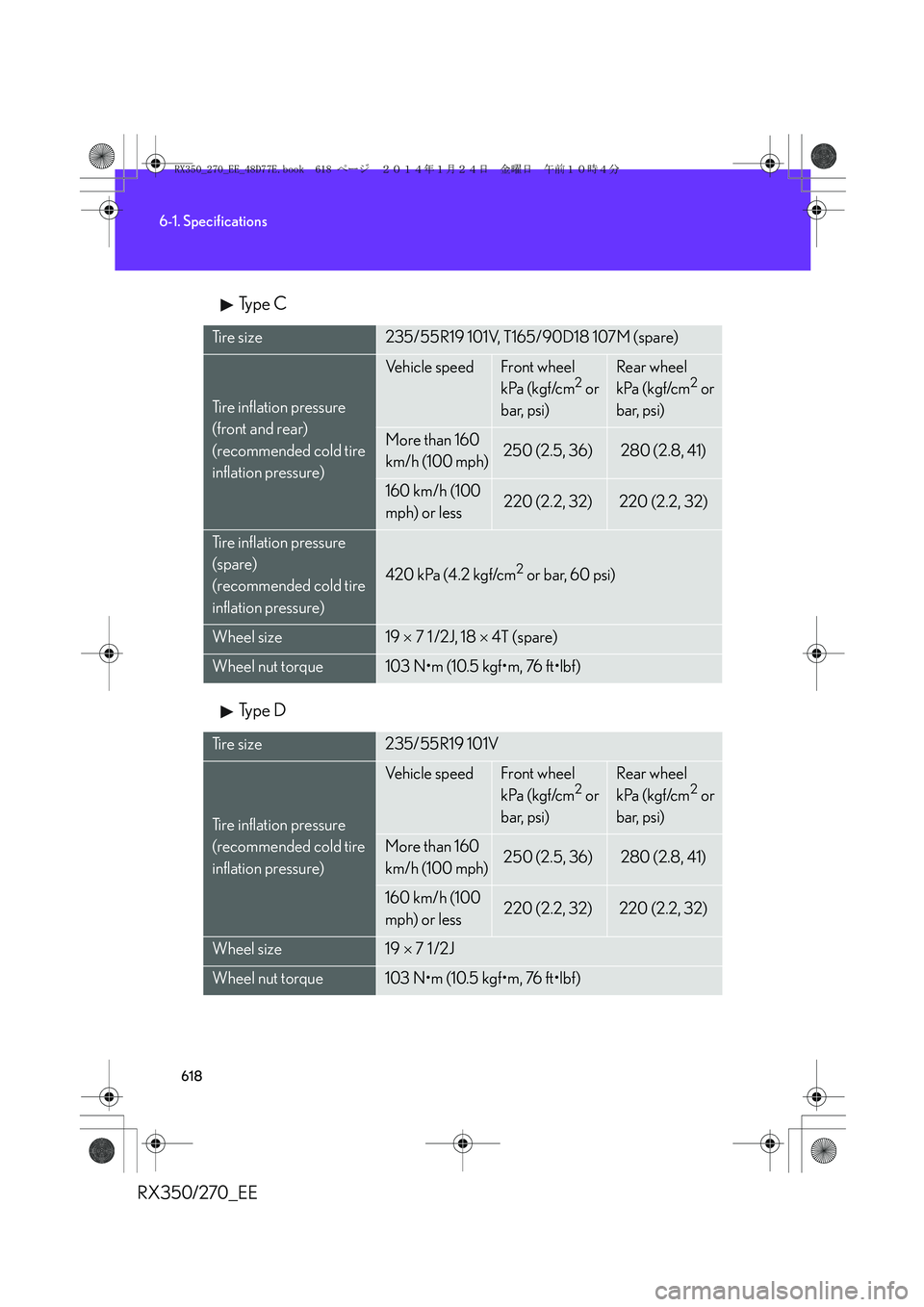

618
6-1. Specifications
RX350/270_EEType C
Type D
Ti r e s i z e235/55R19 101V, T165/90D18 107M (spare)
Tire inflation pressure
(front and rear)
(recommended cold tire
inflation pressure)
Vehicle speedFront wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 160
km/h (100 mph)250 (2.5, 36)280 (2.8, 41)
160 km/h (100
mph) or less220 (2.2, 32)220 (2.2, 32)
Tire inflation pressure
(spare)
(recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size19 × 7 1 /2J, 18 × 4T (spare)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Ti r e s i z e235/55R19 101V
Tire inflation pressure
(recommended cold tire
inflation pressure)
Ve h i c l e s p e e dFront wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 160
km/h (100 mph)250 (2.5, 36)280 (2.8, 41)
160 km/h (100
mph) or less220 (2.2, 32)220 (2.2, 32)
Wheel size19 × 7 1 /2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
RX350_270_EE_48D77E.book 618 ページ ２０１４年１月２４日　金曜日　午前１０時４分

619
6-1. Specifications
6
Vehicle specifications
RX350/270_EE
Light bulbs
A: H9 halogen bulbs B: D4S discharge bulbs
C: H11 halogen bulbs D: Wedge base bulbs (amber)
E: H16 halogen bulbs F: Wedge base bulbs (clear)
*: If equipped
Light bulbsWTy p e
Exterior
Headlights
High beam
Low beam (discharge bulbs)*
Low beam (halogen bulbs)*
65
35
55A
B
C
Front turn signal lights21D
Front fog lights19E
Rear turn signal lights21D
Tail lights5F
Back-up lights16F
Rear fog lights21F
Outer foot lights5F
Interior
Vanity lights8F
Front interior lights5F
Rear interior light8F
Luggage compartment lights5F
Door courtesy lights5F
Footwell lights3.8F
RX350_270_EE_48D77E.book 619 ページ ２０１４年１月２４日　金曜日　午前１０時４分

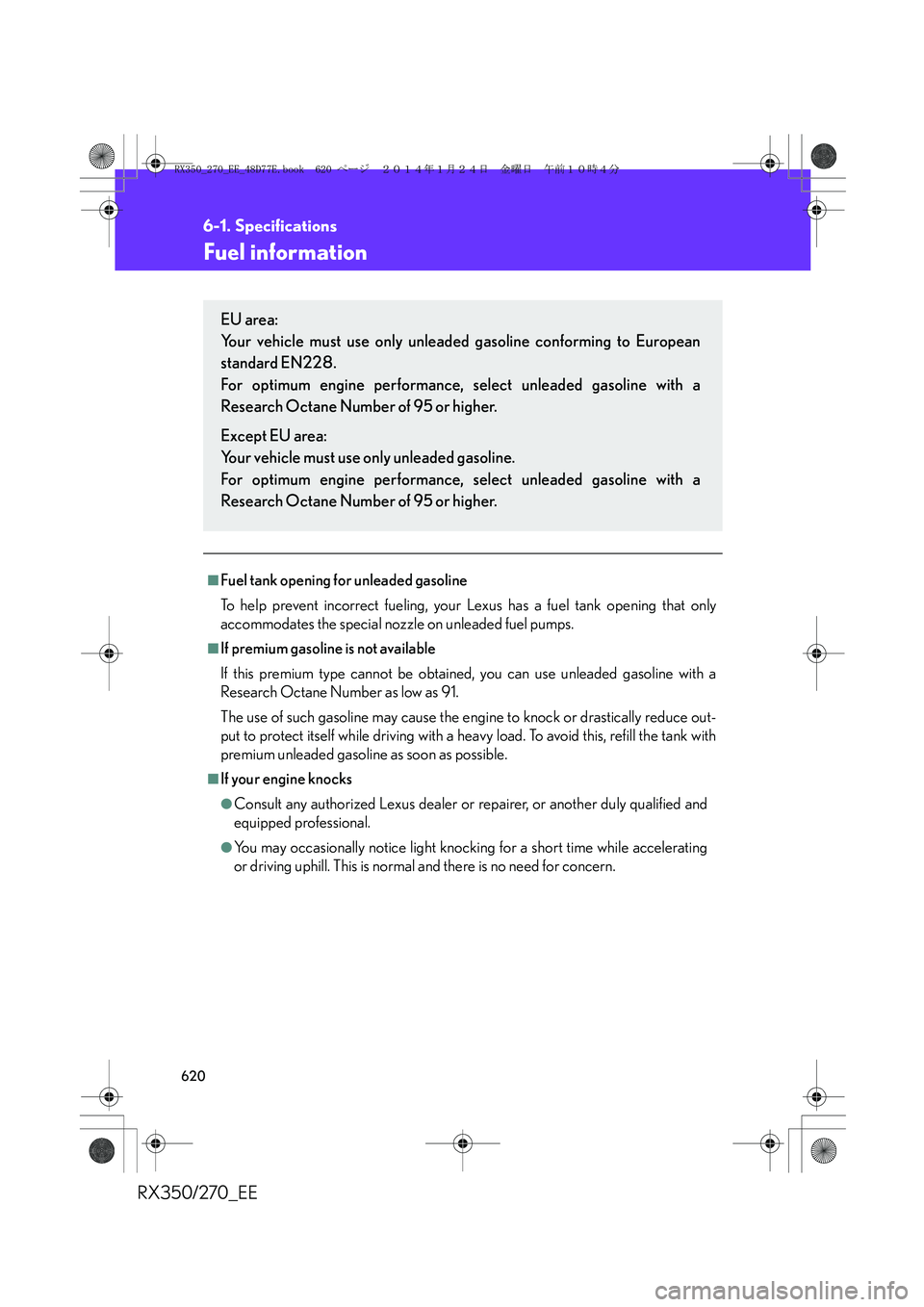

620
6-1. Specifications
RX350/270_EE
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■If premium gasoline is not available
If this premium type cannot be obtained, you can use unleaded gasoline with a
Research Octane Number as low as 91.
The use of such gasoline may cause the engine to knock or drastically reduce out-
put to protect itself while driving with a heavy load. To avoid this, refill the tank with
premium unleaded gasoline as soon as possible.
■If your engine knocks
●Consult any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
EU area:
Your vehicle must use only unleaded gasoline conforming to European
standard EN228.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
RX350_270_EE_48D77E.book 620 ページ ２０１４年１月２４日　金曜日　午前１０時４分
