LEXUS RX270 2014 Owners Manual

5
591
5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE

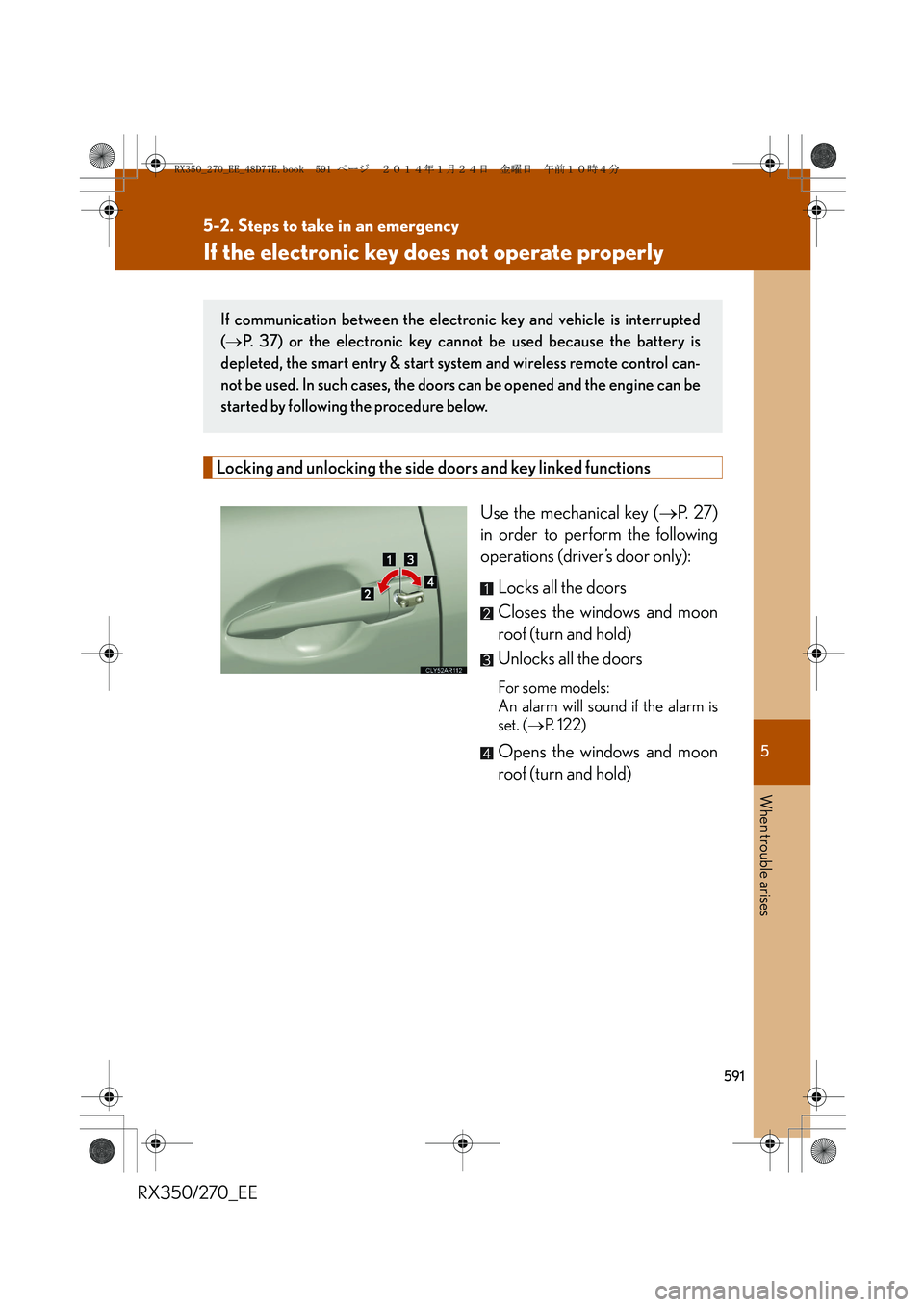

If the electronic key does not operate properly
Locking and unlocking the side doors and key linked functions
Use the mechanical key (→P. 2 7 )
in order to perform the following
operations (driver’s door only):
Locks all the doors
Closes the windows and moon
roof (turn and hold)
Unlocks all the doors
For some models:
An alarm will sound if the alarm is
set. (→P. 122)
Opens the windows and moon
roof (turn and hold)
If communication between the electronic key and vehicle is interrupted
(→P. 37) or the electronic key cannot be used because the battery is
depleted, the smart entry & start system and wireless remote control can-
not be used. In such cases, the doors can be opened and the engine can be
started by following the procedure below.
RX350_270_EE_48D77E.book 591 ページ ２０１４年１月２４日　金曜日　午前１０時４分

592
5-2. Steps to take in an emergency
RX350/270_EE

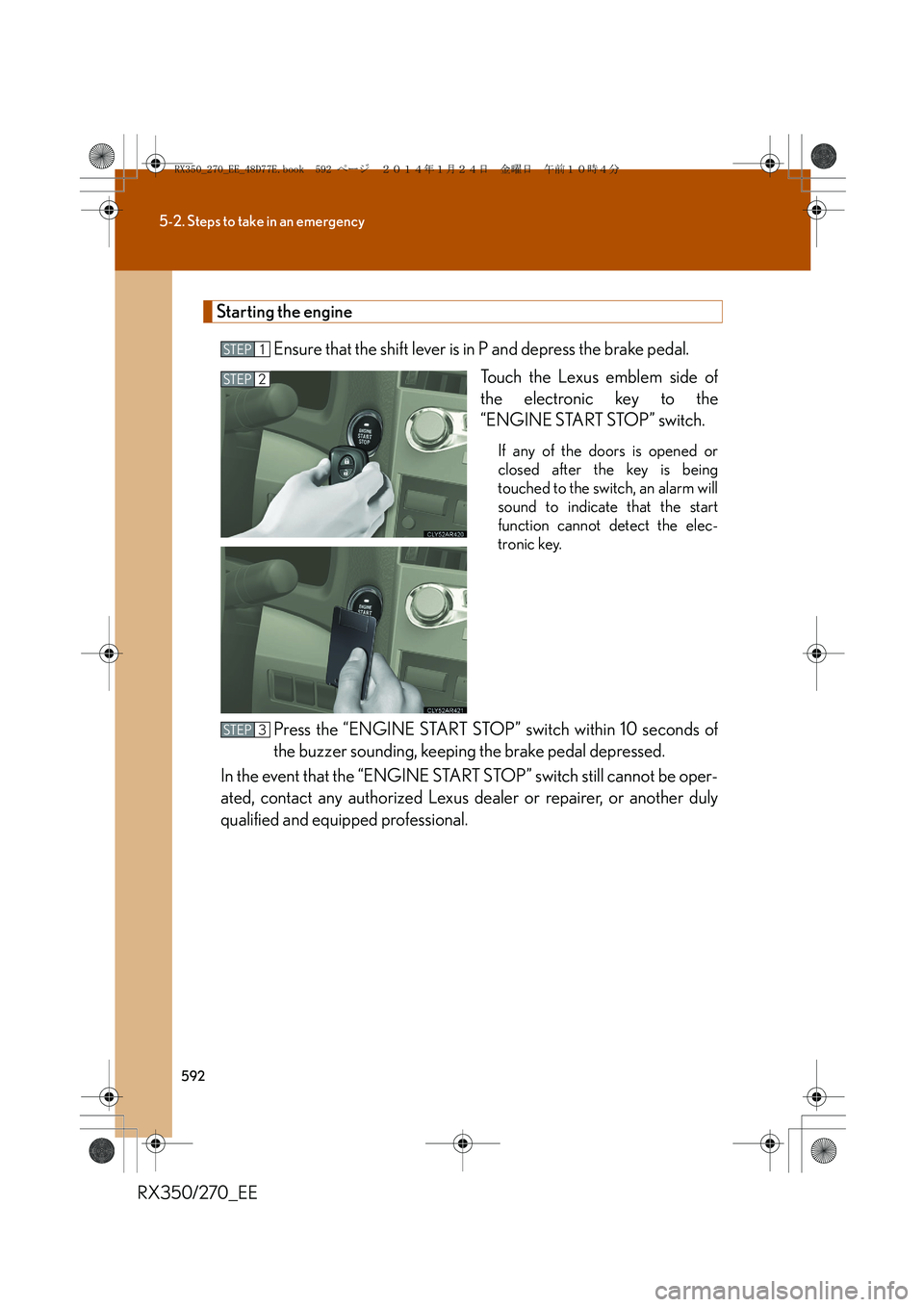

Starting the engine
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of
the electronic key to the
“ENGINE START STOP” switch.
If any of the doors is opened or
closed after the key is being
touched to the switch, an alarm will
sound to indicate that the start
function cannot detect the elec-
tronic key.
Press the “ENGINE START STOP” switch within 10 seconds of
the buzzer sounding, keeping the brake pedal depressed.
In the event that the “ENGINE START STOP” switch still cannot be oper-
ated, contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 592 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5
593
5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE
■Stopping the engine
Shift the shift lever to P and press the “ENGINE START STOP” switch as you nor-
mally do when stopping the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the elec-
tronic key battery be replaced immediately when the battery is depleted.
(→P. 5 0 1 )
■Alarm
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set, the
alarm may be triggered. (→P. 1 2 2 )
■Changing “ENGINE START STOP” switch modes
Within 10 seconds of the buzzer sounding, release the brake pedal and press the
“ENGINE START STOP” switch.
The engine does not start and modes will be changed each time the switch is
pressed. (→P. 1 8 1 )
RX350_270_EE_48D77E.book 593 ページ ２０１４年１月２４日　金曜日　午前１０時４分

594
5-2. Steps to take in an emergency
RX350/270_EE

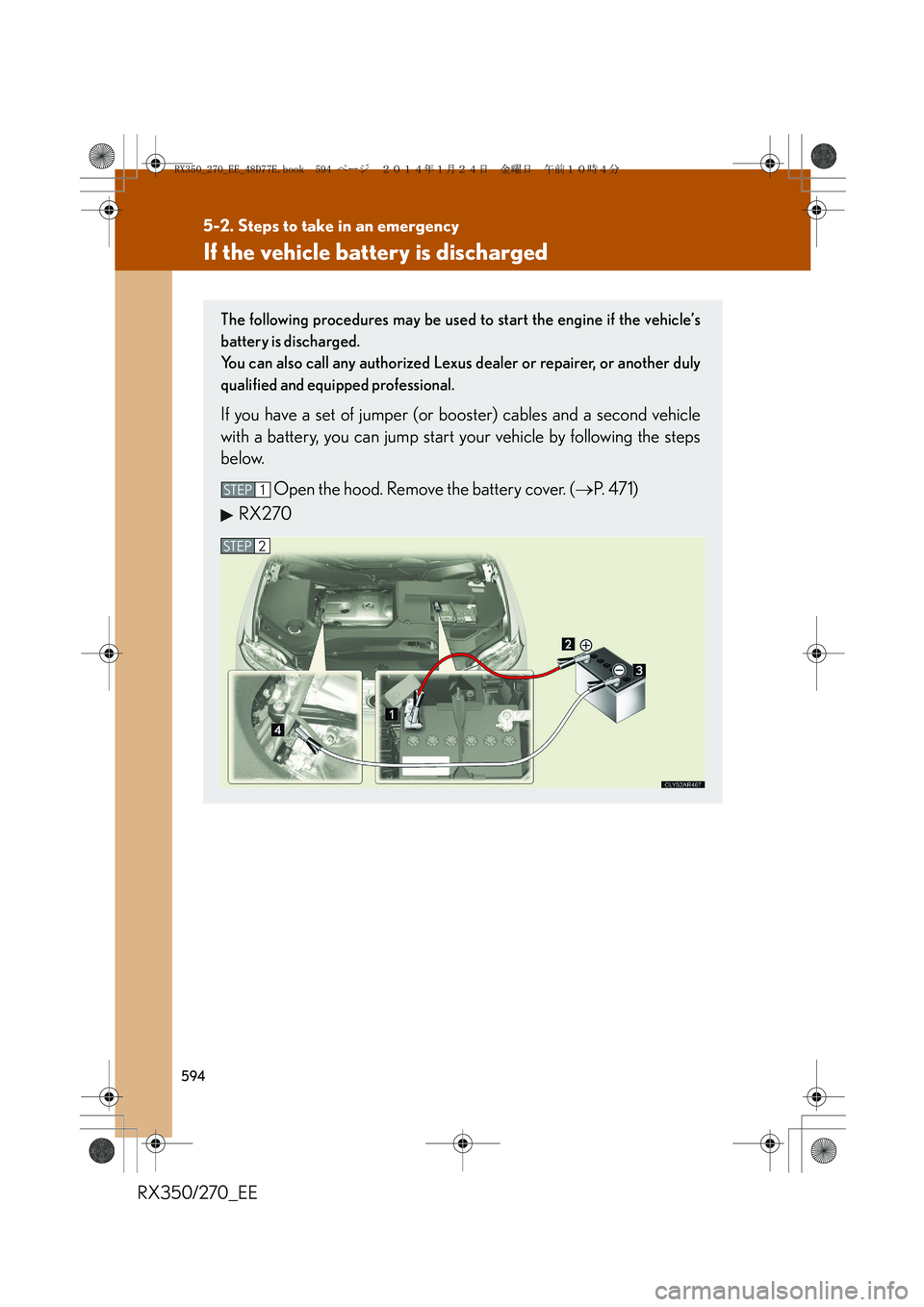

If the vehicle battery is discharged
The following procedures may be used to start the engine if the vehicle’s
battery is discharged.
You can also call any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
If you have a set of jumper (or booster) cables and a second vehicle
with a battery, you can jump start your vehicle by following the steps
below.
Open the hood. Remove the battery cover. (→P. 4 7 1 )
RX270
STEP1
STEP2
RX350_270_EE_48D77E.book 594 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5
595
5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE

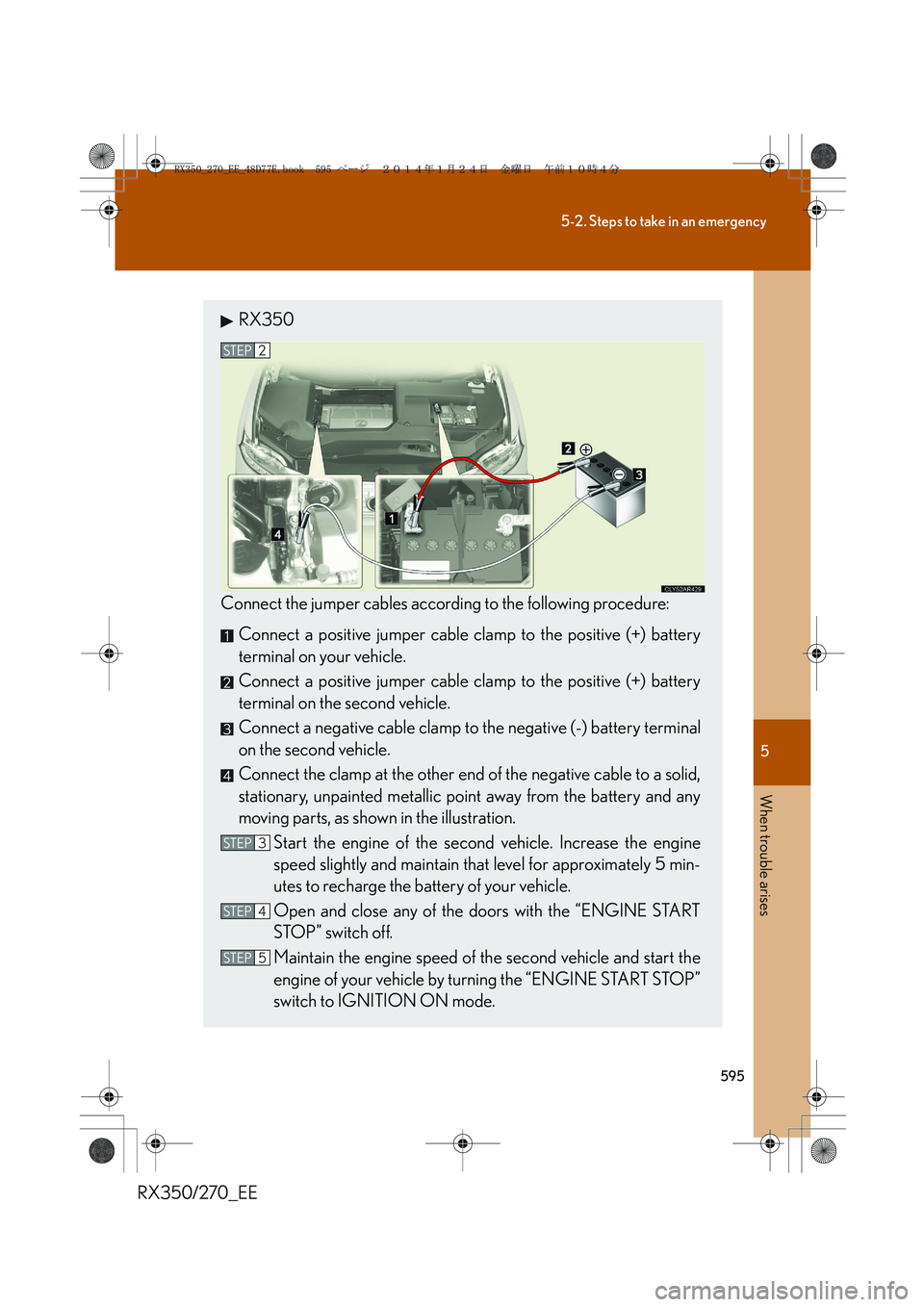

RX350
Connect the jumper cables according to the following procedure:
Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect a positive jumper cable clamp to the positive (+) battery
terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery terminal
on the second vehicle.
Connect the clamp at the other end of the negative cable to a solid,
stationary, unpainted metallic point away from the battery and any
moving parts, as shown in the illustration.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain that level for approximately 5 min-
utes to recharge the battery of your vehicle.
Open and close any of the doors with the “ENGINE START
STOP” switch off.
Maintain the engine speed of the second vehicle and start the
engine of your vehicle by turning the “ENGINE START STOP”
switch to IGNITION ON mode.
STEP2
STEP3
STEP4
STEP5
RX350_270_EE_48D77E.book 595 ページ ２０１４年１月２４日　金曜日　午前１０時４分

596
5-2. Steps to take in an emergency
RX350/270_EE

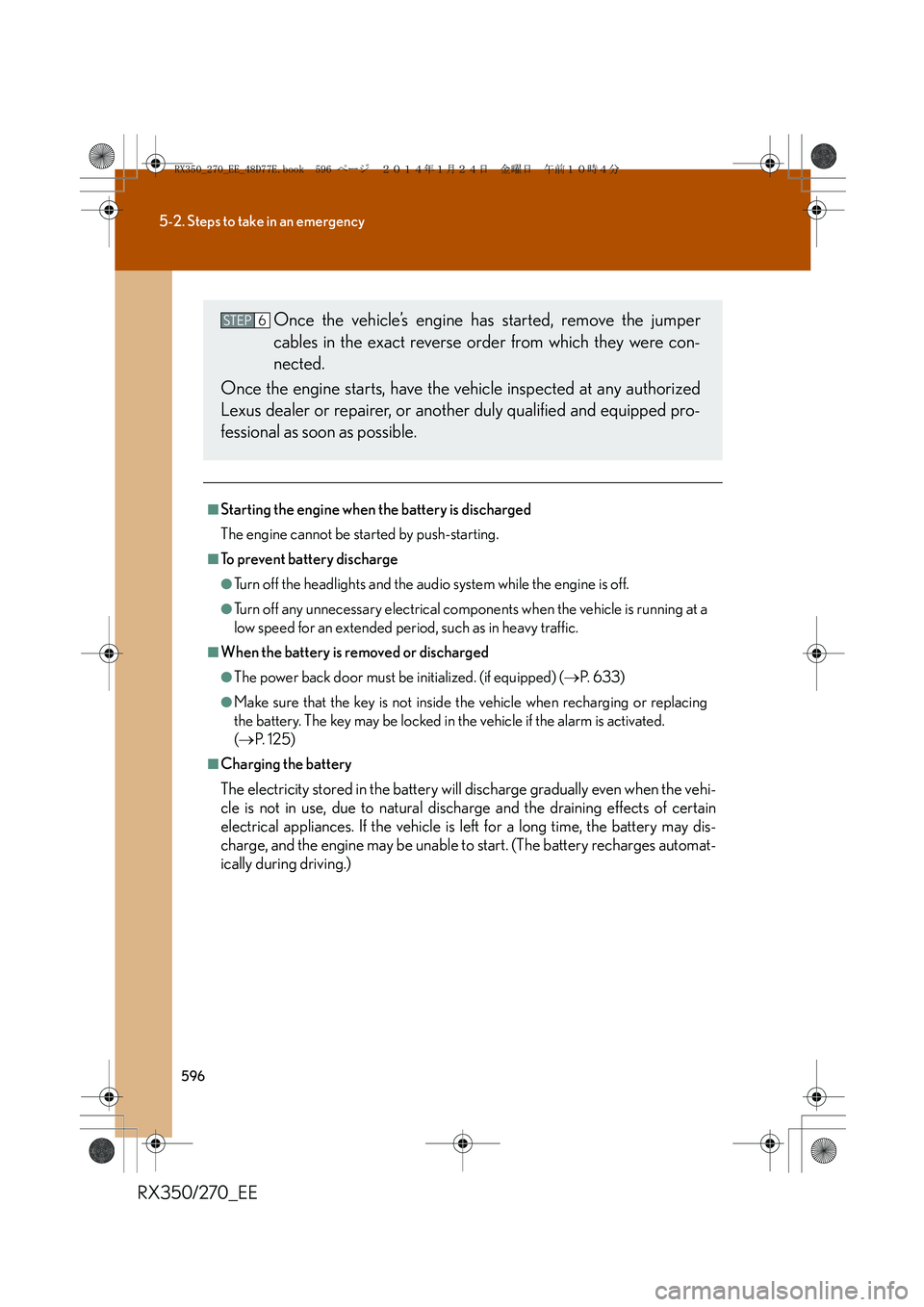

■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic.
■When the battery is removed or discharged
●The power back door must be initialized. (if equipped) (→P. 6 3 3 )
●Make sure that the key is not inside the vehicle when recharging or replacing
the battery. The key may be locked in the vehicle if the alarm is activated.
(→P. 1 2 5 )
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehi-
cle is not in use, due to natural discharge and the draining effects of certain
electrical appliances. If the vehicle is left for a long time, the battery may dis-
charge, and the engine may be unable to start. (The battery recharges automat-
ically during driving.)
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order from which they were con-
nected.
Once the engine starts, have the vehicle inspected at any authorized
Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.STEP6
RX350_270_EE_48D77E.book 596 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5
597
5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE

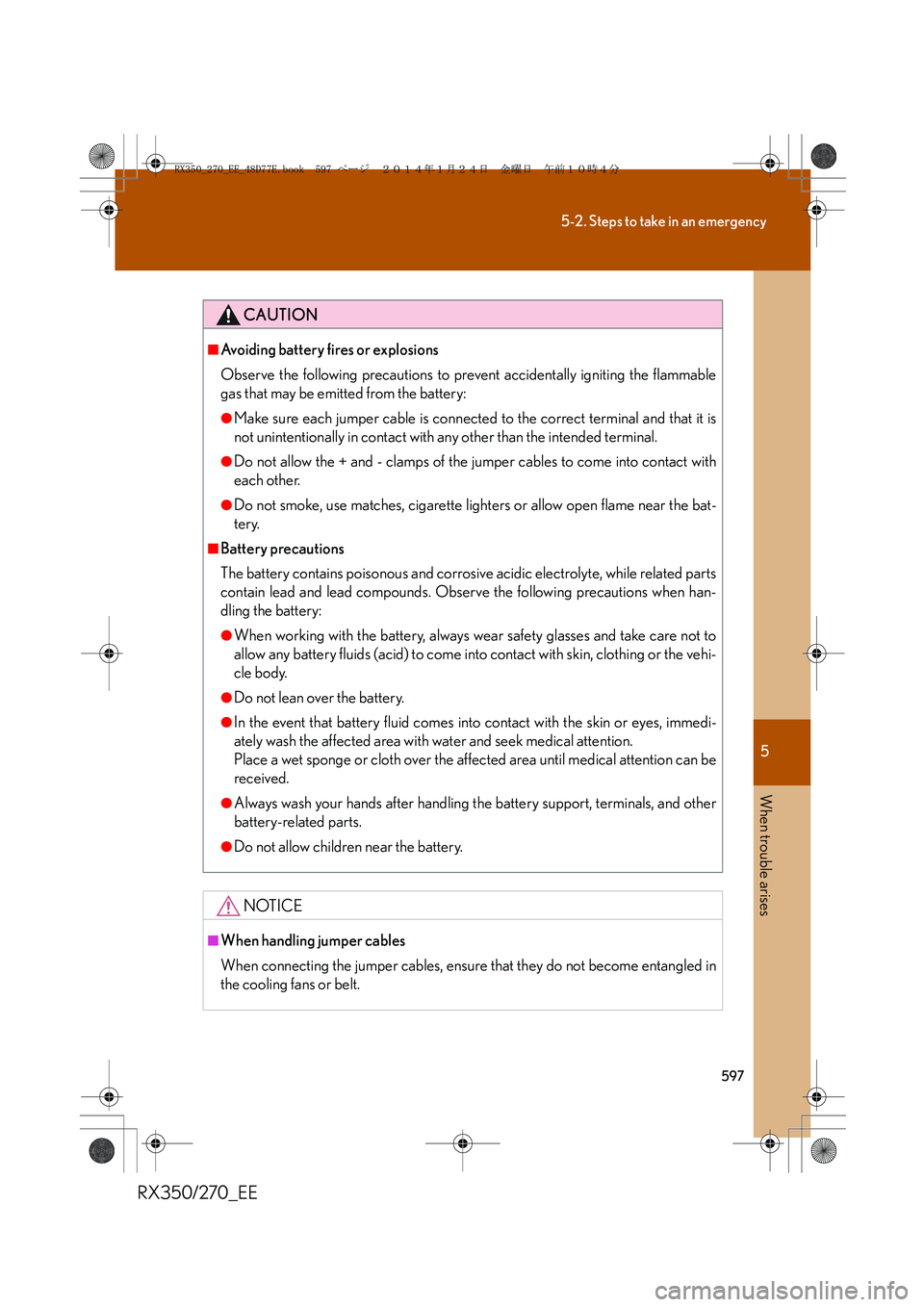

CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery:
●Make sure each jumper cable is connected to the correct terminal and that it is
not unintentionally in contact with any other than the intended terminal.
●Do not allow the + and - clamps of the jumper cables to come into contact with
each other.
●Do not smoke, use matches, cigarette lighters or allow open flame near the bat-
tery.
■Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while related parts
contain lead and lead compounds. Observe the following precautions when han-
dling the battery:
●When working with the battery, always wear safety glasses and take care not to
allow any battery fluids (acid) to come into contact with skin, clothing or the vehi-
cle body.
●Do not lean over the battery.
●In the event that battery fluid comes into contact with the skin or eyes, immedi-
ately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
●Always wash your hands after handling the battery support, terminals, and other
battery-related parts.
●Do not allow children near the battery.
NOTICE
■When handling jumper cables
When connecting the jumper cables, ensure that they do not become entangled in
the cooling fans or belt.
RX350_270_EE_48D77E.book 597 ページ ２０１４年１月２４日　金曜日　午前１０時４分

598
5-2. Steps to take in an emergency
RX350/270_EE
If your vehicle overheats
Correction procedures
Stop the vehicle in a safe place and turn off the air conditioning
system, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down
sufficiently, inspect the hoses and
radiator core (radiator) for any
leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact any autho-
rized Lexus dealer or repairer, or
another duly qualified and
equipped professional.
The coolant level is satisfactory if it
is between the “FULL” and “LOW”
lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
“Radiator cap
The following may indicate that your vehicle is overheating.
●“ENGINE OVERHEAT” is shown on the multi-information display.
●Steam comes out from under the hood.
STEP1
STEP2
STEP3
STEP4
RX350_270_EE_48D77E.book 598 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5
599
5-2. Steps to take in an emergency
When trouble arises

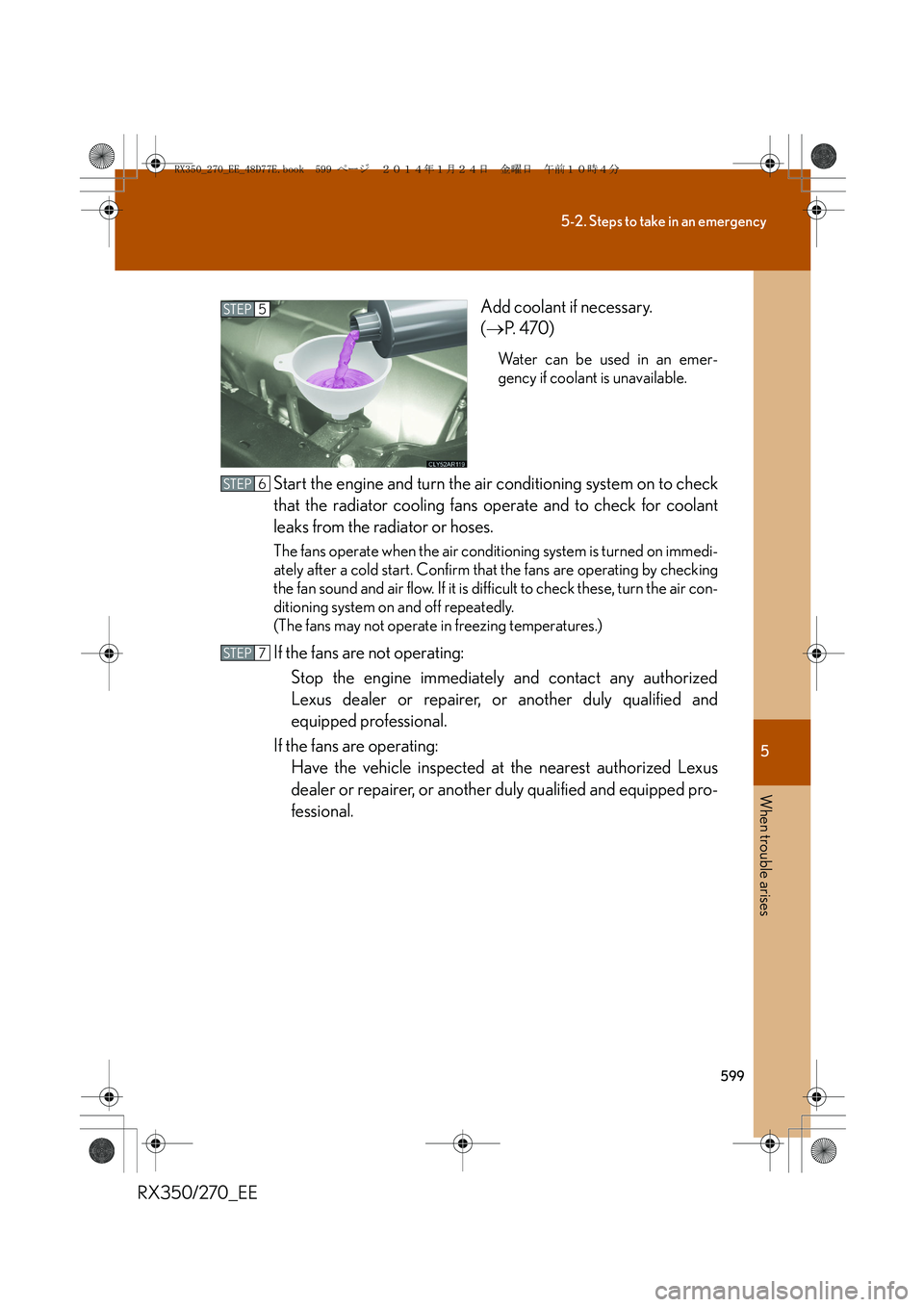

RX350/270_EEAdd coolant if necessary.
(→P. 4 7 0 )
Water can be used in an emer-
gency if coolant is unavailable.
Start the engine and turn the air conditioning system on to check
that the radiator cooling fans operate and to check for coolant
leaks from the radiator or hoses.
The fans operate when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fans are operating by checking
the fan sound and air flow. If it is difficult to check these, turn the air con-
ditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately and contact any authorized
Lexus dealer or repairer, or another duly qualified and
equipped professional.
If the fans are operating:
Have the vehicle inspected at the nearest authorized Lexus
dealer or repairer, or another duly qualified and equipped pro-
fessional.
STEP5
STEP6
STEP7
RX350_270_EE_48D77E.book 599 ページ ２０１４年１月２４日　金曜日　午前１０時４分

600
5-2. Steps to take in an emergency
RX350/270_EE

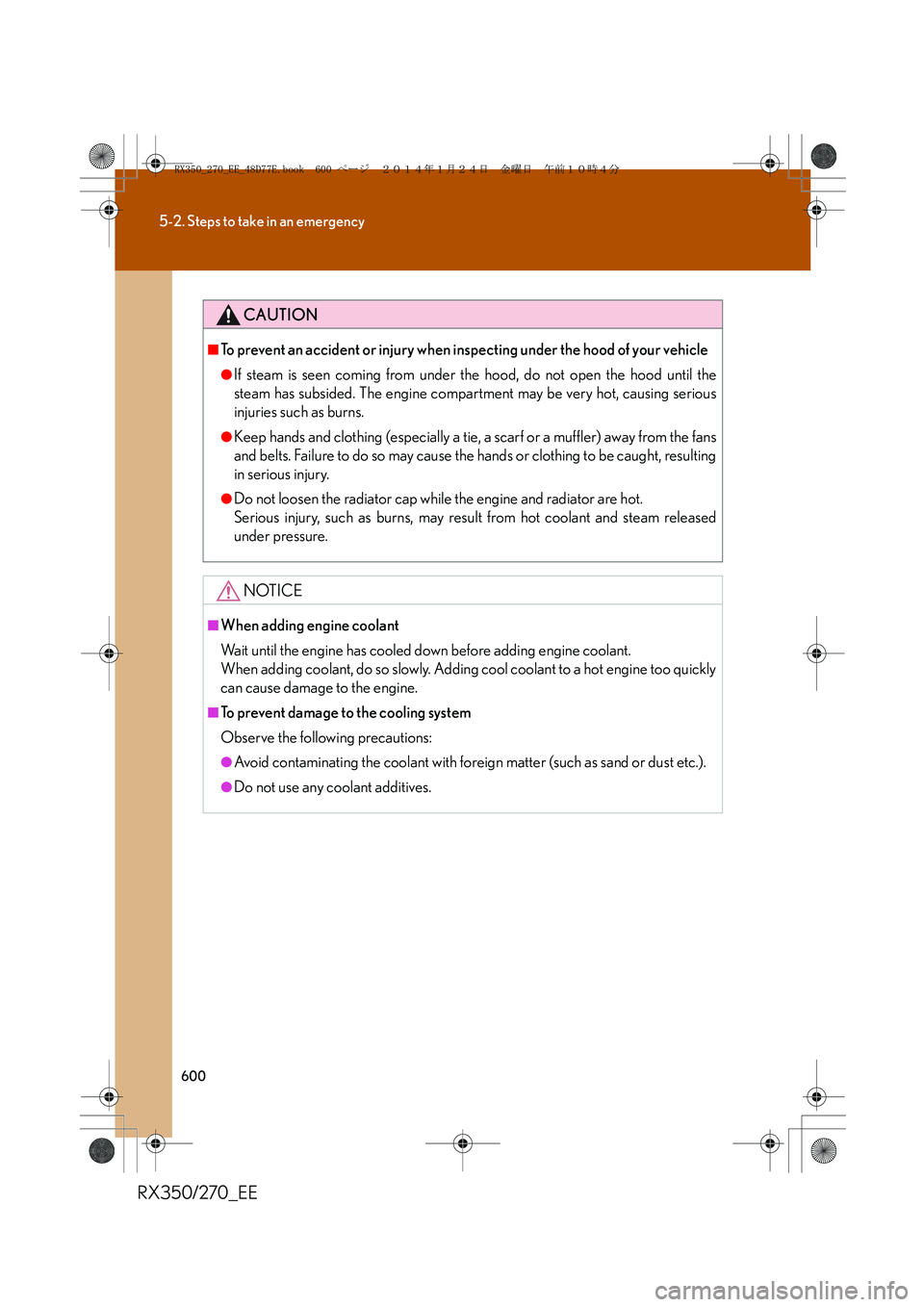

CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot, causing serious
injuries such as burns.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans
and belts. Failure to do so may cause the hands or clothing to be caught, resulting
in serious injury.
●Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too quickly
can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additives.
