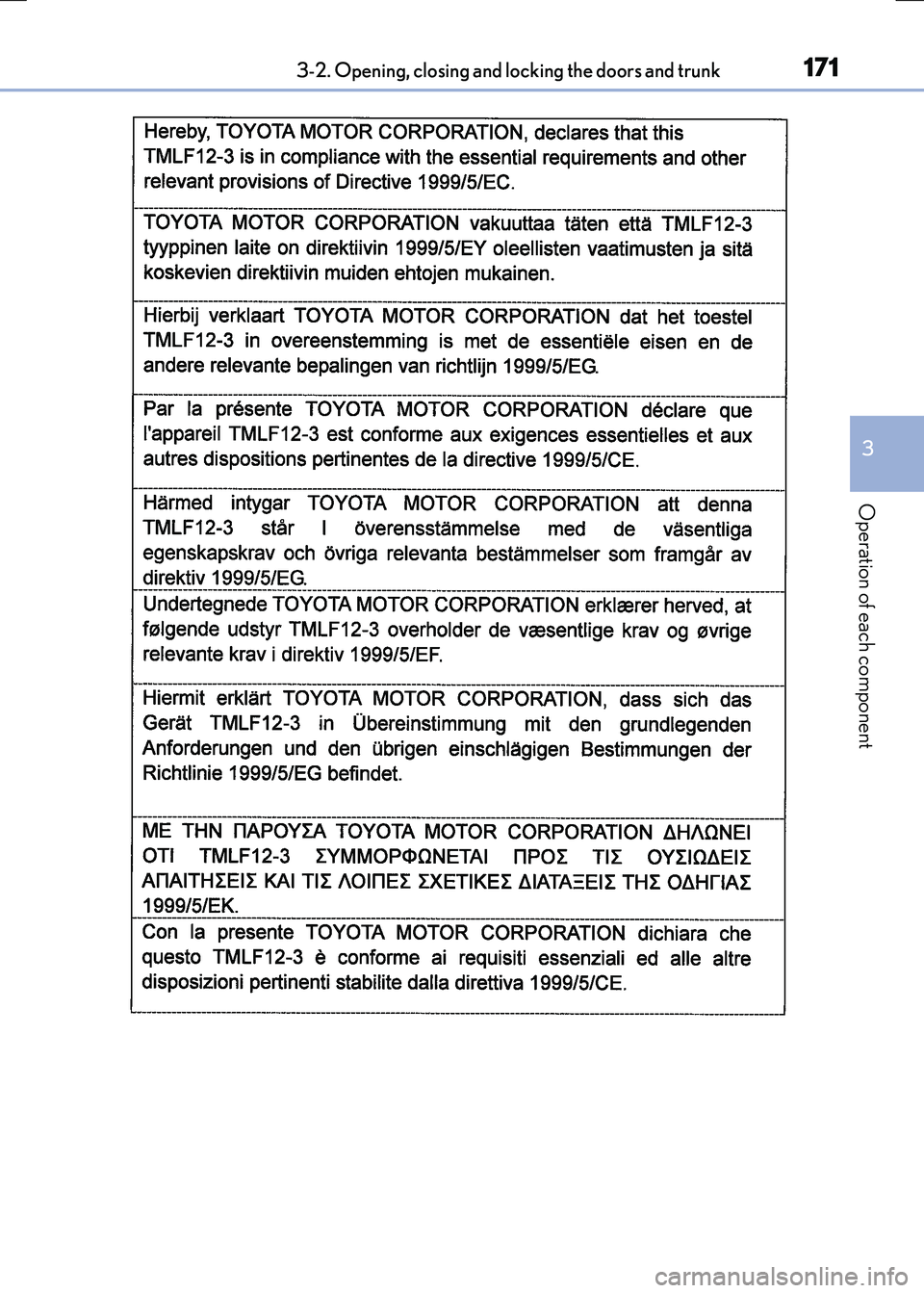

Page 171 of 640
1713-2. Opening, closing and locking the doors and trunk
3
Operation of each component
RC300h_EE(OM24740E)

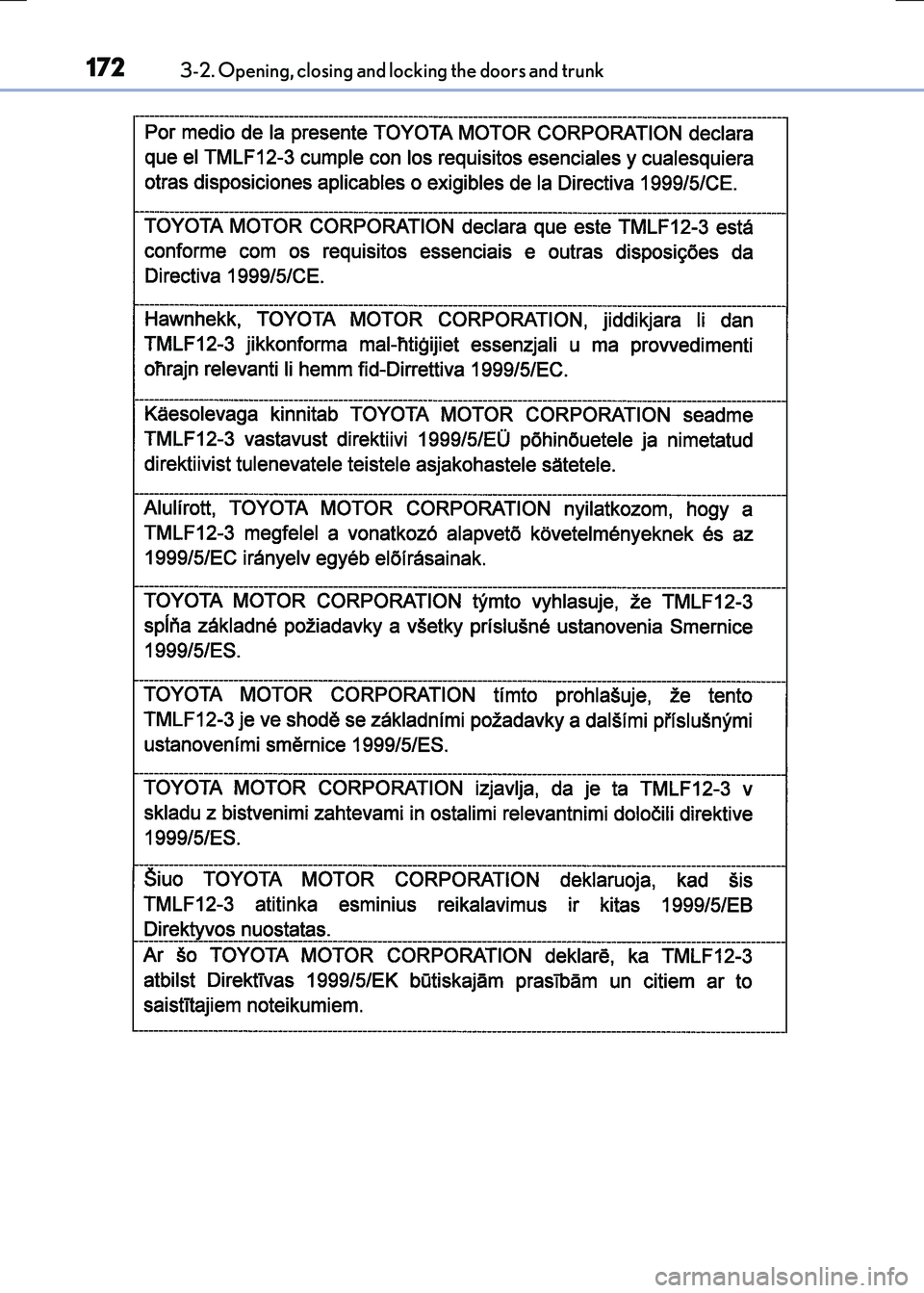

Page 172 of 640
1723-2. Opening, closing and locking the doors and trunk
RC300h_EE(OM24740E)

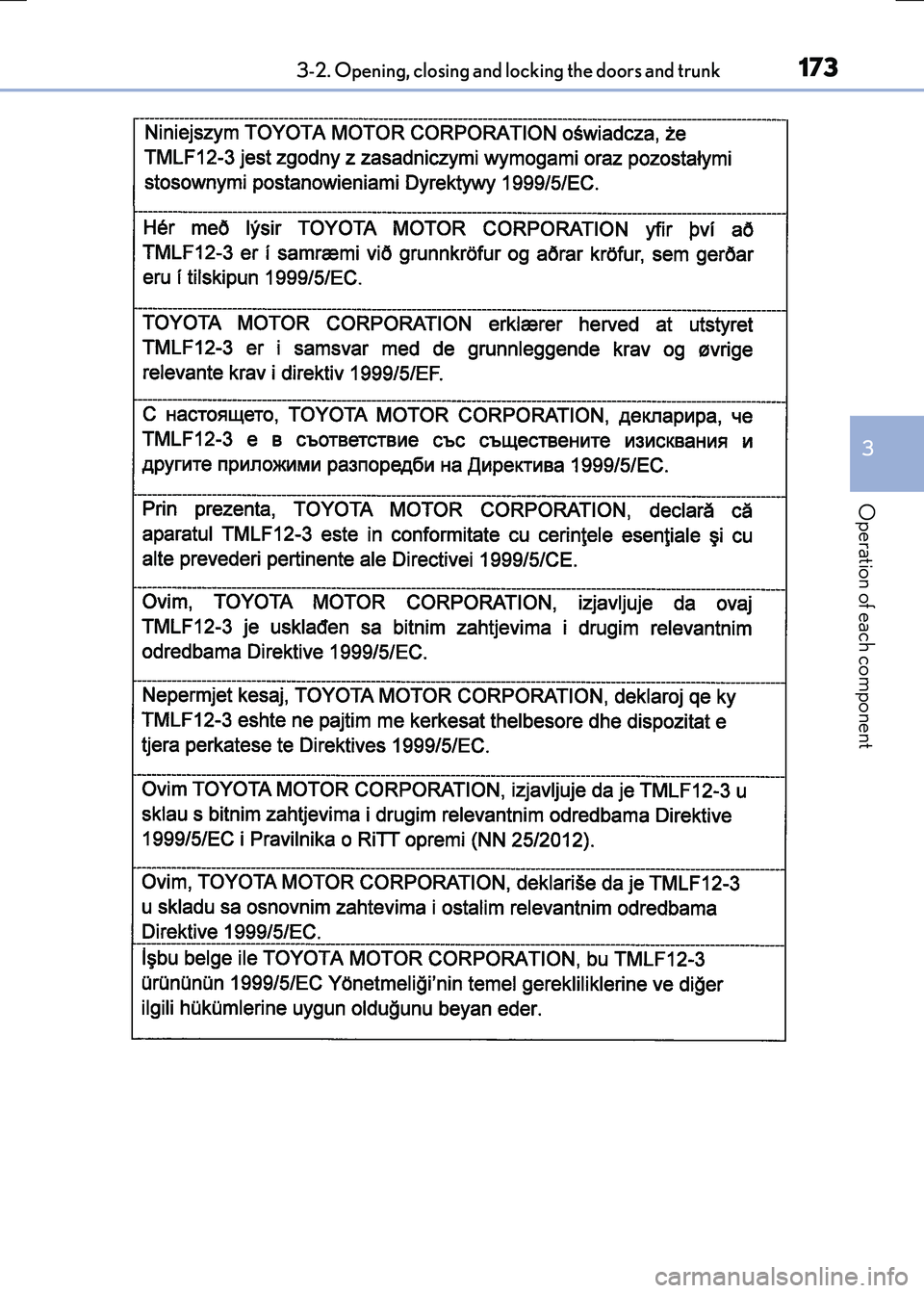

Page 173 of 640
1733-2. Opening, closing and locking the doors and trunk
3
Operation of each component
RC300h_EE(OM24740E)

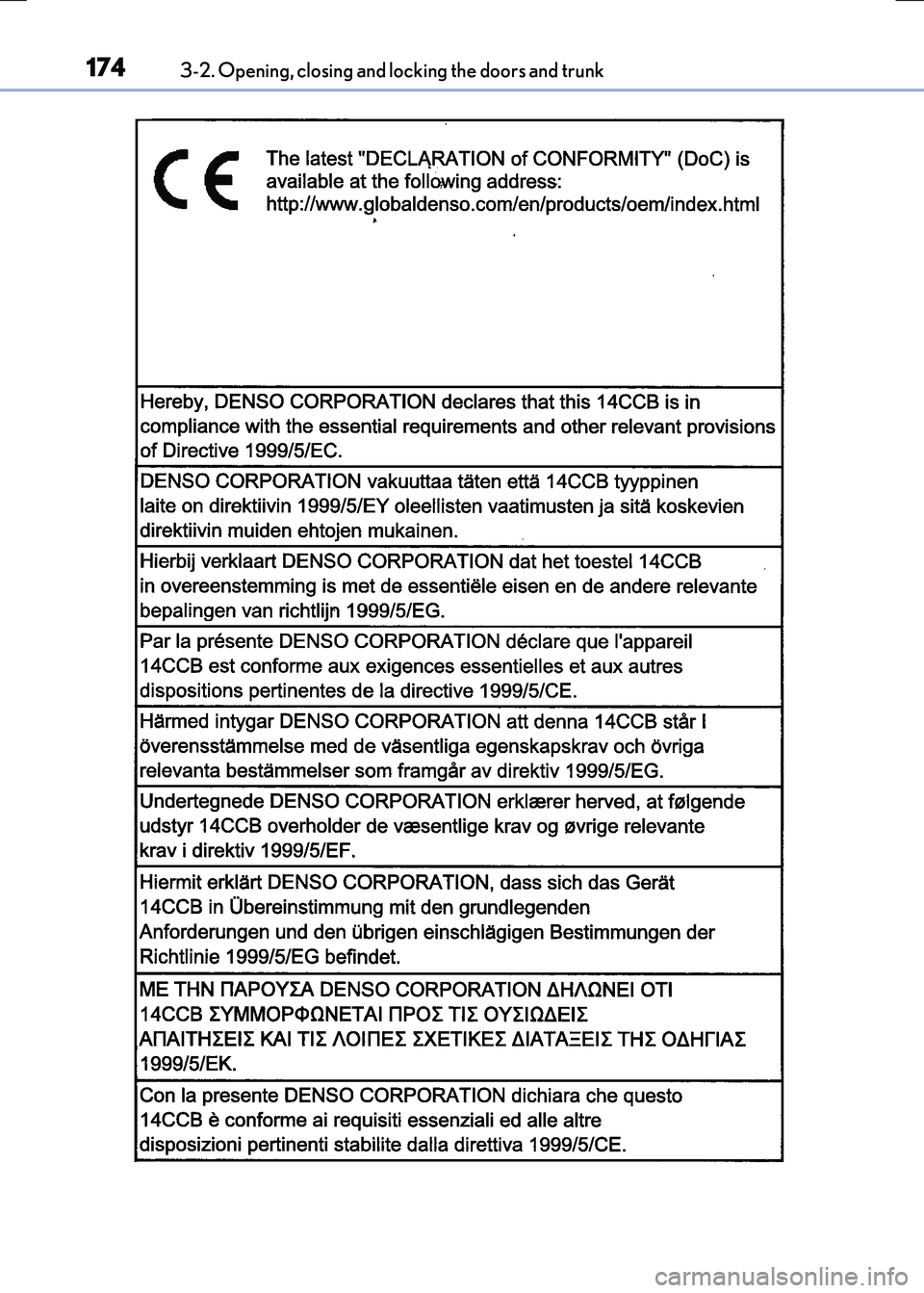

Page 174 of 640
1743-2. Opening, closing and locking the doors and trunk
RC300h_EE(OM24740E)

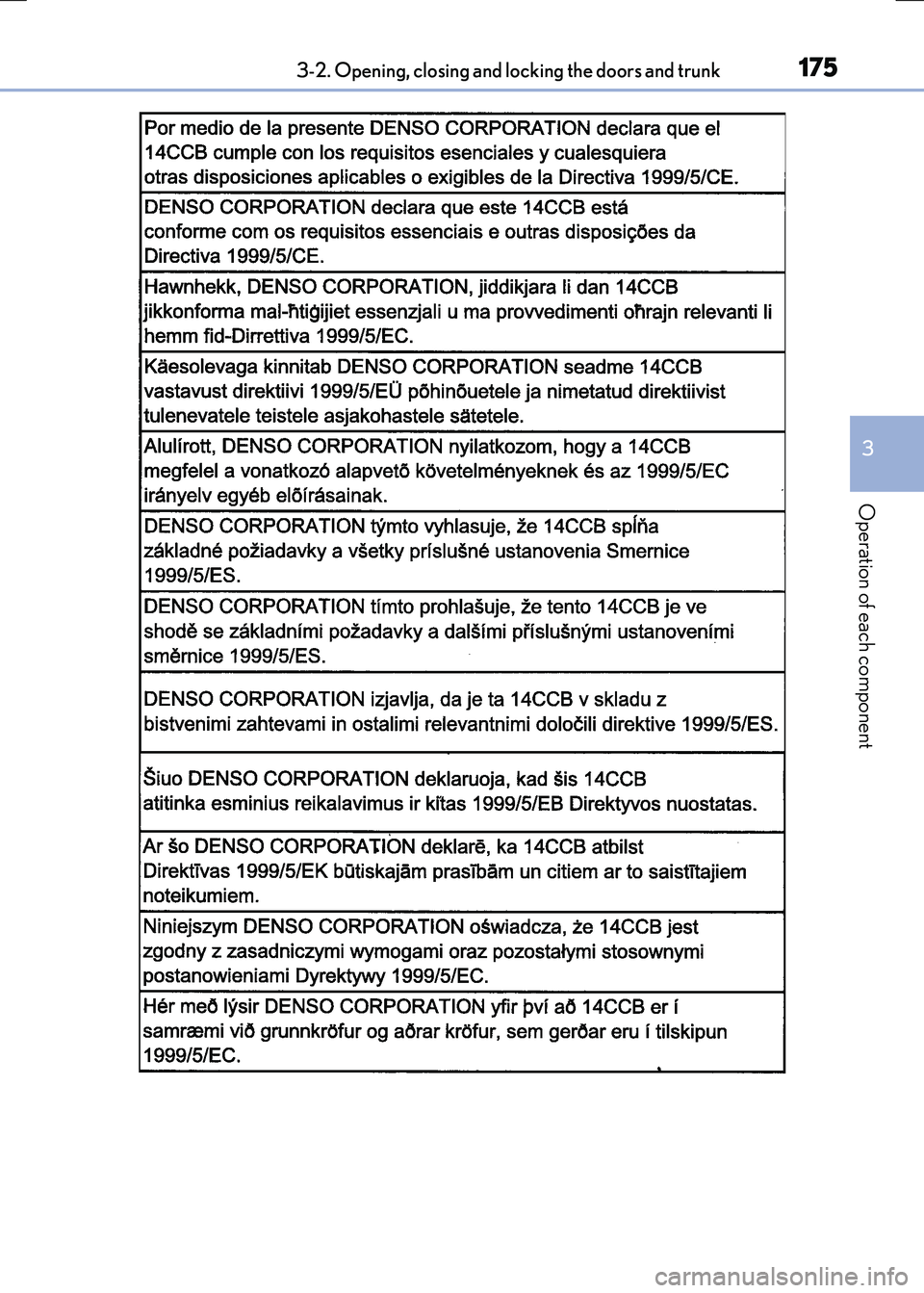

Page 175 of 640
1753-2. Opening, closing and locking the doors and trunk
3
Operation of each component
RC300h_EE(OM24740E)

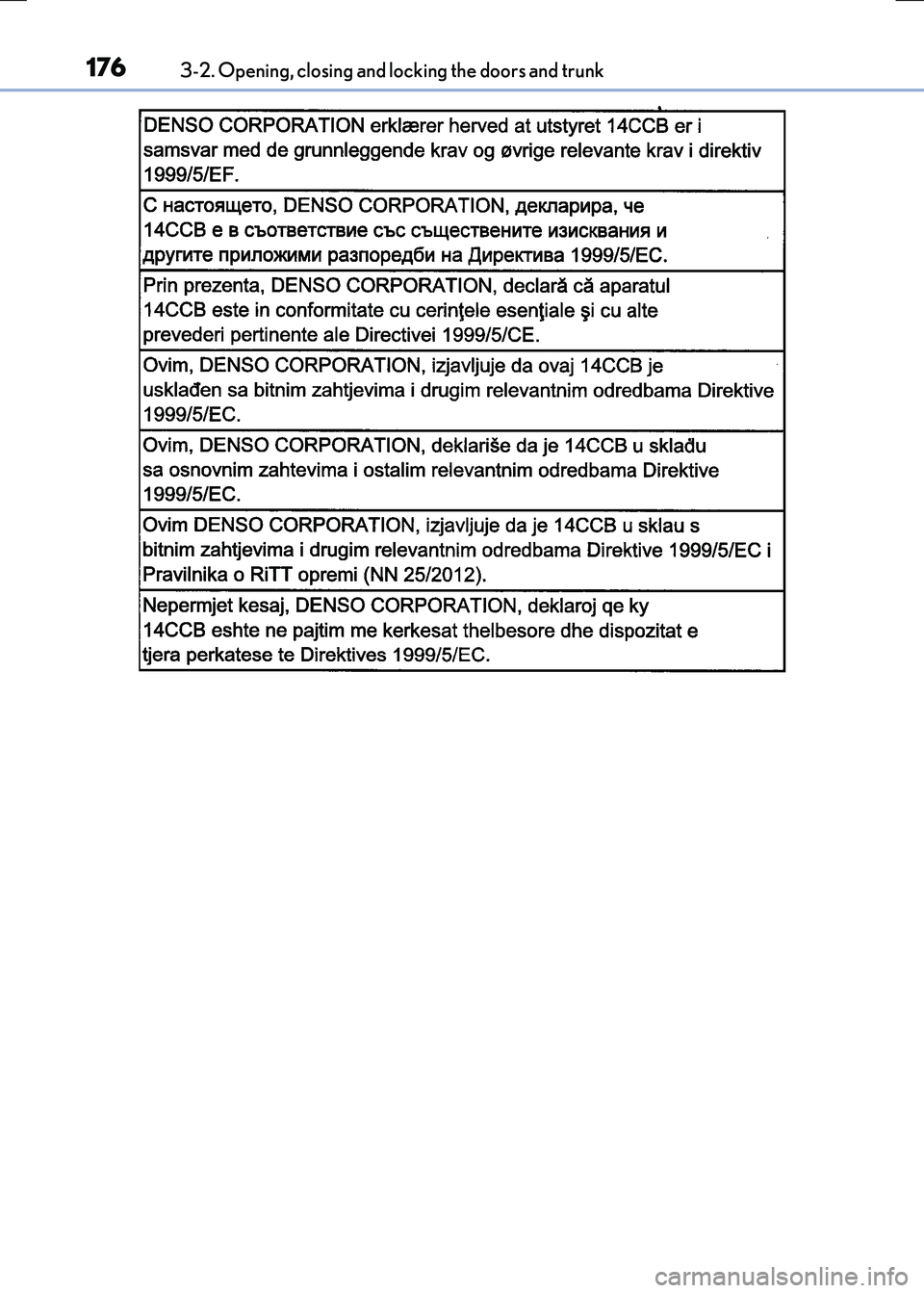

Page 176 of 640
1763-2. Opening, closing and locking the doors and trunk
RC300h_EE(OM24740E)

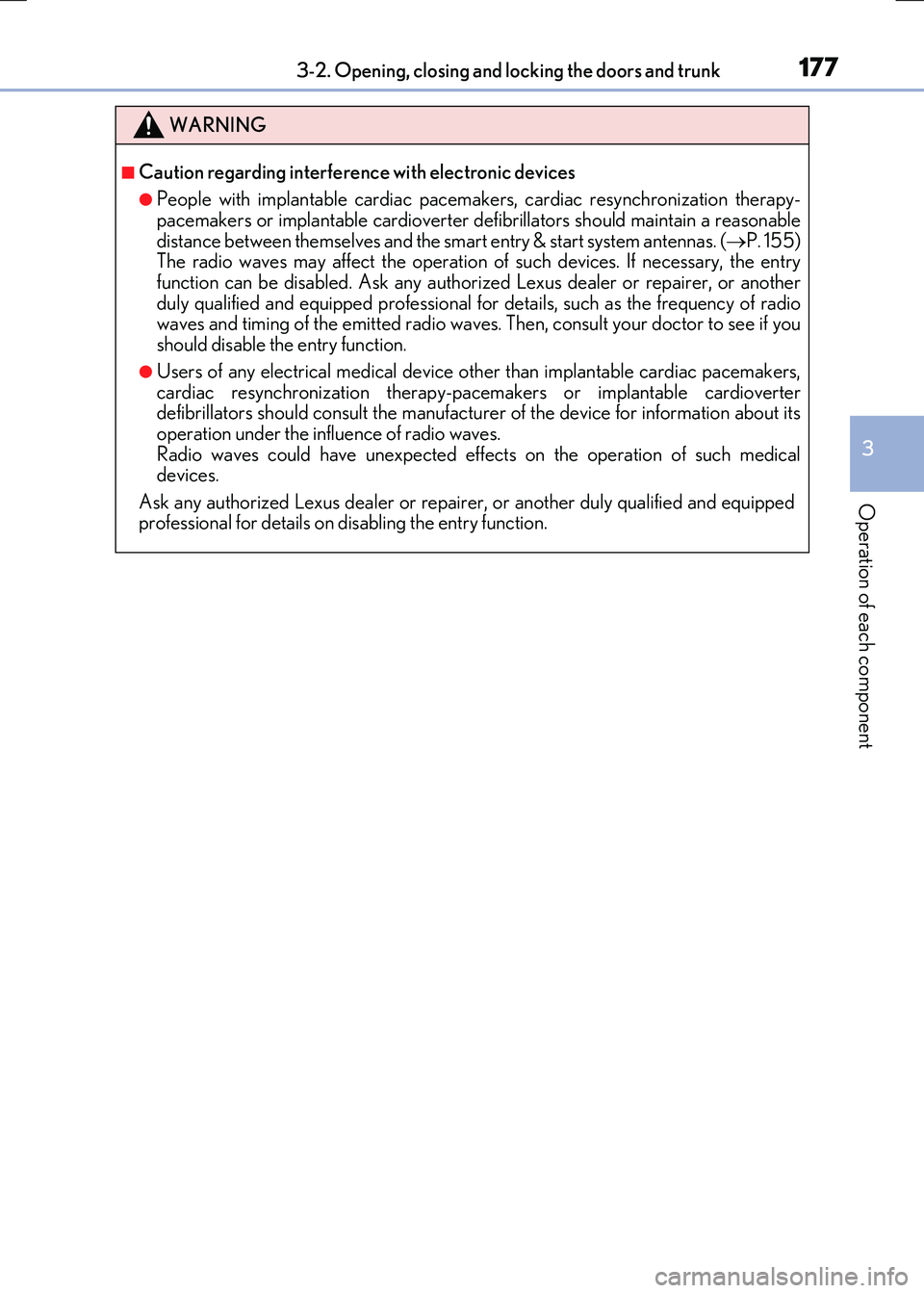

Page 177 of 640

1773-2. Opening, closing and locking the doors and trunk
3
Operation of each component
RC300h_EE(OM24740E)
WARNING
■Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization therapy- pacemakers or implantable cardioverter de fibrillators should maintain a reasonable
distance between themselves and the smart entry & start system antennas. ( P. 155) The radio waves may affect the operation of such devices. If necessary, the entryfunction can be disabled. Ask any authoriz ed Lexus dealer or repairer, or another
duly qualified and equipped professional for details, such as the frequency of radio waves and timing of the emitted radio waves. Then, consult your doctor to see if you should disable the entry function.
●Users of any electrical medical device other than implantable cardiac pacemakers,cardiac resynchronization therapy-pacemakers or implantable cardioverterdefibrillators should consult the manufacturer of the device for information about its
operation under the influence of radio waves. Radio waves could have unexpected effects on the operation of such medicaldevices.
Ask any authorized Lexus dealer or repairer, or another duly qualified and equipped professional for details on disabling the entry function.

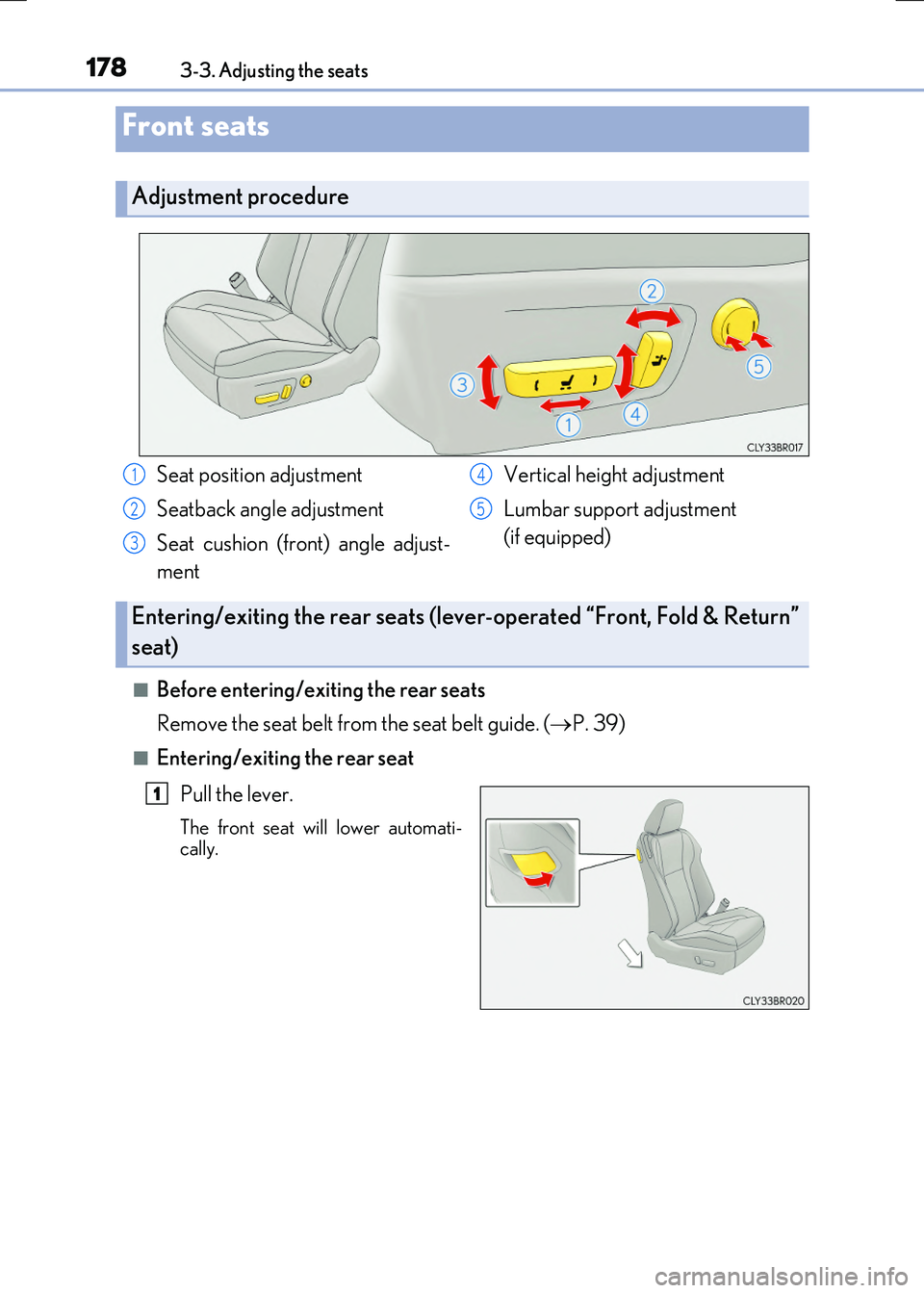

Page 178 of 640
178
RC300h_EE(OM24740E)
3-3. Adjusting the seats
■Before entering/exiting the rear seats
Remove the seat belt from the seat belt guide. ( P. 39)
■Entering/exiting the rear seat
Pull the lever.
The front seat will lower automati-
cally.
Front seats
Adjustment procedure
Seat position adjustment
Seatback angle adjustment
Seat cushion (front) angle adjust-
ment
Vertical height adjustment
Lumbar support adjustment
(if equipped)
Entering/exiting the rear seats (lev er-operated “Front, Fold & Return”
seat)
1
2
3
4
5
1

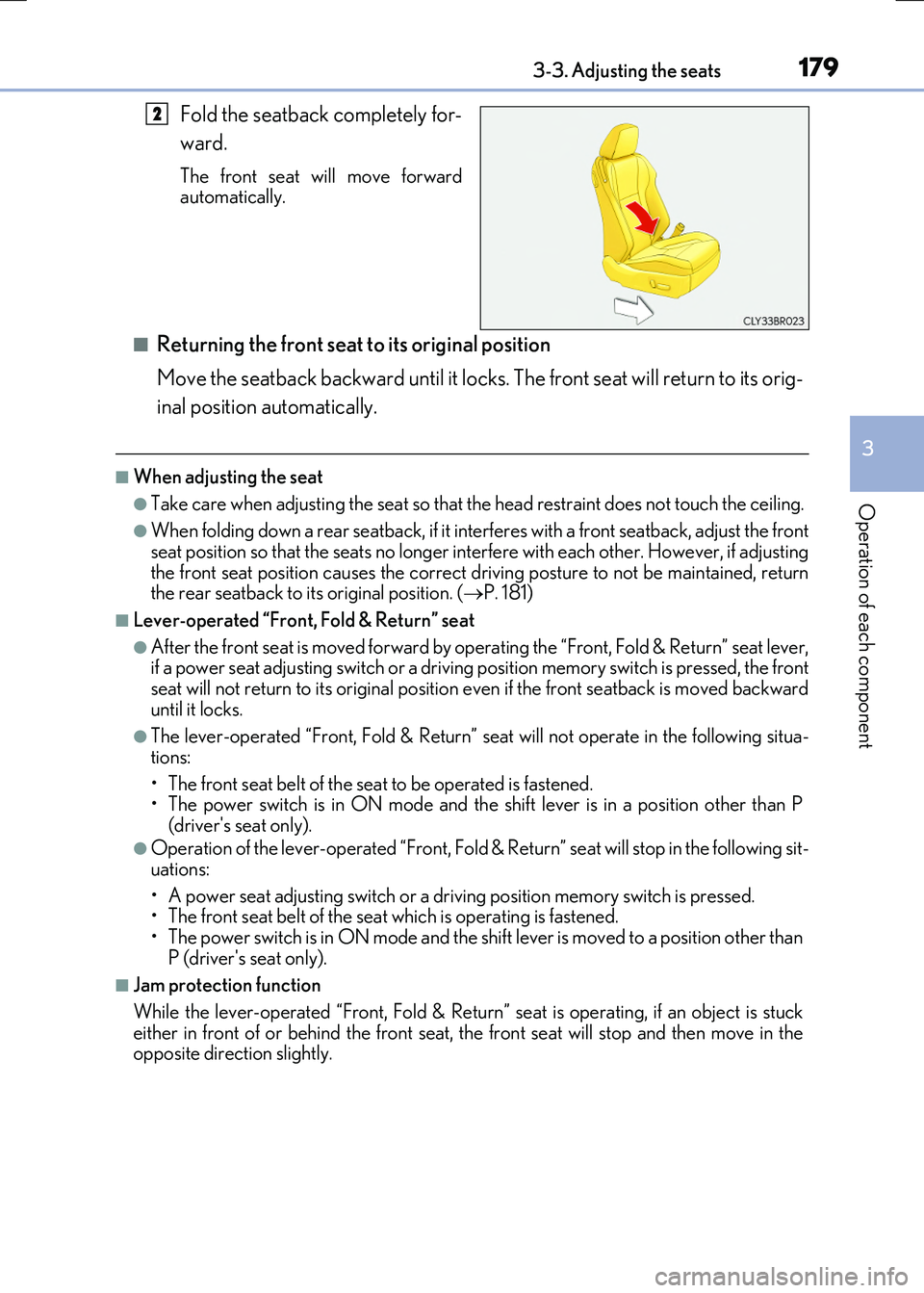

Page 179 of 640

1793-3. Adjusting the seats
3
Operation of each component
RC300h_EE(OM24740E)
Fold the seatback completely for-
ward.
The front seat will move forward automatically.
■Returning the front seat to its original position
Move the seatback backward until it locks. The front seat will return to its orig-
inal position automatically.
■When adjusting the seat
●Take care when adjusting the seat so that the head restraint does not touch the ceiling.
●When folding down a rear seatback, if it interferes with a front seatback, adjust the front
seat position so that the seats no longer interfere with each other. However, if adjusting the front seat position causes the correct dr iving posture to not be maintained, return the rear seatback to its original position. ( P. 181)
■Lever-operated “Front, Fold & Return” seat
●After the front seat is moved forward by operating the “Front, Fold & Return” seat lever, if a power seat adjustin g switch or a driving position memory switch is pressed, the front
seat will not return to its original position even if the front seatback is moved backward until it locks.
●The lever-operated “Front, Fold & Return” se at will not operate in the following situa-
tions:
• The front seat belt of the seat to be operated is fastened. • The power switch is in ON mode and the sh ift lever is in a position other than P
(driver's seat only).
●Operation of the lever-operated “Front, Fold & Return” seat will stop in the following sit-
uations:
• A power seat adjusting switch or a driv ing position memory switch is pressed. • The front seat belt of the seat which is operating is fastened.
• The power switch is in ON mode and the sh ift lever is moved to a position other than P (driver's seat only).
■Jam protection function
While the lever-operated “Front, Fold & Return” seat is operating, if an object is stuck either in front of or behind the front seat, the front seat will stop and then move in the opposite direction slightly.
2

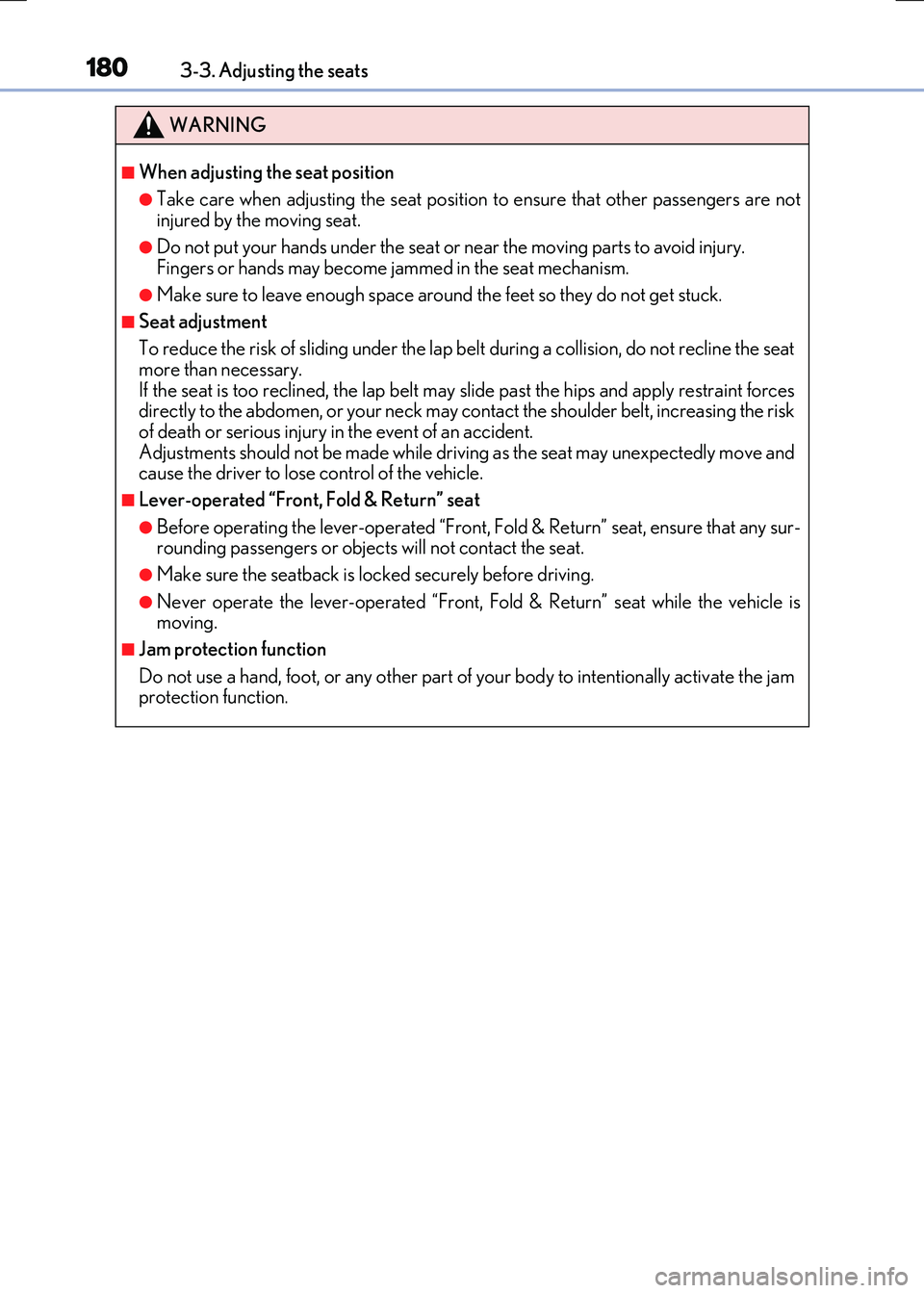

Page 180 of 640

1803-3. Adjusting the seats
RC300h_EE(OM24740E)
WARNING
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.Fingers or hands may become jammed in the seat mechanism.
●Make sure to leave enough space around the feet so they do not get stuck.
■Seat adjustment
To reduce the risk of sliding under the lap be lt during a collision, do not recline the seat more than necessary.
If the seat is too reclined, th e lap belt may slide past the hips and apply restraint forces directly to the abdomen, or your neck may contact the shoulder belt, increasing the riskof death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly move and cause the driver to lose control of the vehicle.
■Lever-operated “Front , Fold & Return” seat
●Before operating the lever-operated “Front, Fold & Return” seat, ensure that any sur- rounding passengers or objects will not contact the seat.
●Make sure the seatback is locked securely before driving.
●Never operate the lever-operated “Front, Fold & Return” seat while the vehicle ismoving.
■Jam protection function
Do not use a hand, foot, or any other part of your body to intentionally activate the jam protection function.
