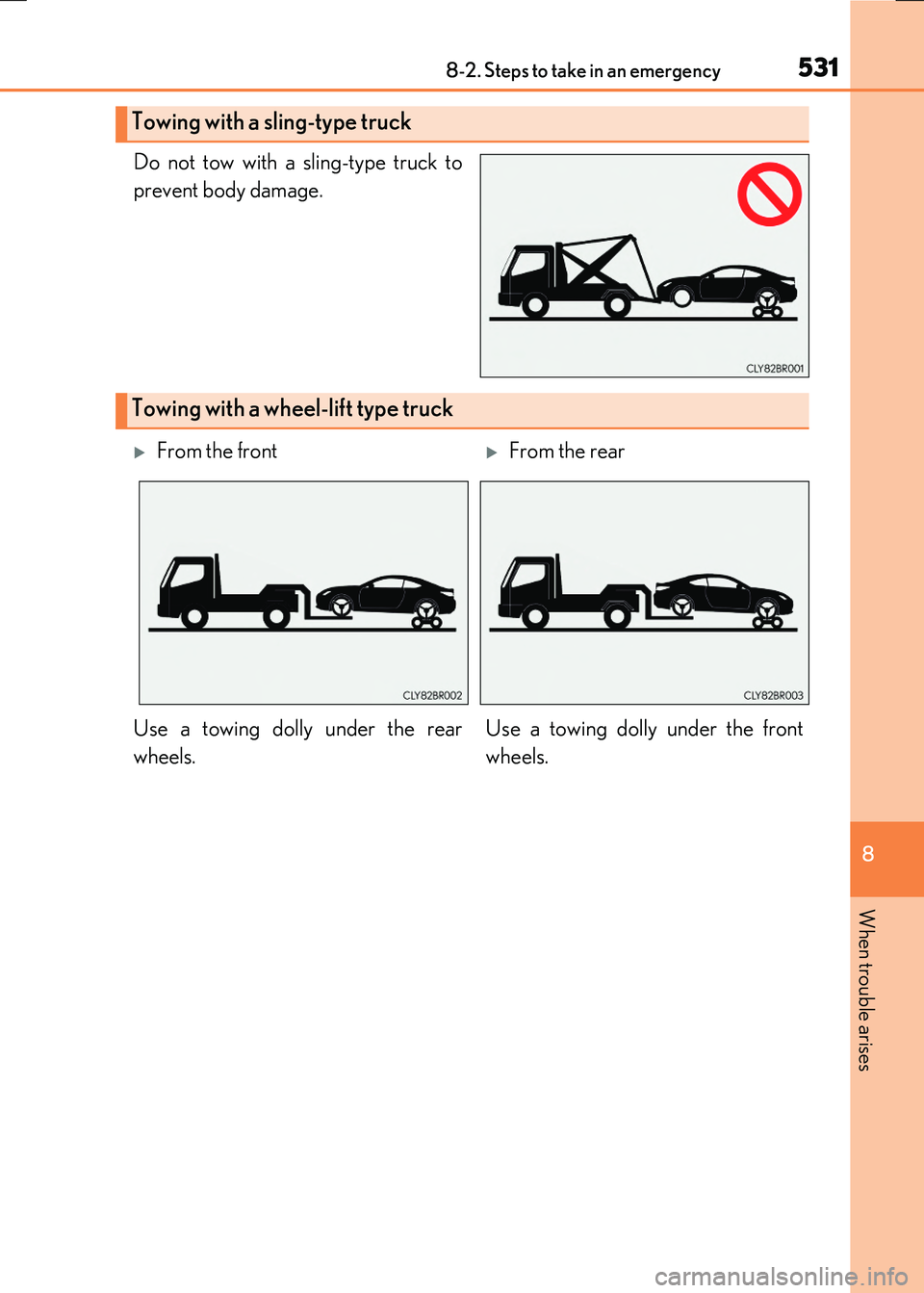

LEXUS RX300H 2017 Owners Manual

5318-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)
Do not tow with a sling-type truck to
prevent body damage.
Towing with a sling-type truck
Towing with a wheel -lift type truck
From the frontFrom the rear
Use a towing dolly under the rear
wheels.
Use a towing dolly under the front
wheels.

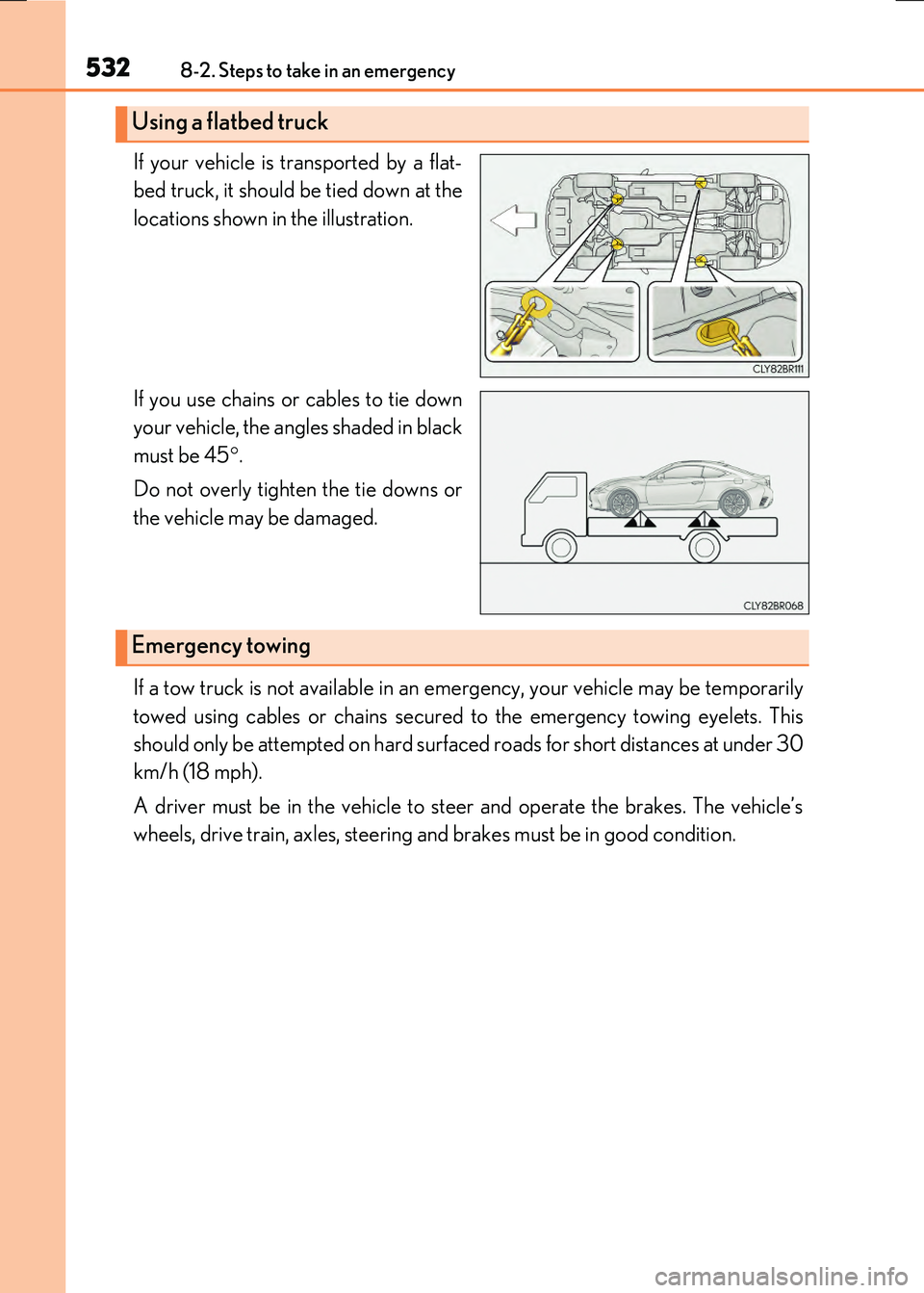

5328-2. Steps to take in an emergency
RC300h_EE(OM24740E)
If your vehicle is transported by a flat-
bed truck, it should be tied down at the
locations shown in the illustration.
If you use chains or cables to tie down
your vehicle, the angles shaded in black
must be 45 .
Do not overly tighten the tie downs or
the vehicle may be damaged.
If a tow truck is not available in an emergency, your vehicle may be temporarily
towed using cables or chains secured to the emergency towing eyelets. This
should only be attempted on hard surfaced roads for short distances at under 30
km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and brakes must be in good condition.
Using a flatbed truck
Emergency towing

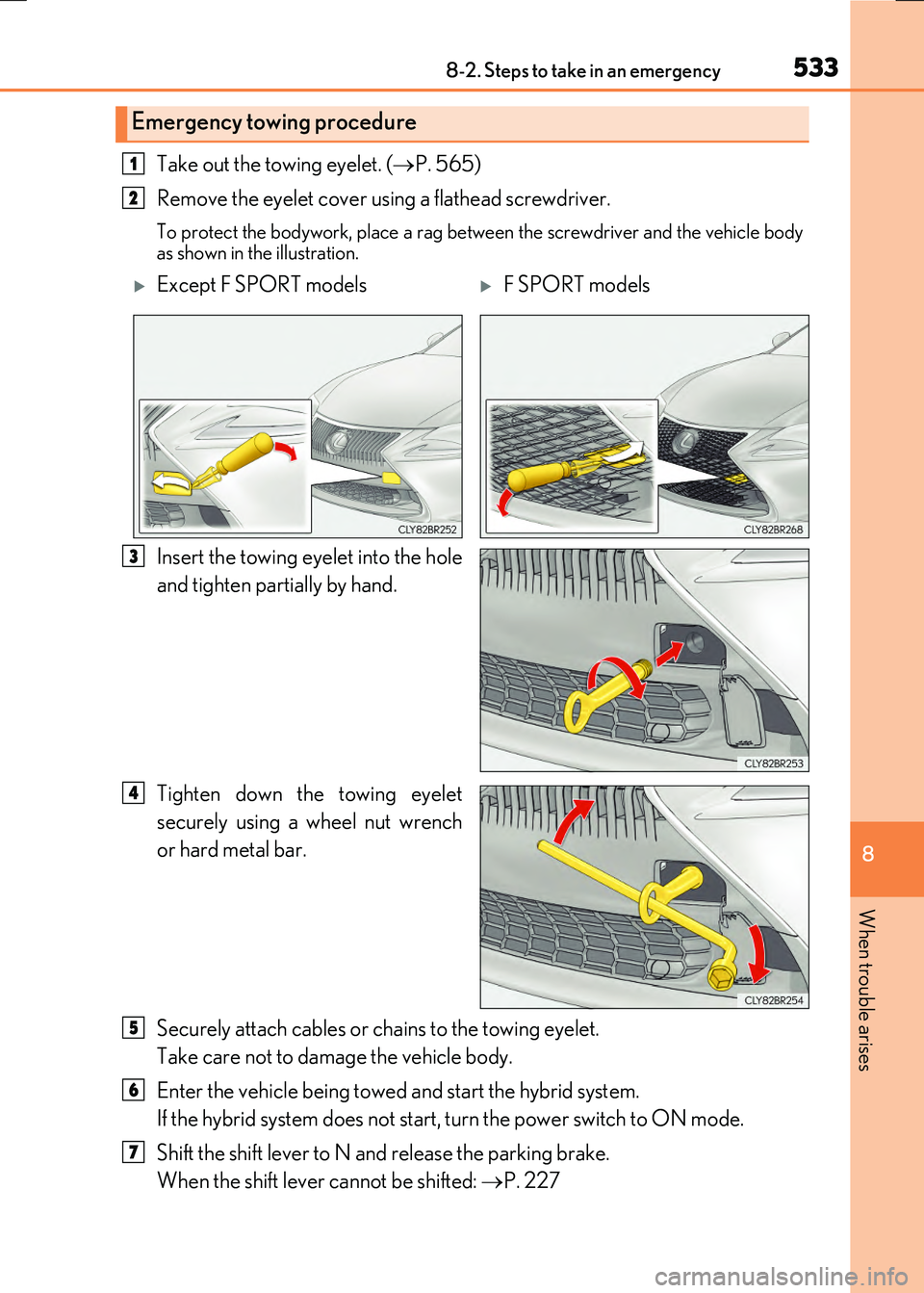

5338-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)
Take out the towing eyelet. (P. 565)
Remove the eyelet cover using a flathead screwdriver.
To protect the bodywork, place a rag betw een the screwdriver and the vehicle body as shown in the illustration.
Insert the towing eyelet into the hole
and tighten partially by hand.
Tighten down the towing eyelet
securely using a wheel nut wrench
or hard metal bar.
Securely attach cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Enter the vehicle being towed and start the hybrid system.
If the hybrid system does not start, turn the power switch to ON mode.
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted: P. 227
Emergency towing procedure
1
2
Except F SPORT modelsF SPORT models
3
4
5
6
7

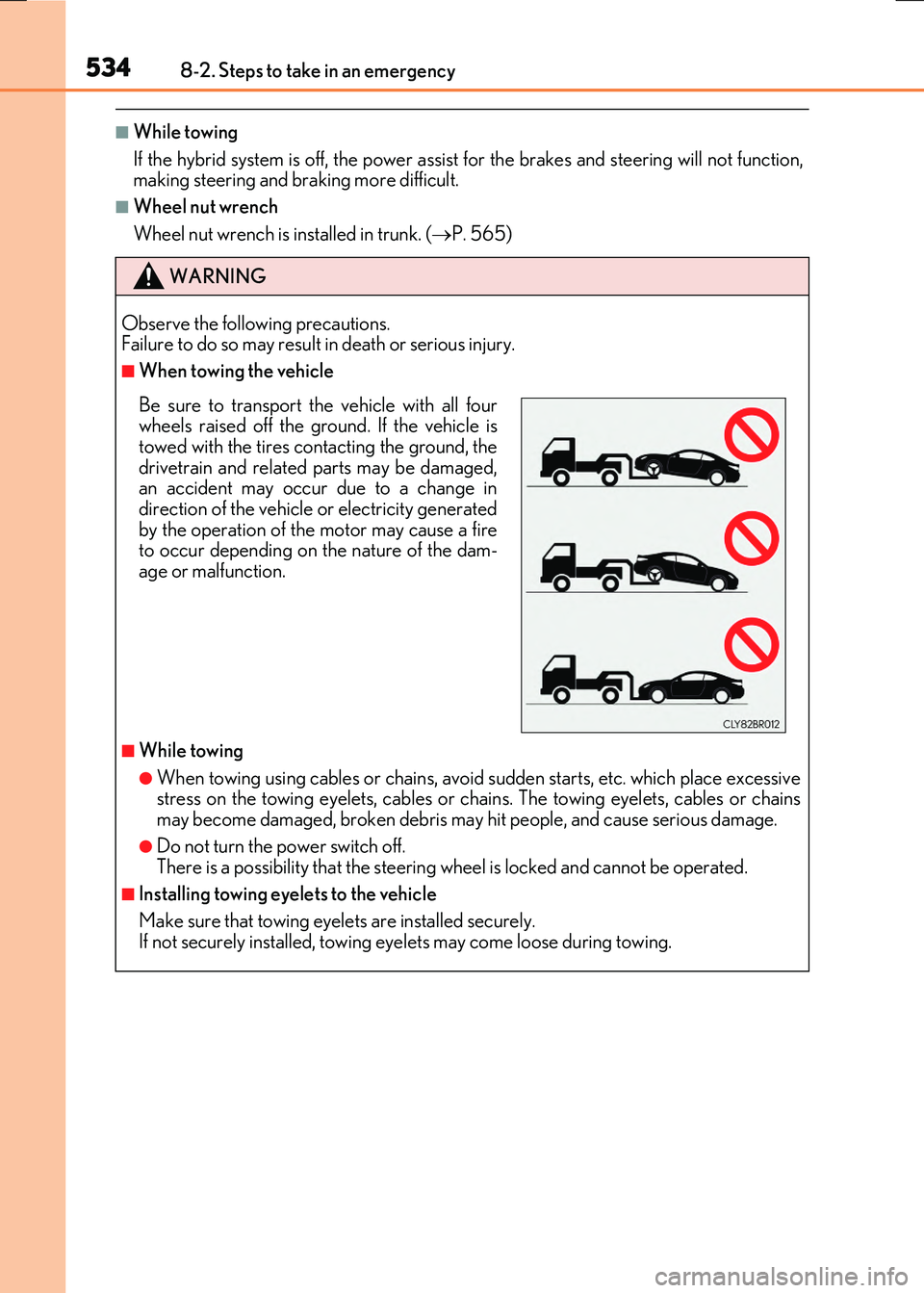

5348-2. Steps to take in an emergency
RC300h_EE(OM24740E)
■While towing
If the hybrid system is off, the power assist for the brakes and steering will not function, making steering and braking more difficult.
■Wheel nut wrench
Wheel nut wrench is installed in trunk. ( P. 565)
WARNING
Observe the following precautions. Failure to do so may result in death or serious injury.
■When towing the vehicle
■While towing
●When towing using cables or chains, avoid sudden starts, etc. which place excessivestress on the towing eyelets, cables or ch ains. The towing eyelets, cables or chains may become damaged, broken debris ma y hit people, and cause serious damage.
●Do not turn the power switch off. There is a possibility that the steering wheel is locked and cannot be operated.
■Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely. If not securely installed, towing ey elets may come loose during towing.
Be sure to transport the vehicle with all four wheels raised off the ground. If the vehicle is
towed with the tires contacting the ground, the drivetrain and related parts may be damaged,an accident may occur due to a change in
direction of the vehicle or electricity generated by the operation of the motor may cause a fireto occur depending on the nature of the dam-
age or malfunction.

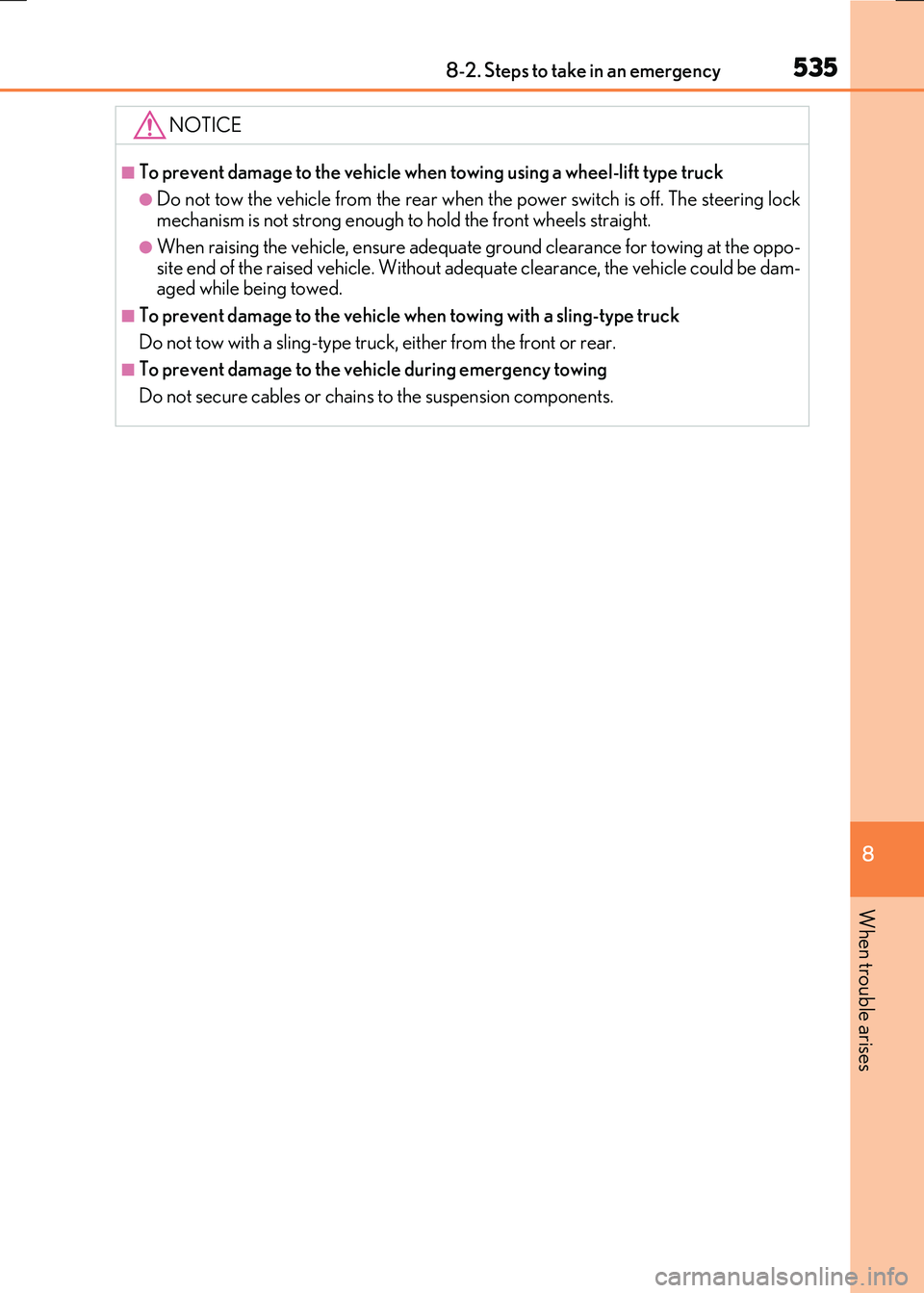

5358-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)
NOTICE
■To prevent damage to the vehicle when towing using a wheel-lift type truck
●Do not tow the vehicle from the rear when the power switch is off. The steering lock mechanism is not strong enough to hold the front wheels straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the oppo-site end of the raised vehicle. Without adequate clearance, the vehicle could be dam-aged while being towed.
■To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■To prevent damage to the vehicle during emergency towing
Do not secure cables or chains to the suspension components.

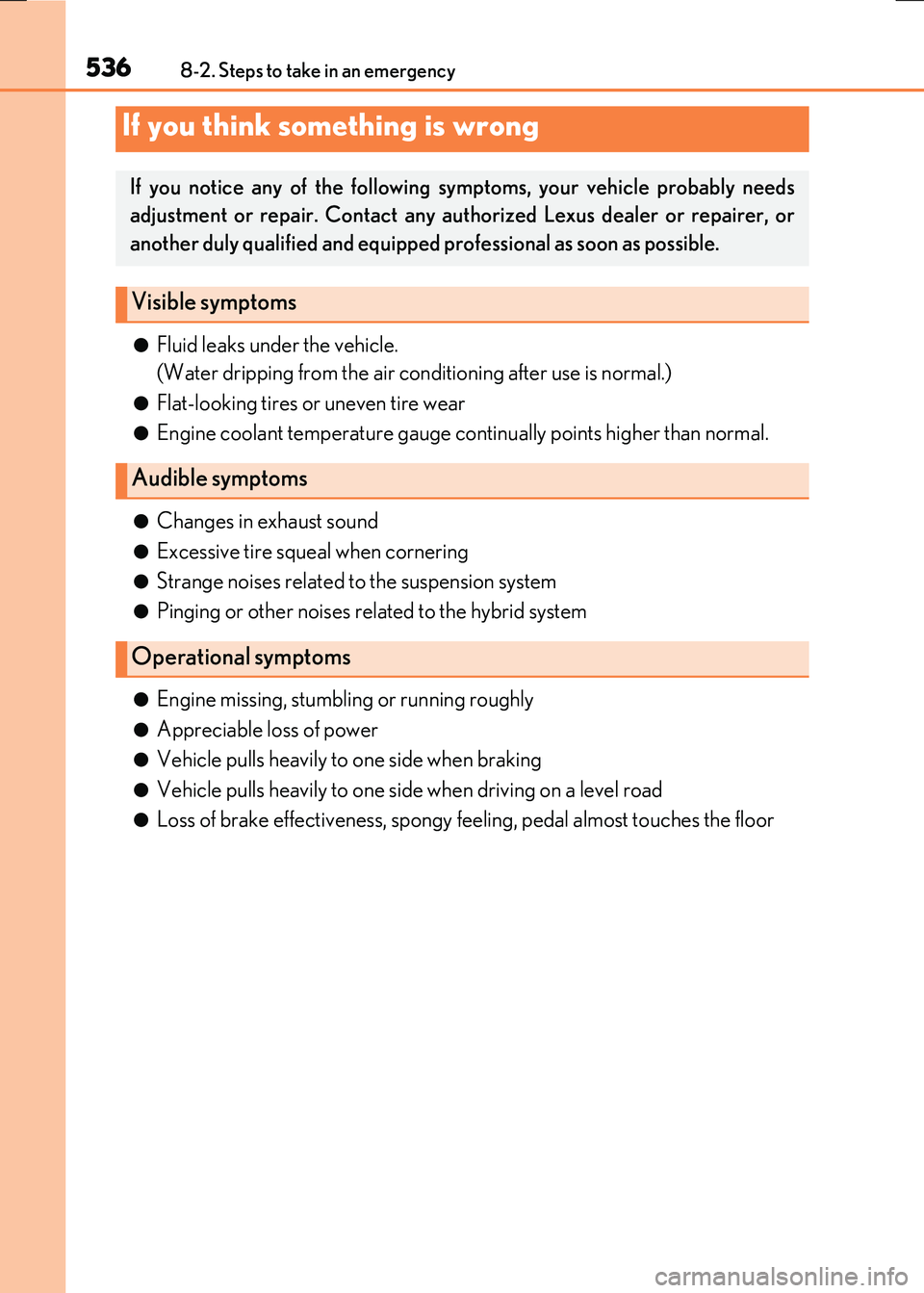

5368-2. Steps to take in an emergency
RC300h_EE(OM24740E)
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge continually points higher than normal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the hybrid system
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy fe eling, pedal almost touches the floor
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact any authorized Lexus dealer or repairer, or
another duly qualified an d equipped professional as soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

5378-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)

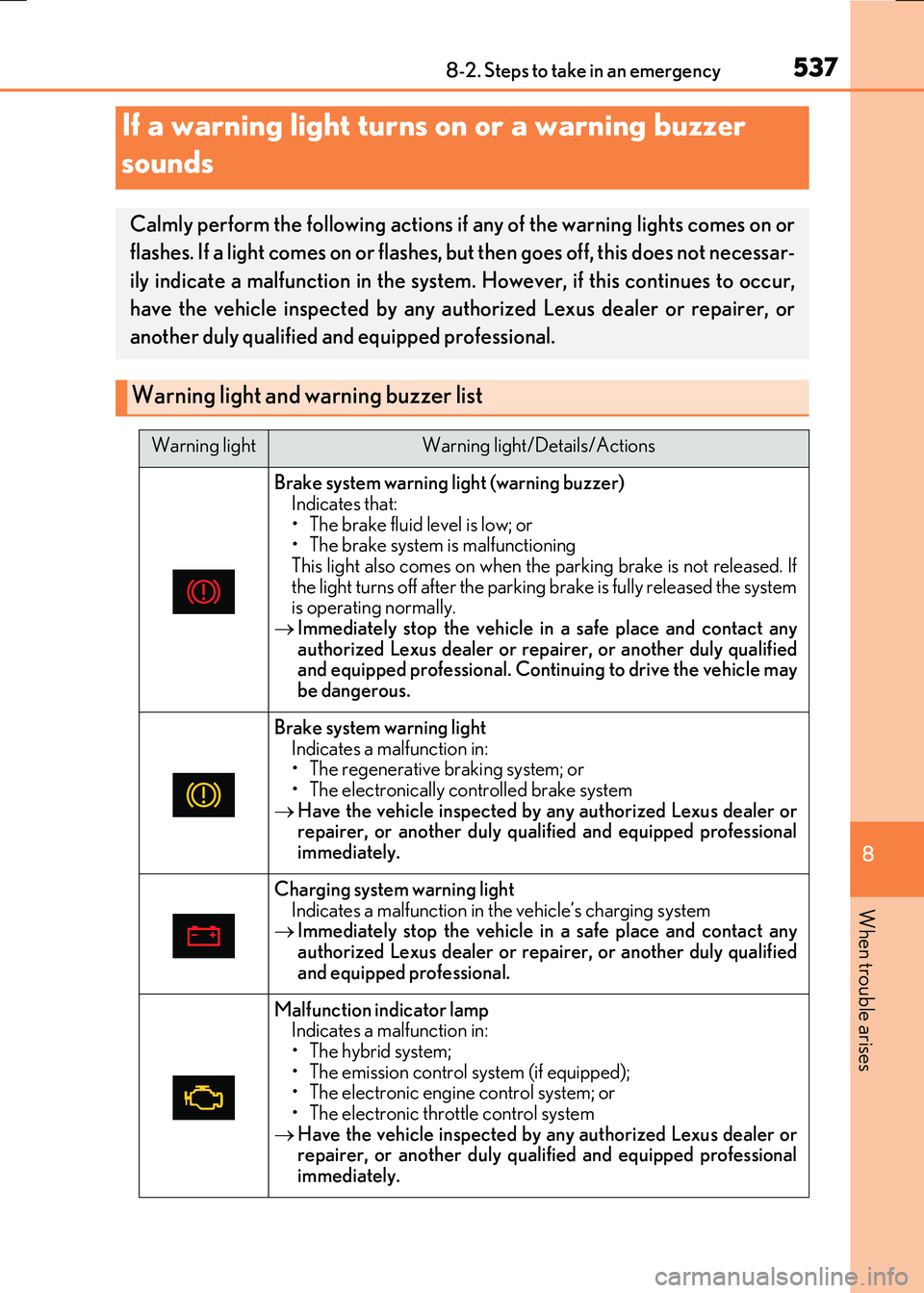

If a warning light turns on or a warning buzzer
sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified an d equipped professional.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning light (warning buzzer) Indicates that:
• The brake fluid level is low; or • The brake system is malfunctioningThis light also comes on when the parking brake is not released. If
the light turns off after the parking brake is fully released the system is operating normally. Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Continuing to drive the vehicle maybe dangerous.
Brake system warning lightIndicates a malfunction in:• The regenerative braking system; or
• The electronically controlled brake system  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional
immediately.
Charging system warning light Indicates a malfunction in the vehicle’s charging system Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Malfunction indicator lampIndicates a malfunction in:
• The hybrid system; • The emission control system (if equipped);• The electronic engine control system; or
• The electronic throttle control system  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional
immediately.

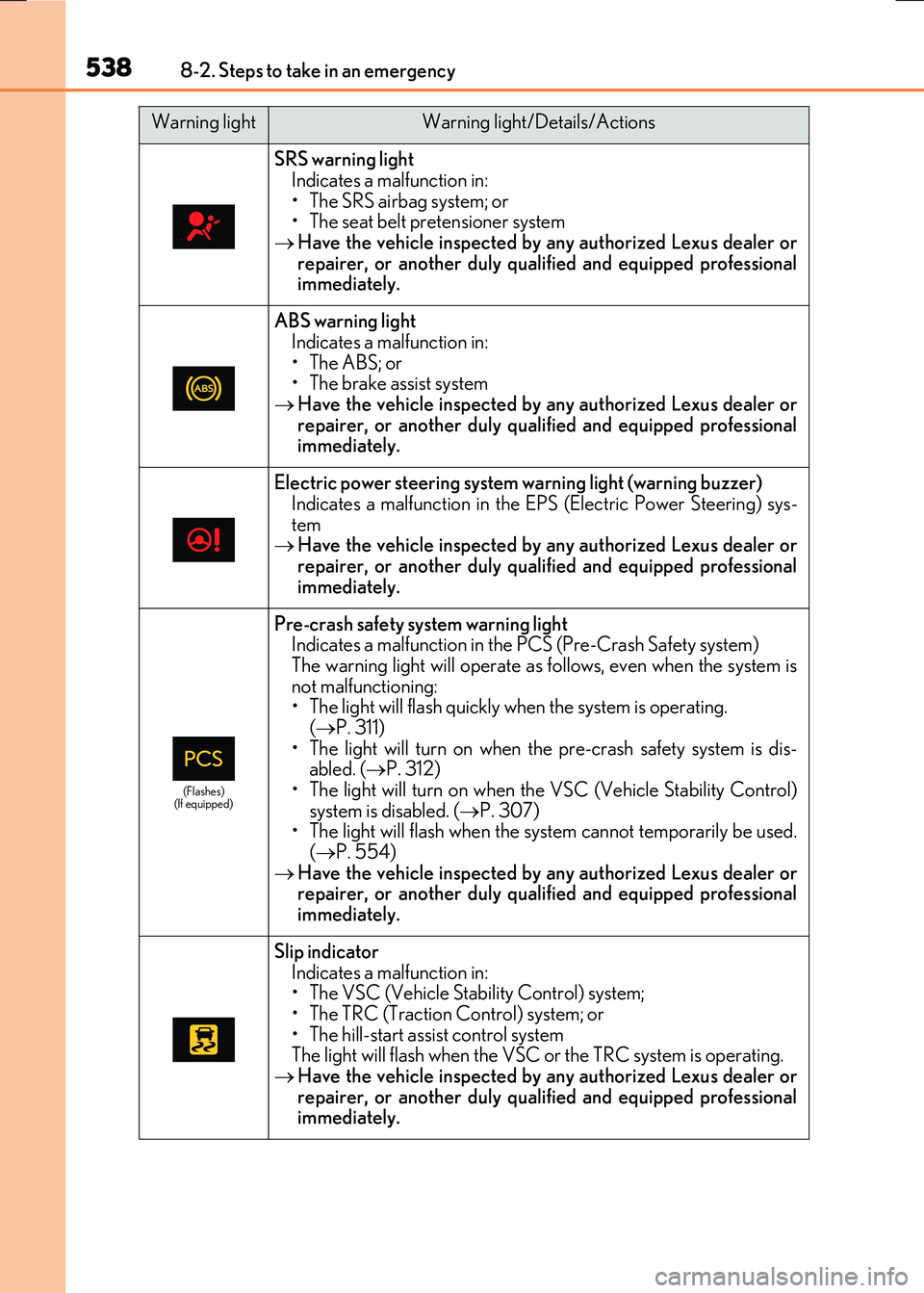

5388-2. Steps to take in an emergency
RC300h_EE(OM24740E)
SRS warning light Indicates a malfunction in:
• The SRS airbag system; or • The seat belt pretensioner system Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional immediately.
ABS warning lightIndicates a malfunction in:
•The ABS; or • The brake assist system Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional immediately.
Electric power steering system warning light (warning buzzer)Indicates a malfunction in the EPS (Electric Power Steering) sys-
tem  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional
immediately.
(Flashes) (If equipped)
Pre-crash safety system warning lightIndicates a malfunction in the PCS (Pre-Crash Safety system)The warning light will operate as follows, even when the system is
not malfunctioning: • The light will flash quickly when the system is operating.
( P. 311) • The light will turn on when the pre-crash safety system is dis- abled. ( P. 312)
• The light will turn on when th e VSC (Vehicle Stability Control) system is disabled. ( P. 307) • The light will flash when the sy stem cannot temporarily be used.
( P. 554)  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional
immediately.
Slip indicator Indicates a malfunction in:• The VSC (Vehicle Stability Control) system;
• The TRC (Traction Control) system; or • The hill-start assist control systemThe light will flash when the VSC or the TRC system is operating.
 Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professionalimmediately.
Warning lightWarning light/Details/Actions

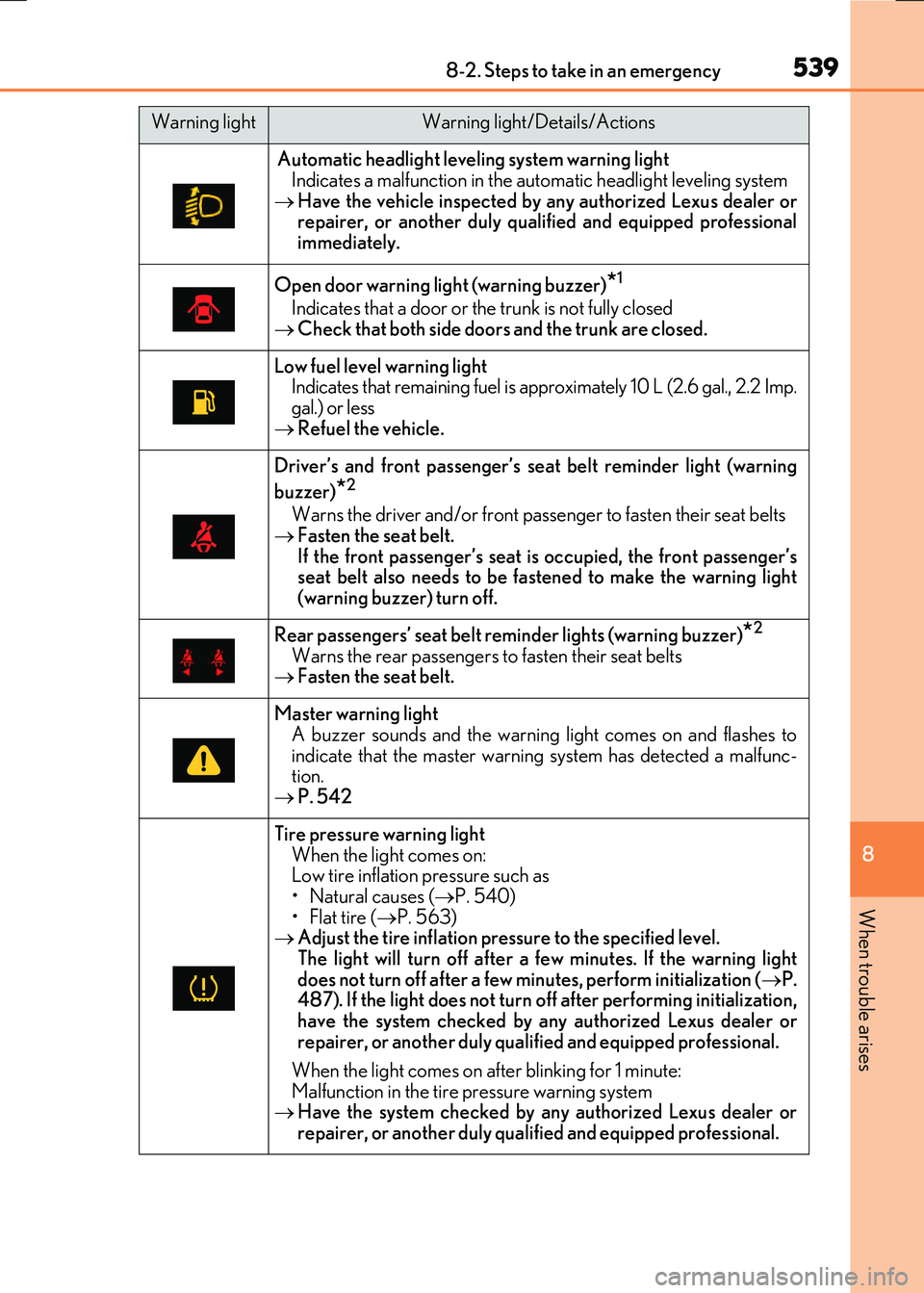

5398-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)
Automatic headlight leveling system warning light Indicates a malfunction in the au tomatic headlight leveling system
 Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professionalimmediately.
Open door warning light (warning buzzer)*1
Indicates that a door or the trunk is not fully closed
 Check that both side doors and the trunk are closed.
Low fuel level warning light Indicates that remaining fuel is approximately 10 L (2.6 gal., 2.2 Imp.gal.) or less
 Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light (warning
buzzer)*2
Warns the driver and/or front passe nger to fasten their seat belts  Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s seat belt also needs to be fastened to make the warning light(warning buzzer) turn off.
Rear passengers’ seat belt reminder lights (warning buzzer)*2
Warns the rear passengers to fasten their seat belts  Fasten the seat belt.
Master warning light A buzzer sounds and the warning light comes on and flashes to
indicate that the master warnin g system has detected a malfunc- tion. P. 542
Tire pressure warning light
When the light comes on: Low tire inflation pressure such as• Natural causes ( P. 540)
• Flat tire ( P. 563)  Adjust the tire inflation pressure to the specified level. The light will turn off after a few minutes. If the warning light
does not turn off after a few minutes, perform initialization ( P. 487). If the light does not turn off after performing initialization,have the system checked by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
When the light comes on af ter blinking for 1 minute:
Malfunction in the tire pressure warning system  Have the system checked by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Warning lightWarning light/Details/Actions

5408-2. Steps to take in an emergency
RC300h_EE(OM24740E)
*1: Open door warning buzzer:
 P. 544
*2: Seat belt warning buzzer:
The seat belt warning buzzer sounds to al ert the driver, front passenger and rear pas- sengers that his or her seat belt is not fastened. The buzzer sounds for 30 seconds
after the vehicle reaches a speed of 20 km/h (12 mph). Then, if the seat belt is still unfastened, the buzzer will sound in a different tone for 90 more seconds.
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on a front passenger seat, the front passenger detection sensormay cause the warning light to flash and the warning buzzer to sound even if a passen-
ger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the warn- ing light may not operate properly.
■If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes completely empty. If the fuel tank is empty, refuel the vehicle immediately. The malfunction indicator lamp
will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Lexus dealer or repairer, or another duly qualified and eq uipped professional as soon as possible.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage temporarily drops, the electric power steering system warning light may come on and the warning buzzer
may sound.
■When the tire pressure warning light comes on
Carry out the following procedure after the tire temperature has lowered sufficiently.
●Check the tire inflation pressure and adjust to the appropriate level.
●If the warning light does not go out even afte r several minutes, check that the tire infla- tion pressure is at the specifie d level and carry out initialization.
The warning light may come on again if the above operations are conducted without first allowing the tire temperature to lower sufficiently.
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural air leaks and tire inflation pressure changes caused by temperature. In this case, adjustingthe tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with the spare tire (if equipped)
The spare tire is not equipped with a tire pre ssure warning valve and transmitter. If a tire
goes flat, the tire pressure warning light will no t turn off even though the flat tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly
P. 489
