LEXUS RX300H 2017 Owners Manual

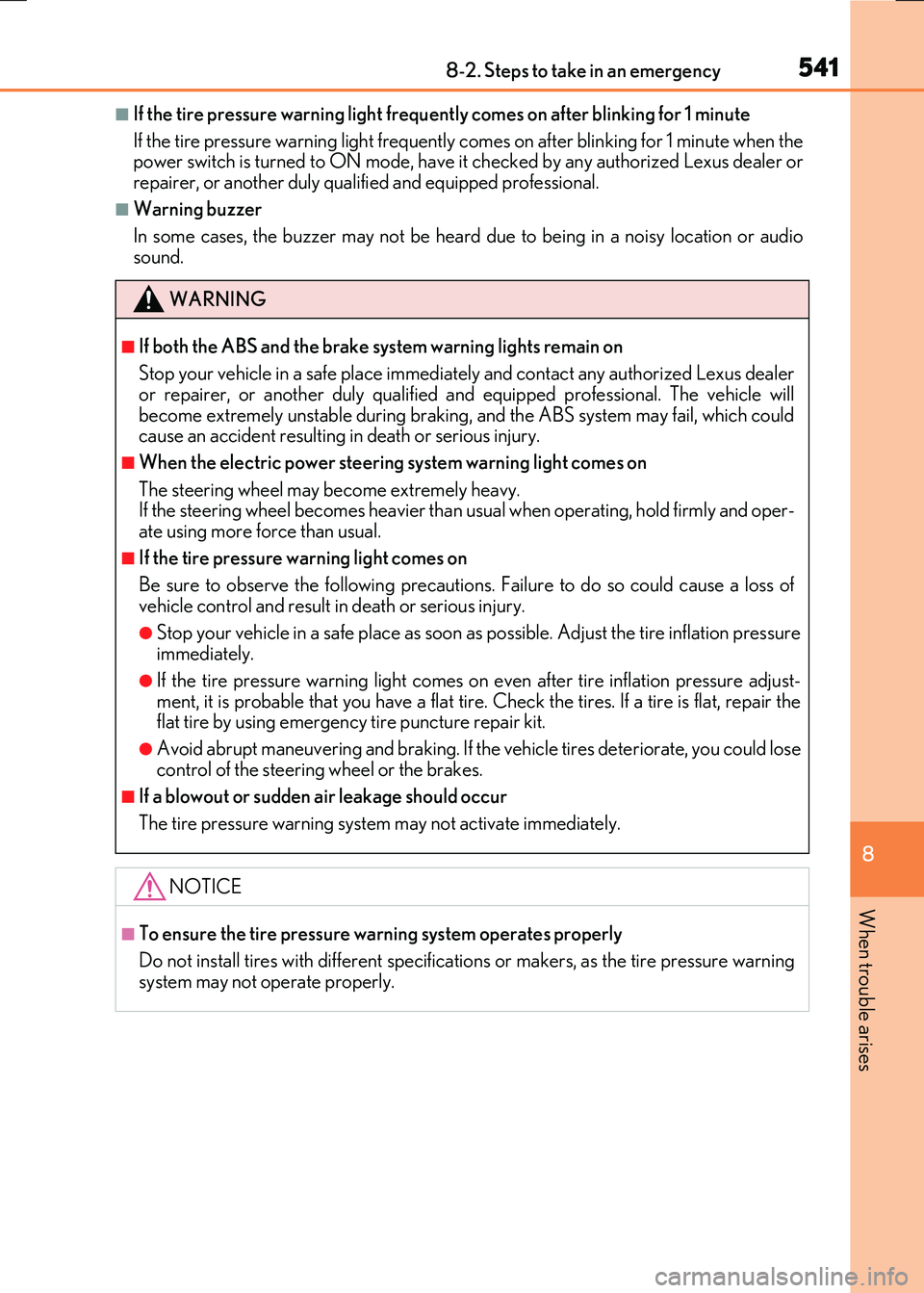

5418-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)
■If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when the power switch is turned to ON mode, have it checked by any authorized Lexus dealer or
repairer, or another duly qua lified and equipped professional.
■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or audio
sound.
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. The vehicle will
become extremely unstable during braking, and the ABS system may fail, which could cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy. If the steering wheel becomes heavier than us ual when operating, hold firmly and oper- ate using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressureimmediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, repair the flat tire by using emergency tire puncture repair kit.
●Avoid abrupt maneuvering and braking. If th e vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire pressure warning system may not operate properly.

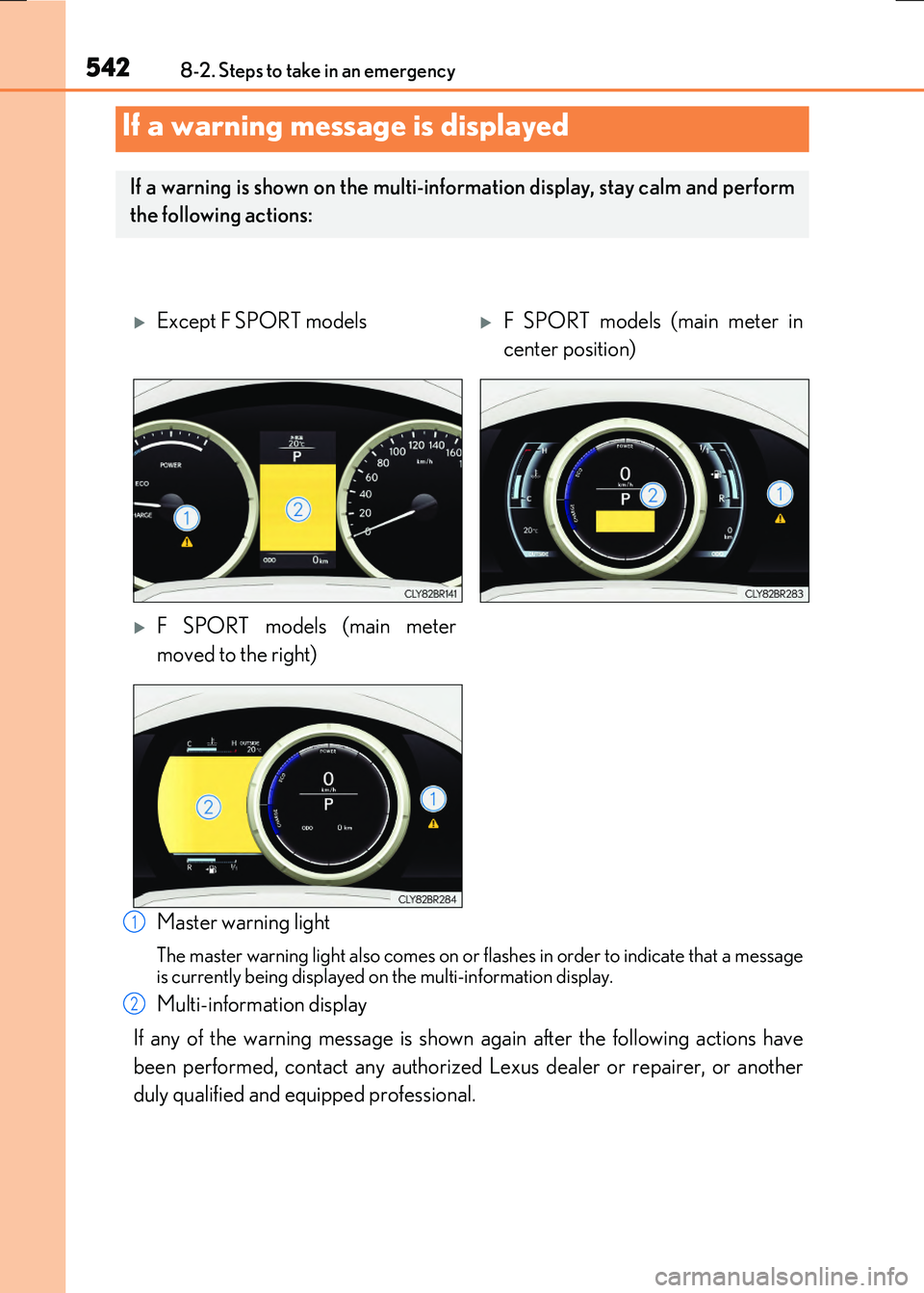

5428-2. Steps to take in an emergency
RC300h_EE(OM24740E)
Master warning light
The master warning light also comes on or flashes in order to indicate that a message is currently being displayed on the multi-information display.
Multi-information display
If any of the warning message is shown again after the following actions have
been performed, contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
If a warning message is displayed
If a warning is shown on the multi-information display, stay calm and perform
the following actions:
Except F SPORT modelsF SPORT models (main meter in
center position)
F SPORT models (main meter
moved to the right)
1
2

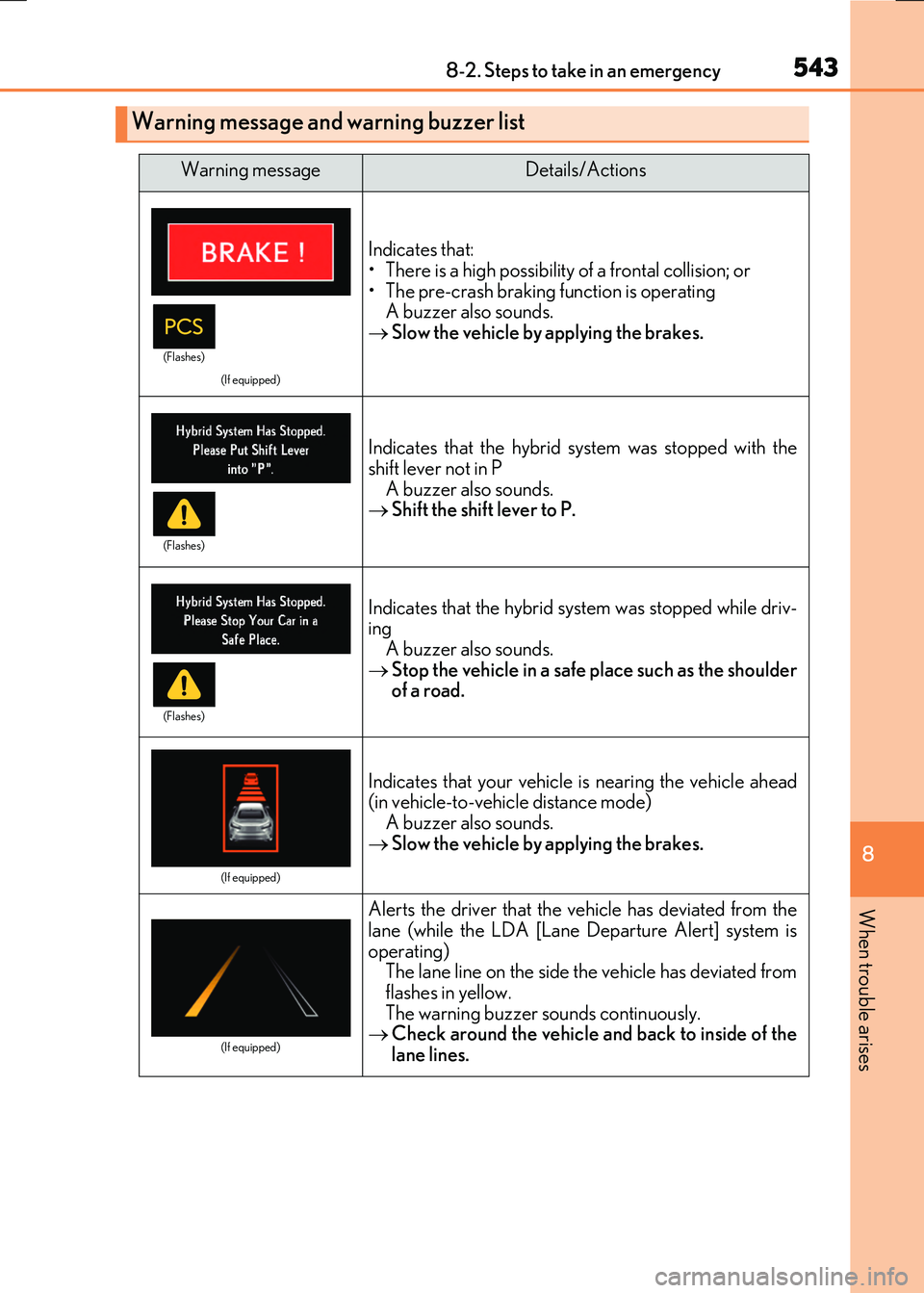

5438-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)
Warning message and warning buzzer list
Warning messageDetails/Actions
(If equipped)
Indicates that: • There is a high possibility of a frontal collision; or
• The pre-crash braking function is operating A buzzer also sounds. Slow the vehicle by applying the brakes.
Indicates that the hybrid system was stopped with the
shift lever not in P A buzzer also sounds. Shift the shift lever to P.
Indicates that the hybrid system was stopped while driv- ingA buzzer also sounds.
 Stop the vehicle in a safe place such as the shoulder of a road.
(If equipped)
Indicates that your vehicle is nearing the vehicle ahead(in vehicle-to-vehicle distance mode)
A buzzer also sounds.  Slow the vehicle by applying the brakes.
(If equipped)
Alerts the driver that the vehicle has deviated from the
lane (while the LDA [Lane Departure Alert] system is operating)The lane line on the side the vehicle has deviated from
flashes in yellow. The warning buzzer sounds continuously. Check around the vehicle and back to inside of the
lane lines.
(Flashes)
(Flashes)
(Flashes)

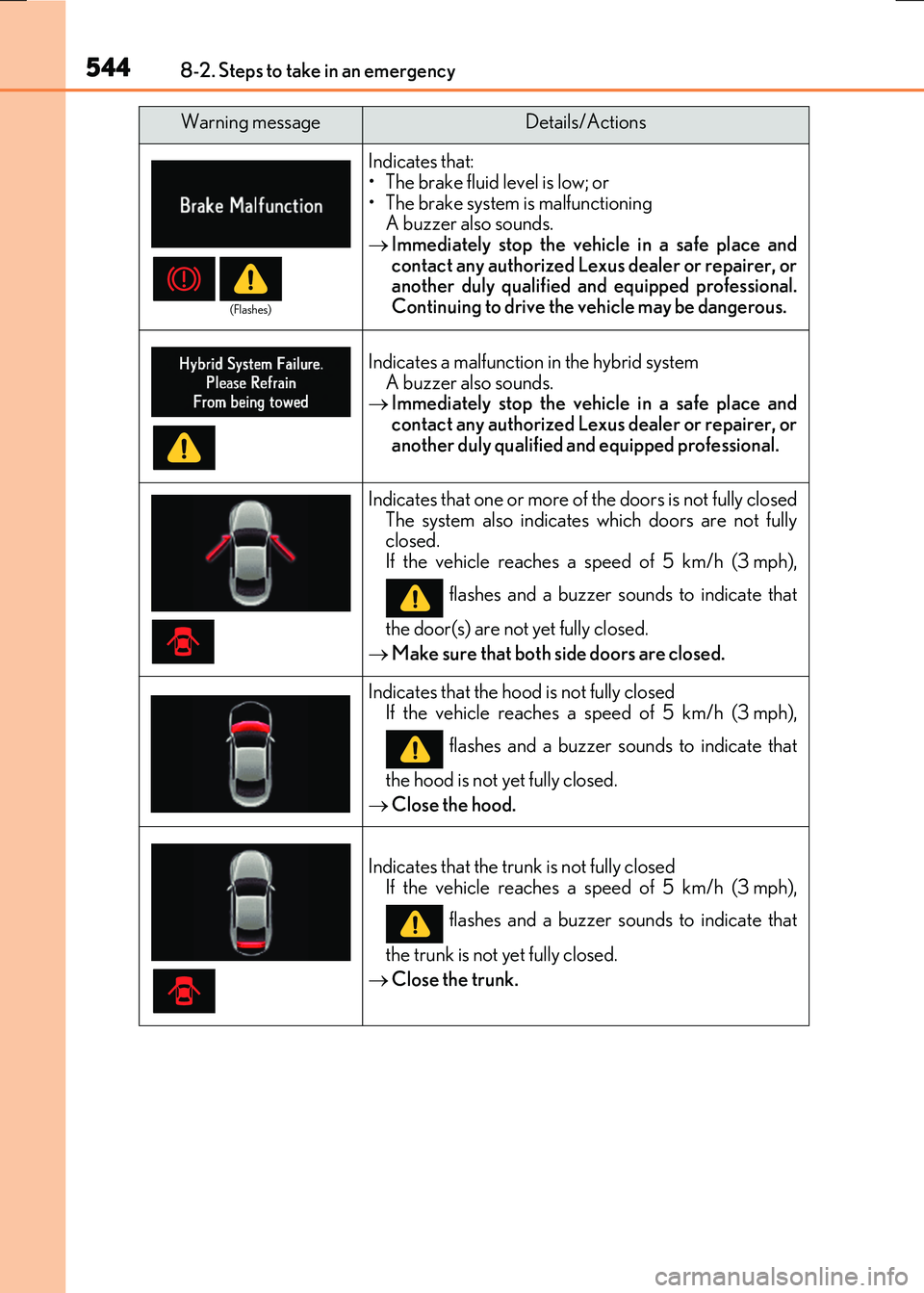

5448-2. Steps to take in an emergency
RC300h_EE(OM24740E)
Indicates that: • The brake fluid level is low; or
• The brake system is malfunctioning A buzzer also sounds. Immediately stop the vehicle in a safe place and
contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.Continuing to drive the vehicle may be dangerous.
Indicates a malfunction in the hybrid system A buzzer also sounds. Immediately stop the vehicle in a safe place and
contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Indicates that one or more of the doors is not fully closed The system also indicates which doors are not fullyclosed.
If the vehicle reaches a speed of 5 km/h (3 mph),
flashes and a buzzer sounds to indicate that
the door(s) are not yet fully closed.
 Make sure that both side doors are closed.
Indicates that the hood is not fully closed
If the vehicle reaches a speed of 5 km/h (3 mph),
flashes and a buzzer sounds to indicate that
the hood is not yet fully closed.
 Close the hood.
Indicates that the trunk is not fully closed If the vehicle reaches a speed of 5 km/h (3 mph),
flashes and a buzzer sounds to indicate that
the trunk is not yet fully closed.
 Close the trunk.
Warning messageDetails/Actions
(Flashes)

5458-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)
Indicates a malfunction in the Lexus parking assist-sen-
sor A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Indicates that a Lexus parking assist-sensor is dirty or
covered with ice A buzzer also sounds. Clean the sensor.
Indicates that the accelerator pedal is depressed while the shift position is in NA buzzer also sounds.
 Release the accelerator pedal and shift the shift lever to D, S or R.
Indicates that the accelerator pedal is depressed to stopthe vehicle on an upward slope, etc.
A buzzer also sounds.  Release the accelerator pedal and depress the brake pedal.
Warning messageDetails/Actions
(Flashes)
(Flashes)

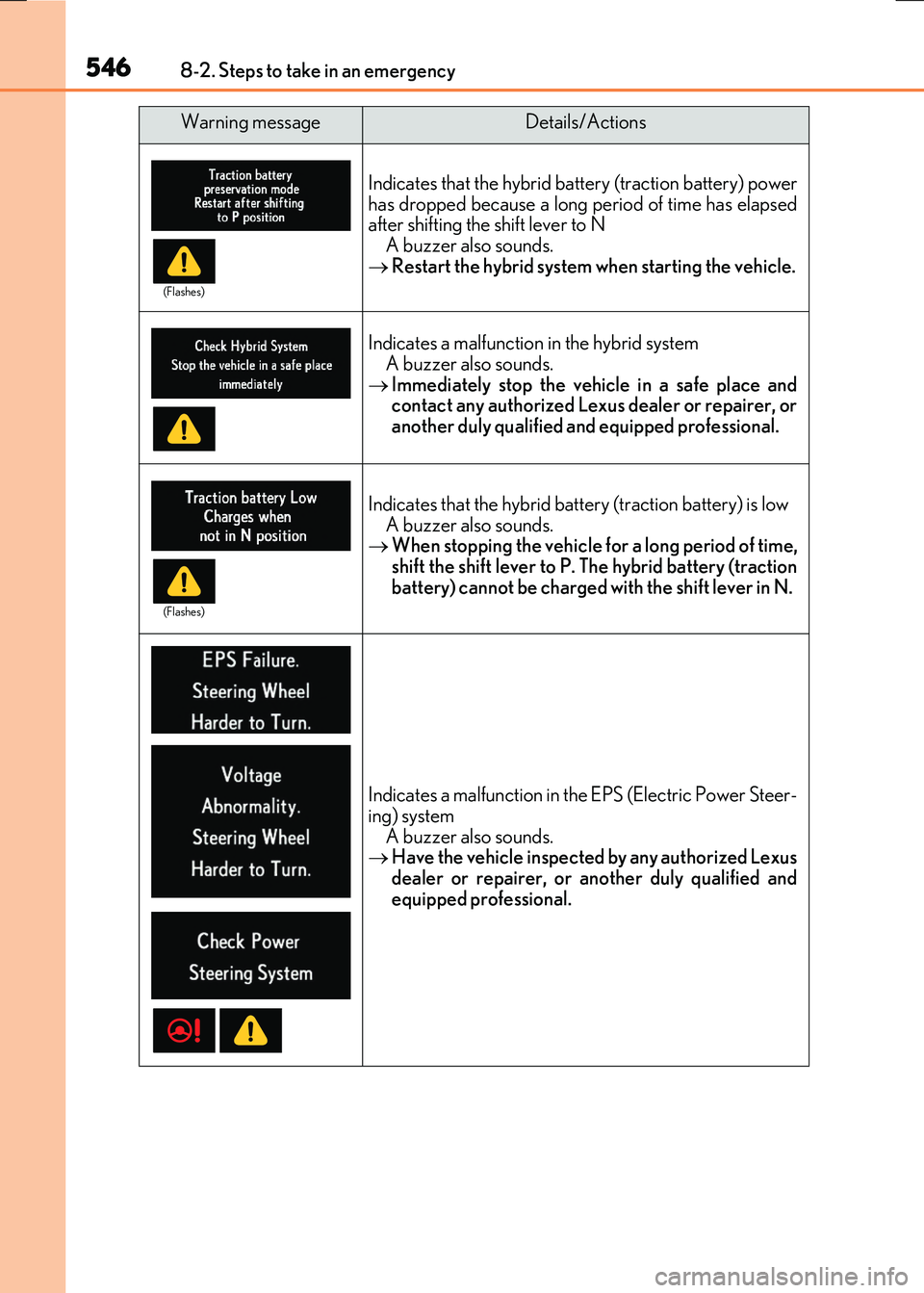

5468-2. Steps to take in an emergency
RC300h_EE(OM24740E)
Indicates that the hybrid battery (traction battery) power
has dropped because a long period of time has elapsed after shifting the shift lever to NA buzzer also sounds.
 Restart the hybrid system when starting the vehicle.
Indicates a malfunction in the hybrid system
A buzzer also sounds.  Immediately stop the vehicle in a safe place and contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Indicates that the hybrid battery (traction battery) is low A buzzer also sounds. When stopping the vehicle for a long period of time,
shift the shift lever to P. The hybrid battery (traction battery) cannot be charged with the shift lever in N.
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Warning messageDetails/Actions
(Flashes)
(Flashes)

5478-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)
Indicates that the vehicle is being driven at 5 km/h (3 mph) or more with the parking brake still engaged
A buzzer also sounds.  Release the parking brake.
Indicates a malfunction in: • The SRS airbag system; or• The seat belt pretensioner system
A buzzer also sounds.  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Indicates a malfunction in: •The ABS; or• The brake assist system
A buzzer also sounds.  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Indicates that the engine coolant temperature is too high
A buzzer also sounds.  P. 587
(If equipped)
Indicates that the radar sensor is dirty or covered with ice
A buzzer also sounds.  Clean the sensor.
Warning messageDetails/Actions
(Flashes)

5488-2. Steps to take in an emergency
RC300h_EE(OM24740E)
(If equipped)
Indicates that the dynamic radar cruise control system is
unable to judge vehicle-to-vehicle distance A buzzer also sounds. Turn off snow mode.
If the windshield wipers are on, turn them off or set them to a mode other than AUTO or high speedwiper operation.
(If equipped)
Indicates that the LDA (Lane Departure Alert) system issuspended (The camera sensor temperature is higher
than the operation temperature range) A buzzer also sounds. Restart the LDA after driving for a while.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur- rounding area on the rear bumper is dirty or covered
with snow, ice, etc. or that a sensor is misaligned A buzzer also sounds. Clean off the dirt, snow, ice, etc. and drive the vehi-
cle with the operation conditions of the BSM func- tion ( P. 327) satisfied for approximately 10
minutes. If the warning message does not disappear, the sensor may be misaligned. Have the vehicleinspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Indicates a malfunction in:• The cruise control system; or
• The dynamic radar cruise control system (if equipped) Press the “ON/OFF” button once to deactivate thesystem, and then press the button again to reactivate
the system. A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Warning messageDetails/Actions

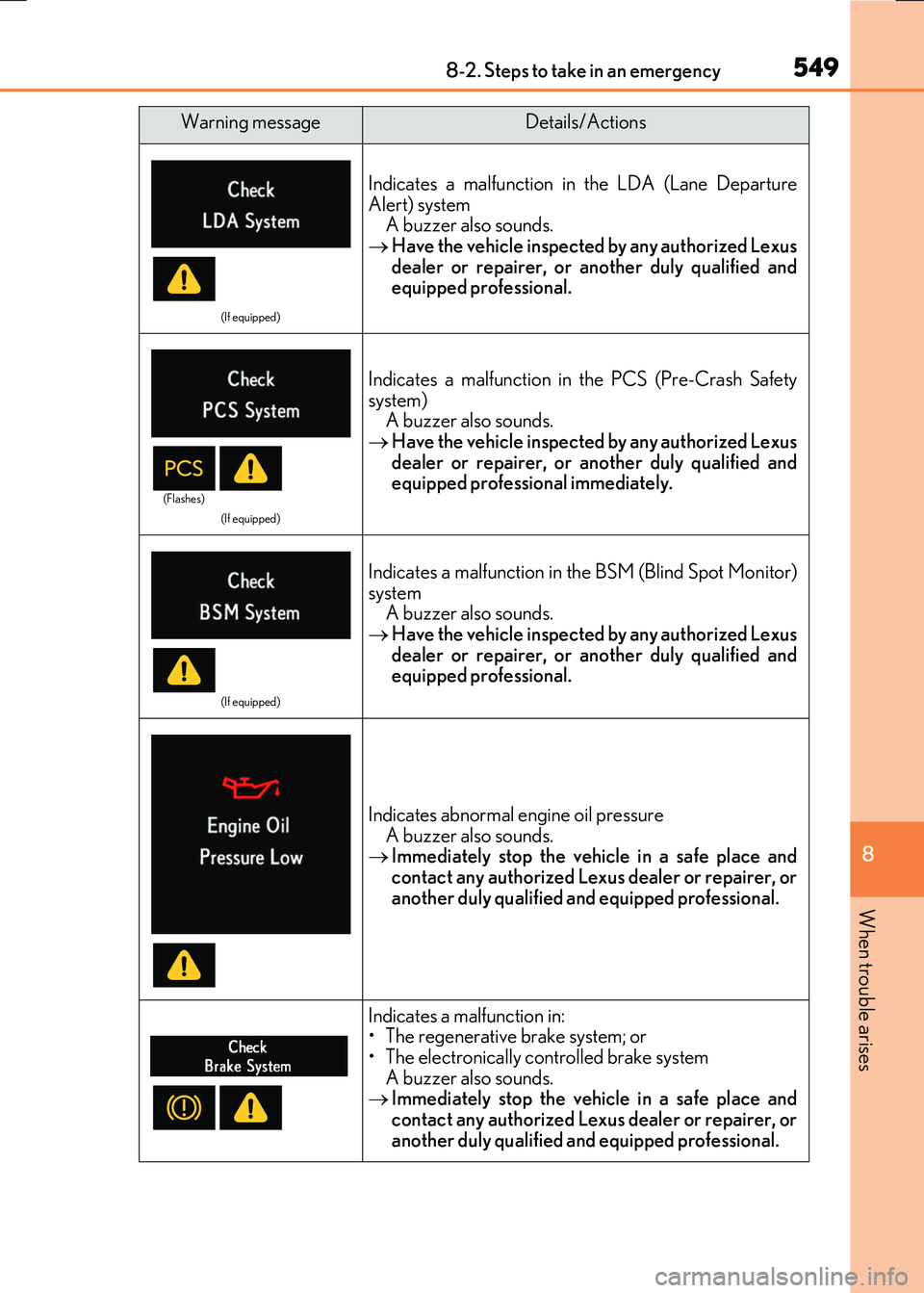

5498-2. Steps to take in an emergency
8
When trouble arises
RC300h_EE(OM24740E)
(If equipped)
Indicates a malfunction in the LDA (Lane Departure
Alert) system A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
(If equipped)
Indicates a malfunction in the PCS (Pre-Crash Safetysystem)A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified andequipped professional immediately.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Indicates abnormal engine oil pressure
A buzzer also sounds.  Immediately stop the vehicle in a safe place and contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Indicates a malfunction in: • The regenerative brake system; or• The electronically controlled brake system
A buzzer also sounds.  Immediately stop the vehicle in a safe place and contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Warning messageDetails/Actions
(Flashes)

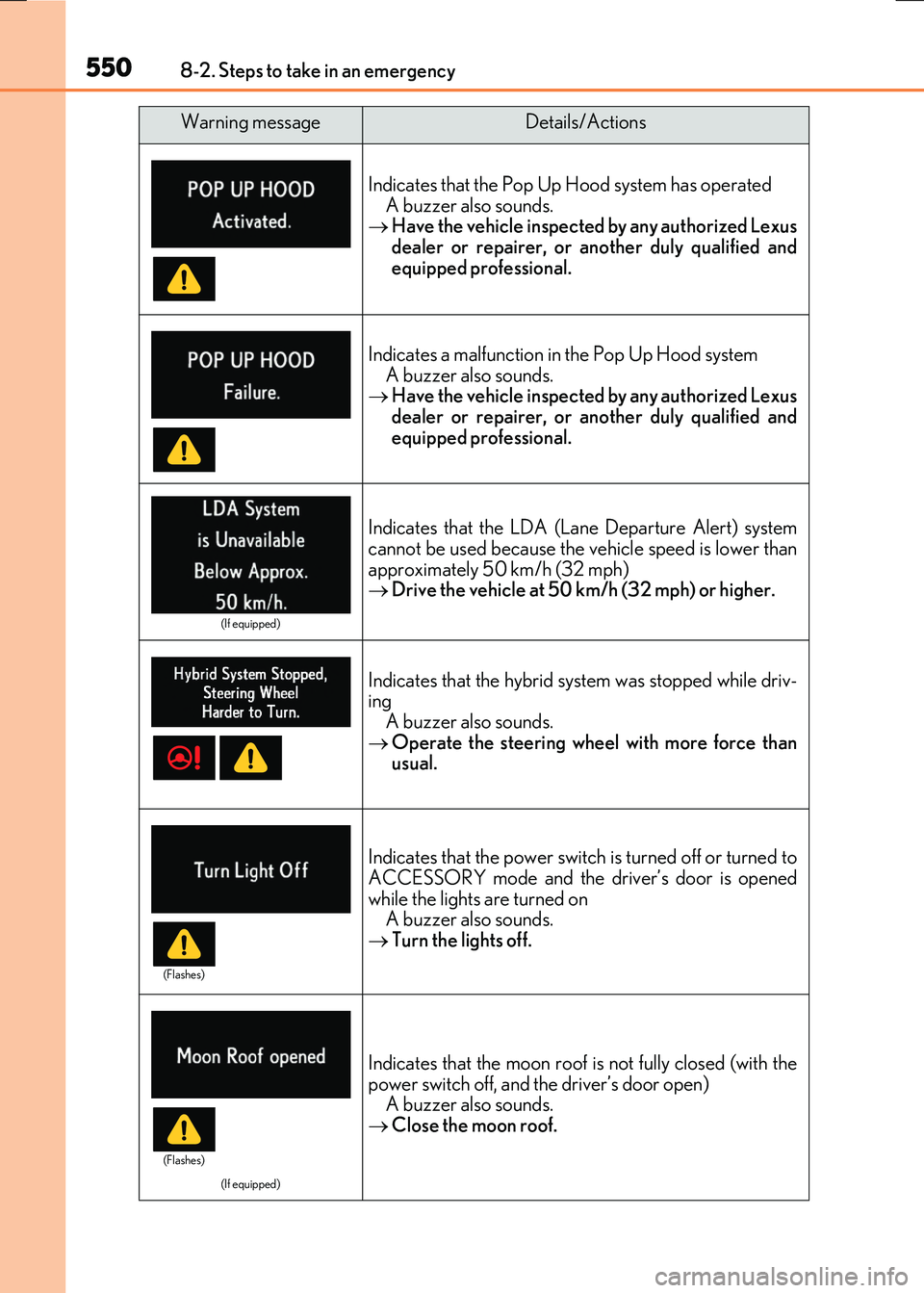

5508-2. Steps to take in an emergency
RC300h_EE(OM24740E)
Indicates that the Pop Up Hood system has operated A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Indicates a malfunction in the Pop Up Hood system A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
(If equipped)
Indicates that the LDA (Lane Departure Alert) systemcannot be used because the vehicle speed is lower than
approximately 50 km/h (32 mph)  Drive the vehicle at 50 km/h (32 mph) or higher.
Indicates that the hybrid system was stopped while driv- ingA buzzer also sounds.
 Operate the steering wheel with more force than usual.
Indicates that the power switch is turned off or turned toACCESSORY mode and the driver’s door is opened
while the lights are turned on A buzzer also sounds. Turn the lights off.
(If equipped)
Indicates that the moon roof is not fully closed (with the power switch off, and the driver’s door open)A buzzer also sounds.
 Close the moon roof.
Warning messageDetails/Actions
(Flashes)
(Flashes)
