LEXUS RX350 2011 Owners Manual

38
1-2. Opening, closing and locking the doors
nNotes for locking the doors
lTouching the door lock sensor while wearing gloves may delay or prevent lock
operation. Remove the gloves and touch the lock sensor again.
lWhen the lock operation is performed using the lock sensor, recognition signals
will be shown up to two consecutive times. After this, no recognition signals will
be given.
lIf the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. Place the key in a position 6 ft.
(2 m) or more separate from the vehicle while the vehicle is being washed. (Take
care to ensure that the key is not stolen.)
lIf the electronic key is inside the vehicle and a door handle becomes wet during
a car wash, a message may be shown on the multi-information display and a
buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.
lThe lock sensor may not work properly if it comes into contact with ice, snow,
mud, etc. Clean the lock sensor and attempt to operate it again, or use the lock
sensor on the lower part of the door handle.
lFingernails may scrape against the door during operation of the door handle.
Be careful not to injure fingernails or damage the surface of the door.
nNotes for the unlocking function
lGripping the door handle when wearing a glove may not unlock the door.
lA sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the original
position and check that the doors unlock before pulling the door handle again.
lIf there is another electronic key in the detection area, it may take slightly longer
to unlock the doors after the door handle is gripped.
nWhen the vehicle is not driven for extended periods
lTo prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m)
of the vehicle.
lThe smart access system with push-button start can be deactivated in advance.
(→P. 6 2 1 )

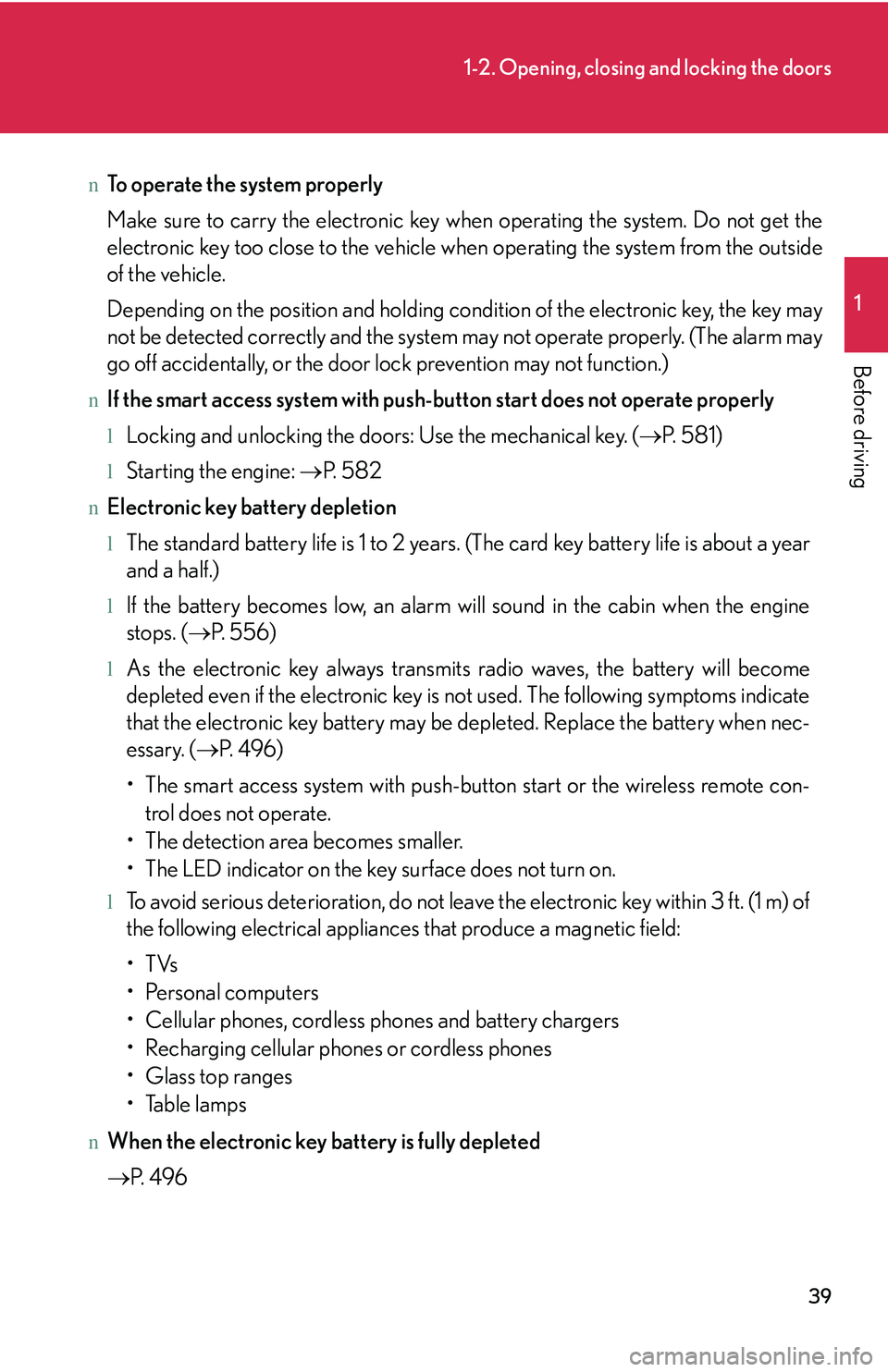

39
1-2. Opening, closing and locking the doors
1

Before driving
nTo operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected correctly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not function.)
nIf the smart access system with push-button start does not operate properly
lLocking and unlocking the doors: Use the mechanical key. (→P. 5 8 1 )
lStarting the engine: →P. 5 8 2
nElectronic key battery depletion
lThe standard battery life is 1 to 2 years. (The card key battery life is about a year
and a half.)
lIf the battery becomes low, an alarm will sound in the cabin when the engine
stops. (→P. 5 5 6 )
lAs the electronic key always transmits radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indicate
that the electronic key battery may be depleted. Replace the battery when nec-
essary. (→P. 4 9 6 )

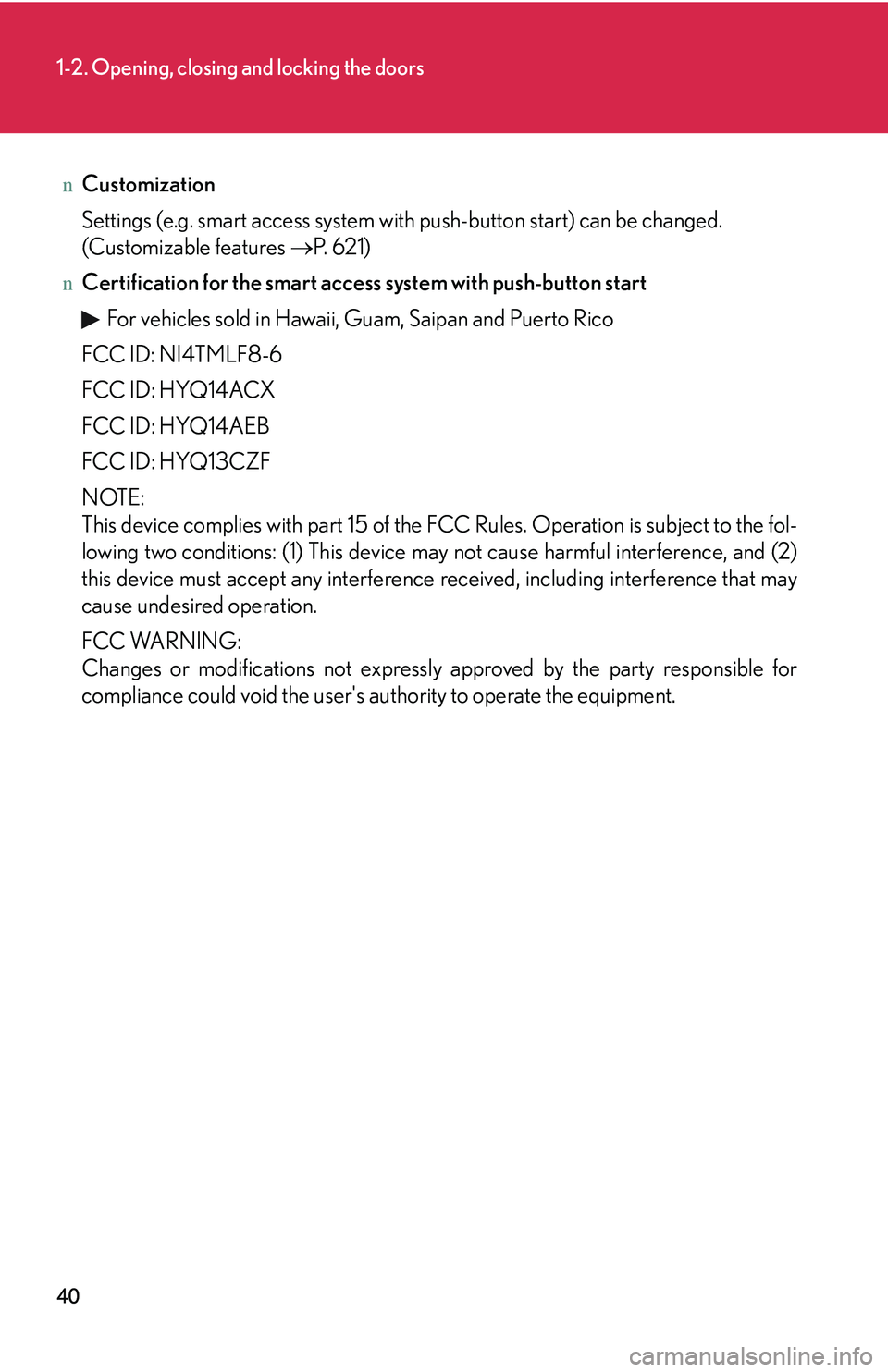

40
1-2. Opening, closing and locking the doors
nCustomization
Settings (e.g. smart access system with push-button start) can be changed.
(Customizable features →P. 6 2 1 )
nCertification for the smart access system with push-button start
For vehicles sold in Hawaii, Guam, Saipan and Puerto Rico
FCC ID: NI4TMLF8-6
FCC ID: HYQ14ACX
FCC ID: HYQ14AEB
FCC ID: HYQ13CZF
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

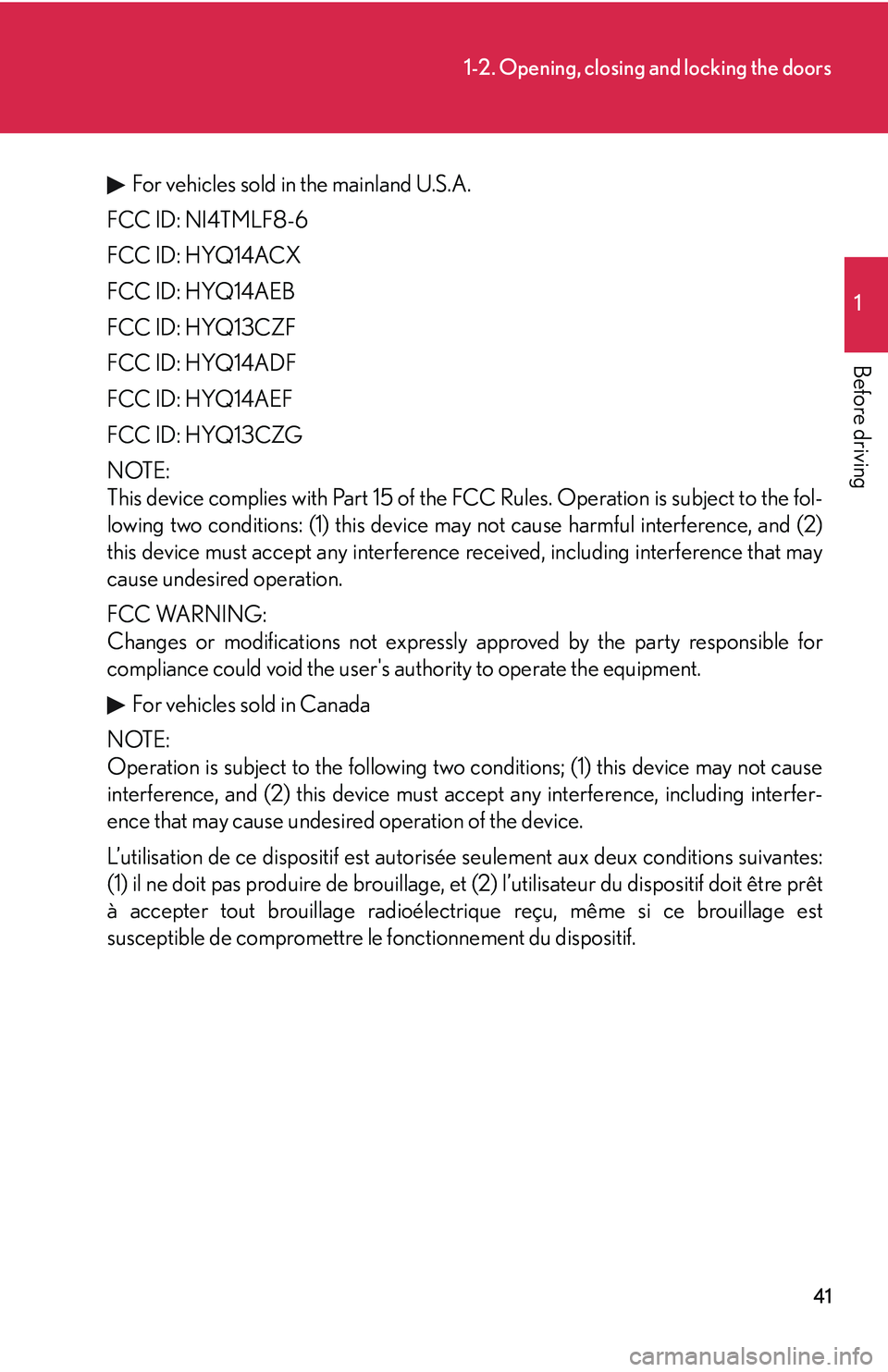

41
1-2. Opening, closing and locking the doors
1

Before driving
For vehicles sold in the mainland U.S.A.
FCC ID: NI4TMLF8-6
FCC ID: HYQ14ACX
FCC ID: HYQ14AEB
FCC ID: HYQ13CZF
FCC ID: HYQ14ADF
FCC ID: HYQ14AEF
FCC ID: HYQ13CZG
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions; (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
L’utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes:
(1) il ne doit pas produire de brouillage, et (2) l’utilisateur du dispositif doit être prêt
à accepter tout brouillage radioélectrique reçu, même si ce brouillage est
susceptible de compromettre le fonctionnement du dispositif.

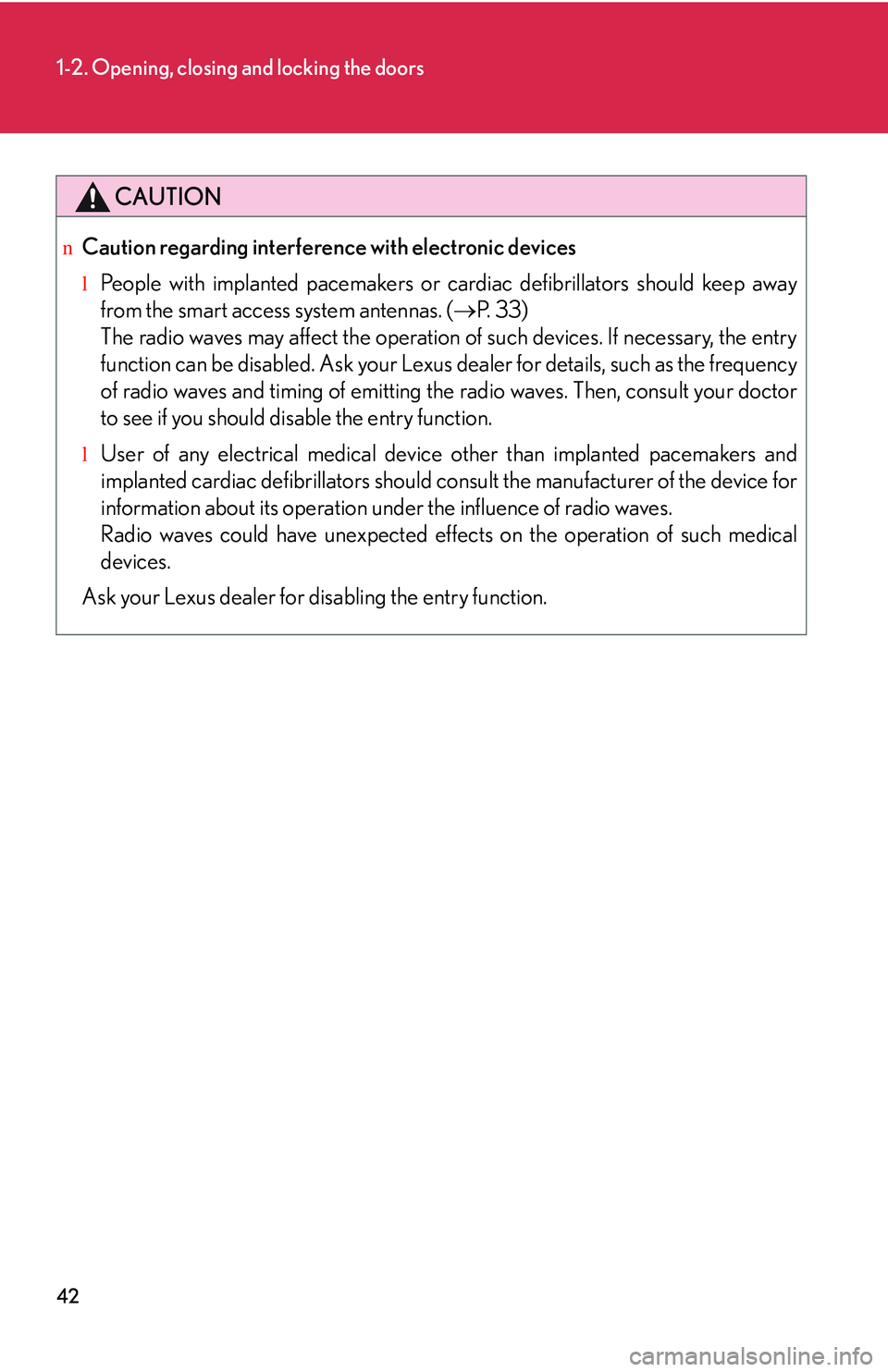

42
1-2. Opening, closing and locking the doors
CAUTION
nCaution regarding interference with electronic devices
lPeople with implanted pacemakers or cardiac defibrillators should keep away
from the smart access system antennas. (→P. 3 3 )
The radio waves may affect the operation of such devices. If necessary, the entry
function can be disabled. Ask your Lexus dealer for details, such as the frequency
of radio waves and timing of emitting the radio waves. Then, consult your doctor
to see if you should disable the entry function.
lUser of any electrical medical device other than implanted pacemakers and
implanted cardiac defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical
devices.
Ask your Lexus dealer for disabling the entry function.

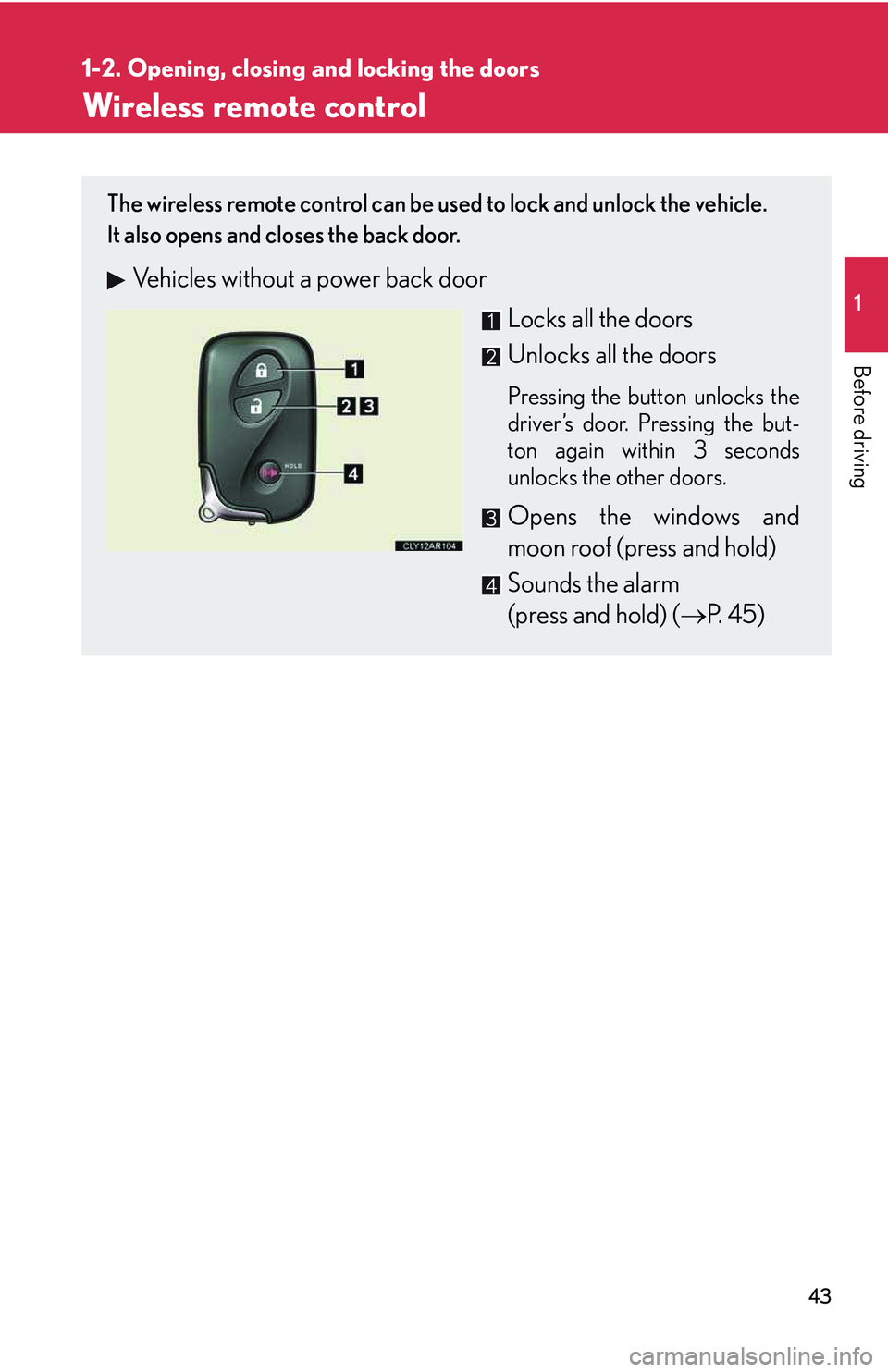

43
1
1-2. Opening, closing and locking the doors

Before driving
Wireless remote control
The wireless remote control can be used to lock and unlock the vehicle.
It also opens and closes the back door.
Vehicles without a power back door
Locks all the doors
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 3 seconds
unlocks the other doors.
Opens the windows and
moon roof (press and hold)
Sounds the alarm
(press and hold) (→P. 4 5 )

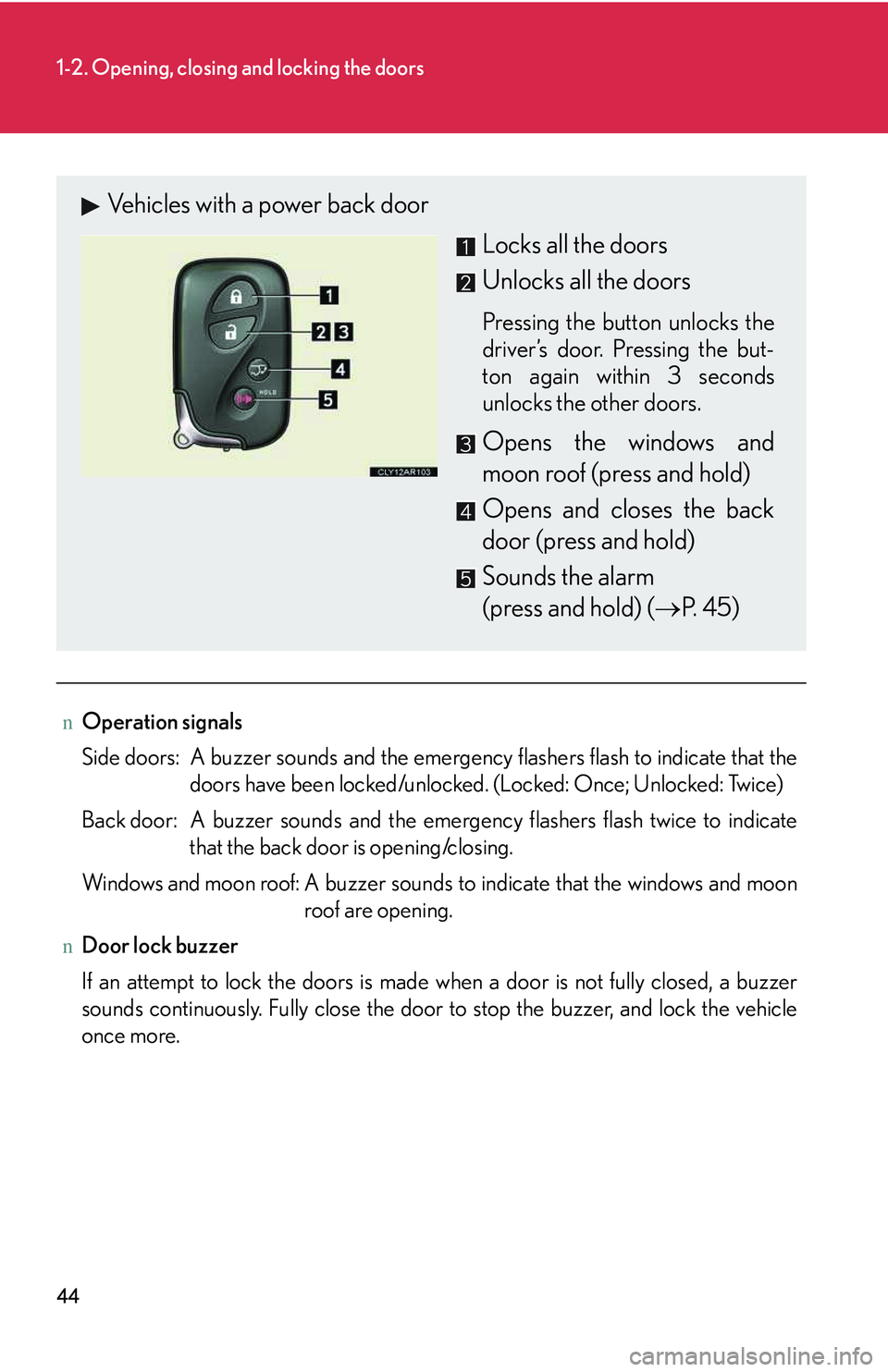

44
1-2. Opening, closing and locking the doors
nOperation signals
Side doors: A buzzer sounds and the emergency flashers flash to indicate that the
doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Back door: A buzzer sounds and the emergency flashers flash twice to indicate
that the back door is opening/closing.
Windows and moon roof: A buzzer sounds to indicate that the windows and moon
roof are opening.
nDoor lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a buzzer
sounds continuously. Fully close the door to stop the buzzer, and lock the vehicle
once more.
Vehicles with a power back door
Locks all the doors
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 3 seconds
unlocks the other doors.
Opens the windows and
moon roof (press and hold)
Opens and closes the back
door (press and hold)
Sounds the alarm
(press and hold) (→P. 4 5 )

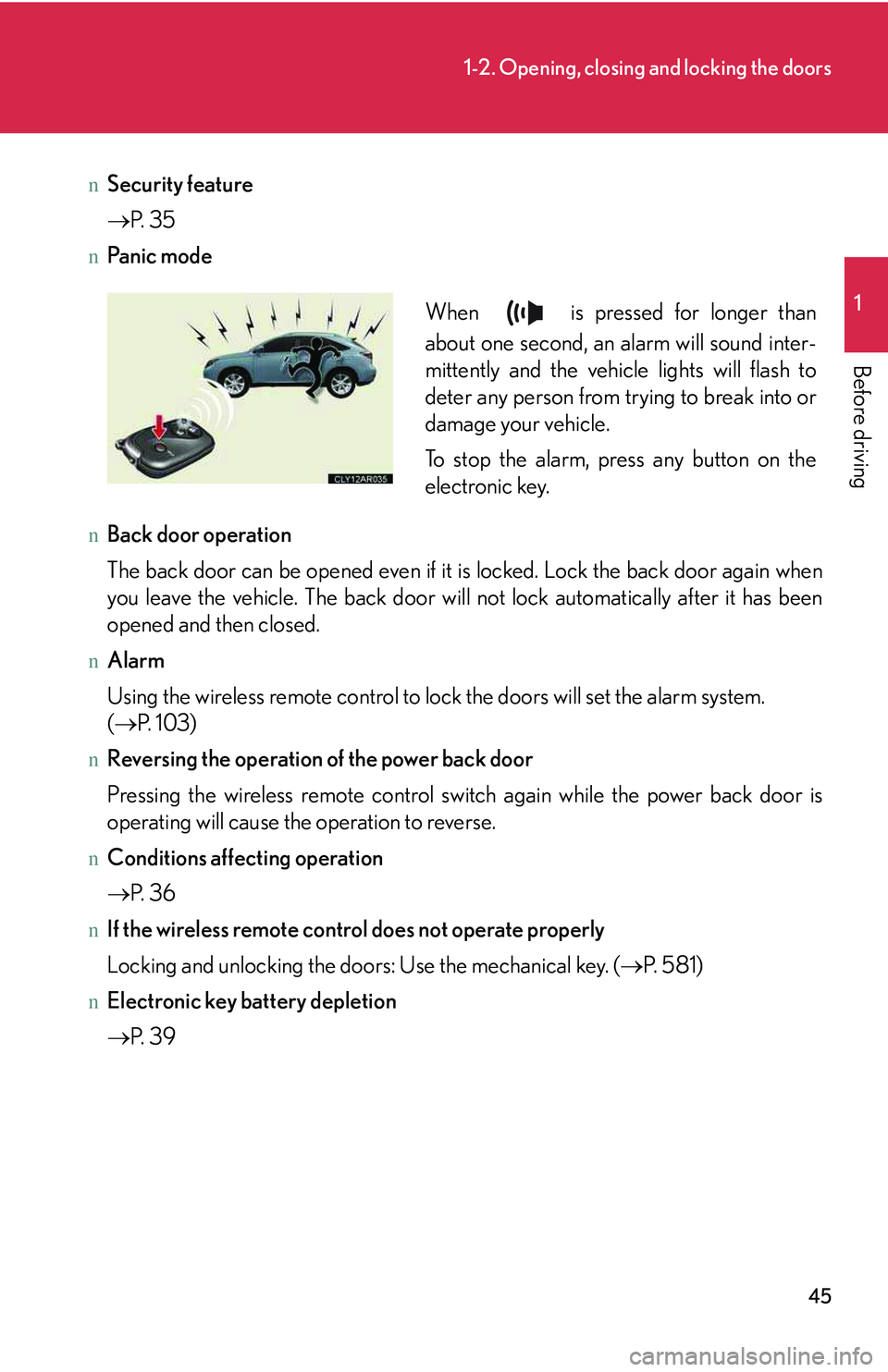

45
1-2. Opening, closing and locking the doors
1

Before driving
nSecurity feature
→P. 3 5
nPa n i c m o d e
nBack door operation
The back door can be opened even if it is locked. Lock the back door again when
you leave the vehicle. The back door will not lock automatically after it has been
opened and then closed.
nAlarm
Using the wireless remote control to lock the doors will set the alarm system.
(→P. 1 0 3 )
nReversing the operation of the power back door
Pressing the wireless remote control switch again while the power back door is
operating will cause the operation to reverse.
nConditions affecting operation
→P. 3 6
nIf the wireless remote control does not operate properly
Locking and unlocking the doors: Use the mechanical key. (→P. 5 8 1 )
nElectronic key battery depletion
→P. 3 9
When is pressed for longer than
about one second, an alarm will sound inter-
mittently and the vehicle lights will flash to
deter any person from trying to break into or
damage your vehicle.
To stop the alarm, press any button on the
electronic key.

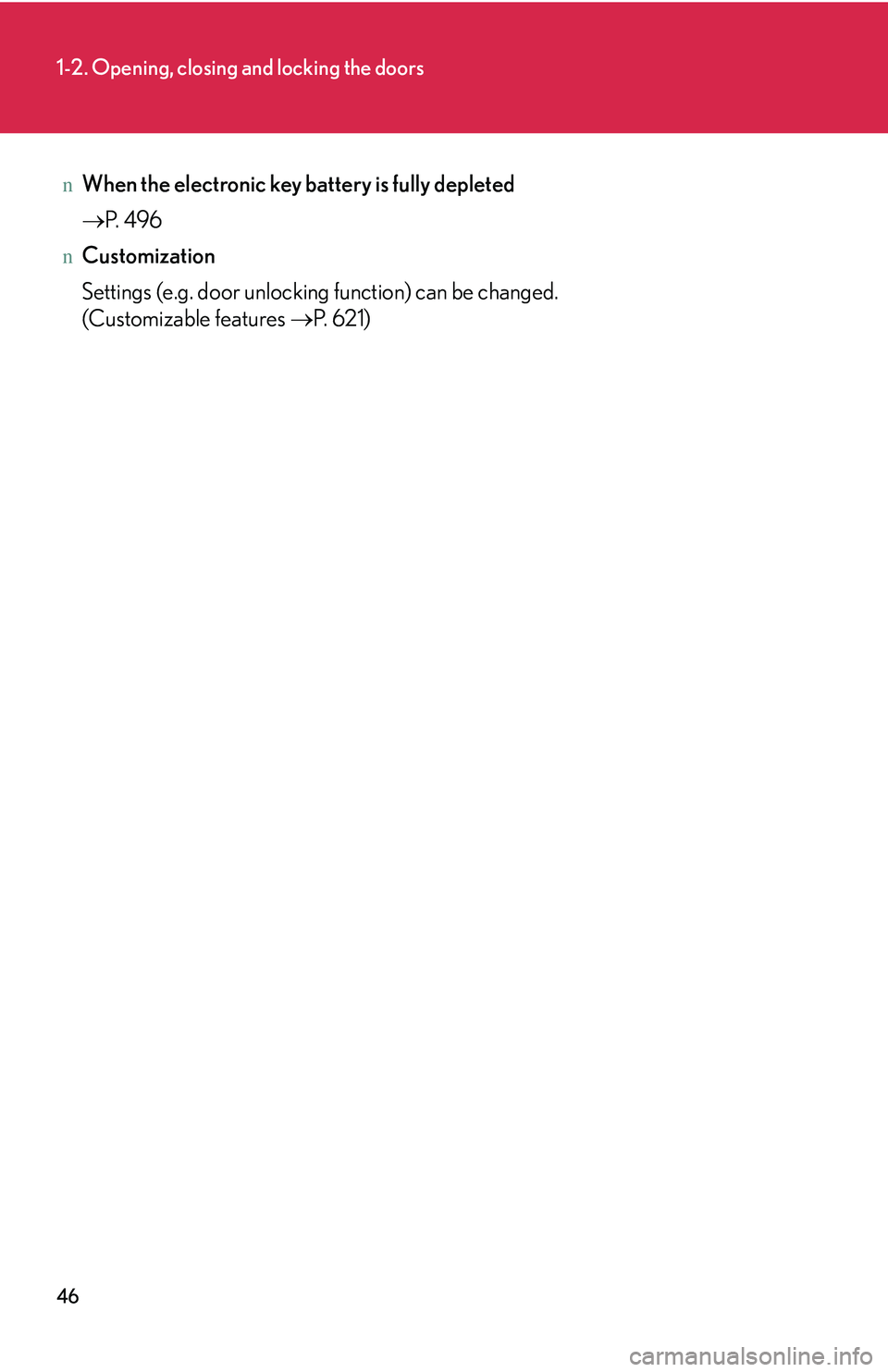

46
1-2. Opening, closing and locking the doors
nWhen the electronic key battery is fully depleted
→P. 4 9 6
nCustomization
Settings (e.g. door unlocking function) can be changed.
(Customizable features →P. 6 2 1 )

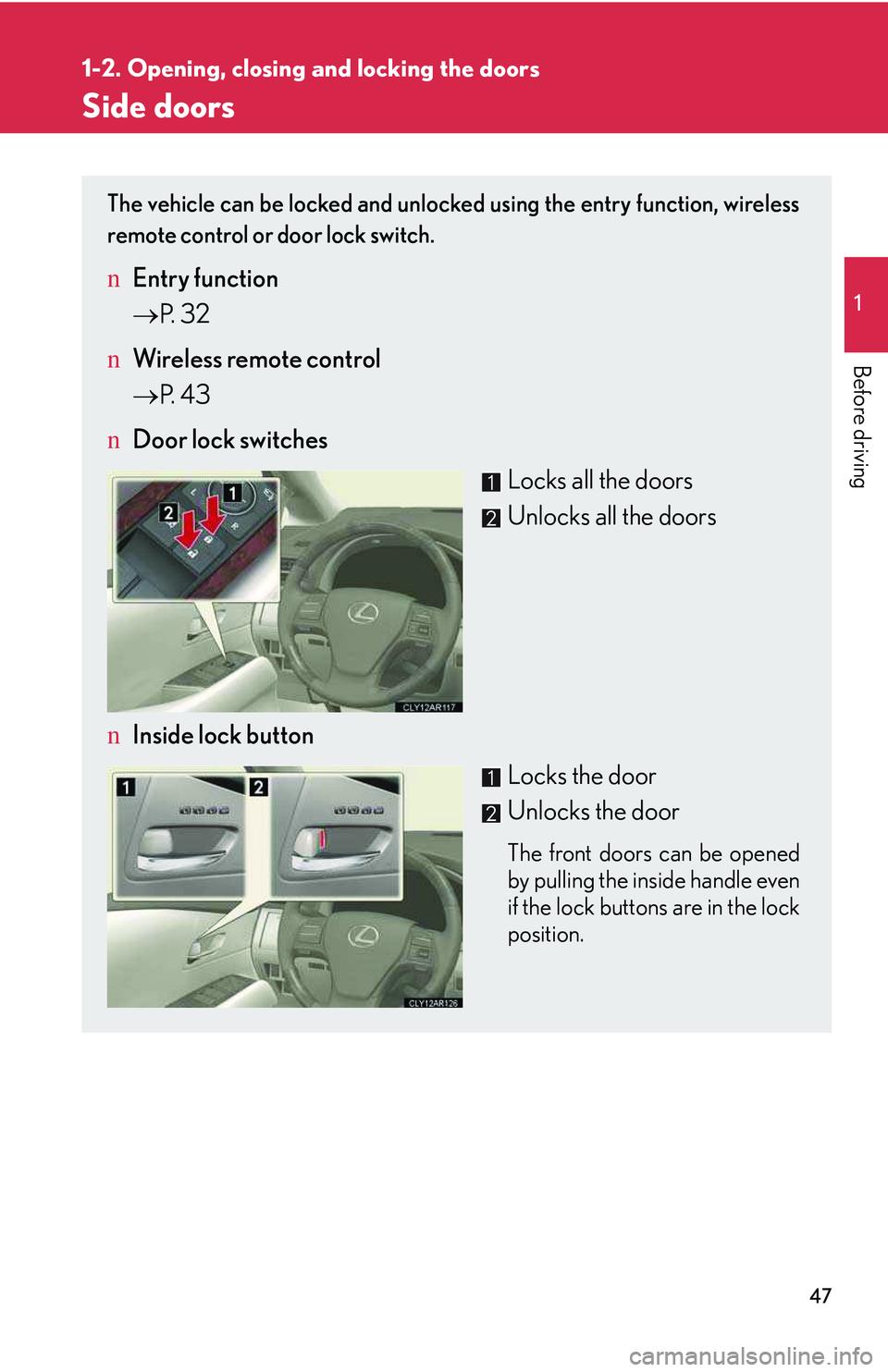

47
1
1-2. Opening, closing and locking the doors

Before driving
Side doors
The vehicle can be locked and unlocked using the entry function, wireless
remote control or door lock switch.
nEntry function
→P. 3 2
nWireless remote control
→P. 4 3
nDoor lock switches
Locks all the doors
Unlocks all the doors
nInside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle even
if the lock buttons are in the lock
position.
