LEXUS RX350 2011 Owners Manual

601
6-1. Specifications
6

Vehicle specifications

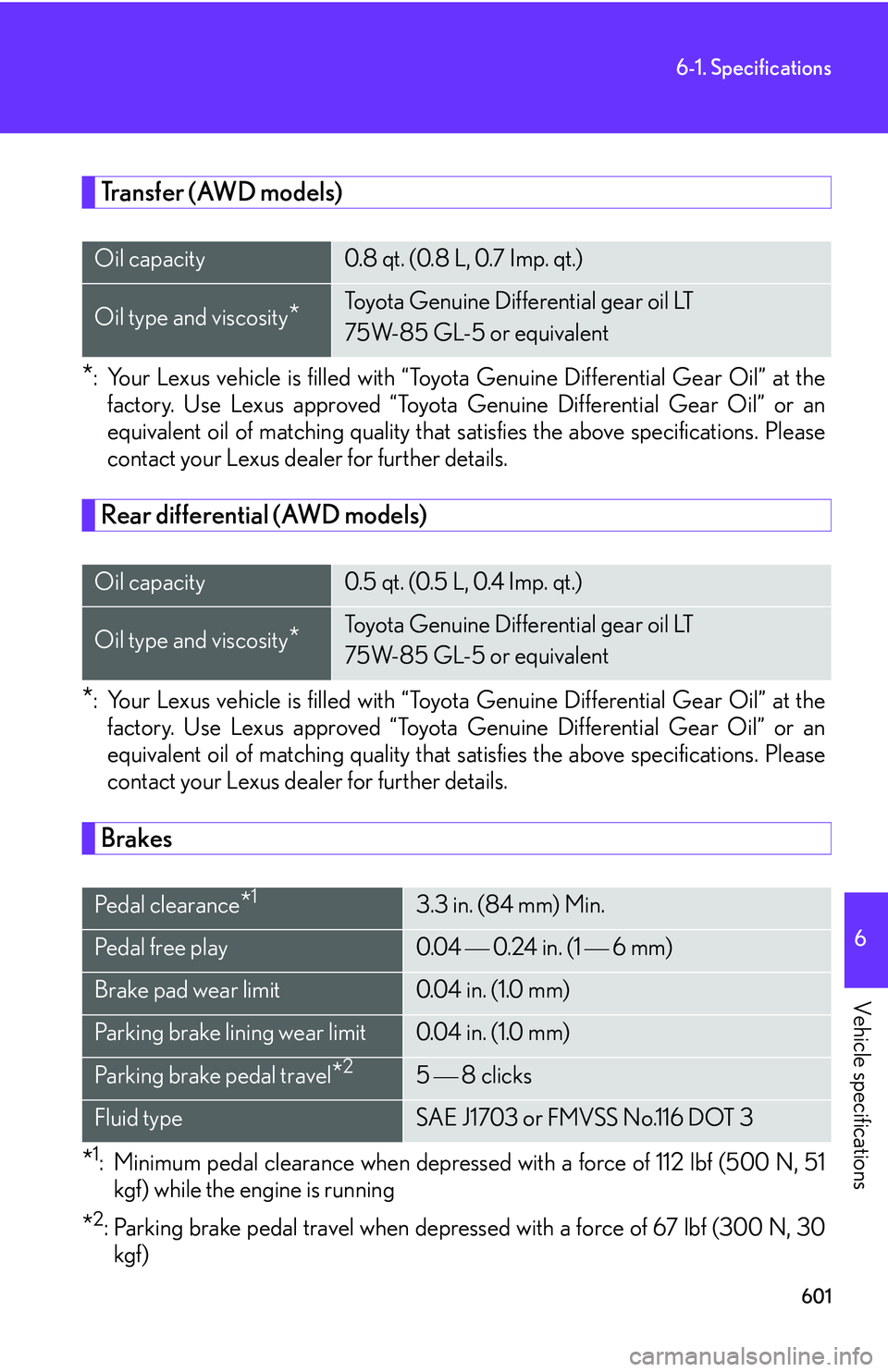

Transfer (AWD models)
*:Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an
equivalent oil of matching quality that satisfies the above specifications. Please
contact your Lexus dealer for further details.
Rear differential (AWD models)
*:Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an
equivalent oil of matching quality that satisfies the above specifications. Please
contact your Lexus dealer for further details.
Brakes
*1:Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51
kgf) while the engine is running
*2: Parking brake pedal travel when depressed with a force of 67 lbf (300 N, 30
kgf)
Oil capacity0.8 qt. (0.8 L, 0.7 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Oil capacity0.5 qt. (0.5 L, 0.4 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Pe d a l c l e a r a n c e*13.3 in. (84 mm) Min.
Pedal free play0.04 ⎯ 0.24 in. (1 ⎯ 6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel*25 ⎯ 8 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3

602
6-1. Specifications

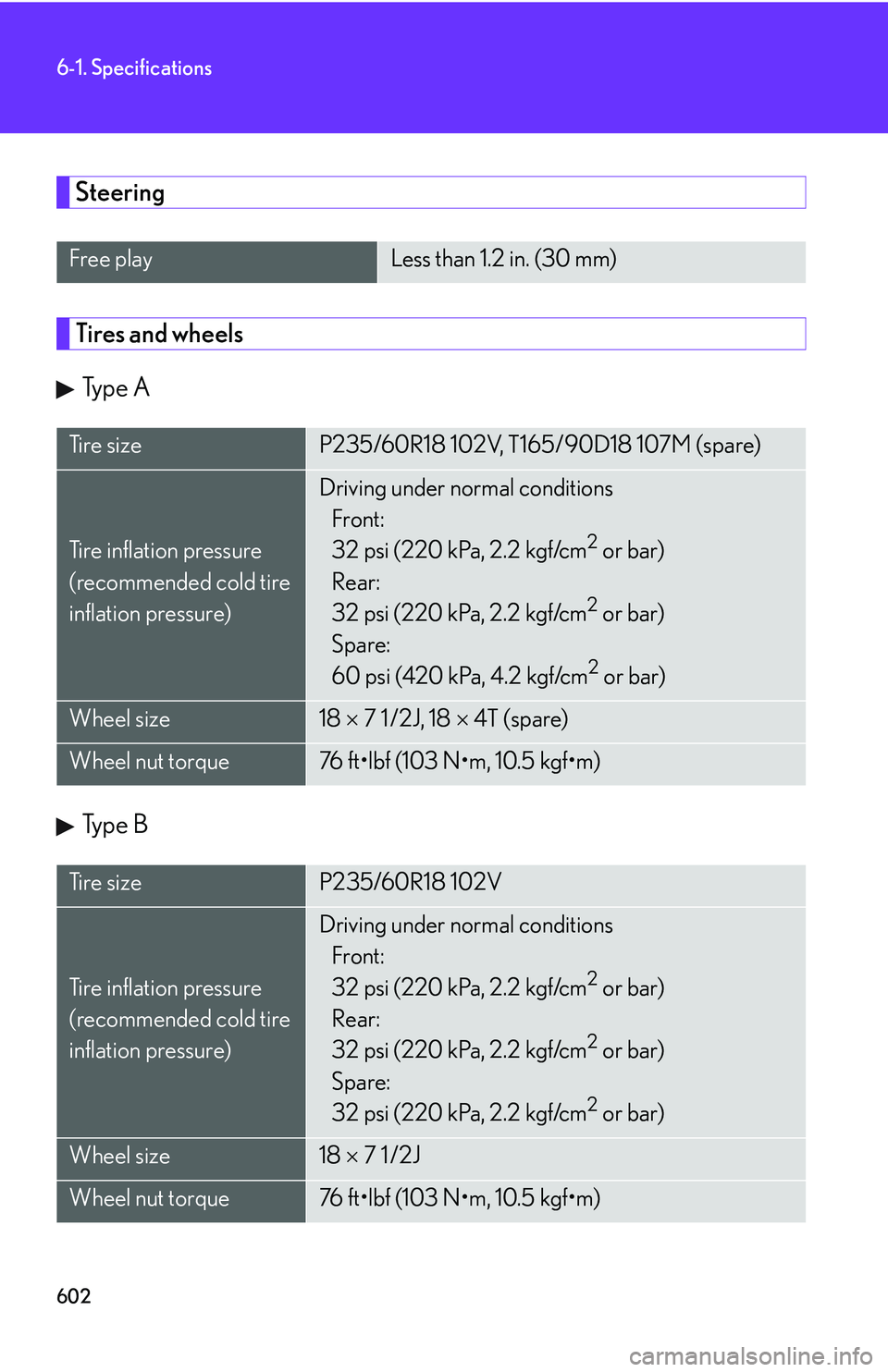

Steering
Tires and wheels
Typ e A
Ty p e B
Free playLess than 1.2 in. (30 mm)
Ti r e s i z eP235/60R18 102V, T165/90D18 107M (spare)
Tire inflation pressure
(recommended cold tire
inflation pressure)
Driving under normal conditions
Front:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size18 × 7 1/2J, 18 × 4T (spare)
Wheel nut torque76 ft

603
6-1. Specifications
6

Vehicle specifications

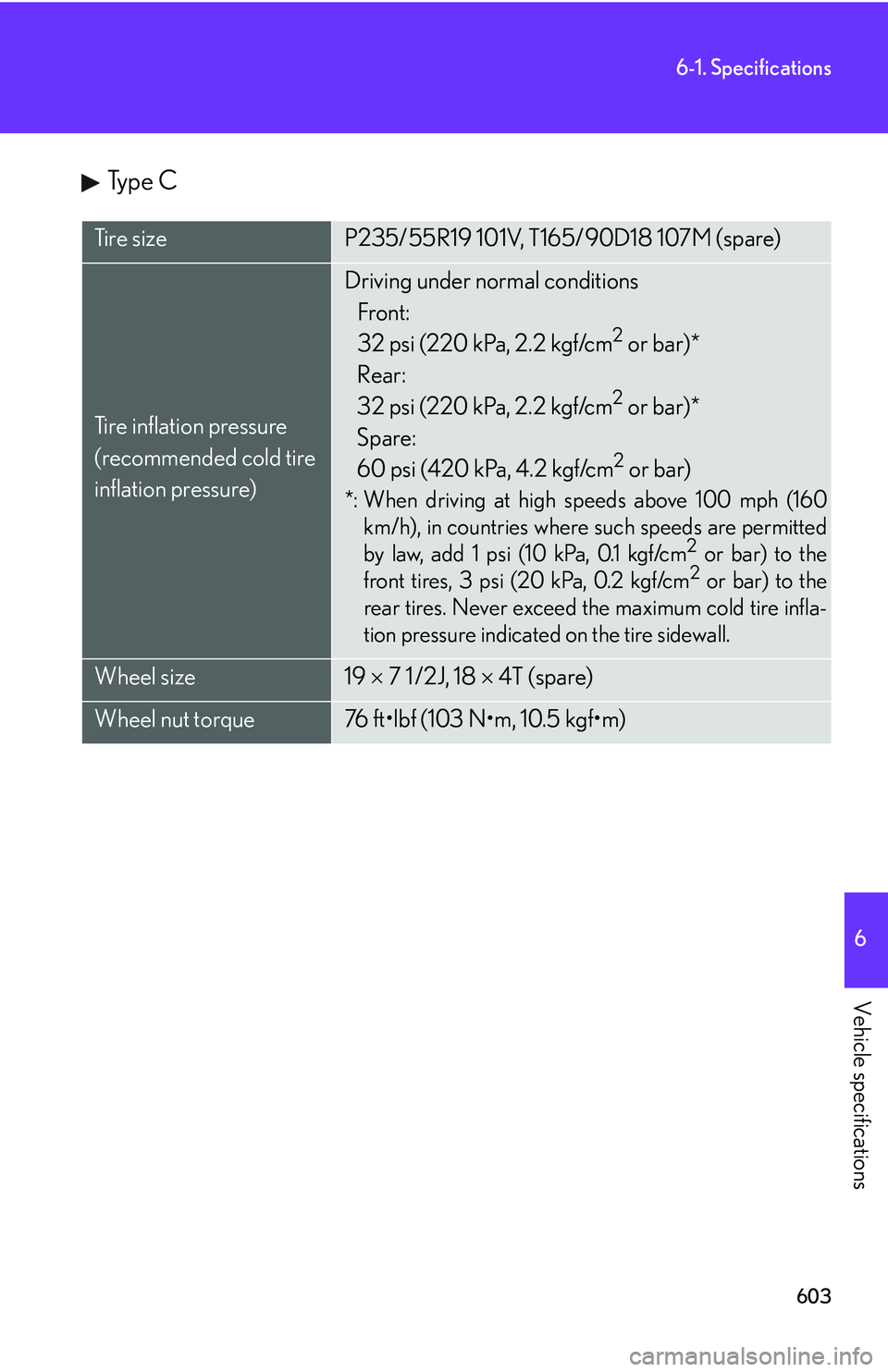

Type C
Ti r e s i z eP235/55R19 101V, T165/90D18 107M (spare)
Tire inflation pressure
(recommended cold tire
inflation pressure)
Driving under normal conditions
Front:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)*
Rear:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)*
Spare:
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
*: When driving at high speeds above 100 mph (160
km/h), in countries where such speeds are permitted
by law, add 1 psi (10 kPa, 0.1 kgf/cm2 or bar) to the
front tires, 3 psi (20 kPa, 0.2 kgf/cm2 or bar) to the
rear tires. Never exceed the maximum cold tire infla-
tion pressure indicated on the tire sidewall.
Wheel size19 × 7 1/2J, 18 × 4T (spare)
Wheel nut torque76 ft

604
6-1. Specifications

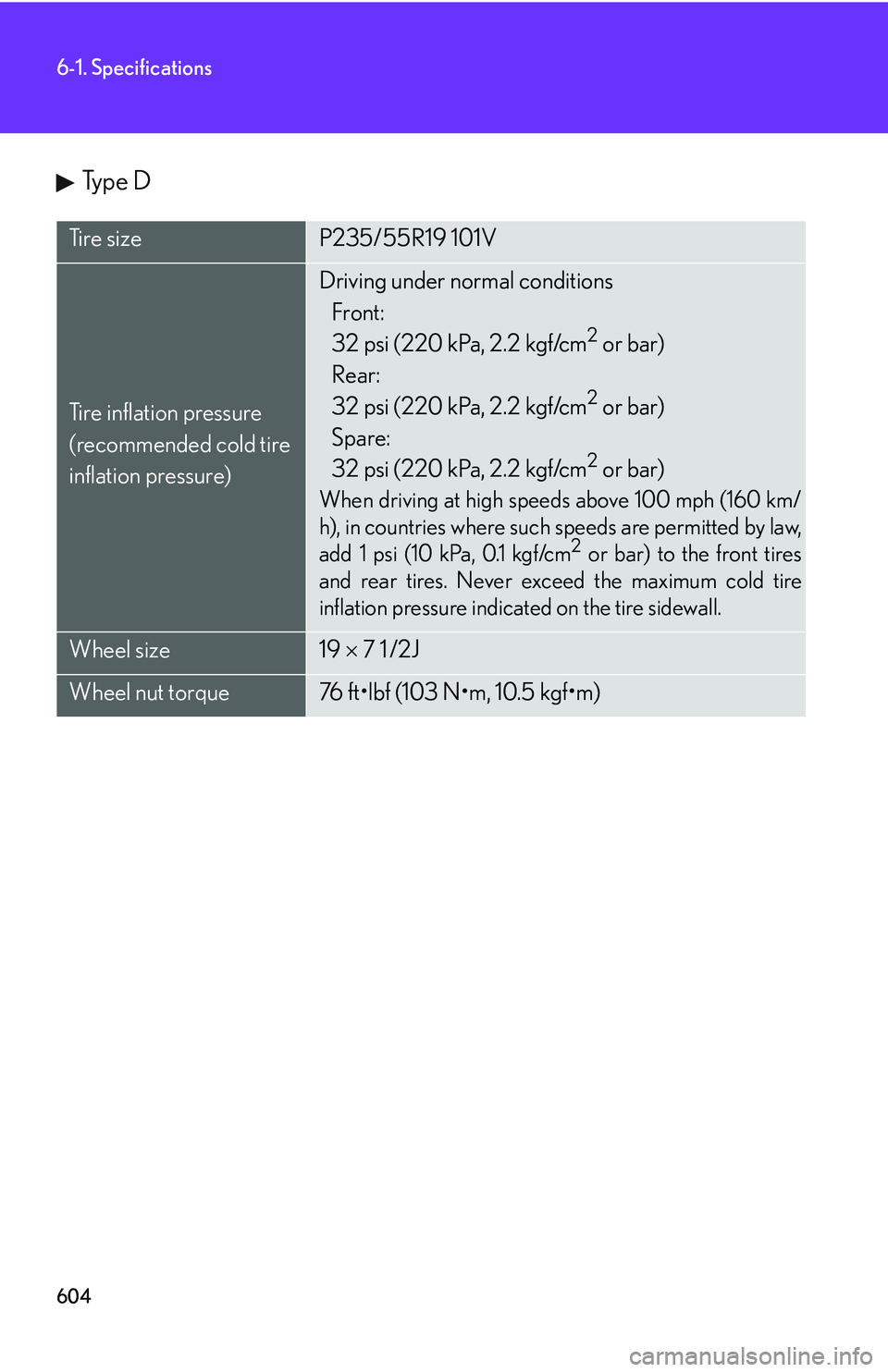

Ty p e D
Ti r e s i z eP235/55R19 101V
Tire inflation pressure
(recommended cold tire
inflation pressure)
Driving under normal conditions
Front:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spare:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
When driving at high speeds above 100 mph (160 km/
h), in countries where such speeds are permitted by law,
add 1 psi (10 kPa, 0.1 kgf/cm2 or bar) to the front tires
and rear tires. Never exceed the maximum cold tire
inflation pressure indicated on the tire sidewall.
Wheel size19 × 7 1/2J
Wheel nut torque76 ft

605
6-1. Specifications
6

Vehicle specifications

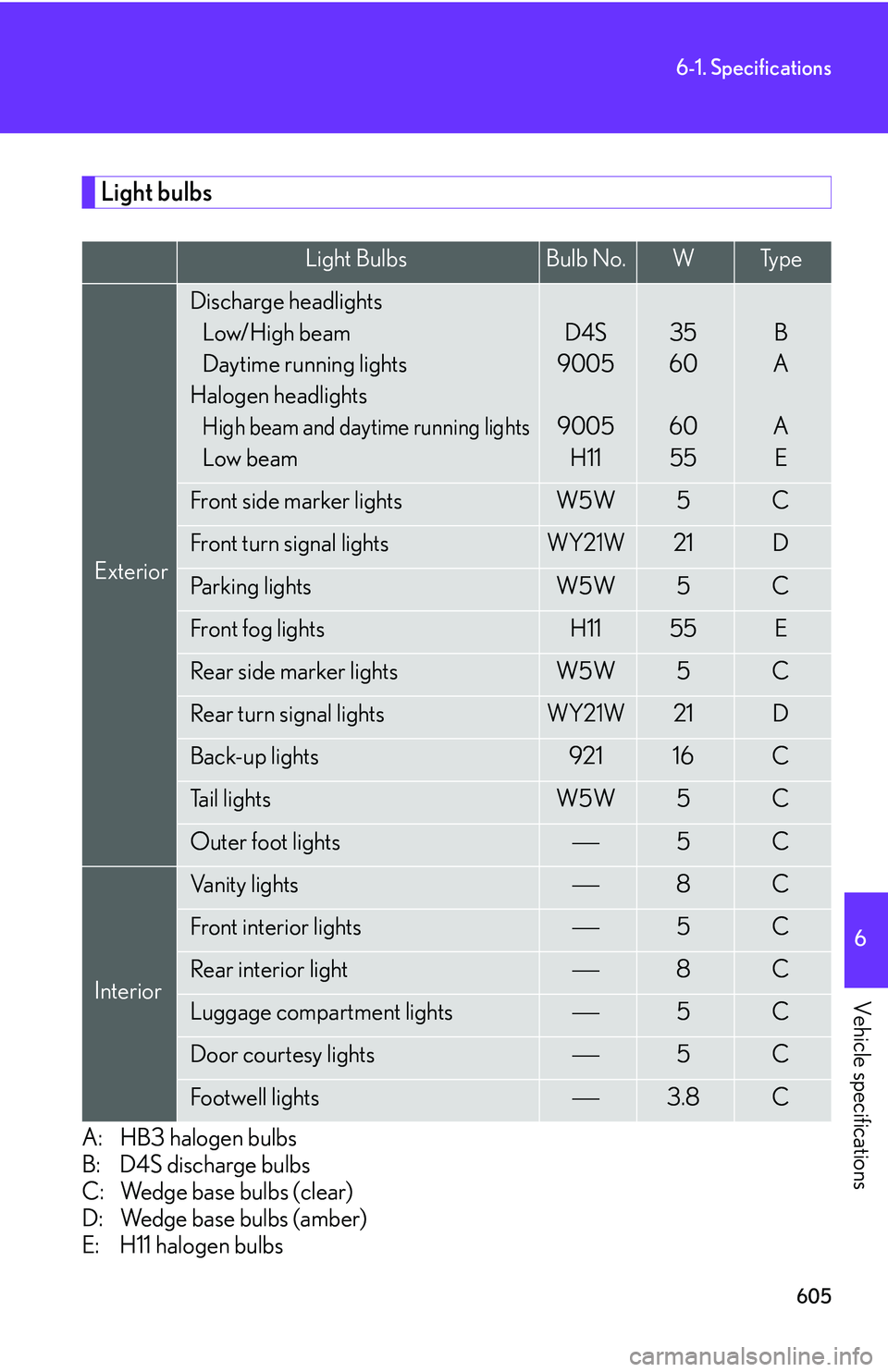

Light bulbs
A:HB3 halogen bulbs
B: D4S discharge bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: H11 halogen bulbs
Light BulbsBulb No.WTy p e
Exterior
Discharge headlights
Low/High beam
Daytime running lights
Halogen headlights
High beam and daytime running lights
Low beam
D4S
9005
9005
H11
35
60
60
55
B
A
A
E
Front side marker lightsW5W5C
Front turn signal lights

WY21W
21D
Parking lightsW5W5C
Front fog lightsH1155E
Rear side marker lightsW5W5C
Rear turn signal lights

WY21W
21D
Back-up lights92116C
Tail lightsW5W5C
Outer foot lights⎯5C
Interior
Vanity lights⎯8C
Front interior lights⎯5C
Rear interior light⎯8C
Luggage compartment lights⎯5C
Door courtesy lights⎯5C
Footwell lights⎯3.8C

606
6-1. Specifications

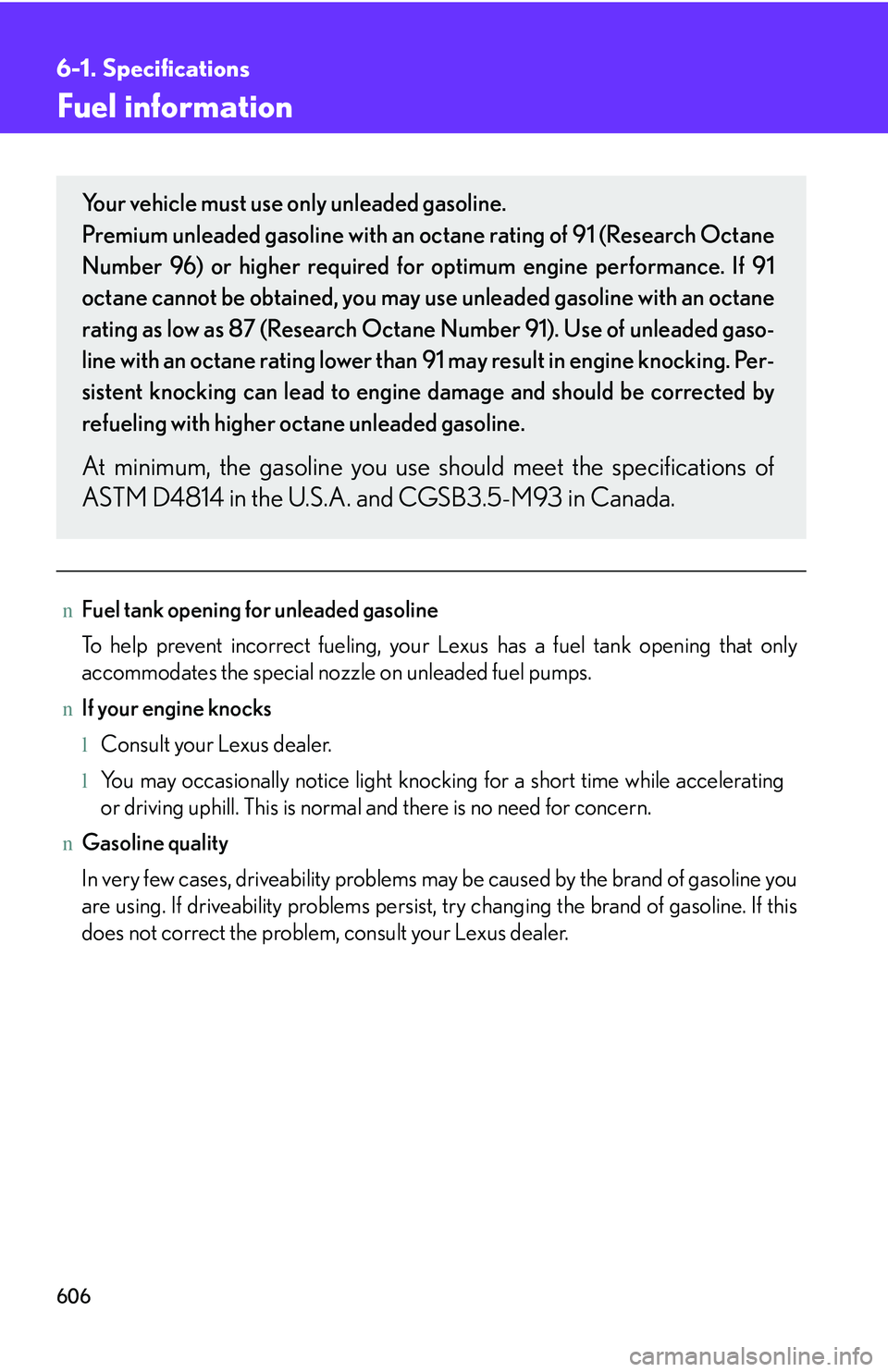

Fuel information
nFuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
nIf your engine knocks
lConsult your Lexus dealer.
lYou may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
nGasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
Your vehicle must use only unleaded gasoline.
Premium unleaded gasoline with an octane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance. If 91
octane cannot be obtained, you may use unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gaso-
line with an octane rating lower than 91 may result in engine knocking. Per-
sistent knocking can lead to engine damage and should be corrected by
refueling with higher octane unleaded gasoline.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

607
6-1. Specifications
6

Vehicle specifications
nGasoline quality standards
lAutomotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
lThe WWFC consists of four categories that are based on required emission
levels. In the US, category 4 has been adopted.
lThe WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction through better performance.
nLexus recommends the use of gasoline containing detergent additives
lLexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.
lAll gasoline sold in the US contains detergent additives to clean and/or keep
clean intake systems.
nLexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
nLexus does not recommend blended gasoline
lLexus allows the use of oxygenate blended gasoline where the oxygenate con-
tent is up to 10% ethanol or 15% MTBE.
lIf you use gasohol in your Lexus, be sure that it has an octane rating no lower
than 87.
lLexus DOES NOT recommend the use of gasoline containing methanol.
nLexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcyclopen-
tadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con-
taining MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.

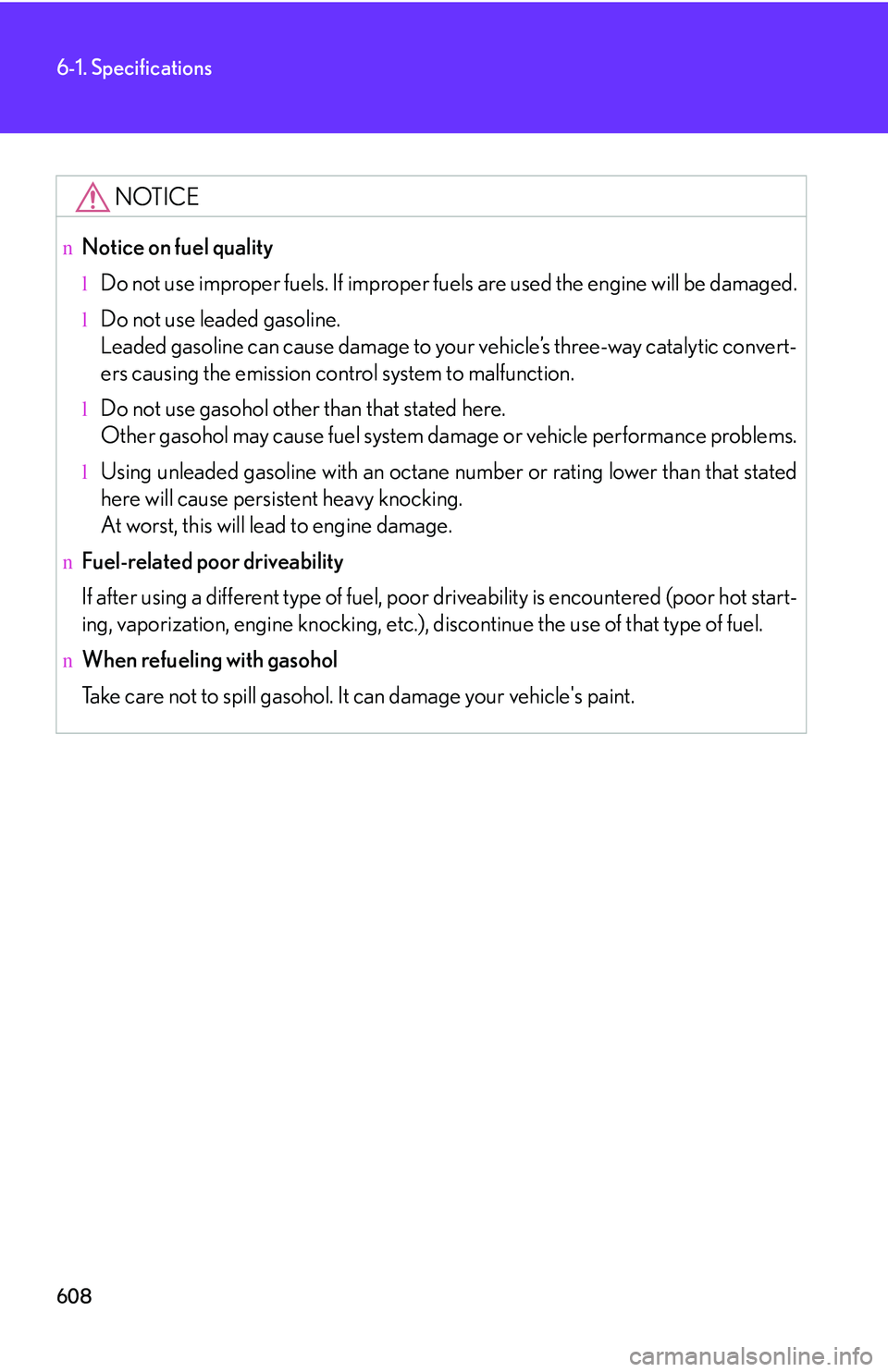

608
6-1. Specifications
NOTICE
nNotice on fuel quality
lDo not use improper fuels. If improper fuels are used the engine will be damaged.
lDo not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
lDo not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance problems.
lUsing unleaded gasoline with an octane number or rating lower than that stated
here will cause persistent heavy knocking.
At worst, this will lead to engine damage.
nFuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot start-
ing, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.
nWhen refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle's paint.

609
6-1. Specifications
6

Vehicle specifications

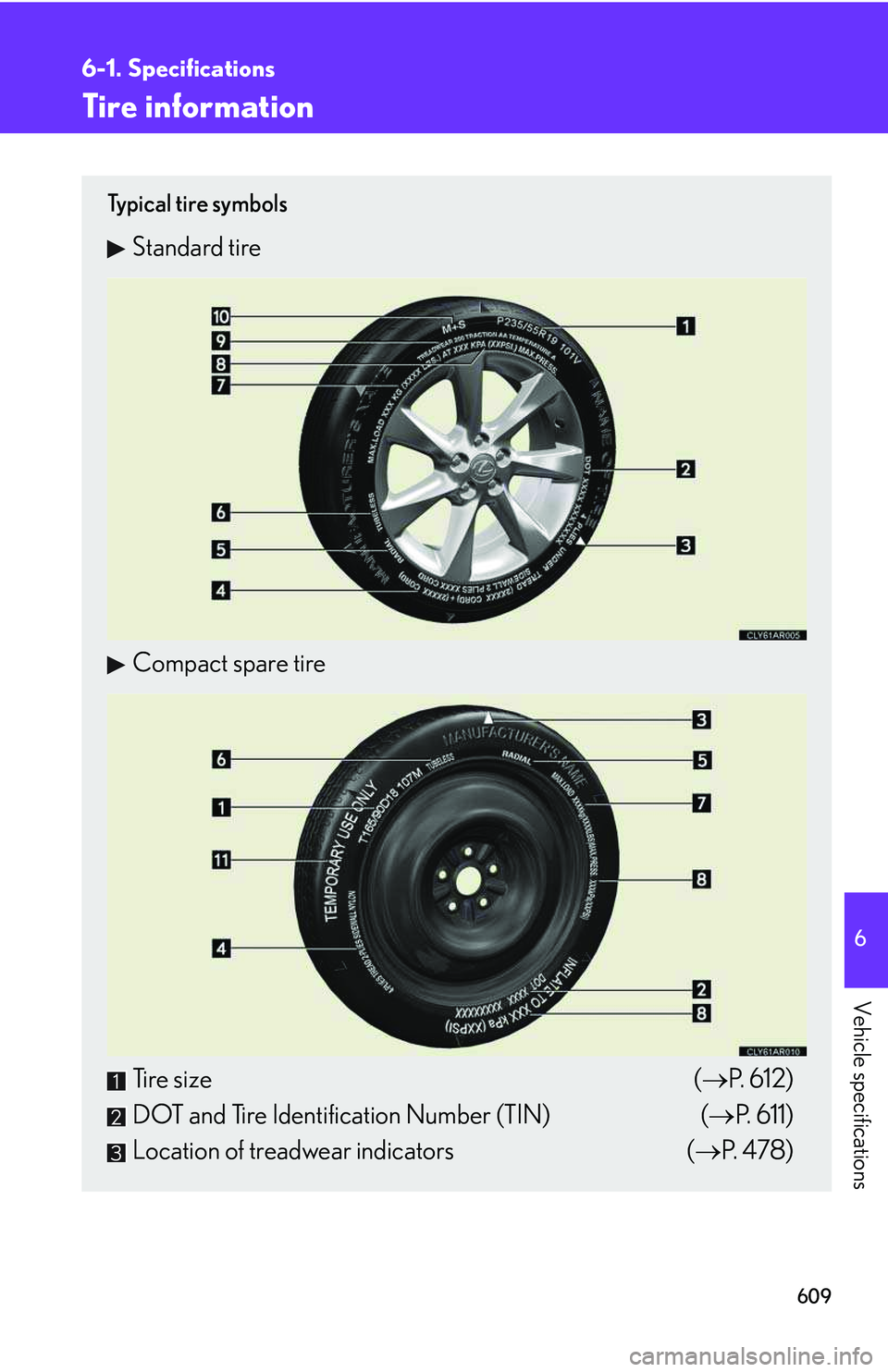

Tire information
Ty p i c a l t i r e s y m b o l s
Standard tire
Compact spare tire
Tire size(→P. 612)
DOT and Tire Identification Number (TIN)(→P. 611)
Location of treadwear indicators(→P. 4 7 8 )

610
6-1. Specifications

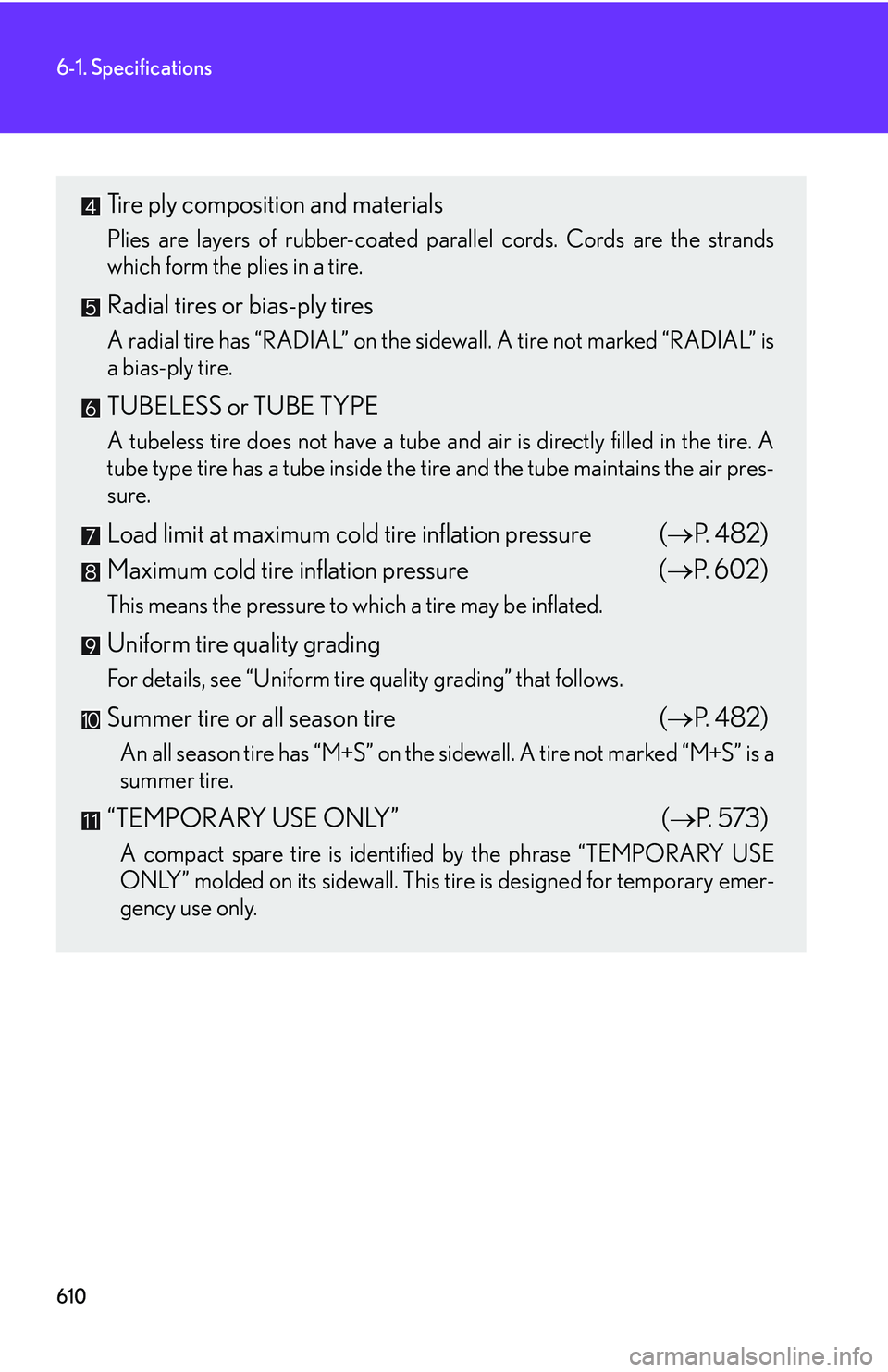

Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is
a bias-ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly filled in the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pres-
sure.
Load limit at maximum cold tire inflation pressure (→P. 4 8 2 )
Maximum cold tire inflation pressure (→P. 6 0 2 )
This means the pressure to which a tire may be inflated.
Uniform tire quality grading
For details, see “Uniform tire quality grading” that follows.
Summer tire or all season tire (→P. 4 8 2 )
An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a
summer tire.
“TEMPORARY USE ONLY” (→P. 573)
A compact spare tire is identified by the phrase “TEMPORARY USE
ONLY” molded on its sidewall. This tire is designed for temporary emer-
gency use only.
