LEXUS RX350 2011 Owners Manual

592
5-2. Steps to take in an emergency

5

When trouble arises
593
5-2. Steps to take in an emergency

594
5-2. Steps to take in an emergency

594

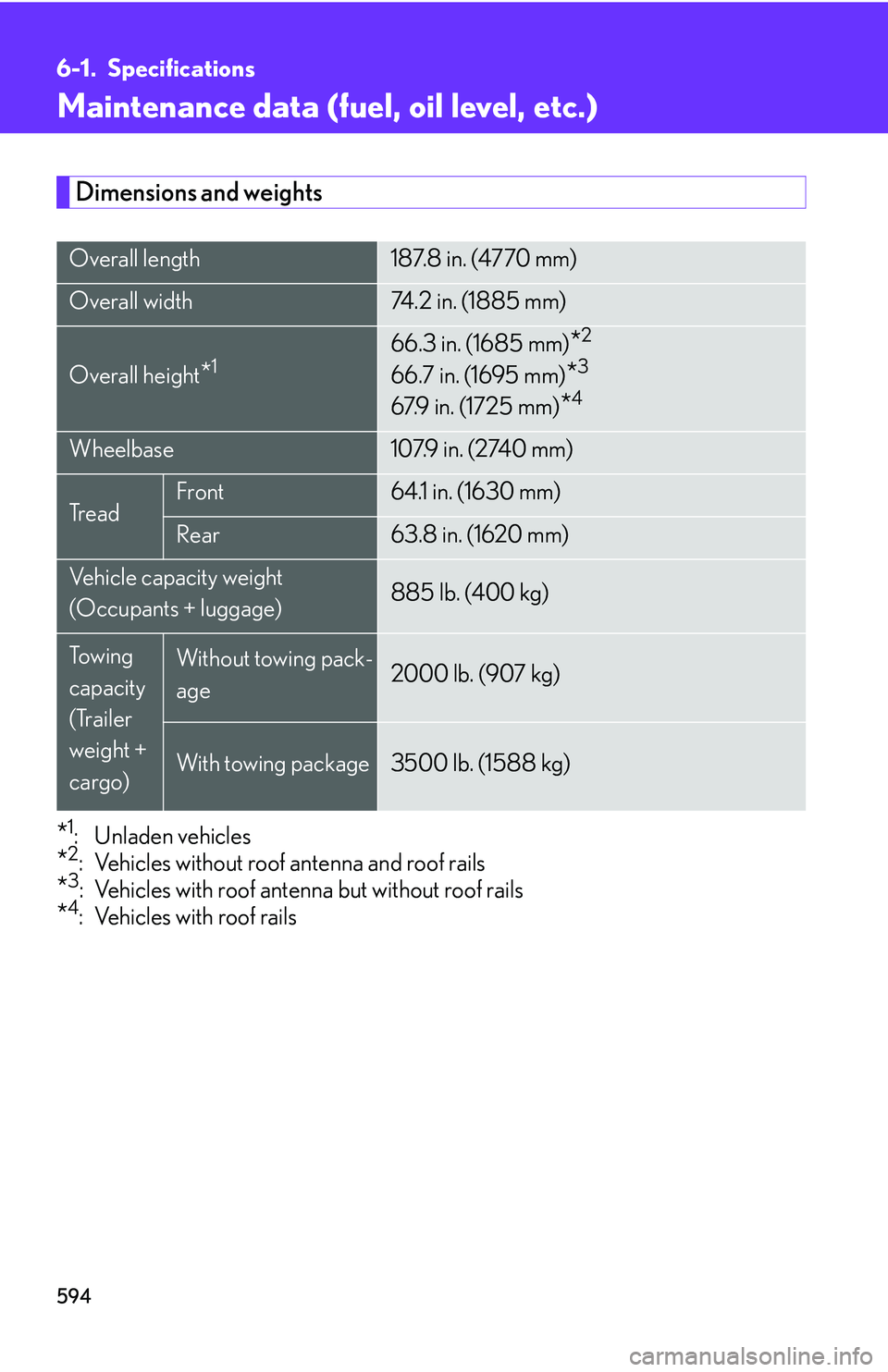

6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1:Unladen vehicles
*2: Vehicles without roof antenna and roof rails
*3: Vehicles with roof antenna but without roof rails
*4: Vehicles with roof rails
Overall length187.8 in. (4770 mm)
Overall width74.2 in. (1885 mm)
Overall height*166.3 in. (1685 mm)*2
66.7 in. (1695 mm)*3
67.9 in. (1725 mm)*4
Wheelbase107.9 in. (2740 mm)
Tr e a dFront64.1 in. (1630 mm)
Rear63.8 in. (1620 mm)
Vehicle capacity weight
(Occupants + luggage)885 lb. (400 kg)
To w i n g
capacity
(Trailer
weight +
cargo)
Without towing pack-
age2000 lb. (907 kg)
With towing package3500 lb. (1588 kg)

595
6-1. Specifications
6

Vehicle specifications

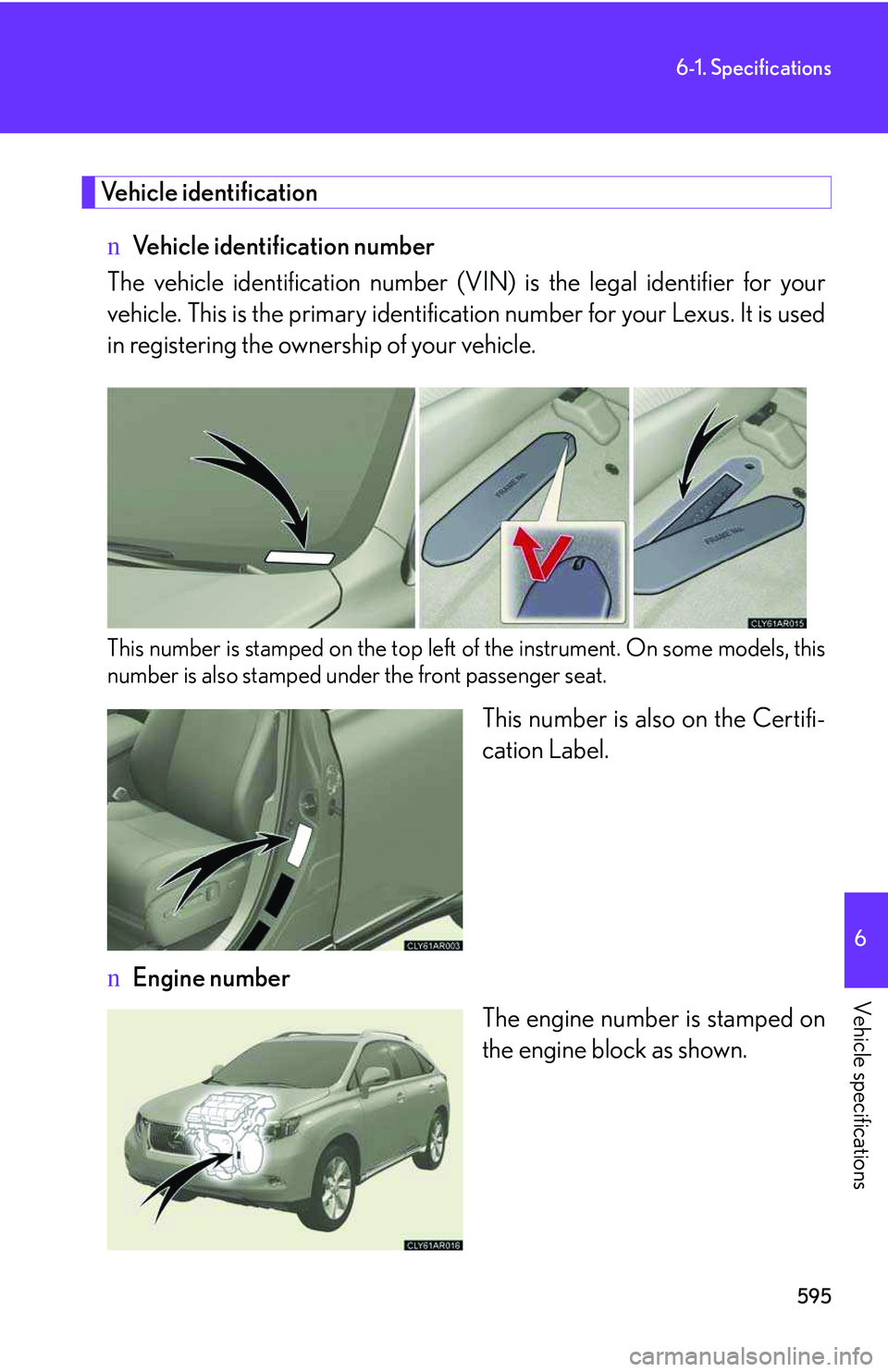

Vehicle identification
nVehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument. On some models, this
number is also stamped under the front passenger seat.
This number is also on the Certifi-
cation Label.
nEngine number
The engine number is stamped on
the engine block as shown.

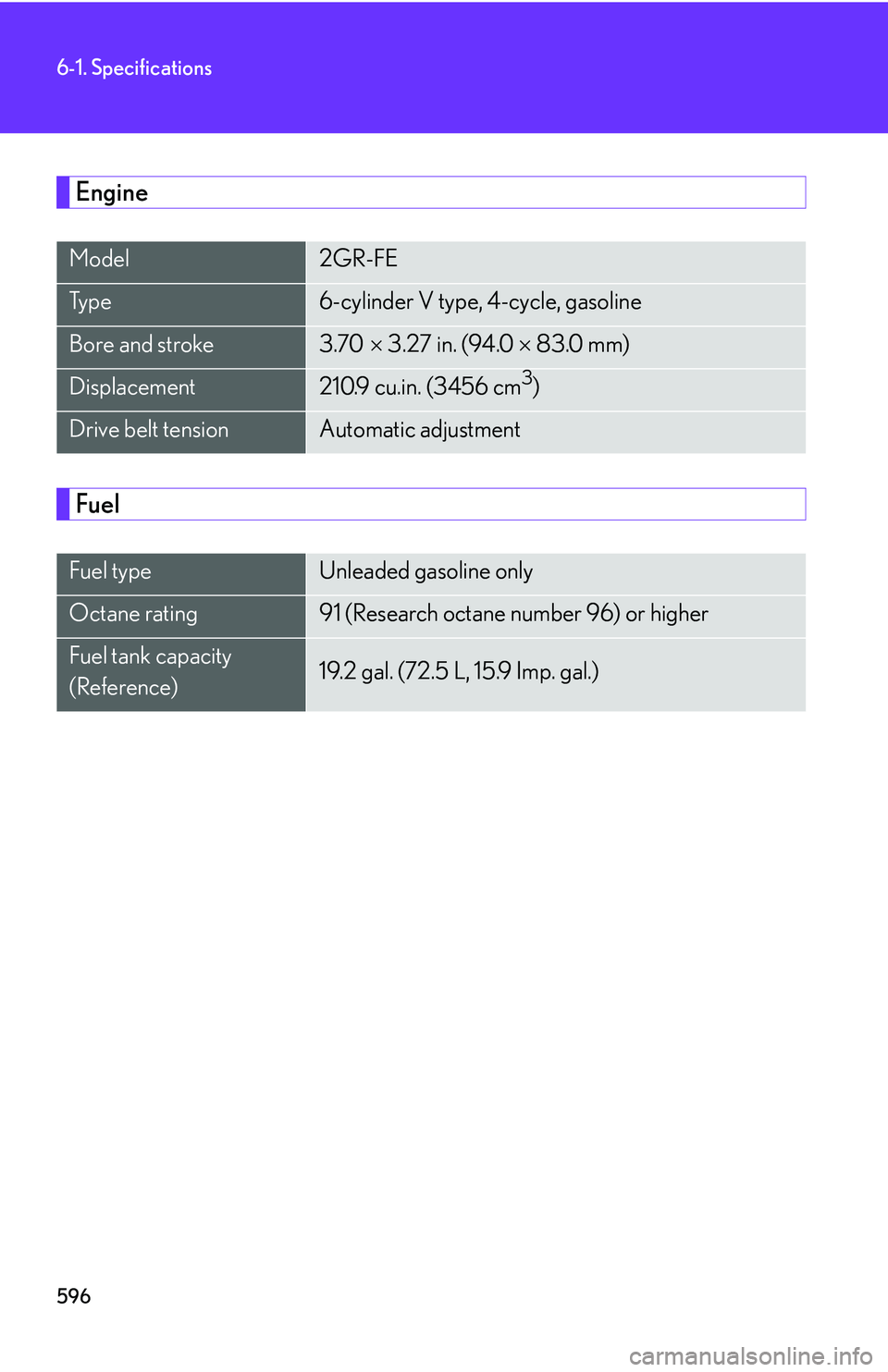

596
6-1. Specifications
Engine
Fuel
Model2GR-FE
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating91 (Research octane number 96) or higher
Fuel tank capacity
(Reference)19.2 gal. (72.5 L, 15.9 Imp. gal.)

597
6-1. Specifications
6

Vehicle specifications

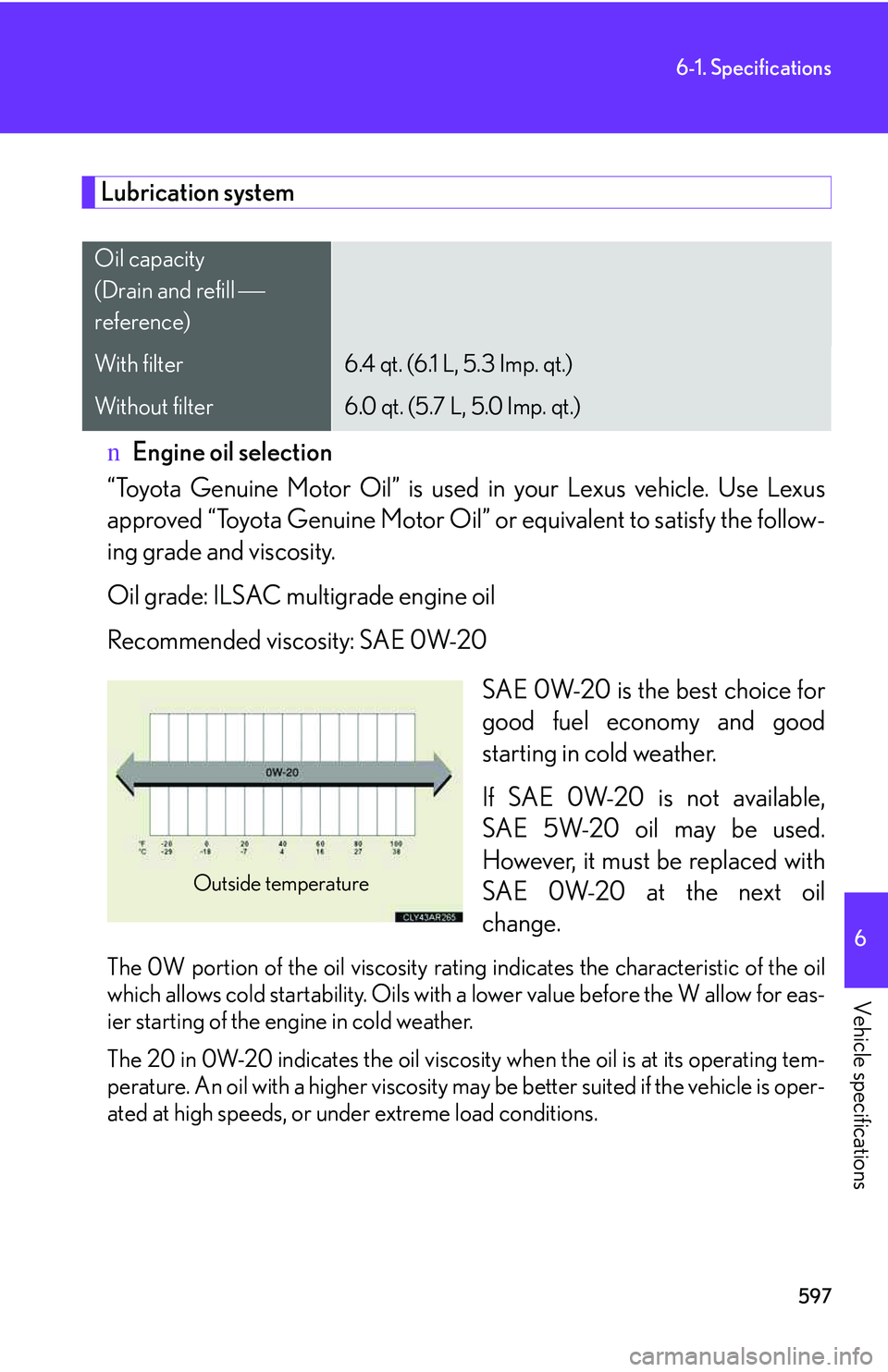

Lubrication system
nEngine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced with
SAE 0W-20 at the next oil
change.
The 0W portion of the oil viscosity rating indicates the characteristic of the oil
which allows cold startability. Oils with a lower value before the W allow for eas-
ier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating tem-
perature. An oil with a higher viscosity may be better suited if the vehicle is oper-
ated at high speeds, or under extreme load conditions.
Oil capacity
(Drain and refill ⎯
reference)
With filter6.4 qt. (6.1 L, 5.3 Imp. qt.)
Without filter6.0 qt. (5.7 L, 5.0 Imp. qt.)
Outside temperature

598
6-1. Specifications

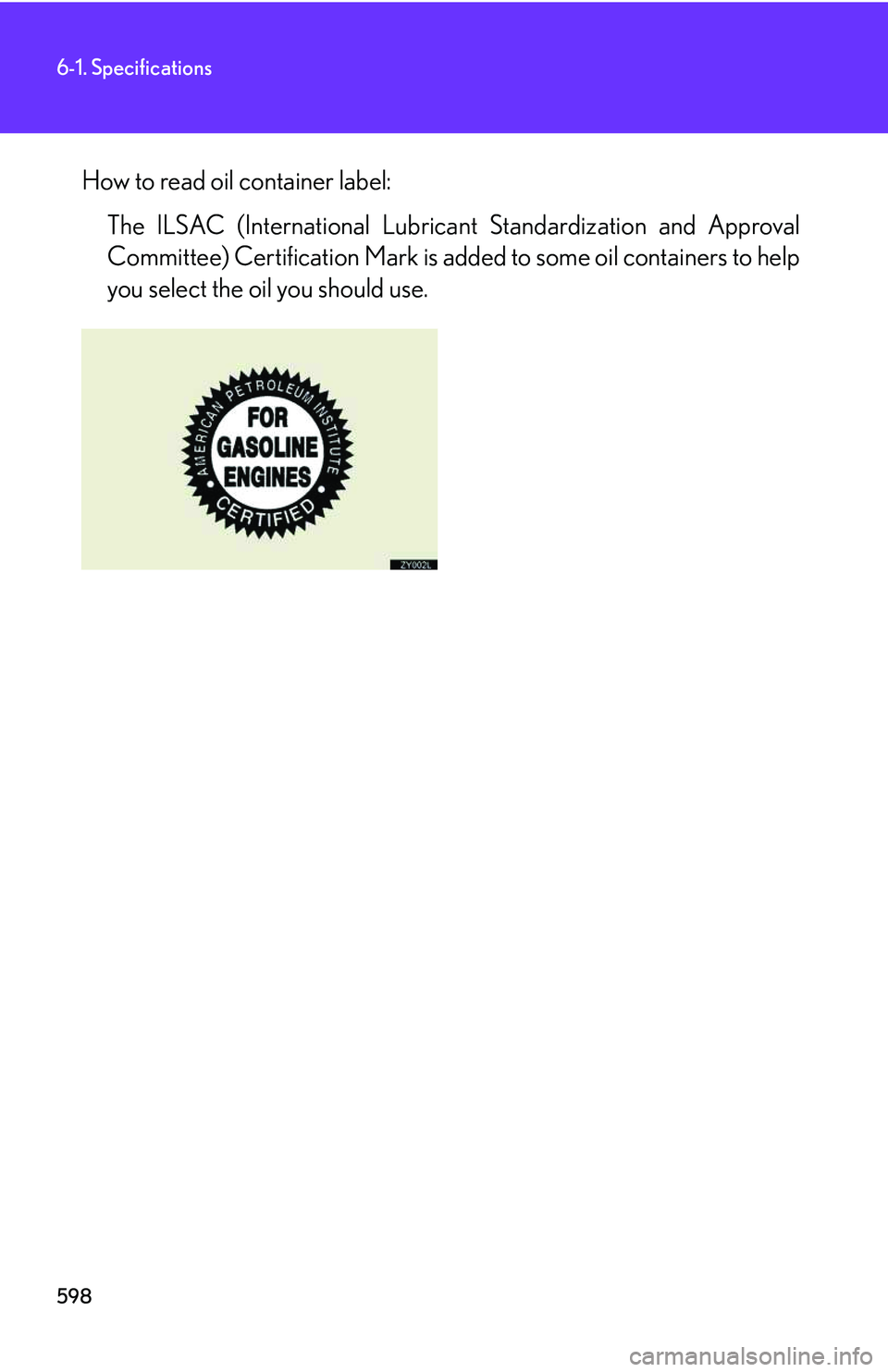

How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.

599
6-1. Specifications
6

Vehicle specifications

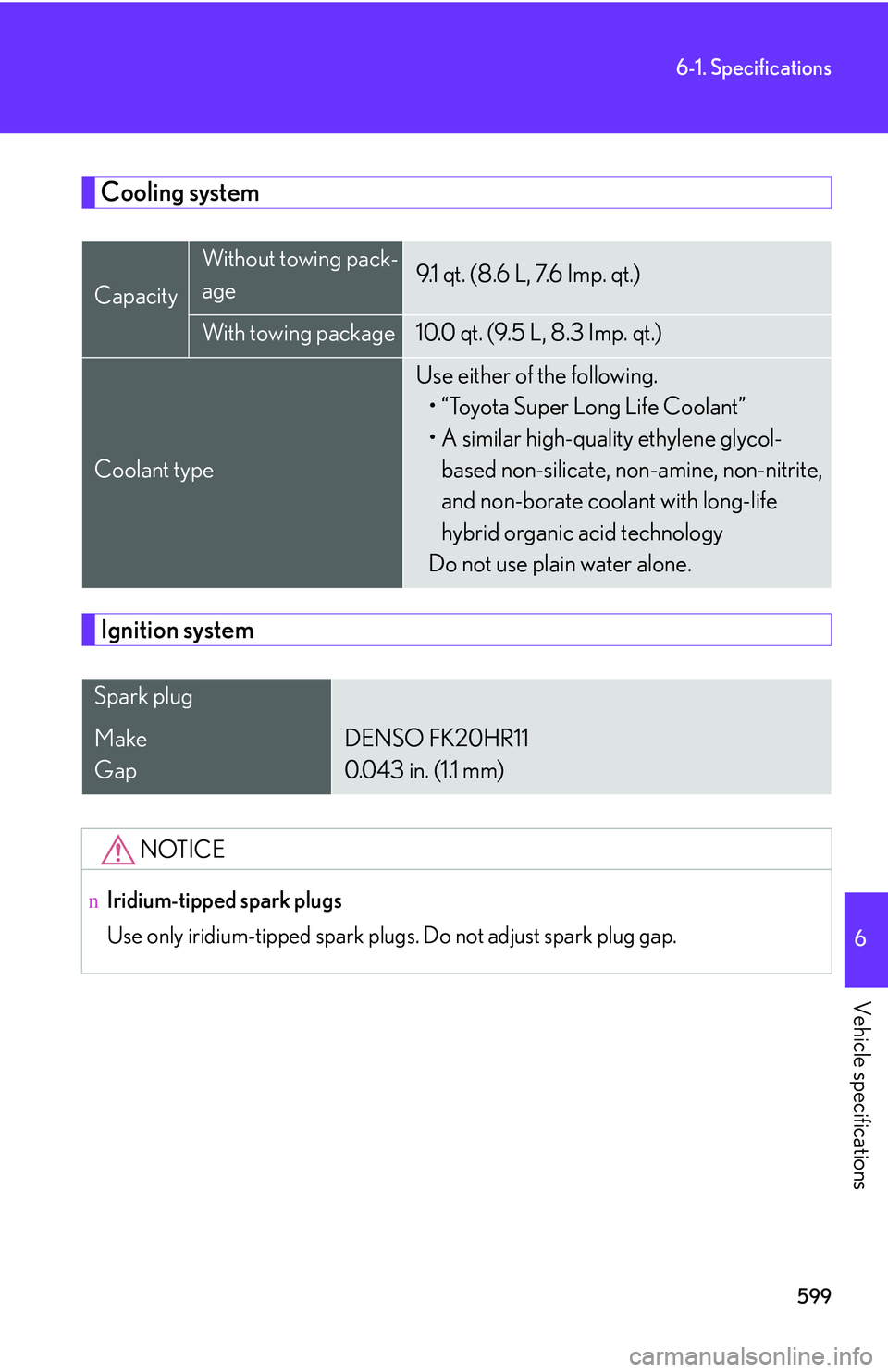

Cooling system
Ignition system
Capacity
Without towing pack-
age9.1 qt. (8.6 L, 7.6 Imp. qt.)
With towing package10.0 qt. (9.5 L, 8.3 Imp. qt.)
Coolant type
Use either of the following.

600
6-1. Specifications

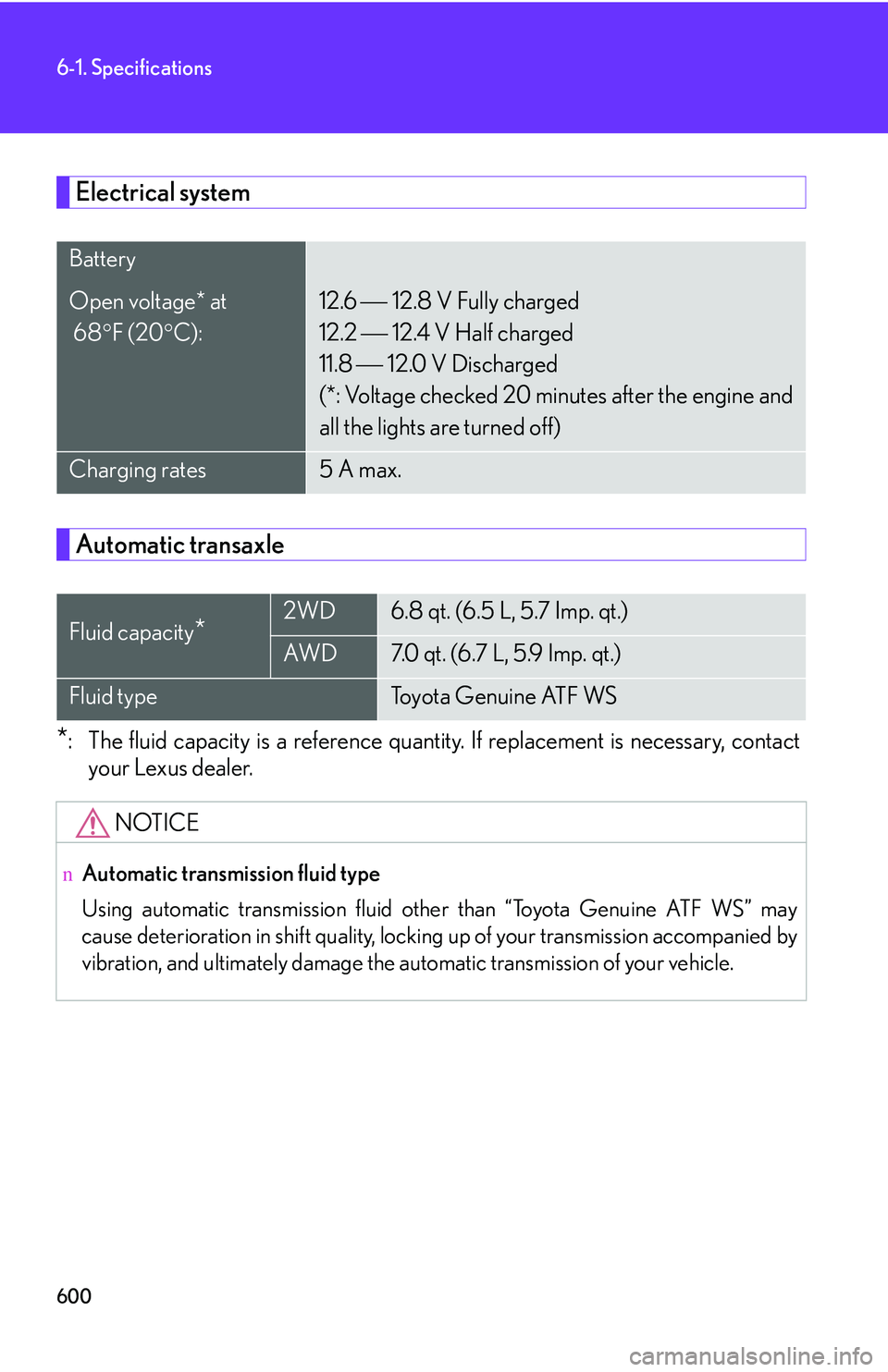

Electrical system
Automatic transaxle
*:The fluid capacity is a reference quantity. If replacement is necessary, contact
your Lexus dealer.
Battery
Open voltage* at
68°F (20°C):
12.6 ⎯ 12.8 V Fully charged
12.2 ⎯ 12.4 V Half charged
11.8 ⎯ 12.0 V Discharged
(*: Voltage checked 20 minutes after the engine and
all the lights are turned off)
Charging rates5 A max.
Fluid capacity*2WD6.8 qt. (6.5 L, 5.7 Imp. qt.)
AW D7.0 qt. (6.7 L, 5.9 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
nAutomatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS” may
cause deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the automatic transmission of your vehicle.
