6914-3. Do-it-yourself maintenance
4
Maintenance and care CAUTION■
Tire pressure warning system operation
The tire pressure warning system may not provide warning immediately if a tire
bursts or if sudden air leakage occurs.■
When inspecting or replacing tires
Observe the following precautions to prevent accidents. Failure to do so may cause
damage to parts of the drive train, as we ll as dangerous handling characteristics,
which may lead to an accident resu lting in death or serious injury.●
Do not mix tires of different makes, mode ls or tread patterns. Also, do not mix
tires of remarkably different treadwear.●
Do not use tire sizes other th an those recommended by Lexus.●
Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).●
Do not mix summer, all season and snow tires.●
Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.●
Do not tow if your vehicle has a compact spare tire installed.■
When initializing the tire pressure warning system
Do not push the tire pressure warning reset switch without first adjusting the tire
inflation pressure to the specified level. Otherwise, the tire pressure warning light
may not come on even if the tire inflation pressure is low, or it may come on when
the tire inflation pressure is actually normal.

6924-3. Do-it-yourself maintenance
NOTICE■
Repairing or replacing tires, wheels, ti re pressure warning valves, transmitters
and tire valve caps ●
When removing or fitting the wheels, tires or the tire pressure warning valves and
transmitter, contact your Lexus dealer as the tire pressure warning valves and
transmitters may be damage d if not handled correctly.●
When replacing tire valve caps, do not us e tire valve caps other than those speci-
fied. The cap may become stuck.■
To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid seal ants, the tire pressure warning valve and
transmitter may not operate properly. If a liquid sealant is used, contact your Lexus
dealer or other qualified service shop as so on as possible. Make sure to replace the
tire pressure warning valve and transmitter when replacing the tire. (  P. 685)■
Driving on rough roads
Take particular care when driving on roads with loose surfaces or potholes.
These conditions may cause losses in tire inflation pressure, reducing the cushion-
ing ability of the tires. In addition, driv ing on rough roads may cause damage to the
tires themselves, as well as the vehicle’s wheels and body.■
If tire inflation pressure of each tire becomes low while driving
Do not continue driving, or your tires and/or wheels may be ruined.

6934-3. Do-it-yourself maintenance
4

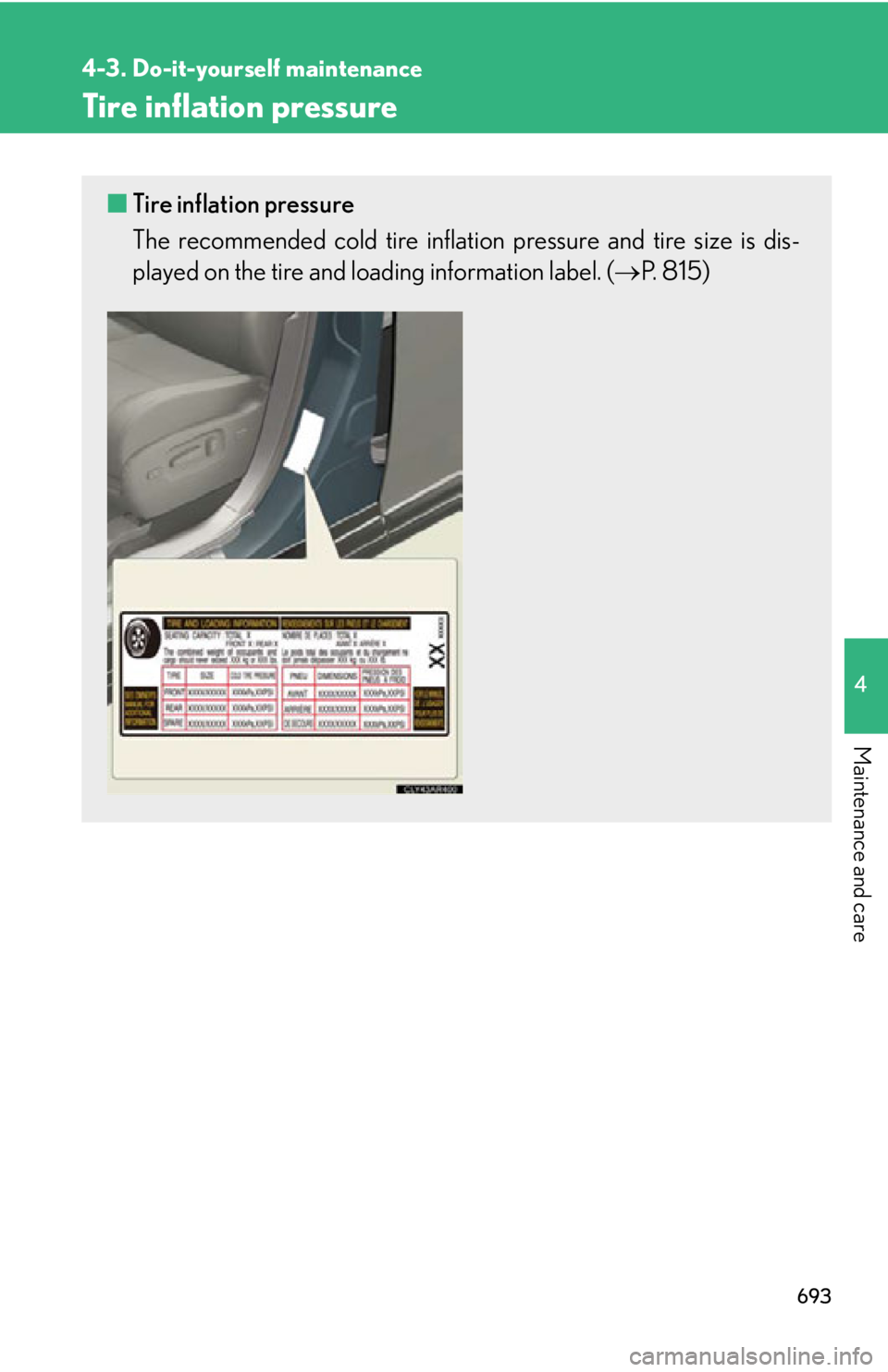

Maintenance and care Tire inflation pressure ■ Tire inflation pressure
The recommended cold tire inflation pressure and tire size is dis-
played on the tire and loading information label. (  P. 815)

6944-3. Do-it-yourself maintenance
■
Tire inflation pressure check interval
You should check tire inflation pressure every two weeks, or at least once a month.

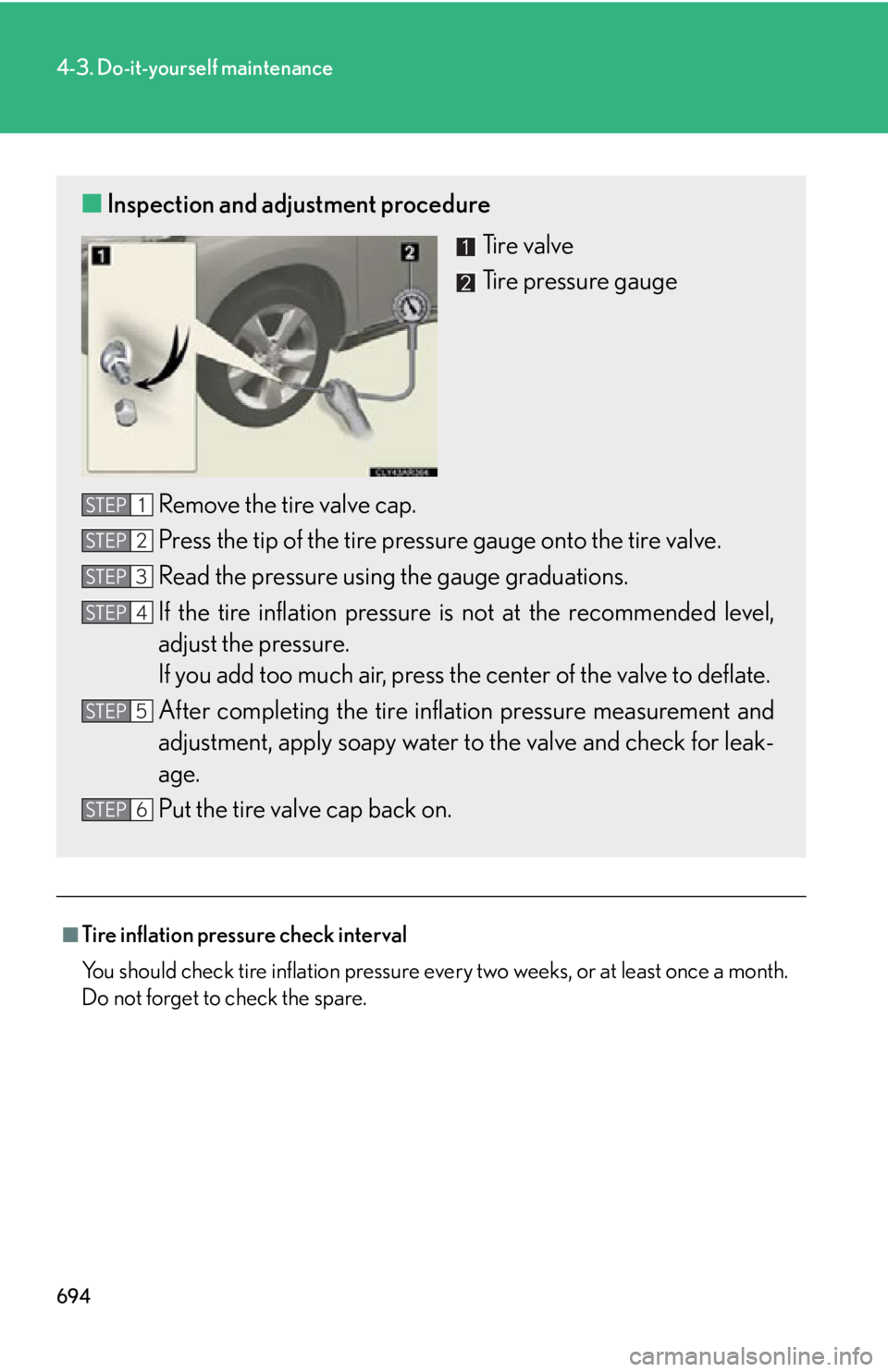

Do not forget to check the spare.■ Inspection and adjustment procedure
Ti r e v a l v e
Tire pressure gauge
Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the gauge graduations.
If the tire inflation pressure is not at the recommended level,
adjust the pressure.
If you add too much air, press the center of the valve to deflate.
After completing the tire inflation pressure measurement and
adjustment, apply soapy water to the valve and check for leak-
age.
Put the tire valve cap back on.STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6

6954-3. Do-it-yourself maintenance
4
Maintenance and care ■
Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following: ●
Reduced fuel efficiency●
Reduced driving comfort and tire life●
Reduced safety●
Damage to the drive train
If a tire needs frequent inflating, have it checked by your Lexus dealer.■
Instructions for checking tire pressure
When checking tire inflation pressure, observe the following: ●
Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven for
more than 1 mile or 1.5 km, you will get an accurate cold tire inflation pressure
reading.●
Always use a tire pressure gauge.
The appearance of the tire can be mislea ding. In addition, tire inflation pressure
that is even just a few pounds off can degrade ride and handling.●
Do not reduce tire inflation pressure after driving. It is normal for tire inflation
pressure to be higher after driving.●
Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is bal-
anced.

6964-3. Do-it-yourself maintenance
CAUTION■
Proper inflation is critical to save tire performance
Keep your tires properly inflated. Otherwise, the following conditions may occur
and result in an accident causing death or serious injury: ●
Excessive wear●
Uneven wear●
Poor handling●
Possibility of blowouts resulting from overheated tires●
Poor sealing of the tire bead●
Wheel deformation and/or tire separation●
A greater possibility of tire damage from road hazards
NOTICE■
When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
Without the valve caps, dirt or moisture co uld get into the valve and cause air leak-
age, which could result in an accident. If the caps are lost, replace them as soon as
possible.

6974-3. Do-it-yourself maintenance
4

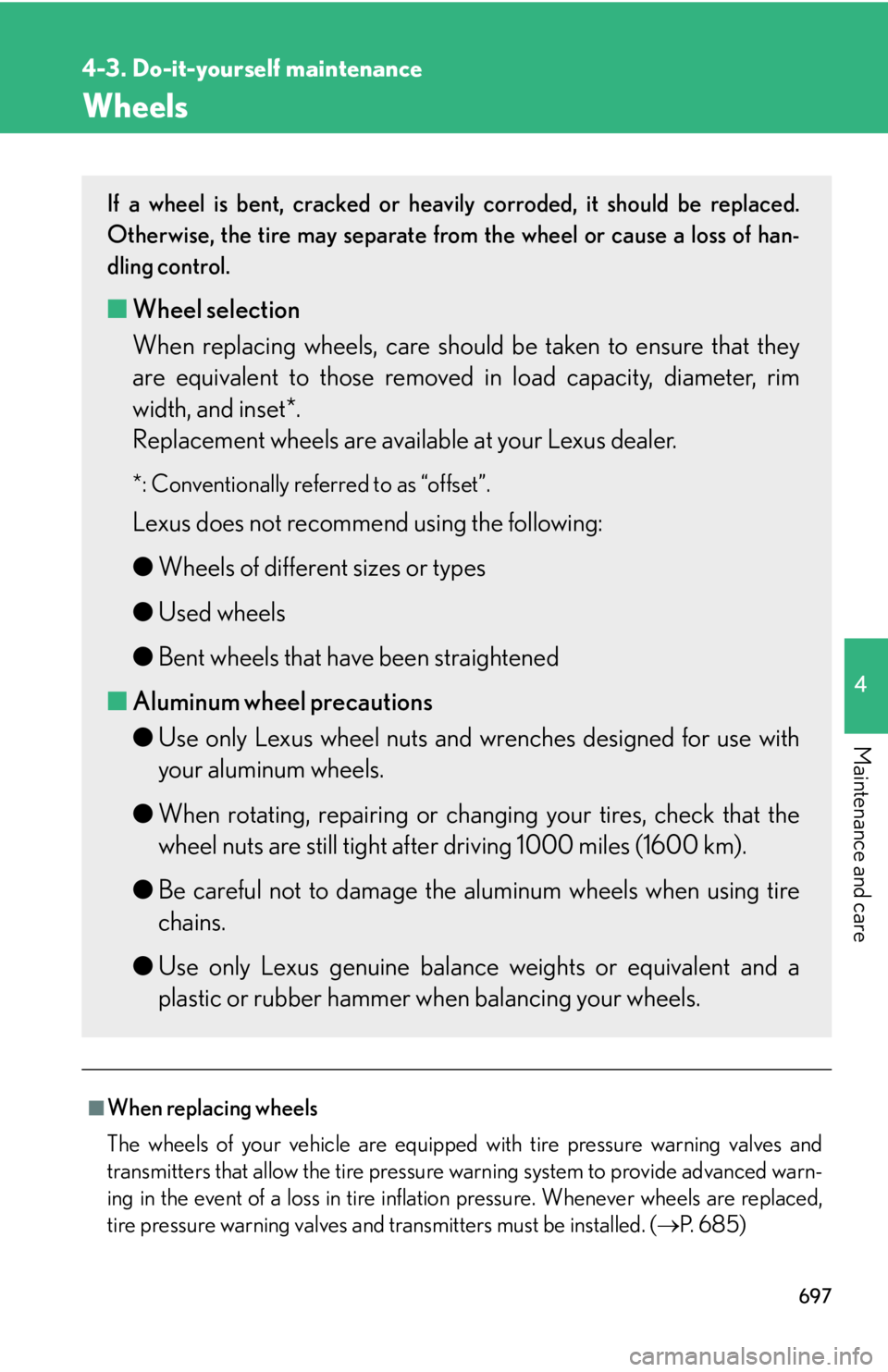

Maintenance and care Wheels
■
When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning valves and
transmitters that allow the tire pressure warning system to provide advanced warn-
ing in the event of a loss in tire inflation pressure. Whenever wheels are replaced,
tire pressure warning valves and transmitters must be installed. (  P. 6 8 5 )If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause a loss of han-
dling control.
■ Wheel selection
When replacing wheels, care should be taken to ensure that they
are equivalent to those removed in load capaci ty, diameter, rim
width, and inset*.
Replacement wheels are available at your Lexus dealer. *: Conventionally referred to as “offset”.
Lexus does not recommen d using the following:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
■ Aluminum wheel precautions
● Use only Lexus wheel nuts and wrenches designed for use with
your aluminum wheels.
● When rotating, repairing or changi ng your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
● Be careful not to damage the aluminum wheels when using tire
chains.
● Use only Lexus genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.

6984-3. Do-it-yourself maintenance
CAUTION■
When replacing wheels ●
Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in loss of handling control.●
Never use an inner tube in a leaking wheel which is designed for a tubeless tire.
Doing so may result in an accident , causing death or serious injury.
NOTICE■
Replacing tire pressure warning valves and transmitters ●
Because tire repair or replacement may affect the tire pressure warning valves
and transmitters, make sure to have tires serviced by your Lexus dealer or other
qualified service shop. In addition, make sure to purchase your tire pressure
warning valves and transmitters at your Lexus dealer.●
Ensure that only genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with non-
genuine wheels.

6994-3. Do-it-yourself maintenance
4

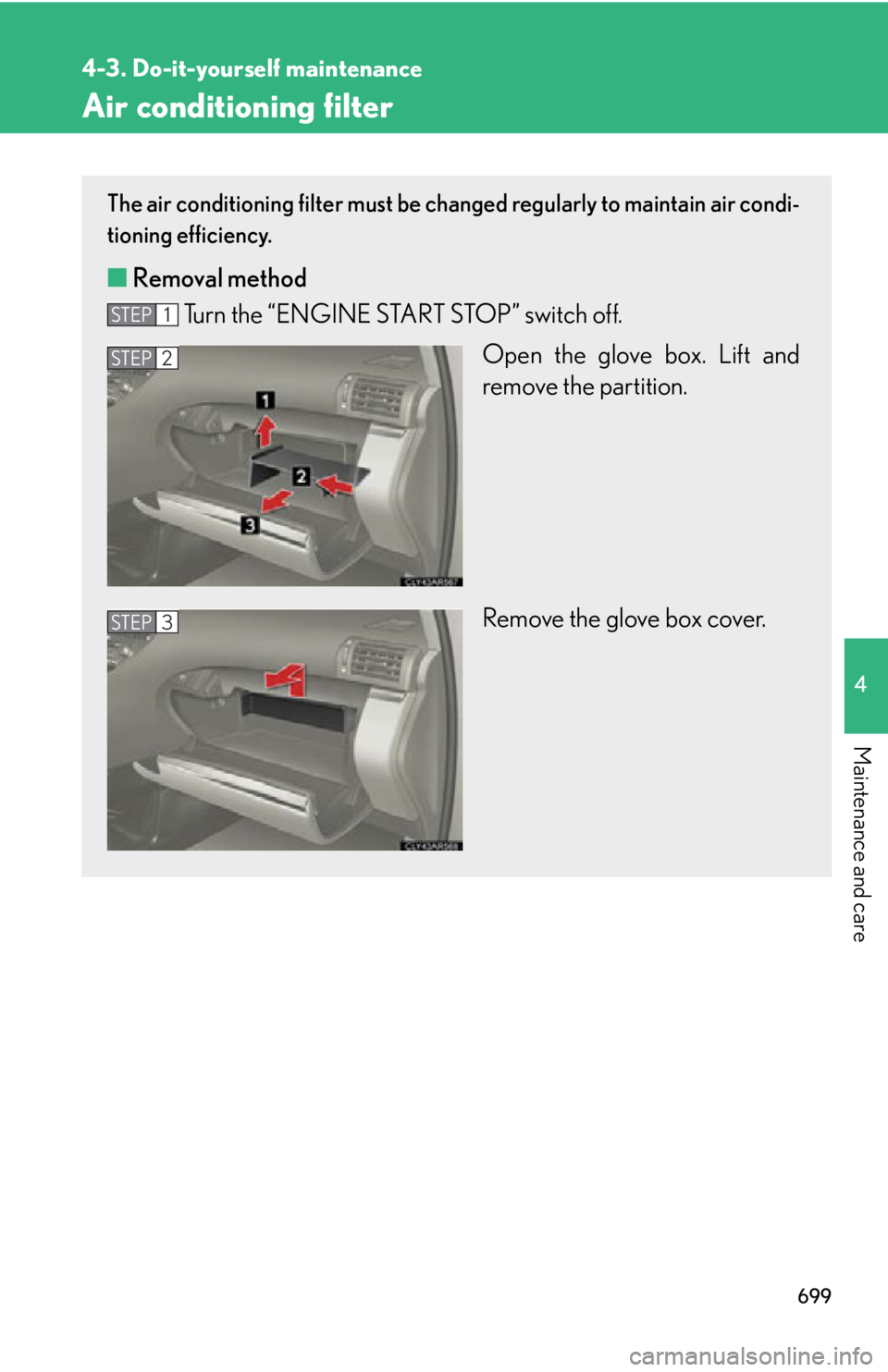

Maintenance and care Air conditioning filter The air conditioning filter must be changed regularly to maintain air condi-
tioning efficiency.
■ Removal method
Turn the “ENGINE START STOP” switch off.
Open the glove box. Lift and
remove the partition.
Remove the glove box cover.STEP 1
STEP 2
STEP 3

7004-3. Do-it-yourself maintenance
■
Checking interval
Inspect and replace the air conditioning filter according to the maintenance sched-
ule. In dusty areas or areas with heavy traffic flow, early replacement may be
required. (For scheduled maintenance information, please refer to the “Owner's
Manual Supplement” or “Scheduled Maintenance”.)■
If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■
To prevent damage to the system

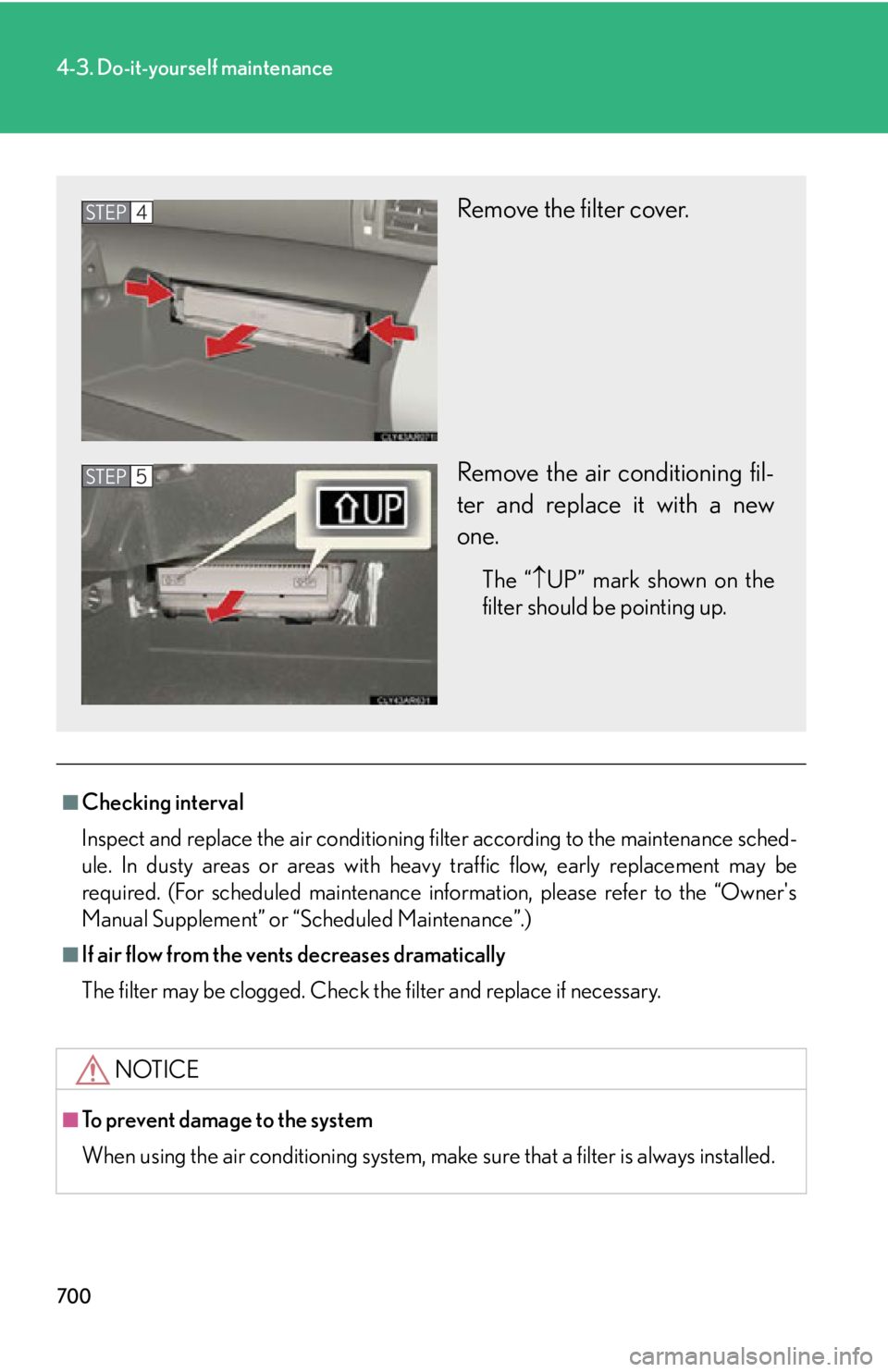

When using the air conditioning system, make sure that a filter is always installed.Remove the filter cover.
Remove the air conditioning fil-
ter and replace it with a new
one. The “  UP” mark shown on the
filter should be pointing up.STEP 4
STEP 5
