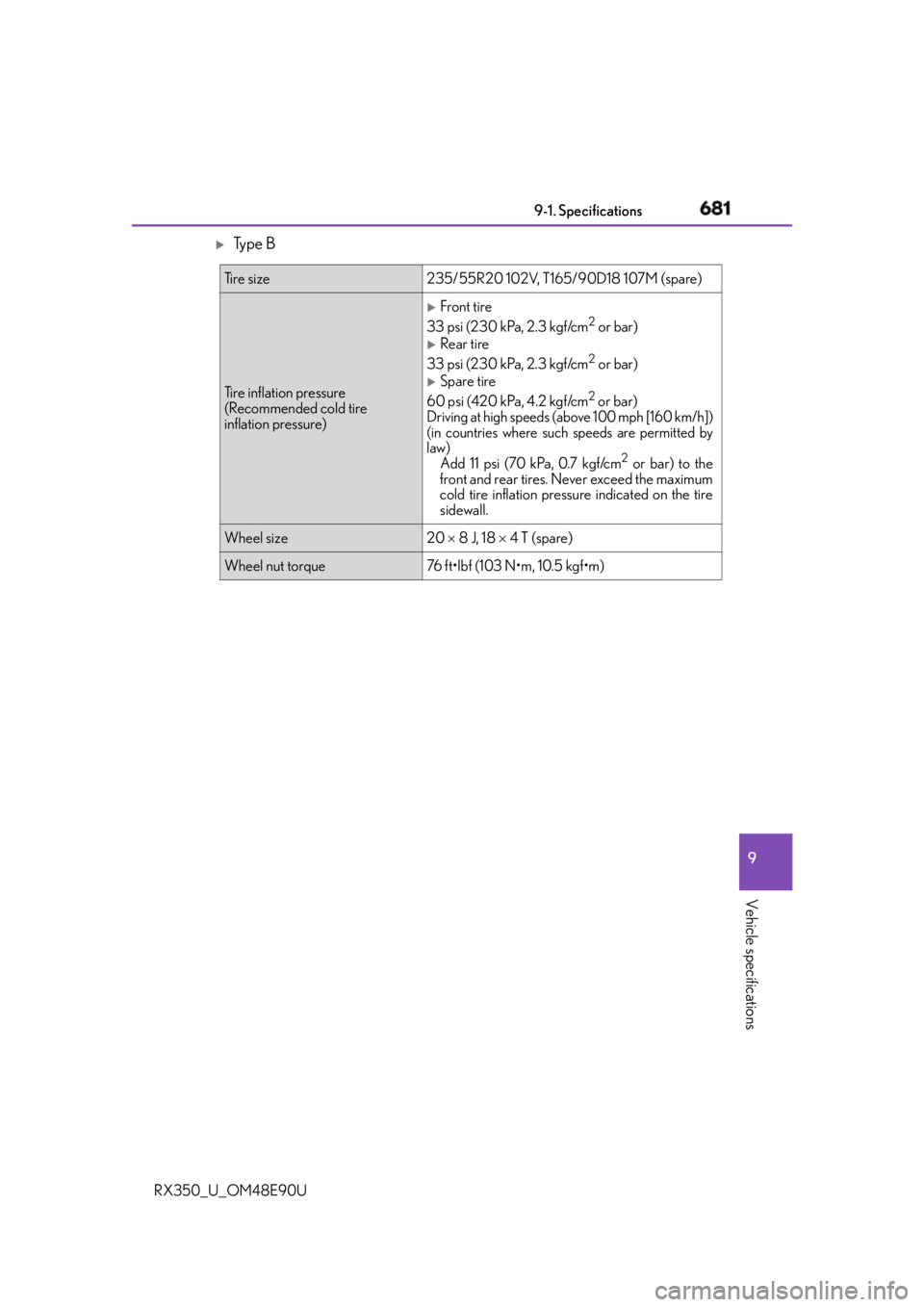

LEXUS RX350 2016 Owners Manual

6819-1. Specifications
9
Vehicle specifications
RX350_U_OM48E90U 
Ty p e B Ti r e s i z e 235/55R20 102V, T165/90D18 107M (spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure) 
Front tire
33 psi (230 kPa, 2.3 kgf/cm 2
or bar) 
Rear tire
33 psi (230 kPa, 2.3 kgf/cm 2
or bar) 
Spare tire
60 psi (420 kPa, 4.2 kgf/cm 2
or bar)
Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law)
Add 11 psi (70 kPa, 0.7 kgf/cm 2
or bar) to the
front and rear tires. Never exceed the maximum
cold tire inflation pressure indicated on the tire
sidewall.
Wheel size 20  8 J, 18  4 T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

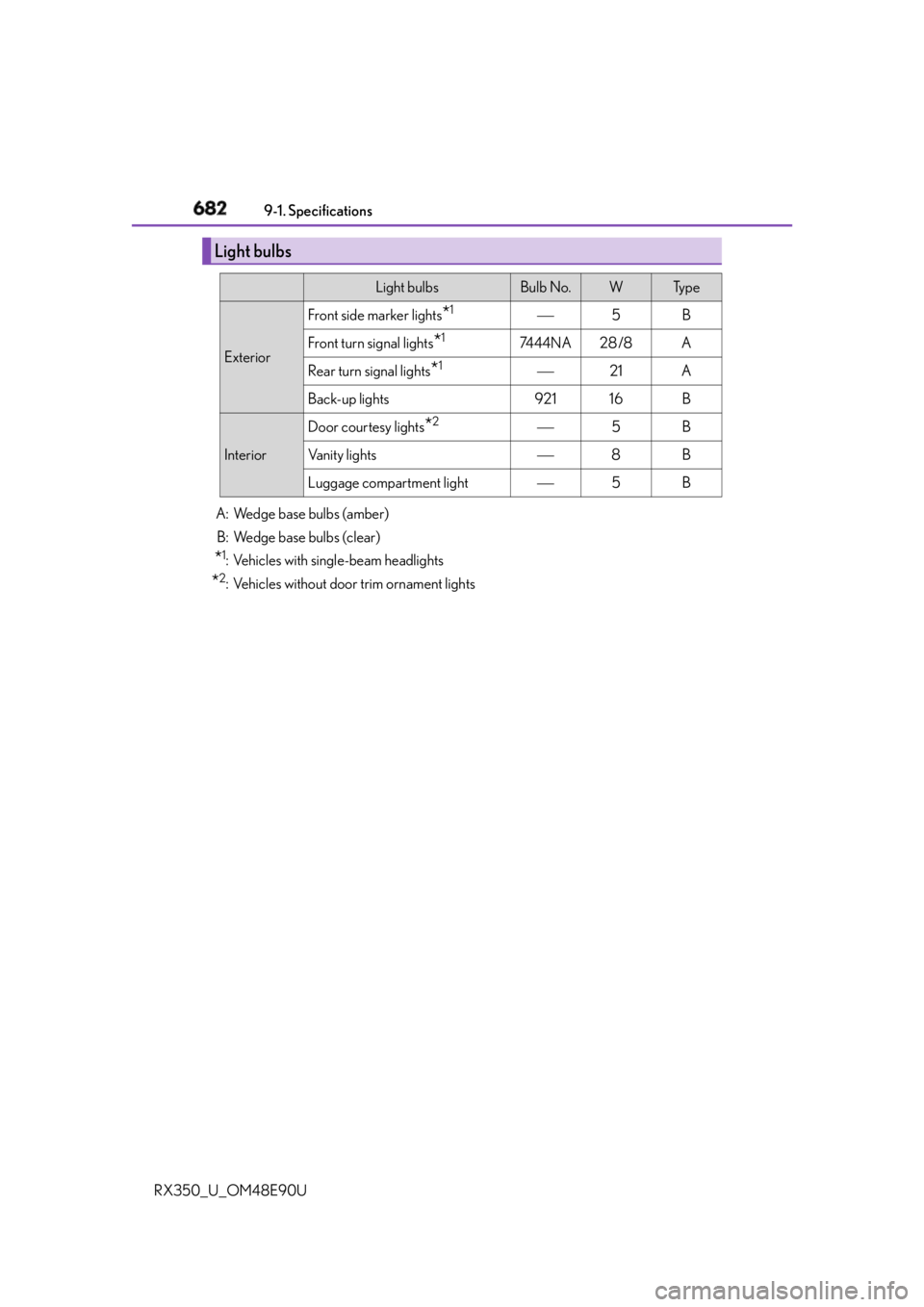

682 9-1. Specifications
RX350_U_OM48E90U A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
* 1
: Vehicles with single-beam headlights
* 2
: Vehicles without door trim ornament lightsLight bulbs Light bulbs Bulb No. W Ty p e
Exterior Front side marker lights
* 1
 5 B
Front turn signal lights
* 1
74 4 4 N A 28 /8 A
Rear turn signal lights
* 1
 21 A
Back-up lights 921 16 B
Interior Door courtesy lights
* 2
 5 B
Vanity lights  8 B
Luggage compartment light  5 B

6839-1. Specifications
9
Vehicle specifications
RX350_U_OM48E90U ■
Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you are
using. If driveability problems persist, try ch anging the brand of gasoline. If this does not
correct the problem, consult your Lexus dealer. ■
Gasoline quality standards ●
Automotive manufacturers in the U.S.A., Eu rope and Japan have developed a specifi-
cation for fuel quality called the World-Wi de Fuel Charter (WWFC), which is expected
to be applied worldwide. ●
The WWFC consists of four cat egories that are based on required emission levels. In
the U.S., category 4 has been adopted. ●
The WWFC improves air quality by lowering emissions in vehicle fleets, and improves
customer satisfaction through better performance. ■
Recommendation of the use of gasoli ne containing detergent additives●
Lexus recommends the use of gasoline that contains detergent additives to avoid the
build-up of engine deposits. ●
All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or
keep clean intake systems, per EPA’s lowest additives concentration program.●
Lexus strongly recommends the use of Top Ti er Detergent Gasoline. For more informa-
tion on Top Tier Detergent Gasoline and a list of marketers, please go to the official
website www.toptiergas.com.Fuel information You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher. Use of
unleaded gasoline with an octane rating lower than 87 may result in engine
knocking. Persistent knocking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A.

684 9-1. Specifications
RX350_U_OM48E90U ■
Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as et hers and ethanol, as well as reformulated
gasolines, are available in some cities. These fuels are typically acceptable for use, pro-
viding they meet other fuel requirements.
Lexus recommends these fuels, since the fo rmulations allow for reduced vehicle emis-
sions. ■
Non-recommendation of the use of blended gasoline
●
If you use gasohol in your vehicle, be sure th at it has an octane rating no lower than 87.●
Lexus does not recommend the use of gasoline containing methanol.■
Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT
(Methylcyclopentadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasolin e that contains MMT. If fuel containing
MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instru ment cluster may come on. If this happens,
contact your Lexus dealer for service. ■
If your engine knocks ●
Consult your Lexus dealer. ●
You may occasionally notice light knocking fo r a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern. ●
Use only gasoline containing up to 15% etha-
nol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol, includ-
ing from any pump labeled E30, E50, E85
(which are only some examples of fuel con-
taining more than 15% ethanol). DO NOT use gasoline
containing more than
15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

6859-1. Specifications
9
Vehicle specifications
RX350_U_OM48E90U NOTICE ■
Notice on fuel quality ●
Do not use improper fuels. If improper fuels are used, the engine will be damaged. ●
Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters
causing the emission control system to malfunction. ●
Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system da mage or vehicle performance problems.●
Using unleaded gasoline with an octane number or rating lower than the level previ-
ously stated will cause persistent heavy knocking.
At worst, this will le ad to engine damage.■
Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is encoun-
tered after using a different type of fuel, discontinue the use of that type of fuel.■
When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

686 9-1. Specifications
RX350_U_OM48E90U 
Full-size tire 
Compact spare tireTire information Ty p i c a l t i r e s y m b o l s

6879-1. Specifications
9
Vehicle specifications
RX350_U_OM48E90U Ti r e s i z e (  P. 6 8 9 )
DOT and Tire Identification Number (TIN) (  P. 6 8 8 )
Location of treadwear indicators (  P. 5 8 4 )
Tire ply composition and materials Plies are layers of rubber-coated parallel co rds. Cords are the strands which form the
plies in a tire.
Radial tires or bias-ply tires A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply
tire.
TUBELESS or TUBE TYPE A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire
has a tube inside the tire and the tube maintains the air pressure.
Load limit at maximum cold tire inflation pressure (  P. 5 8 7 )
Maximum cold tire inflation pressure (  P. 6 8 0 )This means the pressure to which a tire may be inflated.
Uniform tire quality grading For details, see “Uniform Tire Quality Grading” that follows.
Summer tires or all season tires (  P. 5 8 8 )An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer
tire.
“TEMPORARY USE ONLY” A compact spare tire is identified by the phrase “TEMPORARY USE ONLY” molded
on its sidewall. This tire is desi gned for temporary emergency use only.1
2
3
4
5
6
7
8
9
10
11

688 9-1. Specifications
RX350_U_OM48E90U DOT symbol
*Tire Identification Number (TIN)
Tire manufacturer’s identification
mark
Ti r e s i z e c o d e
Manufacturer’s optional tire type
code (3 or 4 letters)
Manufacturing week
Manufacturing year
* : The DOT symbol certifies that the tire co nforms to applicable Federal Motor Vehicle
Safety Standards.Typical DOT and Tire Identification Number (TIN) 1
2
3
4
5
6
7

6899-1. Specifications
9
Vehicle specifications
RX350_U_OM48E90U ■
Typical tire size information
The illustration indicates typical tire size.
Ti r e u s e
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol (alphabet with one letter)■
Tire dimensions
Section width
Tire height
Wheel diameterTire size 1
2
3
4
5
6
7
1
2
3

690 9-1. Specifications
RX350_U_OM48E90U Bead
Sidewall
Shoulder
Tr e a d
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
ChaferTire section names 1
2
3
4
5
6
7
8
9
10
11
