LEXUS RX350 2016 Owners Manual

6618-2. Steps to take in an emergency
8
When trouble arises
RX350_U_OM48E90U ■
Unlocking the door
Use the mechanical key (  P. 121) in order to perform the following opera-
tions:
Insert the mechanical key while
pulling on the driver’s door han-
dle.
Unlocking the door. Turning the key rearward unlocks the
driver’s door. Turning the key again
unlocks the other doors.
Remove the key, return the handle, and then pull the handle again.If the electronic key do es not operate properlyIf communication between the electron ic key and vehicle is interrupted
(  P. 148) or the electronic key ca nnot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors can be opened and
the engine can be started by following the procedure below.
Locking and unlocking the doors 1
2
3

662 8-2. Steps to take in an emergency
RX350_U_OM48E90U ■
Locking the door
With the door open, push down
the inside lock button.
Close the door. ■
Key linked functions 1
Closes the windows and the moon roof
* or
panoramic moon roof
* (turn and hold)
Opens the windows and the moon roof
* or
panoramic moon roof
* (turn and hold)
These settings must be customized at your
Lexus dealer.
* : If equipped 2 1
2
2

6638-2. Steps to take in an emergency
8
When trouble arises
RX350_U_OM48E90U Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the engine switch. When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to IGNITION ON mode.
When the smart access system with
push-button start is deactivated in
customization setting, the engine switch
will turn to ACCESSORY mode.
Firmly depress the brake pedal and check that is shown on the multi-
information display.
Press the engine switch.
In the event that the engine still cannot be started, contact your Lexus dealer.Starting the engine 1
2
3
4

664 8-2. Steps to take in an emergency
RX350_U_OM48E90U ■
Stopping the engine
Shift the shift lever to P, set the parking br ake, and press the engine switch as you nor-
mally do when stop ping the engine.■
Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the electronic
key battery be replaced immediately when the battery is depleted. (  P. 6 0 3 )■
Changing engine switch modes
Release the brake pedal and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is pressed.
(  P. 221) ■
When the electronic key does not work properly ●
Make sure that the smart access system wi th push-button start has not been deacti-
vated in the custom ization setting. If it is off, turn the function on.
(Customizable features  P. 699)●
Check if battery-saving mo de is set. If it is se t, cancel the function. (  P. 1 4 8 )
WA R N I N G ■
When using the mechanical key and operating the power windows or the moon roof
or panoramic moon roof
Operate the power window or the moon roof or panoramic moon roof after checking
to make sure that there is no possibility of any passenger ha ving any of their body parts
caught in the window or the moon roof or panoramic moon roof.
Also, do not allow children to operate the mech anical key. It is possible for children and
other passengers to get caught in the powe r window or the moon roof or panoramic
moon roof. 3

6658-2. Steps to take in an emergency
8
When trouble arises
RX350_U_OM48E90U If you have a set of jumper (or booster) cables and a second vehicle with a bat-
tery, you can jump start your vehicle by following the steps below.
Confirm that the electronic key is
being carried. When connecting the jumper (or
booster) cables, depending on the situa-
tion, the alarm may activate and doors
locked. (
 P. 77)
Open the hood (  P. 5 7 2 )
Connect the jumper cables according to the following procedure:
Connect a positive jumper cable clamp to the positive (+) battery terminal
on your vehicle.
Connect the clamp on the other end of the positive cable to the positive (+)
battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery terminal on the
second vehicle.If the vehicle battery is discharged The following procedures may be used to start the engine if the vehicle’s bat-
tery is discharged.
You can also call your Lexus dealer or a qualified repair shop. 1
2
3
1
2
3

666 8-2. Steps to take in an emergency
RX350_U_OM48E90U Connect the clamp at the other end of the negative cable to a solid, station-
ary, unpainted metallic point away from the battery and any moving parts,
as shown in the illustration.
Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximately 5 minutes to recharge the battery of
your vehicle.
Open and close any of the doors of your vehicle with the engine switch off.
Maintain the engine speed of the second vehicle and start the engine of your
vehicle by turning the engine switch to IGNITION ON mode.
Once the vehicle’s engine has started, remove the jumper cables in the exact
reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at your Lexus dealer as soon
as possible. ■
Starting the engine when the battery is discharged
The engine cannot be started by push-starting. ■
To prevent battery discharge ●
Turn off the headlights and the audio system while the engine is off. ●
Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic. ■
Charging the battery
The electricity stored in the battery will discharge gradually even when the vehicle is not
in use, due to natural discharg e and the draining effects of certain electrical appliances. If
the vehicle is left for a long time, the battery may discharge, and the engine may be
unable to start. (The battery recharges automatically during driving.) ■
When the battery is removed or discharged ●
In some cases, it may not be possible to unlock the doors using the smart access system
with push-button start when the battery is discharged. Use the wireless remote control
or the mechanical key to lock or unlock the doors. ●
The engine may not start on the first attempt after the battery has recharged but will
start normally after the second attempt. This is not a malfunction. ●
The engine switch mode is memorized by the vehicle. When the battery is recon-
nected, the system will return to the mode it was in before the battery was discharged.
Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery discharged, be
especially careful when reconnecting the battery. ●
The power back door must be initialized. (  P. 1 3 8 )4
4
5
6
7

6678-2. Steps to take in an emergency
8
When trouble arises
RX350_U_OM48E90U WA R N I N G ■
Avoiding battery fires or explosions
Observe the following precautions to preven t accidentally igniting the flammable gas
that may be emitted from the battery: ●
Make sure each jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any other than the intended terminal.●
Do not allow the other end of the jumper cable connected to the “+” terminal to come
into contact with any other parts or metal surfaces in the area, such as brackets or
unpainted metal. ●
Do not allow the + and - clamps of the jump er cables to come in to contact with each
other. ●
Do not smoke, use matches, cigarette lighters or allow open flame near the battery. ■
Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while related parts
contain lead and lead comp ounds. Observe the following precautions when handling
the battery: ●
When working with the battery, always wear safety glasses and take care not to allow
any battery fluids (acid) to come into contact with skin, clothing or the vehicle body. ●
Do not lean over the battery. ●
In the event that battery fluid comes into contact with the skin or eyes, immediately
wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received. ●
Always wash your hands after handling the battery support, terminals, and other bat-
tery-related parts. ●
Do not allow children near the battery.
NOTICE ■
When handling jumper cables
When connecting the jumper cables, ensure th at they do not become entangled in the
cooling fans or engine drive belt.

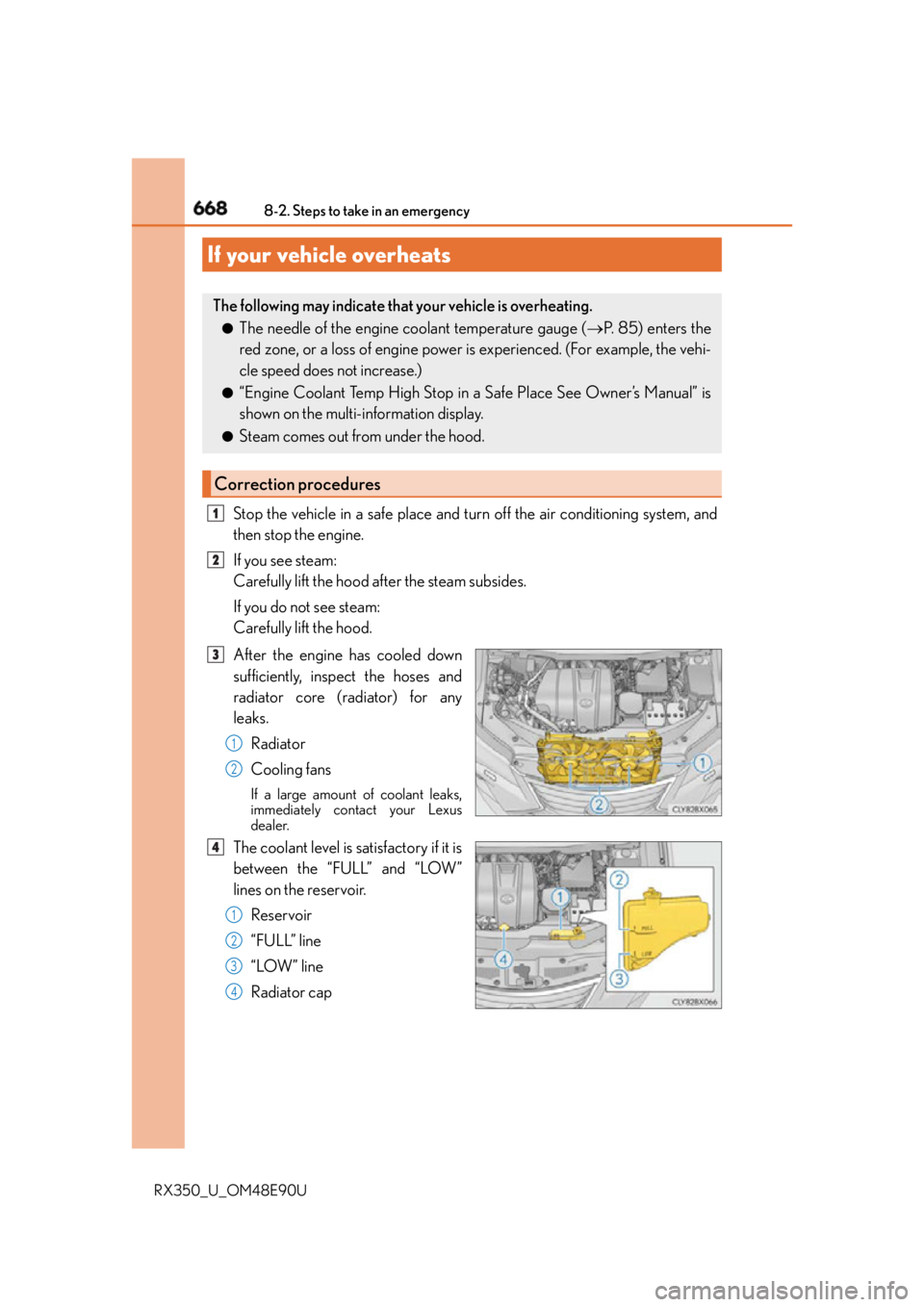

668 8-2. Steps to take in an emergency
RX350_U_OM48E90U Stop the vehicle in a safe place and tu rn off the air conditioning system, and
then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down
sufficiently, inspect the hoses and
radiator core (radiator) for any
leaks.
Radiator
Cooling fans If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
The coolant level is satisfactory if it is
between the “FULL” and “LOW”
lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
Radiator capIf your vehicle overheats The following may indicate that your vehicle is overheating. ●
The needle of the engine coolant temperature gauge (  P. 8 5 ) e n t e r s t h e
red zone, or a loss of engine power is experienced. (For example, the vehi-
cle speed does not increase.) ●
“Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is
shown on the multi-information display. ●
Steam comes out from under the hood.
Correction procedures 1
2
3
1
2
4
1
2
3
4

6698-2. Steps to take in an emergency
8
When trouble arises
RX350_U_OM48E90U Add coolant if necessary. Water can be used in an emergency if
coolant is unavailable.
Start the engine and turn the air conditioning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses. The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are oper ating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately an d contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
Check if “Engine Coolant Temp High St op in a Safe Place See Owner’s Man-
ual” is shown on the multi-information display.
If the message does not disappear:
Stop the engine and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer. 5
6
7
8

670 8-2. Steps to take in an emergency
RX350_U_OM48E90U WA R N I N G ■
To prevent an accident or injury when in specting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns. ●
If steam is seen coming from under the h ood, do not open the hood until the steam
has subsided. The engine compartment may be very hot. ●
Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-
ous injury. ●
Do not loosen the radiator cap and the c oolant reservoir cap while the engine and
radiator are hot.
High temperature steam or coolant could spray out.
NOTICE ■
When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine. ■
To prevent damage to the cooling system
Observe the following precautions: ●
Avoid contaminating the coolant with foreign matter (such as sand or dust etc.). ●
Do not use any coolant additive.
