Page 671 of 748

6718-2. Steps to take in an emergency
8
When trouble arises
RX350_U_OM48E90U Stop the engine. Shift the shift lever to P and set the parking brake.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels to help pro-
vide traction.
Restart the engine.
AWD models: Activate all-wheel drive lock mode. ( P. 3 7 3 )
Shift the shift lever to D or R and release the parking brake. Then, while exer-
cising caution, depress the accelerator pedal. ■
When it is difficult to free the vehicle
If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRAC. 1
2
3
4
5
6
Page 672 of 748

672 8-2. Steps to take in an emergency
RX350_U_OM48E90U WA R N I N G ■
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehicl es, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution. ■
When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid accelerati on of the vehicle that may cause an acci-
dent resulting in death or serious injury.
NOTICE ■
To avoid damage to the transmission and other components ●
Avoid spinning the front wheels and depressing the accelerator pedal more than nec-
essary. ●
If the vehicle remains stuck even after th ese procedures are performed, the vehicle
may require towing to be freed. ●
When a warning message for the automatic transmission fluid temperature is dis-
played while attempting to free a stuck vehicle, immediately remove your foot from
the accelerator pedal and wait until the warning message disappears. Otherwise, the
transmission may become damaged. ( P. 6 4 2 )
Page 673 of 748

673
9Vehicle specifications
RX350_U_OM48E90U 9-1. Specifications
Maintenance data
(fuel, oil level, etc.).................... 674
Fuel information..........................683
Tire information ...........................686
9-2. Customization
Customizable features ............ 699
9-3. Initialization
Items to initialize ........................... 712
Page 674 of 748

674
RX350_U_OM48E90U 9-1. Specifications
* 1
: Unladen vehicle
* 2
: Vehicles with towing package
* 3
: For GGL25L-BWZGBA models
* 5
* 4
:Except for GGL25L-BWZGBA models
* 5
* 5
: The model code is indicated on the Certification Label. ( P. 6 7 5 )Maintenance data (fuel, oil level, etc.) Dimensions and weight Overall length 192.5 in. (4890 mm)
Overall width 74 . 6 i n . ( 1 8 9 5 m m )
Overall height
* 1
67.7 in. (1720 mm)
Wheelbase 109.8 in. (2790 mm)
Tr e a d Front 64.4 in. (1635 mm)
Rear 64.0 in. (1625 mm)
Vehicle capacity weight
(Occupants + luggage) 1050 lb. (480 kg)
* 3
920 lb. (420 kg)
* 4
Trailer Weight Rating
* 2
(Trailer weight + cargo weight) 3500 lb. (1588 kg)
Page 675 of 748

6759-1. Specifications
9
Vehicle specifications
RX350_U_OM48E90U ■
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
This number is also on the Certifica-
tion Label.
On some models, This number is
also stamped under the right-hand
front seat.Vehicle identification
Page 676 of 748

676 9-1. Specifications
RX350_U_OM48E90U ■

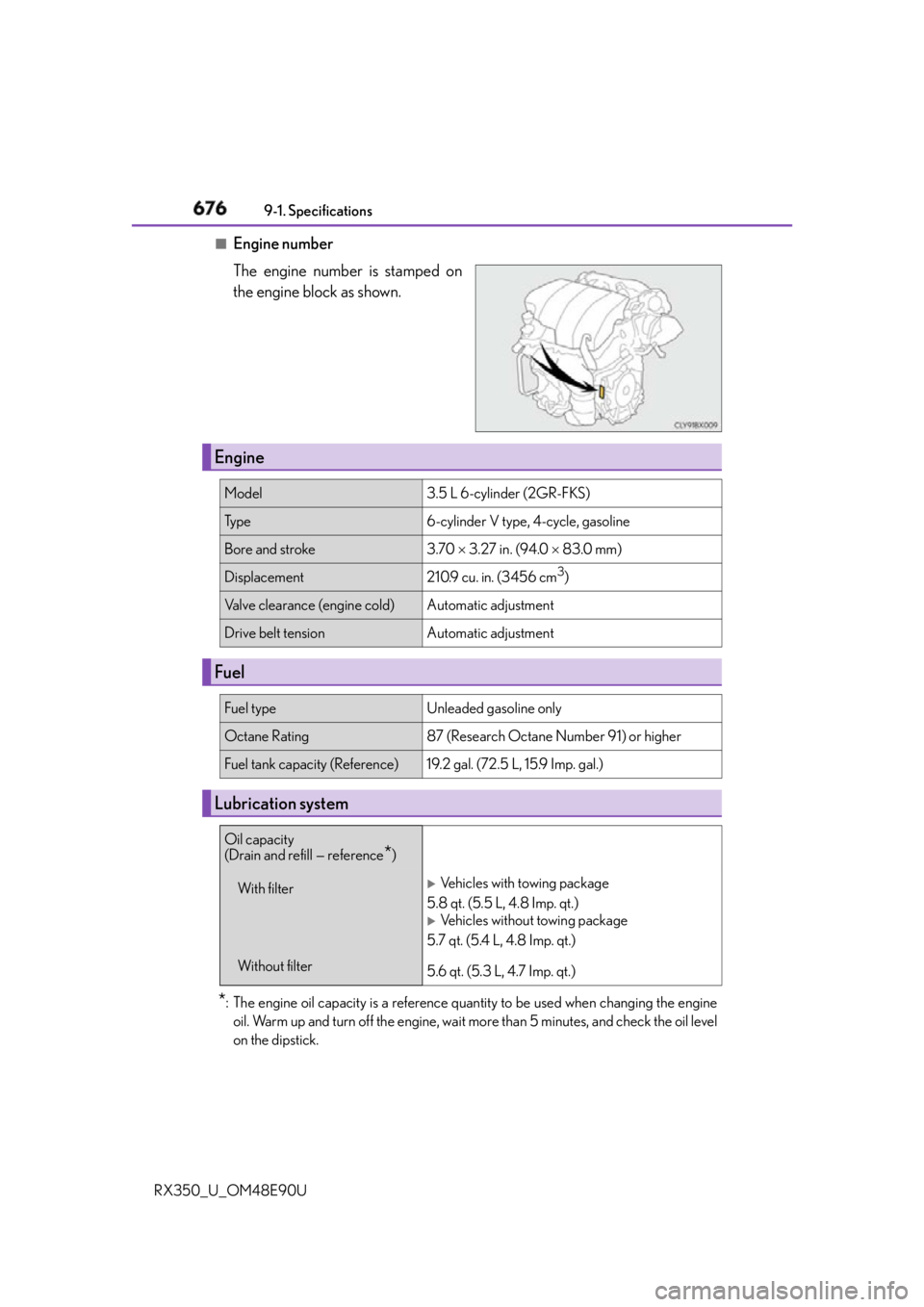

Engine number
The engine number is stamped on
the engine block as shown.
* : The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.Engine Model 3.5 L 6-cylinder (2GR-FKS)
Ty p e 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70 3.27 in. (94.0 83.0 mm)
Displacement 210.9 cu. in. (3456 cm 3
)
Valve clearance (engine cold) Automatic adjustment
Drive belt tension Automatic adjustment
Fuel Fuel type Unleaded gasoline only
Octane Rating 87 (Research Octane Number 91) or higher
Fuel tank capacity (Reference) 19.2 gal. (72.5 L, 15.9 Imp. gal.)
Lubrication system Oil capacity
(Drain and refill — reference
* )
With filter
Without filter
Vehicles with towing package
5.8 qt. (5.5 L, 4.8 Imp. qt.)
Vehicles without towing package
5.7 qt. (5.4 L, 4.8 Imp. qt.)
5.6 qt. (5.3 L, 4.7 Imp. qt.)
Page 677 of 748

6779-1. Specifications
9
Vehicle specifications
RX350_U_OM48E90U ■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use. Outside temperature
Page 678 of 748

678 9-1. Specifications
RX350_U_OM48E90U * : The coolant capacity is a reference quantity.

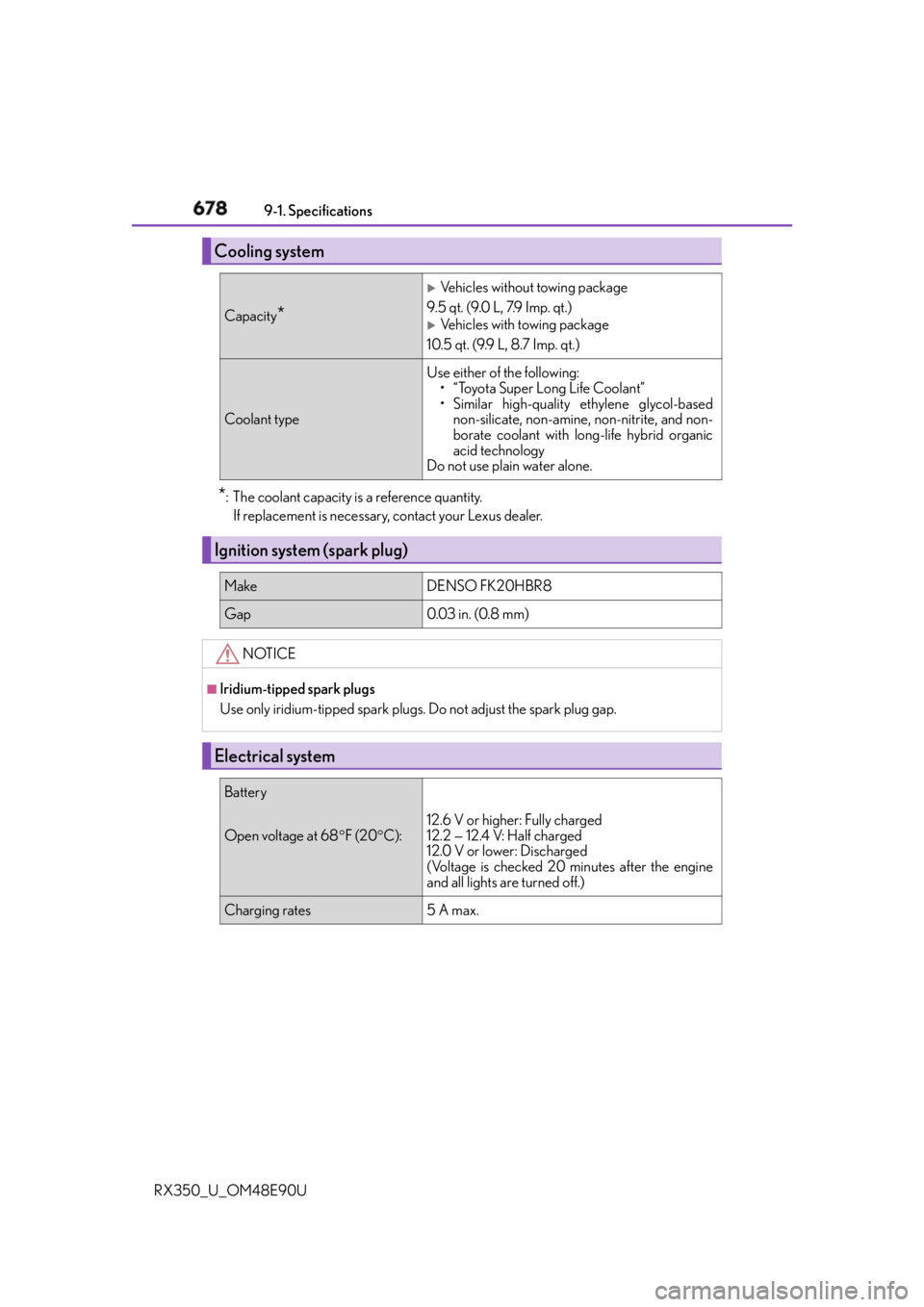

If replacement is necessary, contact your Lexus dealer.Cooling system Capacity
*
Vehicles without towing package
9.5 qt. (9.0 L, 7.9 Imp. qt.)
Vehicles with towing package
10.5 qt. (9.9 L, 8.7 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system (spark plug) Make DENSO FK20HBR8
Gap 0.03 in. (0.8 mm)
NOTICE ■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system Battery
Open voltage at 68 F (20 C): 12.6 V or higher: Fully charged
12.2 — 12.4 V: Half charged
12.0 V or lower: Discharged
(Voltage is checked 20 minutes after the engine
and all lights ar e turned off.)
Charging rates 5 A max.
Page 679 of 748

6799-1. Specifications
9
Vehicle specifications
RX350_U_OM48E90U * : The fluid capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.
Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above sp ecification. Please contact your Lexus
dealer for further details.
Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above sp ecification. Please contact your Lexus

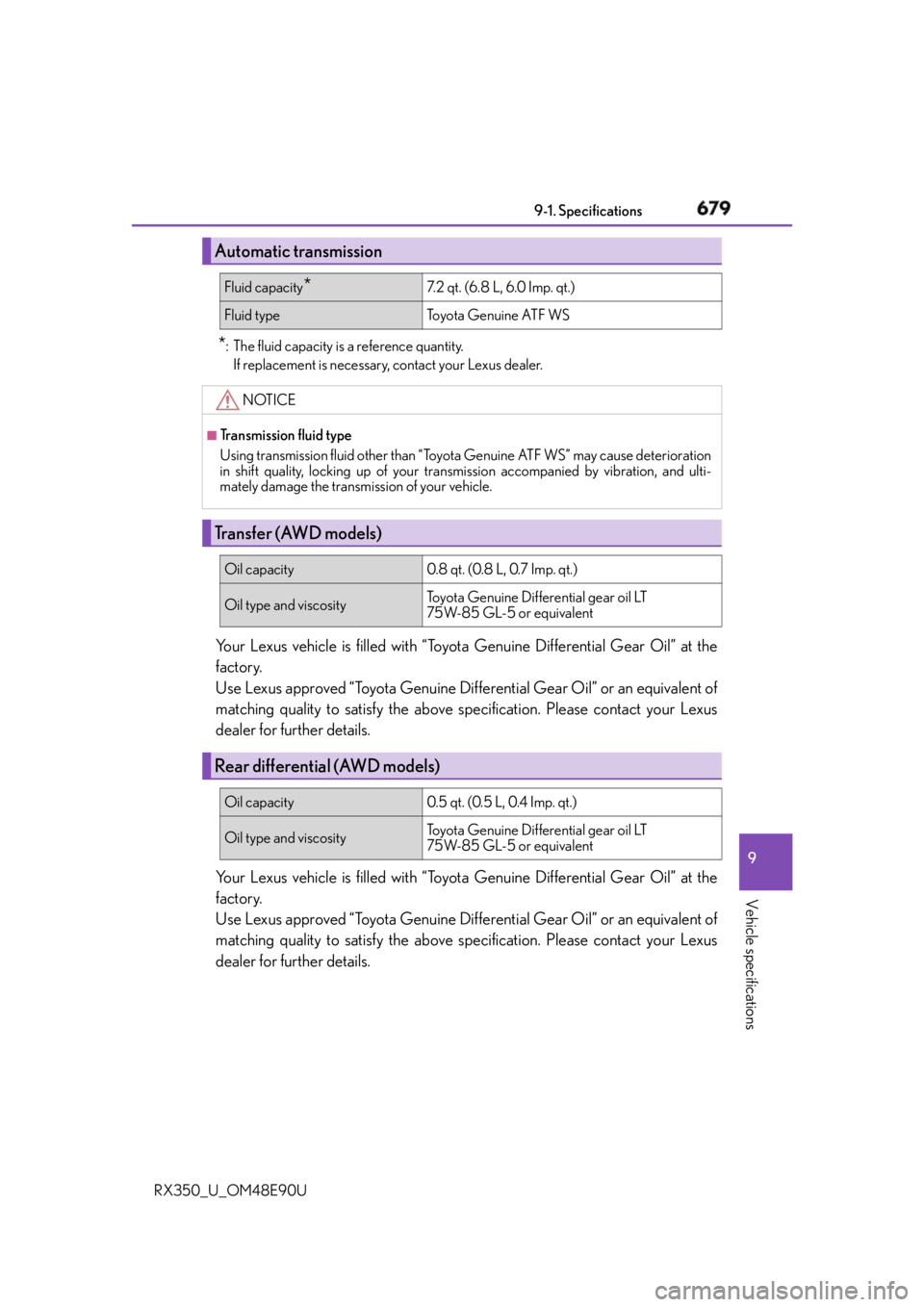

dealer for further details.Automatic transmission Fluid capacity
* 7.2 qt. (6.8 L, 6.0 Imp. qt.)
Fluid type To y o t a G e n u i n e AT F W S
NOTICE ■
Transmission fluid type
Using transmission fluid other than “Toyot a Genuine ATF WS” may cause deterioration
in shift quality, locking up of your transm ission accompanied by vibration, and ulti-
mately damage the transmission of your vehicle.
Transfer (AWD models) Oil capacity 0.8 qt. (0.8 L, 0.7 Imp. qt.)
Oil type and viscosity Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Rear differential (AWD models) Oil capacity 0.5 qt. (0.5 L, 0.4 Imp. qt.)
Oil type and viscosity Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Page 680 of 748

680 9-1. Specifications
RX350_U_OM48E90U * : Minimum pedal clearance when depressed wi th a force of 110 lbf (490 N, 50.0 kgf)
while the engine is running.

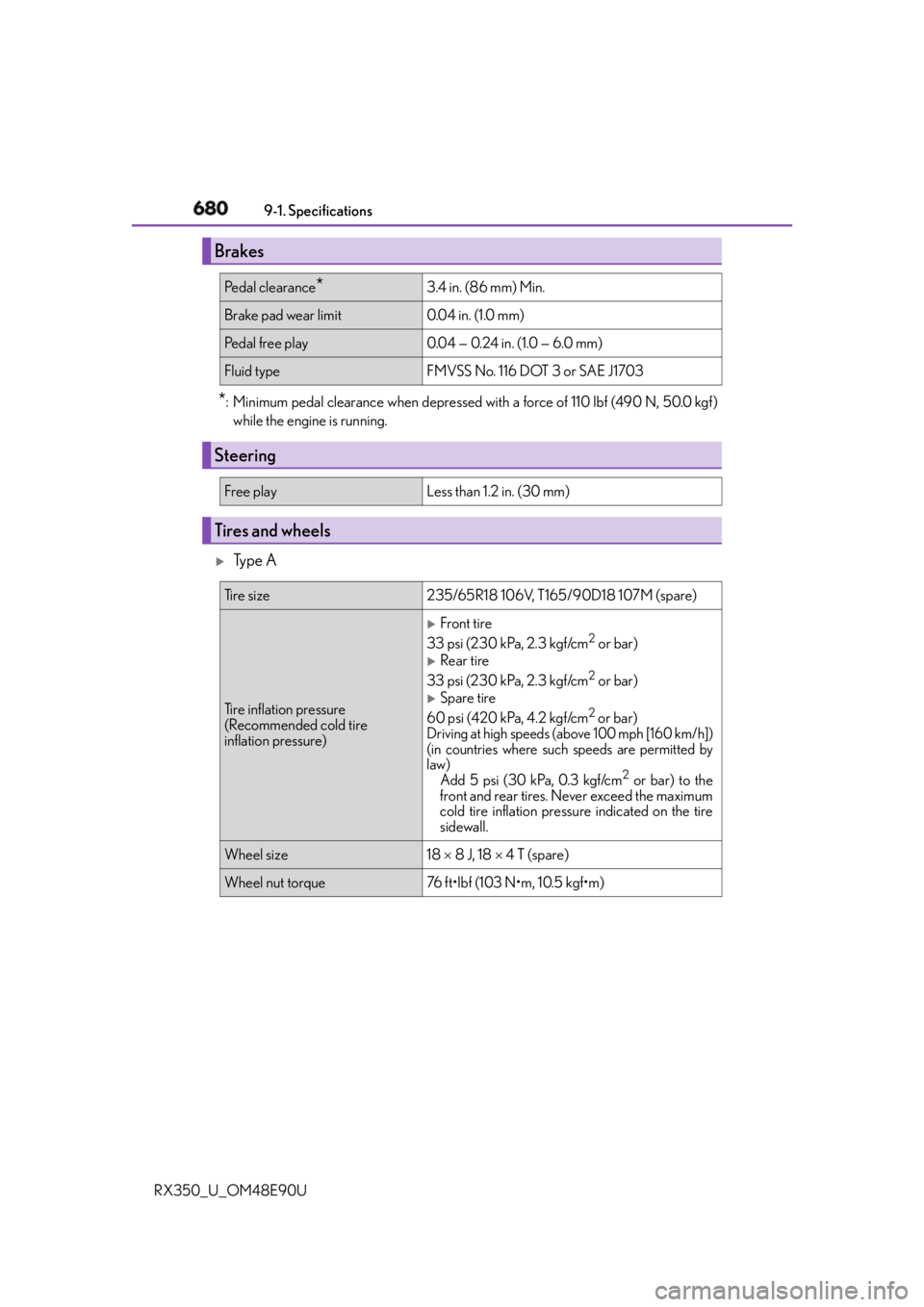

Ty p e ABrakes Pe d a l c l e a r a n c e
* 3.4 in. (86 mm) Min.
Brake pad wear limit 0.04 in. (1.0 mm)
Pedal free play 0.04 — 0.24 in. (1.0 — 6.0 mm)
Fluid type FMVSS No. 116 DOT 3 or SAE J1703
Steering Free play Less than 1.2 in. (30 mm)
Tires and wheels Ti r e s i z e 235/65R18 106V, T165/90D18 107M (spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Rear tire
33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Spare tire
60 psi (420 kPa, 4.2 kgf/cm 2
or bar)
Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law)
Add 5 psi (30 kPa, 0.3 kgf/cm 2
or bar) to the
front and rear tires. Never exceed the maximum
cold tire inflation pressure indicated on the tire
sidewall.
Wheel size 18 8 J, 18 4 T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
