LEXUS SC300 1999 Owners Manual

STARTING AND DRIVING
243
Turning on the system
To operate the cruise control, push the main switch. This
turns the system on. The indicator light in the instrument
cluster shows that you can now set your desired cruising
speed. Another push on the switch will turn the system
completely off.
When the ignition key is turned off, the main switch is also
automatically turned off. To use the cruise control again, push
the main switch again to turn it on.
CAUTION
To avoid accidental cruise control engagement, keep the main
switch off when not using the cruise control.

STARTING AND DRIVING
244
Setting at a desired speed
The transmission must be in ºDº before you set the cruise
control speed.

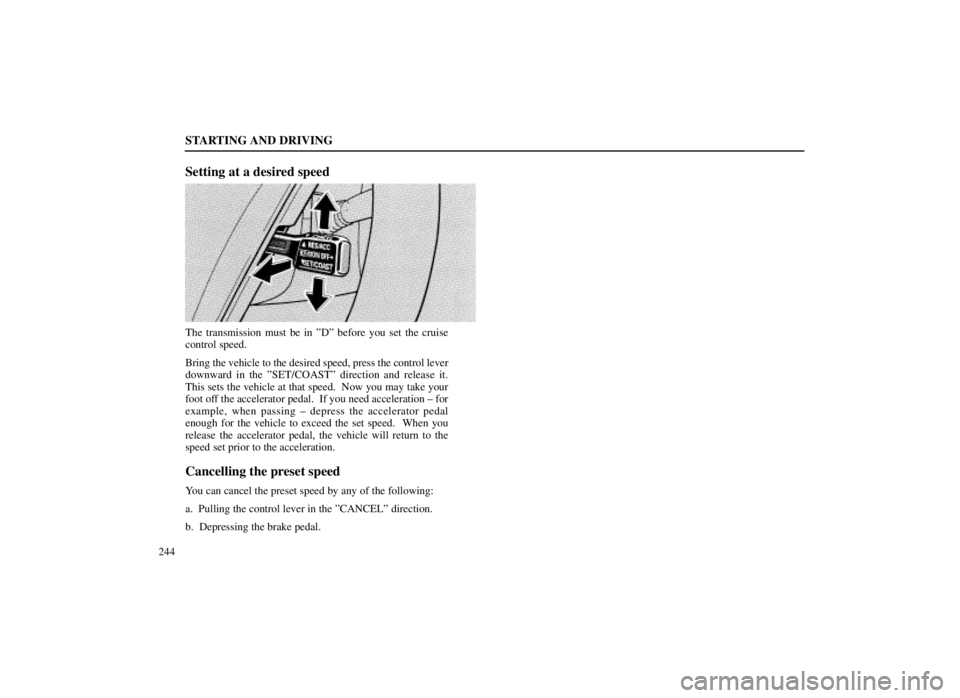

Bring the vehicle to the desired speed, press the control lever
downward in the ºSET/COASTº direction and release it.
This sets the vehicle at that speed. Now you may take your
foot off the accelerator pedal. If you need acceleration ± for
example, when passing ± depress the accelerator pedal
enough for the vehicle to exceed the set speed. When you
release the accelerator pedal, the vehicle will return to the
speed set prior to the acceleration.
Cancelling the preset speed
You can cancel the preset speed by any of the following:
a. Pulling the control lever in the ºCANCELº direction.
b. Depressing the brake pedal.

STARTING AND DRIVING
245
If the vehicle speed falls below about 40 km/h (25 mph), the
preset speed will be automatically cancelled.
If the vehicle speed drops 16 km/h (10 mph) below the preset
speed, the preset speed will also automatically be cancelled.
If the preset speed automatically cancels out for other than
these reasons, have your vehicle checked by your Lexus
dealer at the earliest opportunity.
Resetting to a faster speed
Press the control lever upward in the ºRES/ACCº direction
and hold it. Release the lever when the desired speed is
attained. While the lever is held upward, the vehicle will
gradually gain speed.
When
the difference between the actual vehicle speed and the
set speed is less than 5 km/h (3 mph), the set speed can be
increased 1.6 km/h (1 mph) each time by pressing the control
lever upward in the ºRES/ACCº direction quickly within 0.6
seconds.
However, a quicker way to reset is to accelerate the vehicle
and then press the control lever downward in the
ºSET/COASTº direction.
Resetting to a slower speed
Press the control lever downward in the ºSET/COASTº
direction and hold it. Release the lever when the desired
speed is attained. While the lever is held downward, the
vehicle speed will gradually decrease. When
the difference between the actual vehicle speed and the
set speed is less than 5 km/h (3 mph), the set speed can be
lowered 1.6 km/h (1 mph) each time by pressing the control
lever downward in the ºSET/COASTº direction quickly
within 0.6 seconds.
However, a quicker way to reset is to depress the brake pedal
and then press the control lever downward in the
ºSET/COASTº direction.
Even if you downshift the transmission from ºDº to º4º
(SC400) or from ºDº to º3º (SC300) with the cruise control
on, engine braking will not be applied because the cruise
control is not cancelled. To decrease the vehicle speed, reset
to a slower speed with the cruise control lever or depress the
brake pedal. If you use the brake pedal, cruise control is
cancelled.
Resuming the preset speed
If the preset speed is cancelled by pulling the control lever or
by depressing the brake pedal, pushing the lever up in the
ºRES/ACCº direction will restore the speed set prior to
cancellation. However, once the vehicle speed falls below
about 40 km/h (25 mph), the preset speed will not be resumed.
Cruise control failure warning
If the ºCRUISEº indicator light in the instrument cluster
flashes five times and then goes out when using the cruise
control, it means that there is trouble in the cruise control
system. Contact your Lexus dealer.

STARTING AND DRIVING
246
TRACTION CONTROL SYSTEM
The traction control system automatically helps control
the spinning of the rear wheels which may occur when
accelerating on slippery road surfaces, thus assisting
driver to control the driving power of the rear wheels.
When you turn the ignition switch on, this system always
turns on. Leave the system on during ordinary driving so
that it can operate when needed. When traction control

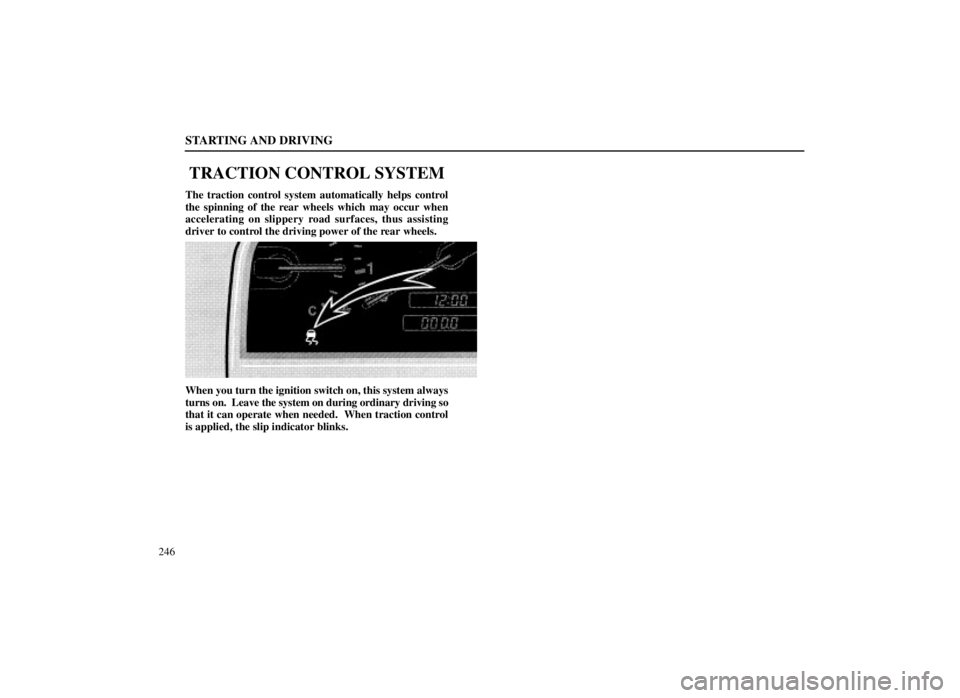

is applied, the slip indicator blinks.

STARTING AND DRIVING
247
You can turn off the traction control system by pushing
the ºTRAC OFFº switch. The ºTRAC OFFº indicator/
warning light will then come on. Pushing the ºTRAC
OFFº switch a second time turns the system back on and
extinguishes the ºTRAC OFFº indicator/warning light.
You may hear a slight clicking noise in the engine
compartment when the engine is started. This means that the
traction control system is in the self±check mode, and does
not indicate malfunction.
When the traction control system is operating, you may feel
vibration of your vehicle, caused by operation of the brakes.
This indicates the system is functioning properly.
When getting the vehicle out of mud or new snow, etc. the
traction control system will help operate to prevent the wheels
from spinning.

STARTING AND DRIVING
248
Traction control failure warning
If the ºTRAC OFFº indicator/warning light flashes, contact
your Lexus dealer as soon as possible. There may be trouble
in the traction control system.
CAUTION
Under certain slippery road conditions, full traction of the
vehicle and power to the rear wheels cannot be maintained,
even though the traction control system is in operation. Do not
drive the vehicle under any speed or maneuvering conditions
which will cause the vehicle to lose traction. In situations
where the road surface is covered with ice or snow, your
vehicle should be fitted with snow tires or tire chains. Always
drive at an appropriate and cautious pace.
BRAKE SYSTEM
The tandem master cylinder brake system is a hydraulic
system with two separate sub±systems. If either sub±system
should fail, the other will still work. However, the pedal will
be harder to press, and your stopping distance will be longer.
Also, the brake system warning light may come on.
CAUTION
Do not drive your vehicle with only a single brake system.
Have your brakes fixed immediately.

STARTING AND DRIVING
249
Brake booster
The brake booster uses engine vacuum to power±assist the
brakes. If the engine should quit while you are driving, you
can bring the vehicle to a stop with normal pedal pressure.
There is enough reserve vacuum for one or two stops but no
more!
CAUTION
Do not pump the brake pedal if the engine stalls. Each push
on the pedal uses up your vacuum reserve.
 Even if the power assist is completely lost, the brakes will
still work. But you will have to push the pedal hard ± much
harder than normal. And your braking distance will be
longer.

STARTING AND DRIVING
250
Anti±lock brake system
The anti±lock brake system is designed to automatically
help prevent lock±up of the wheels during a sudden brake
or braking on slippery road surfaces. This assists in
providing directional stability and steering performance
of the vehicle under these circumstances.
The anti±lock brake system becomes operative after the
vehicle has accelerated to a speed in excess of approximately
10 km/h (6 mph). It stops operating when the vehicle
decelerates to a speed below approximately 5 km/h (3 mph).
You may hear a sound in the engine compartment for a few
seconds when the engine is started or just after the vehicle is
started. This means that the anti±lock brake system is in the
self±check mode, and does not indicate a malfunction.
Effective way to press the ABS brake pedal: When the anti±
lock brake system function is in action, you may feel the brake
pedal pulsating and hear a noise. In this situation, to let the anti±
lock brake system work for you, just hold the brake pedal down
more firmly. Do not pump the brake in a panic stop. Pumping the
brake pedal makes the stopping distance longer.

STARTING AND DRIVING
251
The brake pedal pulsation caused by the anti±lock brake
system may indicate hazardous road surface conditions.
Although the anti±lock brake system assists in providing
vehicle control, it is still important to drive with all due care,
because
the anti±lock brake system cannot overcome the laws
of physics that act on your vehicle:
 Braking capability is dependent on tire friction with the
road surface.
Even though the anti±lock brake system is operating, a
driver cannot maintain full control on certain slippery road
surfaces, when cornering at high speeds, or in violent
maneuvers.
 Avoid high speeds on wet roads. The anti±lock brake
system cannot eliminate the risk of hydroplaning and loss
of tire friction.
Always maintain a safe distance from the vehicle in front of
you. Compared with vehicles not fitted with an anti±lock
brake system, your vehicle may require a longer stopping
distance in the following cases:
 Driving on rough, gravel or snow±covered roads.
 Driving with tire chains installed.
 Driving on roads where the road surface is pitted or has
other differences in surface height.

STARTING AND DRIVING

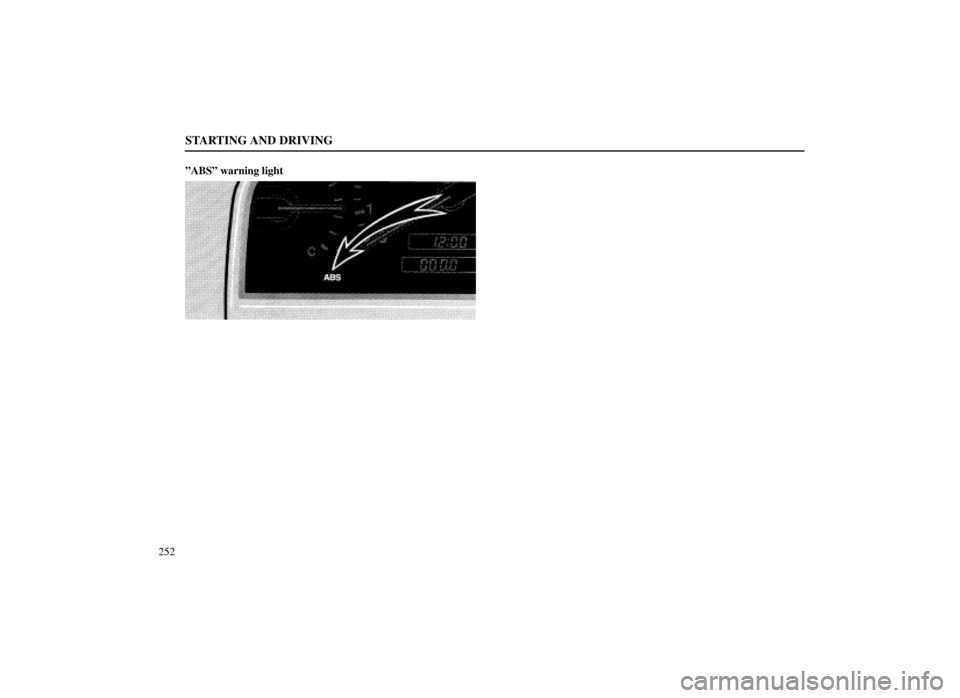

252ºABSº warning light
