5. INSPECT VALVE STEMS AND GUIDE BUSHINGS(a) Using a caliper gauge, measure the inside diameter ofthe guide bushing.
Bushing inside diameter:
6.010±6.030 mm (0.2366±0.2374 in.)
(b) Using a micrometer, measure the diameter of the valvestem.
Valve stem diameter:
Intake 5.970±5.985 mm (0.2350±0.2356 in.)
Exhaust 5.965±5.980 mm (0.2348±0.2354 in.)
(c) Subtract the diameter measurement of the valve stemfrom the inside diameter measurement of the guide
bushing.
Standard oil clearance:
Intake 0.025±0.060 mm (0.0010±0.0024 in.)
Exhaust 0.030±0.065 mm (0.0012±0.0026 in.)
Maximum oil clearance: Intake 0.08 mm (0.0031 in.)
Exhaust 0.10 mm (0.0039 in.)
If the clearance is greater than maximum, replace the valve
and guide bushing.
6. IF NECESSARY, REPLACE VALVE GUIDE BUSHINGS (a) Insert an old valve wrapped with tape into the valveguide bushing, and break off the valve guide bushing by
hitting it with a hammer. Remove the snap ring.
HINT: Wrap the tape approx. 8 mm (0.31 in.) from the stem
end.
NOTICE: Be careful not to damage the valve lifter hole.
EM±80
±
ENGINE MECHANICAL Cylinder Heads
WhereEverybodyKnowsYourName

(b) Gradually heat the cylinder head to 80±1005C (176±2125F).
(c) Using SST and a hammer, tap out the guide bushing.
SST 09201±70010
(d) Using a caliper g auge, measure the bushing bore
diameter of the cylinder head.
Both intake and exhaust
 Bushing bore diameter mm (in.) Bushing size


11.000±11.027
(0.4331±0.4342)

Use STD



11.050±11.077
(0.4350±0.4361)


Use O/S 0.05
(e) Select a new guide bushing (STD size or O/S 0.05).
If the bushing bore diameter of the cylinder head is greater
than 11.027 mm (0.4341 in.), grind the bushing bore to the
following dimension:
11.050±11.077 mm (0.4350±0.4361 in.)
If the bushing bore diameter of the cylinder head is greater
than 11.077 mm (0.4361 in.), replace the cylinder head.
(f) Gradually heat the cylinder head to 80±1005C (176
±2125F).
±
ENGINE MECHANICAL Cylinder HeadsEM±81
WhereEverybodyKnowsYourName

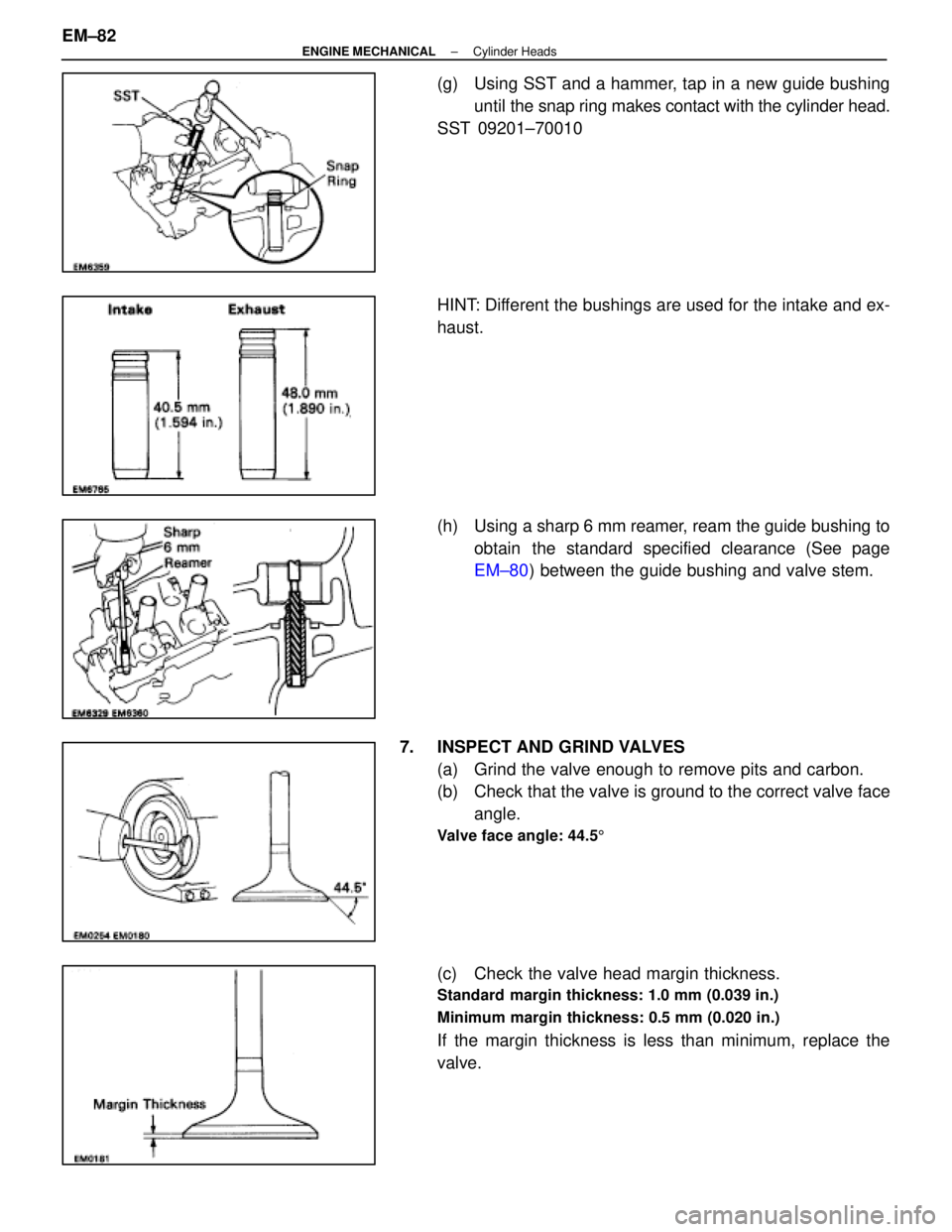

(g) Using SST and a hammer, tap in a new guide bushinguntil the snap ring makes contact with the cylinder head.
SST 09201±70010
HINT: Different the bushings are used for the intake and ex-
haust.
(h) Using a sharp 6 mm reamer, ream the guide bushing to obtain the standard specified clearance (See page
EM±80 ) between the guide bushing and valve stem.
7. INSPECT AND GRIND VALVES (a) Grind the valve enough to remove pits and carbon.
(b) Check that the valve is ground to the correct valve faceangle.
Valve face angle: 44.5 5
(c) Check the valve head margin thickness.
Standard margin thickness: 1.0 mm (0.039 in.)
Minimum margin thickness: 0.5 mm (0.020 in.)
If the margin thickness is less than minimum, replace the
valve.
EM±82
±
ENGINE MECHANICAL Cylinder Heads
WhereEverybodyKnowsYourName

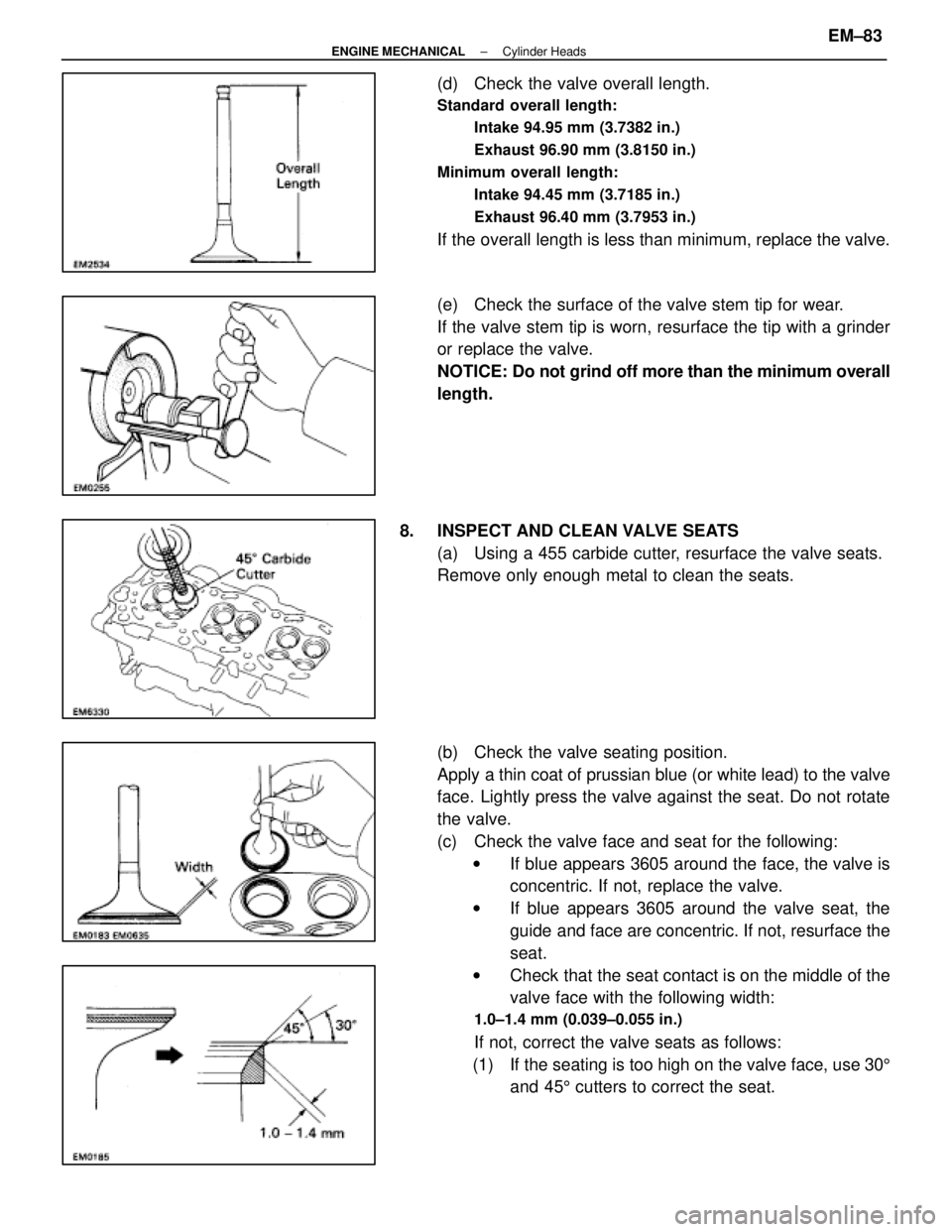

(d) Check the valve overall length.
Standard overall length:Intake 94.95 mm (3.7382 in.)
Exhaust 96.90 mm (3.8150 in.)
Minimum overall length: Intake 94.45 mm (3.7185 in.)
Exhaust 96.40 mm (3.7953 in.)
If the overall length is less than minimum, replace the valve.
(e) Check the surface of the valve stem tip for wear.
If the valve stem tip is worn, resurface the tip with a grinder
or replace the valve.
NOTICE: Do not grind off more than the minimum overall
length.
8. INSPECT AND CLEAN VALVE SEATS (a) Using a 455 carbide cutter, resurface the valve seats.
Remove only enough metal to clean the seats.
(b) Check the valve seating position.
Apply a thin coat of prussian blue (or white lead) to the valve
face. Lightly press the valve against the seat. Do not rotate
the valve.
(c) Check the valve face and seat for the following:w If blue appears 3605 around the face, the valve is
concentric. If not, replace the valve.
w If blue appears 3605 around the valve seat, the
guide and face are concentric. If not, resurface the
seat.
w Check that the seat contact is on the middle of the
valve face with the following width:
1.0±1.4 mm (0.039±0.055 in.)
If not, correct the valve seats as follows:
(1) If the seating is too high on the valve face, use 30 5
and 45 5 cutters to correct the seat.
±
ENGINE MECHANICAL Cylinder HeadsEM±83
WhereEverybodyKnowsYourName

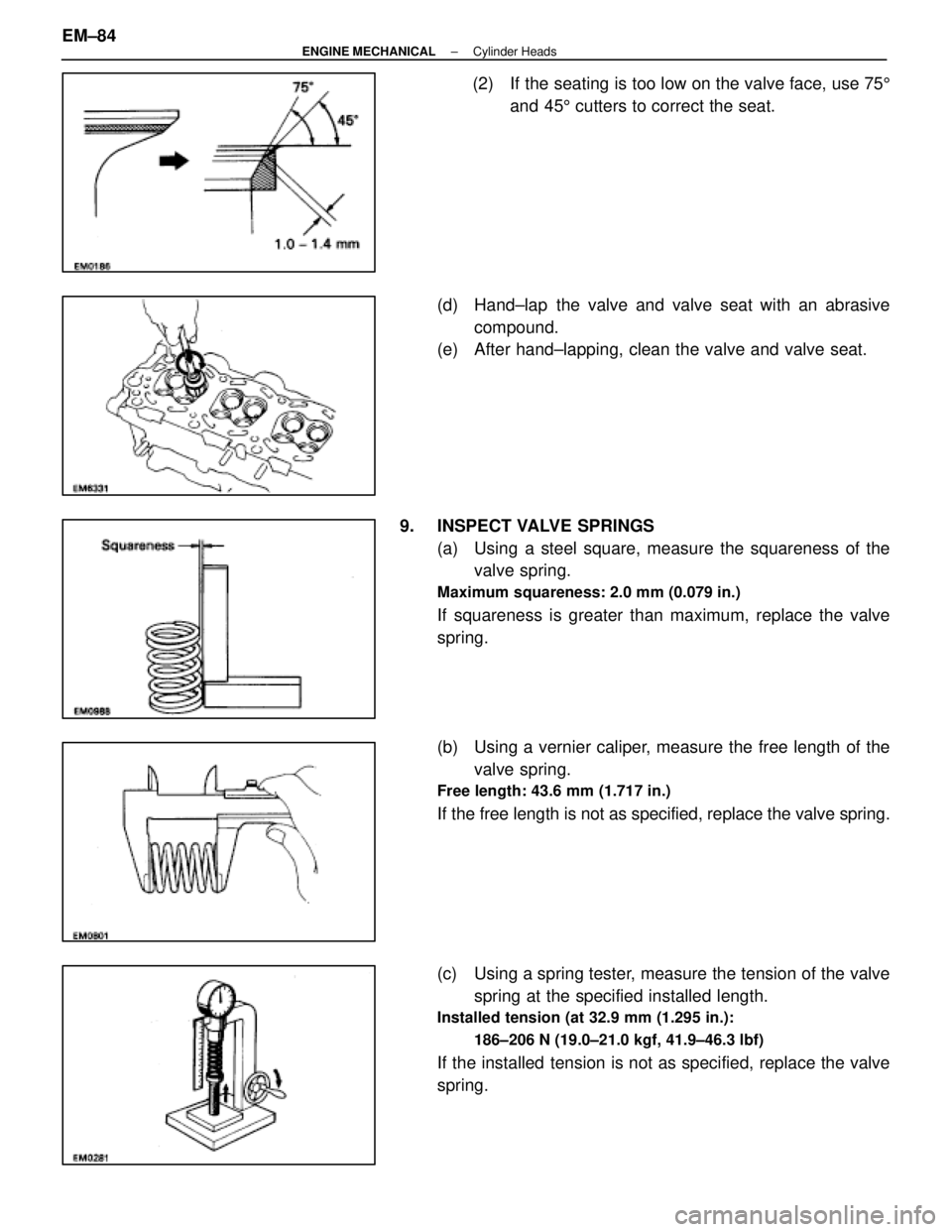

(2) If the seating is too low on the valve face, use 755
and 45 5 cutters to correct the seat.
(d) Hand±lap the valve and valve seat with an abrasive compound.
(e) After hand±lapping, clean the valve and valve seat.
9. INSPECT VALVE SPRINGS (a) Using a steel square, measure the squareness of thevalve spring.
Maximum squareness: 2.0 mm (0.079 in.)
If squareness is greater than maximum, replace the valve
spring.
(b) Using a vernier caliper, measure the free length of the
valve spring.
Free length: 43.6 mm (1.717 in.)
If the free length is not as specified, replace the valve spring.
(c) Using a spring tester, measure the tension of the valvespring at the specified installed length.
Installed tension (at 32.9 mm (1.295 in.):
186±206 N (19.0±21.0 kgf, 41.9±46.3 lbf)
If the installed tension is not as specified, replace the valve
spring.
EM±84
±
ENGINE MECHANICAL Cylinder Heads
WhereEverybodyKnowsYourName

10. INSPECT CAMSHAFTS AND BEARINGS

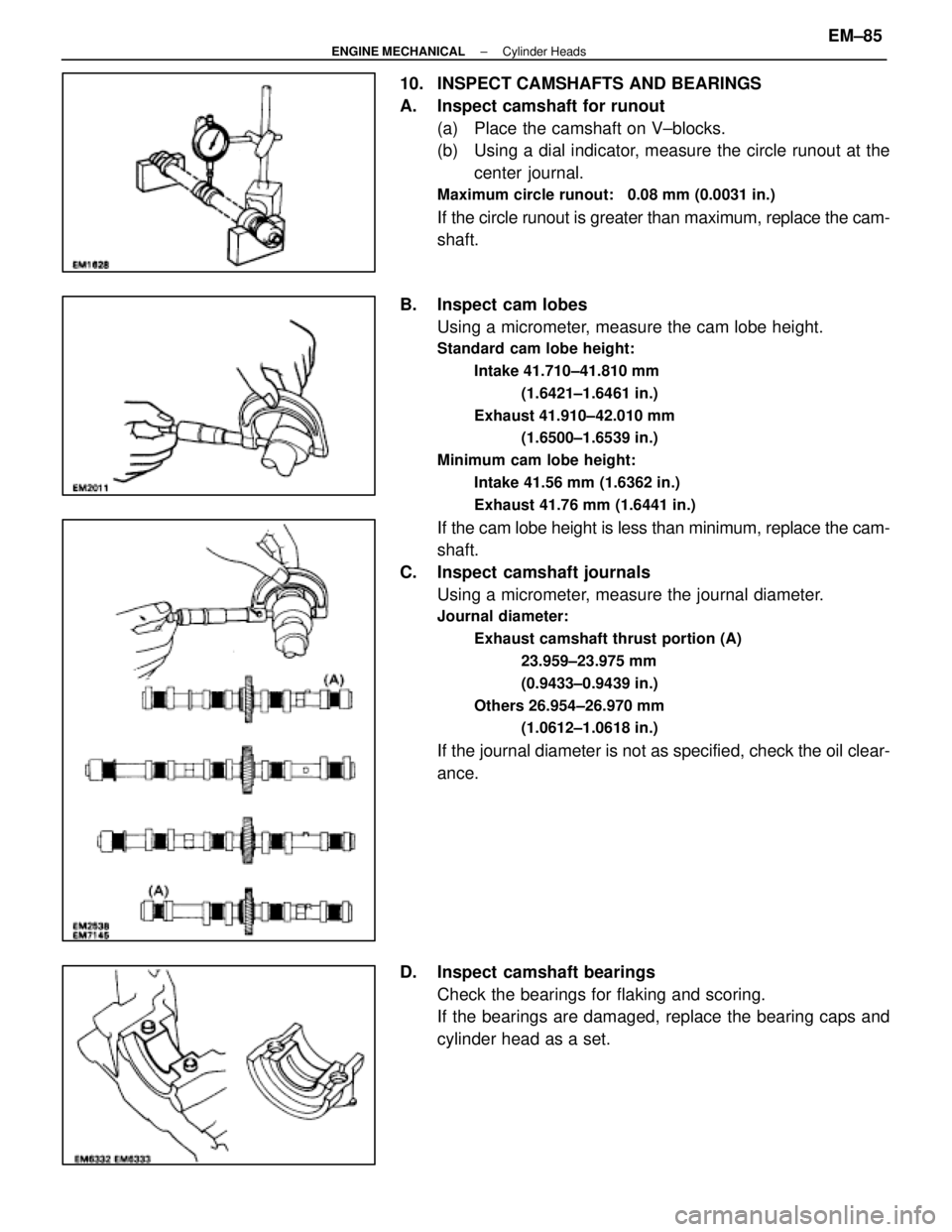

A. Inspect camshaft for runout(a) Place the camshaft on V±blocks.
(b) Using a dial indicator, measure the circle runout at thecenter journal.
Maximum circle runout: 0.08 mm (0.0031 in.)
If the circle runout is greater than maximum, replace the cam-
shaft.
B. Inspect cam lobes Using a micrometer, measure the cam lobe height.
Standard cam lobe height:
Intake 41.710±41.810 mm (1.6421±1.6461 in.)
Exhaust 41.910±42.010 mm (1.6500±1.6539 in.)
Minimum cam lobe height: Intake 41.56 mm (1.6362 in.)
Exhaust 41.76 mm (1.6441 in.)
If the cam lobe height is less than minimum, replace the cam-
shaft.
C. Inspect camshaft journals Using a micrometer, measure the journal diameter.
Journal diameter:
Exhaust camshaft thrust portion (A) 23.959±23.975 mm
(0.9433±0.9439 in.)
Others 26.954±26.970 mm (1.0612±1.0618 in.)
If the journal diameter is not as specified, check the oil clear-
ance.
D. Inspect camshaft bearings Check the bearings for flaking and scoring.
If the bearings are damaged, replace the bearing caps and
cylinder head as a set.
±
ENGINE MECHANICAL Cylinder HeadsEM±85
WhereEverybodyKnowsYourName

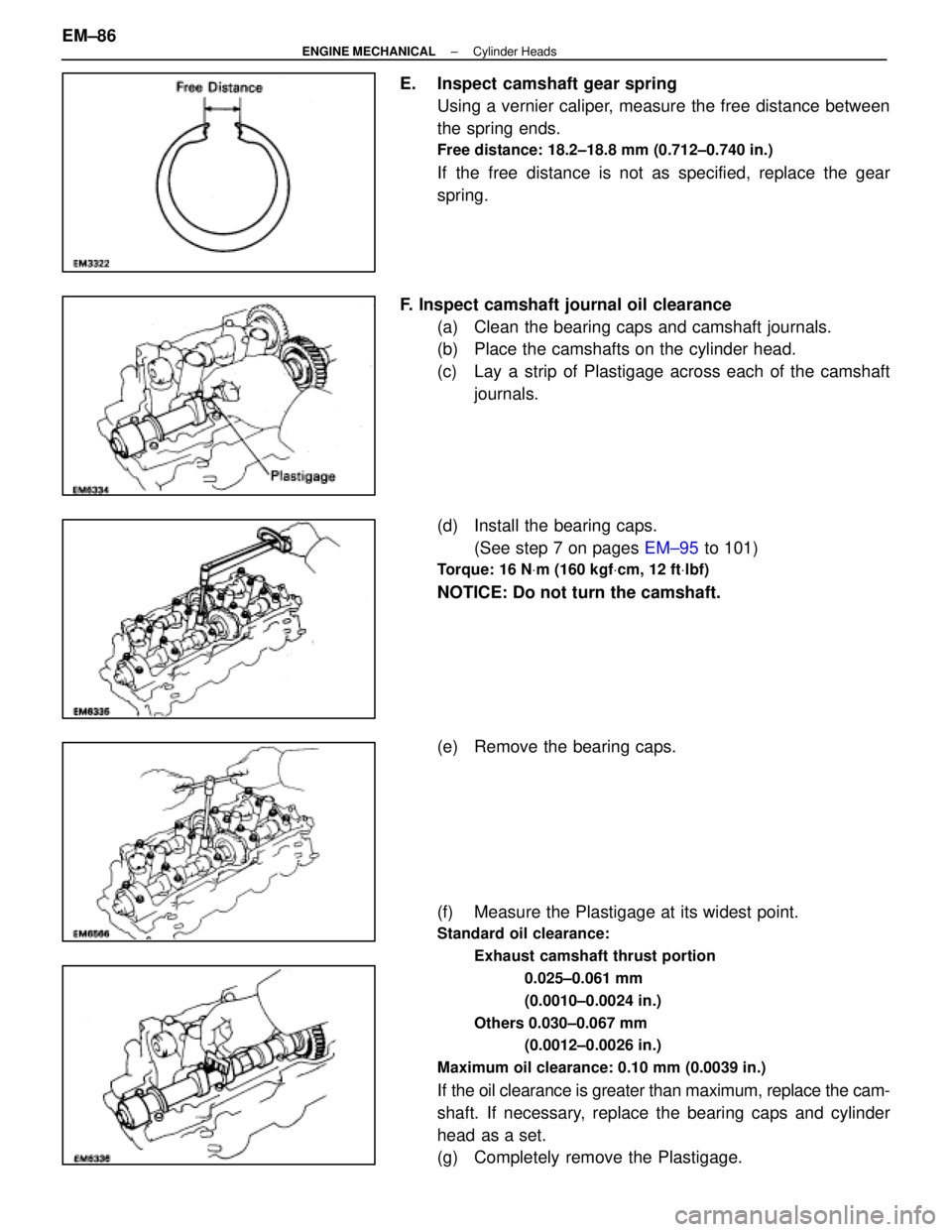

E. Inspect camshaft gear springUsing a vernier caliper, measure the free distance between
the spring ends.
Free distance: 18.2±18.8 mm (0.712±0.740 in.)
If the free distance is not as specified, replace the gear
spring.
F. Inspect camshaft journal oil clearance (a) Clean the bearing caps and camshaft journals.
(b) Place the camshafts on the cylinder head.
(c) Lay a strip of Plastigage across each of the camshaftjournals.
(d) Install the bearing caps. (See step 7 on pages EM±95 to 101)
Torque: 16 N Vm (160 kgf Vcm, 12 ft Vlbf)
NOTICE: Do not turn the camshaft.
(e) Remove the bearing caps.
(f) Measure the Plastigage at its widest point.
Standard oil clearance:
Exhaust camshaft thrust portion 0.025±0.061 mm
(0.0010±0.0024 in.)
Others 0.030±0.067 mm (0.0012±0.0026 in.)
Maximum oil clearance: 0.10 mm (0.0039 in.)
If the oil clearance is greater than maximum, replace the cam-
shaft. If necessary, replace the bearing caps and cylinder
head as a set.
(g) Completely remove the Plastigage.
EM±86
±
ENGINE MECHANICAL Cylinder Heads
WhereEverybodyKnowsYourName

G. Inspect camshaft thrust clearance(a) Install the camshafts.(See step 7 on pages EM±95 to 101)
(b) Using a dial indicator, measure the thrust clearance
while moving the camshaft back and forth.
Standard thrust clearance: 0.040±0.090 mm
(0.0016±0.0035 in.)
Maximum thrust clearance: 0.12 mm (0.0047 in.)
If the thrust clearance is greater than maximum, replace the
camshaft. If necessary, replace the bearing caps and cylin-
der head as a set.
H. Inspect camshaft gear backlash (a) Install the camshafts wit hout installing the ex haust
camshaft sub±gear.
(See step 7 on pages EM±95 to 101)
(b) Using a dial indicator, measure the backlash.
Standard backlash: 0.020±0.200 mm
(0.0008±0.0079 in.)
Maximum backlash: 0.30 mm (0.0188 in.)
If the backlash is greater than maximum, replace the cam-
shafts.
11. INSPECT VALVE LIFTERS AND LIFTER BORES
(a) Using a caliper gauge, measure the lifter bore diameterof the cylinder head.
Lifter bore diameter: 31.000±31.016 mm
(1.2205±1.2211 in.)
(b) Using a micrometer, measure the lifter diameter.
Lifter diameter: 30.966±30.976 mm
(1.2191±1.2195 in.)
(c) Subtract the lifter diameter measurement from the lifterbore diameter measurement.
Standard oil clearance: 0.024±0.050 mm
(0.0009±0.0020 in.)
Maximum oil clearance: 0.07 mm (0.0028 in.)
If the oil clearance is greater than maximum, replace the lifter.
If necessary, replace the cylinder head.
±
ENGINE MECHANICAL Cylinder HeadsEM±87
WhereEverybodyKnowsYourName

12. INSPECT AIR INTAKE CHAMBERUsing a precision straight edge and feeler gauge, measure
the surfaces contacting the intake manifold for warpage.
Maximum warpage: 0.15 mm (0.0059 in.)
If warpage is greater than maximum, replace the chamber.
13. INSPECT INTAKE MANIFOLD Using a precision straight edge and feeler gauge, measure
the surfaces contacting the cylinder head and air intake
chamber for warpage.
Maximum warpage: 0.15 mm (0.0059 in.)
If warpage is greater than maximum, replace the manifold.
14. INSPECT EXHAUST MANIFOLD Using a precision straight edge and feeler gauge, measure
the surfaces contacting the cylinder head for warpage.
Maximum warpage: 1.00 mm (0.0394 in.)
If warpage is greater than maximum, replace the manifold.
15. INSPECT CYLINDER HEAD BOLTS Using a vernier caliper, measure the thread outside diameter
of the bolt.
Standard outside diameter: 9.770±9.960 mm
(0.3846±0.3921 in.)
Minimum outside diameter: 9.60 mm (0.3780 in.)
If the diameter is less than minimum, replace the bolt.
EM±88
±
ENGINE MECHANICAL Cylinder Heads
WhereEverybodyKnowsYourName

16. IF NECESSARY, REPLACE SPARK PLUG TUBEGASKETS
(a) Bend the ventilation case claw installed on the cylinderhead cover to an angle of 905 or more.
(b) Using SST and a hammer, tap out the gasket.
SST 09550±10012 (09552±10010, 09560±10010)
(c) Using SST and a hammer, tap in a new gasket until its surface is flush with the upper edge of the cylinder head
cover.
SST 09550±10012 (09552±10010, 09560±10010)
(d) Apply a light coat of MP grease to the gasket lip.
(e) Return the ventilation case claw to its original position.
ASSEMBLY OF CYLINDER HEADS
(See Components on page EM±59)
HINT:
w Thoroughly clean all parts to be assembled.
w Before installing the parts, apply new engine oil to all
sliding and rotating surfaces.
w Replace all gaskets and oil seals with new ones.
1. INSTALL SPARK PLUG TUBES HINT: When using a new cylinder head, spark plug tubes
must be installed.
(a) Apply adhesive to the end of the spark plug tube.
Adhesive: Part No.08833±00070, THREE BOND 1324
or equivalent
(b) Using a wooden block and hammer, tap in a new sparkplug tube until there is 48.7±49.3 mm (1.917 ±1.941 in.)
protruding from the camshaft bearing cap installation
surface of the cylinder head.
NOTICE: Avoid tapping a new spark plug tube in too far
by measuring the amount of protrusion while tapping.
±
