ELECTRICAL WIRING ROUTING
: Location of Connector Joining Wire Harness and Wire Harness
: Location of Ground Points
: Location of Splice Points
WhereEverybodyKnowsYourName

41
CODEJOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
BS1ENGINE ROOM MAIN WIRE AND FLOOR WIRE (LEFT KICK PANEL)
BT1FLOOR WIRE AND COWL WIRE (LEFT KICK PANEL)
BU1INSTRUMENT PANEL WIRE AND FLOOR WIRE (LEFT KICK PANEL)
BV1
BV2FLOOR NO. 3 WIRE AND CONSOLE BOX WIRE (UNDER THE INSTRUMENT PANEL CENTER)
BV3
FLOOR NO. 3 WIRE AND CONSOLE BOX WIRE (UNDER THE INSTRUMENT PANEL CENTER)
BW1ENGINE ROOM MAIN WIRE AND FLOOR NO. 3 WIRE (RIGHT KICK PANEL)
BX1FLOOR NO. 3 WIRE AND COWL WIRE (RIGHT KICK PANEL)
BY1INSTRUMENT PANEL WIRE AND FLOOR NO. 3 WIRE (RIGHT KICK PANEL)
BZ1ROOF WIRE AND MOON ROOF WIRE (FRONT SIDE OF ROOF LEFT)
Bc1FLOOR NO 3 WIRE AND FLOOR WIRE (UNDER THE LEFT SIDE OF REAR SEAT CUSHION)Bc2FLOOR NO. 3 WIRE AND FLOOR WIRE (UNDER THE LEFT SIDE OF REAR SEAT CUSHION)
Bd1FLOOR NO. 3 WIRE AND LUGGAGE NO. 2 WIRE (RIGHT SIDE OF LUGGAGE COMPARTMENT)
WhereEverybodyKnowsYourName

42
ELECTRICAL WIRING ROUTING
: Location of Connector Joining Wire Harness and Wire Harness
: Location of Splice Points
WhereEverybodyKnowsYourName

43
CODEJOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
Ba1FLOOR WIRE AND FRONT SEAT LH WIRE (UNDER THE FRONT LH SEAT)Ba2FLOOR WIRE AND FRONT SEAT LH WIRE (UNDER THE FRONT LH SEAT)
Bb1FLOOR NO. 3 WIRE AND FRONT SEAT RH WIRE (UNDER THE FRONT RH SEAT)
WhereEverybodyKnowsYourName

102

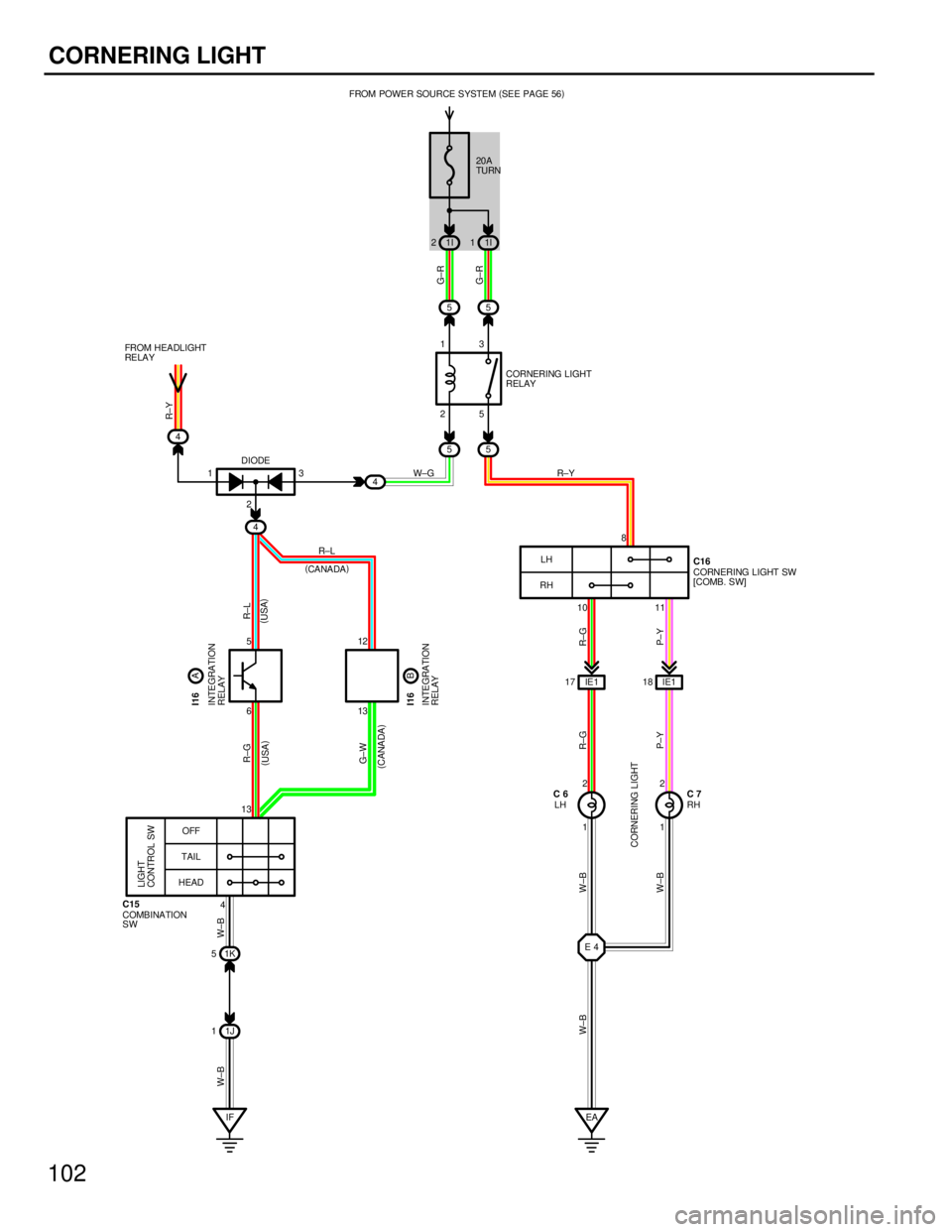

CORNERING LIGHT
1I
21I 1
55
55
4
4
4 LH
RH
IF EA
OFF
TAIL
HEAD
1K
5
1J
1 IE 1
17 IE1 18
1 2 1
2
E4
4 2
25
10 118
1 13
13 3
12
5
13
6 W±G
R±L
G±W G±R
G±R
R±Y
R±GP±Y R±L
R±G P±Y
W±B W±B R±G
W±B
W±B
W±B R±Y
( CANA DA ) (
USA )
FROM POWER SOURCE SYSTEM
(
SEEPAGE56 )
20A
TURN
CORNERING LIGHT
RELAY
FROM HEADLIGHT
RE LA Y
CORNERING LIGHT SW
[COMB. SW]
COMBINATION
SW
CORNERING LIGHT INTEGRATION
RELAY INTEGRATION
RELAY
LIGHT
CONTROL SW
DIODE
C16
I16 I16
C15C6 C7
LH RH
( USA )
(
CA NA DA )
A
B
WhereEverybodyKnowsYourName

103
CORNERING LIGHT RELAY 3±5 : CLOSED WITH LIGHT CONTROL SW AT HEAD POSITION
C15 LIGHT CONTROL SW [COMB. SW]
13±4 : CLOSED WITH LIGHT CONTROL SW AT HEAD POSITION
C16 CORNERING LIGHT SW [COMB. SW]
8±11 : CLOSED WITH TURN SIGNAL LEVER AT LEFT POSITION
8±10 : CLOSED WITH TURN SIGNAL LEVER AT RIGHT POSITION
: PARTS LOCATION
CODESEE PAGECODESEE PAGECODESEE PAGE
C 626C1528I16A29 (USA)
C 726C1628I16B29 (CANADA)
: RELAY BLOCKS
CODESEE PAGERELAY BLOCKS (RELAY BLOCK LOCATION)
423LEFT KICK PANEL (J/B NO.1 LEFT)
523LEFT KICK PANEL (J/B NO.1 RIGHT)
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CODESEE PAGEJUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)
1I
1J20COWL WIRE
1K
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CODESEE PAGEJOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
IE136ENGINE ROOM MAIN WIRE AND COWL WIRE (R/B NO. 4)
: GROUND POINTS
CODESEE PAGEGROUND POINTS LOCATION
EA34FRONT SIDE OF RIGHT FENDER
IF36LEFT KICK PANEL
: SPLICE POINTS
CODESEE PAGEWIRE HARNESS WITH SPLICE POINTSCODESEE PAGEWIRE HARNESS WITH SPLICE POINTS
E 434ENGINE ROOM MAIN WIRE
12 56
X1213 A
B
C 6, C 7 C15 C16 I16
I1 6
(
CA NA DA ) (
US A )
BLACK
GRAY
X
XXX13 4
X
X X
8X 10 11
SERVICE HINTS
WhereEverybodyKnowsYourName

148

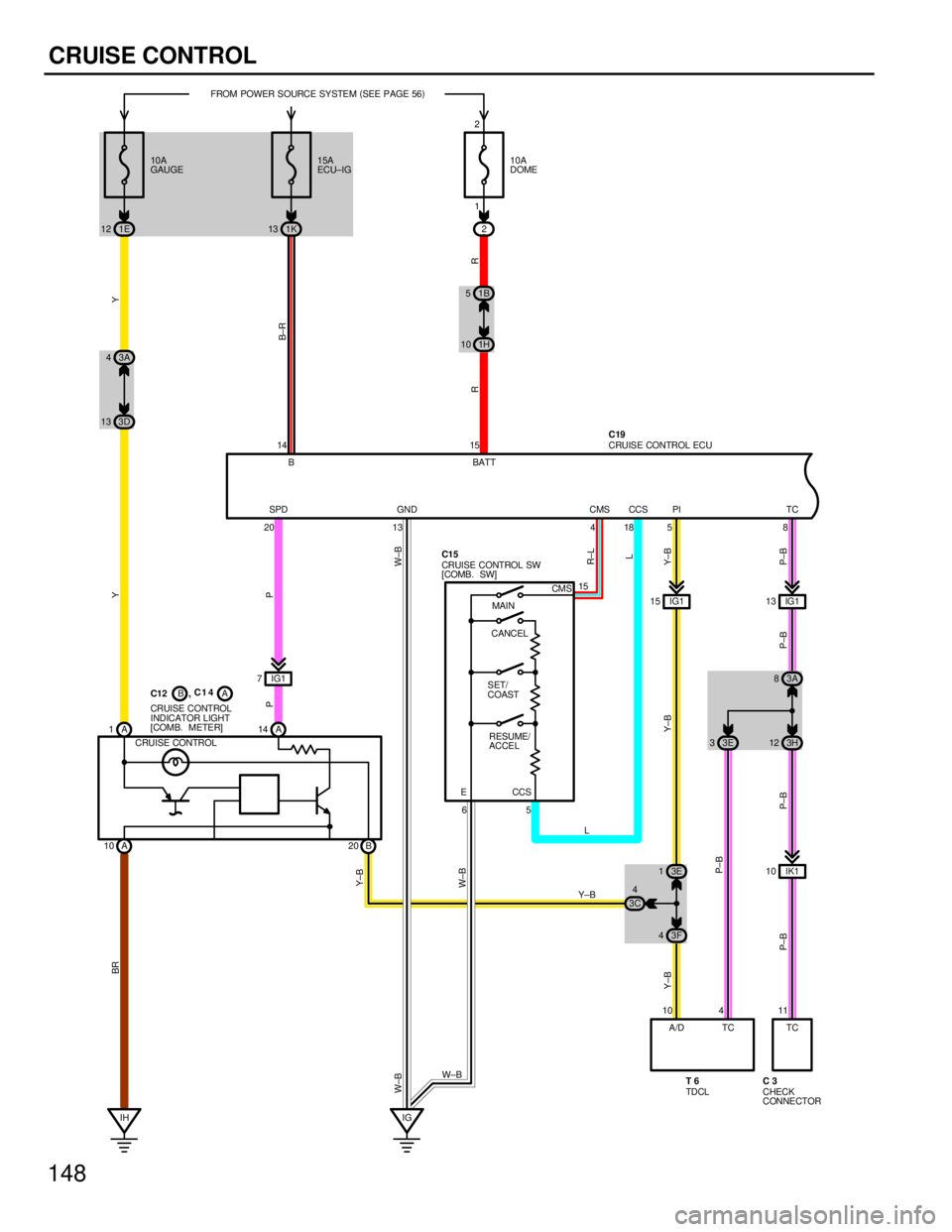

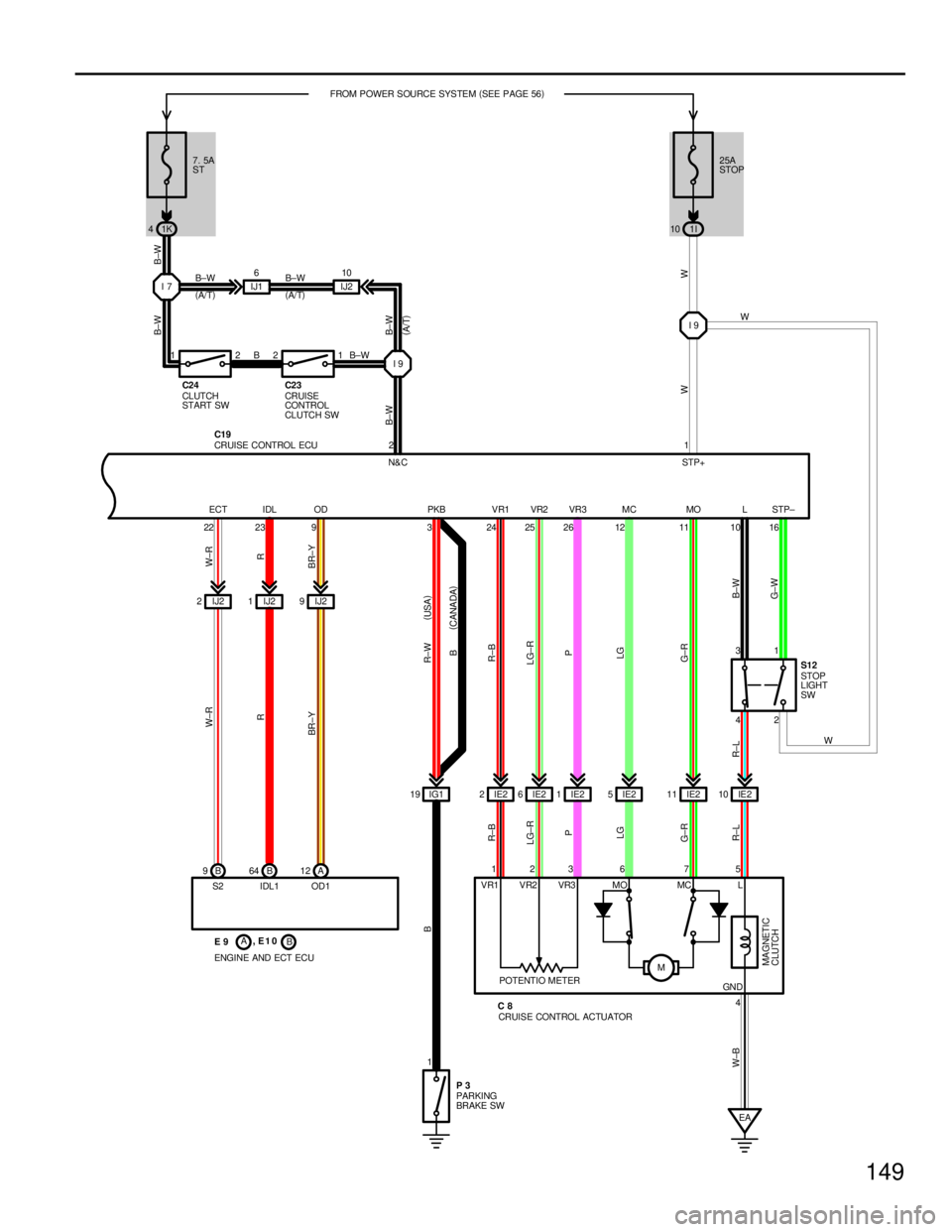

CRUISE CONTROL
1E
12 1K 13 2 1
3F
4
1B
5
3E
1
B BATT
A
1 A
14SPD GND CMS CCS PI TC
A
10 B 20
11
4
10
IG1
7
IK1
10
10A
DOME
15A
ECU±IG
10A
GAUGE
1H
10
CRUISE CONTROL
INDICATOR LIGHT
[COMB. METER]
TDCL CHECKCONNECTOR
CRUISE CONTROL ECU
CRUISE CONTROL SW
[COMB. SW]
E CMS
CCS
MAIN
CANCEL
RESUME/
ACCEL
SET/
COAST
CRUISE CONTROL
A/D TC TC
Y±BY±BL
15
5
R
R B±R
Y
Y
PP W±B
BR
W±B Y±B P±B
P±B P±B R±L
L
Y±B
P±B
Y±B
C19
C15
T6 C3
FROM POWER SOURCE SYSTEM
(
SEE PAGE 56 )
IG1
13
IG1
15
3A
8
3H
12
3E
3
IH IG 20 13 4 18 5 8
6
14 15
3A
4
3D
13
W±B
W±BP±B
C12 ,C1 4
A
B
3C4
2
WhereEverybodyKnowsYourName

149
1K
4 1I
10
B
9B 64 A 12
1
IJ2
2IJ2 1IJ1
6
PARKING
BRAKE SWM42
4 31
5
7
6
23
1 25A
STOP
7. 5A
ST
POTENTIO METER
CRUIS E CONTROL ACTUATOR GN DL
MC
MO
VR3
VR2
VR1
MAGNETIC
CLUTCH
S2 IDL1 OD1
ECT IDL OD VR1 VR2 VR3 MC MO L STP±
N& C STP+
CRUISE CONTROL ECU
STOP
LIGHT
SW
B±W B±W
W
B±W
W
W
G±W BR±Y
R
W±R
W±R
R
BR±Y
R±B
LG±R P
LG
G±R
W
R±L R±B
LG±R P
LG
G±R B±W
W±B
I9
S12
C19
P3C8
FROM POWER SOURCE SYSTEM
(
SEE PAGE 56 )
R±W
B
PKB
ENGINE AND ECT ECU E9 ,E10
I7
EA
IE 2
10
IE2
11
IE2
5
IE2
1
IE2
6
IE2
2
IG1
19
IJ2
9
B (
CANA DA )
(
USA )
R±L
22 23 9 3 24 25 26 12 11 10 16 1
A B IJ2
10
I9
C24 C23
CLUTCH
START SW CRUISE
CONTROL
CLUTCH SW(
A/T )
B±W
BB±W
B±W
B±W
(
A/T )
(
A/T )
1
2
2
21
WhereEverybodyKnowsYourName

150
CRUISE CONTROL
CURRENT IS APPLIED AT ALL TIMES THROUGH STOP FUSE TO TERMINAL 1 OF THE CONTROL ECU TERMINAL 2 OF STOP LIGHT
SWITCH, AND ALSO THROUGH THE DOME FUSE TO TERMINAL 15 OF CRUISE CONTROL ECU.
WITH THE IGNITION SWITCH TURNED TO ON, THE CURRENT FLOWS THROUGH GAUGE FUSE TO TERMINAL (A)1 OF COMBINATION
METER AND THE CURRENT THROUGH ECU±IG FUSE FLOWS TO TERMINAL 14 OF CRUISE CONTROL ECU.
WHEN THE IGNITION SWITCH IS ON AND THE CRUISE CONTROL MAIN SWITCH IS TUR\
NED ON, A SIGNAL IS INPUT FROM TERMINAL
15 OF CRUISE CONTROL MAIN SWITCH TO TERMINAL 4 OF CRUISE CONTROL ECU. AS A RESULT, THE CRUISE CONTROL ECU
FUNCTIONS AND THE CURRENT TO TERMINAL 14 OF CRUISE CONTROL ECU TO TERMINAL 13 OF CRUISE CONTROL ECU "
GROUND, AND THE CRUISE CONTROL SYSTEM IS IN A CONDITION READY FOR OPERATION.
AT THE SAME TIME, THE CURRENT THROUGH THE GAUGE FUSE FLOWS FROM TERMINAL (A)1 OF CRUISE CONTROL INDICATOR
LIGHT " TERMINAL (B)20 "TERMINAL 5 OF CRUISE CONTROL ECU "TERMINAL 13 " TO GROUND, CAUSING THE CRUISE
CONTROL INDICATOR LIGHT TO LIGHT UP, INDICATING THAT THE CRUISE CONTROL IS READY FOR OPERATION.
1. SET OPERATION
WHEN THE CRUISE CONTROL MAIN SWITCH IS TURNED ON AND THE SET SWITCH IS PUSHE\
D WITH THE VEHICLE SPEED WITHIN
THE SET LIMIT (APPROX. 40 KM/H, 2.5 MPH TO 200 KM/H, 124 MPH), A SIGNAL IS INPUT TO TERMINAL 18 OF THE CRUISE CONTROL
ECU AND THE VEHICLE SPEED AT THE TIME THE SET SWITCH IS RELEASED IS MEMORIZED IN THE ECU AS THE SET\
SPEED.
2. SET SPEED CONTROL
DURING CRUISE CONTROL DRIVING, THE ECU COMPARES THE SET SPEED MEMORIZED IN THE ECU WITH THE ACTUAL VEHICLE
SPEED INPUT INTO TERMINAL 20 OF THE CRUISE CONTROL ECU FROM THE SPEED SENSOR, AND CONTROLS THE CRUIS\
E
CONTROL ACTUATOR TO MAINTAIN THE SET SPEED.
WHEN THE ACTUAL SPEED IS LOWER THAN THE SET SPEED, THE ECU CAUSES THE CURREN\
T TO THE CRUISE CONTROL
ACTUATOR TO FLOW FROM TERMINAL 12 " TERMINAL 6 OF CRUISE CONTROL ACTUATOR "TERMINAL 7 " TERMINAL 11 OF
CRUISE CONTROL ECU. AS A RESULT, THE MOTOR IN THE CRUISE CONTROL ACTUATOR IS ROTATED TO OPEN THE THROTTLE
VALVE AND THE THROTTLE CABLE IS PULLED TO INCREASE THE VEHICLE SPEED. WHEN THE ACTUAL DRIVING SPEED IS HIGHER
THAN THE SET SPEED, THE CURRENT TO CRUISE CONTROL ACTUATOR FLOWS FROM TERMINAL 11 OF ECU "TERMINAL 7 OF
CRUISE CONTROL ACTUATOR "TERMINAL 6 "TERMINAL 12 OF CRUISE CONTROL ECU.
THIS CAUSES THE MOTOR IN THE CRUISE CONTROL ACTUATOR TO ROTATE TO CLOSE THE THROTTLE VALVE AND RETURN THE
THROTTLE CABLE TO DECREASE THE VEHICLE SPEED.
3. COAST CONTROL
DURING THE CRUISE CONTROL DRIVING, WHILE THE COAST SWITCH IS ON, THE CRUISE CONTROL ACTUATOR RETURNS THE
THROTTLE CABLE TO CLOSE THE THROTTLE VALVE AND DECREASE THE DRIVING SPEED. THE VEHICLE SPEED WHEN THE COAST
SWITCH IS TURNED OFF IS MEMORIZED AND THE VEHICLE CONTINUES AT THE NEW SET SPEED.
4. ACCEL CONTROL
DURING CRUISE CONTROL DRIVING, WHILE THE ACCEL SWITCH IS TURNED ON, THE CRUISE\
CONTROL ACTUATOR PULLS THE
THROTTLE CABLE TO OPEN THE THROTTLE VALVE AND INCREASE THE DRIVING SPEED.
THE VEHICLE SPEED WHEN THE ACCEL SWITCH IS TURNED OFF IS MEMORIZED AND THE \
VEHICLE CONTINUES AT THE NEW SET
SPEED.
5. RESUME CONTROL
UNLESS THE VEHICLE SPEED FALLS BELOW THE MINIMUM SPEED LIMIT (APPROX. 40 KM/H, 25 MPH) AFTER CANCELING THE SET
SPEED BY THE CANCEL SWITCH, PUSHING THE RESUME SWITCH WILL CAUSE THE VEHICLE \
TO RESUME THE SPEED SET BEFORE
CANCELLATION.
6. MANUAL CANCEL MECHANISM
IF ANY OF THE FOLLOWING OPERATIONS OCCURS DURING CRUISE CONTROL OPERATION, THE SAFETY MAGNETIC CLUTCH OF
THE ACTUATOR TURNS OFF AND THE MOTOR ROTATES TO CLOSE THE THROTTLE VALVE AND THE CRUISE CONTROL IS
RELEASED.
* PLACING THE SHIFT LEVER IN ªNº RANGE (NEUTRAL START SWITCH ON)). ªSIGNAL INPUT TO TERMINAL 2 OF ECUº
* DEPRESSING THE BRAKE LEVER (STOP LIGHT SWITCH ON). ªSIGNAL INPUT TO TERMINAL 16 OF ECUº
* PULLING THE PARKING BRAKE PEDAL (PARKING BRAKE SWITCH ON). ªSIGNAL INPUT TO TERMINAL 3 OF ECUº
* PUSHING THE CANCEL SWITCH (CANCEL SWITCH ON). ªSIGNAL INPUT TO TERMINAL 18ª
SYSTEM OUTLINE
WhereEverybodyKnowsYourName

151
7. AUTO CANCEL FUNCTION
A) IF ANY OF THE FOLLOWING OPERATING CONDITIONS OCCURS DURING CRUISE CONTROL OPERATION, THE SET SPEED IS
ERASED, CURRENT FLOW TO MAGNETIC CLUTCH IS STOPPED AND THE CRUISE CONTROL IS RELEASED. (MAIN SWITCH TURNS
OFF).
WHEN THIS OCCURS, THE IGNITION SWITCH MUST BE TURNED OFF ONCE BEFORE THE MAI\
N SWITCH WILL TURN ON.* OVER CURRENT TO TRANSISTER DRIVING MOTOR AND/OR MAGNETIC CLUTCH.
* WHEN CURRENT CONTINUED TO FLOW TO THE MOTOR INSIDE THE ACTUATOR IN THE THROTTLE VALVE ªOPENº DIRECTION.
* OPEN CIRCUIT IN MAGNETIC CLUTCH.
* MOMENTARY INTERRUPTION OF VEHICLE SPEED SIGNAL.
* SHORT CIRCUIT IN CRUISE CONTROL SWITCH.
* MOTOR DOES NOT OPERATE DESPITE THE MOTOR DRIVE SIGNAL BEING OUTPUT.
B) IF ANY OF THE FOLLOWING CONDITIONS OCCURS DURING CRUISE CONTROL OPERATION, THE SET SPEED IS ERASED AND
THE CRUISE CONTROL IS RELEASED. (THE POWER OF MAGNETIC CLUTCH IS CUT OFF U\
NTIL THE SET SWITCH IS ªONº AGAIN.) * WHEN THE VEHICLE SPEED FALLS BELOW THE MINIMUM SPEED LIMIT, APPROX. 40 KM/H ( 2.5 MPH)
* WHEN THE VEHICLE SPEED FALLS MORE THAN 16 KM/H ( 10 MPH) BELOW THE SET SPEED, E.G. ON AN UPWARD SLOPE.
* WHEN POWER TO THE CRUISE CONTROL SYSTEM IS MOMENTARILY CUT OFF.
C) IF ANY OF THE FOLLOWING CONDITIONS OCCURS DURING CRUISE CONTROL OPERATION, THE CRUISE CONTROL IS
RELEASED.
* OPEN CIRCUIT FOR TERMINAL 1 OF CRUISE CONTROL ECU AND SPLICE POINT ªI 9º.
8. AUTOMATIC TRANSMISSION CONTROL FUNCTION
*IN OVERDRIVE. IF THE VEHICLE SPEED BECOMES LOWER THAN THE OVERDRIVE CUT SPEED (SET SPEED MINUS APPROX. 4
KM/H, 2.5 MPH) DURING CRUISE CONTROL OPERATION, SUCH AS DRIVING UP A HILL, THE OVERDRIVE IS RELEASED AND THE
POWER INCREASED TO PREVENT A REDUCTION IN VEHICLE SPEED.
* AFTER RELEASING THE OVERDRIVE, VEHICLE SPEED BECOMES HIGHER THAN THE OVE\
RDRIVE RETURN SPEED (SET SPEED
MINUS APPROX. 2 M/H, 1.2 MPH) AND THE ECU JUDGES BY THE SIGNALS FROM POTENTIOMETER OF THE ACTUATOR THAT THE
UPWARD SLOPE HAS FINISHED, OVERDRIVE IS RESUMED AFTER APPROXIMATELY 6 SECONDS.
* DURING CRUISE CONTROL DRIVING, THE CRUISE CONTROL OPERATION SIGNAL IS OUTPUT FROM THE CRUISE CONTROL
ECU TO THE ENGINE AND TRANSMISSION ECU. UPON RECEIVING THIS SIGNAL, THE ENGIN\
E AND TRANSMISSION ECU
CHANGES THE SHIFT PATTERN TO NORMAL.
TO MAINTAIN SMOOTH CRUISE CONTROL OPERATION (ON A DOWNWARD SLOPE ETC.), LOCK±UP RELEASE OF THE
TRANSMISSION WHEN THE IDLING POINT OF THE THROTTLE POSITION IS ªONº IS FORBIDD\
EN.
C 8 CRUISE CONTROL ACTUATOR
1±3 : APPROX. 2K

5±4 : APPROX. 38.5

C15 CRUISE CONTROL SW [COMB. SW]
15±6 :CONTINUITY WITH MAIN SW ON
5±6 :APPROX. 420
WITH CANCEL SW ON
APPROX. 70
WITH RESUME/ACCEL SW ON
APPROX. 200
WITH SET/COAST SW ON
C19 CRUISE CONTROL ECU
14±GROUND : APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION
1, 15±GROUND : ALWAYS APPROX. 12 VOLTS
3±GROUND : CONTINUITY WITH PARKING BRAKE LEVER PULLED UP (ONE OF THE CANCEL SW) OR BRAKE LEVER WARNING SW ON
20±GROUND : 1 PULSE WITH 40CM (DRIVER VEHICLE SLOWLY)
18±GROUND : APPROX. 420
WITH CANCEL SW ON IN CONTROL SW
APPROX. 200
WITH SET/COAST SW ON IN CONTROL SW
APPROX. 70
WITH RESUME/ACCEL SW ON IN CONTROL SW
13±GROUND : ALWAYS CONTINUITY
SERVICE HINTS
