Page 481 of 4087

LEXUS SC400 1991  Service Repair Manual
11.  INSTALL FRONT PILLAR GARNISH(a)  Insert front side of the garnish to the pillar to install theclip.
(b)  Install the garnish by tapping.
(c)  Install two screws and the assist grip.
12.  INSTALL

Page 482 of 4087

LEXUS SC400 1991  Service Repair Manual
BODY DIMENSIONS
Description
1. BASIC DIMENSIONS(a)  There are two types of dimensions in the diagram. (Three±dimensional distance)
wStraight±line distance between the centers of two
measuring point

Page 483 of 4087

LEXUS SC400 1991  Service Repair Manual
Body Dimension Drawings
ENGINE COMPARTMENT
(Three±Dimensional  Distance)
mm (in.)B06846
B06860
Symble
NameHole  dia.SymbleNameHole dia.
A,aFront fender apron standard hole10 (0.39)L,lFront fender in

Page 484 of 4087

LEXUS SC400 1991  Service Repair Manual
UNDER BODY
(Three±Dimensional  Distance)
±
BODY Body Dimensions (Body Dimension Drawings)BO±129
WhereEverybodyKnowsYourName

Page 485 of 4087

LEXUS SC400 1991  Service Repair Manual
UNDER BODY (Contd)
(Three±Dimensional  Distance)
BO±130
±
BODY Body Dimensions (Body Dimension Drawings)
WhereEverybodyKnowsYourName

Page 486 of 4087

LEXUS SC400 1991  Service Repair Manual
UNDER BODY (Contd)
(Two±Dimensional  Distance)
B06847
±
BODY Body Dimensions (Body Dimension Drawings)BO±131
WhereEverybodyKnowsYourName

Page 487 of 4087

LEXUS SC400 1991  Service Repair Manual
UNDER BODY (Contd)
(Two±Dimensional  Distance)
BO±132
±
BODY Body Dimensions (Body Dimension Drawings)
WhereEverybodyKnowsYourName

Page 488 of 4087

LEXUS SC400 1991  Service Repair Manual

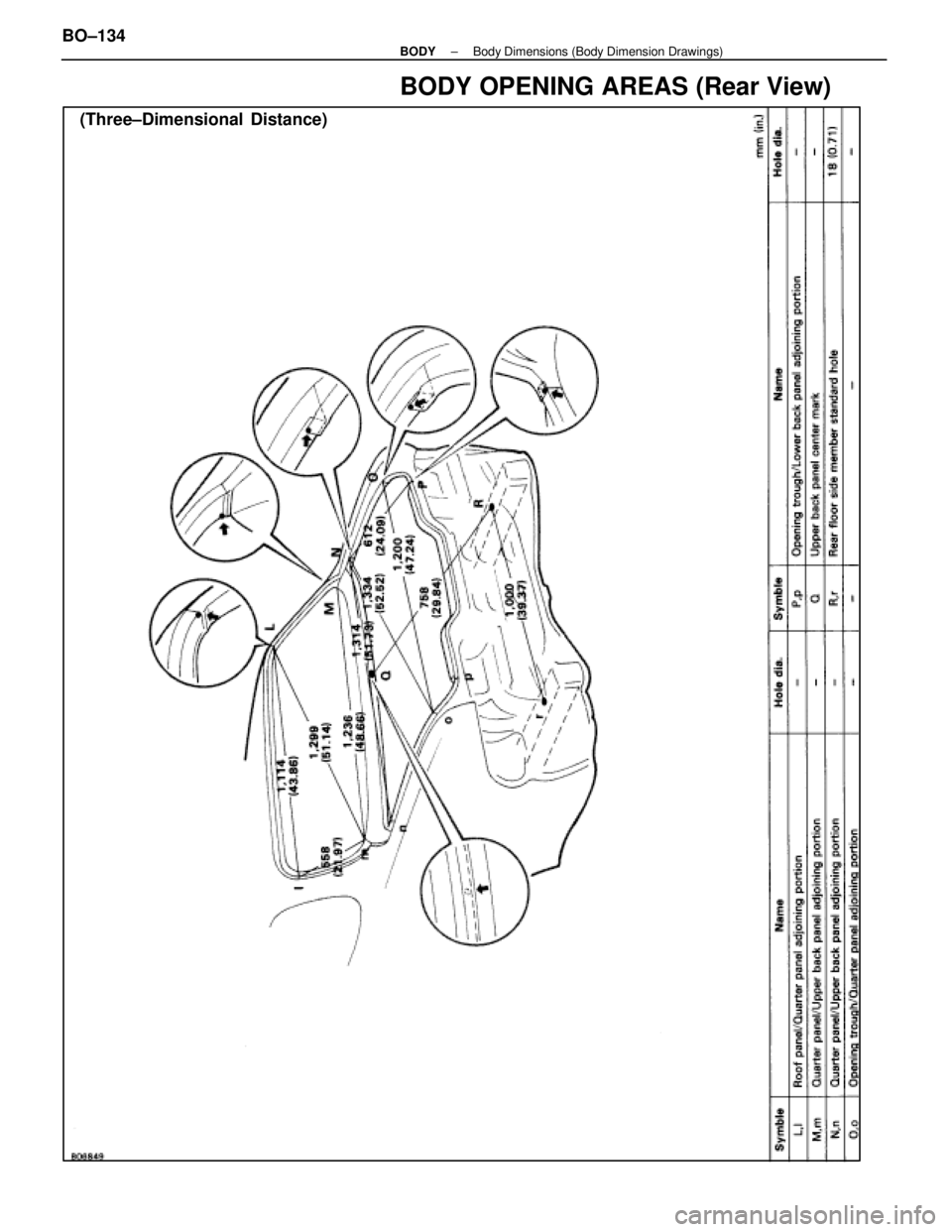

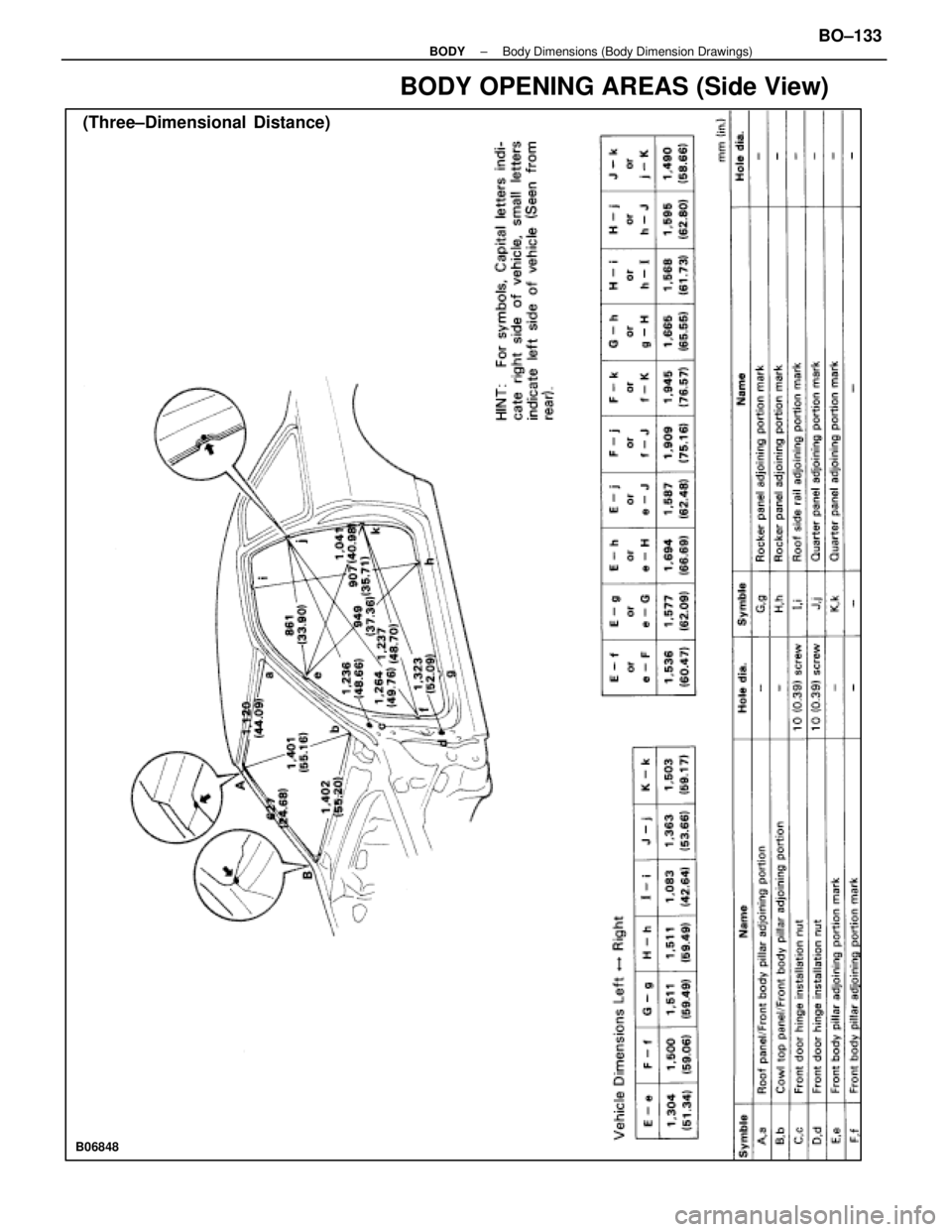

BODY OPENING AREAS (Side View)
(Three±Dimensional  Distance)
B06848
±
BODY Body Dimensions (Body Dimension Drawings)BO±133
WhereEverybodyKnowsYourName

Page 489 of 4087

LEXUS SC400 1991  Service Repair Manual
BODY OPENING AREAS (Rear View)
(Three±Dimensional  Distance)
BO±134
±
BODY Body Dimensions (Body Dimension Drawings)
WhereEverybodyKnowsYourName

Page 490 of 4087

LEXUS SC400 1991  Service Repair Manual

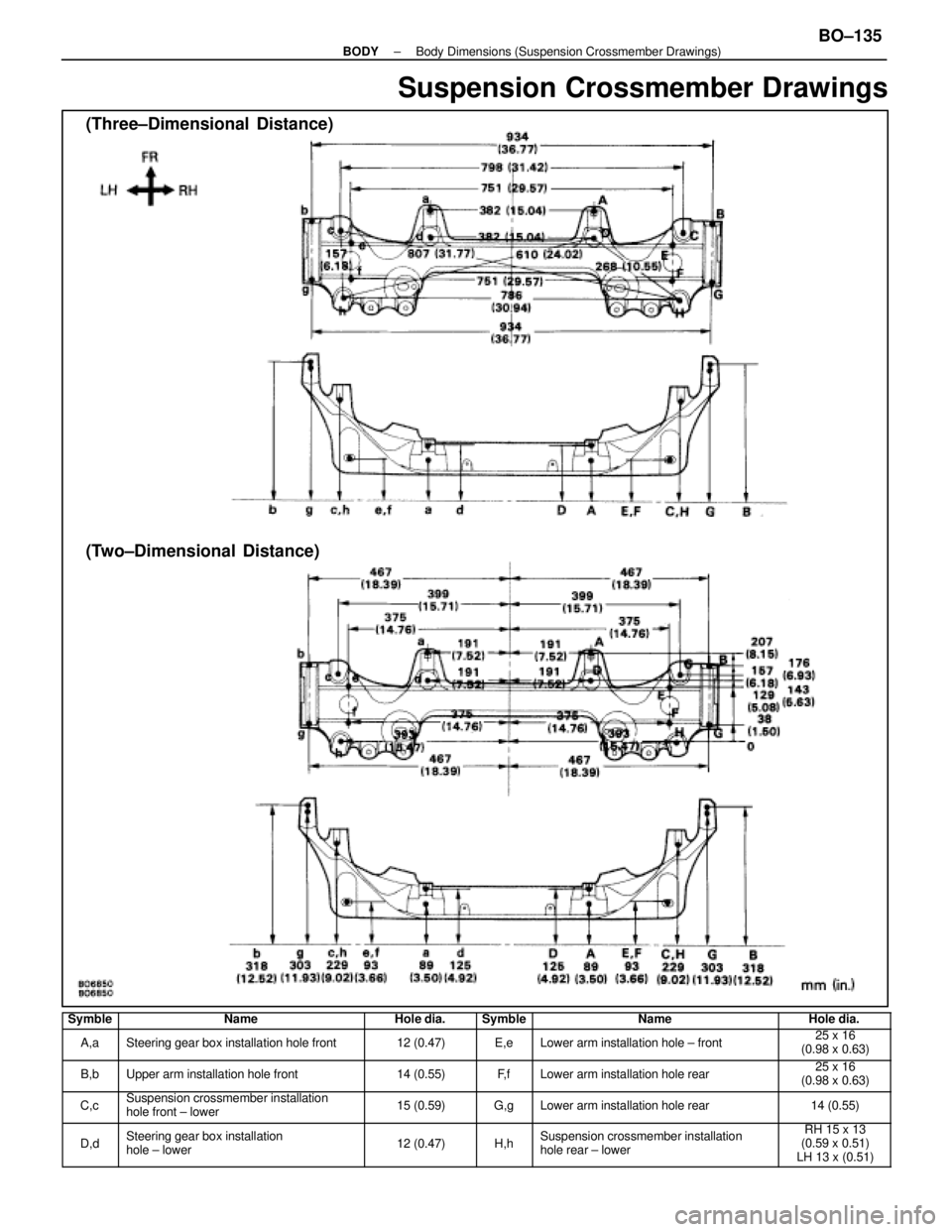

Suspension Crossmember Drawings
(Three±Dimensional  Distance)
(Two±Dimensional Distance)
SymbleNameHole dia.SymbleNameHole dia.
A,aSteering gear box installation hole front12 (0.47)E,eLower arm ins
