REMOVAL OF SLIDING ROOF
(See page BO±84)
1.  DISCONNECT BATTERY CABLE FROM NEGATIVE TERMINAL
CAUTION: Work must be started after approx. 20 se-
conds or longer from the time the ignition switch is
t

Page 442 of 4087

LEXUS SC400 1991  Service Repair Manual

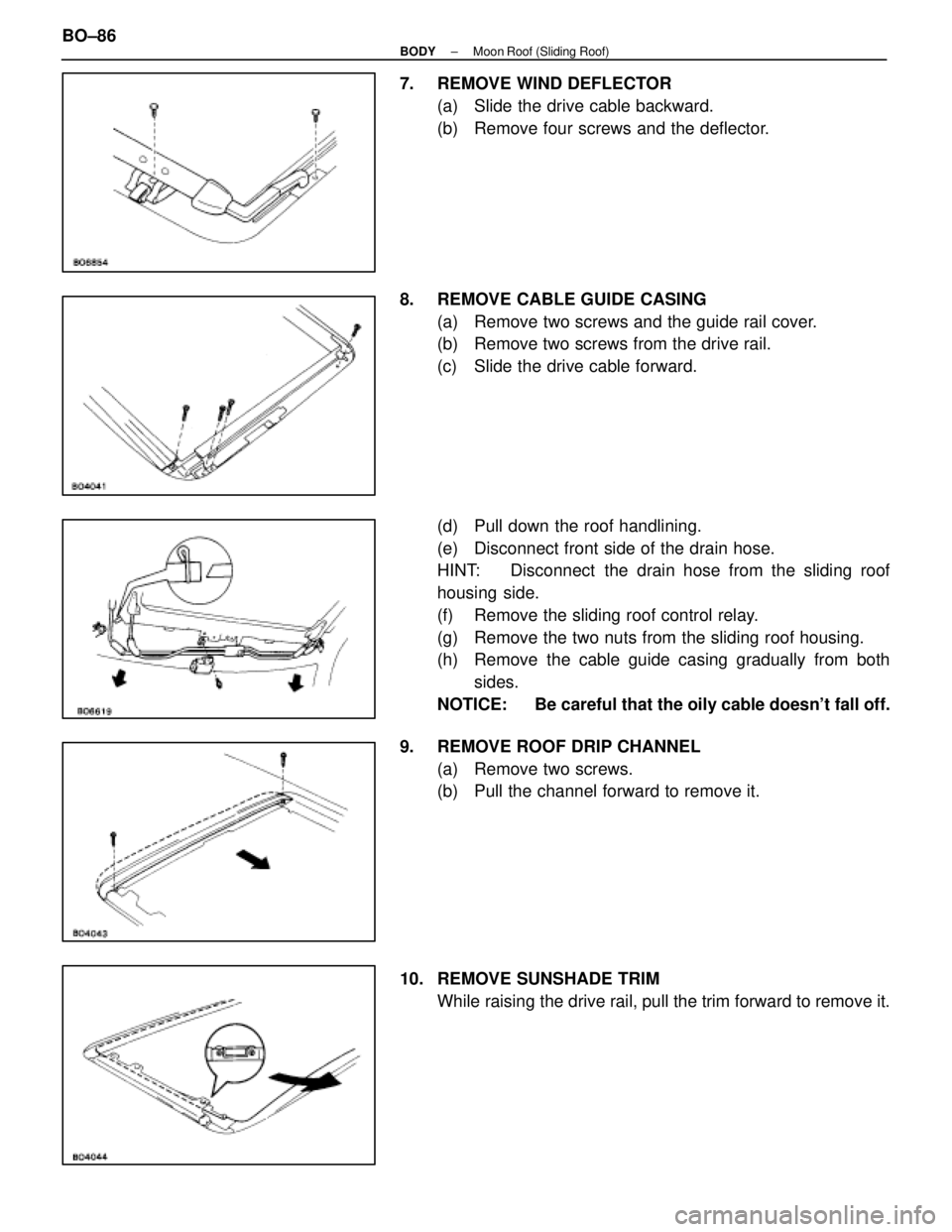

7.  REMOVE WIND DEFLECTOR(a)  Slide the drive cable backward.
(b)  Remove four screws and the deflector.

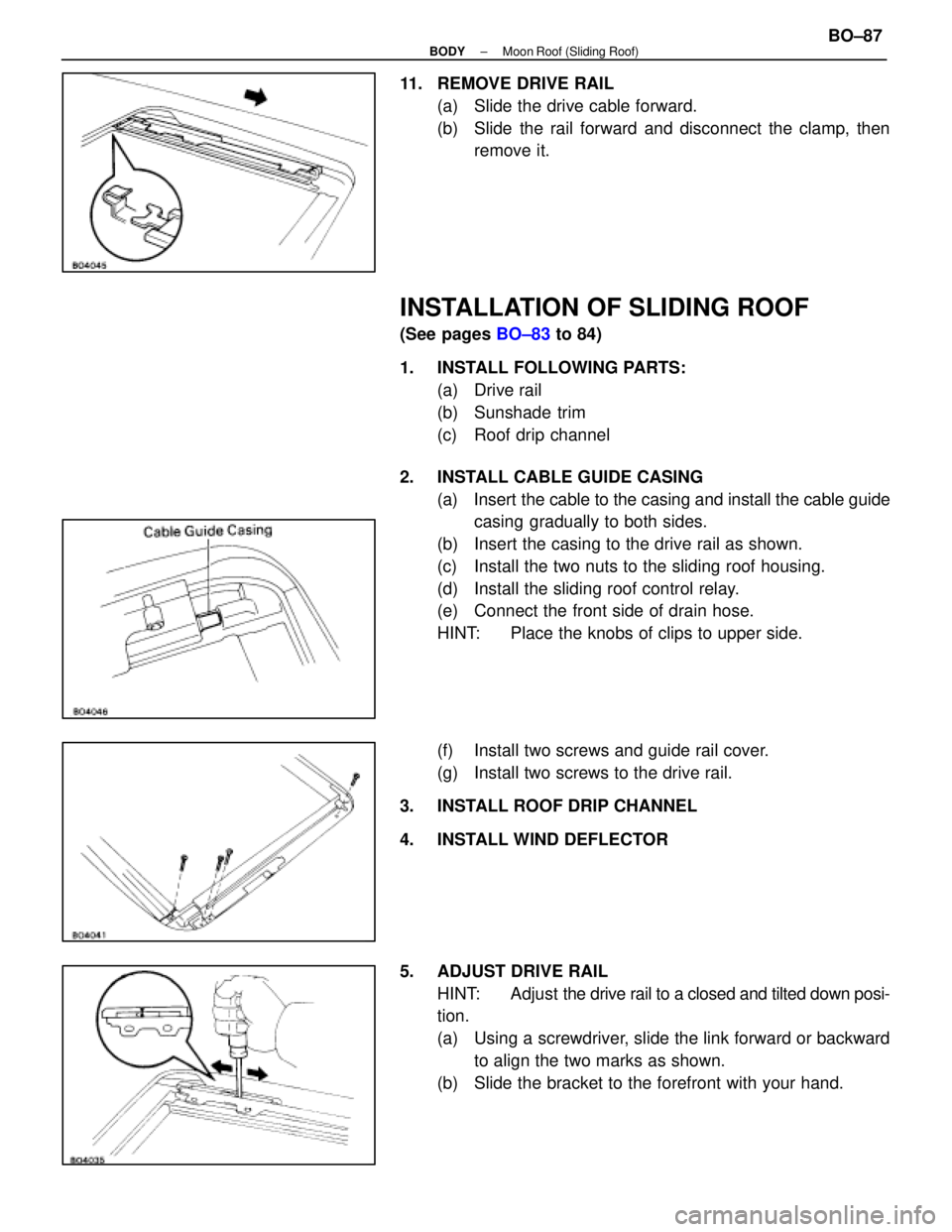

8.  REMOVE CABLE GUIDE CASING (a)  Remove two screws and the guide rail cover.
(b)  Remove two

Page 443 of 4087

LEXUS SC400 1991  Service Repair Manual

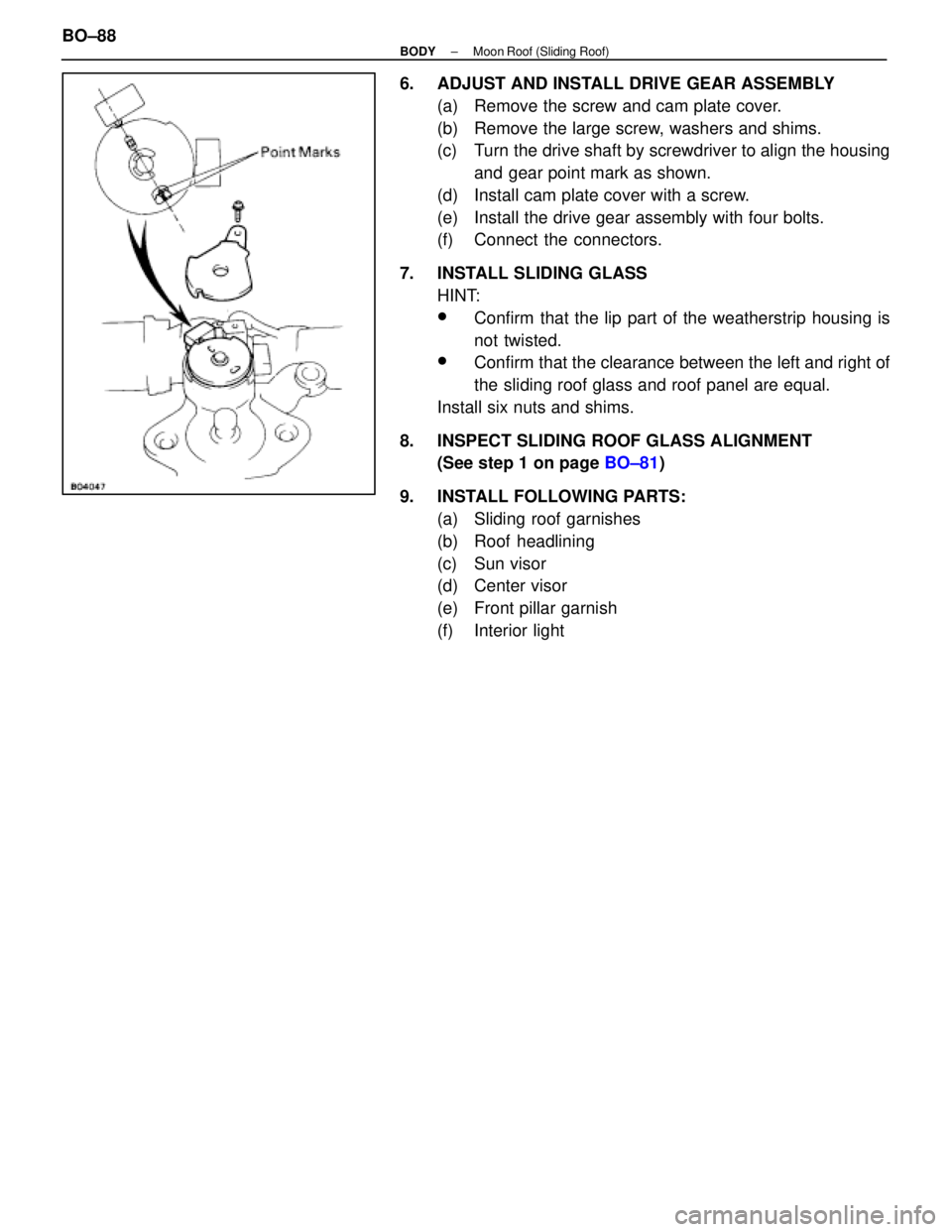

11.  REMOVE DRIVE RAIL(a)  Slide the drive cable forward.
(b)  Slide the rail forward and disconnect the clamp, thenremove it.
INSTALLATION OF SLIDING ROOF
(See pages  BO±83 to 84)
1.  INSTALL FOLLO

Page 444 of 4087

LEXUS SC400 1991  Service Repair Manual
6.  ADJUST AND INSTALL DRIVE GEAR ASSEMBLY(a)  Remove the screw and cam plate cover.
(b)  Remove the large screw, washers and shims.
(c)  Turn the drive shaft by screwdriver to align the housingand g

Page 445 of 4087

LEXUS SC400 1991  Service Repair Manual
REMOVAL OF SLIDING ROOF HOUSING
(See pages BO±85 to 87)

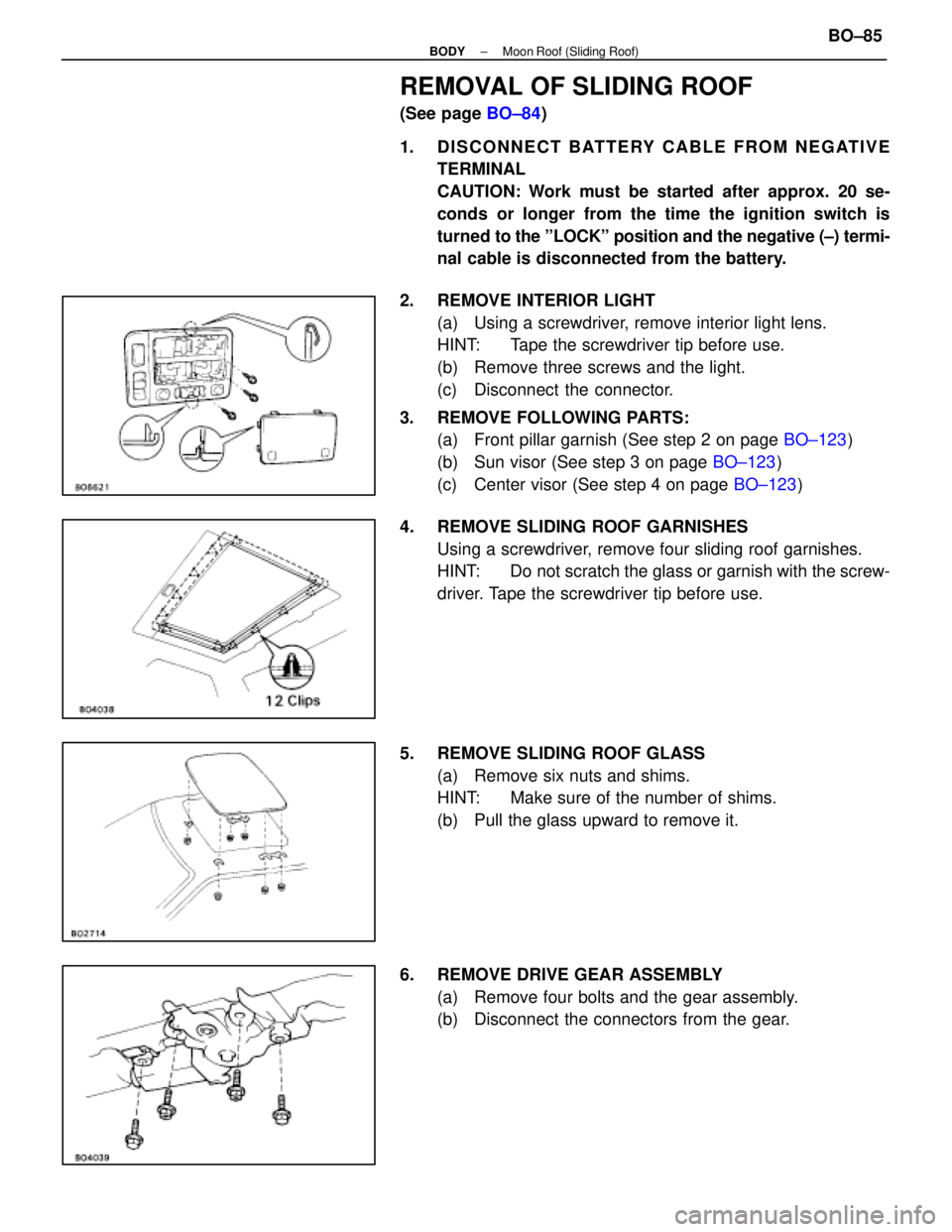

1.  REMOVE FOLLOWING PARTS: (a)  Interior light (See step 2 on page  BO±85)
(b)  Front pillar garnish (See step 2 on page  BO±122)
(c)  Rear

Page 446 of 4087

LEXUS SC400 1991  Service Repair Manual

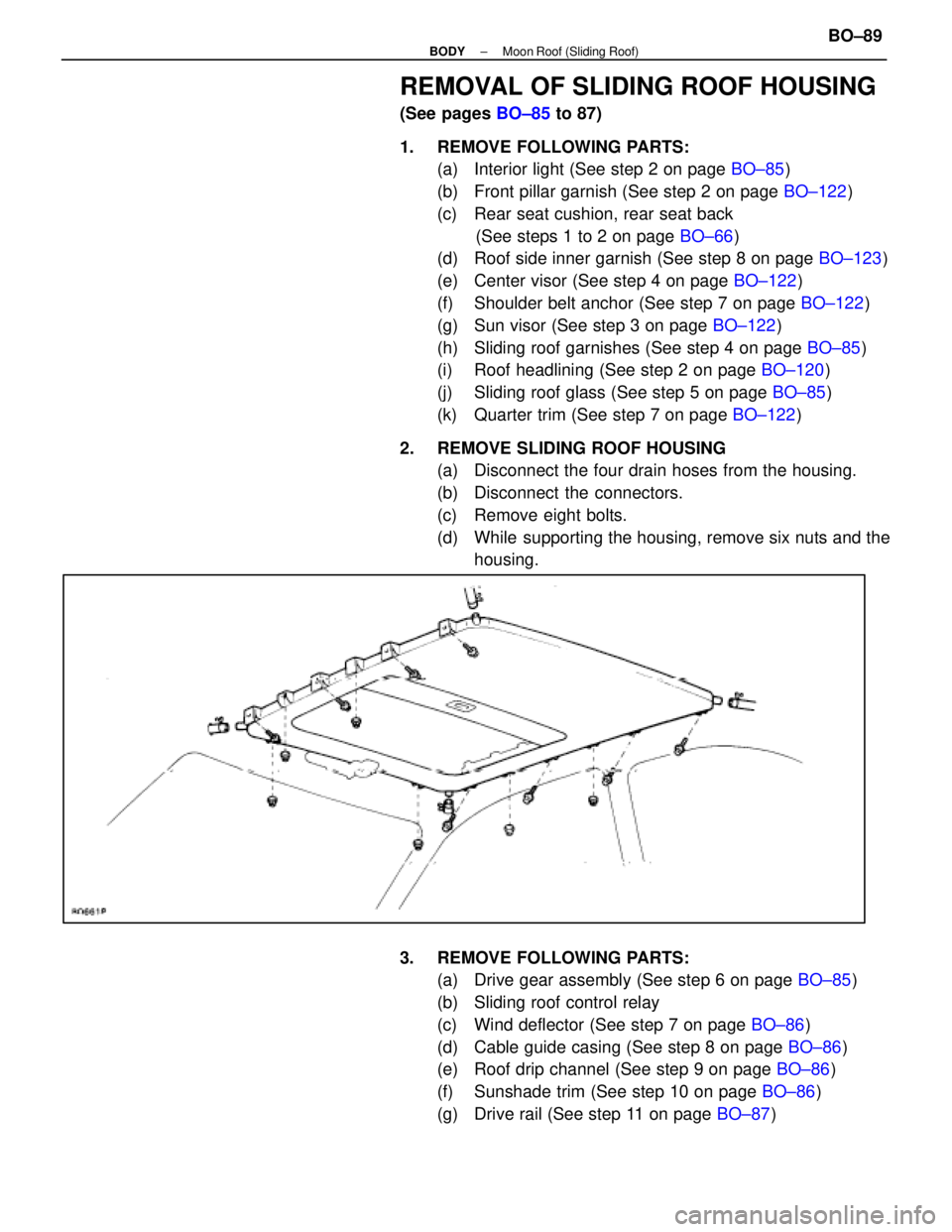

INSTALLATION OF SLIDING ROOF
HOUSING
(See pages BO±85 to 87)
1.  INSTALL SLIDING ROOF PARTS BY FOLLOWING REMOVAL SEQUENCE IN REVERSE
HINT:  When installing the sliding roof housing weather-
strip, m

Page 447 of 4087

LEXUS SC400 1991  Service Repair Manual

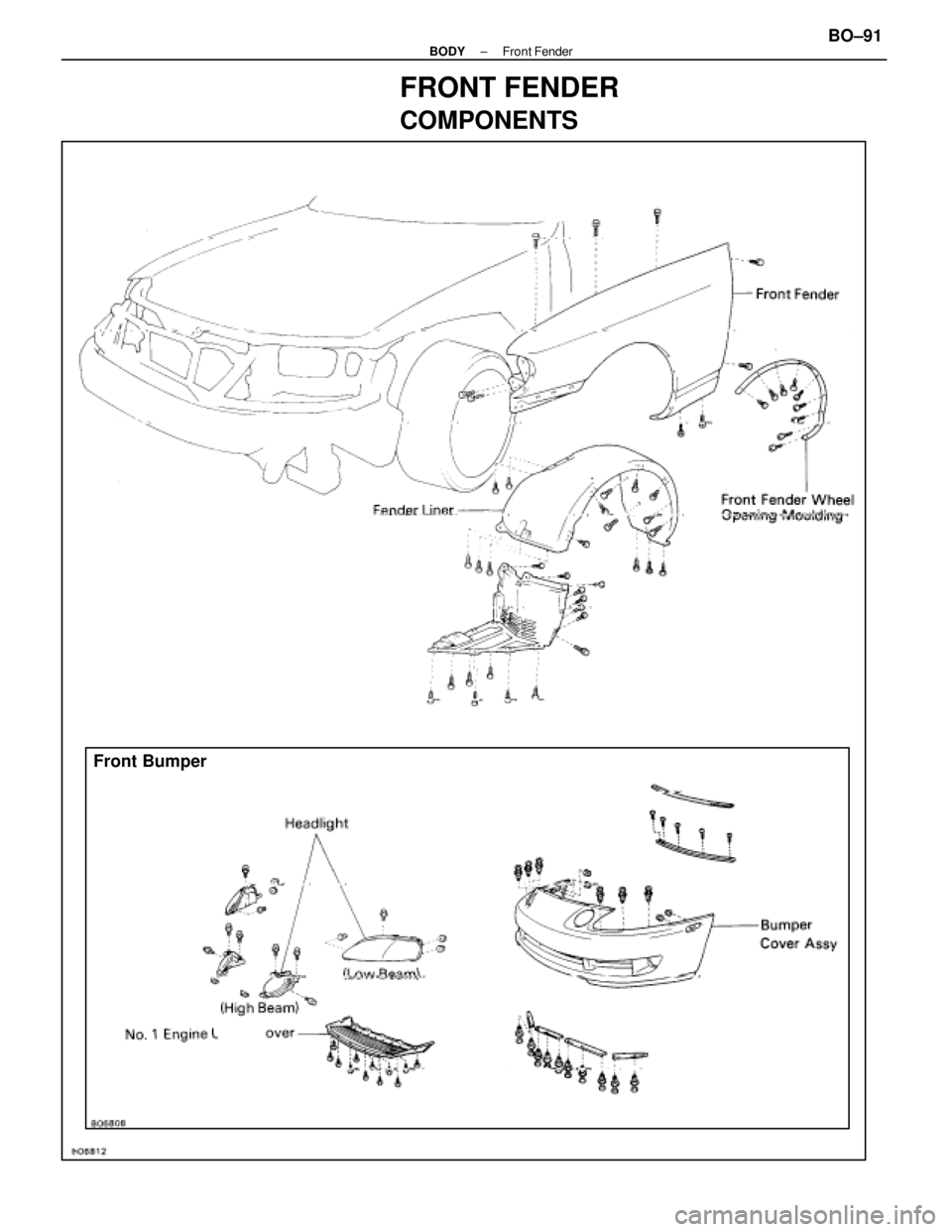

FRONT FENDER
COMPONENTS
Front Bumper
±
BODY Front FenderBO±91
WhereEverybodyKnowsYourName

Page 448 of 4087

LEXUS SC400 1991  Service Repair Manual
REMOVAL OF FRONT FENDER
(See page BO±92)
1.  REMOVE FRONT BUMPER (See page  BO±91)
2. REMOVE  FRONT FENDER WHEEL OPENING MOULDING
(See page  BO±102)

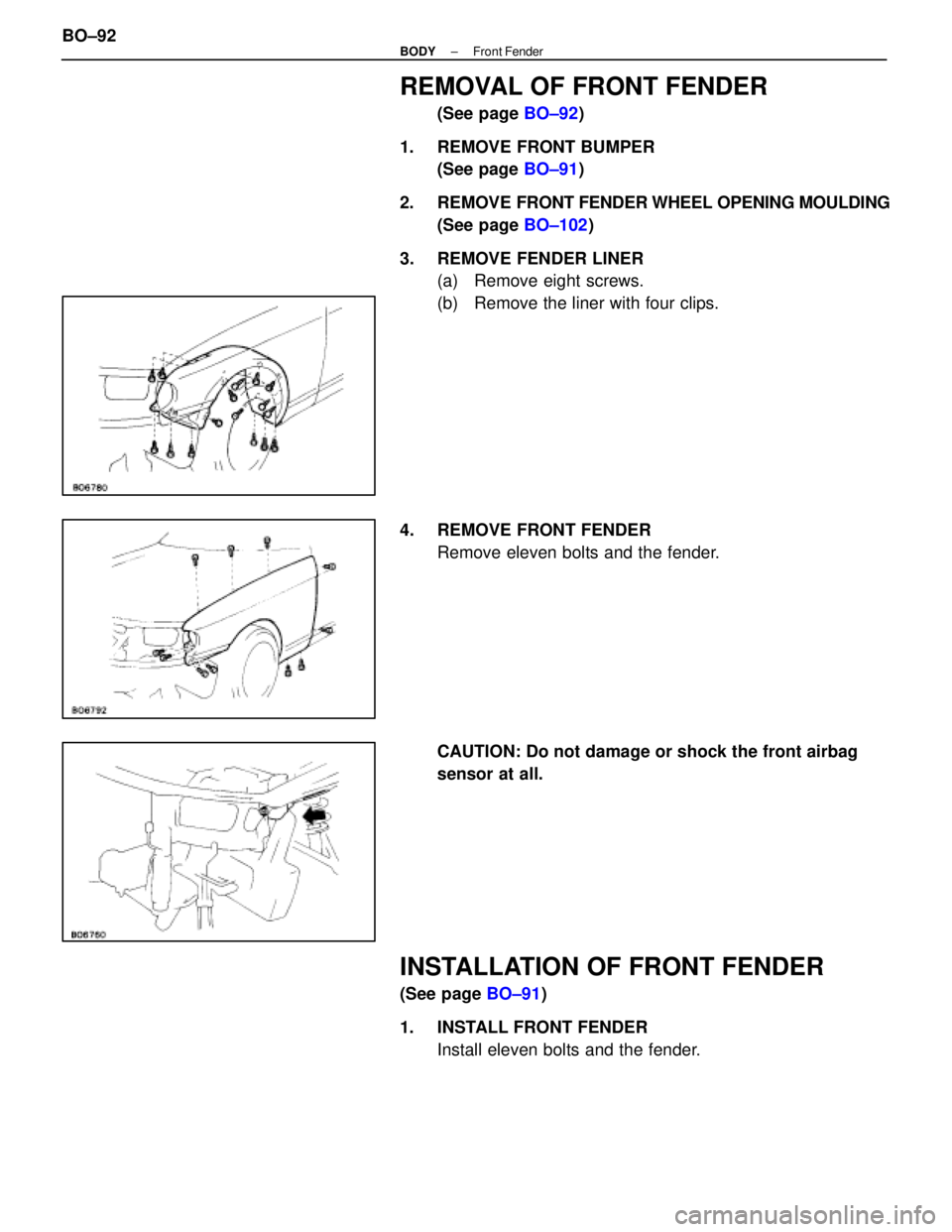

3.  REMOVE FENDER LINER (a)  Remove eight screw

Page 449 of 4087

LEXUS SC400 1991  Service Repair Manual
2.  INSTALL FENDER LINER(a)  Install four clips so that the screw can be inserted in themanner shown in the drawing.
(b)  Install eight screws and the liner.
3.  INSTALL FRONT FENDER WHEEL OPENING MO

Page 450 of 4087

LEXUS SC400 1991  Service Repair Manual
EMBLEM
COMPONENTS

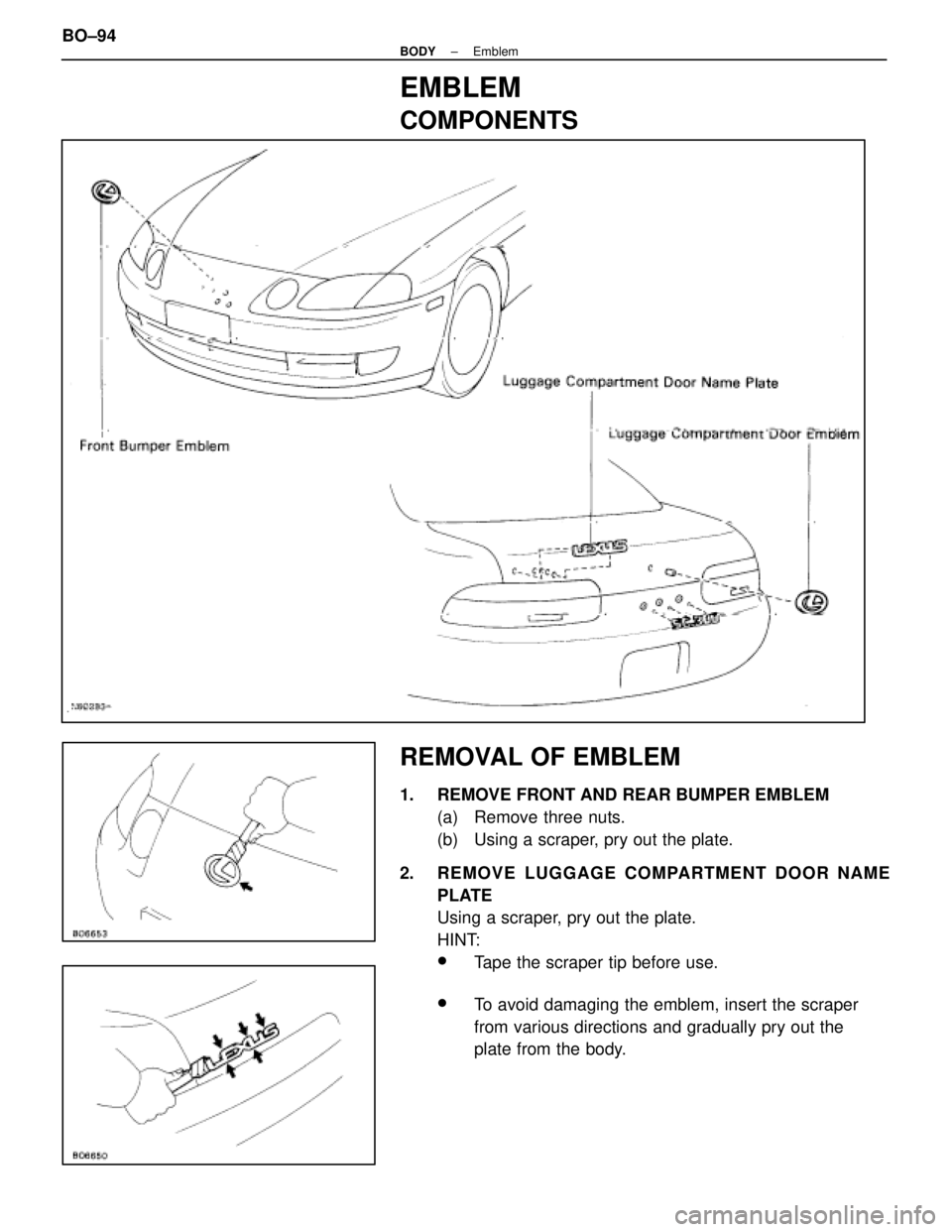

REMOVAL OF EMBLEM
1.  REMOVE FRONT AND REAR BUMPER EMBLEM(a)  Remove three nuts.
(b)  Using a scraper, pry out the plate.
2.  REMOVE LUGGAGE COMPARTMENT DOOR NAME PLATE
Using a scra
