LINCOLN AVIATOR 2023 Owners Manual

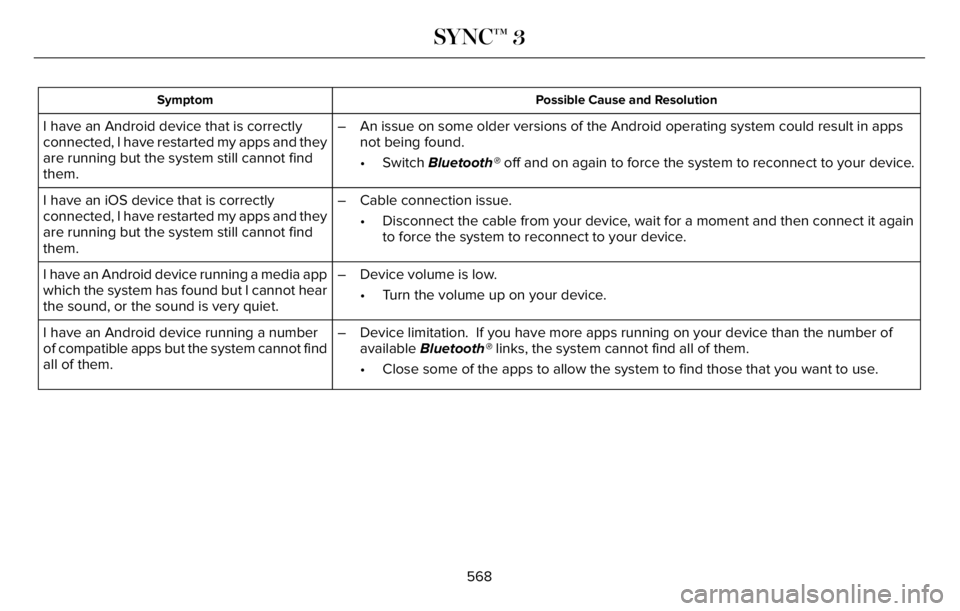

Possible Cause and Resolution Symptom
I have an Android device that is correctly
connected, I have restarted my apps and they
are running but the system still cannot find
them.– An issue on some older versions of the Android operating system could result in apps
not being found.
• Switch Bluetooth® off and on again to force the system to reconnect to your device.
I have an iOS device that is correctly
connected, I have restarted my apps and they
are running but the system still cannot find
them.– Cable connection issue.
• Disconnect the cable from your device, wait for a moment and then connect it again
to force the system to reconnect to your device.
I have an Android device running a media app
which the system has found but I cannot hear
the sound, or the sound is very quiet.– Device volume is low.
• Turn the volume up on your device.
I have an Android device running a number
of compatible apps but the system cannot find
all of them.– Device limitation. If you have more apps running on your device than the number of
available Bluetooth® links, the system cannot find all of them.
• Close some of the apps to allow the system to find those that you want to use.
568
SYNC™ 3

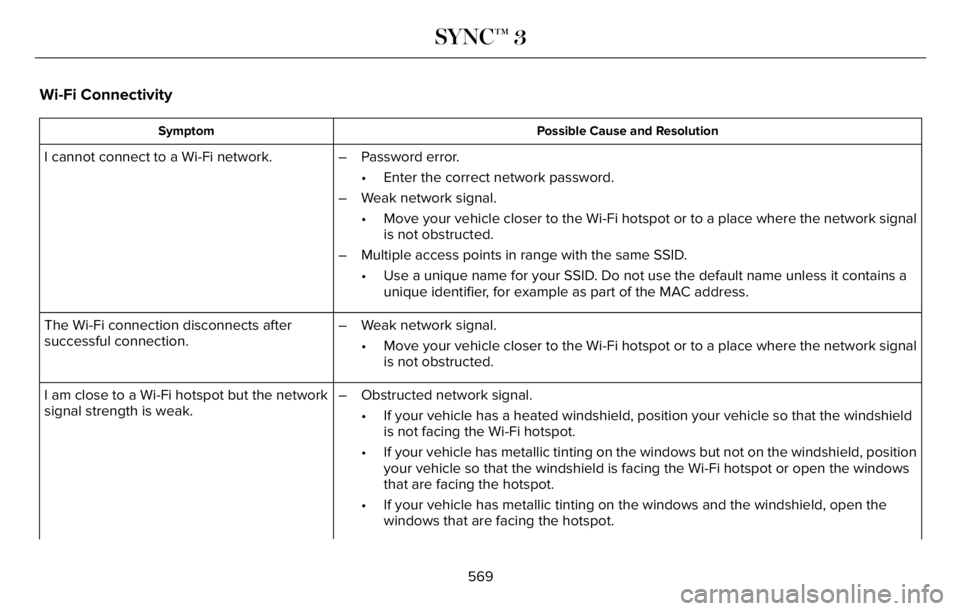

Wi-Fi Connectivity
Possible Cause and Resolution Symptom
I cannot connect to a Wi-Fi network. – Password error.
• Enter the correct network password.
– Weak network signal.
• Move your vehicle closer to the Wi-Fi hotspot or to a place where the network signal
is not obstructed.
– Multiple access points in range with the same SSID.
• Use a unique name for your SSID. Do not use the default name unless it contains a
unique identifier, for example as part of the MAC address.
The Wi-Fi connection disconnects after
successful connection.– Weak network signal.
• Move your vehicle closer to the Wi-Fi hotspot or to a place where the network signal
is not obstructed.
I am close to a Wi-Fi hotspot but the network
signal strength is weak.– Obstructed network signal.
• If your vehicle has a heated windshield, position your vehicle so that the windshield
is not facing the Wi-Fi hotspot.
• If your vehicle has metallic tinting on the windows but not on the windshield, position
your vehicle so that the windshield is facing the Wi-Fi hotspot or open the windows
that are facing the hotspot.
• If your vehicle has metallic tinting on the windows and the windshield, open the
windows that are facing the hotspot.
569
SYNC™ 3

Possible Cause and Resolution Symptom
If your vehicle is in a garage and you have the garage door closed, open the garage
door. •
I cannot see a network in the list of available
networks that I expect to see.– Hidden network.
• Make the network visible and try again.
I cannot see SYNC when I search for Wi-Fi
networks on my cell phone or other device.– System limitation.
• SYNC does not provide a Wi-Fi hotspot at this time.
– Weak network signal
• Move your vehicle closer to the Wi-Fi hotspot or to a place where the network signal
is not obstructed.
– Wi-Fi hotspot in high demand or has a slow Internet connection.
• Use a more reliable Wi-Fi hotspot. Software downloads take too long.
– No software update available.
– Wi-Fi network requires a subscription or acceptance of terms and conditions.
• Test the connection using another device. If the network requires a subscription or
acceptance of terms and conditions, contact the network service provider. The system seems to connect to a Wi-Fi
network and the signal strength is excellent
but the software does not update.
570
SYNC™ 3

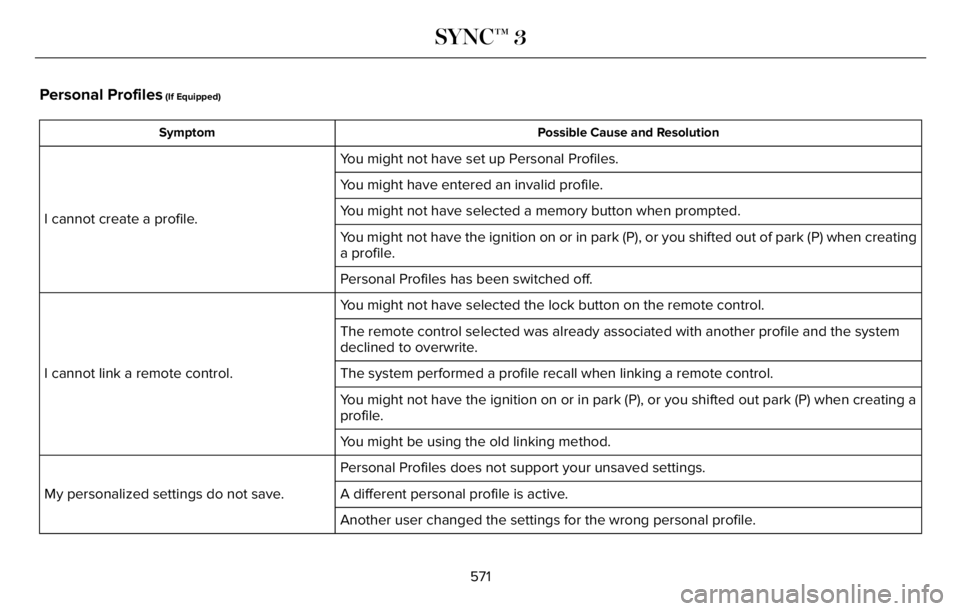

Personal Profiles (If Equipped)
Possible Cause and Resolution Symptom
You might not have set up Personal Profiles.
I cannot create a profile.You might have entered an invalid profile.
You might not have selected a memory button when prompted.
You might not have the ignition on or in park (P), or you shifted out of park (P) when creating
a profile.
Personal Profiles has been switched off.
You might not have selected the lock button on the remote control.
I cannot link a remote control.The remote control selected was already associated with another profile and the system
declined to overwrite.
The system performed a profile recall when linking a remote control.
You might not have the ignition on or in park (P), or you shifted out park (P) when creating a
profile.
You might be using the old linking method.
Personal Profiles does not support your unsaved settings.
My personalized settings do not save. A different personal profile is active.
Another user changed the settings for the wrong personal profile.
571
SYNC™ 3

Possible Cause and Resolution Symptom
You might not have created a personal profile.
My profile will not recall.Personal Profiles is turned off.
The profile you requested is already active.
You might not have linked the memory button you are using to a profile.
You might not have linked the remote control you are using to a profile.
You might be using the wrong remote control.
You might be pressing a button other than the unlock or remote start on a linked remote
control.
You might have deleted the personal profile.
Personal Profiles is turned off. My preset positions recall, but my profile does
not.
The vehicle is in motion.
My profile recalls but my preset positions do
not.
The preset positions are the same as the guest or previously active profile.
572
SYNC™ 3

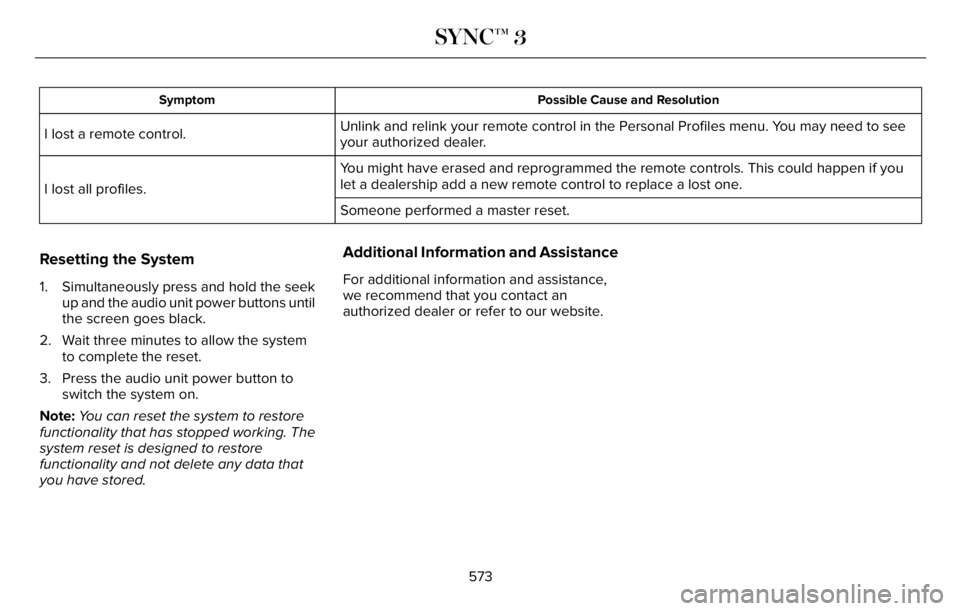

Possible Cause and Resolution Symptom
Unlink and relink your remote control in the Personal Profiles menu. You may need to see
your authorized dealer. I lost a remote control.
You might have erased and reprogrammed the remote controls. This could happen if you
let a dealership add a new remote control to replace a lost one.
I lost all profiles.
Someone performed a master reset.
Resetting the System
1. Simultaneously press and hold the seek
up and the audio unit power buttons until
the screen goes black.
2. Wait three minutes to allow the system
to complete the reset.
3. Press the audio unit power button to
switch the system on.
Note:You can reset the system to restore
functionality that has stopped working. The
system reset is designed to restore
functionality and not delete any data that
you have stored.
Additional Information and Assistance
For additional information and assistance,
we recommend that you contact an
authorized dealer or refer to our website.
573
SYNC™ 3

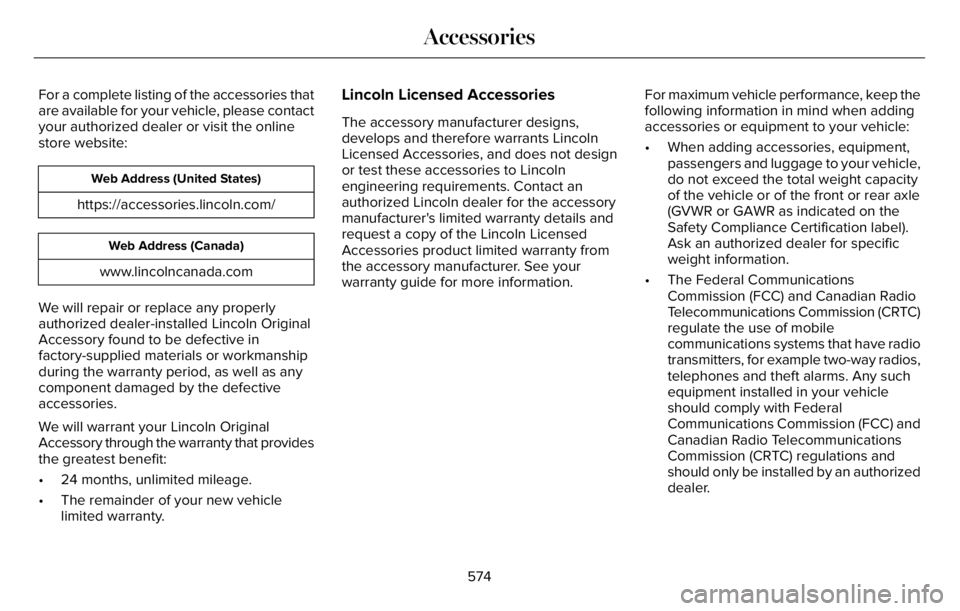

For a complete listing of the accessories that
are available for your vehicle, please contact
your authorized dealer or visit the online
store website:
Web Address (United States)
https://accessories.lincoln.com/
Web Address (Canada)
www.lincolncanada.com
We will repair or replace any properly
authorized dealer-installed Lincoln Original
Accessory found to be defective in
factory-supplied materials or workmanship
during the warranty period, as well as any
component damaged by the defective
accessories.
We will warrant your Lincoln Original
Accessory through the warranty that provides
the greatest benefit:
• 24 months, unlimited mileage.
• The remainder of your new vehicle
limited warranty.
Lincoln Licensed Accessories
The accessory manufacturer designs,
develops and therefore warrants Lincoln
Licensed Accessories, and does not design
or test these accessories to Lincoln
engineering requirements. Contact an
authorized Lincoln dealer for the accessory
manufacturer's limited warranty details and
request a copy of the Lincoln Licensed
Accessories product limited warranty from
the accessory manufacturer. See your
warranty guide for more information.For maximum vehicle performance, keep the
following information in mind when adding
accessories or equipment to your vehicle:
• When adding accessories, equipment,
passengers and luggage to your vehicle,
do not exceed the total weight capacity
of the vehicle or of the front or rear axle
(GVWR or GAWR as indicated on the
Safety Compliance Certification label).
Ask an authorized dealer for specific
weight information.
• The Federal Communications
Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC)
regulate the use of mobile
communications systems that have radio
transmitters, for example two-way radios,
telephones and theft alarms. Any such
equipment installed in your vehicle
should comply with Federal
Communications Commission (FCC) and
Canadian Radio Telecommunications
Commission (CRTC) regulations and
should only be installed by an authorized
dealer.
574
Accessories

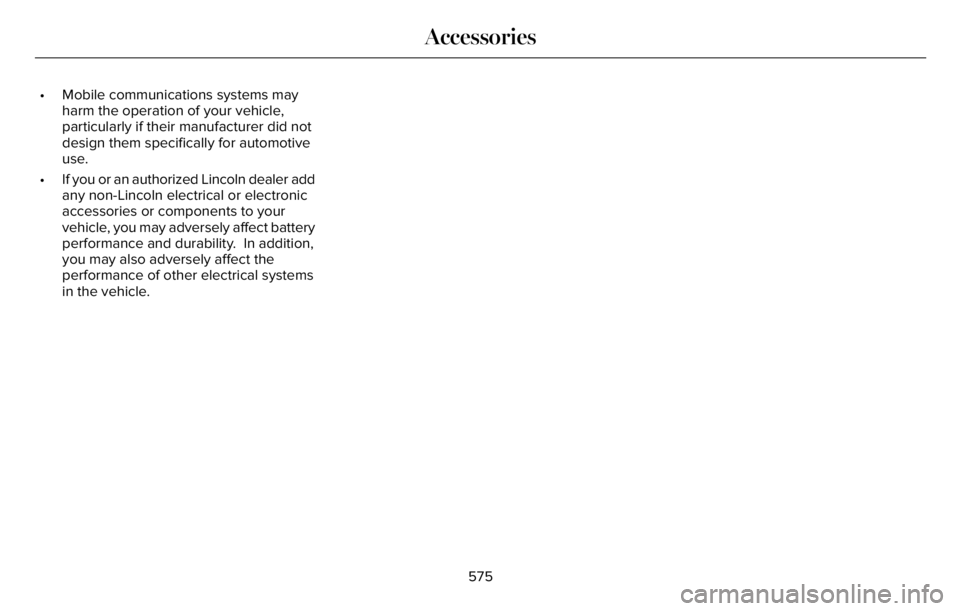

• Mobile communications systems may
harm the operation of your vehicle,
particularly if their manufacturer did not
design them specifically for automotive
use.
• If you or an authorized Lincoln dealer add
any non-Lincoln electrical or electronic
accessories or components to your
vehicle, you may adversely affect battery
performance and durability. In addition,
you may also adversely affect the
performance of other electrical systems
in the vehicle.
575
Accessories

Protect yourself from the rising cost of
vehicle repairs with a Lincoln Protect
Extended Service Plan.
Lincoln Protect Extended Service Plans
- United States Only
Lincoln Protect means peace of mind. It is
the extended service plan backed by Lincoln,
and provides more protection beyond the
New Vehicle Limited Warranty coverage.
When you visit your Lincoln Dealer, insist on
genuine Lincoln Protect extended service
plans.
Lincoln Protect Extended Service Plan Can
Quickly Pay for Itself
One trip to the Service Center could easily
exceed the price of your Lincoln Protect
extended service plan. With Lincoln Protect
you minimize your risk for unexpected repair
bills and rising repair costs.Up to 1000+ Covered Vehicle Components
There are four mechanical Lincoln Protect
extended service plans with different levels
of coverage. Ask your authorized dealer for
details.
1. PremiumCARE - Our most comprehensive
coverage. With over 1,000 covered
components, this plan is so complete it’s
probably easier to list what’s not covered.
2. ExtraCARE - Covers 113 components, and
includes many high-tech items.
3. BaseCARE - Covers 84 components.
4. PowertrainCARE - Covers 29 critical
components.
Lincoln Protect extended service plans are
honored by all authorized Lincoln dealers in
the United States, Canada and Mexico.
That means you get:
• Reliable, quality service at any Lincoln or
Ford dealership.
• Repairs performed by factory trained
technicians, using genuine parts.Rental Car Reimbursement
First Day Rental Benefit
If you bring your car into your dealer for
service, we will give you a loaner to use for
the day.
Extended Rental Benefits
If your vehicle is kept overnight for covered
repairs, you are eligible for rental car
coverage, including bumper to bumper
warranty repairs, and Field Service Actions.
Roadside Assistance
Exclusive 24/7 roadside assistance, including:
• Towing, flat-tire change and battery jump
starts.
• Out of fuel and lock-out assistance.
• Travel expense reimbursement for
lodging, meals and rental car.
• Assistance for taxi, shuttle, rental car
coverage and other transportation.
576
Lincoln Protect

Transferable Coverage
If you sell your vehicle before your Lincoln
Protect extended service plan coverage
expires, you can transfer any remaining
coverage to the new owner. Which should
give you and your potential buyer a little
more peace of mind.
Less Cost to Properly Maintain Your Vehicle
The Lincoln Protect extended service plan
also offers a Premium Maintenance Plan that
covers all scheduled maintenance, and
selected wear items. The coverage is
prepaid, so you never have to worry about
the cost of your vehicle’s maintenance.
Covered maintenance includes:
• Windshield wiper blades.
• Spark plugs.
• Clutch disc - if equipped.
• Brake pads and linings.
• Shock absorbers and struts.
• Engine cooling hoses, clamps and
o-rings.• Engine belts.
• Diesel exhaust fluid replenishment - if
equipped.
Interest Free Finance Options
Just a 10% down payment will provide you
with an affordable, no interest, no fee
payment program allowing you all the
security and benefits Lincoln Protect
extended service plan has to offer while
paying over time. You are pre-approved with
no credit check or hassles. To learn more,
call our Lincoln Protect extended service
plan specialists at 800-367-3377.
Complete the following information and mail
to:
Lincoln Protect Extended Service Plan
P.O. Box 321067
Detroit, MI 48232Lincoln Protect - Canada Only
You can get more protection for your vehicle
by purchasing a Lincoln Protect extended
service plan. Lincoln Protect extended
service plan is the only service contract
backed by Lincoln. Depending on the plan
you purchase, Lincoln Protect extended
service plan provides benefits such as:
• Rental reimbursement.
• Coverage for certain maintenance and
wear items.
• Protection against repair costs after your
New Vehicle Limited Warranty Coverage
expires.
• Roadside Assistance benefits.
577
Lincoln Protect
