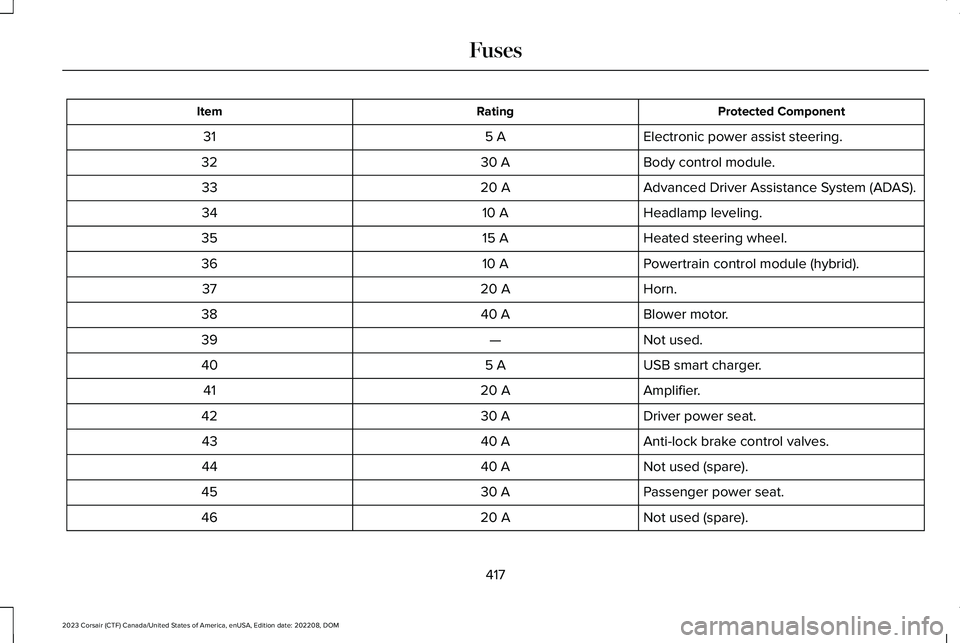

Page 421 of 690

LINCOLN CORSAIR 2023  Owners Manual Protected ComponentRatingItem
Electronic power assist steering.5 A31
Body control module.30 A32
Advanced Driver Assistance System (ADAS).20 A33
Headlamp leveling.10 A34
Heated steering wheel.15 A35
Po

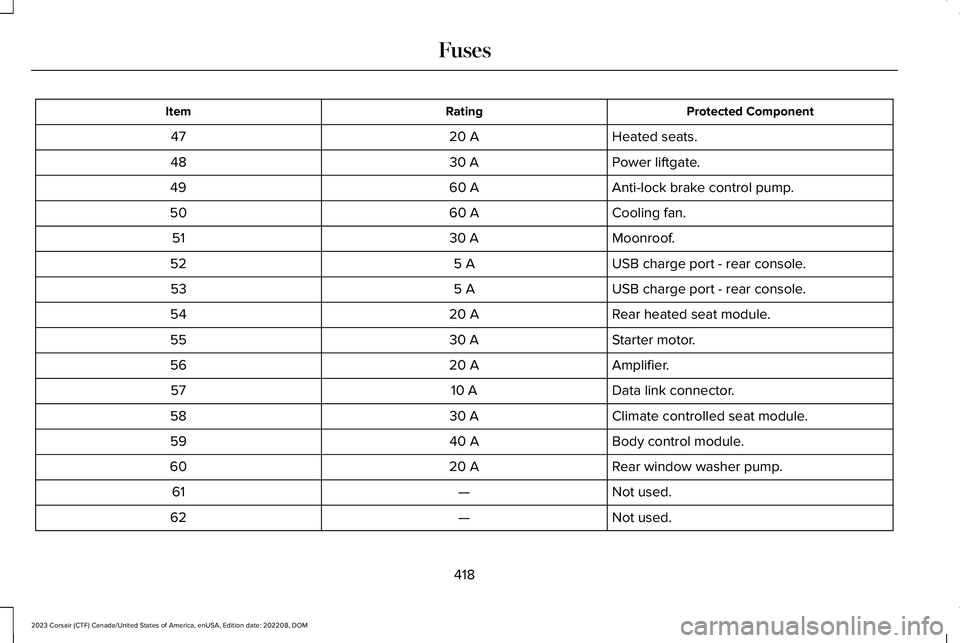

Page 422 of 690

LINCOLN CORSAIR 2023  Owners Manual Protected ComponentRatingItem
Heated seats.20 A47
Power liftgate.30 A48
Anti-lock brake control pump.60 A49
Cooling fan.60 A50
Moonroof.30 A51
USB charge port - rear console.5 A52
USB charge port - re

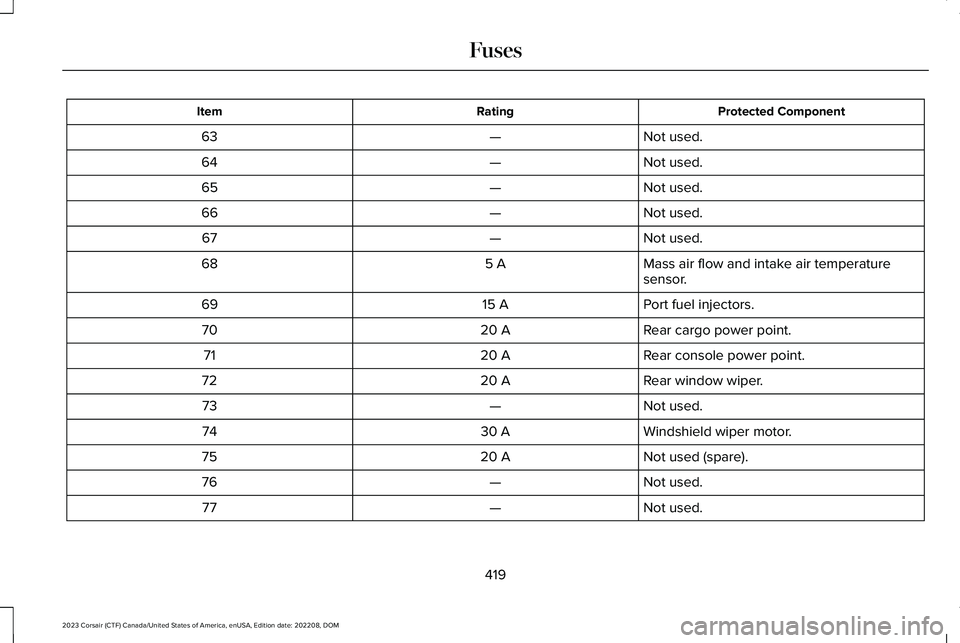

Page 423 of 690

LINCOLN CORSAIR 2023  Owners Manual Protected ComponentRatingItem
Not used.—63
Not used.—64
Not used.—65
Not used.—66
Not used.—67
Mass air flow and intake air temperaturesensor.5 A68
Port fuel injectors.15 A69
Rear cargo powe

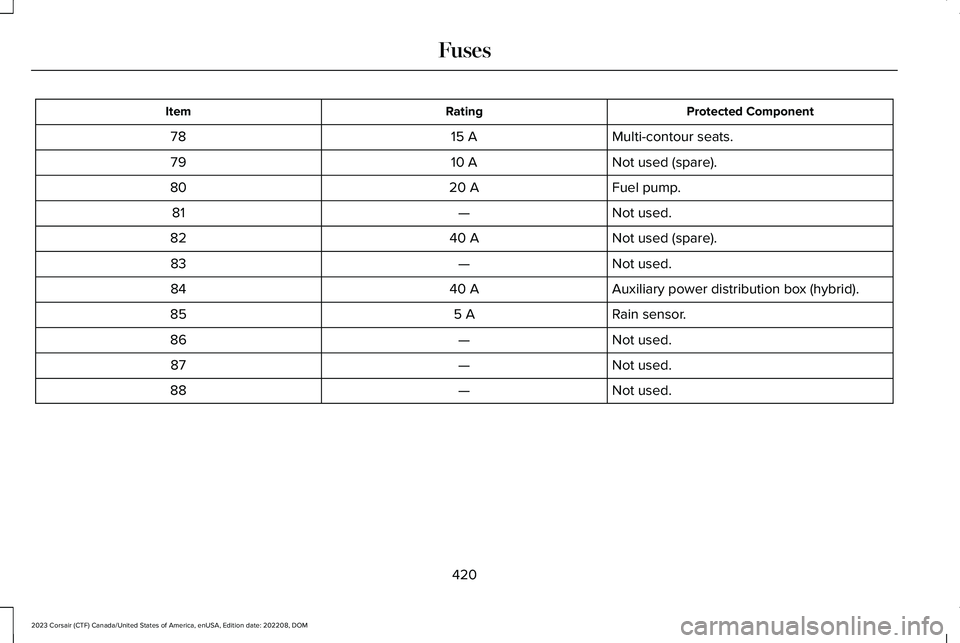

Page 424 of 690

LINCOLN CORSAIR 2023  Owners Manual Protected ComponentRatingItem
Multi-contour seats.15 A78
Not used (spare).10 A79
Fuel pump.20 A80
Not used.—81
Not used (spare).40 A82
Not used.—83
Auxiliary power distribution box (hybrid).40 A84

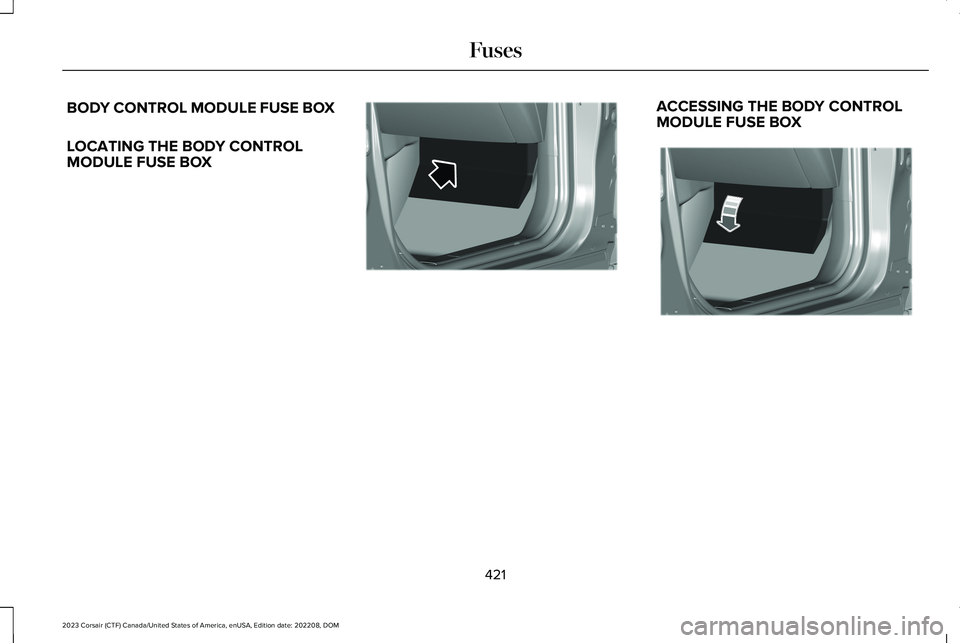

Page 425 of 690

LINCOLN CORSAIR 2023  Owners Manual BODY CONTROL MODULE FUSE BOX
LOCATING THE BODY CONTROLMODULE FUSE BOX
ACCESSING THE BODY CONTROLMODULE FUSE BOX
421
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOM

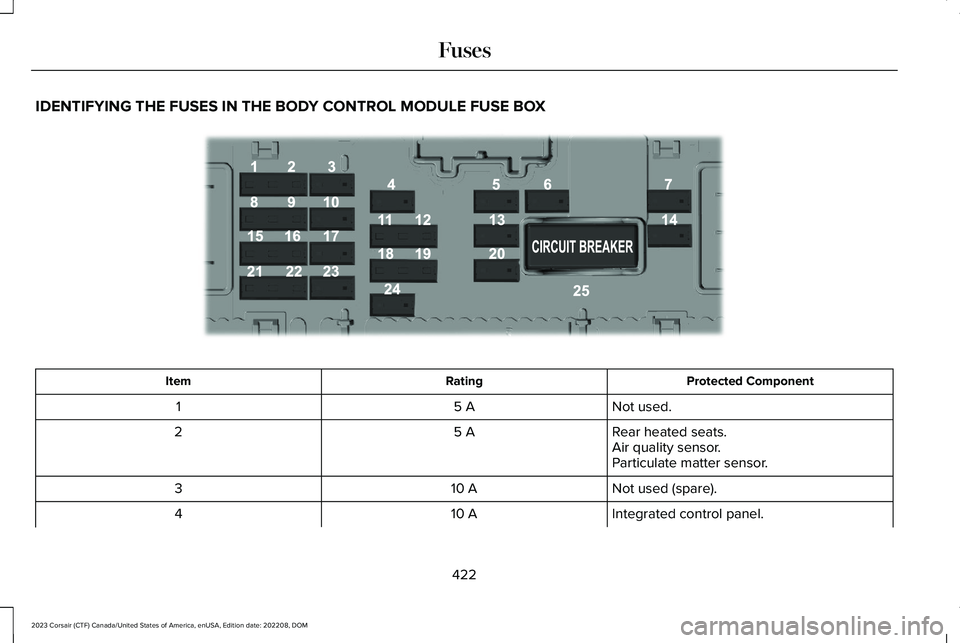

Page 426 of 690

LINCOLN CORSAIR 2023  Owners Manual IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
Protected ComponentRatingItem
Not used.5 A1
Rear heated seats.5 A2Air quality sensor.Particulate matter sensor.
Not used (spare).10 A3
Integra

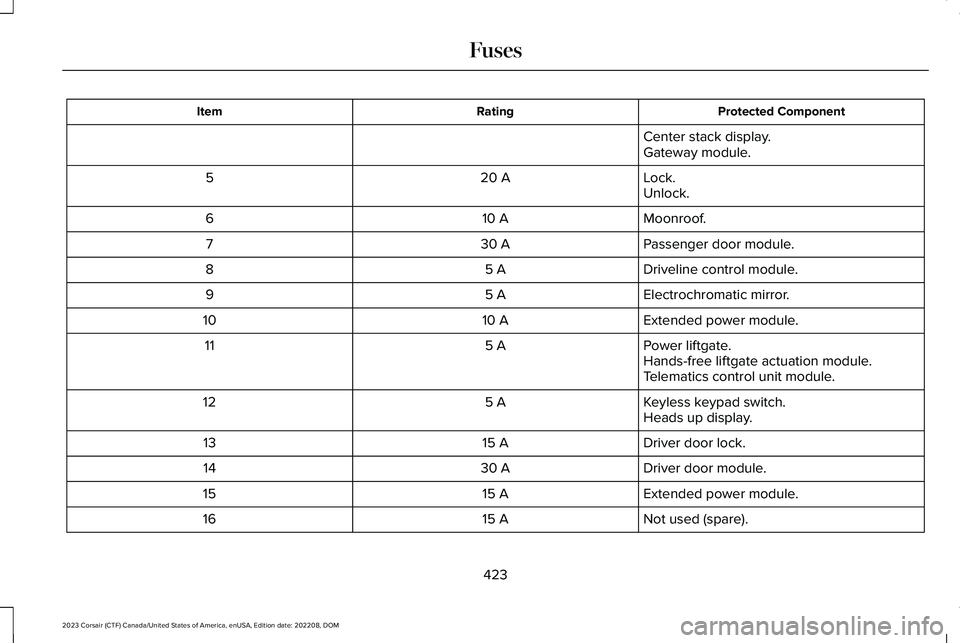

Page 427 of 690

LINCOLN CORSAIR 2023  Owners Manual Protected ComponentRatingItem
Center stack display.Gateway module.
Lock.20 A5Unlock.
Moonroof.10 A6
Passenger door module.30 A7
Driveline control module.5 A8
Electrochromatic mirror.5 A9
Extended powe

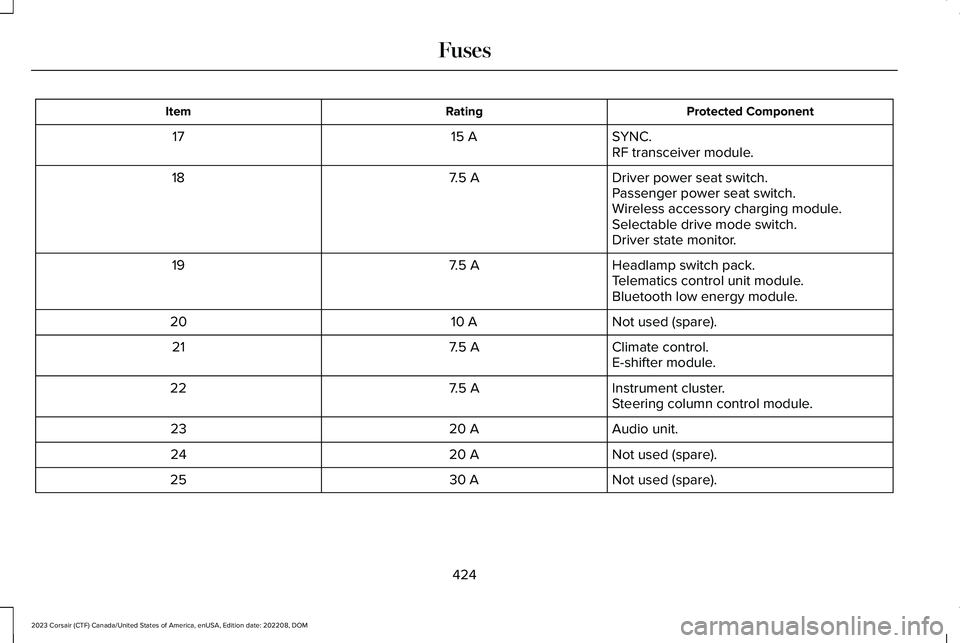

Page 428 of 690

LINCOLN CORSAIR 2023  Owners Manual Protected ComponentRatingItem
SYNC.15 A17RF transceiver module.
Driver power seat switch.7.5 A18Passenger power seat switch.Wireless accessory charging module.Selectable drive mode switch.Driver state

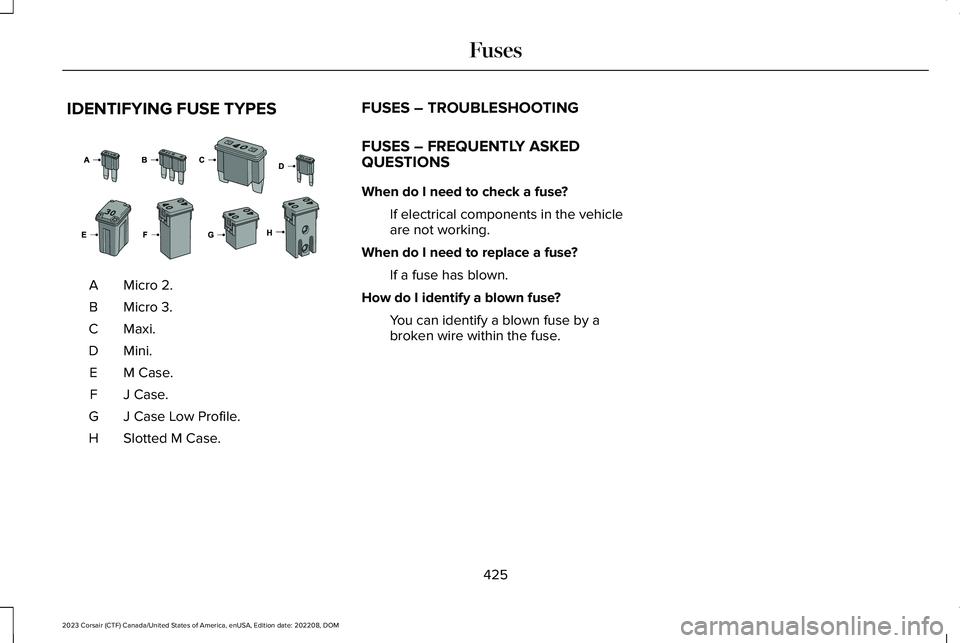

Page 429 of 690

LINCOLN CORSAIR 2023  Owners Manual IDENTIFYING FUSE TYPES
Micro 2.A
Micro 3.B
Maxi.C
Mini.D
M Case.E
J Case.F
J Case Low Profile.G
Slotted M Case.H
FUSES – TROUBLESHOOTING
FUSES – FREQUENTLY ASKEDQUESTIONS
When do I need to check a

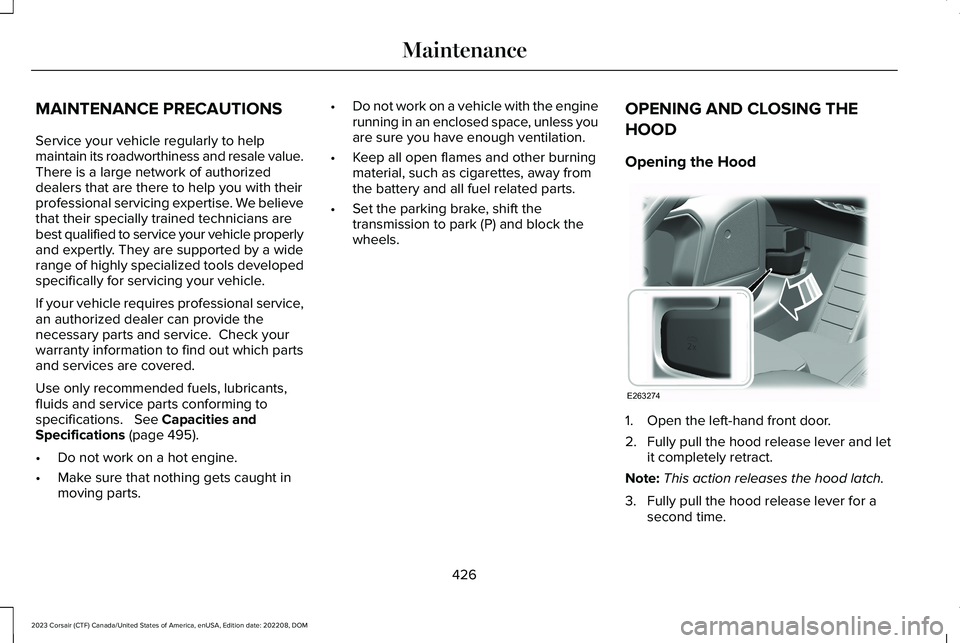

Page 430 of 690

LINCOLN CORSAIR 2023  Owners Manual MAINTENANCE PRECAUTIONS
Service your vehicle regularly to helpmaintain its roadworthiness and resale value.There is a large network of authorizeddealers that are there to help you with theirprofession
