LINCOLN CORSAIR 2023 Owners Manual

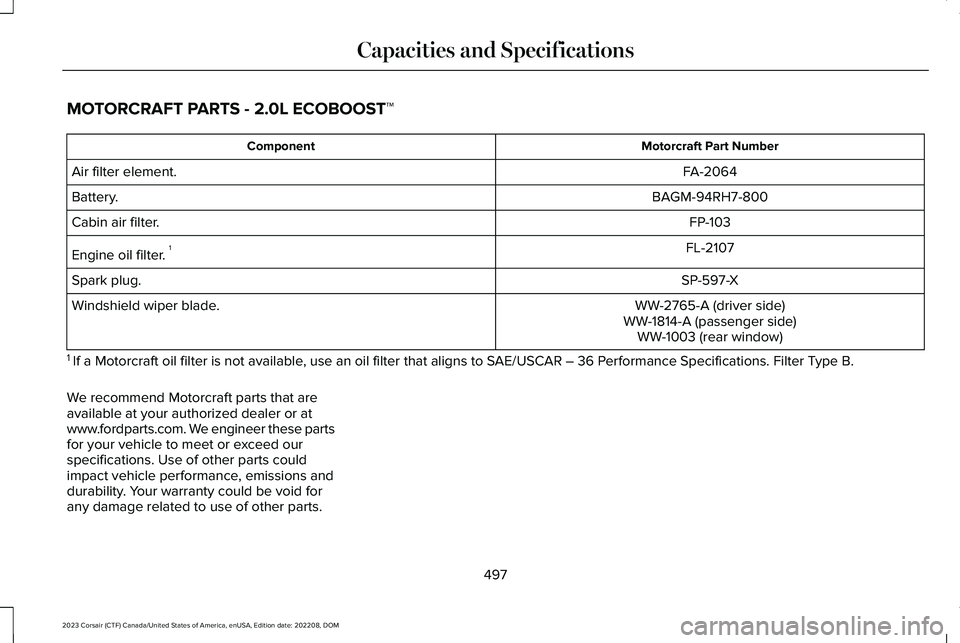

MOTORCRAFT PARTS - 2.0L ECOBOOST™
Motorcraft Part NumberComponent
FA-2064Air filter element.
BAGM-94RH7-800Battery.
FP-103Cabin air filter.
FL-2107Engine oil filter. 1
SP-597-XSpark plug.
WW-2765-A (driver side)Windshield wiper blade.WW-1814-A (passenger side)WW-1003 (rear window)
1 If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36 Performance Specifications. Filter Type B.
We recommend Motorcraft parts that areavailable at your authorized dealer or atwww.fordparts.com. We engineer these partsfor your vehicle to meet or exceed ourspecifications. Use of other parts couldimpact vehicle performance, emissions anddurability. Your warranty could be void forany damage related to use of other parts.
497
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications

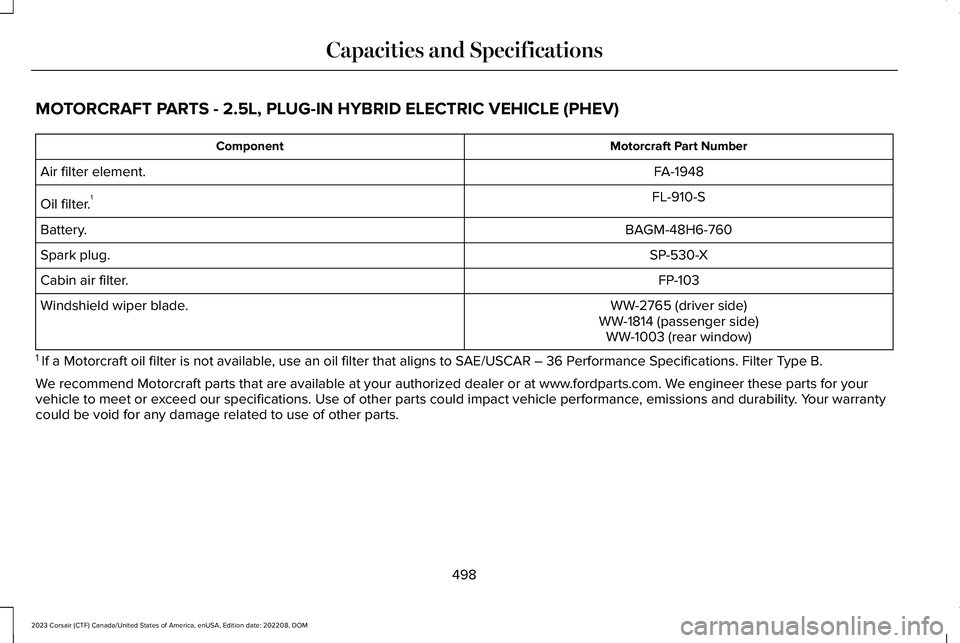

MOTORCRAFT PARTS - 2.5L, PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
Motorcraft Part NumberComponent
FA-1948Air filter element.
FL-910-SOil filter.1
BAGM-48H6-760Battery.
SP-530-XSpark plug.
FP-103Cabin air filter.
WW-2765 (driver side)Windshield wiper blade.WW-1814 (passenger side)WW-1003 (rear window)
1 If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36 Performance Specifications. Filter Type B.
We recommend Motorcraft parts that are available at your authorized dealer or at www.fordparts.com. We engineer these parts for yourvehicle to meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability. Your warrantycould be void for any damage related to use of other parts.
498
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications

ENGINE OIL CAPACITY AND
SPECIFICATION - 2.0L ECOBOOST™
Use oil that meets the defined specificationand viscosity grade.
If you do not use oil that meets the definedspecification and viscosity grade, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced vehicle performance.
•Reduced fuel economy.
An oil that displays this symbol conforms tocurrent engine, emission system and fueleconomy performance standards of ILSAC.
We recommend Motorcraft motor oil for yourvehicle. If Motorcraft oil is not available, usemotor oils of the recommended viscositygrade that display the API Certification Markfor gasoline engines.
Do not use supplemental engine oil additivesbecause they are unnecessary and couldlead to engine damage that your vehiclewarranty does not cover.
Capacities
Including the Oil FilterVariant
6.1 qt (5.8 L)All.
499
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and SpecificationsE142732

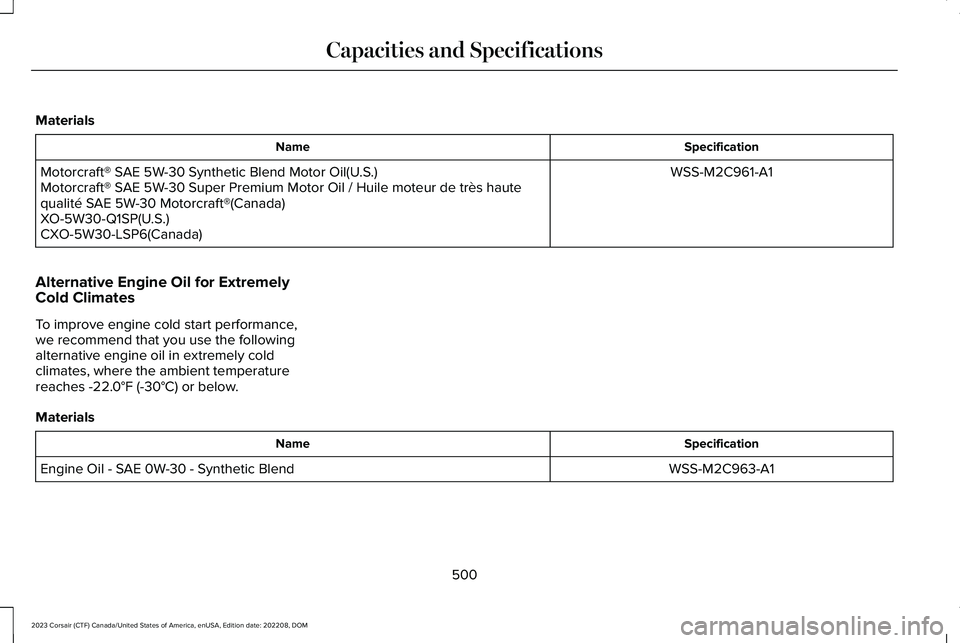

Materials
SpecificationName
WSS-M2C961-A1Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil(U.S.)Motorcraft® SAE 5W-30 Super Premium Motor Oil / Huile moteur de très hautequalité SAE 5W-30 Motorcraft®(Canada)XO-5W30-Q1SP(U.S.)CXO-5W30-LSP6(Canada)
Alternative Engine Oil for ExtremelyCold Climates
To improve engine cold start performance,we recommend that you use the followingalternative engine oil in extremely coldclimates, where the ambient temperaturereaches -22.0°F (-30°C) or below.
Materials
SpecificationName
WSS-M2C963-A1Engine Oil - SAE 0W-30 - Synthetic Blend
500
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications

Note:If you use your vehicle regularly abovethe altitude of 7,500 ft (2,286 m) and underthe temperature of -4.0°F (-20°C), it isrecommended to use the alternative engineoil.
ENGINE OIL CAPACITY AND
SPECIFICATION - 2.5L, PLUG-IN
HYBRID ELECTRIC VEHICLE
(PHEV)
Use oil that meets the defined specificationand viscosity grade.
If you do not use oil that meets the definedspecification and viscosity grade, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced vehicle performance.
•Reduced fuel economy.
501
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and SpecificationsE240523

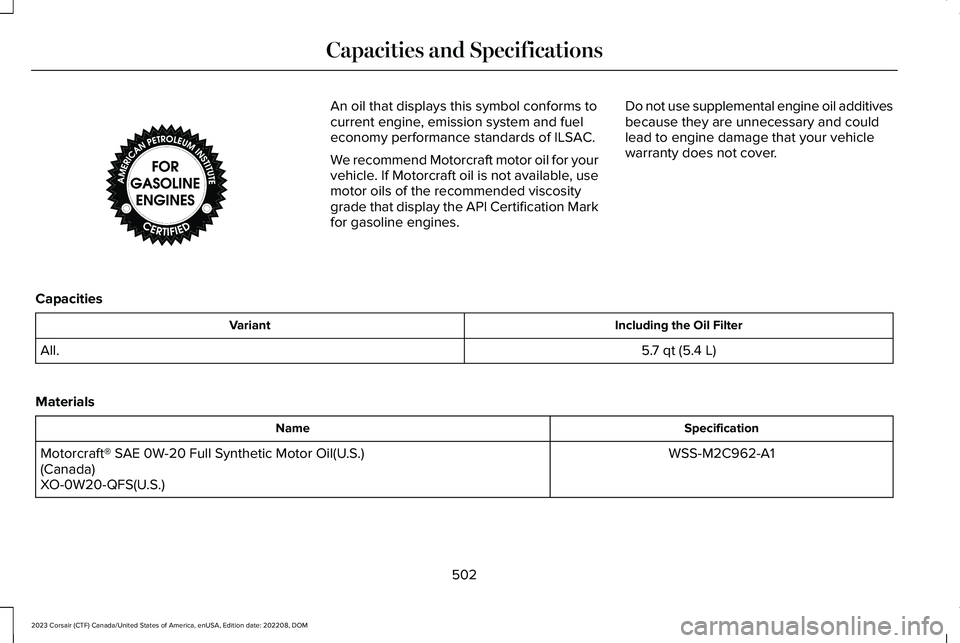

An oil that displays this symbol conforms tocurrent engine, emission system and fueleconomy performance standards of ILSAC.
We recommend Motorcraft motor oil for yourvehicle. If Motorcraft oil is not available, usemotor oils of the recommended viscositygrade that display the API Certification Markfor gasoline engines.
Do not use supplemental engine oil additivesbecause they are unnecessary and couldlead to engine damage that your vehiclewarranty does not cover.
Capacities
Including the Oil FilterVariant
5.7 qt (5.4 L)All.
Materials
SpecificationName
WSS-M2C962-A1Motorcraft® SAE 0W-20 Full Synthetic Motor Oil(U.S.)(Canada)XO-0W20-QFS(U.S.)
502
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and SpecificationsE142732

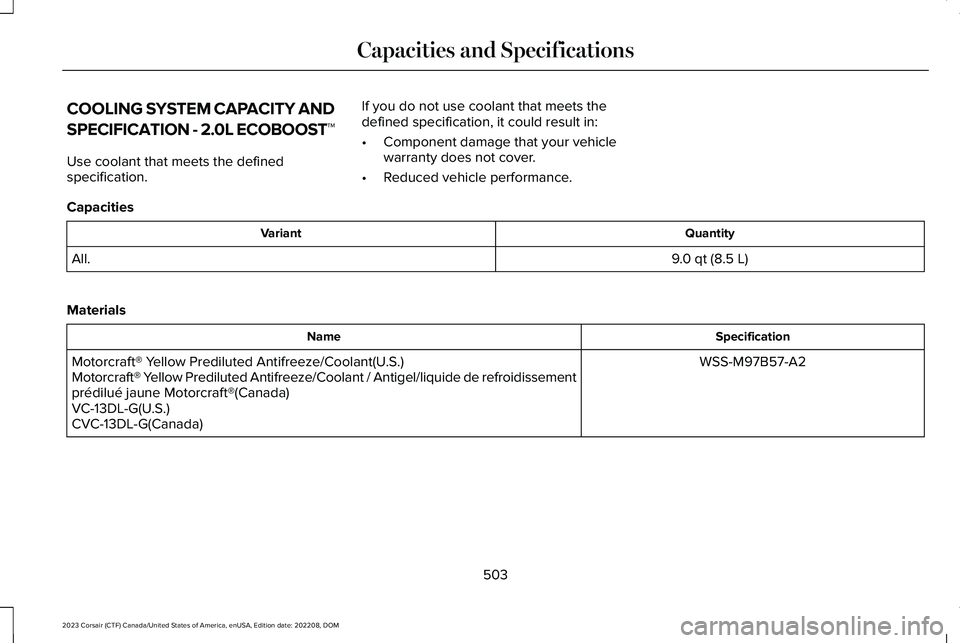

COOLING SYSTEM CAPACITY AND
SPECIFICATION - 2.0L ECOBOOST™
Use coolant that meets the definedspecification.
If you do not use coolant that meets thedefined specification, it could result in:
•Component damage that your vehiclewarranty does not cover.
•Reduced vehicle performance.
Capacities
QuantityVariant
9.0 qt (8.5 L)All.
Materials
SpecificationName
WSS-M97B57-A2Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissementprédilué jaune Motorcraft®(Canada)VC-13DL-G(U.S.)CVC-13DL-G(Canada)
503
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications

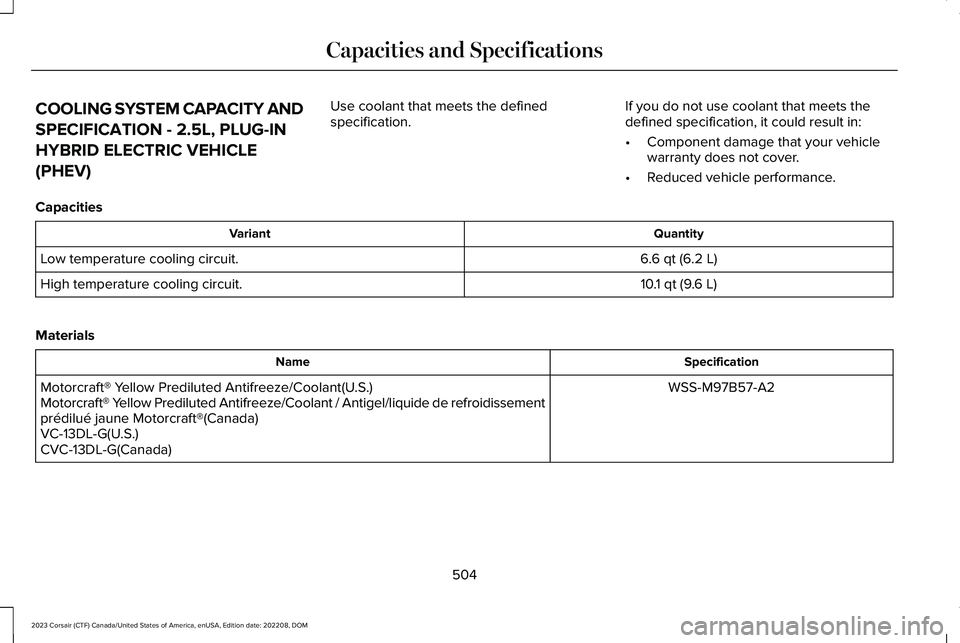

COOLING SYSTEM CAPACITY AND
SPECIFICATION - 2.5L, PLUG-IN
HYBRID ELECTRIC VEHICLE
(PHEV)
Use coolant that meets the definedspecification.If you do not use coolant that meets thedefined specification, it could result in:
•Component damage that your vehiclewarranty does not cover.
•Reduced vehicle performance.
Capacities
QuantityVariant
6.6 qt (6.2 L)Low temperature cooling circuit.
10.1 qt (9.6 L)High temperature cooling circuit.
Materials
SpecificationName
WSS-M97B57-A2Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissementprédilué jaune Motorcraft®(Canada)VC-13DL-G(U.S.)CVC-13DL-G(Canada)
504
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications

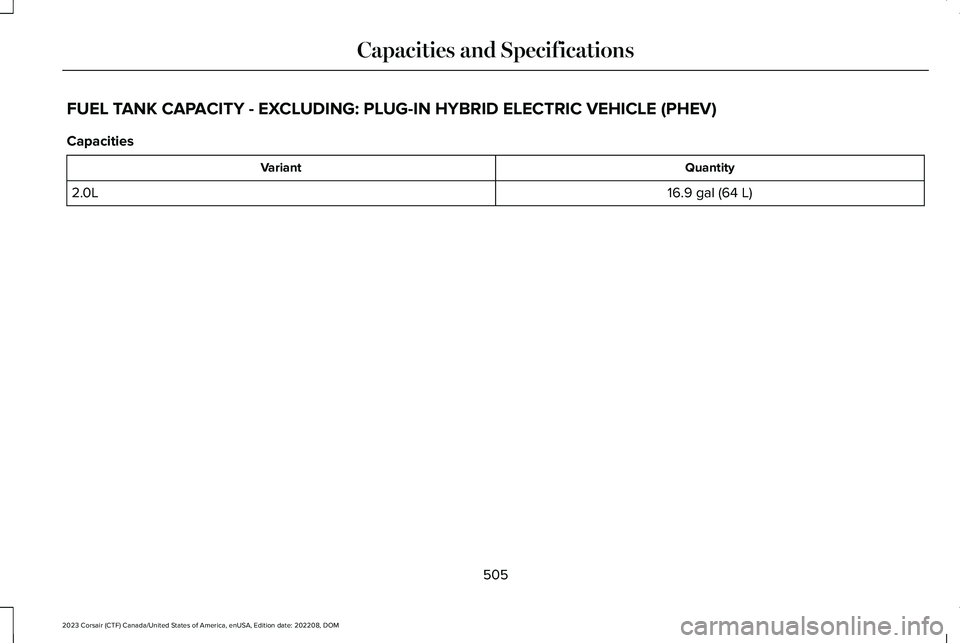

FUEL TANK CAPACITY - EXCLUDING: PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
Capacities
QuantityVariant
16.9 gal (64 L)2.0L
505
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications

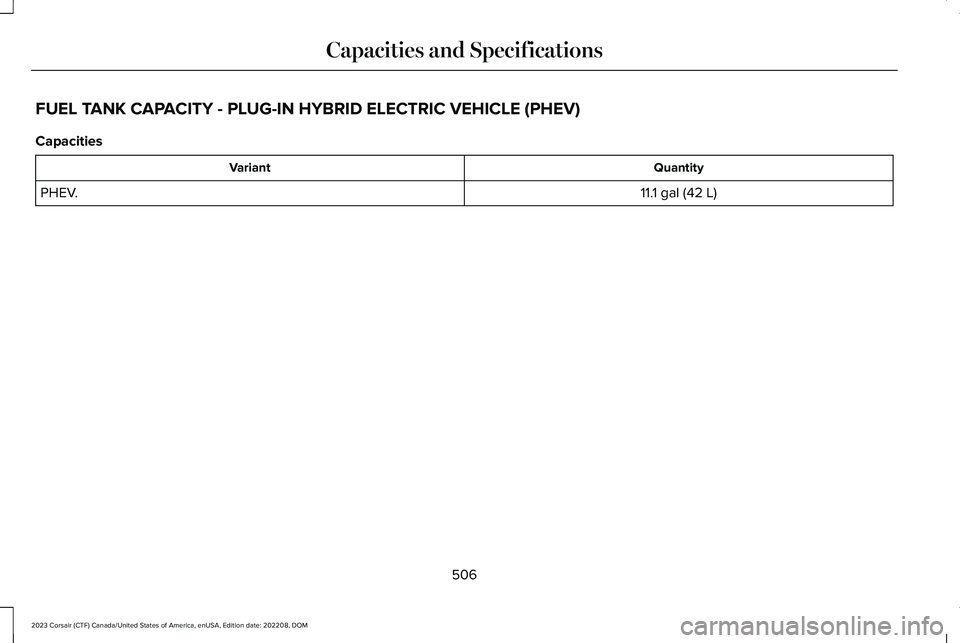

FUEL TANK CAPACITY - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
Capacities
QuantityVariant
11.1 gal (42 L)PHEV.
506
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications
