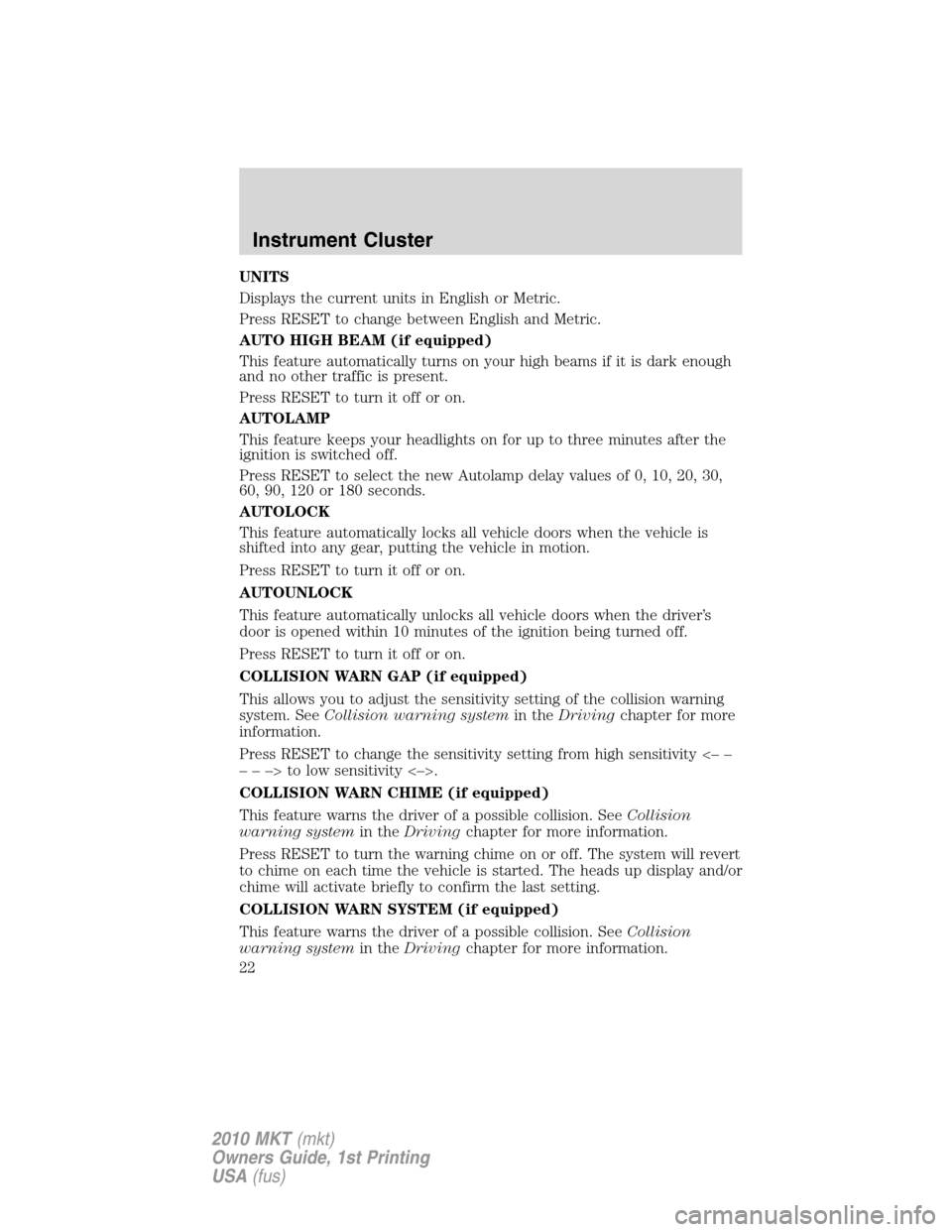

UNITS
Displays the current units in English or Metric.
Press RESET to change between English and Metric.
AUTO HIGH BEAM (if equipped)
This feature automatically turns on your high beams if it is dark enough
and no other traffic is present.
Press RESET to turn it off or on.
AUTOLAMP
This feature keeps your headlights on for up to three minutes after the
ignition is switched off.
Press RESET to select the new Autolamp delay values of 0, 10, 20, 30,
60, 90, 120 or 180 seconds.
AUTOLOCK
This feature automatically locks all vehicle doors when the vehicle is
shifted into any gear, putting the vehicle in motion.
Press RESET to turn it off or on.
AUTOUNLOCK
This feature automatically unlocks all vehicle doors when the driver’s
door is opened within 10 minutes of the ignition being turned off.
Press RESET to turn it off or on.
COLLISION WARN GAP (if equipped)
This allows you to adjust the sensitivity setting of the collision warning
system. SeeCollision warning systemin theDrivingchapter for more
information.
Press RESET to change the sensitivity setting from high sensitivity <– –
– – –> to low sensitivity <–>.
COLLISION WARN CHIME (if equipped)
This feature warns the driver of a possible collision. SeeCollision
warning systemin theDrivingchapter for more information.
Press RESET to turn the warning chime on or off. The system will revert
to chime on each time the vehicle is started. The heads up display and/or
chime will activate briefly to confirm the last setting.
COLLISION WARN SYSTEM (if equipped)
This feature warns the driver of a possible collision. SeeCollision
warning systemin theDrivingchapter for more information.
Instrument Cluster
22
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

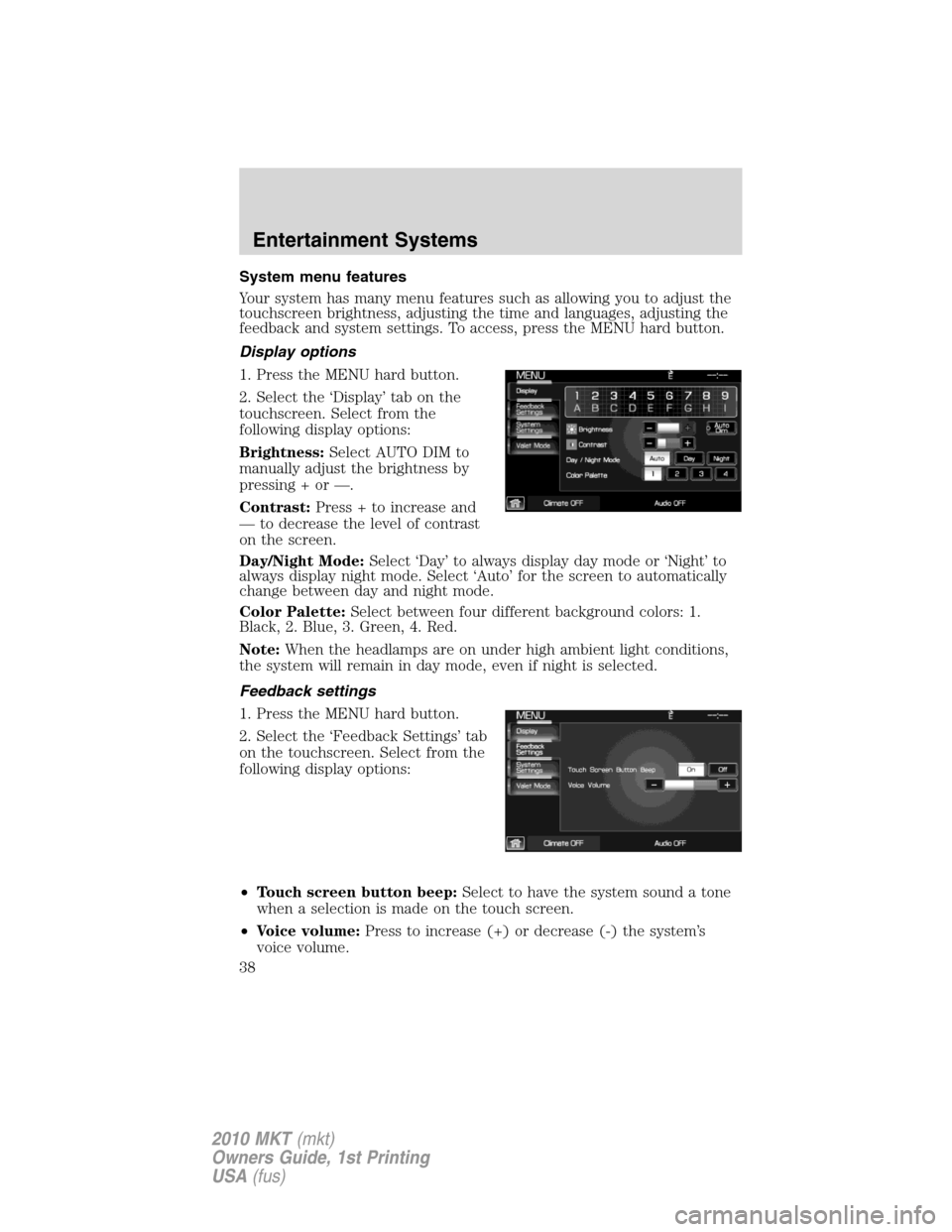

System menu features
Your system has many menu features such as allowing you to adjust the
touchscreen brightness, adjusting the time and languages, adjusting the
feedback and system settings. To access, press the MENU hard button.
Display options
1. Press the MENU hard button.
2. Select the ‘Display’ tab on the
touchscreen. Select from the
following display options:
Brightness:Select AUTO DIM to
manually adjust the brightness by
pressing + or —.
Contrast:Press + to increase and
— to decrease the level of contrast
on the screen.
Day/Night Mode:Select ‘Day’ to always display day mode or ‘Night’ to
always display night mode. Select ‘Auto’ for the screen to automatically
change between day and night mode.
Color Palette:Select between four different background colors: 1.
Black, 2. Blue, 3. Green, 4. Red.
Note:When the headlamps are on under high ambient light conditions,
the system will remain in day mode, even if night is selected.
Feedback settings
1. Press the MENU hard button.
2. Select the ‘Feedback Settings’ tab
on the touchscreen. Select from the
following display options:
•Touch screen button beep:Select to have the system sound a tone
when a selection is made on the touch screen.
•Voice volume:Press to increase (+) or decrease (-) the system’s
voice volume.
Entertainment Systems
38
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

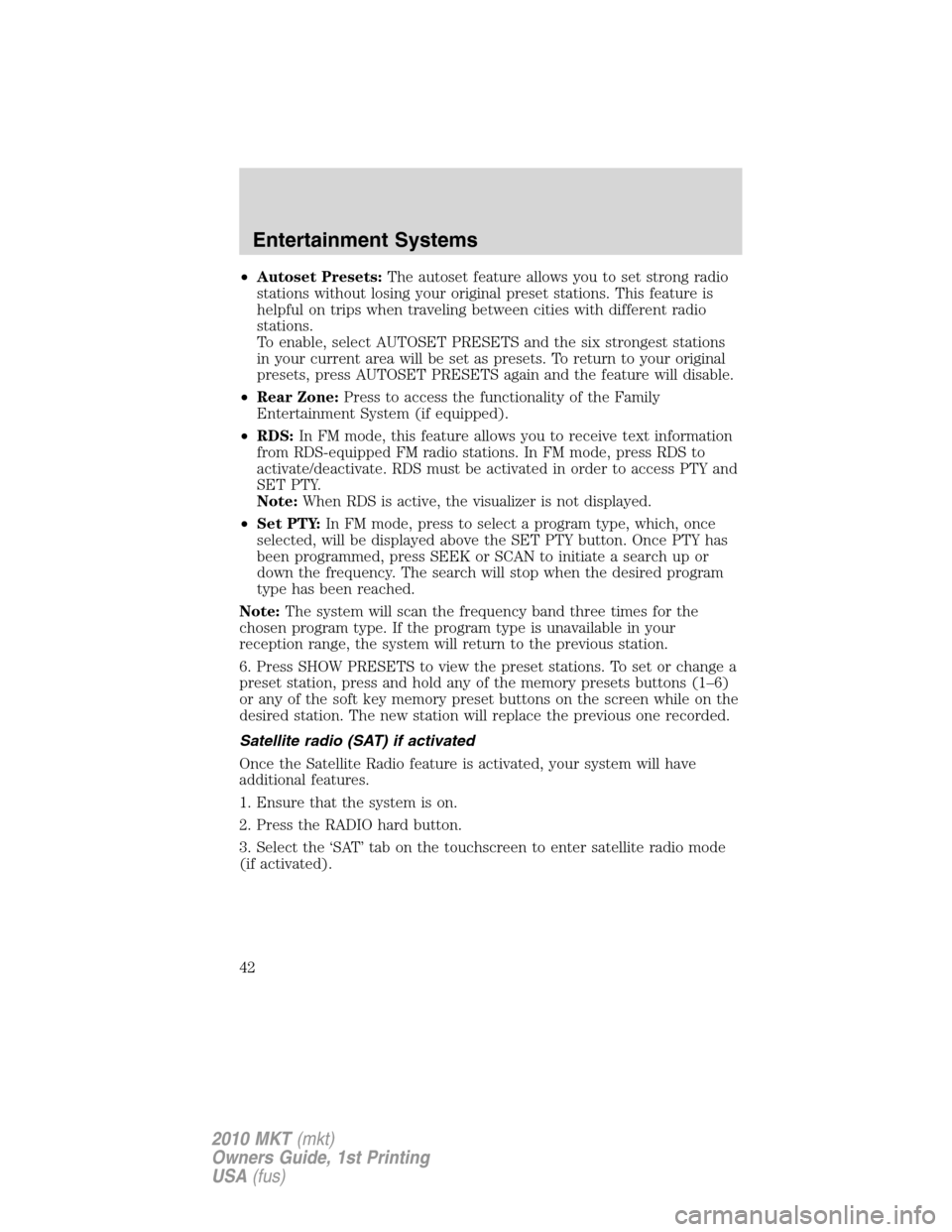

•Autoset Presets:The autoset feature allows you to set strong radio
stations without losing your original preset stations. This feature is
helpful on trips when traveling between cities with different radio
stations.
To enable, select AUTOSET PRESETS and the six strongest stations
in your current area will be set as presets. To return to your original
presets, press AUTOSET PRESETS again and the feature will disable.
•Rear Zone:Press to access the functionality of the Family
Entertainment System (if equipped).
•RDS:In FM mode, this feature allows you to receive text information
from RDS-equipped FM radio stations. In FM mode, press RDS to
activate/deactivate. RDS must be activated in order to access PTY and
SET PTY.
Note:When RDS is active, the visualizer is not displayed.
•Set PTY:In FM mode, press to select a program type, which, once
selected, will be displayed above the SET PTY button. Once PTY has
been programmed, press SEEK or SCAN to initiate a search up or
down the frequency. The search will stop when the desired program
type has been reached.
Note:The system will scan the frequency band three times for the
chosen program type. If the program type is unavailable in your
reception range, the system will return to the previous station.
6. Press SHOW PRESETS to view the preset stations. To set or change a
preset station, press and hold any of the memory presets buttons (1–6)
or any of the soft key memory preset buttons on the screen while on the
desired station. The new station will replace the previous one recorded.
Satellite radio (SAT) if activated
Once the Satellite Radio feature is activated, your system will have
additional features.
1. Ensure that the system is on.
2. Press the RADIO hard button.
3. Select the ‘SAT’ tab on the touchscreen to enter satellite radio mode
(if activated).
Entertainment Systems
42
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

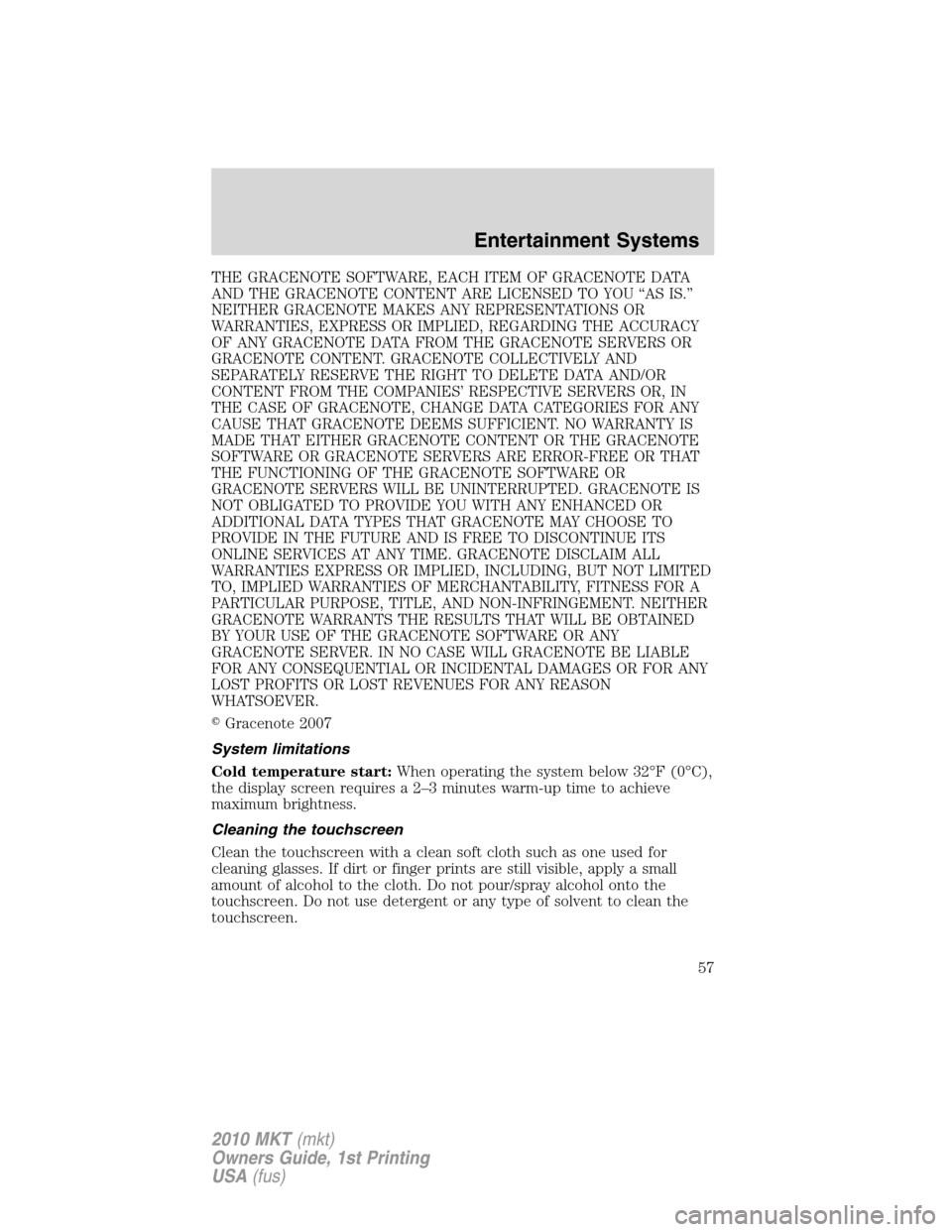

THE GRACENOTE SOFTWARE, EACH ITEM OF GRACENOTE DATA
AND THE GRACENOTE CONTENT ARE LICENSED TO YOU “AS IS.”
NEITHER GRACENOTE MAKES ANY REPRESENTATIONS OR
WARRANTIES, EXPRESS OR IMPLIED, REGARDING THE ACCURACY
OF ANY GRACENOTE DATA FROM THE GRACENOTE SERVERS OR
GRACENOTE CONTENT. GRACENOTE COLLECTIVELY AND
SEPARATELY RESERVE THE RIGHT TO DELETE DATA AND/OR
CONTENT FROM THE COMPANIES’ RESPECTIVE SERVERS OR, IN
THE CASE OF GRACENOTE, CHANGE DATA CATEGORIES FOR ANY
CAUSE THAT GRACENOTE DEEMS SUFFICIENT. NO WARRANTY IS
MADE THAT EITHER GRACENOTE CONTENT OR THE GRACENOTE
SOFTWARE OR GRACENOTE SERVERS ARE ERROR-FREE OR THAT
THE FUNCTIONING OF THE GRACENOTE SOFTWARE OR
GRACENOTE SERVERS WILL BE UNINTERRUPTED. GRACENOTE IS
NOT OBLIGATED TO PROVIDE YOU WITH ANY ENHANCED OR
ADDITIONAL DATA TYPES THAT GRACENOTE MAY CHOOSE TO
PROVIDE IN THE FUTURE AND IS FREE TO DISCONTINUE ITS
ONLINE SERVICES AT ANY TIME. GRACENOTE DISCLAIM ALL
WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS THAT WILL BE OBTAINED
BY YOUR USE OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE
FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY
LOST PROFITS OR LOST REVENUES FOR ANY REASON
WHATSOEVER.
Gracenote 2007
System limitations
Cold temperature start:When operating the system below 32°F (0°C),
the display screen requires a 2–3 minutes warm-up time to achieve
maximum brightness.
Cleaning the touchscreen
Clean the touchscreen with a clean soft cloth such as one used for
cleaning glasses. If dirt or finger prints are still visible, apply a small
amount of alcohol to the cloth. Do not pour/spray alcohol onto the
touchscreen. Do not use detergent or any type of solvent to clean the
touchscreen.
Entertainment Systems
57
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

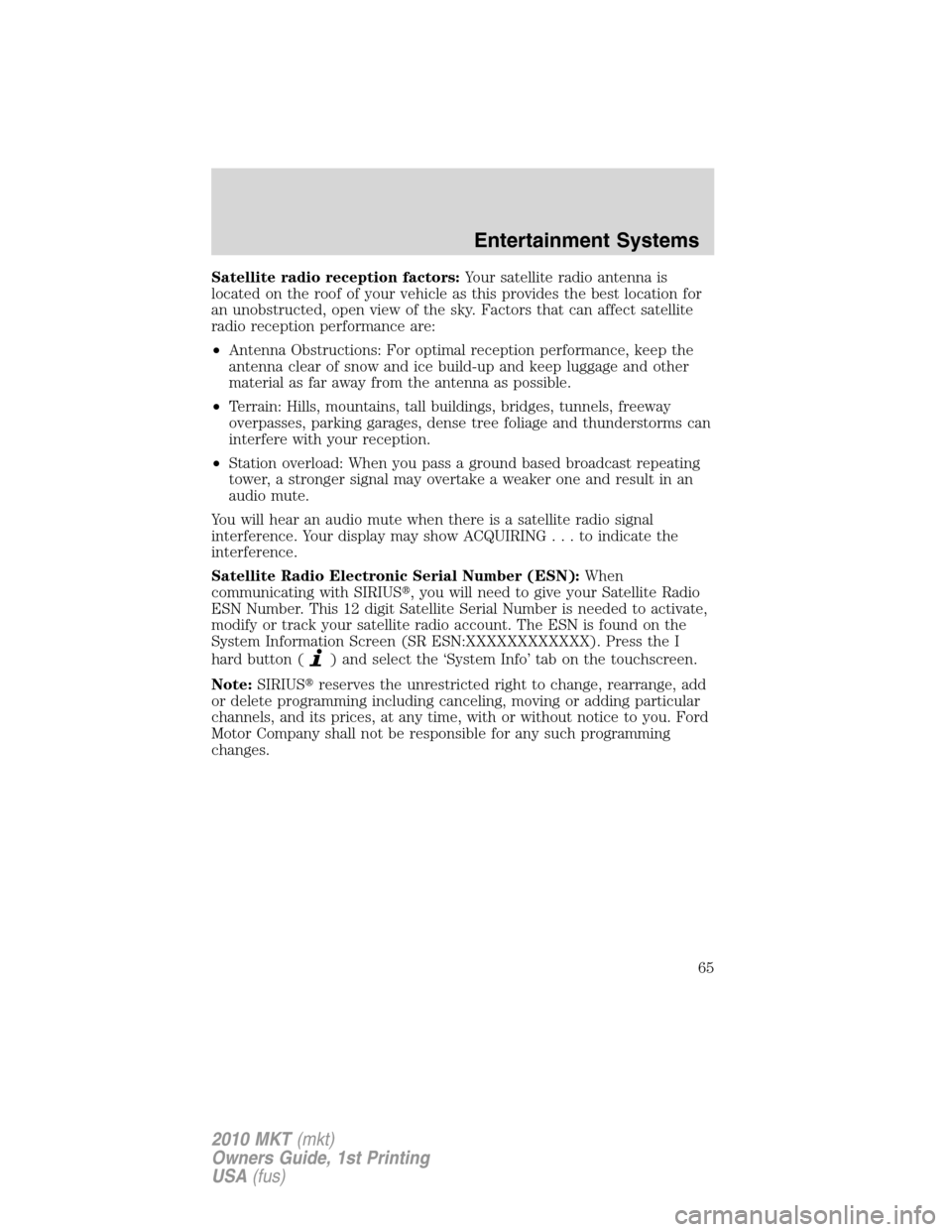

Satellite radio reception factors:Your satellite radio antenna is
located on the roof of your vehicle as this provides the best location for
an unobstructed, open view of the sky. Factors that can affect satellite
radio reception performance are:
•Antenna Obstructions: For optimal reception performance, keep the
antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.
•Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.
•Station overload: When you pass a ground based broadcast repeating
tower, a stronger signal may overtake a weaker one and result in an
audio mute.
You will hear an audio mute when there is a satellite radio signal
interference. Your display may show ACQUIRING...toindicatethe
interference.
Satellite Radio Electronic Serial Number (ESN):When
communicating with SIRIUS
, you will need to give your Satellite Radio
ESN Number. This 12 digit Satellite Serial Number is needed to activate,
modify or track your satellite radio account. The ESN is found on the
System Information Screen (SR ESN:XXXXXXXXXXXX). Press the I
hard button (
) and select the ‘System Info’ tab on the touchscreen.
Note:SIRIUS
reserves the unrestricted right to change, rearrange, add
or delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming
changes.
Entertainment Systems
65
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Dual Play:Dual play is when the rear seat passengers choose to listen
to a different playing media than the front seat passengers. With the
DVD and rear seat controls turned on, the rear seat passengers may
choose to listen to: Monitor A, Monitor B, AM, FM1, FM2 SR1, SR2, SR3
(satellite radio, if equipped), Disc, Jukebox (if equipped), or SYNC
(if
equipped). While the front speakers play the chosen selection for the
front audio system, the rear seat passengers can listen to another over
the headphones. The headphone icon will appear in the display
indicating that the headphones are active.
You can access dual play mode in any of the following ways:
•If your vehicle is equipped with a touchscreen system:
a.Ensure that the vehicle ignition is turned on. Inserting a DVD into
the system will automatically activate dual play mode.
b.Press the RADIO or MEDIA hard button. Select the ‘Rear Zone’ tab
on the touchscreen and select ‘On’ for the headphones and ‘Enabled’
for the rear controls. To return to single zone, select ‘Off’ for the
headphones.
•If your vehicle is equipped with a non-touchscreen system:
a.Press the headphone/speaker (
/) button on the remote
control or DVD system. Press again on both headrest systems to
return to single play mode.
b.Press the 2 and 4 memory presets on the radio at the same time.
Press again to return to single play mode.
Note:If the front seat passengers are listening to the radio, the rear seat
passengers can also listen to the radio; however, they will be limited to
listening to the same radio channel.
•Once you have entered Dual play mode, the Channel A or Channel B
controls on the headphones are now active. Both Channel A and
Channel B can be listened to on the wired headphones (not included)
or on the infrared (IR) wireless headphones.
•On the wireless headphones, select the Channel A or Channel B
buttons on each pair of wireless headphones.
•Press MEDIA to change the audio source for the Channel A or
Channel B headphones. (This information will display on the DVD
system screen).
Note:Channel B headphones can only listen to either the DVD media,
Monitor A or the DVD system auxiliary inputs. Channel A headphones
have access to all available media sources.
Entertainment Systems
79
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

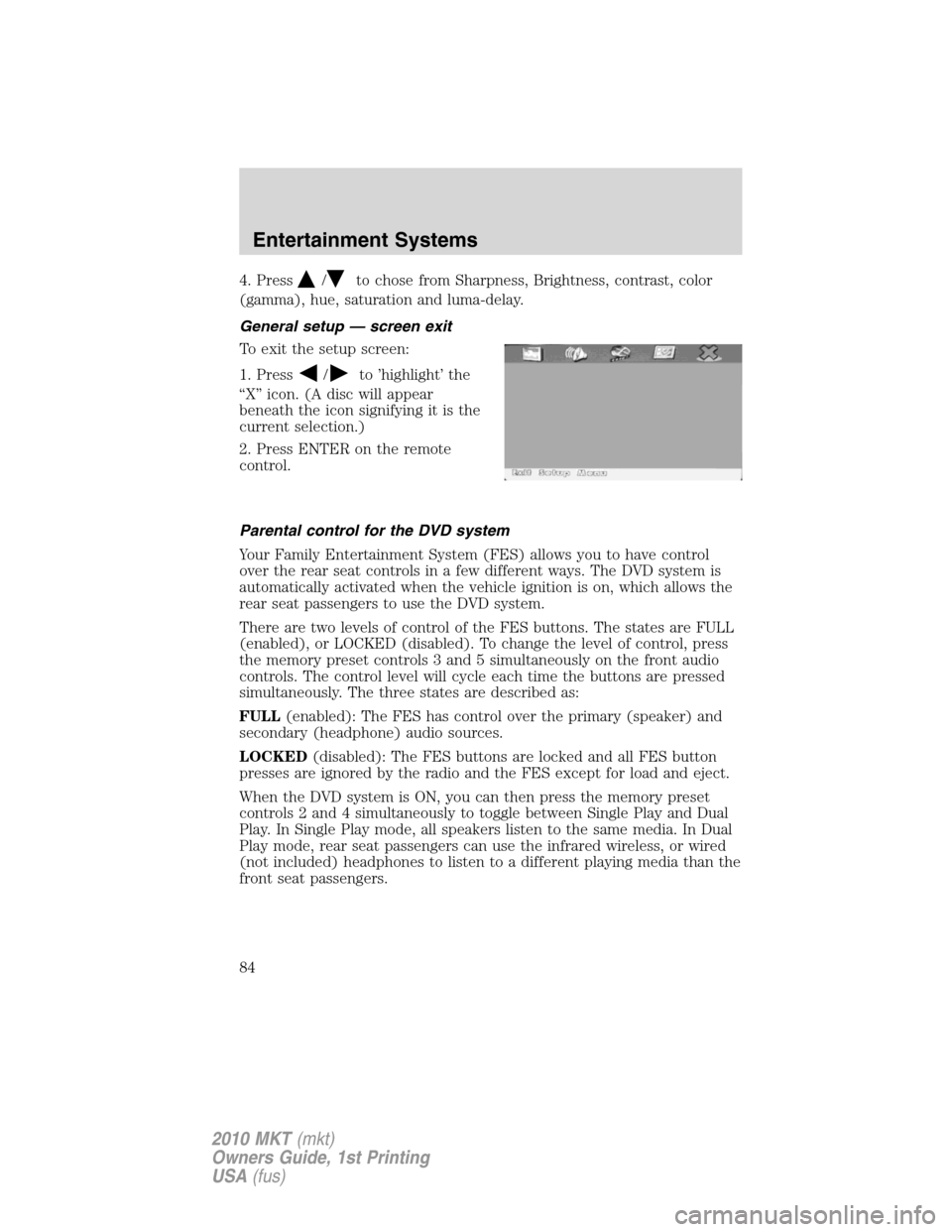

4. Press/to chose from Sharpness, Brightness, contrast, color
(gamma), hue, saturation and luma-delay.
General setup — screen exit
To exit the setup screen:
1. Press
/to ’highlight’ the
“X” icon. (A disc will appear
beneath the icon signifying it is the
current selection.)
2. Press ENTER on the remote
control.
Parental control for the DVD system
Your Family Entertainment System (FES) allows you to have control
over the rear seat controls in a few different ways. The DVD system is
automatically activated when the vehicle ignition is on, which allows the
rear seat passengers to use the DVD system.
There are two levels of control of the FES buttons. The states are FULL
(enabled), or LOCKED (disabled). To change the level of control, press
the memory preset controls 3 and 5 simultaneously on the front audio
controls. The control level will cycle each time the buttons are pressed
simultaneously. The three states are described as:
FULL(enabled): The FES has control over the primary (speaker) and
secondary (headphone) audio sources.
LOCKED(disabled): The FES buttons are locked and all FES button
presses are ignored by the radio and the FES except for load and eject.
When the DVD system is ON, you can then press the memory preset
controls 2 and 4 simultaneously to toggle between Single Play and Dual
Play. In Single Play mode, all speakers listen to the same media. In Dual
Play mode, rear seat passengers can use the infrared wireless, or wired
(not included) headphones to listen to a different playing media than the
front seat passengers.
Entertainment Systems
84
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

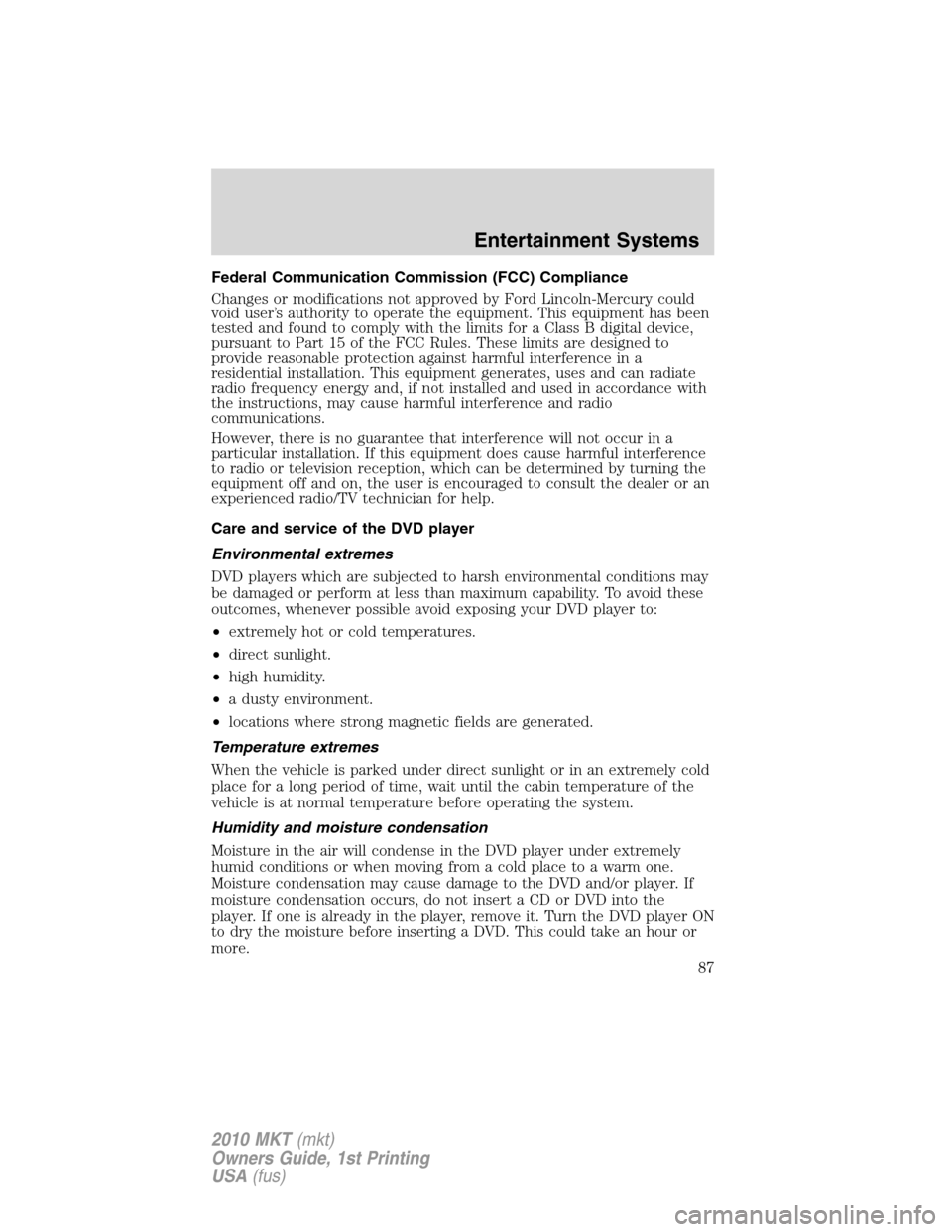

Federal Communication Commission (FCC) Compliance
Changes or modifications not approved by Ford Lincoln-Mercury could
void user’s authority to operate the equipment. This equipment has been
tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference and radio
communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to consult the dealer or an
experienced radio/TV technician for help.
Care and service of the DVD player
Environmental extremes
DVD players which are subjected to harsh environmental conditions may
be damaged or perform at less than maximum capability. To avoid these
outcomes, whenever possible avoid exposing your DVD player to:
•extremely hot or cold temperatures.
•direct sunlight.
•high humidity.
•a dusty environment.
•locations where strong magnetic fields are generated.
Temperature extremes
When the vehicle is parked under direct sunlight or in an extremely cold
place for a long period of time, wait until the cabin temperature of the
vehicle is at normal temperature before operating the system.
Humidity and moisture condensation
Moisture in the air will condense in the DVD player under extremely
humid conditions or when moving from a cold place to a warm one.
Moisture condensation may cause damage to the DVD and/or player. If
moisture condensation occurs, do not insert a CD or DVD into the
player. If one is already in the player, remove it. Turn the DVD player ON
to dry the moisture before inserting a DVD. This could take an hour or
more.
Entertainment Systems
87
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

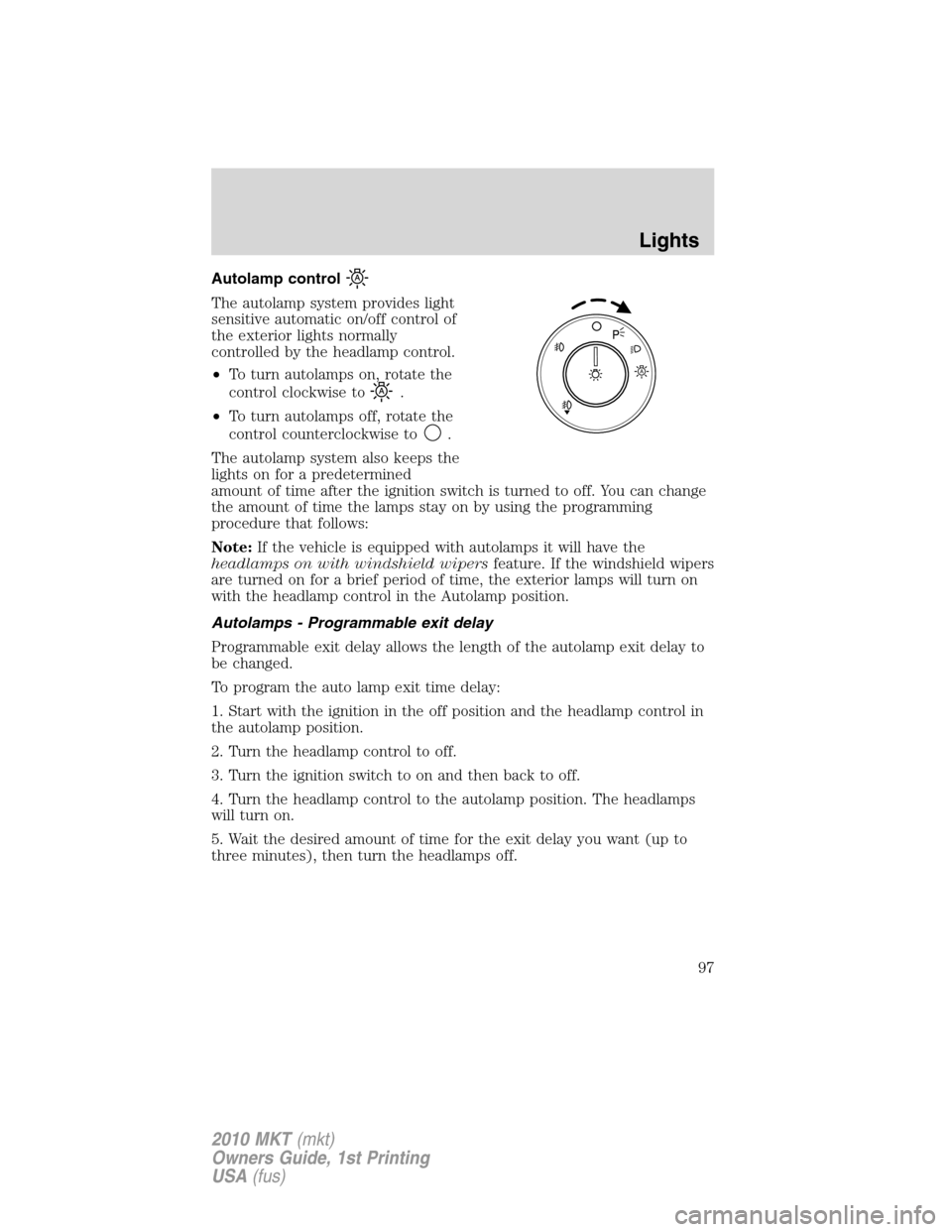

Autolamp control
The autolamp system provides light
sensitive automatic on/off control of
the exterior lights normally
controlled by the headlamp control.
•To turn autolamps on, rotate the
control clockwise to
.
•To turn autolamps off, rotate the
control counterclockwise to
.
The autolamp system also keeps the
lights on for a predetermined
amount of time after the ignition switch is turned to off. You can change
the amount of time the lamps stay on by using the programming
procedure that follows:
Note:If the vehicle is equipped with autolamps it will have the
headlamps on with windshield wipersfeature. If the windshield wipers
are turned on for a brief period of time, the exterior lamps will turn on
with the headlamp control in the Autolamp position.
Autolamps - Programmable exit delay
Programmable exit delay allows the length of the autolamp exit delay to
be changed.
To program the auto lamp exit time delay:
1. Start with the ignition in the off position and the headlamp control in
the autolamp position.
2. Turn the headlamp control to off.
3. Turn the ignition switch to on and then back to off.
4. Turn the headlamp control to the autolamp position. The headlamps
will turn on.
5. Wait the desired amount of time for the exit delay you want (up to
three minutes), then turn the headlamps off.
A
Lights
97
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

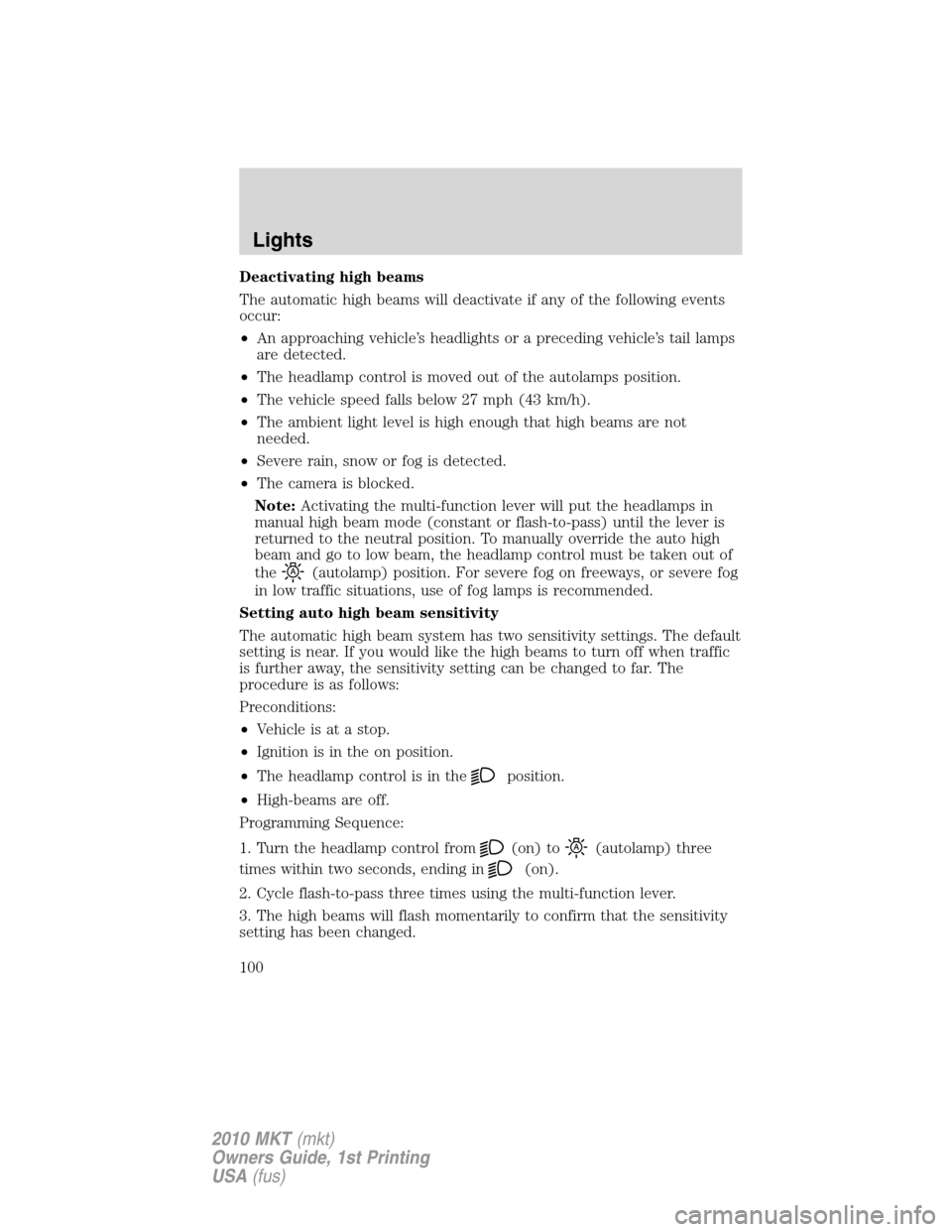

Deactivating high beams
The automatic high beams will deactivate if any of the following events
occur:
•An approaching vehicle’s headlights or a preceding vehicle’s tail lamps
are detected.
•The headlamp control is moved out of the autolamps position.
•The vehicle speed falls below 27 mph (43 km/h).
•The ambient light level is high enough that high beams are not
needed.
•Severe rain, snow or fog is detected.
•The camera is blocked.
Note:Activating the multi-function lever will put the headlamps in
manual high beam mode (constant or flash-to-pass) until the lever is
returned to the neutral position. To manually override the auto high
beam and go to low beam, the headlamp control must be taken out of
the
(autolamp) position. For severe fog on freeways, or severe fog
in low traffic situations, use of fog lamps is recommended.
Setting auto high beam sensitivity
The automatic high beam system has two sensitivity settings. The default
setting is near. If you would like the high beams to turn off when traffic
is further away, the sensitivity setting can be changed to far. The
procedure is as follows:
Preconditions:
•Vehicle is at a stop.
•Ignition is in the on position.
•The headlamp control is in the
position.
•High-beams are off.
Programming Sequence:
1. Turn the headlamp control from
(on) to(autolamp) three
times within two seconds, ending in
(on).
2. Cycle flash-to-pass three times using the multi-function lever.
3. The high beams will flash momentarily to confirm that the sensitivity
setting has been changed.
Lights
100
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
