LINCOLN MKZ 2013 Owners Manual

If your vehicle must be serviced while
you are traveling or living in
Asia-Pacific Region, Sub-Saharan
Africa, U.S. Virgin Islands, Central
America, the Caribbean, and Israel,
contact the nearest authorized dealer.
If the authorized dealer cannot help
you, contact:
FORD MOTOR COMPANY
FORD EXPORT OPERATIONS &
GLOBAL INITIATIVES
1555 Fairlane Drive
Fairlane Business Park #3
Allen Park, Michigan 48101
U.S.A.
Telephone: (313) 594-4857
For customers in Guam, the
Commonwealth of the Northern
Mariana Islands (CNMI), America
Samoa, and the U.S. Virgin Islands,
please feel free to call our Toll-Free
Number: (800) 841-FORD (3673).
FAX: (313) 390-0804
Email: [email protected]
If your vehicle must be serviced while
you are traveling or living in Puerto
Rico, contact the nearest authorized
dealer. If the authorized dealer cannot
help you, contact:
Ford International Business
Development Inc.
Customer Relationship Center
P.O. Box 11957
Caparra Heights Station
San Juan, Puerto Rico 00922-1957
Telephone: (800) 841-FORD (3673)
FAX: (313) 390-0804
Email: [email protected]
www.ford.com.pr
If your vehicle must be serviced while
you are traveling or living in the Middle
East, contact the nearest authorized
dealer. If the authorized dealer cannot
help you, contact:
Ford Middle East
Customer Relationship Center
P.O. Box 21470
Dubai, United Arab Emirates
Telephone: +971 4 3326084
Toll-Free Number for the Kingdom of
Saudi Arabia: 800 8971409
Local Telephone Number for Kuwait:
24810575
FAX: +971 4 3327299
Email: [email protected]
www.me.ford.com
If you buy your vehicle in North
America and then relocate to any of
the above locations, register your
vehicle identification number (VIN)
and new address with Ford Motor
Company Export Operations & Global
Growth Initiatives by emailing
[email protected].
If you are in another foreign country,
contact the nearest authorized dealer.
If the authorized dealer employees
cannot help you, they can direct you
to the nearest Ford affiliate office.
Customers in the U.S. should call
1-800-392-3673.
ORDERING ADDITIONAL
OWNER'S LITERATURE
To order the publications in this
portfolio, contact Helm, Incorporated
at:
248
Customer Assistance

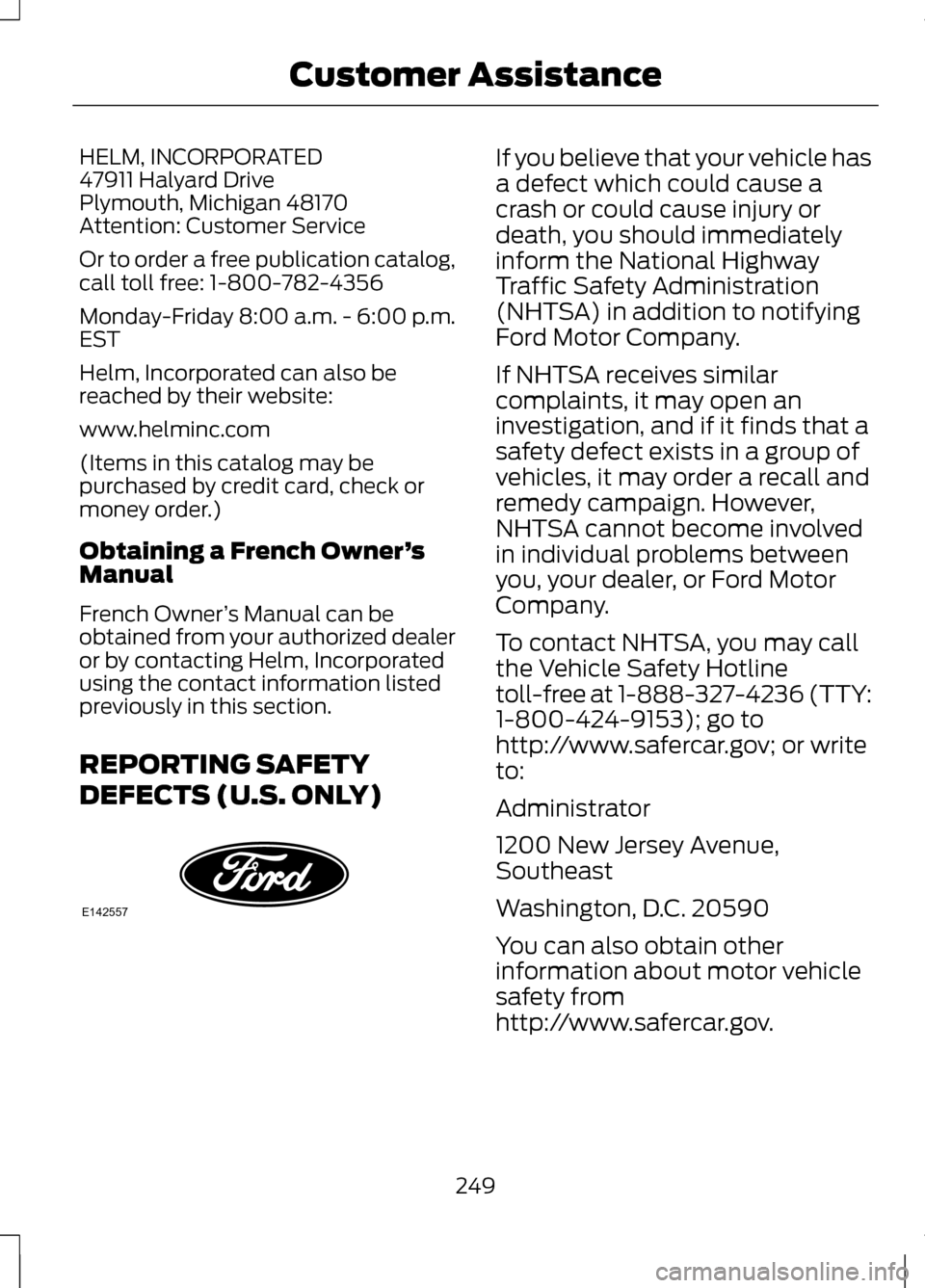

HELM, INCORPORATED
47911 Halyard Drive
Plymouth, Michigan 48170
Attention: Customer Service
Or to order a free publication catalog,
call toll free: 1-800-782-4356
Monday-Friday 8:00 a.m. - 6:00 p.m.
EST
Helm, Incorporated can also be
reached by their website:
www.helminc.com
(Items in this catalog may be
purchased by credit card, check or
money order.)
Obtaining a French Owner
’s
Manual
French Owner ’s Manual can be
obtained from your authorized dealer
or by contacting Helm, Incorporated
using the contact information listed
previously in this section.
REPORTING SAFETY
DEFECTS (U.S. ONLY) If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately
inform the National Highway
Traffic Safety Administration
(NHTSA) in addition to notifying
Ford Motor Company.
If NHTSA receives similar
complaints, it may open an
investigation, and if it finds that a
safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Ford Motor
Company.
To contact NHTSA, you may call
the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY:
1-800-424-9153); go to
http://www.safercar.gov; or write
to:
Administrator
1200 New Jersey Avenue,
Southeast
Washington, D.C. 20590
You can also obtain other
information about motor vehicle
safety from
http://www.safercar.gov.
249
Customer AssistanceE142557

REPORTING SAFETY
DEFECTS (CANADA ONLY)
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform Transport
Canada.Transport Canada Contact Information
https://wwwapps.tc.gc.ca/Saf-Sec-Sur/7/PCDB-BDPP/Index.aspx
Website
1–800–333–0510
Phone
250
Customer Assistance

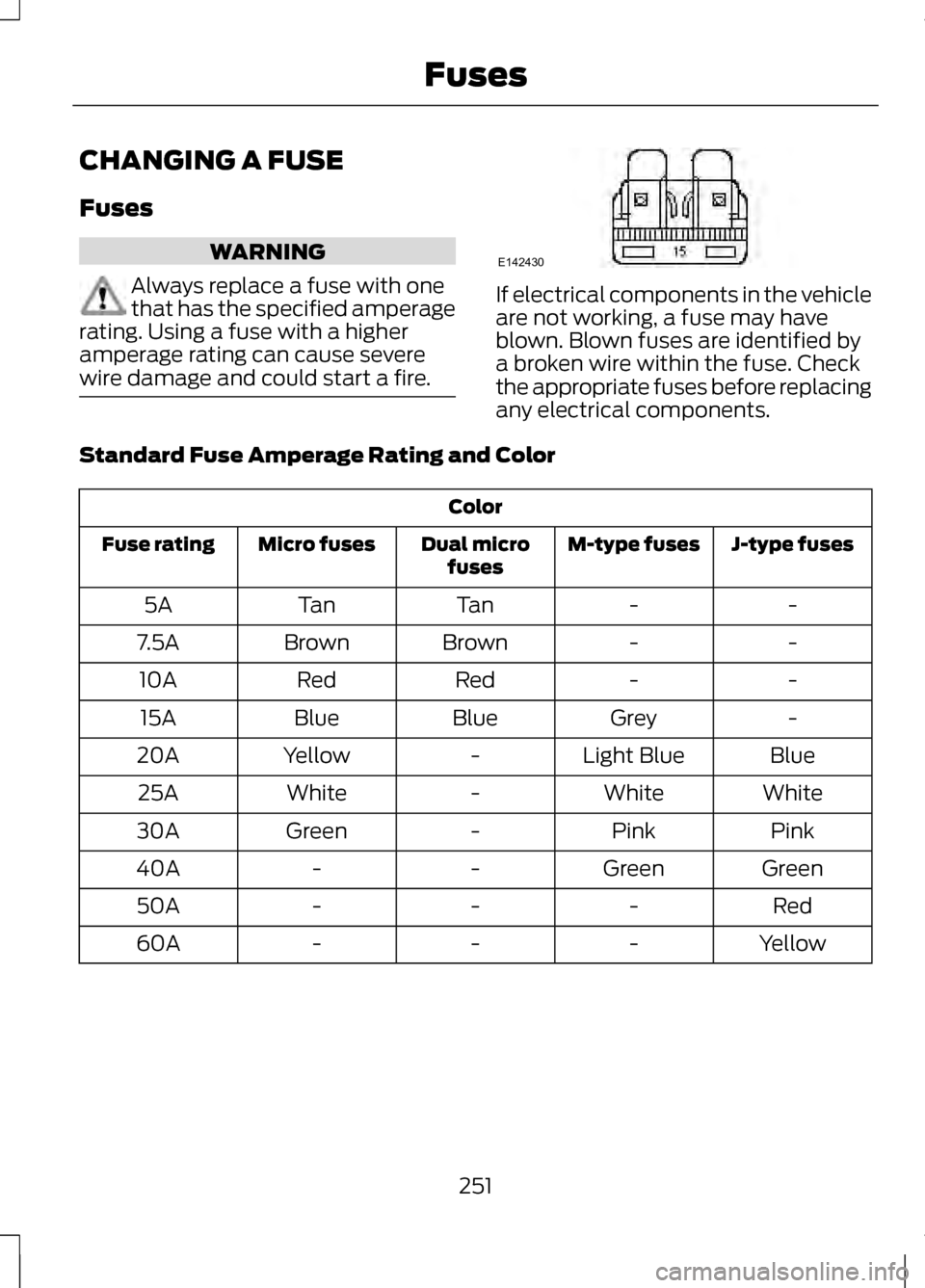

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one
that has the specified amperage
rating. Using a fuse with a higher
amperage rating can cause severe
wire damage and could start a fire. If electrical components in the vehicle
are not working, a fuse may have
blown. Blown fuses are identified by
a broken wire within the fuse. Check
the appropriate fuses before replacing
any electrical components.
Standard Fuse Amperage Rating and Color Color
J-type fuses
M-type fuses
Dual micro
fuses
Micro fuses
Fuse rating
-
-
Tan
Tan
5A
-
-
Brown
Brown
7.5A
-
-
Red
Red
10A
-
Grey
Blue
Blue
15A
Blue
Light Blue
-
Yellow
20A
White
White
-
White
25A
Pink
Pink
-
Green
30A
Green
Green
-
-
40A
Red
-
-
-
50A
Yellow
-
-
-
60A
251
FusesE142430

FUSE SPECIFICATION
CHART
Power Distribution Box
WARNINGS
Always disconnect the battery
before servicing high-current
fuses. To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling
fluid reservoirs. The power distribution box is in the
engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.
If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V
Battery (page 277). The high-current fuses are coded as
follows:
252
FusesE144783

Protected components
Fuse amp rating
Fuse or relay
number
Not used (spare)
25A 3
1
Starter relay
-
2
Autowipers
15A 1
3
Blower motor relay
-
4
Power point 3 - Back of console
20A 3
5
Not used
-
6
Powertrain control module - vehicle
power 1
20A
1
7
Powertrain control module - vehicle
power 2
20A
1
8
Powertrain control module relay
-
9
Power point 1 - driver front
20A 3
10
Powertrain control module - vehicle
power 4
15A
2
11
Powertrain control module - vehicle
power 3
15A
2
12
Powertrain control module - vehicle
power 5
10A
2
13
Powertrain control module - vehicle
power 6
10A
2
14
Run/start relay
-
15
Power point 2 - console
20A 3
16
Not used
-
17
Powertrain control module - keep
alive power
10A
1
18
253
Fuses

Protected components
Fuse amp rating
Fuse or relay
number
Electronic power assist steering
10A 1
19
Run/start lighting
10A 1
20
Run/start transmission control,
Transmission oil pump start/stop
15A
1
21
Air conditioner clutch solenoid
10A 1
22
Blind spot information system, Rear
view camera, Adaptive cruise control,
Heads-up display, Shifter
15A
1
23
Not used
-
24
Anti-lock brake system
10A 2
25
Powertrain control module
10A 2
26
Not used
-
27
Not used
-
28
Not used
-
29
Not used
-
30
Not used
-
31
Electronic fan #1 relay
-
32
Air conditioner clutch relay
-
33
Not used
-
34
Not used
-
35
Not used
-
36
Not used
-
37
Electronic fan #2 relay
-
38
Electronic fan #3 relay
-
39
254
Fuses

Protected components
Fuse amp rating
Fuse or relay
number
Fuel pump relay
-
40
Horn relay
-
41
Not used
-
42
Not used
-
43
Not used
-
44
Not used
-
45
Alternator
10A 2
46
Brake on/off switch
10A 2
47
Horn
20A 1
48
Mass air flow monitor
5A 1
49
Not used
-
50
Not used
-
51
Not used
-
52
Power seats
10A 1
53
Not used
-
54
Not used
-
55
1 Micro fuse
2 Dual micro fuse
3 M-type fuse
Power Distribution Box - Bottom
There are fuses located on the bottom
of the fuse box. To access the bottom
of the fuse box, do the following:
255
Fuses

1. Release the two latches, located
on both sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse
box to access the bottom side.
The high-current fuses are coded as
follows:
256
FusesE145983

Protected components
Fuse amp rating
Fuse or relay
number
Fuel pump feed
30A 1
56
Not used
-
57
Not used
-
58
500W electronic fan 3
30A 1
59
500W electronic fan 1
30A 1
60
Not used
-
61
Body control module 1
50A 2
62
500W electronic fan 2
20A 1
63
Not used
-
64
257
FusesE144949
