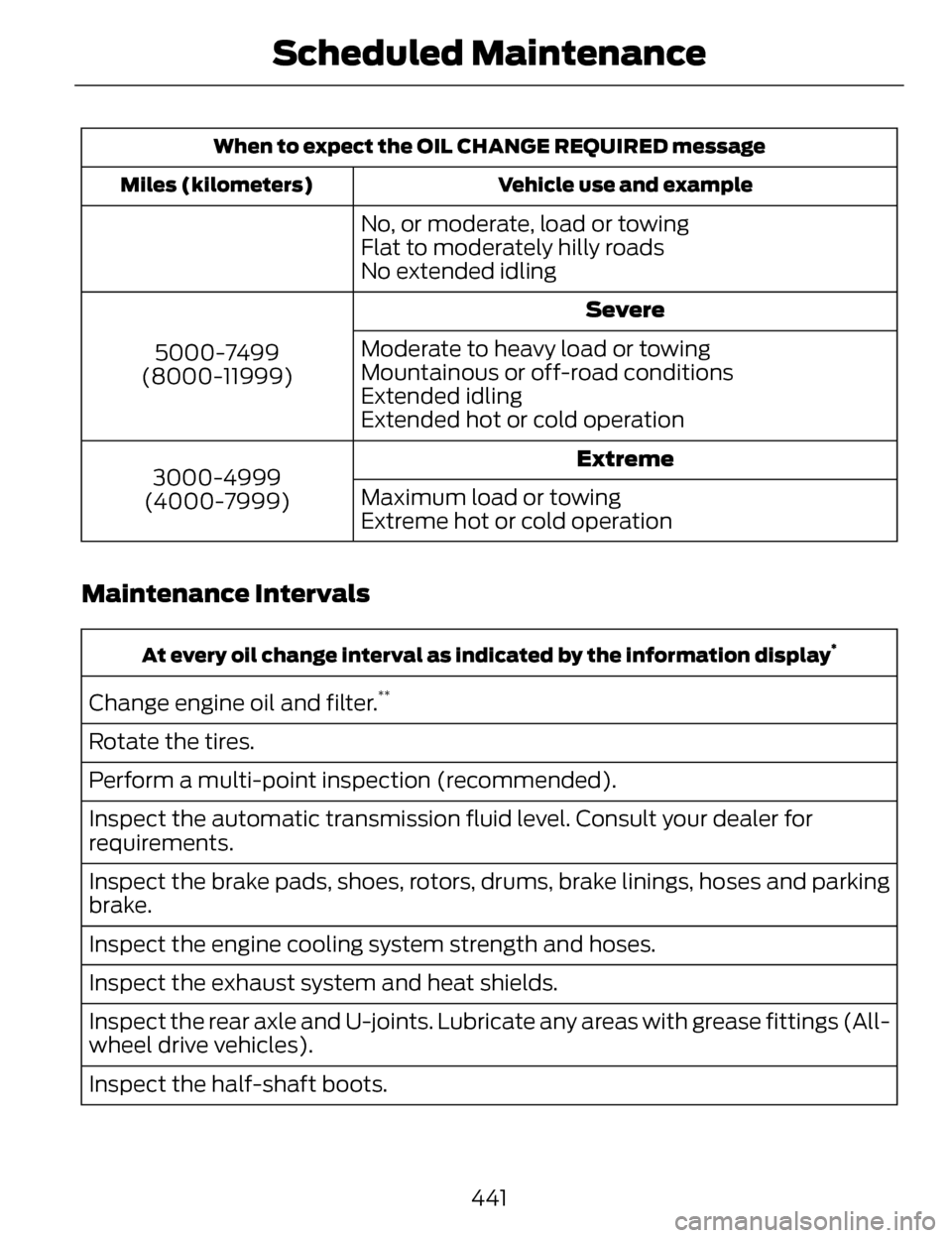

When to expect the OIL CHANGE REQUIRED messageVehicle use and example
Miles (kilometers)
No, or moderate, load or towing
Flat to moderately hilly roads
No extended idling
Severe
5000-7499
(8000-11999) Moderate to heavy load or towing
Mountainous or off-road conditions
Extended idling
Extended hot or cold operation
Extreme
3000-4999
(4000-7999) Maximum load or towing
Extreme hot or cold operation
Maintenance Intervals
At every oil change interval as indicated by the information display*
Change engine oil and filter.**
Rotate the tires.
Perform a multi-point inspection (recommended).
Inspect the automatic transmission fluid level. Consult your dealer for
requirements.
Inspect the brake pads, shoes, rotors, drums, brake linings, hoses and parking
brake.
Inspect the engine cooling system strength and hoses.
Inspect the exhaust system and heat shields.
Inspect the rear axle and U-joints. Lubricate any areas with grease fittings (All-
wheel drive vehicles).
Inspect the half-shaft boots.
441
Scheduled Maintenance

At every oil change interval as indicated by the information display*
Inspect the steering linkage, ball joints, suspension, tire-rod ends, driveshaft
and U-joints. Lubricate any areas with grease fittings (All-wheel drive vehicles).
Inspect the tires, tire wear and measure the tread depth.
Inspect the wheels and related components for abnormal noise, wear, loose-
ness or drag.
* Do not exceed one year or 10000 miles (16000 kilometers) between service
intervals.
** Reset the Intelligent Oil-Life Monitor after engine oil and filter changes. See
Engine Oil Check (page 271).
Other maintenance items 1
Replace cabin air filter.
Every 20000 miles
(32000 km)
Replace engine air filter.
Every 30000 miles
(48000 km)
Change engine coolant.
2At 100000 miles
(160000 km)Replace spark plugs.
Every 100000 miles
(160000 km) Inspect accessory drive belt(s).
3
Change automatic transmission fluid.
Every 150000 miles
(240000 km)
Replace accessory drive belt(s).
4
1
Perform these maintenance items within 3000 miles (4800 kilometers) of
the last engine oil and filter change. Do not exceed the designated distance for
the interval.
2 Initial replacement at six years or 100000 miles (160000 kilometers), then
every three years or 50000 miles (80000 kilometers).
3 After initial inspection, inspect every other oil change until replaced.
4 If not replaced within the last 100000 miles (160000 kilometers).
442
Scheduled Maintenance

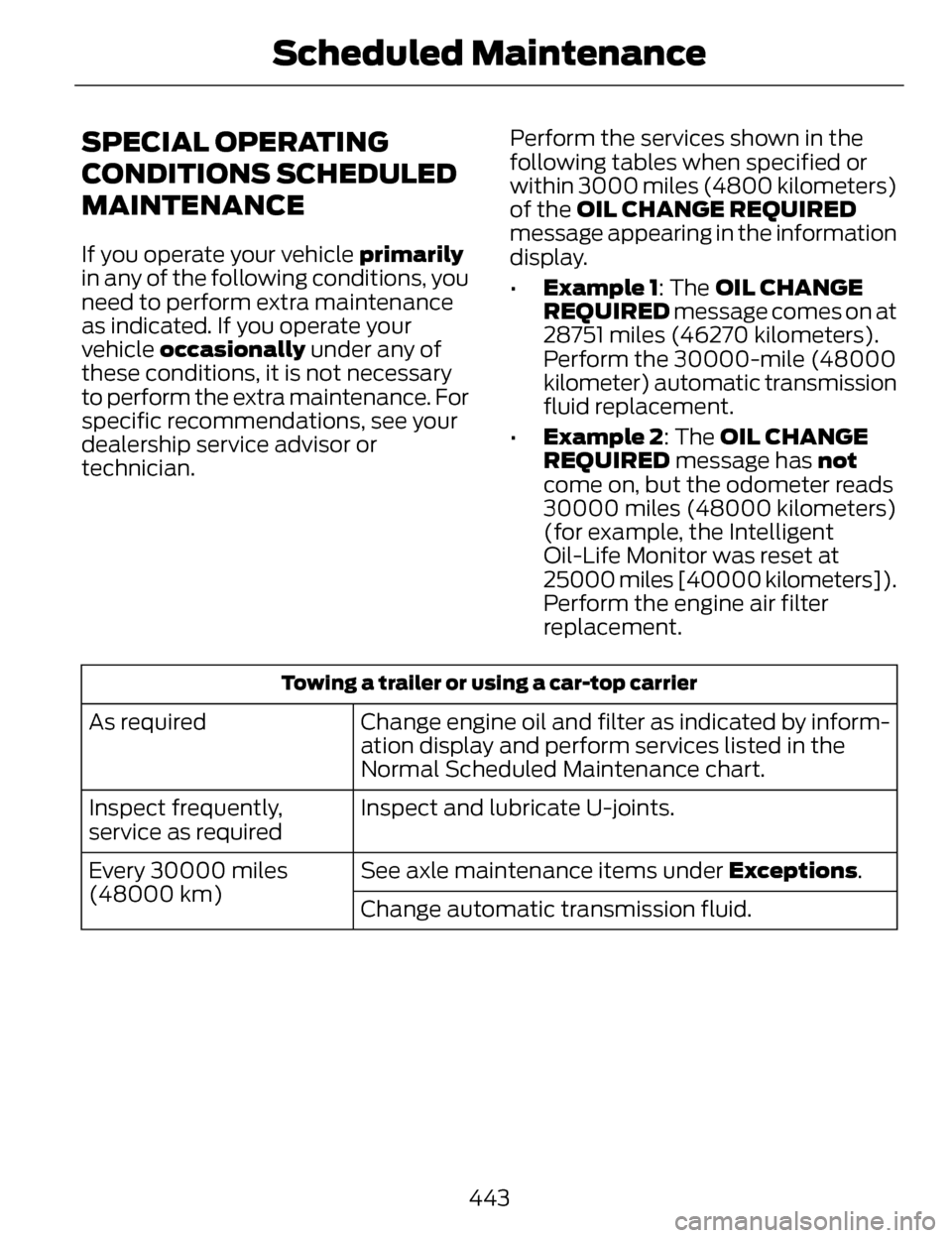

SPECIAL OPERATING
CONDITIONS SCHEDULED
MAINTENANCE
If you operate your vehicle primarily
in any of the following conditions, you
need to perform extra maintenance
as indicated. If you operate your
vehicle occasionally under any of
these conditions, it is not necessary
to perform the extra maintenance. For
specific recommendations, see your
dealership service advisor or
technician. Perform the services shown in the
following tables when specified or
within 3000 miles (4800 kilometers)
of the OIL CHANGE REQUIRED
message appearing in the information
display.
•
Example 1: The OIL CHANGE
REQUIRED message comes on at
28751 miles (46270 kilometers).
Perform the 30000-mile (48000
kilometer) automatic transmission
fluid replacement.
• Example 2: The OIL CHANGE
REQUIRED message has not
come on, but the odometer reads
30000 miles (48000 kilometers)
(for example, the Intelligent
Oil-Life Monitor was reset at
25000 miles [40000 kilometers]).
Perform the engine air filter
replacement.
Towing a trailer or using a car-top carrier
Change engine oil and filter as indicated by inform-
ation display and perform services listed in the
Normal Scheduled Maintenance chart.
As required
Inspect and lubricate U-joints.
Inspect frequently,
service as required
See axle maintenance items under Exceptions.
Every 30000 miles
(48000 km)
Change automatic transmission fluid.
443
Scheduled Maintenance

Extensive idling or low-speed driving for long distances, as in heavy commercialuse (such as delivery, taxi, patrol car or livery)
Change engine oil and filter as indicated by inform-
ation display and perform services listed in the
Normal Scheduled Maintenance chart.
As required
Replace cabin air filter.
Inspect frequently,
service as required
Replace engine air filter.
Change automatic transmission fluid.
Every 30000 miles
(48000 km)
Replace spark plugs.
Every 60000 miles
(96000 km)
Operating in dusty or sandy conditions (such as unpaved or dusty roads)
Replace cabin air filter.
Inspect frequently,
service as required
Replace engine air filter.
Inspect the wheels and related components for
abnormal noise, wear, looseness or drag.
Every 5000 miles (8000
km)
Rotate tires, inspect tires for wear and measure
tread depth.
Change engine oil and filter.
*Every 5000 miles (8000
km) or six monthsPerform multi-point inspection.
Change automatic transmission fluid.
Every 30000 miles
(48000 km)
*Reset your Intelligent Oil-Life Monitor after engine oil and filter changes. See
Engine Oil Check (page 271).
Exclusive use of E85 (flex fuel vehicles only)
If ran exclusively on E85, fill the fuel tank full with
regular unleaded fuel.
Every oil change
444
Scheduled Maintenance

Entertainment.....................................364A/V Inputs..................................................383
AM/FM Radio............................................366
Bluetooth Audio.......................................383
Browsing Device Content.....................364
CD...................................................................377
SD Card Slot and USB Port..................378
Sirius® Satellite Radio (IfActivated)...............................................372
Supported Media Players, Formats and Metadata Information.......................383
EPBSee: Electric Parking Brake...................180
Essential Towing Checks.................234Before Towing a Trailer..........................235
Hitches.........................................................234
Launching or Retrieving a Boat orPersonal Watercraft (PWC)............235
Safety Chains............................................234
Trailer Brakes.............................................234
Trailer Lamps.............................................235
When Towing a Trailer...........................235
Event Data RecordingSee: Data Recording....................................9
Export Unique Options........................13
Exterior Mirrors......................................89
Auto-Dimming Feature...........................90
Blind Spot Monitor.....................................91
Fold-Away Exterior Mirrors....................90
Heated Exterior Mirrors............................90
Integrated Blind Spot Mirrors................90
Memory Mirrors..........................................90
Power Exterior Mirrors..............................89
Signal Indicator Mirrors...........................90
F
Fastening the Safety Belts................32Rear Inflatable Safety Belt......................35
Restraint of Pregnant Women..............33
Safety Belt Extension Assembly..........36
Safety Belt Locking Modes.....................33
Flat Tire InflationSee: Temporary Mobility Kit.................297
Floor Mats..............................................241
Ford Extended Service Plan (ESP)....................................................339
SERVICE PLANS (CANADA
ONLY).......................................................341
SERVICE PLANS (U.S. Only)...............339
Front Passenger Sensing System...................................................45
Fuel and Refueling..............................157
Fuel Consumption..............................163
Calculating Fuel Economy....................163
Filling the Tank..........................................163
Fuel Filter..............................................280
Fuel Quality...........................................158
Choosing the Right Fuel........................158
Octane Recommendations..................158
Fuel Shutoff.........................................244
Fuses.......................................................255
Fuse Specification Chart.................256
Passenger Compartment Fuse
Panel........................................................263
Power Distribution Box..........................256
G
Garage Door OpenerSee: Universal Garage Door Opener......................................................143
Gauges......................................................95Engine Coolant TemperatureGauge.........................................................96
Fuel Gauge...................................................96
Information Display...................................95
General Information on Radio Frequencies..........................................52
Intelligent Access.......................................52
456
Index

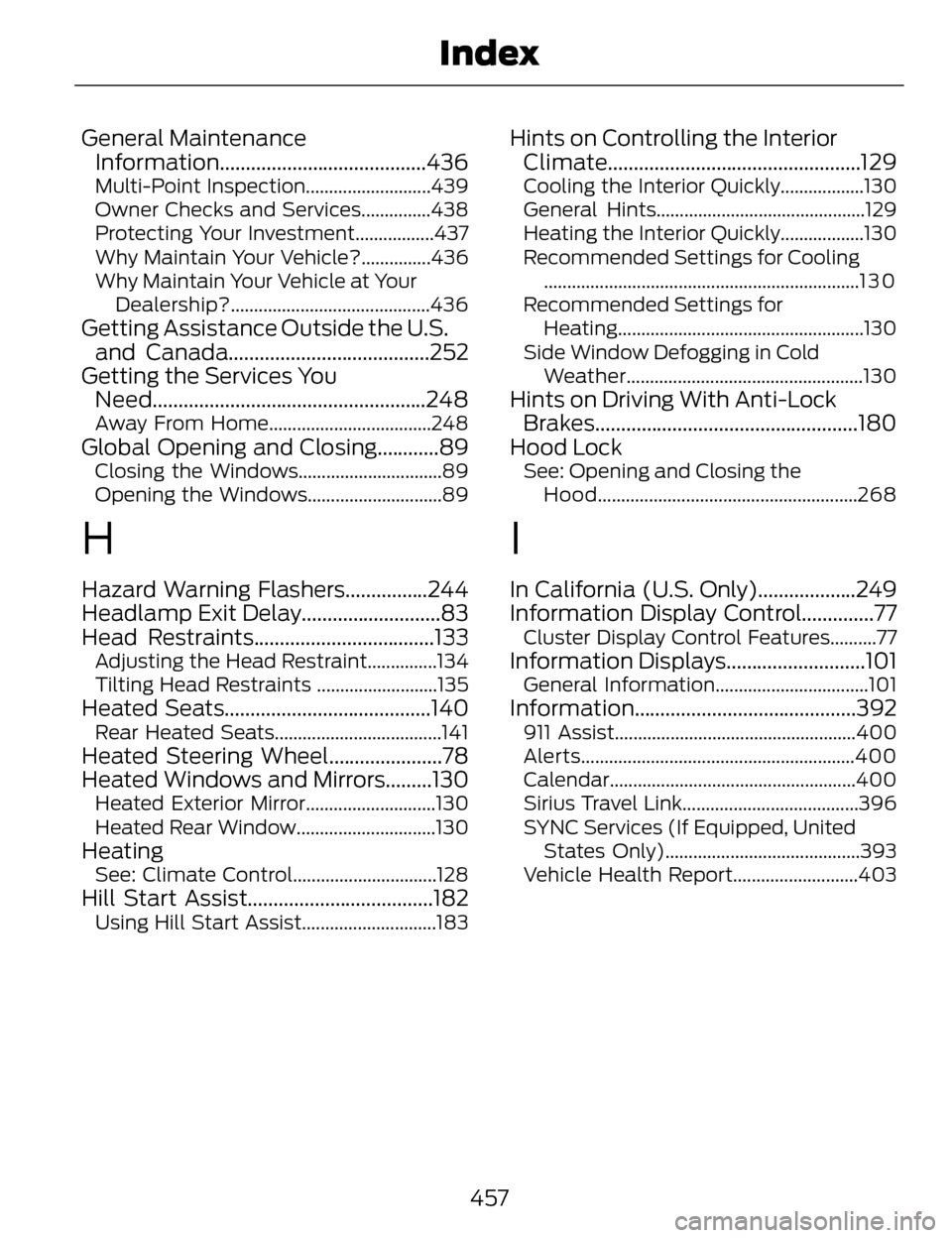

General MaintenanceInformation........................................436
Multi-Point Inspection...........................439
Owner Checks and Services...............438
Protecting Your Investment.................437
Why Maintain Your Vehicle?...............436
Why Maintain Your Vehicle at Your
Dealership?...........................................436
Getting Assistance Outside the U.S.and Canada.......................................252
Getting the Services You Need.....................................................248
Away From Home...................................248
Global Opening and Closing............89Closing the Windows...............................89
Opening the Windows.............................89
H
Hazard Warning Flashers................244
Headlamp Exit Delay...........................83
Head Restraints...................................133
Adjusting the Head Restraint...............134
Tilting Head Restraints ..........................135
Heated Seats........................................140Rear Heated Seats....................................141
Heated Steering Wheel......................78
Heated Windows and Mirrors.........130
Heated Exterior Mirror............................130
Heated Rear Window..............................130
HeatingSee: Climate Control...............................128
Hill Start Assist....................................182Using Hill Start Assist.............................183
Hints on Controlling the InteriorClimate.................................................129
Cooling the Interior Quickly..................130
General Hints.............................................129
Heating the Interior Quickly..................130
Recommended Settings for Cooling
....................................................................1 3 0
Recommended Settings for Heating.....................................................130
Side Window Defogging in Cold Weather...................................................130
Hints on Driving With Anti-LockBrakes...................................................180
Hood Lock
See: Opening and Closing the
Hood........................................................268
I
In California (U.S. Only)...................249
Information Display Control..............77
Cluster Display Control Features..........77
Information Displays...........................101General Information.................................101
Information ...........................................392911 Assist....................................................400
Alerts...........................................................400
Calendar.....................................................400
Sirius Travel Link......................................396
SYNC Services (If Equipped, United
States Only)..........................................393
Vehicle Health Report...........................403
457
Index

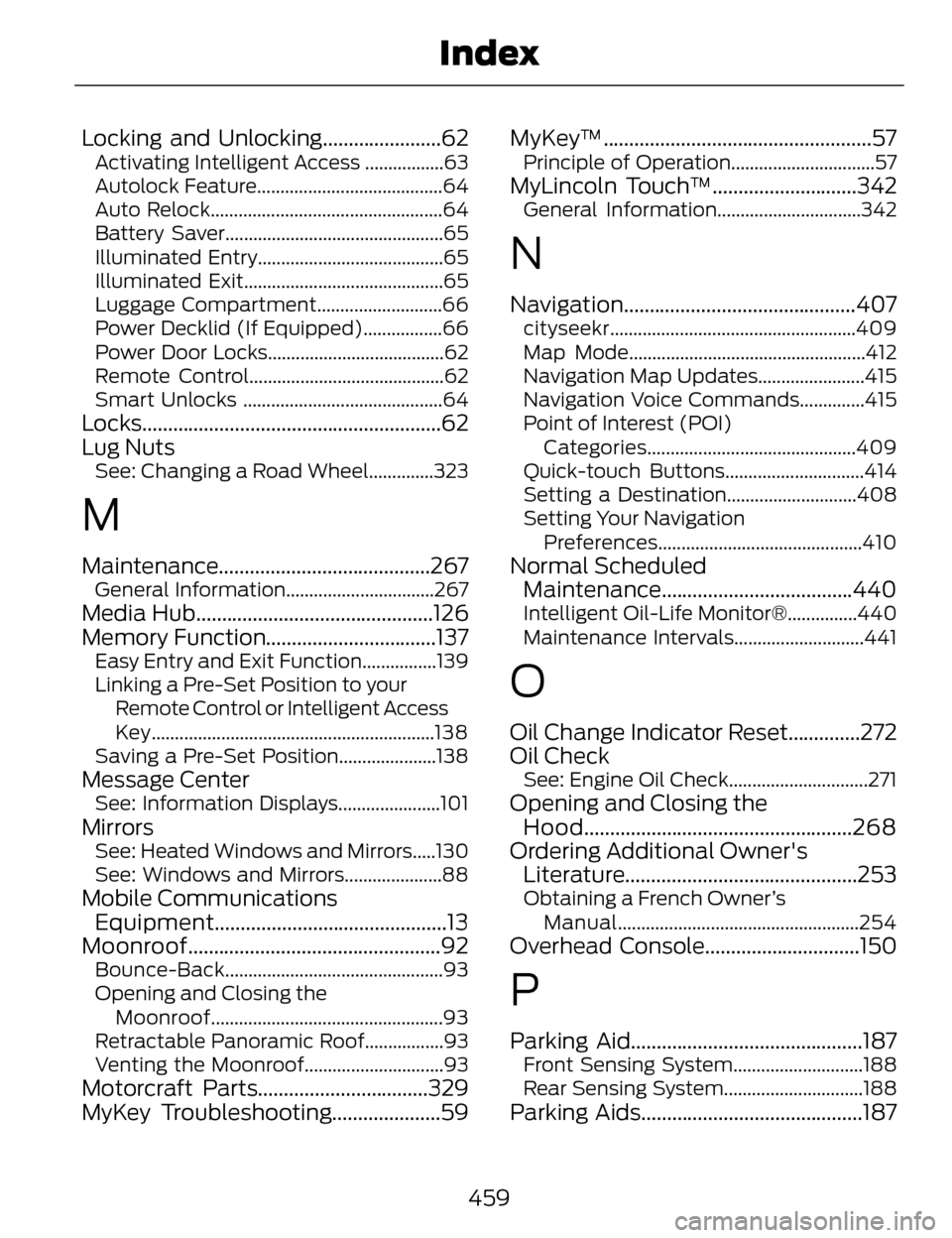

Locking and Unlocking.......................62Activating Intelligent Access .................63
Autolock Feature........................................64
Auto Relock..................................................64
Battery Saver...............................................65
Illuminated Entry........................................65
Illuminated Exit...........................................65
Luggage Compartment...........................66
Power Decklid (If Equipped).................66
Power Door Locks......................................62
Remote Control..........................................62
Smart Unlocks ...........................................64
Locks..........................................................62
Lug Nuts
See: Changing a Road Wheel..............323
M
Maintenance.........................................267General Information................................267
Media Hub..............................................126
Memory Function.................................137
Easy Entry and Exit Function................139
Linking a Pre-Set Position to yourRemote Control or Intelligent Access
Key.............................................................138
Saving a Pre-Set Position.....................138
Message CenterSee: Information Displays......................101
MirrorsSee: Heated Windows and Mirrors.....130
See: Windows and Mirrors.....................88
Mobile Communications Equipment.............................................13
Moonroof.................................................92
Bounce-Back...............................................93
Opening and Closing the
Moonroof..................................................93
Retractable Panoramic Roof.................93
Venting the Moonroof..............................93
Motorcraft Parts.................................329
MyKey Troubleshooting.....................59 MyKey™....................................................57
Principle of Operation...............................57
MyLincoln Touch™............................342General Information...............................342
N
Navigation.............................................407cityseekr.....................................................409
Map Mode...................................................412
Navigation Map Updates.......................415
Navigation Voice Commands..............415
Point of Interest (POI)
Categories.............................................409
Quick-touch Buttons..............................414
Setting a Destination............................408
Setting Your Navigation Preferences............................................410
Normal ScheduledMaintenance.....................................440
Intelligent Oil-Life Monitor®...............440
Maintenance Intervals............................441
O
Oil Change Indicator Reset..............272
Oil Check
See: Engine Oil Check..............................271
Opening and Closing theHood....................................................268
Ordering Additional Owner's Literatur e.............................................253
Obtaining a French Owner’s
Manual....................................................254
Overhead Console..............................150
P
Parking Aid.............................................187Front Sensing System............................188
Rear Sensing System..............................188
Parking Aids...........................................187
459
Index

Running Out of Fuel...........................158Refilling With a Portable FuelContainer.................................................159
S
Safety Belt Height Adjustment.......36
Safety Belt Minder................................38
Belt-Minder®...............................................38
Safety Belts..............................................31Principle of Operation................................31
Safety Belt Warning Lamp andIndicator Chime...................................37
Conditions of operation...........................37
Safety Precautions..............................157
Scheduled MaintenanceRecord.................................................445
Scheduled Maintenance.................436
Seats........................................................133
Security.....................................................72
Settings..................................................352
Clock.............................................................352
Display.........................................................353
Settings.......................................................355
Sound...........................................................354
Vehicle.........................................................354
Side Airbags............................................47
Side Curtain Airbags............................48
Sitting in the Correct Position.........133
Snow Chains
See: Using Snow Chains.......................323
Special Notices.......................................13New Vehicle Limited Warranty...............13
Special Instructions....................................13
Special Operating Conditions Scheduled Maintenance..............443
Exceptions.................................................445
Speed ControlSee: Cruise Control..................................198
Stability Control..................................185Principle of Operation.............................185
Starting a Gasoline Engine..............152Automatic Engine Shutdown...............153
Failure to Start...........................................153
Fast Restart.................................................152
Guarding Against Exhaust
Fumes....................................................... 154
Important Ventilating Information.............................................155
Stopping the Engine When Your Vehicle is Moving..................................154
Stopping the Engine When Your Vehicle is Stationary...........................154
Starting and Stopping theEngine....................................................151
General Information.................................151
Steering...................................................221Electric Power Steering...........................221
Steering Wheel.......................................75
Storage Compartments...................150
Sunroof
See: Moonroof.............................................92
Sun Shades.............................................92
Sun Visors................................................92
Illuminated Vanity Mirror.........................92
Supplementary RestraintsSystem...................................................42
Principle of Operation..............................42
Symbols Glossary....................................7
T
Technical SpecificationsSee: Capacities and Specifications...329
461
Index

Using MyKey With Remote StartSystems.................................................59
Using Snow Chains............................323
Using Stability Control......................186
AdvanceTrac® ..........................................186
Using Traction Control......................184System Indicator Lights and
Messages................................................184
Utilizing the Mediation/ArbitrationProgram (Canada Only)................251
V
Vehicle Care.........................................288General Information...............................288
Vehicle Certification Label..............332
Vehicle Identification Number........331
Vehicle Storage...................................294
Battery.........................................................295
Body.............................................................294
Brakes..........................................................295
Cooling system.........................................295
Engine..........................................................294
Fuel system...............................................294
General........................................................294
Miscellaneous...........................................295
Removing Vehicle From Storage.......295
Tires..............................................................295
Ventilated Seats...................................141Heated and ventilated seat air filter
replacement (if equipped)...............142
VentilationSee: Climate Control...............................128
VINSee: Vehicle Identification Number....331
Voice Control...........................................77
W
Warning Lamps and Indicators.......96Adaptive Cruise Control..........................96
Anti-Lock Braking System.......................97
Battery............................................................97
Blind Spot Monitor.....................................97
Brake System...............................................97
Cruise Control..............................................97
Direction Indicator......................................97
Door Ajar........................................................97
Electric Park Brake.....................................97
Engine Coolant Temperature................98
Engine Oil......................................................98
Fasten Safety Belt.....................................98
Front Airbag.................................................98
Heads Up Display......................................98
High Beam....................................................98
Hood Ajar......................................................98
Low Fuel Level............................................98
Low Tire Pressure Warning....................98
Low Washer Fluid......................................99
Parking Lamps............................................99
Powertrain Fault.........................................99
Service Engine Soon.................................99
Stability Control.........................................99
Stability Control Off................................100
Trunk Ajar....................................................100
Washer Fluid Check..........................280
Washers
See: Cleaning the Exterior....................288
See: Wipers and Washers.......................79
Waxing...................................................289
Wheel Nuts
See: Changing a Road Wheel..............323
Wheels and Tires................................297Technical Specifications.......................328
Windows and Mirrors..........................88
Windshield Washers...........................80
Windshield Wipers...............................79
Intermittent Wipe.......................................79
Speed Dependent Wipers.......................79
463
Index
