LINCOLN MKZ 2014 Owner's Manual

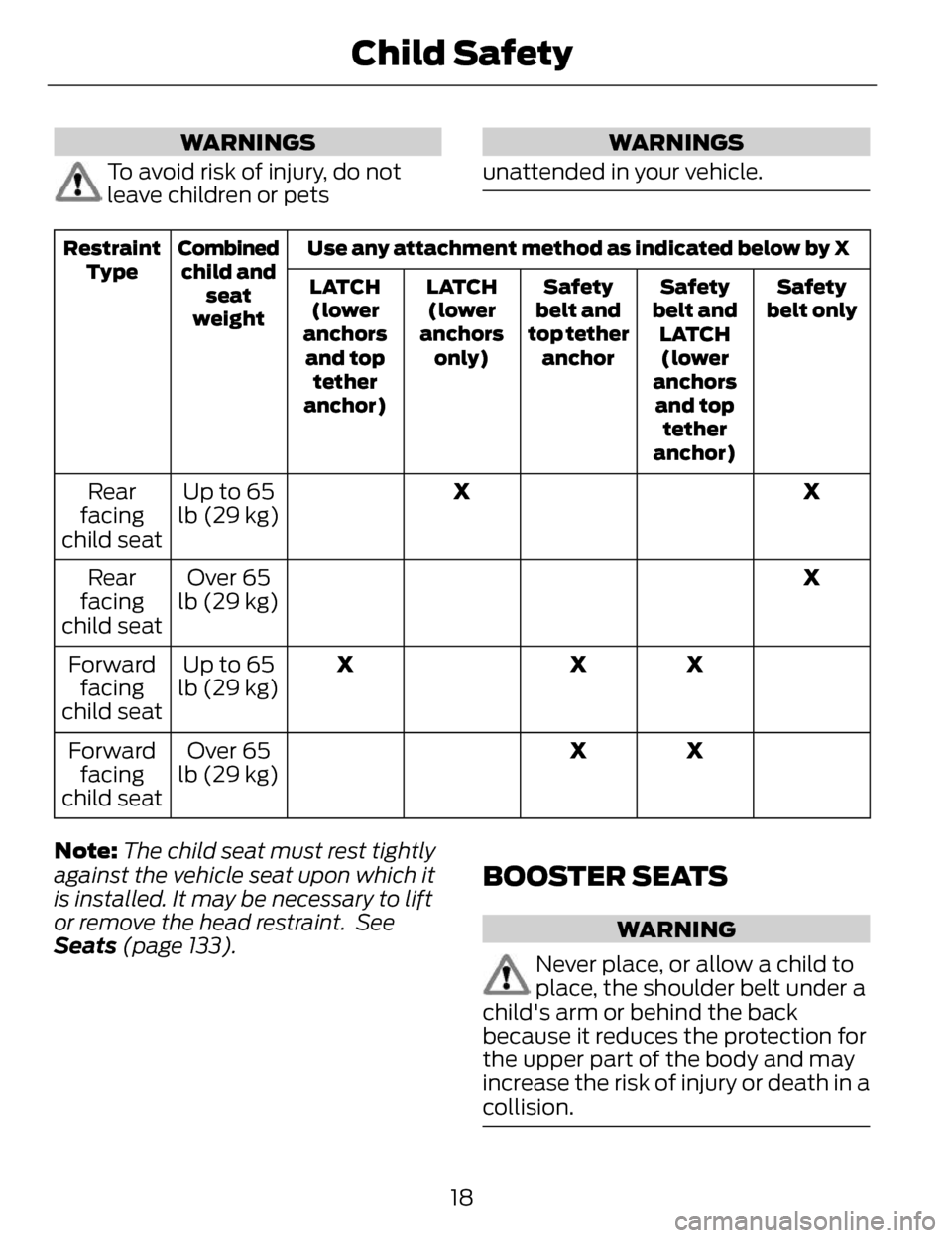

WARNINGS
To avoid risk of injury, do not
leave children or pets
WARNINGS
unattended in your vehicle.
Use any attachment method as indicated below by X
Combined
child and seat
weight
Restraint
Type Safety
belt only
Safety
belt and LATCH(lower
anchors and top tether
anchor)
Safety
belt and
top tether anchor
LATCH
(lower
anchors only)
LATCH
(lower
anchors and top tether
anchor)
X
X
Up to 65
lb (29 kg)
Rear
facing
child seat
X
Over 65
lb (29 kg)
Rear
facing
child seat
X
X
X
Up to 65
lb (29 kg)
Forward
facing
child seat
X
X
Over 65
lb (29 kg)
Forward
facing
child seat
Note: The child seat must rest tightly
against the vehicle seat upon which it
is installed. It may be necessary to lift
or remove the head restraint. See
Seats (page 133).
BOOSTER SEATS
WARNING
Never place, or allow a child to
place, the shoulder belt under a
child's arm or behind the back
because it reduces the protection for
the upper part of the body and may
increase the risk of injury or death in a
collision.
18
Child Safety

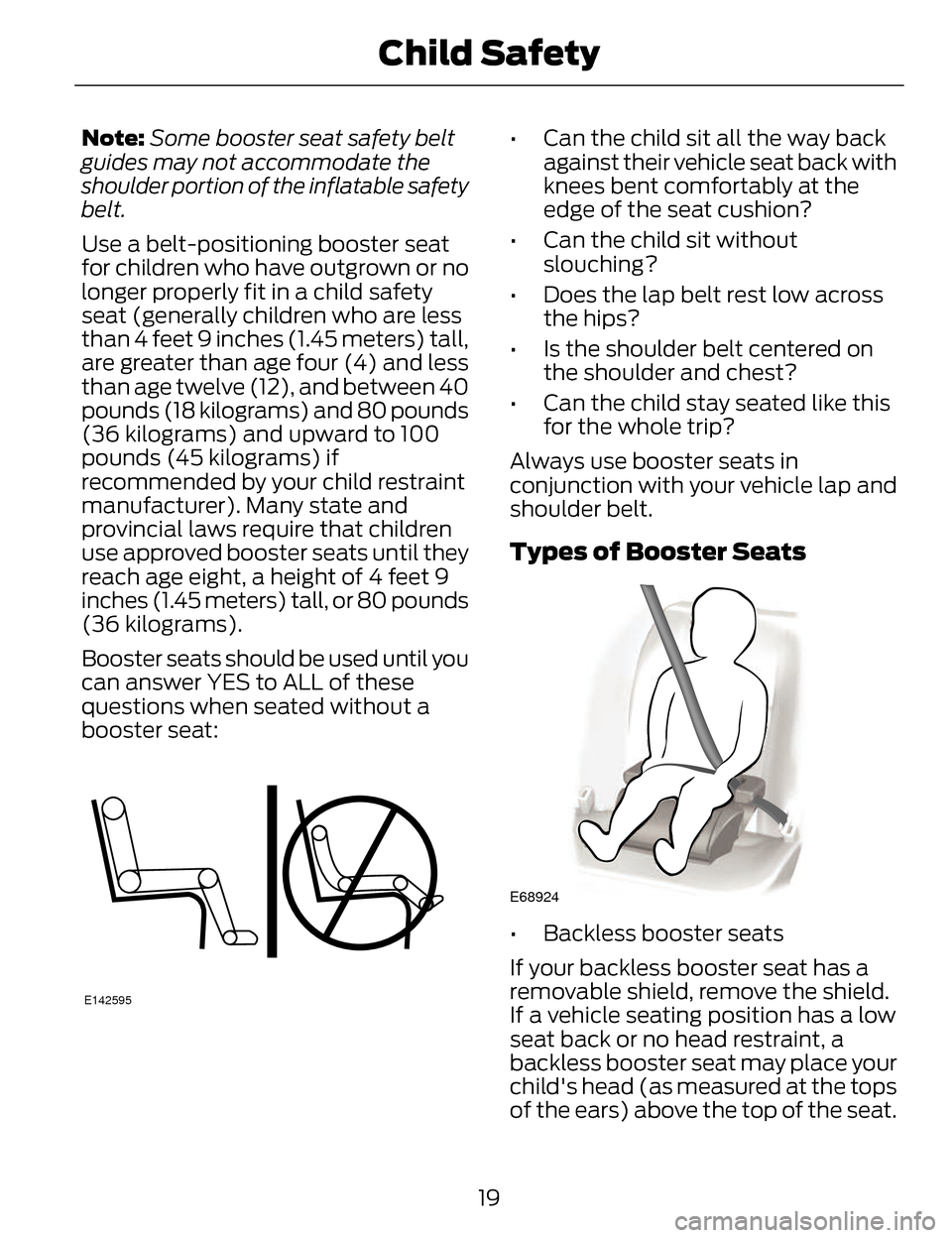

Note:Some booster seat safety belt
guides may not accommodate the
shoulder portion of the inflatable safety
belt.
Use a belt-positioning booster seat
for children who have outgrown or no
longer properly fit in a child safety
seat (generally children who are less
than 4 feet 9 inches (1.45 meters) tall,
are greater than age four (4) and less
than age twelve (12), and between 40
pounds (18 kilograms) and 80 pounds
(36 kilograms) and upward to 100
pounds (45 kilograms) if
recommended by your child restraint
manufacturer). Many state and
provincial laws require that children
use approved booster seats until they
reach age eight, a height of 4 feet 9
inches (1.45 meters) tall, or 80 pounds
(36 kilograms).
Booster seats should be used until you
can answer YES to ALL of these
questions when seated without a
booster seat:
E142595
• Can the child sit all the way back against their vehicle seat back with
knees bent comfortably at the
edge of the seat cushion?
• Can the child sit without slouching?
• Does the lap belt rest low across the hips?
• Is the shoulder belt centered on the shoulder and chest?
• Can the child stay seated like this for the whole trip?
Always use booster seats in
conjunction with your vehicle lap and
shoulder belt.
Types of Booster Seats
E68924
• Backless booster seats
If your backless booster seat has a
removable shield, remove the shield.
If a vehicle seating position has a low
seat back or no head restraint, a
backless booster seat may place your
child's head (as measured at the tops
of the ears) above the top of the seat.
19
Child Safety

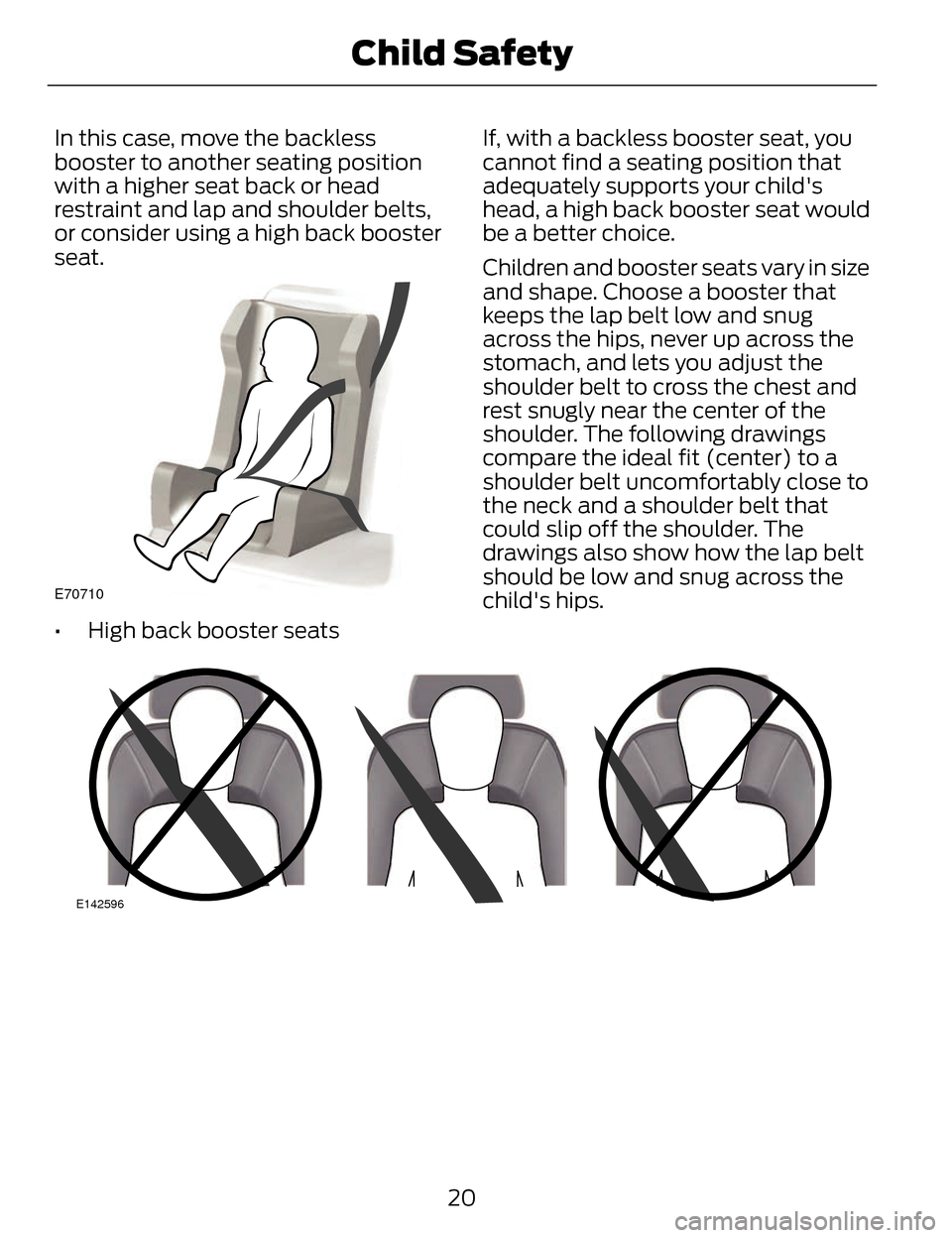

In this case, move the backless
booster to another seating position
with a higher seat back or head
restraint and lap and shoulder belts,
or consider using a high back booster
seat.
E70710
• High back booster seatsIf, with a backless booster seat, you
cannot find a seating position that
adequately supports your child's
head, a high back booster seat would
be a better choice.
Children and booster seats vary in size
and shape. Choose a booster that
keeps the lap belt low and snug
across the hips, never up across the
stomach, and lets you adjust the
shoulder belt to cross the chest and
rest snugly near the center of the
shoulder. The following drawings
compare the ideal fit (center) to a
shoulder belt uncomfortably close to
the neck and a shoulder belt that
could slip off the shoulder. The
drawings also show how the lap belt
should be low and snug across the
child's hips.
E142596
20
Child Safety

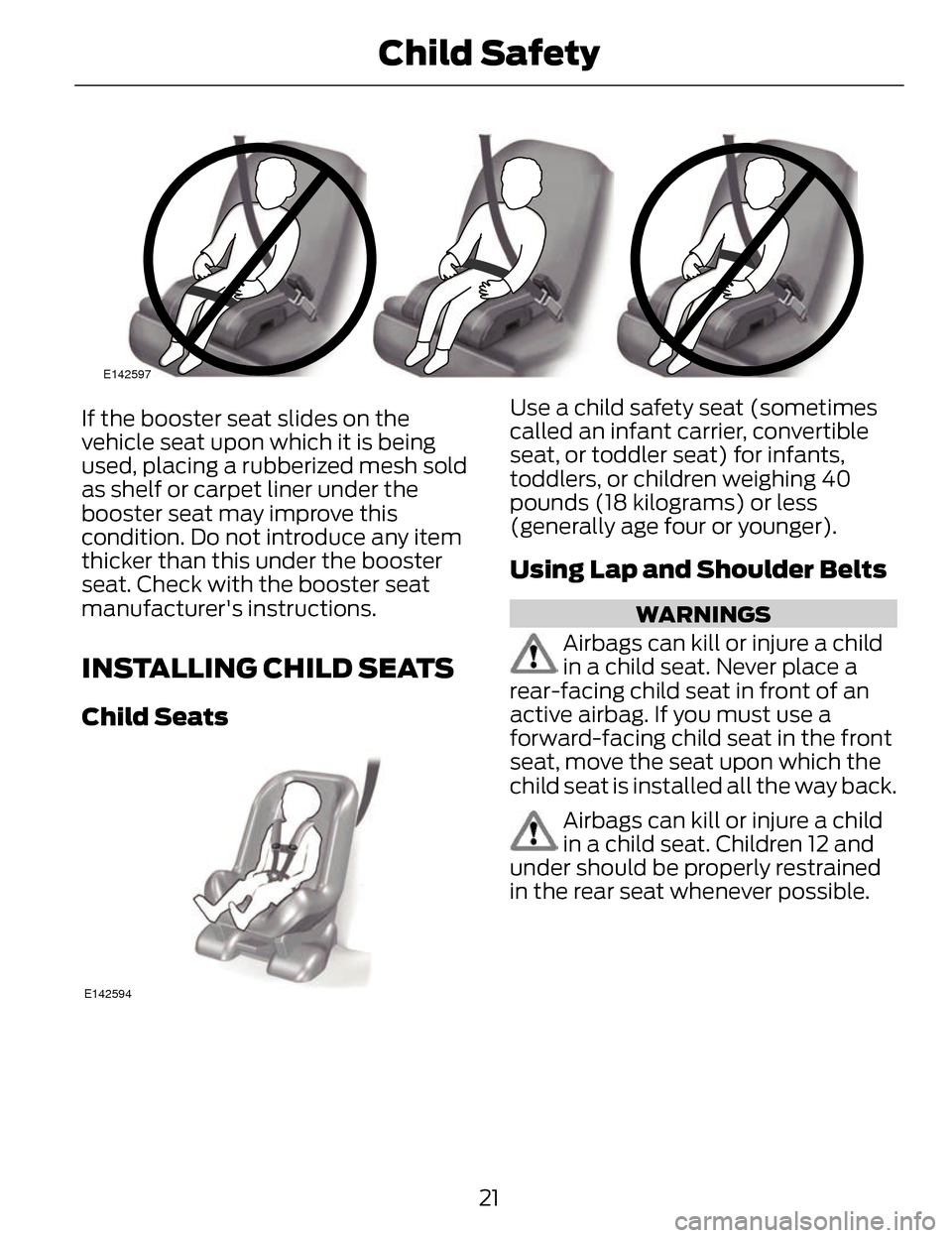

E142597
If the booster seat slides on the
vehicle seat upon which it is being
used, placing a rubberized mesh sold
as shelf or carpet liner under the
booster seat may improve this
condition. Do not introduce any item
thicker than this under the booster
seat. Check with the booster seat
manufacturer's instructions.
INSTALLING CHILD SEATS
Child Seats
E142594
Use a child safety seat (sometimes
called an infant carrier, convertible
seat, or toddler seat) for infants,
toddlers, or children weighing 40
pounds (18 kilograms) or less
(generally age four or younger).
Using Lap and Shoulder Belts
WARNINGS
Airbags can kill or injure a child
in a child seat. Never place a
rear-facing child seat in front of an
active airbag. If you must use a
forward-facing child seat in the front
seat, move the seat upon which the
child seat is installed all the way back.
Airbags can kill or injure a child
in a child seat. Children 12 and
under should be properly restrained
in the rear seat whenever possible.
21
Child Safety

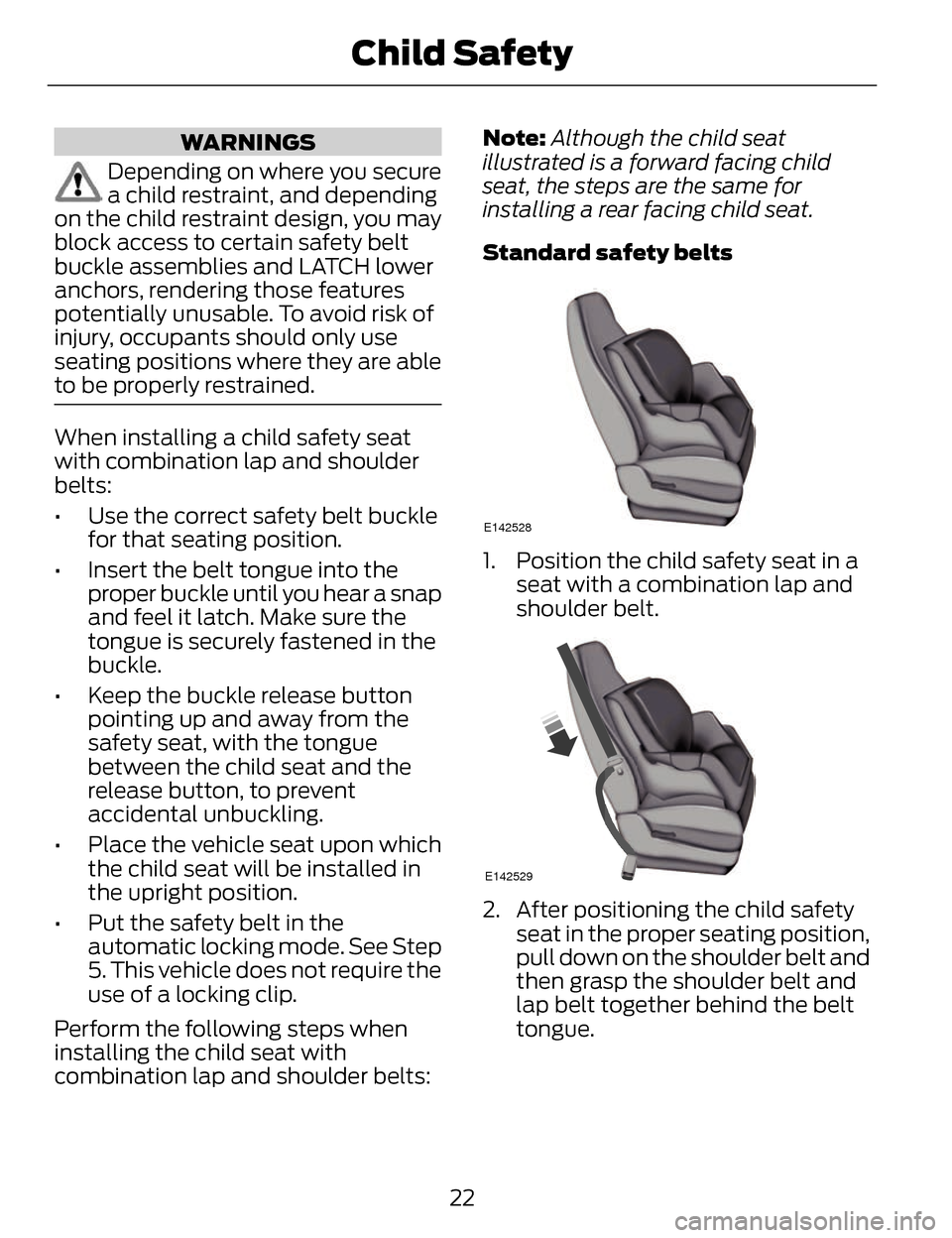

WARNINGS
Depending on where you secure
a child restraint, and depending
on the child restraint design, you may
block access to certain safety belt
buckle assemblies and LATCH lower
anchors, rendering those features
potentially unusable. To avoid risk of
injury, occupants should only use
seating positions where they are able
to be properly restrained.
When installing a child safety seat
with combination lap and shoulder
belts:
• Use the correct safety belt buckle for that seating position.
• Insert the belt tongue into the proper buckle until you hear a snap
and feel it latch. Make sure the
tongue is securely fastened in the
buckle.
• Keep the buckle release button pointing up and away from the
safety seat, with the tongue
between the child seat and the
release button, to prevent
accidental unbuckling.
• Place the vehicle seat upon which the child seat will be installed in
the upright position.
• Put the safety belt in the automatic locking mode. See Step
5. This vehicle does not require the
use of a locking clip.
Perform the following steps when
installing the child seat with
combination lap and shoulder belts: Note:
Although the child seat
illustrated is a forward facing child
seat, the steps are the same for
installing a rear facing child seat.
Standard safety belts
E142528
1. Position the child safety seat in a seat with a combination lap and
shoulder belt.
E142529
2. After positioning the child safetyseat in the proper seating position,
pull down on the shoulder belt and
then grasp the shoulder belt and
lap belt together behind the belt
tongue.
22
Child Safety

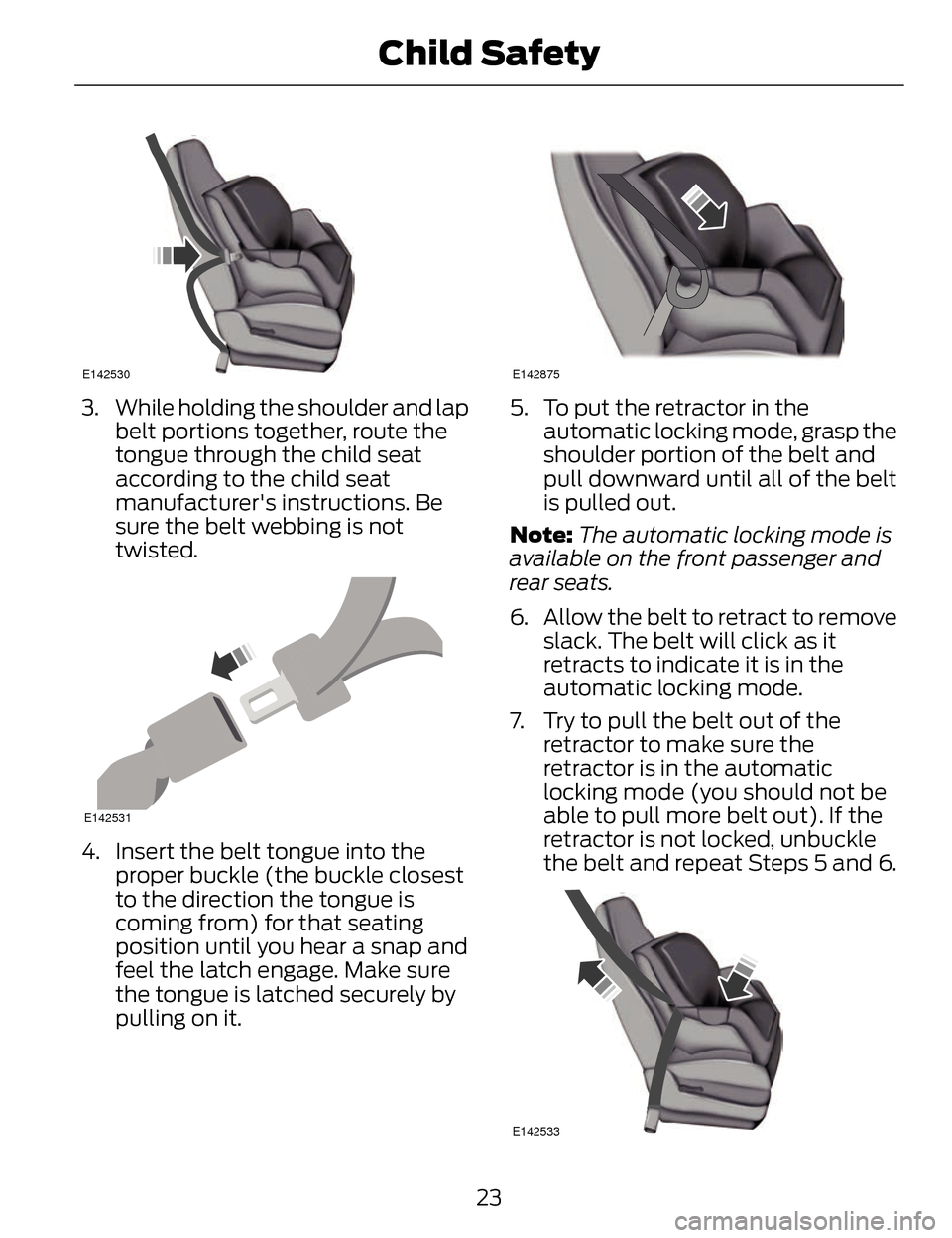

E142530
3. While holding the shoulder and lapbelt portions together, route the
tongue through the child seat
according to the child seat
manufacturer's instructions. Be
sure the belt webbing is not
twisted.
E142531
4. Insert the belt tongue into theproper buckle (the buckle closest
to the direction the tongue is
coming from) for that seating
position until you hear a snap and
feel the latch engage. Make sure
the tongue is latched securely by
pulling on it.
E142875
5. To put the retractor in theautomatic locking mode, grasp the
shoulder portion of the belt and
pull downward until all of the belt
is pulled out.
Note: The automatic locking mode is
available on the front passenger and
rear seats.
6. Allow the belt to retract to remove slack. The belt will click as it
retracts to indicate it is in the
automatic locking mode.
7. Try to pull the belt out of the retractor to make sure the
retractor is in the automatic
locking mode (you should not be
able to pull more belt out). If the
retractor is not locked, unbuckle
the belt and repeat Steps 5 and 6.
E142533
23
Child Safety

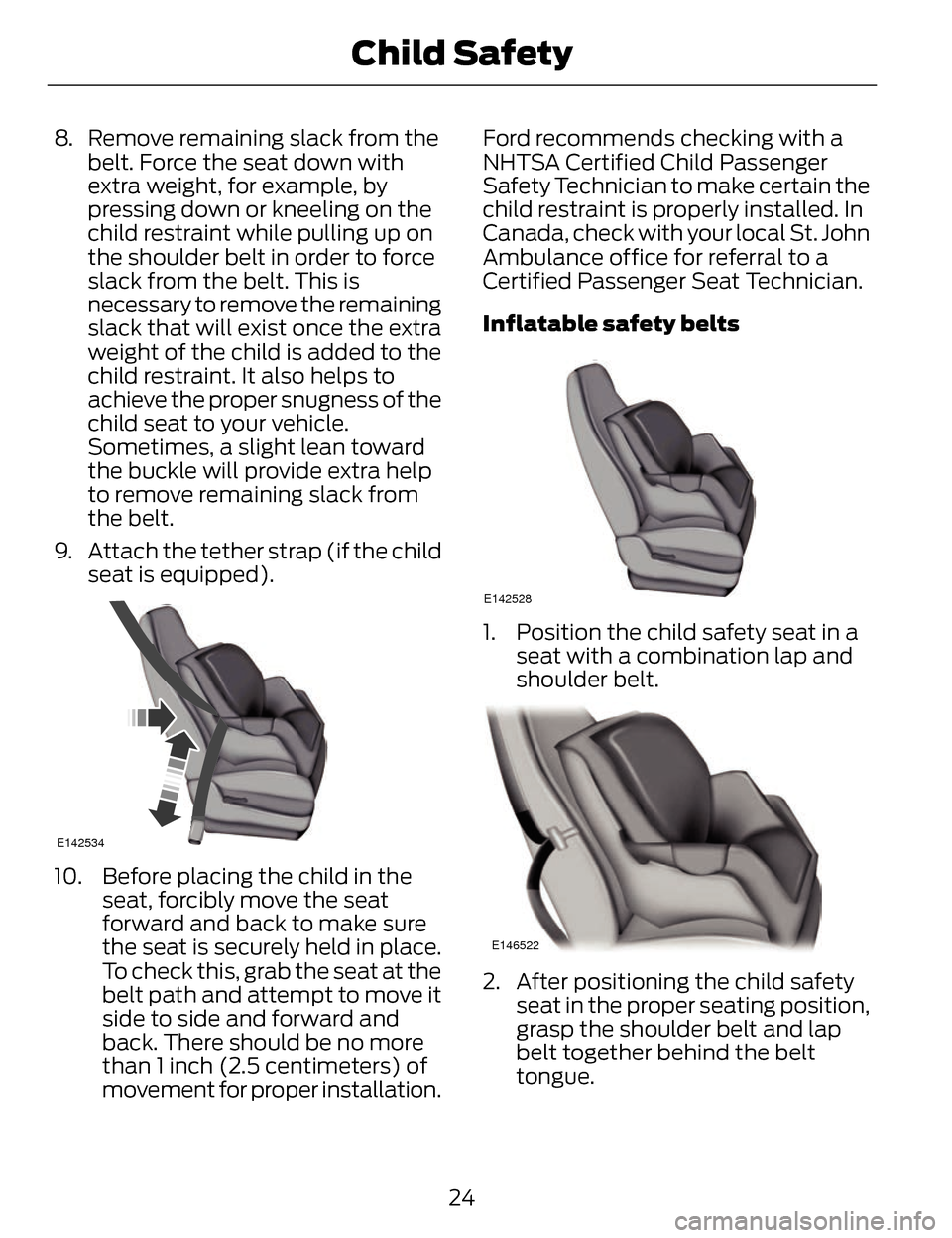

8. Remove remaining slack from thebelt. Force the seat down with
extra weight, for example, by
pressing down or kneeling on the
child restraint while pulling up on
the shoulder belt in order to force
slack from the belt. This is
necessary to remove the remaining
slack that will exist once the extra
weight of the child is added to the
child restraint. It also helps to
achieve the proper snugness of the
child seat to your vehicle.
Sometimes, a slight lean toward
the buckle will provide extra help
to remove remaining slack from
the belt.
9. Attach the tether strap (if the child seat is equipped).
E142534
10. Before placing the child in the seat, forcibly move the seat
forward and back to make sure
the seat is securely held in place.
To check this, grab the seat at the
belt path and attempt to move it
side to side and forward and
back. There should be no more
than 1 inch (2.5 centimeters) of
movement for proper installation. Ford recommends checking with a
NHTSA Certified Child Passenger
Safety Technician to make certain the
child restraint is properly installed. In
Canada, check with your local St. John
Ambulance office for referral to a
Certified Passenger Seat Technician.
Inflatable safety belts
E142528
1. Position the child safety seat in a
seat with a combination lap and
shoulder belt.
E146522
2. After positioning the child safetyseat in the proper seating position,
grasp the shoulder belt and lap
belt together behind the belt
tongue.
24
Child Safety

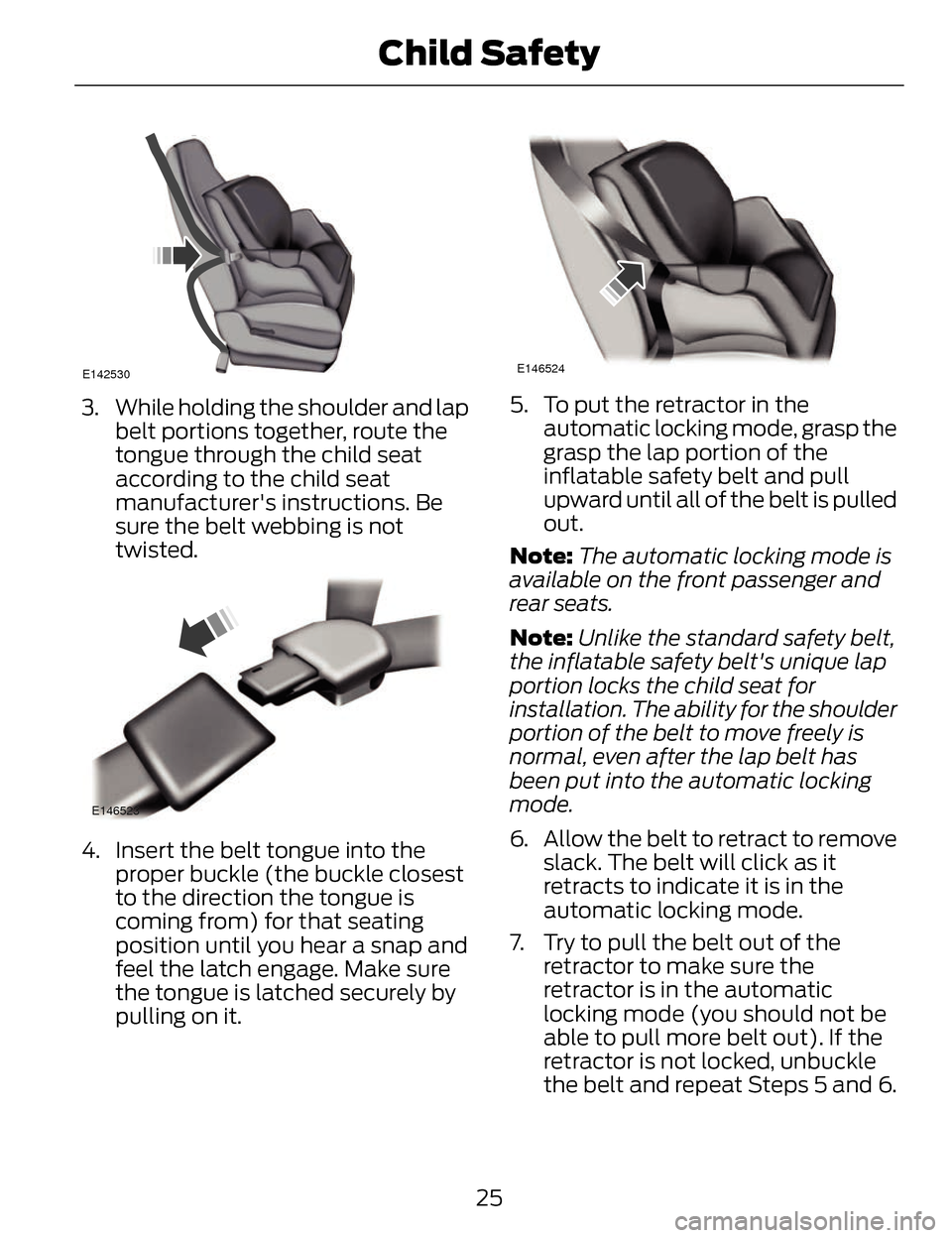

E142530
3. While holding the shoulder and lapbelt portions together, route the
tongue through the child seat
according to the child seat
manufacturer's instructions. Be
sure the belt webbing is not
twisted.
E146523
4. Insert the belt tongue into theproper buckle (the buckle closest
to the direction the tongue is
coming from) for that seating
position until you hear a snap and
feel the latch engage. Make sure
the tongue is latched securely by
pulling on it.
E146524
5. To put the retractor in theautomatic locking mode, grasp the
grasp the lap portion of the
inflatable safety belt and pull
upward until all of the belt is pulled
out.
Note: The automatic locking mode is
available on the front passenger and
rear seats.
Note: Unlike the standard safety belt,
the inflatable safety belt's unique lap
portion locks the child seat for
installation. The ability for the shoulder
portion of the belt to move freely is
normal, even after the lap belt has
been put into the automatic locking
mode.
6. Allow the belt to retract to remove slack. The belt will click as it
retracts to indicate it is in the
automatic locking mode.
7. Try to pull the belt out of the retractor to make sure the
retractor is in the automatic
locking mode (you should not be
able to pull more belt out). If the
retractor is not locked, unbuckle
the belt and repeat Steps 5 and 6.
25
Child Safety

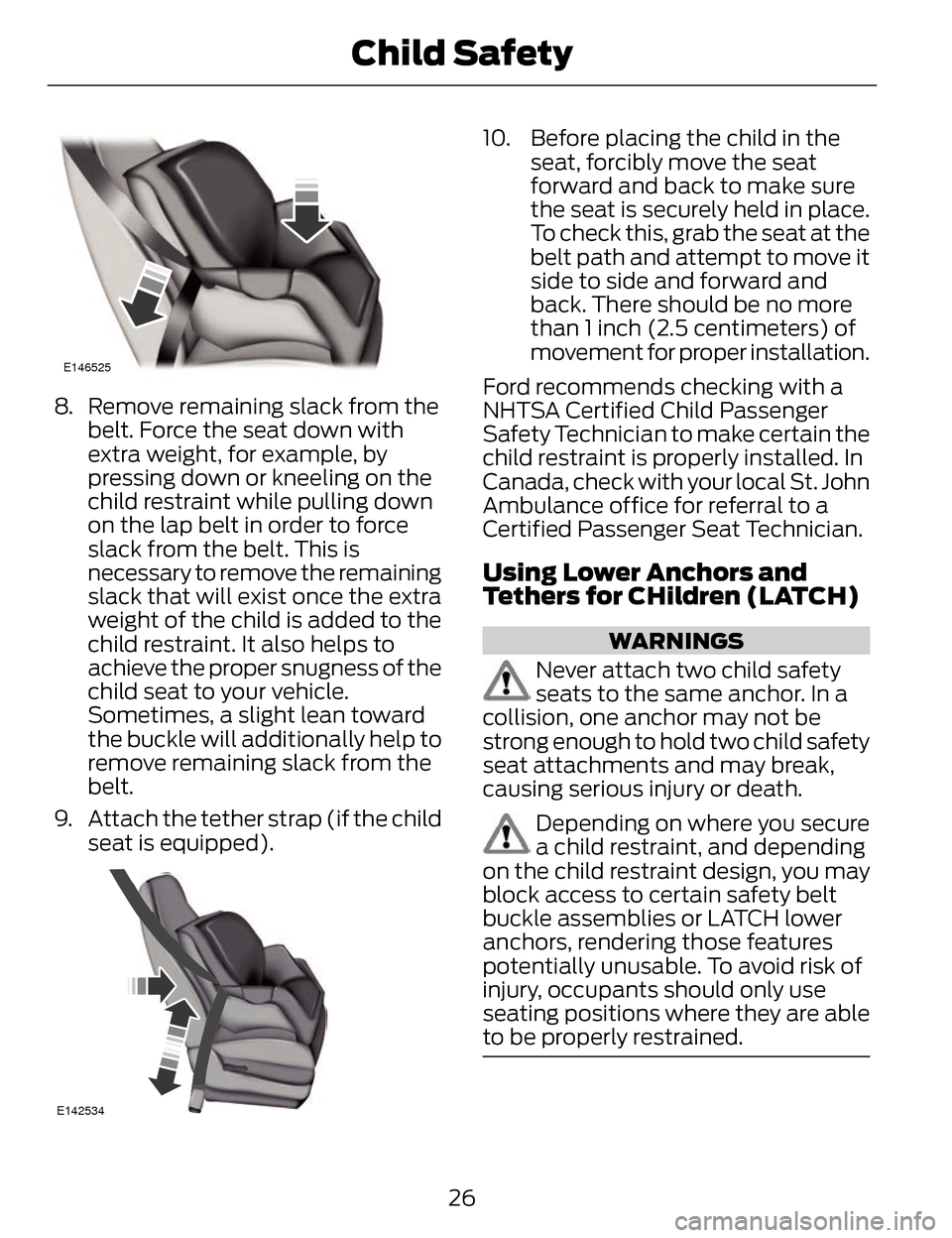

E146525
8. Remove remaining slack from thebelt. Force the seat down with
extra weight, for example, by
pressing down or kneeling on the
child restraint while pulling down
on the lap belt in order to force
slack from the belt. This is
necessary to remove the remaining
slack that will exist once the extra
weight of the child is added to the
child restraint. It also helps to
achieve the proper snugness of the
child seat to your vehicle.
Sometimes, a slight lean toward
the buckle will additionally help to
remove remaining slack from the
belt.
9. Attach the tether strap (if the child seat is equipped).
E142534
10. Before placing the child in the seat, forcibly move the seat
forward and back to make sure
the seat is securely held in place.
To check this, grab the seat at the
belt path and attempt to move it
side to side and forward and
back. There should be no more
than 1 inch (2.5 centimeters) of
movement for proper installation.
Ford recommends checking with a
NHTSA Certified Child Passenger
Safety Technician to make certain the
child restraint is properly installed. In
Canada, check with your local St. John
Ambulance office for referral to a
Certified Passenger Seat Technician.
Using Lower Anchors and
Tethers for CHildren (LATCH)
WARNINGS
Never attach two child safety
seats to the same anchor. In a
collision, one anchor may not be
strong enough to hold two child safety
seat attachments and may break,
causing serious injury or death.
Depending on where you secure
a child restraint, and depending
on the child restraint design, you may
block access to certain safety belt
buckle assemblies or LATCH lower
anchors, rendering those features
potentially unusable. To avoid risk of
injury, occupants should only use
seating positions where they are able
to be properly restrained.
26
Child Safety

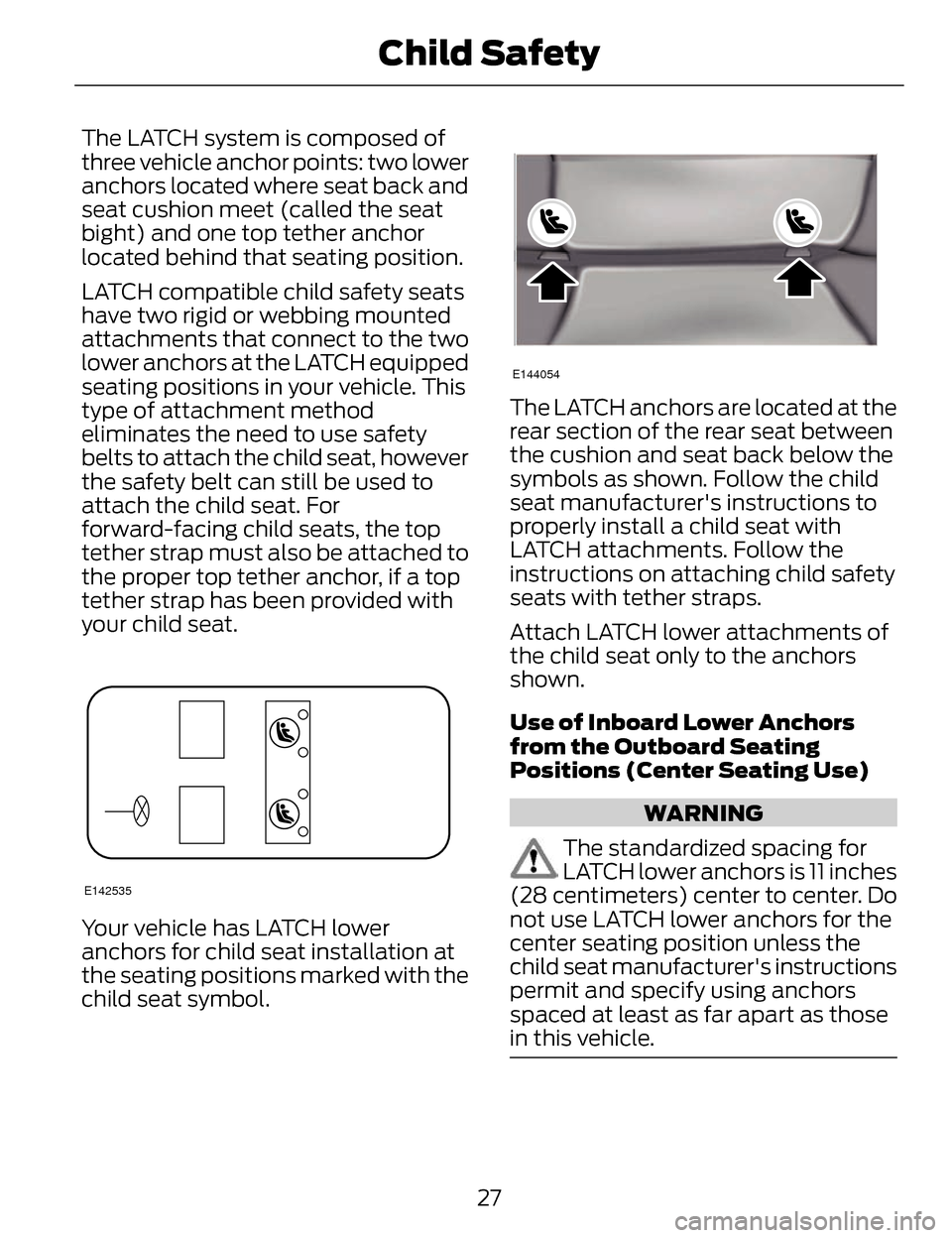

The LATCH system is composed of
three vehicle anchor points: two lower
anchors located where seat back and
seat cushion meet (called the seat
bight) and one top tether anchor
located behind that seating position.
LATCH compatible child safety seats
have two rigid or webbing mounted
attachments that connect to the two
lower anchors at the LATCH equipped
seating positions in your vehicle. This
type of attachment method
eliminates the need to use safety
belts to attach the child seat, however
the safety belt can still be used to
attach the child seat. For
forward-facing child seats, the top
tether strap must also be attached to
the proper top tether anchor, if a top
tether strap has been provided with
your child seat.
E142535
Your vehicle has LATCH lower
anchors for child seat installation at
the seating positions marked with the
child seat symbol.
E144054
The LATCH anchors are located at the
rear section of the rear seat between
the cushion and seat back below the
symbols as shown. Follow the child
seat manufacturer's instructions to
properly install a child seat with
LATCH attachments. Follow the
instructions on attaching child safety
seats with tether straps.
Attach LATCH lower attachments of
the child seat only to the anchors
shown.
Use of Inboard Lower Anchors
from the Outboard Seating
Positions (Center Seating Use)
WARNING
The standardized spacing for
LATCH lower anchors is 11 inches
(28 centimeters) center to center. Do
not use LATCH lower anchors for the
center seating position unless the
child seat manufacturer's instructions
permit and specify using anchors
spaced at least as far apart as those
in this vehicle.
27
Child Safety
