display LINCOLN MKZ 2014 Owners Manual

Security
Passive Anti-Theft System................72
Anti-Theft Alarm...................................73
Steering Wheel
Adjusting the Steering Wheel...........75
Audio Control.........................................76
Voice Control...........................................77
Cruise Control.........................................77
Information Display Control..............77
Heated Steering Wheel......................78
Wipers and Washers
Windshield Wipers...............................79
Autowipers..............................................79
Windshield Washers...........................80
Lighting
Lighting Control.....................................82
Autolamps...............................................82
Instrument Lighting Dimmer............83
Headlamp Exit Delay...........................83
Daytime Running Lamps...................83
Automatic High Beam Control........84
Direction Indicators..............................85
Interior Lamps........................................85
Adaptive Headlamps..........................86
Windows and Mirrors
Power Windows....................................88
Global Opening and Closing............89
Exterior Mirrors......................................89
Interior Mirror...........................................91
Sun Visors................................................92Sun Shades.............................................92
Moonroof.................................................92
Instrument Cluster
Gauges......................................................95
Warning Lamps and Indicators.......96
Audible Warnings and
Indicator s...........................................100
Information Displays
General Information...........................101
Information Messages......................106
Audio System
General Information...........................124
Audio unit - Vehicles With: Premium
AM/FM/CD........................................125
Media Hub..............................................126
Climate Control
Automatic Climate Control.............128
Hints on Controlling the Interior Climate................................................129
Heated Windows and Mirrors.........130
Cabin Air Filter.......................................131
Remote Start.........................................131
Seats
Sitting in the Correct Position.........133
Head Restraints...................................133
Power Seats..........................................135
Memory Function.................................137
Rear Seats..............................................139
Heated Seats........................................140
Ventilated Seats...................................141
2
Table of Contents

REMOTE CONTROL
Intelligent Access Key
E144506
Your intelligent access keys to operate
the power locks and the remote start
system. The key must be in your
vehicle to activate the push-button
start system.
Removable Key Blade
The intelligent access key also
contains a removable mechanical key
blade that you can use to unlock the
driver door.
E151796
Slide the release on the back of the
remote control and pivot the cover off
to access the key blade.
E151795
Note: Your vehicle’s backup keys came
with a security tag that provides
important vehicle key cut information.
Keep the tag in a safe place for future
reference.
Replacing the Battery
Note: Refer to local regulations when
disposing of transmitter batteries.
Note: Do not wipe off any grease on
the battery terminals or on the back
surface of the circuit board.
Note: Replacing the battery will not
delete the transmitter from the vehicle.
The transmitter should operate
normally.
A message will appear in the
information display when the remote
control battery is low. See
Information Messages (page 106).
Intelligent Access Transmitter
The remote control uses two
coin-type three-volt lithium batteries
CR2025 or equivalent.
53
Keys and Remote Controls

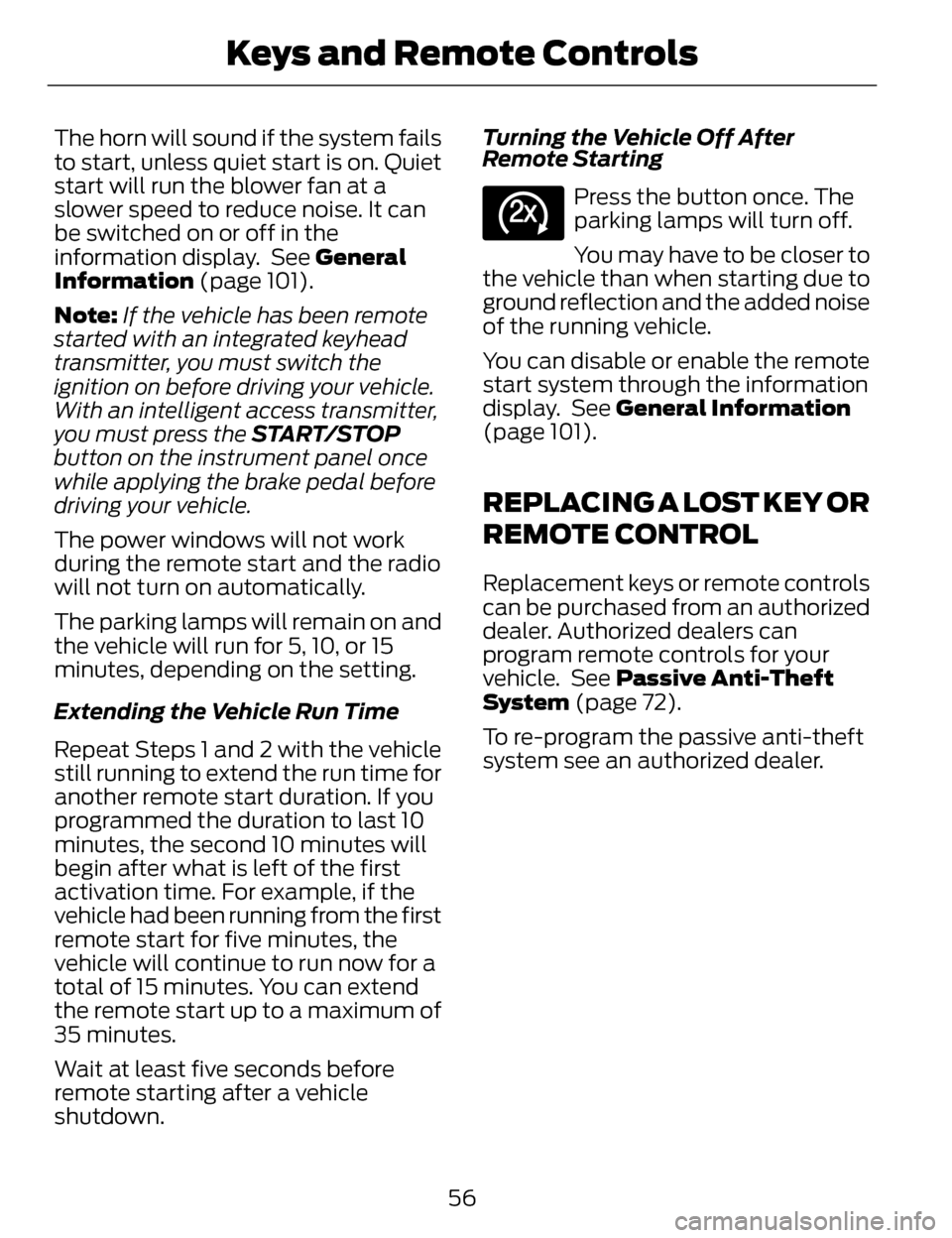

The horn will sound if the system fails
to start, unless quiet start is on. Quiet
start will run the blower fan at a
slower speed to reduce noise. It can
be switched on or off in the
information display. See General
Information (page 101).
Note: If the vehicle has been remote
started with an integrated keyhead
transmitter, you must switch the
ignition on before driving your vehicle.
With an intelligent access transmitter,
you must press the START/STOP
button on the instrument panel once
while applying the brake pedal before
driving your vehicle.
The power windows will not work
during the remote start and the radio
will not turn on automatically.
The parking lamps will remain on and
the vehicle will run for 5, 10, or 15
minutes, depending on the setting.
Extending the Vehicle Run Time
Repeat Steps 1 and 2 with the vehicle
still running to extend the run time for
another remote start duration. If you
programmed the duration to last 10
minutes, the second 10 minutes will
begin after what is left of the first
activation time. For example, if the
vehicle had been running from the first
remote start for five minutes, the
vehicle will continue to run now for a
total of 15 minutes. You can extend
the remote start up to a maximum of
35 minutes.
Wait at least five seconds before
remote starting after a vehicle
shutdown. Turning the Vehicle Off After
Remote Starting
E138625
Press the button once. The
parking lamps will turn off.
You may have to be closer to
the vehicle than when starting due to
ground reflection and the added noise
of the running vehicle.
You can disable or enable the remote
start system through the information
display. See General Information
(page 101).
REPLACING A LOST KEY OR
REMOTE CONTROL
Replacement keys or remote controls
can be purchased from an authorized
dealer. Authorized dealers can
program remote controls for your
vehicle. See Passive Anti-Theft
System (page 72).
To re-program the passive anti-theft
system see an authorized dealer.
56
Keys and Remote Controls

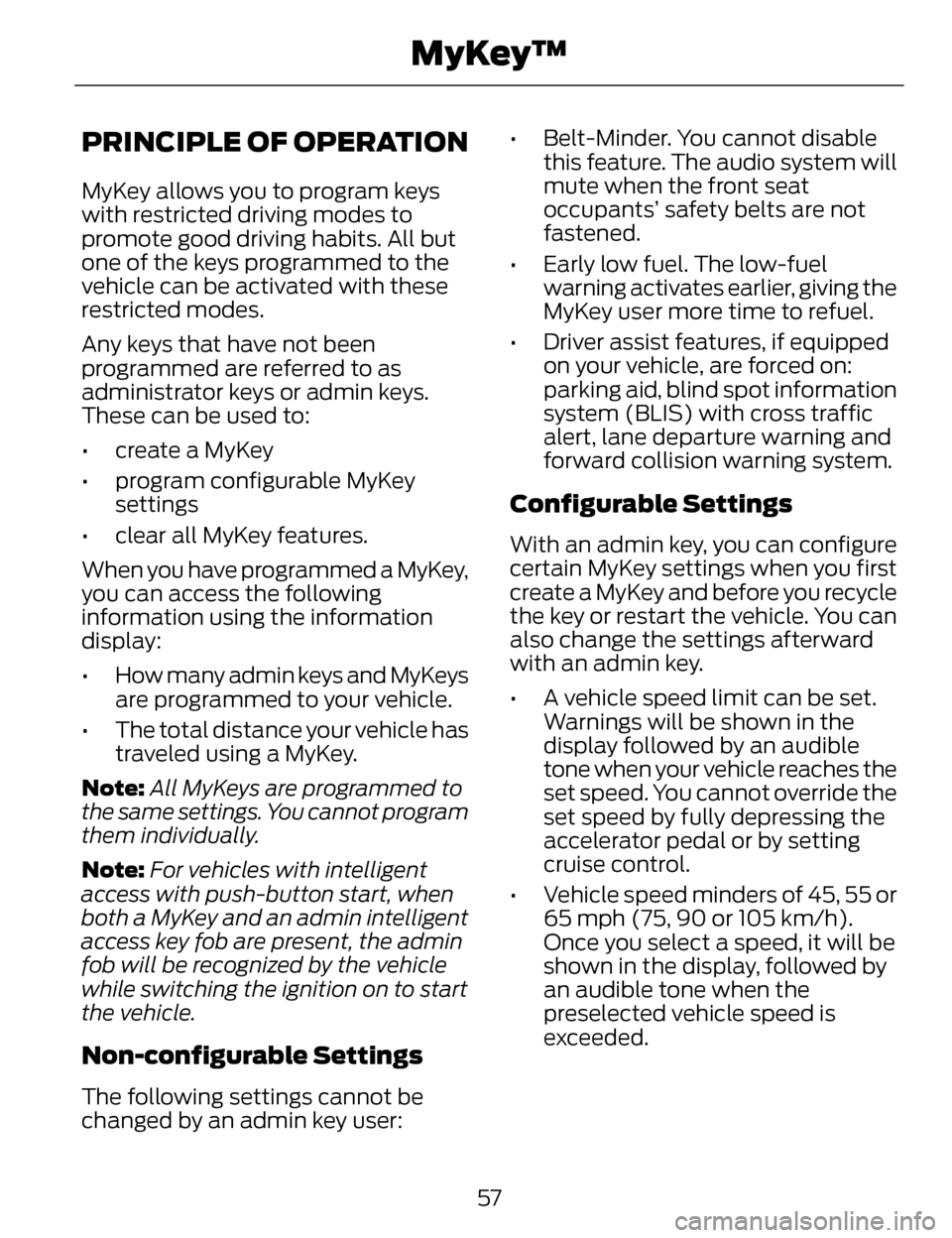

PRINCIPLE OF OPERATION
MyKey allows you to program keys
with restricted driving modes to
promote good driving habits. All but
one of the keys programmed to the
vehicle can be activated with these
restricted modes.
Any keys that have not been
programmed are referred to as
administrator keys or admin keys.
These can be used to:
• create a MyKey
• program configurable MyKeysettings
• clear all MyKey features.
When you have programmed a MyKey,
you can access the following
information using the information
display:
• How many admin keys and MyKeys are programmed to your vehicle.
• The total distance your vehicle has traveled using a MyKey.
Note: All MyKeys are programmed to
the same settings. You cannot program
them individually.
Note: For vehicles with intelligent
access with push-button start, when
both a MyKey and an admin intelligent
access key fob are present, the admin
fob will be recognized by the vehicle
while switching the ignition on to start
the vehicle.
Non-configurabl e Settings
The following settings cannot be
changed by an admin key user: • Belt-Minder. You cannot disable
this feature. The audio system will
mute when the front seat
occupants’ safety belts are not
fastened.
• Early low fuel. The low-fuel warning activates earlier, giving the
MyKey user more time to refuel.
• Driver assist features, if equipped on your vehicle, are forced on:
parking aid, blind spot information
system (BLIS) with cross traffic
alert, lane departure warning and
forward collision warning system.
Configurabl e Settings
With an admin key, you can configure
certain MyKey settings when you first
create a MyKey and before you recycle
the key or restart the vehicle. You can
also change the settings afterward
with an admin key.
• A vehicle speed limit can be set.
Warnings will be shown in the
display followed by an audible
tone when your vehicle reaches the
set speed. You cannot override the
set speed by fully depressing the
accelerator pedal or by setting
cruise control.
• Vehicle speed minders of 45, 55 or 65 mph (75, 90 or 105 km/h).
Once you select a speed, it will be
shown in the display, followed by
an audible tone when the
preselected vehicle speed is
exceeded.
57
MyKey™

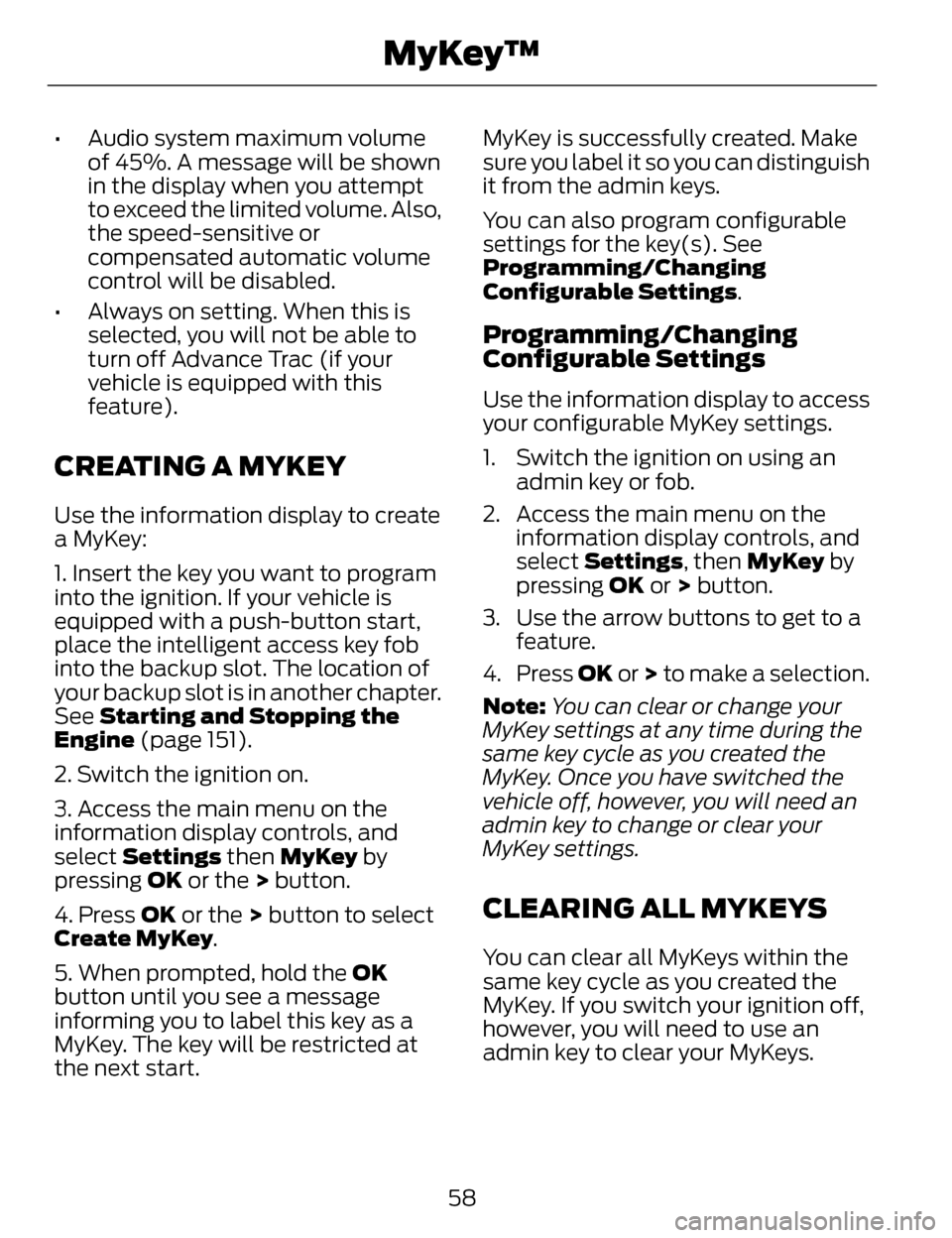

• Audio system maximum volumeof 45%. A message will be shown
in the display when you attempt
to exceed the limited volume. Also,
the speed-sensitive or
compensated automatic volume
control will be disabled.
• Always on setting. When this is selected, you will not be able to
turn off Advance Trac (if your
vehicle is equipped with this
feature).
CREATING A MYKEY
Use the information display to create
a MyKey:
1. Insert the key you want to program
into the ignition. If your vehicle is
equipped with a push-button start,
place the intelligent access key fob
into the backup slot. The location of
your backup slot is in another chapter.
See Starting and Stopping the
Engine (page 151).
2. Switch the ignition on.
3. Access the main menu on the
information display controls, and
select Settings then MyKey by
pressing OK or the > button.
4. Press OK or the > button to select
Create MyKey .
5. When prompted, hold the OK
button until you see a message
informing you to label this key as a
MyKey. The key will be restricted at
the next start. MyKey is successfully created. Make
sure you label it so you can distinguish
it from the admin keys.
You can also program configurable
settings for the key(s). See
Programming/Changing
Configurable Settings.
Programming/Changing
Configurabl
e Settings
Use the information display to access
your configurable MyKey settings.
1. Switch the ignition on using an
admin key or fob.
2. Access the main menu on the information display controls, and
select Settings, then MyKey by
pressing OK or > button.
3. Use the arrow buttons to get to a feature.
4. Press OK or > to make a selection.
Note: You can clear or change your
MyKey settings at any time during the
same key cycle as you created the
MyKey. Once you have switched the
vehicle off, however, you will need an
admin key to change or clear your
MyKey settings.
CLEARING ALL MYKEYS
You can clear all MyKeys within the
same key cycle as you created the
MyKey. If you switch your ignition off,
however, you will need to use an
admin key to clear your MyKeys.
58
MyKey™

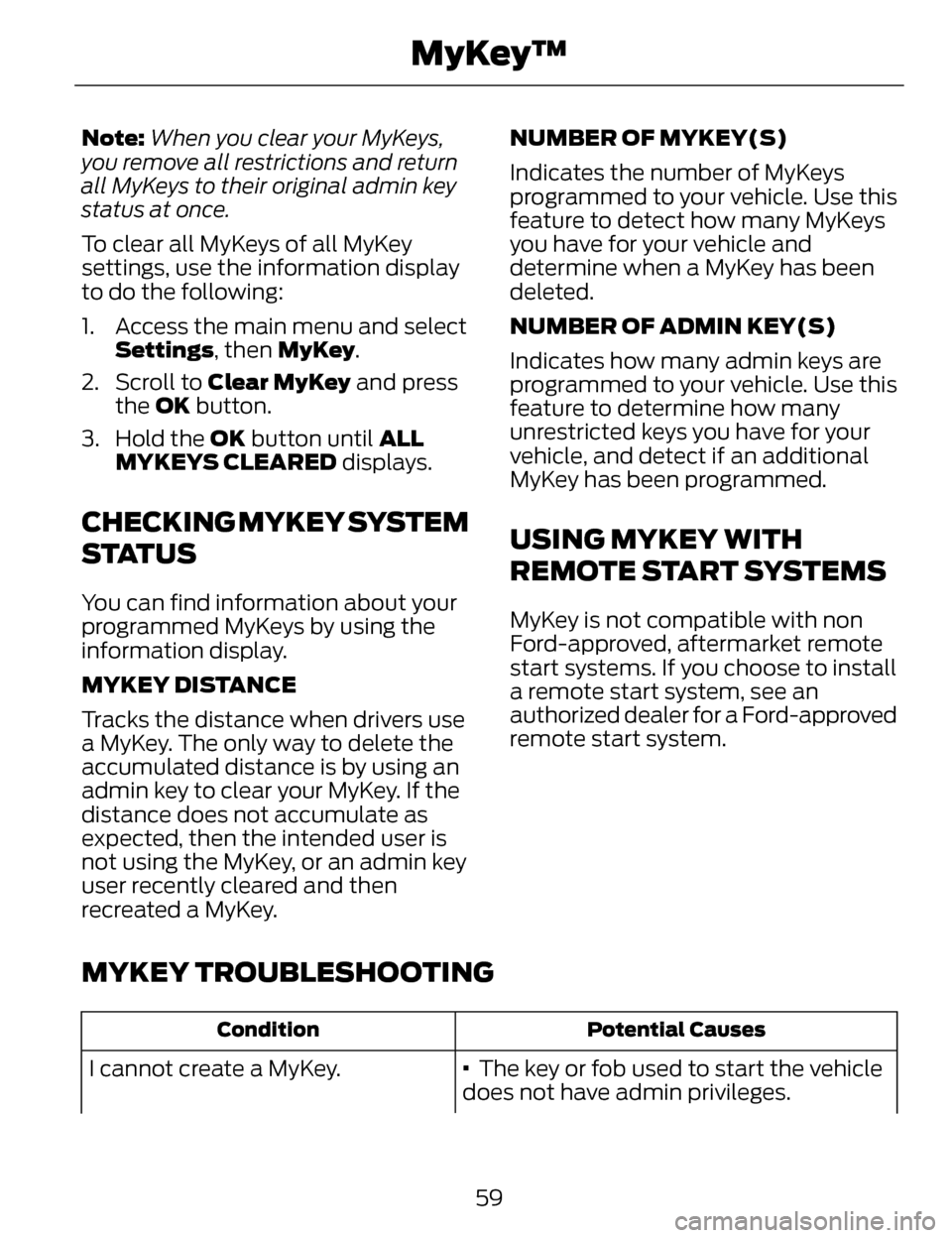

Note:When you clear your MyKeys,
you remove all restrictions and return
all MyKeys to their original admin key
status at once.
To clear all MyKeys of all MyKey
settings, use the information display
to do the following:
1. Access the main menu and select Settings, then MyKey.
2. Scroll to Clear MyKey and press the OK button.
3. Hold the OK button until ALL MYKEYS CLEARED displays.
CHECKING MYKEY SYSTEM
S TAT U S
You can find information about your
programmed MyKeys by using the
information display.
MYKEY DISTANCE
Tracks the distance when drivers use
a MyKey. The only way to delete the
accumulated distance is by using an
admin key to clear your MyKey. If the
distance does not accumulate as
expected, then the intended user is
not using the MyKey, or an admin key
user recently cleared and then
recreated a MyKey. NUMBER OF MYKEY(S)
Indicates the number of MyKeys
programmed to your vehicle. Use this
feature to detect how many MyKeys
you have for your vehicle and
determine when a MyKey has been
deleted.
NUMBER OF ADMIN KEY(S)
Indicates how many admin keys are
programmed to your vehicle. Use this
feature to determine how many
unrestricted keys you have for your
vehicle, and detect if an additional
MyKey has been programmed.
USING MYKEY WITH
REMOTE START SYSTEMS
MyKey is not compatible with non
Ford-approved, aftermarket remote
start systems. If you choose to install
a remote start system, see an
authorized dealer for a Ford-approved
remote start system.
MYKEY TROUBLESHOOTING
Potential Causes
Condition
· The key or fob used to start the vehicle
does not have admin privileges.
I cannot create a MyKey.
59
MyKey™

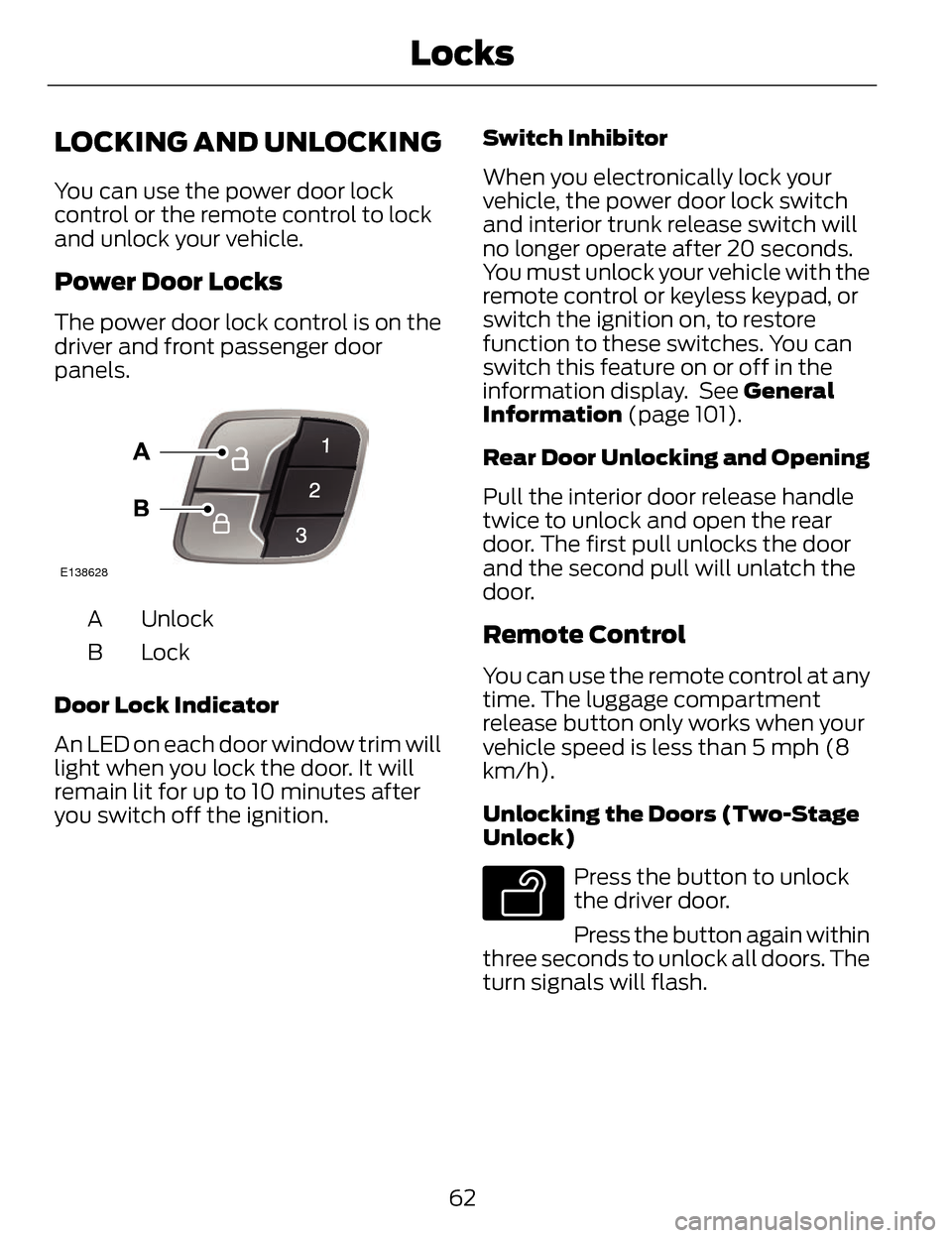

LOCKING AND UNLOCKING
You can use the power door lock
control or the remote control to lock
and unlock your vehicle.
Power Door Locks
The power door lock control is on the
driver and front passenger door
panels.
E138628
Unlock
A
LockB
Door Lock Indicator
An LED on each door window trim will
light when you lock the door. It will
remain lit for up to 10 minutes after
you switch off the ignition. Switch Inhibitor
When you electronically lock your
vehicle, the power door lock switch
and interior trunk release switch will
no longer operate after 20 seconds.
You must unlock your vehicle with the
remote control or keyless keypad, or
switch the ignition on, to restore
function to these switches. You can
switch this feature on or off in the
information display. See General
Information (page 101).
Rear Door Unlocking and Opening
Pull the interior door release handle
twice to unlock and open the rear
door. The first pull unlocks the door
and the second pull will unlatch the
door.Remote Control
You can use the remote control at any
time. The luggage compartment
release button only works when your
vehicle speed is less than 5 mph (8
km/h).
Unlocking the Doors (Two-Stage
Unlock)
E138629
Press the button to unlock
the driver door.
Press the button again within
three seconds to unlock all doors. The
turn signals will flash.
62
Locks

Press and hold both the lock and
unlock buttons on the remote control
for three seconds to change between
driver door or all doors unlock mode.
The turn signals will flash twice to
indicate a change to the unlocking
mode. Driver door unlock mode will
only unlock the driver door when the
unlock button is pressed once. All
door unlock mode unlocks all doors
with one press of the unlock button.
The unlocking mode applies to the
remote control, keyless entry keypad
and intelligent access. You can also
change the mode in the information
display. See General Information
(page 101).
Locking the Doors
E138623
Press the button to lock all
the doors. The turn signals
will illuminate.
Press the button again within three
seconds to confirm that all the doors
are closed. The doors will lock again,
the horn will sound and the turn
signals will illuminate if all the doors
and the luggage compartment are
closed.
Mislock
If any door or the luggage
compartment is open, or if the hood
is open on vehicles with an anti-theft
alarm or remote start, the horn will
sound twice and the lamps will not
flash. You can enable or disable this
feature in the information display. See
General Information (page 101). Opening the Luggage
Compartment
E138630
Press twice within three
seconds to open the luggage
compartment.
Make sure to close and latch the
luggage compartment before driving
your vehicle. An unlatched luggage
compartment may cause objects to
fall out or block your view.
Activating Intelligent Access
You must have the intelligent access
key within 3 feet (1 meter) of your
vehicle.
At a Door
Pull an exterior door handle to unlock
and open the door. Make sure not to
touch the lock sensor on top of the
handle.
E146044
Touch the top of the door handle to
lock your vehicle. There will be a brief
delay before you can unlock your
vehicle again.
Note: Keep the door handle surface
clean to avoid issues with operation.
63
Locks

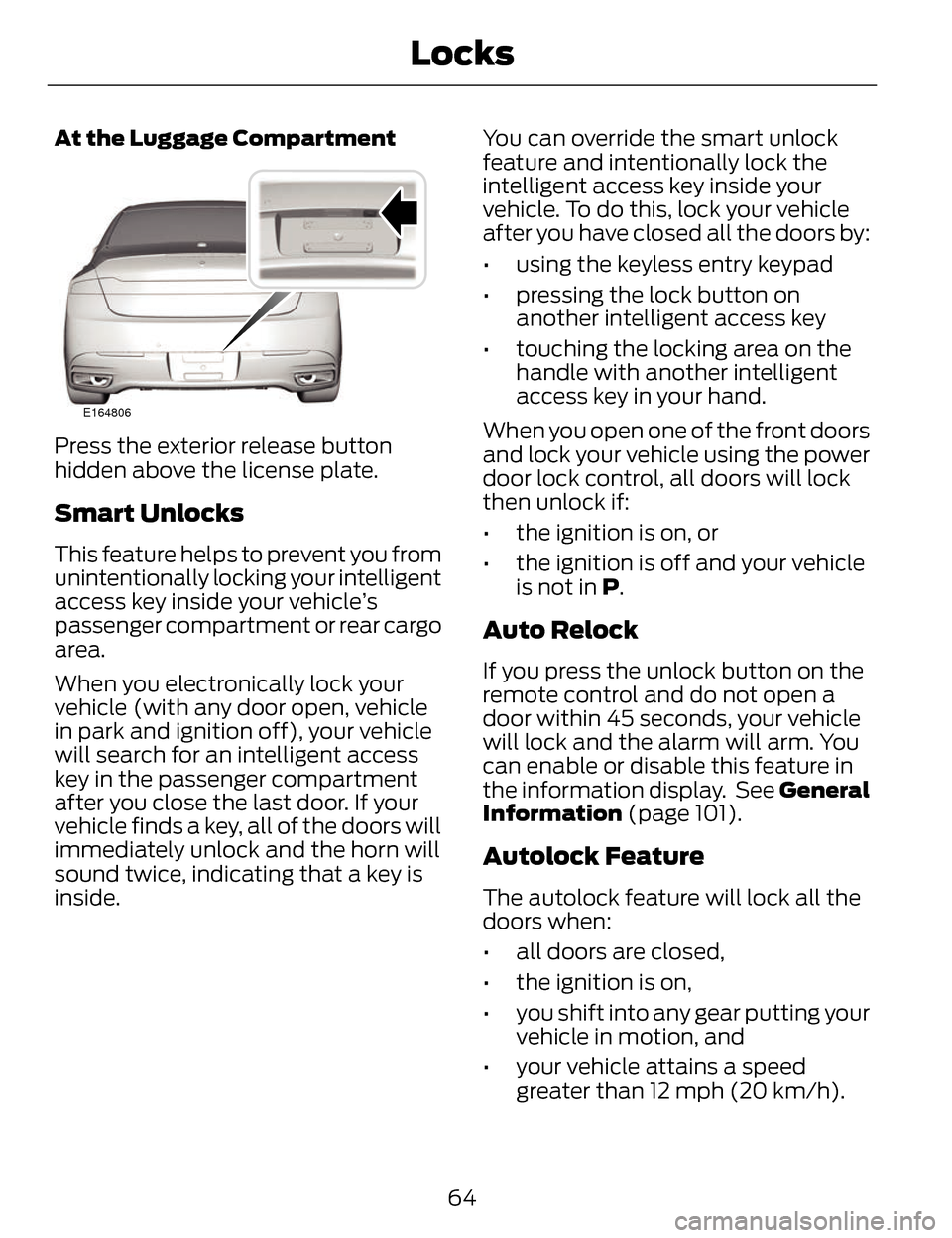

At the Luggage Compartment
E164806
Press the exterior release button
hidden above the license plate.
Smart Unlocks
This feature helps to prevent you from
unintentionally locking your intelligent
access key inside your vehicle’s
passenger compartment or rear cargo
area.
When you electronically lock your
vehicle (with any door open, vehicle
in park and ignition off), your vehicle
will search for an intelligent access
key in the passenger compartment
after you close the last door. If your
vehicle finds a key, all of the doors will
immediately unlock and the horn will
sound twice, indicating that a key is
inside.You can override the smart unlock
feature and intentionally lock the
intelligent access key inside your
vehicle. To do this, lock your vehicle
after you have closed all the doors by:
• using the keyless entry keypad
• pressing the lock button on
another intelligent access key
• touching the locking area on the handle with another intelligent
access key in your hand.
When you open one of the front doors
and lock your vehicle using the power
door lock control, all doors will lock
then unlock if:
• the ignition is on, or
• the ignition is off and your vehicle is not in P.
Auto Relock
If you press the unlock button on the
remote control and do not open a
door within 45 seconds, your vehicle
will lock and the alarm will arm. You
can enable or disable this feature in
the information display. See General
Information (page 101).
Autolock Feature
The autolock feature will lock all the
doors when:
• all doors are closed,
• the ignition is on,
• you shift into any gear putting your vehicle in motion, and
• your vehicle attains a speed greater than 12 mph (20 km/h).
64
Locks

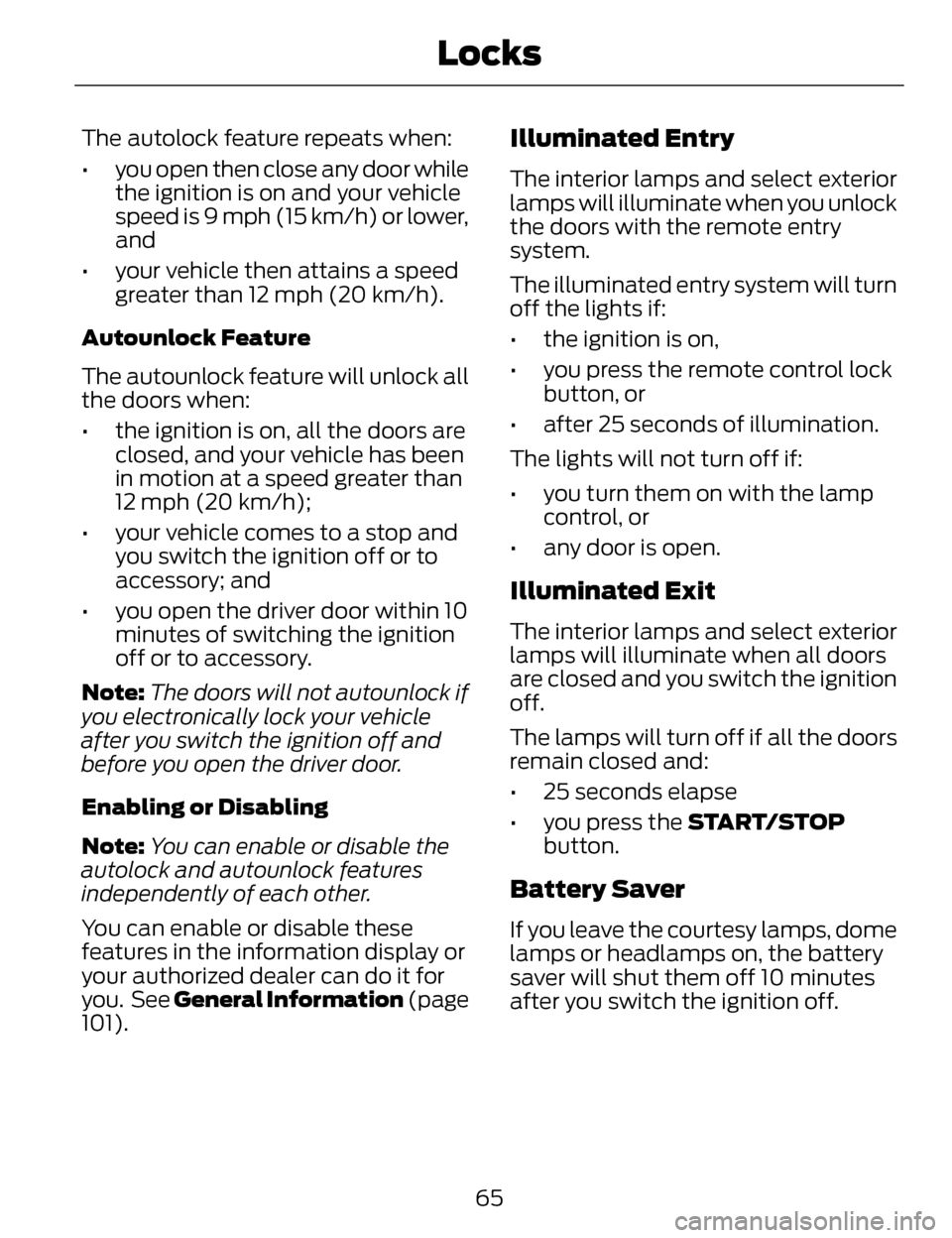

The autolock feature repeats when:
• you open then close any door whilethe ignition is on and your vehicle
speed is 9 mph (15 km/h) or lower,
and
• your vehicle then attains a speed greater than 12 mph (20 km/h).
Autounlock Feature
The autounlock feature will unlock all
the doors when:
• the ignition is on, all the doors are closed, and your vehicle has been
in motion at a speed greater than
12 mph (20 km/h);
• your vehicle comes to a stop and you switch the ignition off or to
accessory; and
• you open the driver door within 10 minutes of switching the ignition
off or to accessory.
Note: The doors will not autounlock if
you electronically lock your vehicle
after you switch the ignition off and
before you open the driver door.
Enabling or Disabling
Note: You can enable or disable the
autolock and autounlock features
independently of each other.
You can enable or disable these
features in the information display or
your authorized dealer can do it for
you. See General Information (page
101).Illuminated Entry
The interior lamps and select exterior
lamps will illuminate when you unlock
the doors with the remote entry
system.
The illuminated entry system will turn
off the lights if:
• the ignition is on,
• you press the remote control lock button, or
• after 25 seconds of illumination.
The lights will not turn off if:
• you turn them on with the lamp control, or
• any door is open.
Illuminated Exit
The interior lamps and select exterior
lamps will illuminate when all doors
are closed and you switch the ignition
off.
The lamps will turn off if all the doors
remain closed and:
• 25 seconds elapse
• you press the START/STOP button.
Battery Saver
If you leave the courtesy lamps, dome
lamps or headlamps on, the battery
saver will shut them off 10 minutes
after you switch the ignition off.
65
Locks
