display LINCOLN NAUTILUS 2021 User Guide

Lock.A
Unlock.
B OPERATING THE DOORS FROM
INSIDE YOUR VEHICLE
Individually Unlocking and Locking the
Doors Using the Locking Button
The power door lock control is on the driver
and front passenger door panels.
Unlock.
A
Lock.B AUTOUNLOCK
What Is Autounlock
Autounlock is an unlocking feature that
unlocks the vehicle doors when your vehicle
comes to a stop.
Autounlock Requirements
Autounlock unlocks all the doors when all of
the following occur:
•
The ignition is on, all the doors are closed
and your vehicle is moving at a speed
greater than 12 mph (20 km/h).
• Your vehicle comes to a stop.
• You open the driver door within 10
minutes of switching the ignition off or to
the accessory position.
Switching Autounlock On and Off
1. Press the menu button on the steering wheel to enter the information display
main menu.
2. Select
Settings.
90
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Doors and LocksE112203 E138628

3. Select Vehicle.
4. Select
Locks.
5. Switch
Autounlock on or off.
AUTOLOCK
What Is Autolock
Autolock is a locking feature that locks your
vehicle doors when you start driving.
Autolock Requirements
Autolock locks all the doors when all of the
following occur:
• All doors are closed.
• The ignition is on.
• Your vehicle reaches a speed greater
than
12 mph (20 km/h). MISLOCK
What Is Mislock
Mislock is a locking feature that warns you
if your vehicle has not locked.
Mislock Limitations
When you press the lock button once, the
direction indicators do not flash if:
•
Any door or the liftgate is open.
• The hood is open.
If you switch mislock off, the horn does not
sound if you press the lock button on the
remote control when a door is open.
Switching Mislock On and Off
1. Press the menu button on the steering wheel to enter the information display
main menu.
2. Select
Settings. 3. Select
Vehicle.
4. Select
Locks.
5. Switch
Mislock Chirp on or off.
DOORS AND LOCKS AUDIBLE
WARNINGS
Door Ajar Audible Warning
Sounds when a door is not fully closed and
your vehicle is moving.
DOORS AND LOCKS –
TROUBLESHOOTING
Doors and Locks – Warning Lamps
Door Ajar Warning Lamp It illuminates when you switch the
ignition on and remains on if any
door or the hood is open.
91
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Doors and LocksE249859

Doors and Locks – Information Messages
Action
Message
Displays if a door is open. Fully close the door.
Driver Door Ajar
Passenger Door Ajar
Rear Left Door Ajar
Rear Right Door Ajar
92
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Doors and Locks

SECURITY – TROUBLESHOOTING
Security – Information Messages
Action
Message
The system has not detected a correctly coded key.
No Key Detected
The system has malfunctioned. Have your vehicle checked as soon as possible.
Starting System Fault
Displays when the alarm has been triggered due to unauthorized entry.
Vehicle Alarm To Stop Alarm, Start
Vehicle.
Alarm Announcement
110
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Security

Status bar.
A
Speedometer.
B
Right information group.
C
Fuel gauge.
D
Engine coolant temperature gauge.
E
Left information group.
F
WHAT IS THE TACHOMETER
Shows the engine speed. The red line
thickens where the engine speed enters the
overspeed limiter.
WHAT IS THE SPEEDOMETER
Displays the vehicle speed. FUEL GAUGE
What Is the Fuel Gauge
Indicates approximately how much fuel is in
the fuel tank.
Fuel Gauge Limitations
The fuel gauge may not provide an accurate
reading when your vehicle is on an incline.
Locating the Fuel Filler Door
The arrow adjacent to the fuel pump symbol
indicates on which side of your vehicle the
fuel filler door is located.What Is the Low Fuel Reminder
A low fuel level reminder displays and
sounds when the distance to empty reaches
75 mi (120 km) to empty for MyKey, and at
50 mi (80 km), 25 mi (40 km), 12 mi (20 km)
and 0 mi (0 km) for all vehicle keys.
Note: The low fuel reminder can appear at
different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.
138
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Instrument Cluster

USING THE INSTRUMENT
CLUSTER DISPLAY CONTROLS
WARNING: Driving while distracted
can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.
Note: Some options may appear slightly
different or not at all if the items are optional.
The controls are on the steering wheel. You
can control various systems on your vehicle
using the quick action menu (QAM) buttons. Return button.
A
Toggle up.
B
OK button
C Toggle down.
D
Phone QAM buttons.
E
Audio QAM button.
F
Navigation QAM button.
G
Settings QAM button.
H
Display QAM button.
I
Return Button
Press to go back or exit a menu.
Toggle Buttons
Press the toggle button up or down to scroll
through menu items.
OK
Button
Press to make a selection.
Quick Action Menu Buttons
Press to open the correlating menu.
143
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Instrument Cluster DisplayE247519

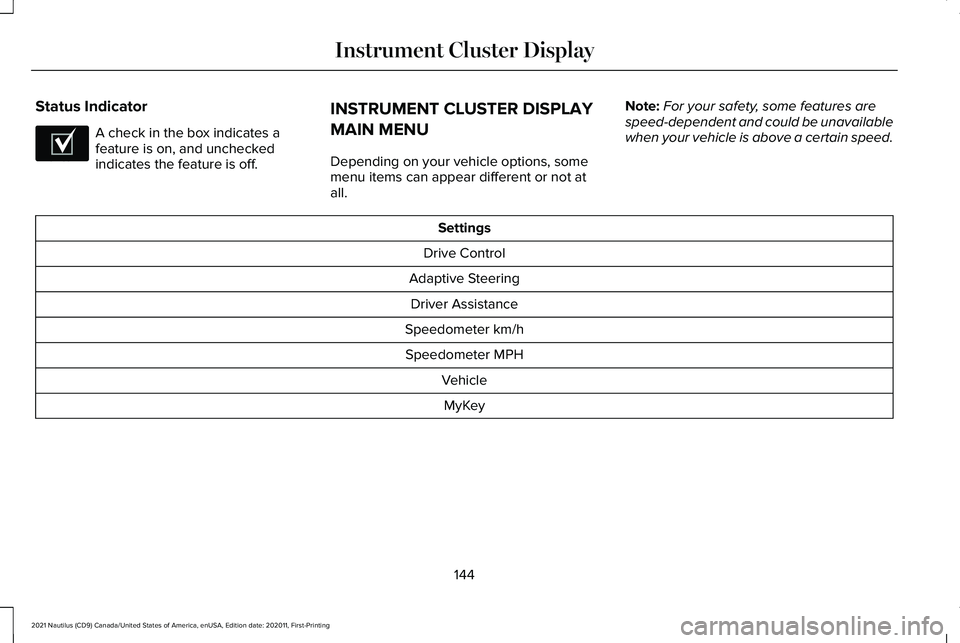

Status Indicator
A check in the box indicates a
feature is on, and unchecked
indicates the feature is off.
INSTRUMENT CLUSTER DISPLAY
MAIN MENU
Depending on your vehicle options, some
menu items can appear different or not at
all. Note:
For your safety, some features are
speed-dependent and could be unavailable
when your vehicle is above a certain speed. Settings
Drive Control
Adaptive Steering Driver Assistance
Speedometer km/h Speedometer MPH VehicleMyKey
144
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Instrument Cluster DisplayE204495

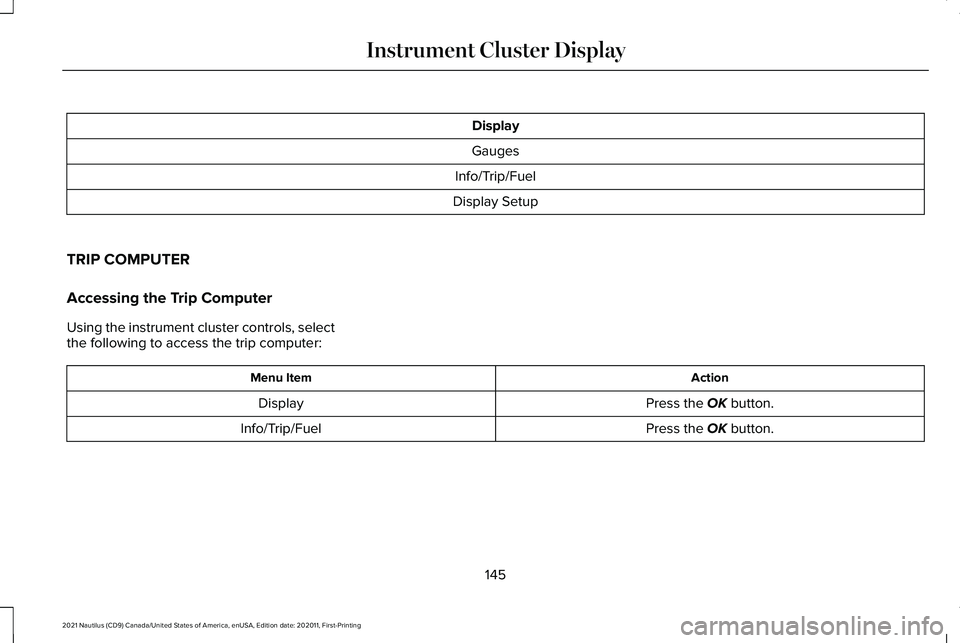

Display
Gauges
Info/Trip/Fuel
Display Setup
TRIP COMPUTER
Accessing the Trip Computer
Using the instrument cluster controls, select
the following to access the trip computer: Action
Menu Item
Press the OK button.
Display
Press the
OK button.
Info/Trip/Fuel
145
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Instrument Cluster Display

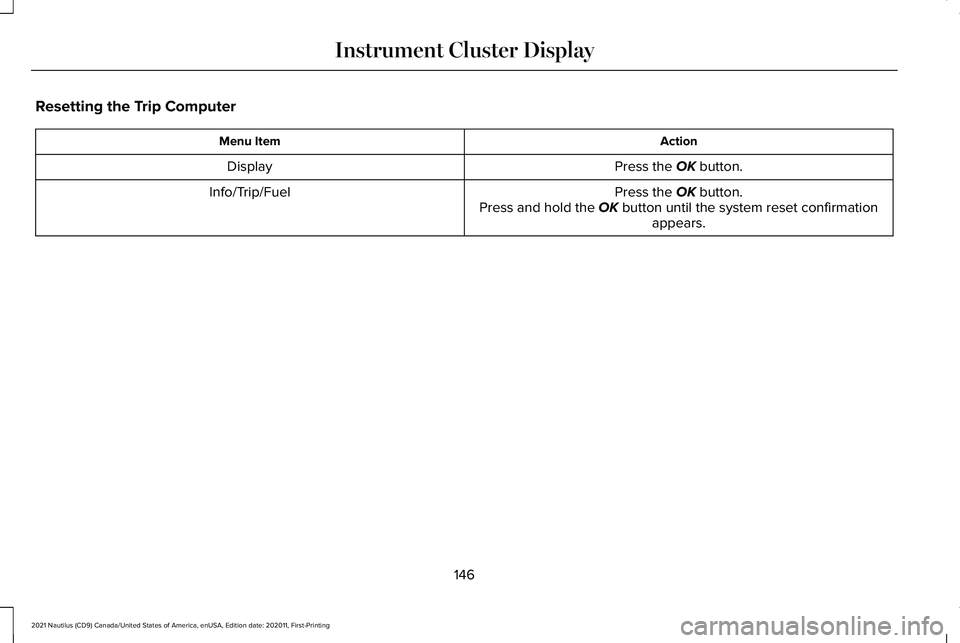

Resetting the Trip Computer
Action
Menu Item
Press the OK button.
Display
Press the
OK button.
Press and hold the OK button until the system reset confirmation appears.
Info/Trip/Fuel
146
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Instrument Cluster Display

Resetting the Individual Trip Values
Using the instrument cluster controls, select
the following to reset individual trip values: Action
Menu Item
Press the OK button.
Display
Press the
OK button.
Info/Trip/Fuel
Press and hold the
OK button until the system reset confirmationappears.
Trip 1
Press and hold the
OK button until the system reset confirmationappears.
Trip 2
CUSTOMIZING THE INSTRUMENT
CLUSTER DISPLAY
You can customize the gauge displays
through the following: Action
Menu Item
Press the
OK button.
Display
Press the
OK button. Choose a gauge display.
Gauges
147
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Instrument Cluster Display
