LINCOLN NAVIGATOR 2015 Owners Manual

Settings
Advanced
Settings VehicleEasy Entry / Exit - check enabled or uncheck disabled
Lighting Autolamp Delay Select time interval
Locks Autolock - check enabled or uncheck
disabled
Autounlock - check enabled or uncheck
disabled
Remote Unlock All Doors or Driver
Oil Life Remaining Life XXX% — Hold OK to reset
Power Liftgate Enable or Disable switch
Pwr Running
Boards Auto, Off or Out
Remote Start Climate Control Auto or Last Setting
Seats Auto or Off
Duration 5, 10 or 15 minutes
System - check enabled or uncheck
disabled
Wipers Courtesy Wipe - check enabled or uncheck disabled
Rain Sensing - check enabled or
uncheck disabled
*MyKey MyKey Status
Number of Admin Keys, MyKeys and
MyKey Mileage
Create MyKey Hold OKto Create MyKey
911 Assist Always On or User Selectable
Do Not Disturb Always On or User Selectable
Traction
Control Always On or User Selectable
Max Speed 65 MPH (105 km/h), 70 MPH (110 km/h), 75 MPH (120 km/h),
80 MPH (130 km/h) or Off
Speed Minder 45 mph (72 km/h), 55 mph (89 km/h), 65 mph (105 km/h) or Off
Volume Limiter - check enabled or uncheck disabled
Clear MyKeys Hold OKto Clear All MyKeys
Display
Setup Distance Miles & GAL, L/100km or km/L
Temperature °Fahrenheit or °Celsius
Gauge Display Fuel Gauge or Fuel + Tach
Language Select Language — Hold
OKto Set
*Some MyKey items will only appear if a MyKey is set.
11 0 Information Displays
2015 Navigator (nav)
Owners Guide gf, 2nd Printing, December 2014
USA (fus)

INFORMATION MESSAGES
Note:Depending on the vehicle options equipped with your vehicle, not
all of the messages will display or be available. Certain messages may be
abbreviated or shortened depending upon which cluster type you have.
Press the OK button to acknowledge and
remove some messages from the information
display. Other messages will be removed
automatically after a short time.
Certain messages need to be confirmed before you can access the
menus.
AdvanceTrac® / Traction Control Messages Action / Description
Traction control off/Traction
control on Displays when the traction control
system has been switched off or
on. See
Using Traction Control .
Service AdvanceTrac Displays when the system has detected a condition that requires
service. Contact your authorized
dealer as soon as possible.
AdvanceTrac Off Displays when the AdvanceTrac has been switched off.
AdvanceTrac On Displays when the AdvanceTrac has been switched on.
Alarm MessagesAction / Description
Vehicle Alarm To Stop Alarm, Start
Vehicle Displays when unauthorized entry
into the vehicle has occurred. Turn
the ignition on to stop the alarm.
Information Displays
111
2015 Navigator(nav)
Owners Guide gf, 2nd Printing, December 2014
USA (fus)

Battery and Charging SystemMessages Action / Description
Check Charging System Stop your vehicle as soon as it is safetodosoandswitchoffthe
ignition. Contact your authorized
dealer.
Turn Power Off to Save Battery Displays to warn of a low 12–volt battery condition. Turn off all
unneeded electrical accessories.
Contact your authorized dealer.
Low Battery Features Temporarily
Turned Off Displays to warn of a low 12–volt
battery condition. Turn off all
unneeded electrical accessories.
Blind Spot Information System
Messages Action / Description
Blind Spot Not Available Sensor
Blocked Displays when the blind spot
information system/cross traffic
alert system sensors are blocked.
Driver can typically clean the
sensor to resolve.
Blind Spot System Fault Displays when a fault with the blind spot information system has
occurred. Contact your authorized
dealer as soon as possible.
Cross Traffic Not Available Sensor
Blocked Displays when the blind spot
information system/cross traffic
alert system sensors are blocked.
Driver can typically clean the
sensor to resolve.
Cross Traffic System Fault Displays when a fault with the cross traffic alert system has
occurred. Contact your authorized
dealer as soon as possible.
11 2Information Displays
2015 Navigator (nav)
Owners Guide gf, 2nd Printing, December 2014
USA (fus)

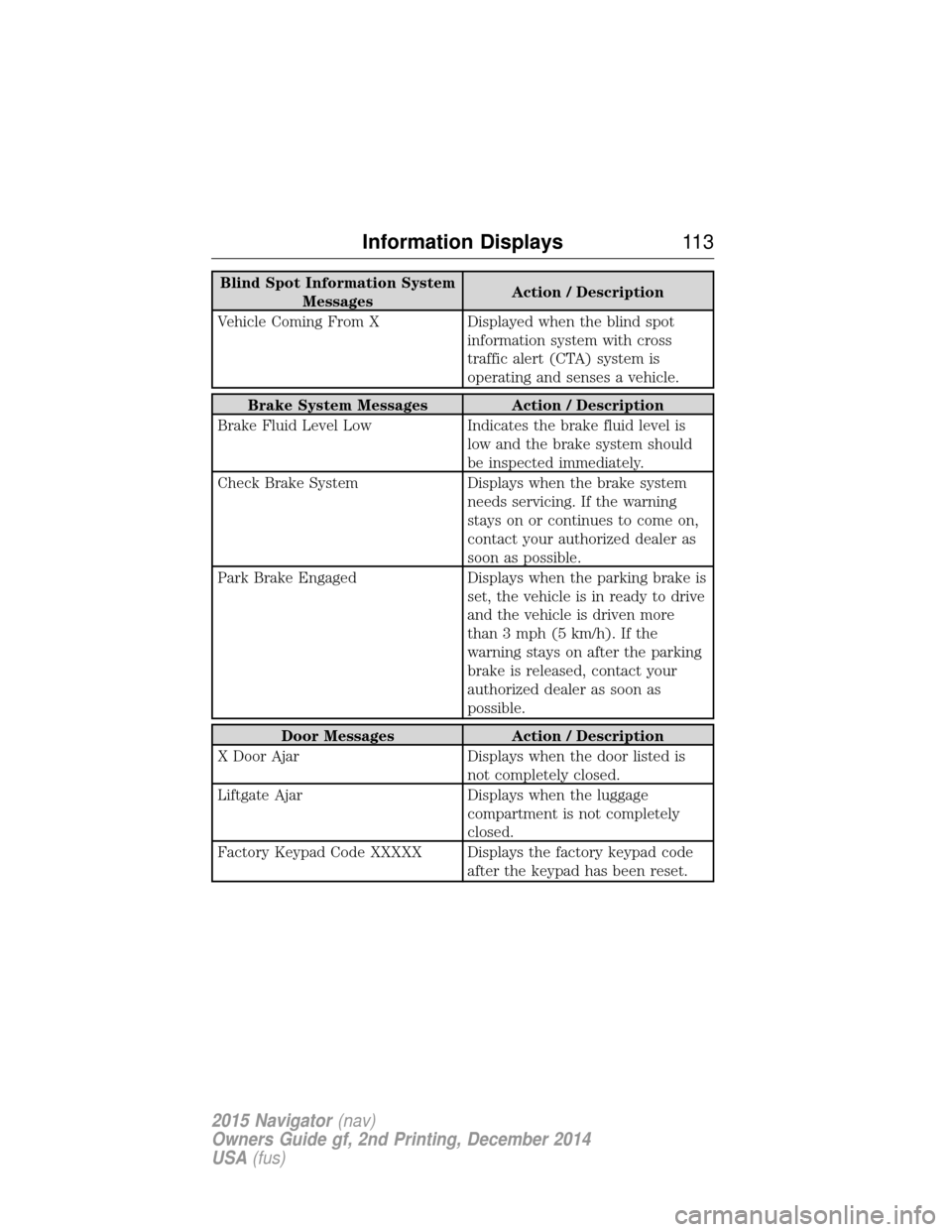

Blind Spot Information SystemMessages Action / Description
Vehicle Coming From X Displayed when the blind spot information system with cross
traffic alert (CTA) system is
operating and senses a vehicle.
Brake System Messages Action / Description
Brake Fluid Level Low Indicates the brake fluid level is
low and the brake system should
be inspected immediately.
Check Brake System Displays when the brake system
needs servicing. If the warning
stays on or continues to come on,
contact your authorized dealer as
soon as possible.
Park Brake Engaged Displays when the parking brake is
set, the vehicle is in ready to drive
and the vehicle is driven more
than 3 mph (5 km/h). If the
warning stays on after the parking
brake is released, contact your
authorized dealer as soon as
possible.
Door Messages Action / Description
X Door Ajar Displays when the door listed is
not completely closed.
Liftgate Ajar Displays when the luggage
compartment is not completely
closed.
Factory Keypad Code XXXXX Displays the factory keypad code after the keypad has been reset.
Information Displays11 3
2015 Navigator(nav)
Owners Guide gf, 2nd Printing, December 2014
USA (fus)

Engine MessagesAction / Description
Power Reduced To Lower Engine
Temp Displays when the engine has
reduced power to help reduce high
engine temperature.
Engine On Informs you that you are exiting
your vehicle and the engine is on.
Fuel Messages Action / Description
Check Fuel Fill Inlet Displays when the fuel fill inlet
may not be properly closed.
Fuel Level LOW Displays as an early reminder of a
low fuel condition.
Keys and Intelligent Access Messages Action / Description
No Key Detected Displayed if the intelligent access key is not detected by the system
in the following three scenarios:
•When the start/stop button is
pressed in an attempt to either
start the engine or cycle through
the ignition states.
•When the engine is running and
a door is opened then closed.
•When the vehicle’s speed exceeds
10 mph (16 km/h) for the first
time after starting.
Key Programmed x Keys Total Displayed during spare key programming, when an intelligent
access key is programmed to the
system.
Max Number of Keys Programmed Displayed during spare key programming when the maximum
number of keys have been
programmed.
11 4Information Displays
2015 Navigator (nav)
Owners Guide gf, 2nd Printing, December 2014
USA (fus)

Keys and Intelligent AccessMessages Action / Description
Press Brake to Start Displayed when the start/stop button is pressed without the
brake pedal being applied. This is
a reminder that the brake pedal
must be applied when the
start/stop button is pressed in
order to start the engine.
Restart Now or Key is Needed Displayed when the start/stop button is pressed to shut off the
engine and a Intelligent Access
Key is not detected inside the
vehicle.
Accessory Power Active Displayed when the vehicle is in the accessory ignition state.
Starting System Fault This message is displayed when there is a problem with your
vehicle’s starting system. See your
authorized dealer for service.
Maintenance Messages Action / Description
LOW Engine Oil Pressure Stop the vehicle as soon as safely possible, turn off the engine.
Check the oil level. If the warning
stays on or continues to come on
with your engine running, contact
your authorized dealer as soon as
possible.
Change Engine Oil Soon Displayed when the engine oil life
remaining is 10% or less.
Oil Change Required Displayed when the oil life left
reaches 0%.
Engine Coolant Overtemperature Displayed when the engine coolant temperature is excessively high.
Information Displays11 5
2015 Navigator(nav)
Owners Guide gf, 2nd Printing, December 2014
USA (fus)

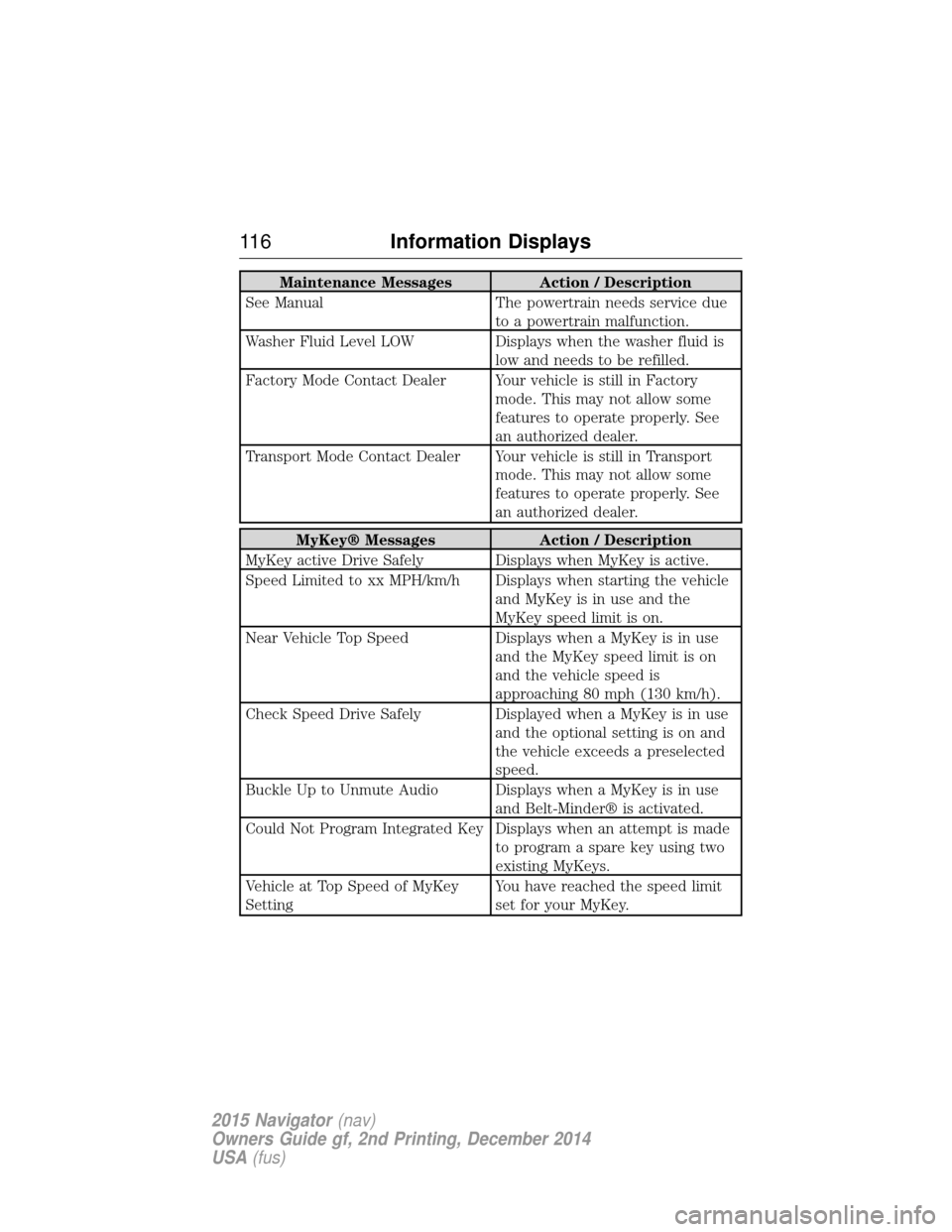

Maintenance MessagesAction / Description
See Manual The powertrain needs service due
to a powertrain malfunction.
Washer Fluid Level LOW Displays when the washer fluid is
low and needs to be refilled.
Factory Mode Contact Dealer Your vehicle is still in Factory mode. This may not allow some
features to operate properly. See
an authorized dealer.
Transport Mode Contact Dealer Your vehicle is still in Transport mode. This may not allow some
features to operate properly. See
an authorized dealer.
MyKey® MessagesAction / Description
MyKey active Drive Safely Displays when MyKey is active.
Speed Limited to xx MPH/km/h Displays when starting the vehicle and MyKey is in use and the
MyKey speed limit is on.
Near Vehicle Top Speed Displays when a MyKey is in use
and the MyKey speed limit is on
and the vehicle speed is
approaching 80 mph (130 km/h).
Check Speed Drive Safely Displayed when a MyKey is in use and the optional setting is on and
the vehicle exceeds a preselected
speed.
Buckle Up to Unmute Audio Displays when a MyKey is in use and Belt-Minder® is activated.
Could Not Program Integrated Key Displays when an attempt is made to program a spare key using two
existing MyKeys.
Vehicle at Top Speed of MyKey
Setting You have reached the speed limit
set for your MyKey.
11 6
Information Displays
2015 Navigator (nav)
Owners Guide gf, 2nd Printing, December 2014
USA (fus)

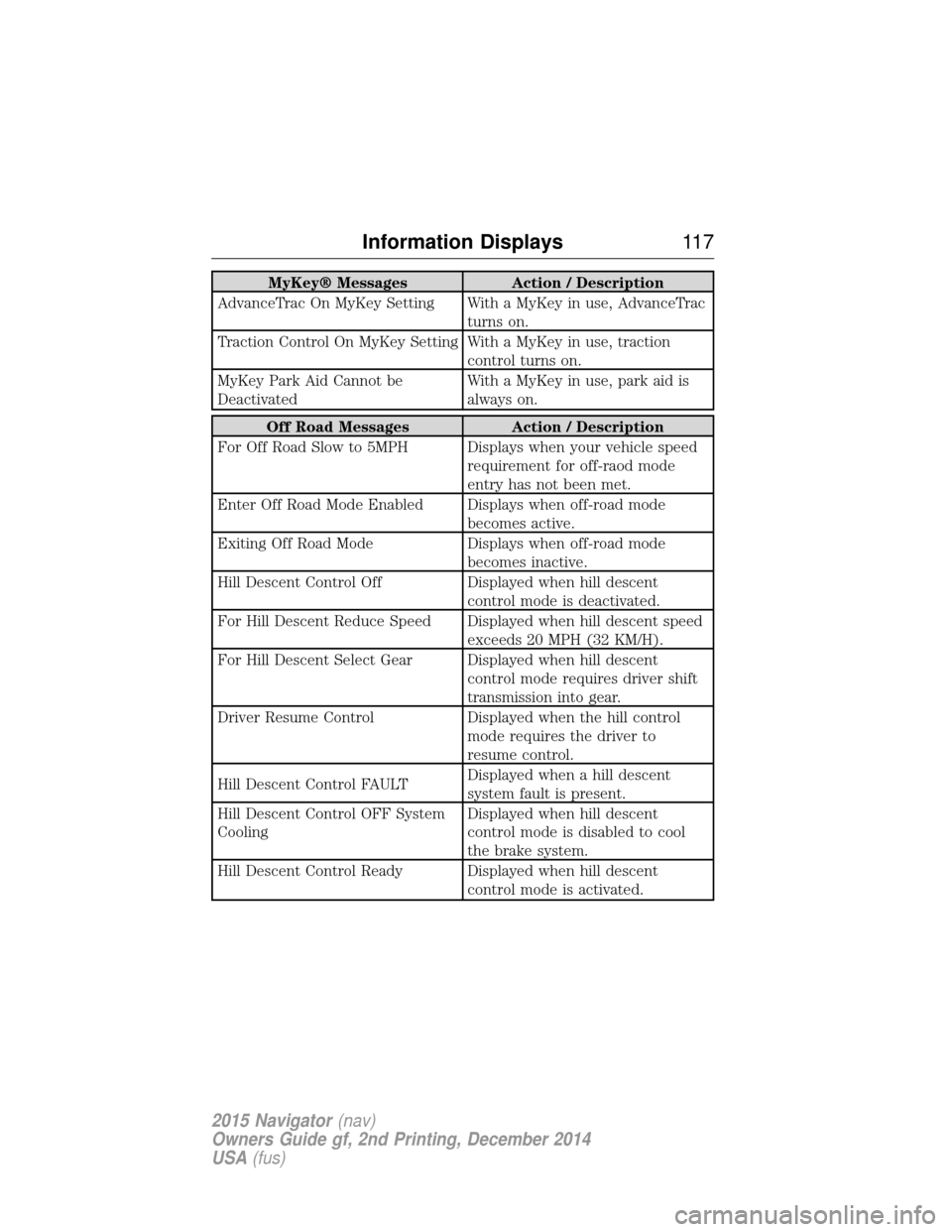

MyKey® MessagesAction / Description
AdvanceTrac On MyKey Setting With a MyKey in use, AdvanceTrac turns on.
Traction Control On MyKey Setting With a MyKey in use, traction control turns on.
MyKey Park Aid Cannot be
Deactivated With a MyKey in use, park aid is
always on.
Off Road Messages
Action / Description
For Off Road Slow to 5MPH Displays when your vehicle speed requirement for off-raod mode
entry has not been met.
Enter Off Road Mode Enabled Displays when off-road mode becomes active.
Exiting Off Road Mode Displays when off-road mode
becomes inactive.
Hill Descent Control Off Displayed when hill descent
control mode is deactivated.
For Hill Descent Reduce Speed Displayed when hill descent speed exceeds 20 MPH (32 KM/H).
For Hill Descent Select Gear Displayed when hill descent control mode requires driver shift
transmission into gear.
Driver Resume Control Displayed when the hill control
mode requires the driver to
resume control.
Hill Descent Control FAULT Displayed when a hill descent
system fault is present.
Hill Descent Control OFF System
Cooling Displayed when hill descent
control mode is disabled to cool
the brake system.
Hill Descent Control Ready Displayed when hill descent control mode is activated.
Information Displays11 7
2015 Navigator(nav)
Owners Guide gf, 2nd Printing, December 2014
USA (fus)

Park Aid MessagesAction / Description
Check Park Aid Displays when the transmission is
in R (Reverse) and the park aid is
disabled.
Rear Park Aid On Off Displays the park aid status.
Check Rear Park Aid Displays when the transmission is
in reverse (R) and the park aid is
disabled.
Check Front Park Aid Displays when the system has
detected a condition that requires
service. See Parking Aid chapter.
Front Park Aid On Off Displays the park aid status.
Power Steering Messages Action / Description
Steering loss Stop safely The power steering system has
detected a condition that requires
service. See an authorized dealer.
Steering fault Service now The power steering system has detected a condition within the
power steering system that
requires service immediately. See
an authorized dealer.
Steering assist fault Service
required The power steering system has
disabled power steering assist due
to a system error. See an
authorized dealer.
Remote Start Messages
Action / Description
To Drive: Turn Key to On Displays as a reminder to turn the key on to drive the vehicle after a
remote start.
To Drive: Press Brake and START
Button Displays as a reminder to apply
the brake and the start button to
drive the vehicle after a remote
start.
11 8
Information Displays
2015 Navigator (nav)
Owners Guide gf, 2nd Printing, December 2014
USA (fus)

Starting System Messages Action / Description
To Drive: Turn Key to On Displays when there is a problem with your vehicle’s starting system.
See an authorized dealer for
service.
Suspension System Messages Action / Description
Driver Control malfunction Service
required Displays when there is a problem
with your vehicle’s suspension
system. See an authorized dealer
for service.
Tire Messages
Action / Description
Tire Pressure LOW Displays when one or more tires
on your vehicle have low tire
pressure.
Tire Pressure Monitor Fault Displays when the tire pressure monitoring system is
malfunctioning. If the warning
stays on or continues to come on,
contact an authorized dealer.
Tire Pressure Sensor Fault Displays when a tire pressure sensor is malfunctioning, or your
spare tire is in use. For more
information on how the system
operates under these conditions,
see theWheels and Tireschapter.
If the warning stays on or
continues to come on, contact an
authorized dealer.
Information Displays 11 9
2015 Navigator(nav)
Owners Guide gf, 2nd Printing, December 2014
USA (fus)
