CHILD SAFETY PRECAUTIONS
WARNING: Always make sure yourchild is secured properly in a device thatis appropriate for their height, age andweight. Child safety restraints must bebought separately from your vehicle.Failure to follow these instructions andguidelines may result in an increased riskof serious injury or death to your child.
WARNING: All children are shapeddifferently. The National Highway TrafficSafety Administration and other safetyorganizations, base their recommendationsfor child restraints on probable child height,age and weight thresholds, or on theminimum requirements of the law. Werecommend that you check with a NHTSACertified Child Passenger SafetyTechnician (CPST) to make sure that youproperly install the child restraint in yourvehicle and that you consult yourpediatrician to make sure you have a childrestraint appropriate for your child. Tolocate a child restraint fitting station and
CPST, contact NHTSA toll free at1-888-327-4236 or go towww.nhtsa.dot.gov. In Canada, contactTransport Canada toll free at1-800-333-0371 or go to www.tc.gc.ca tofind a Child Car Seat Clinic in your area.Failure to properly restrain children in childrestraints made especially for their height,age and weight, may result in an increasedrisk of serious injury or death to your child.
WARNING: On hot days, thetemperature inside the vehicle can risevery quickly. Exposure of people or animalsto these high temperatures for even a shorttime can cause death or serious heatrelated injuries, including brain damage.Small children are particularly at risk.
WARNING: Do not place a rearwardfacing child restraint in front of an activeairbag. Failure to follow this instructioncould result in personal injury or death.
WARNING: Properly secure children12 years old and under in a rear seatingposition whenever possible. If you areunable to properly secure all children in arear seating position, properly secure thelargest child on the front seat. If you mustuse a forward facing child restraint on thefront seat, move the seat as far back aspossible. Failure to follow theseinstructions could result in personal injuryor death.
WARNING: Always carefully followthe instructions and warnings provided bythe manufacturer of any child restraint todetermine if the restraint device isappropriate for your child's size, height,weight, or age. Follow the child restraintmanufacturer's instructions and warningsprovided for installation and use inconjunction with the instructions andwarnings provided by your vehicle
39
2023 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202207, DOMChild Safety

manufacturer. A safety seat that isimproperly installed or utilized, isinappropriate for your child's height, age,or weight or does not properly fit the childmay increase the risk of serious injury ordeath.
WARNING: Do not allow a passengerto hold a child on their lap when yourvehicle is moving. Failure to follow thisinstruction could result in personal injuryor death in the event of a sudden stop orcrash.
WARNING: Do not use pillows, booksor towels to boost your child's height.Failure to follow this instruction could resultin personal injury or death.
WARNING: Properly secure childrestraints or booster seats when they arenot in use. They could become projectilesin a sudden stop or crash. Failure to followthis instruction could result in personalinjury or death.
WARNING: Do not put the shouldersection of the seatbelt or allow the child toput the shoulder section of the seatbeltunder their arm or behind their back.Failure to follow this instruction couldreduce the effectiveness of the seatbeltand increase the risk of injury or death ina crash.
WARNING: Do not leave children orpets unattended in your vehicle. Failure tofollow this instruction could result inpersonal injury or death.
When installing a child restraint withseatbelts:
•Place the vehicle seat in the uprightposition before you install the childrestraint.
•Use the correct seatbelt buckle for thatseating position.
•Insert the belt tongue into the buckle.Make sure the tongue is securelyfastened in the buckle.
•Keep the buckle release button pointingup and away from the child restraint, withthe tongue between the child restraintand the release button, to preventaccidental unbuckling.
•Put the seatbelt in the automatic lockingmode.
CHILD RESTRAINT ANCHOR POINTS
WHAT ARE THE CHILD RESTRAINTANCHOR POINTS
Anchor points allow you to quickly and safelyinstall a child restraint.
LOCATING THE CHILD RESTRAINTLOWER ANCHOR POINTS
Second Row Bench Seat
40
2023 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202207, DOMChild Safety

Second Row Bucket Seats

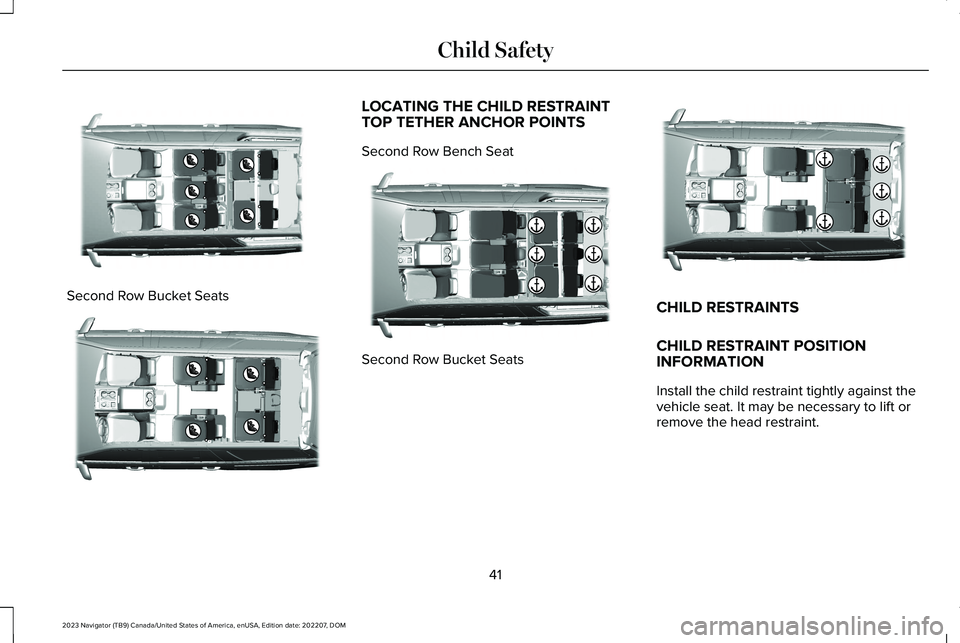

LOCATING THE CHILD RESTRAINTTOP TETHER ANCHOR POINTS
Second Row Bench Seat
Second Row Bucket Seats
CHILD RESTRAINTS
CHILD RESTRAINT POSITIONINFORMATION
Install the child restraint tightly against thevehicle seat. It may be necessary to lift orremove the head restraint.
41
2023 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202207, DOMChild SafetyE347175 E347230 E347177 E347235

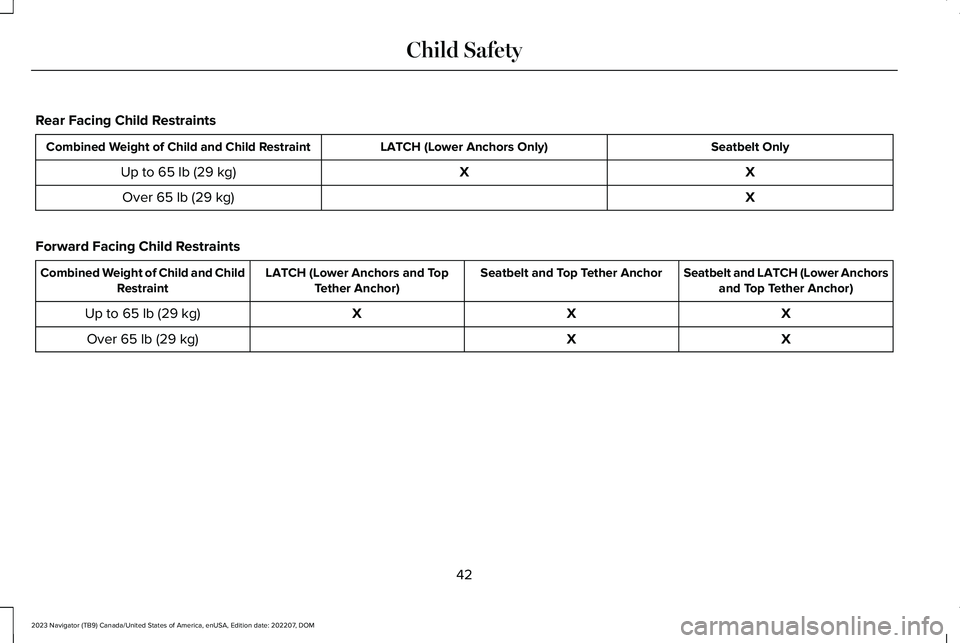

Rear Facing Child Restraints
Seatbelt OnlyLATCH (Lower Anchors Only)Combined Weight of Child and Child Restraint
XXUp to 65 lb (29 kg)
XOver 65 lb (29 kg)
Forward Facing Child Restraints
Seatbelt and LATCH (Lower Anchorsand Top Tether Anchor)Seatbelt and Top Tether AnchorLATCH (Lower Anchors and TopTether Anchor)Combined Weight of Child and ChildRestraint
XXXUp to 65 lb (29 kg)
XXOver 65 lb (29 kg)
42
2023 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202207, DOMChild Safety

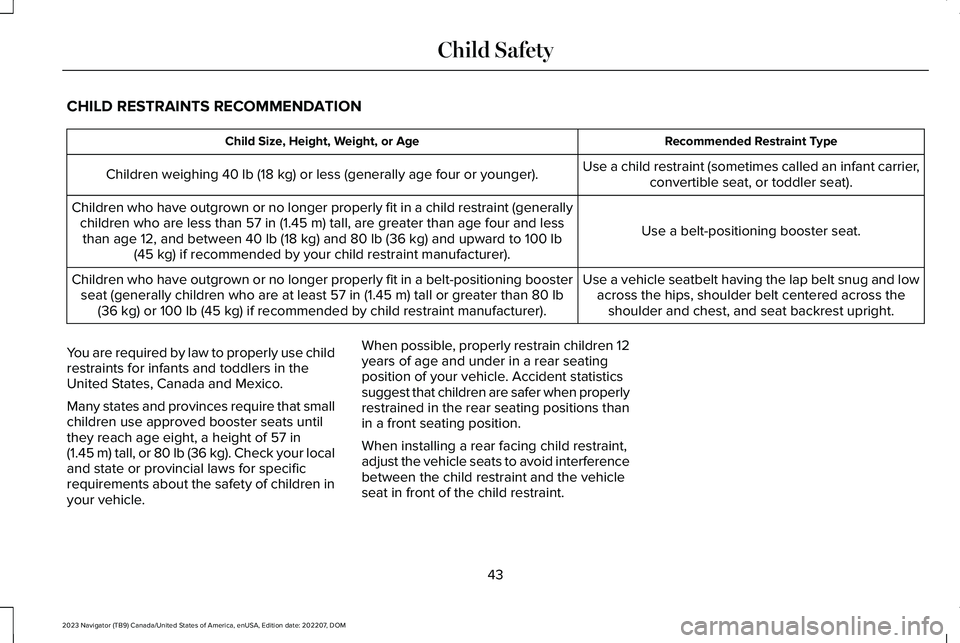

CHILD RESTRAINTS RECOMMENDATION
Recommended Restraint TypeChild Size, Height, Weight, or Age
Use a child restraint (sometimes called an infant carrier,convertible seat, or toddler seat).Children weighing 40 lb (18 kg) or less (generally age four or younger).
Use a belt-positioning booster seat.
Children who have outgrown or no longer properly fit in a child restraint (generallychildren who are less than 57 in (1.45 m) tall, are greater than age four and lessthan age 12, and between 40 lb (18 kg) and 80 lb (36 kg) and upward to 100 lb(45 kg) if recommended by your child restraint manufacturer).
Use a vehicle seatbelt having the lap belt snug and lowacross the hips, shoulder belt centered across theshoulder and chest, and seat backrest upright.
Children who have outgrown or no longer properly fit in a belt-positioning boosterseat (generally children who are at least 57 in (1.45 m) tall or greater than 80 lb(36 kg) or 100 lb (45 kg) if recommended by child restraint manufacturer).
You are required by law to properly use childrestraints for infants and toddlers in theUnited States, Canada and Mexico.
Many states and provinces require that smallchildren use approved booster seats untilthey reach age eight, a height of 57 in(1.45 m) tall, or 80 lb (36 kg). Check your localand state or provincial laws for specificrequirements about the safety of children inyour vehicle.
When possible, properly restrain children 12years of age and under in a rear seatingposition of your vehicle. Accident statisticssuggest that children are safer when properlyrestrained in the rear seating positions thanin a front seating position.
When installing a rear facing child restraint,adjust the vehicle seats to avoid interferencebetween the child restraint and the vehicleseat in front of the child restraint.
43
2023 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202207, DOMChild Safety

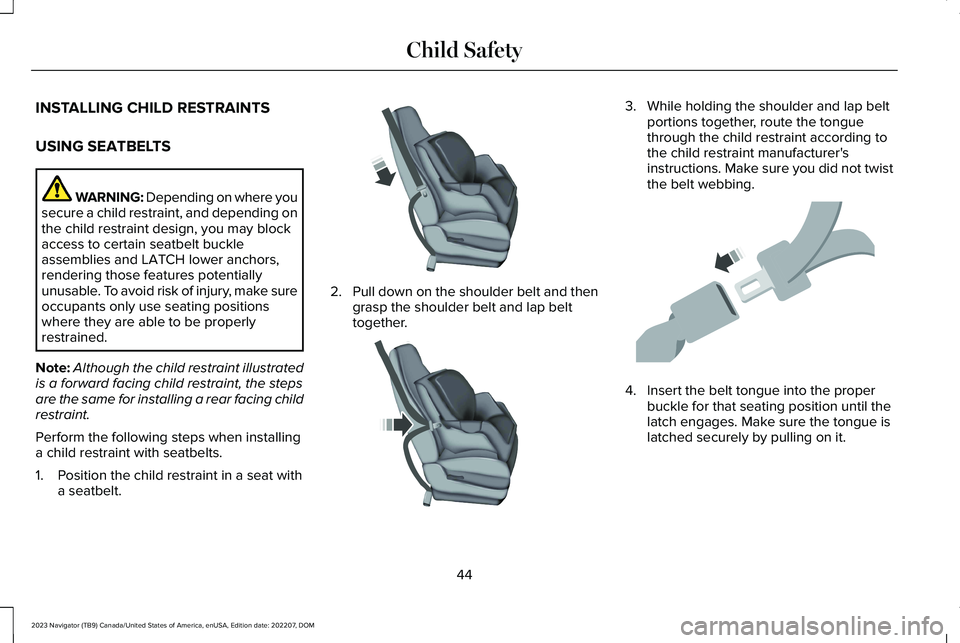

INSTALLING CHILD RESTRAINTS
USING SEATBELTS
WARNING: Depending on where yousecure a child restraint, and depending onthe child restraint design, you may blockaccess to certain seatbelt buckleassemblies and LATCH lower anchors,rendering those features potentiallyunusable. To avoid risk of injury, make sureoccupants only use seating positionswhere they are able to be properlyrestrained.
Note:Although the child restraint illustratedis a forward facing child restraint, the stepsare the same for installing a rear facing childrestraint.
Perform the following steps when installinga child restraint with seatbelts.
1.Position the child restraint in a seat witha seatbelt.
2.Pull down on the shoulder belt and thengrasp the shoulder belt and lap belttogether.
3.While holding the shoulder and lap beltportions together, route the tonguethrough the child restraint according tothe child restraint manufacturer'sinstructions. Make sure you did not twistthe belt webbing.
4.Insert the belt tongue into the properbuckle for that seating position until thelatch engages. Make sure the tongue islatched securely by pulling on it.
44
2023 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202207, DOMChild SafetyE142529 E142530 E142531

5.To put the retractor in the automaticlocking mode, grasp the shoulder portionof the belt and pull downward until youpull all of the seatbelt out.
Note:The automatic locking mode isavailable on the front passenger and rearseats. This vehicle does not require the useof a locking clip.
6.Allow the belt to retract to remove slack.The seatbelt clicks as it retracts toindicate it is in the automatic lockingmode.
7.Pull the seatbelt out of the retractor tomake sure the retractor is in theautomatic locking mode. You should notbe able to pull more belt out. If theretractor is not locked, unbuckle the beltand repeat Steps 5 and 6.
8.Remove remaining slack from the belt.Force the seat down with extra weight,for example, by pressing down orkneeling on the child restraint whilepulling up on the shoulder belt in orderto force slack from the belt. This isnecessary to remove the remaining slackthat exists once you add the extra weight
of the child to the child restraint. It alsohelps to achieve the proper snugness ofthe child restraint to your vehicle.Sometimes, a slight lean toward thebuckle helps to remove remaining slackfrom the belt.
9.If the child restraint has a tether strap,attach it.
10.Before placing the child in the seat,forcibly move the seat forward and backto make sure the seat is securely heldin place.
45
2023 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202207, DOMChild SafetyE142875 E142533 E142534

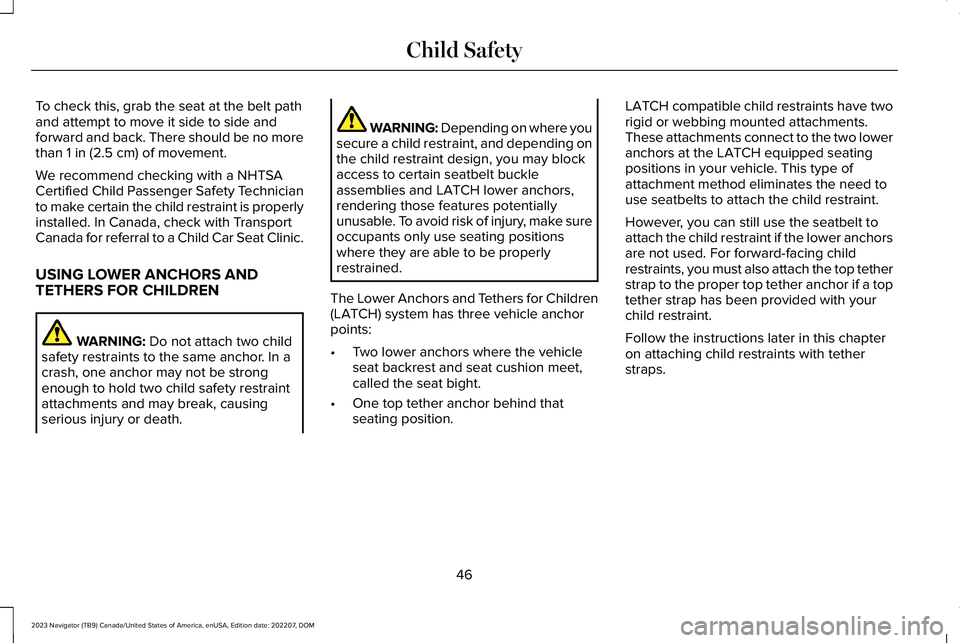

To check this, grab the seat at the belt pathand attempt to move it side to side andforward and back. There should be no morethan 1 in (2.5 cm) of movement.
We recommend checking with a NHTSACertified Child Passenger Safety Technicianto make certain the child restraint is properlyinstalled. In Canada, check with TransportCanada for referral to a Child Car Seat Clinic.
USING LOWER ANCHORS ANDTETHERS FOR CHILDREN
WARNING: Do not attach two childsafety restraints to the same anchor. In acrash, one anchor may not be strongenough to hold two child safety restraintattachments and may break, causingserious injury or death.
WARNING: Depending on where yousecure a child restraint, and depending onthe child restraint design, you may blockaccess to certain seatbelt buckleassemblies and LATCH lower anchors,rendering those features potentiallyunusable. To avoid risk of injury, make sureoccupants only use seating positionswhere they are able to be properlyrestrained.
The Lower Anchors and Tethers for Children(LATCH) system has three vehicle anchorpoints:
•Two lower anchors where the vehicleseat backrest and seat cushion meet,called the seat bight.
•One top tether anchor behind thatseating position.
LATCH compatible child restraints have tworigid or webbing mounted attachments.These attachments connect to the two loweranchors at the LATCH equipped seatingpositions in your vehicle. This type ofattachment method eliminates the need touse seatbelts to attach the child restraint.
However, you can still use the seatbelt toattach the child restraint if the lower anchorsare not used. For forward-facing childrestraints, you must also attach the top tetherstrap to the proper top tether anchor if a toptether strap has been provided with yourchild restraint.
Follow the instructions later in this chapteron attaching child restraints with tetherstraps.
46
