MAZDA 323 1989 Factory Repair Manual

EXTERIOR LIGHTING SYSTEM T

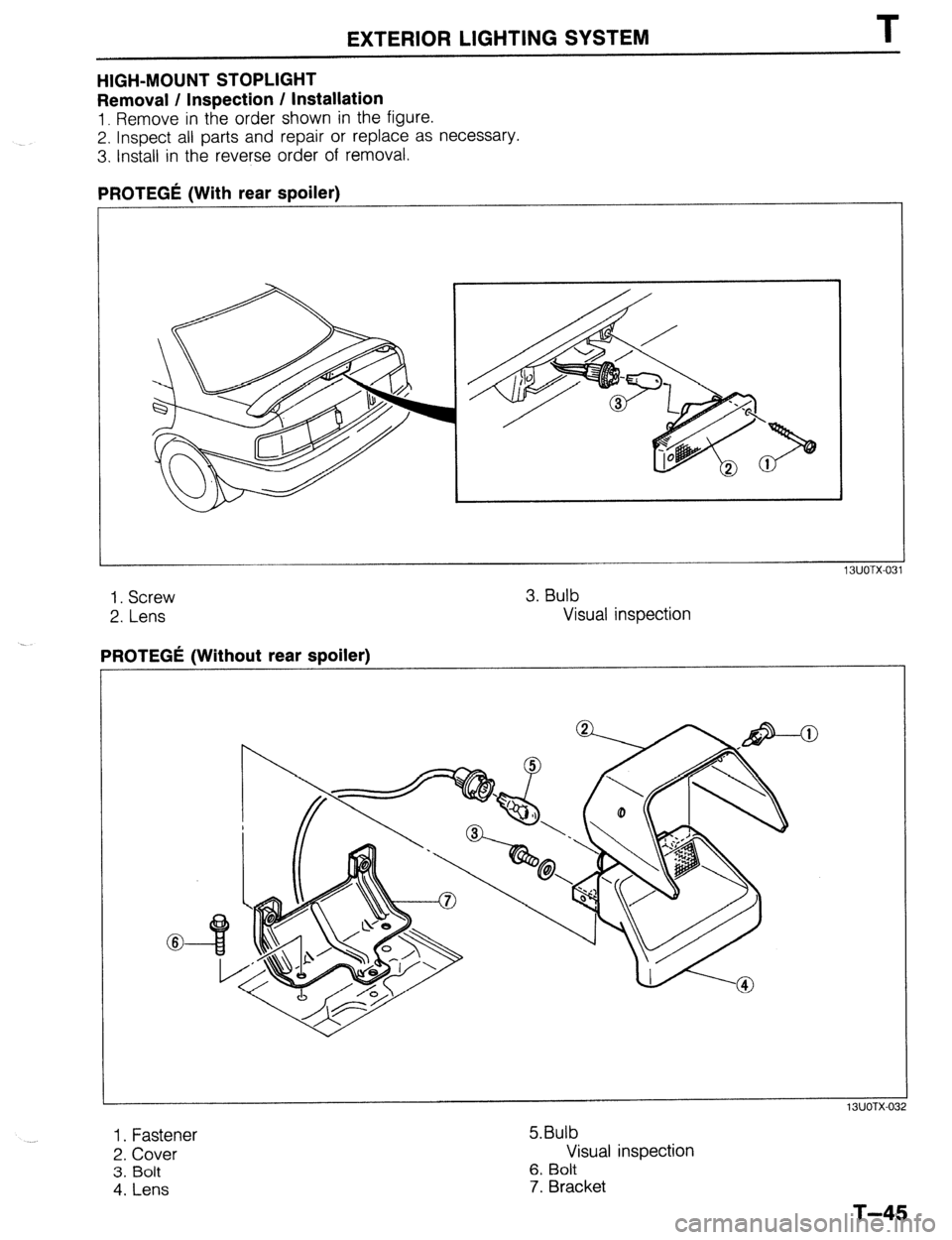

HIGH-MOUNT STOPLIGHT
Removal / Inspection / Installation
1. Remove in the order shown in the figure.
2. Inspect all parts and repair or replace as necessary.
3. Install in the reverse order of removal.
PROTEGE (With rear sDoiler1 . ,
1. Screw
2. Lens
PROTEGe (Without rear spoiler)
3. Bulb
Visual inspection
1. Fastener
2. Cover 3. Bolt
4. Lens 5.Bulb
Visual inspection
6. Bolt
7. Bracket
T-45

T EXTERIOR LIGHTING SYSTEM

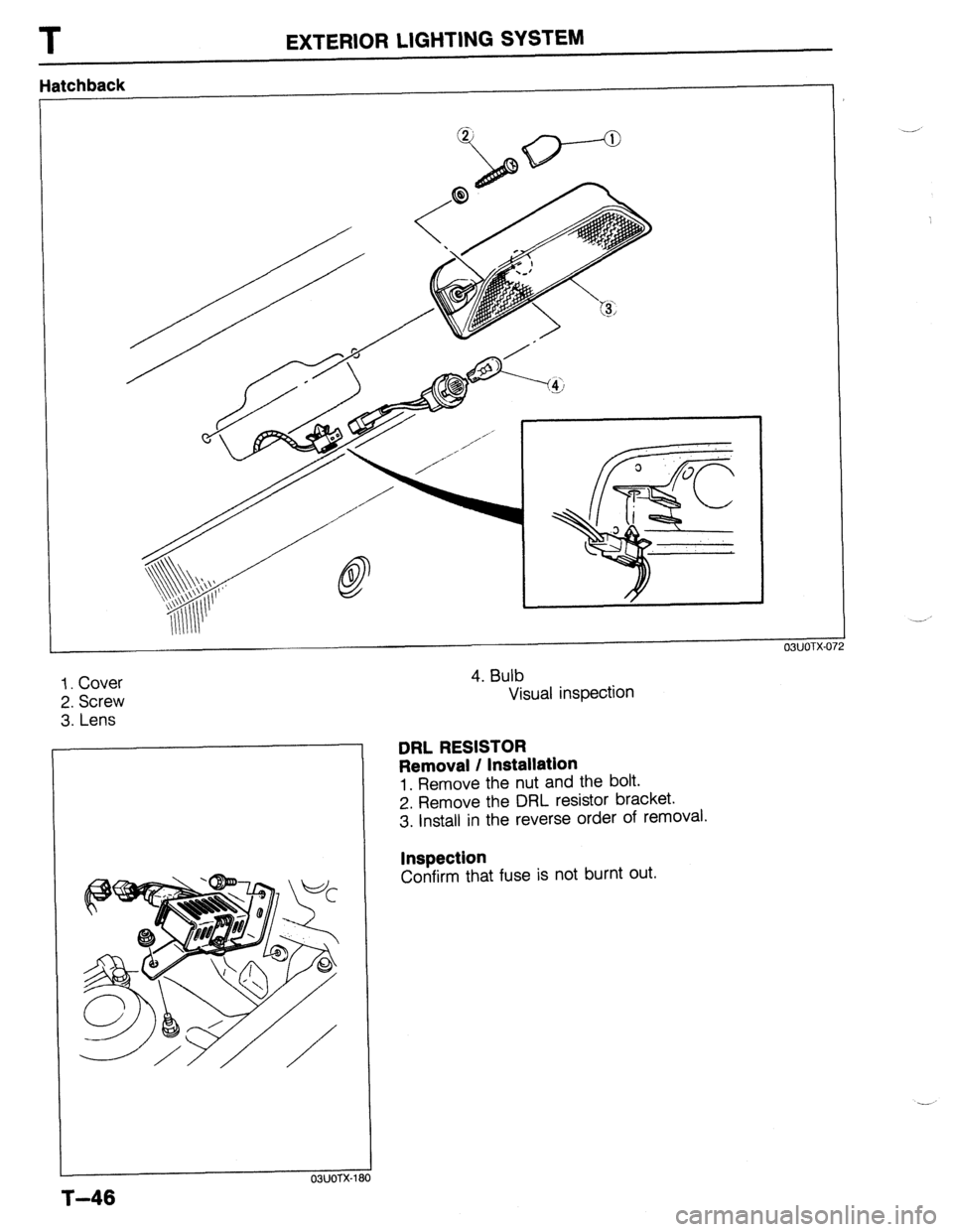

Hatchback
03UOTX-07:
1. Cover
2. Screw
3. Lens
03UOTX-1
4. Bulb
Visual inspection
DRL RESISTOR
Removal / Installation
1. Remove the nut and the bolt.
2. Remove the DRL resistor bracket.
3. Install in the reverse order of removal.
Inspection
Confirm that fuse is not burnt out.
T-46

EXTERIOR LIGHTING SYSTEM T
03UOTX-07

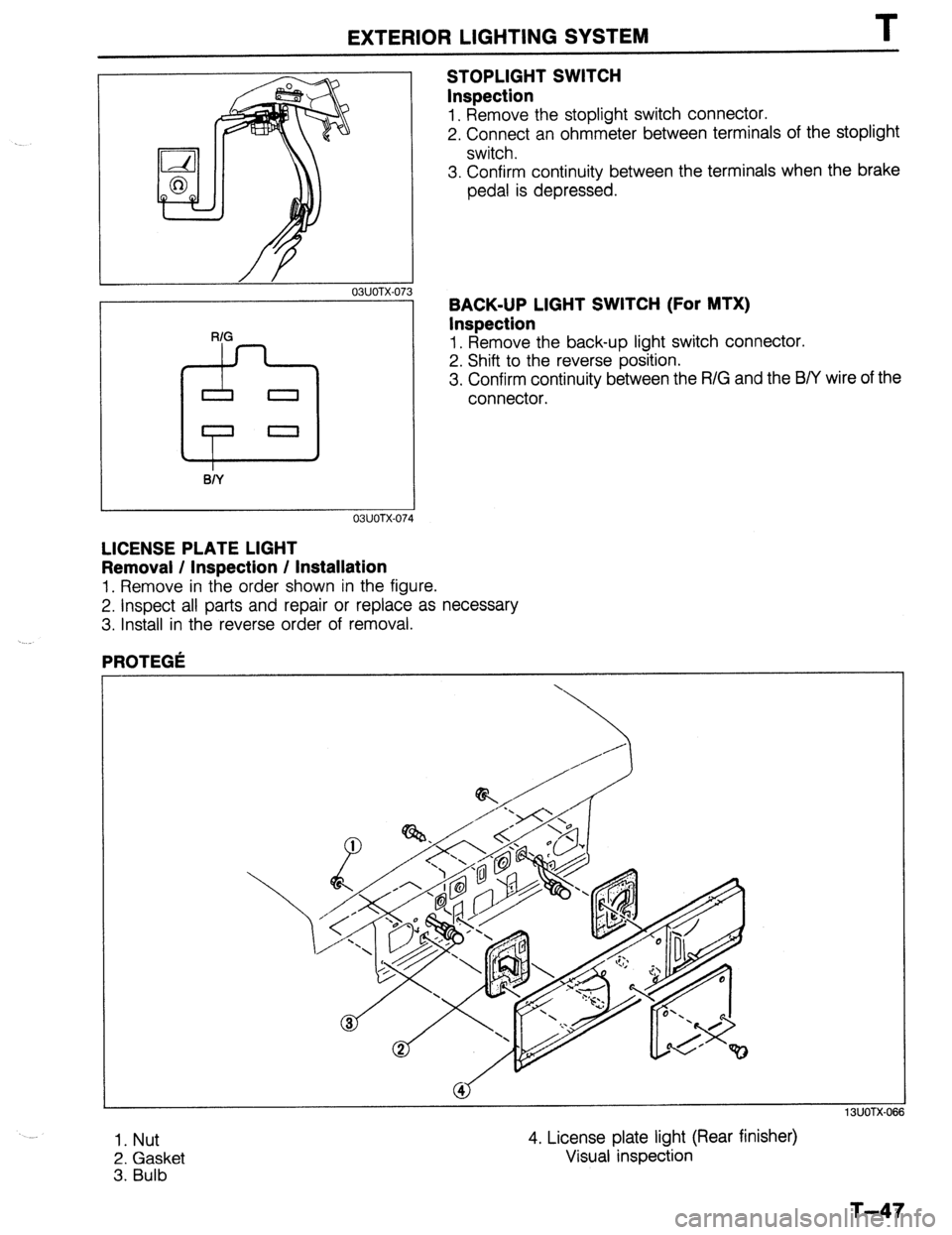

STOPLIGHT SWITCH
Inspection
1. Remove the stoplight switch connector.
2. Connect an ohmmeter between terminals of the stoplight
switch.
3. Confirm continuity between the terminals when the brake
pedal is depressed.
SACK-UP LIGHT SWITCH (For MTX)
Inspection
1. Remove the back-up light switch connector.
2. Shift to the reverse position.
3. Confirm continuity between the R/G and the B/Y wire of the
connector.
LICENSE PLATE LIGHT
Removal / Inspection / Installation
1. Remove in the order shown in the figure.
2. inspect all parts and repair or replace as necessary
3. Install in the reverse order of removal.
PROTEGi
1. Nut
2. Gasket
3. Bulb 4. License plate light (Rear finisher)
Visual inspection
T-47

T EXTERIOR LIGHTING SYSTEM
Hatchback
OWOTX-(

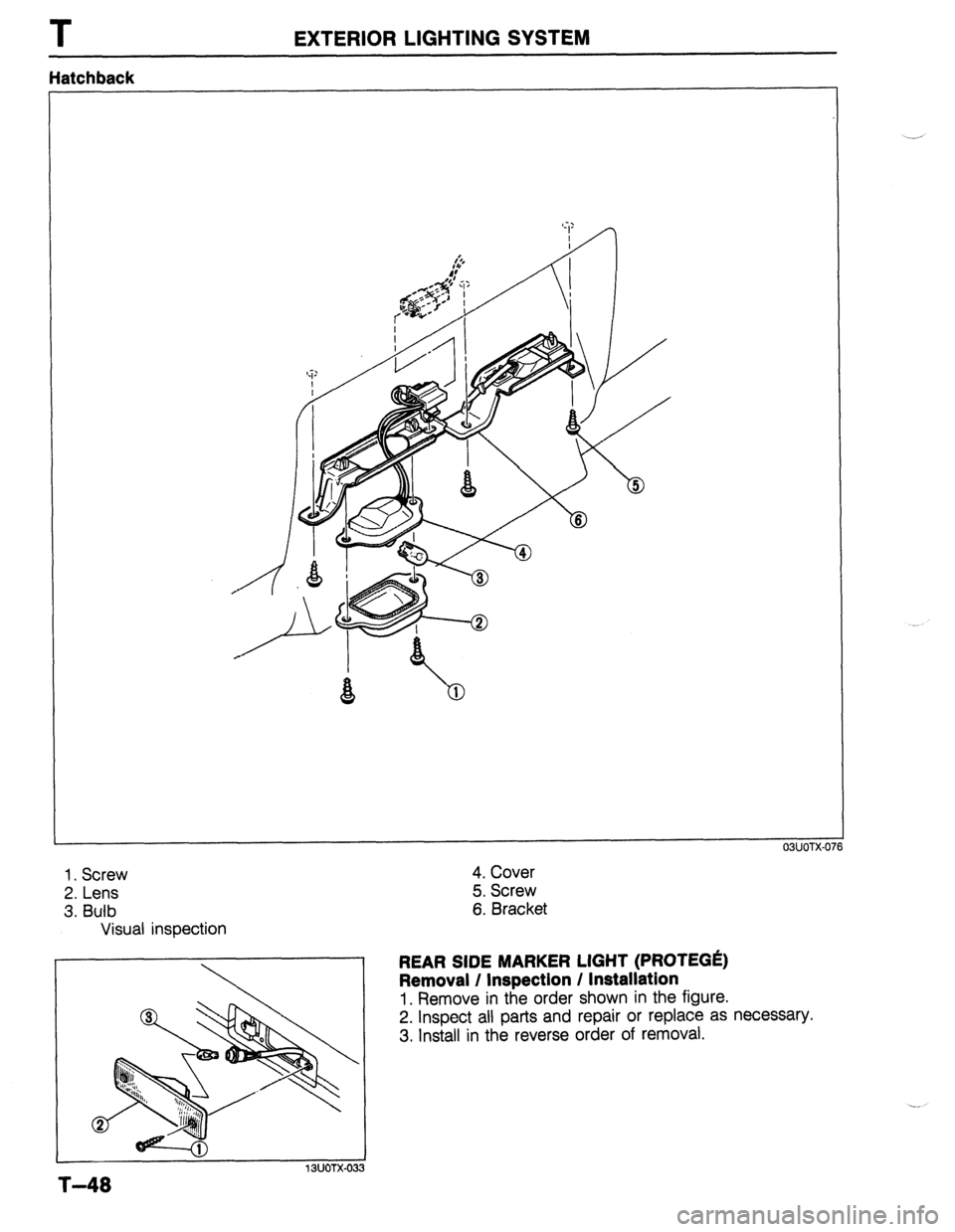

1. Screw 4. Cover
2. Lens 5. Screw
3. Bulb 6. Bracket
Visual inspection
REAR SIDE MARKER LIGHT (PROTEGE)
Removal / lnspectlon / lnstallatlon
1. Remove in the order shown in the figure.
2. Inspect all parts and repair or replace as necessary.
3. Install in the reverse order of removal.
13UOTX-033
T-48

INTERIOR LAMP SYSTEM T
INTERIOR LAMP SYSTEM

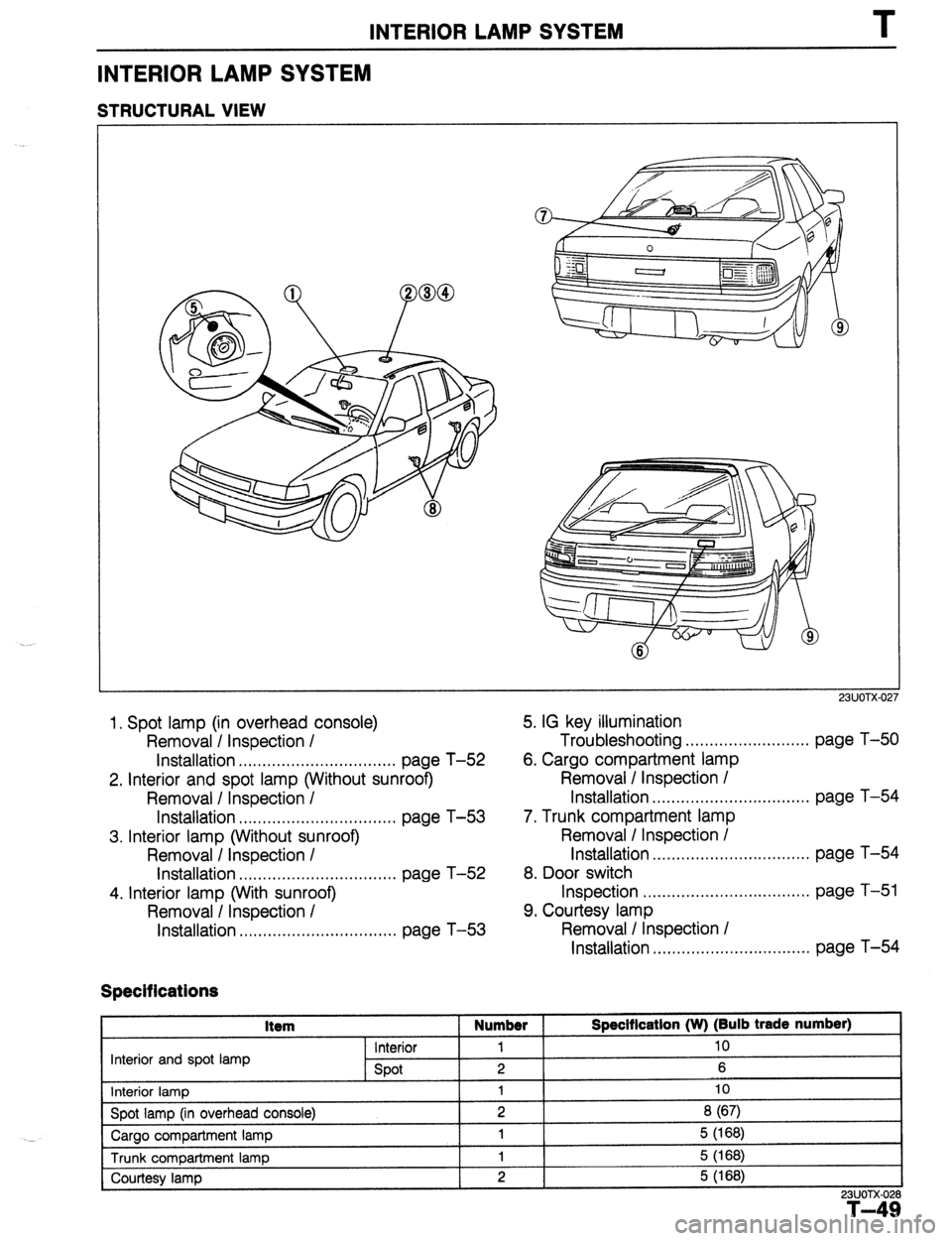

STRUCTURAL VIEW
ZYUU I x-02
1. Spot lamp (in overhead console) 5. IG key illumination
Removal I Inspection / Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .
page T-50
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page T-52 6. Cargo compartment lamp
2. Interior and spot lamp (Without sunroof) Removal I Inspection /
Removal / Inspection I Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
page T-54
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page T-53 7. Trunk compartment lamp
3. Interior lamp (Without sunroof) Removal I Inspection /
Removal / Inspection / Installation . ..*......................*...... page T-54
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page T-52 8. Door switch
4. Interior lamp (With sunroof) Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
page T-51
Removal I Inspection / 9. Courtesy lamp
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
page T-53 Removal I Inspection /
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page T-54
Specifications
Item
Interior and spot lamp
interior lamp
Spot lamp (in overhead console)
Cargo compartment lamp
Trunk compartment lamp
Courtesy lamp Interior
spot Number 1
2
1
2
1
1
2 Specification (W) (Bulb trade number) 10
6
10
8 (67)
5 (168)
5 (168)
5 (168)
23UOTX-028
T-49

T INTERIOR LAMP SYSTEM
TROUBLESHOOTING
IG Key Illumination
Circuit diagram
03UOTX-080
T-50

INTERIOR LAMP SYSTEM T

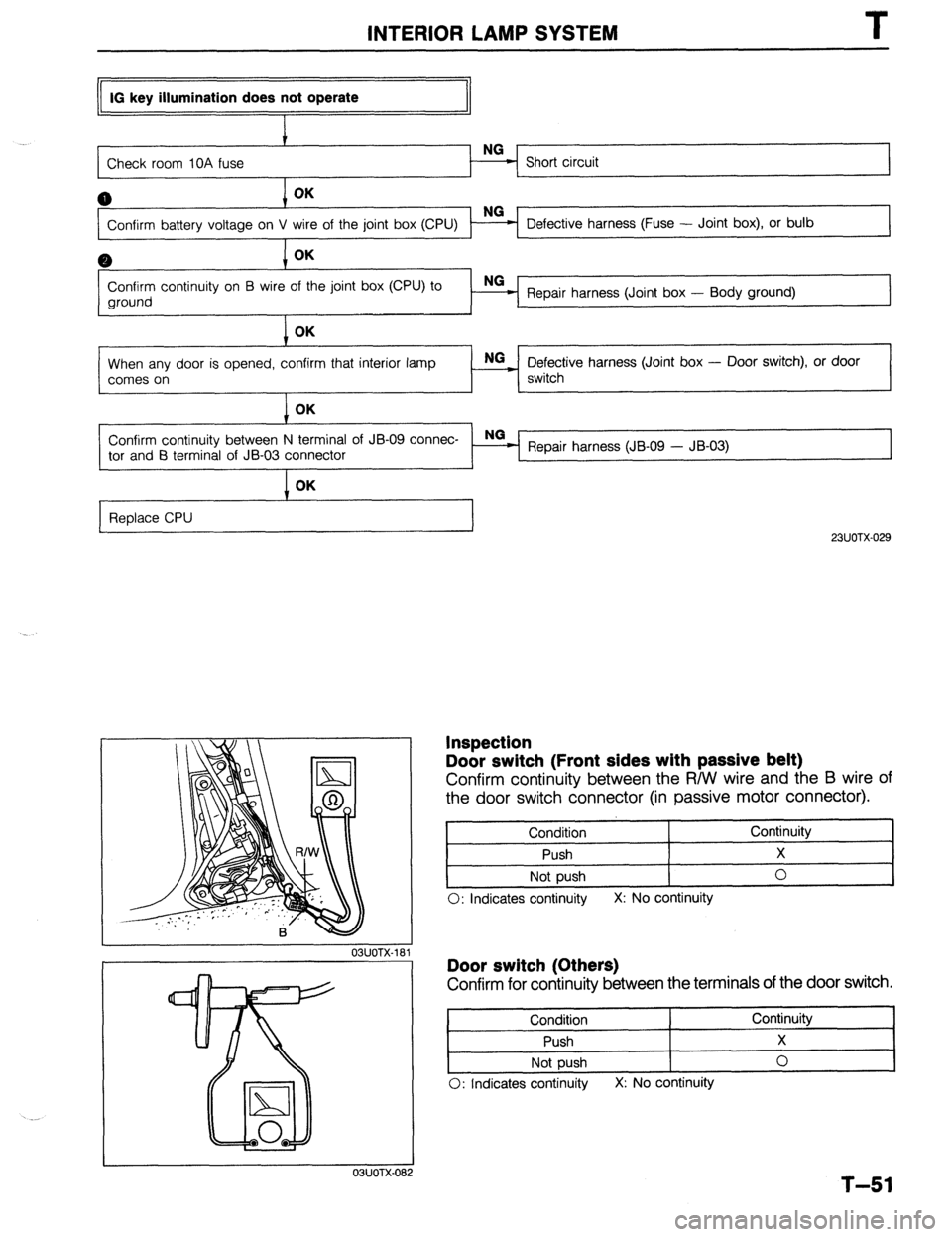

IG key illumination does not operate
Check room IOA fuse NG
- Short circuit
0 OK
Confirm battery voltage on V Defective harness (Fuse - Joint box), or bulb
0 OK
Confirm continuity on B wire of the joint box (CPU) to
ground Repair harness (Joint box - Body ground)
OK
When any door is opened, confirm that interior lamp
comes on
OK NG
~ Defective harness (Joint box - Door switch), or door
switch
Confirm continuity between N terminal of JB-09 connec- _ NG
-
tor and B terminal of JB-03 connector Repair harness (JB-09 - JB-03)
I OK
Replace CPU
23UOTX-029
Inspection
Door switch (Front sides with passive belt)
Confirm continuity between the R/W wire and the B wire of
the door switch connector (in passive motor connector).
Condition Continuity
Push X
Not push 0
0: Indicates continuity X: No continuity
03UOTX-181 Door switch (Others)
Confirm for continuity between the terminals of the door switch.
Condition Continuity
Push X
Not push 0
0: Indicates continuity X: No continuity
1 I OSJOTX-082
T-51

.T INTERIOR LAMP SYSTEM

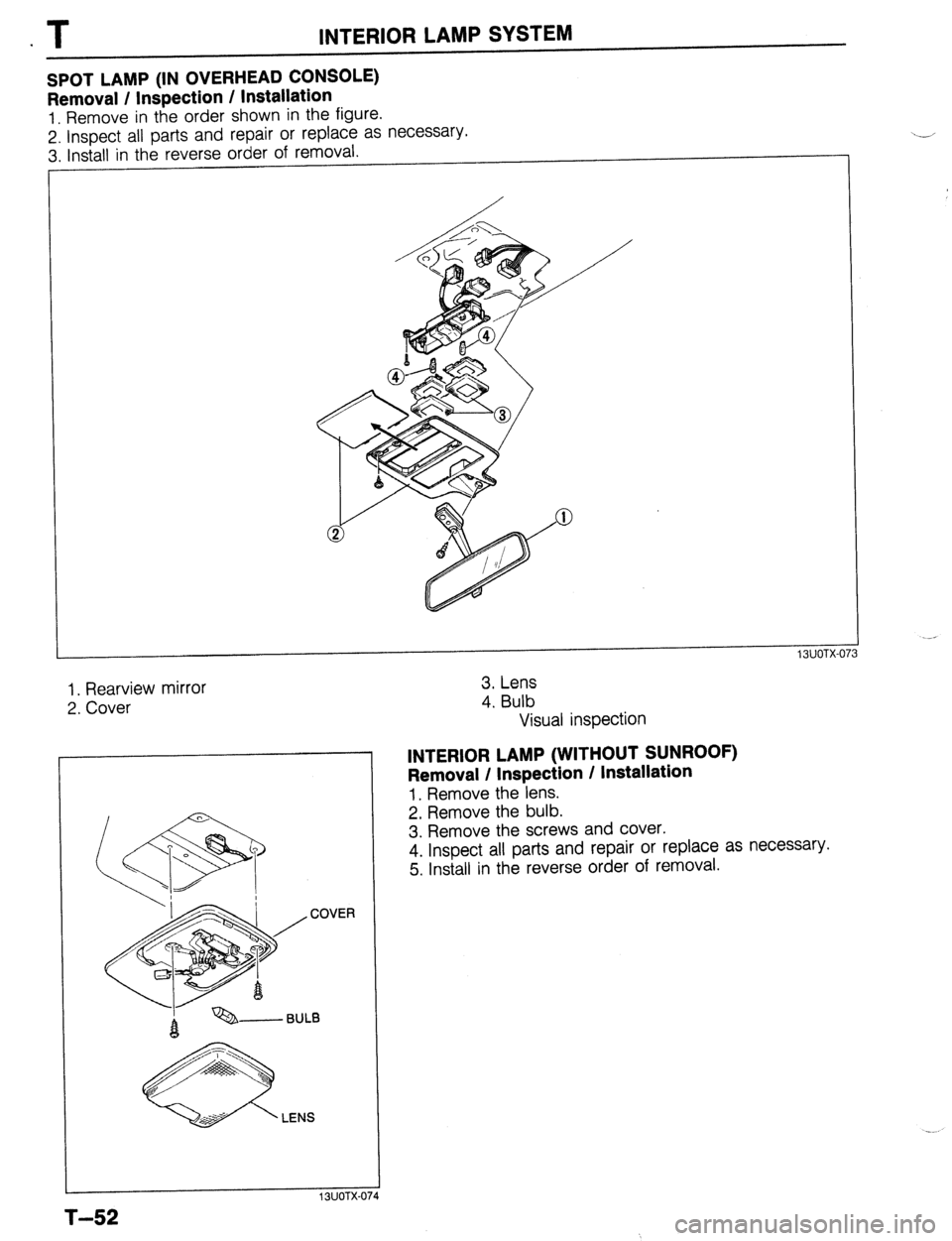

SPOT LAMP (IN OVERHEAD CONSOLE)
Removal / Inspection / Installation
1. Remove in the order shown in the figure.
2. lnsoect all parts and repair or replace as necessary.
3. Install in the reverse order of removal.
1. Rearview mirror
2. Cover
LENS
3. Lens
4. Bulb
Visual inspection
INTERIOR LAMP (WITHOUT SUNROOF)
Removal / Inspection / Installation
1. Remove the lens.
2. Remove the bulb.
3. Remove the screws and cover.
4. Inspect all parts and repair or replace as necessary.
5. Install in the reverse order of removal.
T-52

INTERIOR LAMP SYSTEM T
COVER
LENS

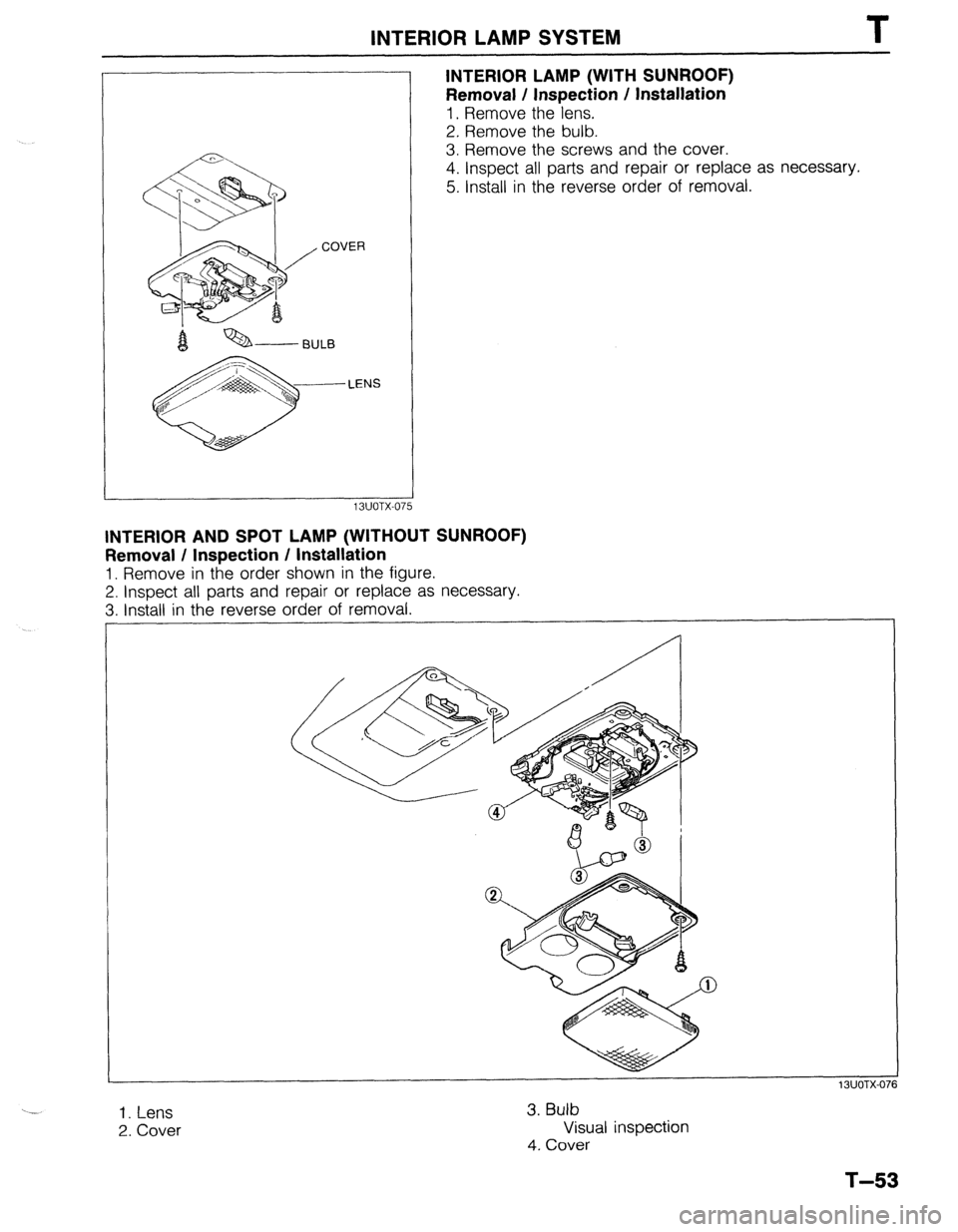

INTERIOR LAMP (WITH SUNROOF)
Removal / Inspection / Installation
1. Remove the lens.
2. Remove the bulb.
3. Remove the screws and the cover.
4. Inspect all parts and repair or replace as necessary.
5. Install in the reverse order of removal.
ILIVYCA-VI 5
INTERIOR AND SPOT LAMP (WITHOUT SUNROOF)
Removal / Inspection / Installation
1. Remove in the order shown in the figure.
2. Inspect all parts and repair or replace as necessary.
3. Install in the reverse order of removal.
‘- 1. Lens
2. Cover 3. Bulb
Visual inspection
4. Cover
T-53

T INTERIOR LAMP SYSTEM
13UOTX-077 d-------BULB
LENS
T-54
13UOTX-07
23UOTX-0

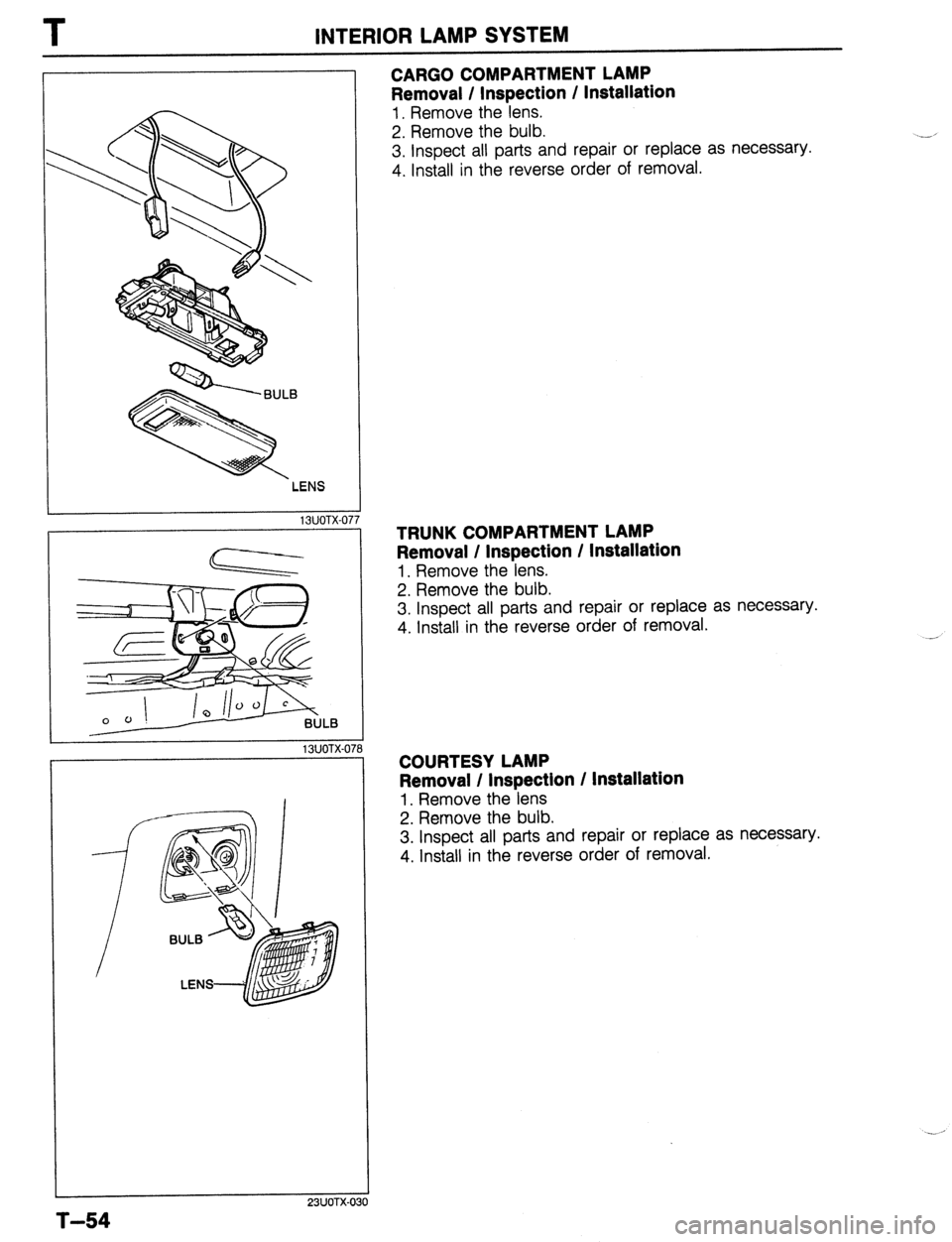

CARGO COMPARTMENT LAMP
Removal / Inspection / Installation
1. Remove the lens.
2. Remove the bulb.
3. Inspect all parts and repair or replace as necessary.
4. Install in the reverse order of removal.
TRUNK COMPARTMENT LAMP
Removal / Inspection / Installation
1. Remove the lens.
2. Remove the bulb.
3. Inspect all parts and repair or replace as necessary.
4. Install in the reverse order of removal.
COURTESY LAMP
Removal / Inspection / Installation
1. Remove the lens
2. Remove the bulb.
3. Inspect all parts and repair or replace as necessary.
4. Install in the reverse order of removal.
