HEADLINER 14
HEADLINER
STRUCTURAL VIEW
Coupe/MX-6
Sliding sunroof
1. Rearview mirror and
overhead console
2. Sunvisor
3. Center adapter
4. Assist handle
5. Interior light
6. Front header trim
7. Front pillar trim
8. Rear pillar trim
9. Rear header trim
10. Insulator
11. Headliner
86U14X-159
14—67

14 HEADLINER
Sedan and Hatchback
Sliding sunroof
86U14X-160
1. Rearview mirror and
overhead console
2. Sunvisor
3. Center adapter
4. Assist handle
5. Interior light
6. Front header trim
7. Front pillar trim
8. Rear pillar trim
9. Rear header trim
10. Insulator
11. Headliner
14—68

HEADLINER 14
REMOVAL
1. Remove the overhead console cover.
2. Remove the rearview mirror.
3. Remove the overhead console mounting screws.
4. Disconnect the connectors and remove the over-
head console.
86U14X-161
69G14X-241
5. Remove the sunvisors.
6. Remove the center adapters.
7. Remove the interior light lens with a protected small
screwdriver.
86U14X-162
8. Remove the interior light mounting screws and dis-
connect the connector.
9. Remove the interior light.
86U14X-163
14—69

14 SLIDING SUNROOF
76U14X-051
76U14X-052
13. Completely close the lower panel.
Note
Because the lower panel will move forward out
of place, turn the motor using the handle while
pushing to the rear to close fully.
14. After removing the screw and the drip rail joint link,
push the drip rail backward and inward.
15. After removing the installation screw of the guide
bracket assembly (rear), remove the right side of
the guide (front).
16. Remove the lower panel.
17. Remove the rear view mirror, overhead console,
and seaming welt.
76U14X-053
18. After removing the 3 screws, remove the motor and
pull out the harness coupler.
76U14X-054
14—84

15
BODY ELECTRICAL SYSTEM
INTRODUCTION 15- 2 HOW TO USE THIS SECTION 15— 2 ELECTRICAL TROUBLESHOOTING TOOLS 15- 2 PRECAUTION 15— 3 ELECTRICAL SYMBOLS 15- 6 LOCATION OF UNIT, RELAY AND SWITCH 15- 7
STRUCTURAL VIEW 15— 7 MAIN FUSE BLOCK 15- 9 STRUCTURAL VIEW 15— 9 REPLACEMENT 15—10 IGNITION SWITCH 15—10
INSPECTION 15— 10 JOINT BOX AND FUSE 15—11
STRUCTURAL VIEW 15—11
COMBINATION SWITCH 15-12 STRUCTURAL VIEW 15- 12 INSPECTION 15— 13 CLUSTER SWITCH 15—17 STRUCTURAL VIEW 15— 17 INSPECTION OF ROCKER TYPE 15— 19
INSPECTION OF PUSH TYPE 15— 20 METER 15— 22 STRUCTURAL VIEW 15— 22 DISASSEMBLY AND ASSEMBLY 15— 23
TROUBLESHOOTING 15— 24 INSPECTION OF ANALOG METER .... 15— 26 INSPECTION OF DIGITAL METER 15— 27
INSPECTION OF METER SENDER 15— 29 WARNING LIGHT AND SENDER 15- 31 CIRCUIT DIAGRAM 15— 31
TROUBLESHOOTING 15- 32 INSPECTION 15— 39 CENTRAL PROCESSING UNIT 15— 41 STRUCTURAL VIEW 15— 41 FUNCTIONS 15- 41 CIRCUIT DIAGRAM 15— 42 REMOVAL AND INSTALLATION 15— 43
ON-VEHICLE INSPECTION 15- 43 TURN AND HAZARD LIGHT 15- 44 STRUCTURAL VIEW 15— 44 CIRCUIT DIAGRAM 15— 45
TROUBLESHOOTING 15- 46 INSPECTION 15— 47 STOP LIGHT 15— 48
STRUCTURAL VIEW 15— 48 CIRCUIT DIAGRAM 15— 49
TROUBLESHOOTING 15- 49 INSPECTION 15- 50 HORN 15— 52 STRUCTURAL VIEW 15— 52 CIRCUIT DIAGRAM 15— 52 TROUBLESHOOTING 15— 53 INSPECTION 15-53 HEADLIGHT 15— 54 CIRCUIT DIAGRAM 15— 54 TROUBLESHOOTING 15— 54 INSPECTION 15— 55 PANEL LIGHT CONTROL 15— 56 CIRCUIT DIAGRAM 15— 56
TROUBLESHOOTING 15_ 5fi INSPECTION 17 REAR WINDOW DEFROSTER ..i".'! 15- 58
STRUCTURAL VIEW 15-5fl CIRCUIT DIAGRAM 15_ «
TROUBLESHOOTING '.. 15_ 59
INSPECTION
15-60 POWER WINDOW 15-61 STRUCTURAL VIEW il_ «1 CIRCUIT DIAGRAM 15_ 62 TROUBLESHOOTING 15- «3 INSPECTION 15-66 REMOTE CONTROL MIRROR ........15- 69 STRUCTURAL VIEW 15-69 CIRCUIT DIAGRAM 15_ 69
TROUBLESHOOTING 15_ 70 INSPECTION 15_ 70 REAR WINDOW WIPER 15_ 71 STRUCTURAL VIEW 15-71 CIRCUIT DIAGRAM .'.'.'...' 15_ 72
TROUBLESHOOTING 15-73 INSPECTION 15-75 WINDSHIELD WIPER 15-76 STRUCTURAL VIEW ' ' 15— 7e
DISASSEMBLY AND ASSEMBLY OF WIPER MOTOR 15_ 76 CIRCUIT DIAGRAM 15-77 TROUBLESHOOTING " " 15— 70 INSPECTION 15-81 CRUISE CONTROL SYSTEM 15- 82 STRUCTURAL VIEW 15-82 CIRCUIT DIAGRAM 15-83 ON-VEHICLE INSPECTION \..\m 15- 84 INSPECTION 15-87 SLIDING SUNROOF 15-89 STRUCTURAL VIEW 15_ 89 CIRCUIT DIAGRAM i5_ 90
TROUBLESHOOTING 15— 91 INSPECTION 15_ 90 AUTO ADJUSTING SUSPENSION 15— 94
CIRCUIT DIAGRAM 15- 94
TROUBLESHOOTING GUIDE 15— 94
TROUBLESHOOTING 15— 94
INSPECTION 15-104
POWER DOOR LOCK 15-105
STRUCTURAL VIEW 15-105
CIRCUIT DIAGRAM 15-105
TROUBLESHOOTING 15-106 INSPECTION 15-107 AUDIO SYSTEM " 15_108 OUTLINE OF AUDIO SYSTEM 15-108 REAR CONNECTOR VIEW 15-109 ADJUSTMENT (MTR) 15—114 POWER ANTENNA 15-114 HEATER J
STRUCTURAL VIEW 15-116 AIR FLOW AT EACH MODE 15-117 RATE OF AIR FLOW 15-119 LEVER CONTROL TYPE 15-120 LOGICAL CONTROL
TYPE
15—121 LOGICON SWITCH 15—123
76G15X-001

1 5 LOCATION OF UNIT, RELAY AND SWITCH
STRUCTURAL VIEW
Hatchback
Light and turn switch
Rear wiper switch
Rear washer switch
Front wiper and washer
switch, and cruise control switch
/ Hazard switch (Except RHD model)
Rear def. switch (Except ECE)
Rear fog light switch (For ECE)
AAS switch
Headlight cleaner switch
Remote control mirror switch
Heater control switch
Driving mode selector switch
Cruise control main switch
Coupe/MX-6 and Sedan

-nr
J

nu
iTPD'i
Rear def, switch (Except ECE) Hazarc
Rear fog light switch (For ECE)
switch (Except RHD model)
15-8
86U15X-003

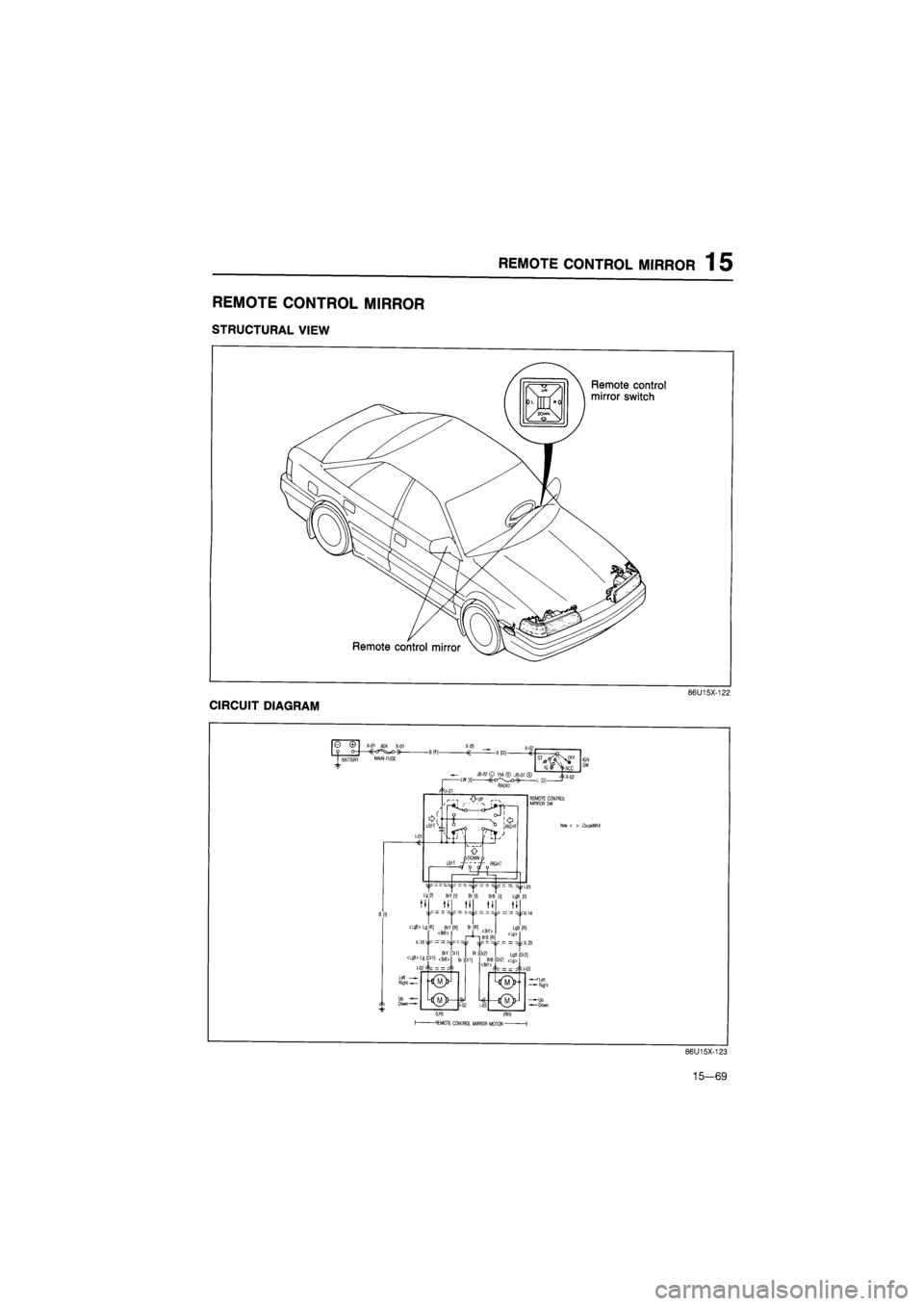

REMOTE CONTROL MIRROR 1 5
