4A CONTROL SYSTEM
Terminal (Wire color) Connected to Condition Voltage

C (BL) Rear defroster switch Rear defroster switch
ON
Below 1,5V C (BL) Rear defroster switch
Rear defroster switch OFF Battery voltage
D
(LG) A/C switch A/C operated Below 1,5V D
(LG) A/C switch
A/C not operated Battery voltage
E (LY) Solenoid valve (Main
air
bleed control) Intake manifold vacuum more than 300 mmHg (11.8 inHg), and radiator coolant temperature above 17°C (63 °F)
Battery voltage E (LY) Solenoid valve (Main
air
bleed control)
Others Below 1,5V
F
(GW)
Water thermo switch
(Radiator) Radiator coolant temperature below 17°C (63°F) Below 1,5V F
(GW)
Water thermo switch
(Radiator) Radiator coolant temperature above 17°C (63°F) Battery voltage
G (YL)
Ignition coil Ignition switch
ON or
engine running Battery voltage
H
(L)
Water thermo switch (Intake manifold) Engine coolant temperature below 72°C (162°F) Below 1,5V H
(L)
Water thermo switch (Intake manifold) Engine coolant temperature above 72°C (162°F) Battery voltage
J (BW) Ignition switch Ignition switch
ON
Battery voltage
K (GO) Solenoid valve (Choke opener) Radiator temperature below 17°C (63°F)
or
during cranking and
27
sec. after engine starts Below 1,5V K (GO) Solenoid valve (Choke opener)
Others Battery voltage
L (LsB) Idle switch Idling Battery voltage L (LsB) Idle switch
Accelerator pedal depressed Below 1,5V
M
(GL)
Air bypass solenoid valve Idle switch OFF and engine speed above approx. 2,100 rpm Below 1,5V M
(GL)
Air bypass solenoid valve
Others Battery voltage
0
(BY)
Ignition switch
(START position)
Ignition switch
ON
Below 1,5V 0
(BY)
Ignition switch
(START position) Cranking Battery voltage
P
(LW) Solenoid valve (A/C) A/C switch
ON
and engine speed below approx.
2,300
rpm

Below 1,5V P
(LW) Solenoid valve (A/C)
Others Battery voltage
Q (YW) Idle-up solenoid valve Headlight switch ON, rear defroster switch ON,
fan
speed control switch
is
3rd
or
4th position, A/C oper-ated,
or
engine coolant temperature below 72°C (162°F)
Below 1,5V Q (YW) Idle-up solenoid valve
Others Battery voltage
R
(LB)
Fan speed control switch Fan speed control switch
in
3rd
or
4th position Below 1,5V R
(LB)
Fan speed control switch
Fan speed control switch OFF Battery voltage

76G04A-171

f ° O M K I G E C
R P N L J H F D B

4A-88

CONTROL SYSTEM 4 A
FE and F8 Engine — ATX (General)
Terminal (Wire color) Connected to Condition Voltage

1A
(BW)
Ignition switch Ignition switch
ON
Battery voltage
1B (GR) Solenoid valve (Main
air
bleed control) Others Battery voltage 1B (GR) Solenoid valve (Main
air
bleed control) Radiator coolant temperature below 17°C (63°F)
or
intake manifold vacuum more than 200 mmHg (7.9 inHg)
Below 1,5V
1C
— — —

1D
— — —

1E
— — —

1F
— --

1G
-—

1H
(LW) Solenoid valve (A/C) A/C operated Below 1,5V 1H
(LW) Solenoid valve (A/C)
Others Battery voltage
11
(LW) Idle-up solenoid valve Inhibitor switch OFF and, headlight switch ON, rear defroster switch ON, fan speed control switch
is 3rd
or 4th position, A/C operated,
or
engine coolant tem-perature below 72°C (162°F)
Below 1,5V 11
(LW) Idle-up solenoid valve
Others Battery voltage
1J
(B)
Ground
—
Below 1.5V
2A (YL) Ignition coil Ignition switch
ON or
engine running Battery voltage
2B (LB) Fan speed control switch Fan speed control switch
in
3rd
or
4th position Below 1.5V 2B (LB) Fan speed control switch
Fan speed control switch OFF Battery voltage
2C
(BL)
Rear defroster switch Rear defroster switch
ON
Below 1,5V 2C
(BL)
Rear defroster switch
Rear defroster switch OFF Battery voltage
2D
(LG) A/C switch A/C operated Below 1,5V 2D
(LG) A/C switch
A/C not operated Battery voltage
2E
(RG)
Headlight switch Headlight switch
ON
Below 1,5V 2E
(RG)
Headlight switch
Headlight switch OFF Battery voltage
2F
(GW)
Water thermo switch
(Radiator)
Radiator coolant temperature below 17°C (63°F) Below 1.5V 2F
(GW)
Water thermo switch
(Radiator) Radiator coolant temperature above 17°C (63°F) Battery voltage
2G
— — —

2H
(L)
Water thermo switch
(Intake manifold) Engine coolant temperature below 72°C (162°F) Below 1,5V 2H
(L)
Water thermo switch
(Intake manifold) Engine coolant temperature above 72°C (162°F) Battery voltage
21 (LB)
Vacuum switch Vacuum less than 200 mmHg (7.9 inHg) Below 1.5V 21 (LB)
Vacuum switch
Vacuum more than 200 mmHg (7.9 inHg) Battery voltage
2J
(RL)
OD release solenoid Engine coolant temperature below 72°C (162°F) Below 1,5V 2J
(RL)
OD release solenoid
Engine coolant temperature above 72°C (162°F) Battery voltage

4A-89

4A CONTROL SYSTEM
Terminal
(Wire color) Connected to Condition Voltage

2K
— — —

2L
(BR) Inhibitor switch "P"
or "N"
range Below 1,5V 2L
(BR) Inhibitor switch
Others Battery voltage
2M
(BY)
Ignition switch
(START position)
Ignition switch
ON
Below 1,5V 2M
(BY)
Ignition switch
(START position) Cranking Battery voltage
2N
— — —
76G04A-172
(2M X
2
X
2F 2C

X 2L
2J 2H 2F 2D 2B

fll X >< X

1J 1H
>< X
1B

FE and F8 Engine — MTX (General)
Terminal (Wire color) Connected to Condition Voltage

A
(W)
Headlight switch Headlight switch
ON
Below 1,5V A
(W)
Headlight switch
Headlight switch OFF Battery voltage
B
(B)
Ground
—
Below 1,5V
C
(BL) Rear defroster switch Rear defroster switch
ON
Below 1,5V C
(BL) Rear defroster switch
Rear defroster switch OFF Battery voltage
D
(LG) A/C switch A/C operated Below 1.5V D
(LG) A/C switch
A/C not operated Battery voltage
E
(LB) Solenoid valve (Main
air

bleed control)
Intake manifold vacuum more than 300 mmHg (11.8 inHg), and radiator coolant temperature above 17°C (63 °F)
Battery voltage E
(LB) Solenoid valve (Main
air

bleed control)
Others Below 1.5V
F
(GW)
Water thermo switch
(Radiator)
Radiator coolant temperature below 17°C (63°F) Below 1,5V F
(GW)
Water thermo switch
(Radiator) Radiator coolant temperature above 17°C (63°F) Battery voltage
G (YL)
Ignition coil Ignition switch
ON or
engine running Battery voltage
H
(L)
Water thermo switch (Intake manifold) Engine coolant temperature below 72°C (162°F) Below 1,5V H
(L)
Water thermo switch (Intake manifold) Engine coolant temperature above 72°C (162°F) Battery voltage
I
— — —

J
(BW)
Ignition switch Ignition switch
ON
Battery voltage
K
— —

L
— — —

M
— — —

N
— —
4A-90

CONTROL SYSTEM 4 A
Terminal (Wire color) Connected to Condition Voltage

0 (BY)
Ignition switch*
(START position) Ignition switch
ON
Below 1.5V 0 (BY)
Ignition switch*
(START position) Cranking Battery voltage
P
(LW) Solenoid valve (A/C) A/C switch
ON
and engine speed below approx.
2,300
rpm
Below 1,5V
Others Battery voltage
Q (YW) Idle-up solenoid valve Headlight switch ON, rear defroster switch ON,
fan
speed control switch
is
3rd
or
4th position, A/C oper-ated,
or
engine coolant temperature below 72°C (162°F)
Below 1,5V
Others Battery voltage
R
(LB)
Fan speed control switch Fan speed control switch
in
3rd
or
4th position Below 1,5V R
(LB) Fan speed control switch OFF Battery voltage
*
Not
used
76G04A-173

{
Q
0
><
K
X
G E C A
^

R P
R X
J H F D B

FE 8Valve — Unleaded Fuel
Terminal (Wire color) Connected to Condition Voltage

A
(L)
Coast enrichment solenoid valve Engine speed approx. 1,500—2,300 rpm and idle switch
ON

Below 1,5V A
(L)
Coast enrichment solenoid valve
Others Battery voltage
B
(B)
Ground
—
Below 1,5V
C (LB)
Air bypass solenoid valve Engine speed above approx. 3,500 rpm and idle
switch
ON

Below 1,5V C (LB)
Air bypass solenoid valve
Others Battery voltage
D
(YL)
Ignition coil Ignition switch
ON or
engine running Battery voltage
E
— — —

F
(BW)
Ignition switch Ignition switch
ON
Battery voltage
G (YW) Slow fuel cut solenoid valve Engine speed above approx. 2,300 rpm and idle
switch
ON

Battery voltage G (YW) Slow fuel cut solenoid valve
Others Below 1.5V
H
(LW) A/C switch A/C operated and engine speed above approx.
1,500 rpm
Battery voltage H
(LW) A/C switch
A/C not operated
or
engine speed below approx.
1,500 rpm
Below 1,5V

4A—91

CONTROL SYSTEM 4 A
76G04A-176
76G04A-177
76G04A-178
Replacement
1. Disconnect the negative battery cable.
2. Remove the front console covers (right or left).
3. Disconnect the connectors from the control unit.
4. Remove and replace the control unit.
INHIBITOR SWITCH
Inspection
1. Verify that the starter operates with the ignition
switch at START position in
P
and N positions only.
2. Check that the back-up lights illuminate when R
position selected and the ignition switch is ON.
3. If not as specified, check the following:
(1) Jack up the vehicle and support it with safety
stands.
(2) Disconnect the inhibitor switch connector.
(3) Check continuity of the switch with an
ohmmeter.
Connecting guide

Position

N

D,1,2
Connector terminal

O -O
O
O
-O
-O

O—O: indicates continuity

4. Replace if necessary.
IDLE SWITCH
Inspection
1. Warm up the engine and run it at idle.
2. Turn all accessories OFF.
3. Connect a tachometer to the engine.
4. Connect a voltmeter to the carburetor connector
F terminal.
76G04A-179
4A-93

FUEL AND EMISSION
CONTROL SYSTEMS
(FUEL INJECTION FE)
OUTLINE 4B— 2
SYSTEM DIAGRAM 4B— 2
COMPONENT LOCATION 4B— 3
VACUUM HOSE ROUTING
DIAGRAM 4B— 5
SPECIFICATIONS 4B— 6
TROUBLESHOOTING GUIDE 4B— 7
TROUBLESHOOTING
PROCEDURE 4B— 7
TROUBLESHOOTING WITH SST.... 4B— 9
INSPECTION PROCEDURE 4B—10
AFTER-REPAIR PROCEDURE 4B—10
PRINCIPLE OF CODE CYCLE 4B—12
CODE NUMBER 4B—13
SWITCH MONITOR FUNCTION 4B—25
INSPECTION PROCEDURE 4B—26
IDLE SPEED 4B—29
IDLE MIXTURE 4B—29
INTAKE AIR SYSTEM 4B—30
COMPONENT DESCRIPTIONS 4B—30
REMOVAL 4B—31
PARTS INSPECTION 4B—32
INSTALLATION 4B—34
IDLE-UP SYSTEM 4B—35
COMPONENT DESCRIPTIONS 4B—36
TROUBLESHOOTING 4B—37
AIR VALVE 4B—38
AIR BYPASS SOLENOID VALVE ... 4B—39
FUEL SYSTEM 4B—42
COMPONENT DESCRIPTIONS 4B—43
TROUBLESHOOTING 4B—44
FUEL PRESSURE RELEASE AND
SERVICING FUEL SYSTEM 4B—45
MULTI-PRESSURE TESTER 4B—46
FUEL PRESSURE 4B—48
FUEL PUMP 4B—49
PULSATION DAMPER 4B—50
INJECTOR 4B—51
PRESSURE REGULATOR
CONTROL SYSTEM 4B—53
COMPONENT DESCRIPTIONS 4B—54
TROUBLESHOOTING 4B—55
REPLACEMENT 4B—57
FUEL TANK 4B—61
DECELERATION CONTROL
SYSTEM 4B—64
COMPONENT DESCRIPTIONS 4B—65
TROUBLESHOOTING 4B—66
AIR INJECTION SYSTEM 4B—68
COMPONENT DESCRIPTIONS 4B—68
TROUBLESHOOTING 4B—69
EXHAUST GAS RECIRCULATION
(EGR) SYSTEM 4B—71
COMPONENT DESCRIPTIONS 4B—71
TROUBLESHOOTING 4B—72
EVAPORATIVE EMISSION
CONTROL (EEC) SYSTEM 4B—74
COMPONENT DESCRIPTIONS 4B—74
TROUBLESHOOTING 4B—75
POSITIVE CRANKCASE
VENTILATION (PCV) SYSTEM 4B—80
COMPONENT DESCRIPTION 4B—80
EXHAUST SYSTEM 4B—81
REMOVAL AND INSTALLATION ... 4B—82
INSPECTION 4B—82
CONTROL SYSTEM 4B—83
RELATIONSHIP CHART 4B—84
EGI MAIN FUSE 4B—86
MAIN RELAY 4B—86
CIRCUIT OPENING RELAY 4B—86
ENGINE CONTROL UNIT 4B—87
NEUTRAL SWITCH 4B—91
CLUTCH SWITCH 4B—91
BRAKE LIGHT SWITCH 4B—91
P/S PRESSURE SWITCH 4B—92
INHIBITOR SWITCH 4B—92
E/L CONTROL UNIT 4B—93
AIR FLOW METER 4B—94
THROTTLE SENSOR 4B—95
WATER THERMO SENSOR 4B—97
WATER THERMO SWITCH 4B—97
OXYGEN SENSOR 4B—98
ATMOSPHERIC PRESSUFfE
SENSOR 4B—99
76G04B-001

4B TROUBLESHOOTING WITH SST
PRINCIPLE OF CODE CYCLE
Malfunction codes are determined as shown below
1. Code cycle break
The time between malfunction code cycles is 4.0 sec (the time the light is off).
86U04A-017
ON
OFF
1 cycle Malfunction code
cycle break
4.0 sec.
76G04B-122
2. Second digit of malfunction code (ones position)
The digit in the ones position of the malfunction code represents the number of times the buzzer
is on 0.4 sec during one cycle.
ON
OFF
1 cycle Malfunction code
1 2 3
P "
u
4-
cycle break
0.4 0.4 sec. sec.
4.0 sec.
Malfunction
code: 03
76GC4B-123
3. First digit of malfunction code (tens position)
The digit in the tens position of the malfunction code represents the number of times the buzzer
is on 1.2 sec during one cycle.
It should also be noted that the light goes off for 1.6 sec. between the long and short pulses of
the buzzer.
1 cycle Malfunction code
nr 0.4
1.2 sec. sec
1 2 cycle break
1.6 4.0 sec.
h ~~—'sec. _ First digit Second digit
Malfunction
code: 22
76G04B-124
4B—12

SWITCH MONITOR FUNCTION 4B
SWITCH MONITOR FUNCTION
Individual switches can be monitored by the SST.
Note
The test connector must be grounded and the ignition switch ON (engine stopped).
Control unit
76G04B-022
Switch Self-Diagnosis Checker (Monitor lamp) Remarks Switch Light ON Light OFF Remarks

Clutch switch Pedal released Pedal depressed Gear:
IN

Neutral switch In gear Neutral Clutch pedal released
Idle switch Pedal depressed Pedal released
—

Brake light switch Pedal depressed Pedal released
—

A/C switch ON OFF Blower motor position:
"1"

position
Headlight switch ON OFF
—

Rear defroster switch ON OFF
—

Blower switch ON OFF Blower motor position:
"3"
or
"4"
position
Inhibitor switch D,
1, 2
and
R
range P and
N
range
—

Water thermo switch (Elec-trical fan) Terminal disconnected Terminal connected While fan
not
operating

4B-25

SWITCH MONITOR FUNCTION 4B
Idle switch
76G04B-026
Brake light switch
76G04B-027
Blower switch
76G04B-028
A/C switch
76G04B-029
4B—27

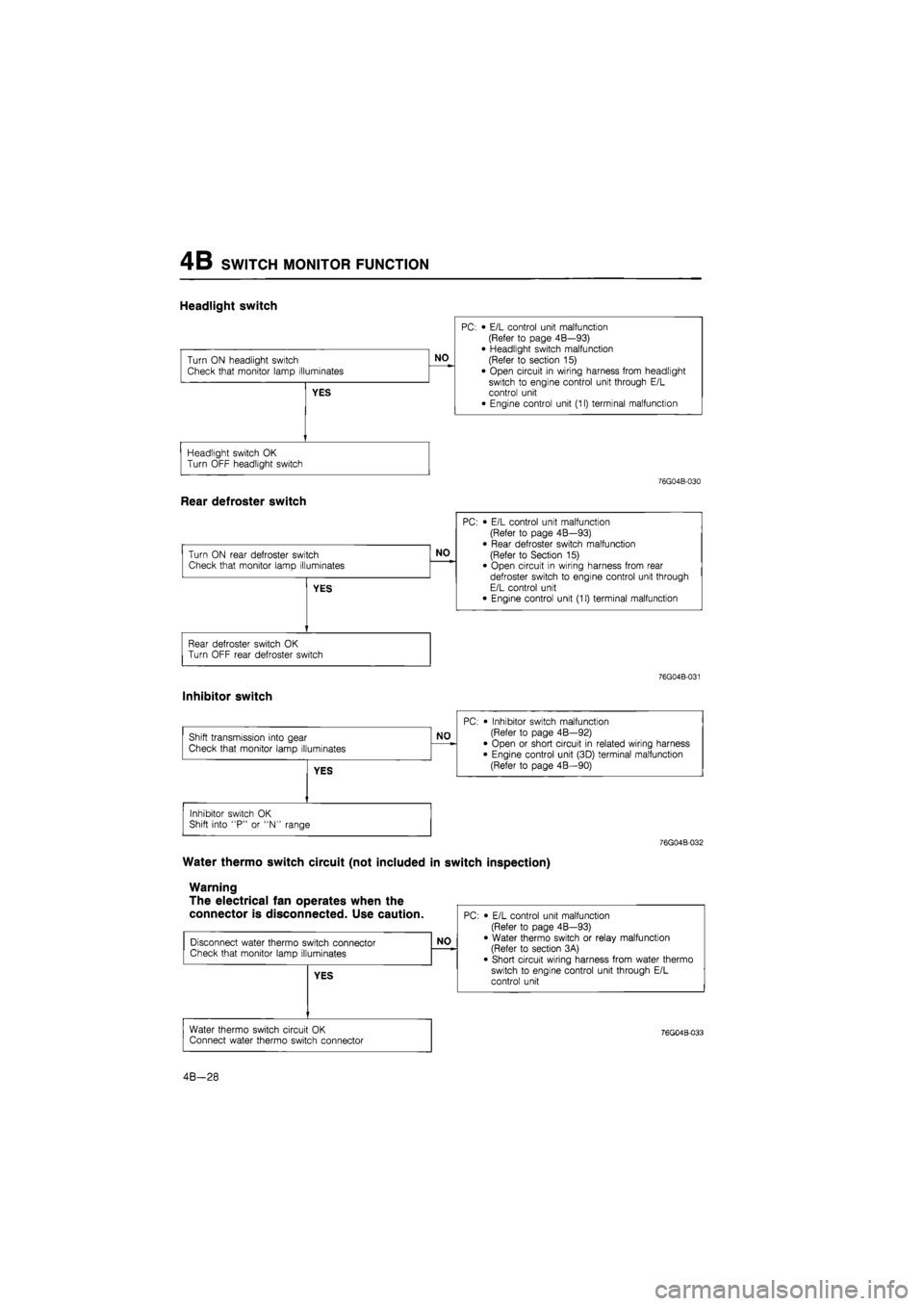

4B SWITCH MONITOR FUNCTION
Headlight switch
76G04B-030
Rear defroster switch
76G04B-031
Inhibitor switch
76G04B-032
Water thermo switch circuit (not included in switch inspection)
Warning
4B—28
