3. Turn the knobs counterclockwise andlower the fuse block.
4. Locate the position of the suspected
fuse by using the chart inside the fuse
block cover.
5. Pull the fuse straight out with the fuse puller provided on the inside of the
engine compartment fuse block cover.
6. Inspect it and replace if it's blown.
Normal Blown
7. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
WARNING
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and allother switches.
Maintenance and Care
Owner Maintenance
8-53
Mazda3_8U55-EA-05G_Edition3 Page301
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (302,1)
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a newone of the same amperage rating .
Normal
Blown
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer.
8-54
Maintenance and Care
Owner Maintenance
Mazda3_8U55-EA-05G_Edition3 Page302
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (303,1)
qFuse Panel Description
Fuse block (Engine compartment)
12 3
4 5 6
789
10
11
12
13 1415 16 17 18
19 20 21
22
23
24
25
26
27
28
29
30 31
32
33
34
35
36
DESCRIPTION
FUSE
RATING PROTECTED COMPONENT
1 FAN 40 A Cooling fan
2 P/ST 80 A EHPAS
3 BTN 40 A For protection of various circuits
4 HEAD 40 A Headlights
5 PTC 80 A ―
6 GLOW 60 A ―
7 ABS 1 30 A ABS
í
8 ABS 2 20 A ABSí
9 ENGINE 30 A For protection of various circuits
10 ―― ―
11 IG KEY 1 30 A Ignition switch
12 STARTER 20 A Starter clutch
13 IG KEY 2 30 A Ignition switch
14 ―― ―
15 HEATER 40 A Blower motor
16 ―― ―
17 DEFOG 40 A Rear window defroster
Maintenance and Care
Owner Maintenance
8-55íSome models.
Mazda3_8U55-EA-05G_Edition3 Page303
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (304,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
18 AUDIO 30 A Audio system (BOSE Sound System-equipped model)
19 ABS IG 10A ABS
í
20FOG 15 A Fog lightsí
21HORN 15 A Horn
22 ―― ―
23 H/CLEAN 20 A ―
24 F/PUMP 15 A Fuel pump
25 P/ST IG 10A Power steering
26 A/C MAG 10A Air conditioner
27 ALT/TCM 10A/15A Alternator/Transmission control module
28 ―― ―
29 ―― ―
30 ENG +B 10A PCM
31 ROOM 15 A Interior lights
32 ENG BAR 4 10A O
2heater
33 ENG BAR 3 10A O
2heater
34 EGI INJ 10A Injector
35 ENG BAR 1 10A Air flow sensor
36 ENG BAR 2 10A EGR control valve
8-56
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8U55-EA-05G_Edition3 Page304
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (305,1)
Fuse block (Passenger's side)
37 38 39 4041 42
43 44 45 46
47 48 49 50 51
52 53 54 55 56 57 58
59 60 61 62 63 64
65 66 67 68 69 70
71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
37 D/LOCK 2 15 A Power door lock
38 STOP 10A Stop lights
39 HEAD HIGH L 10A Headlight high beams (LH)
40 HEAD HIGH R 10A Headlight high beams (RH)
41 ―― ―
42 ―― ―
43 CIGAR 15 A Lighter
44 RADIO 7.5 A Audio system
45 MIRROR 10A Power control mirror
46 TAIL R 7.5 A Taillight (RH), Parking lights (RH) License plate lights
47 OBD 10A For protection of various circuits
48 ―― ―
49 TR/LOCK 20 A ―
50 CPU PWR 10A Control unit
51 HAZARD 15 A Turn signals, Hazard warning flashers
52 SUN ROOF 20 A Moonroof
í
53 WASHER 20 A Front washer, Rear window wiper and washer
54 ―― ―
55 P/WIND R 30 A ―
Maintenance and Care
Owner Maintenance
8-57íSome models.
Mazda3_8U55-EA-05G_Edition3 Page305
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

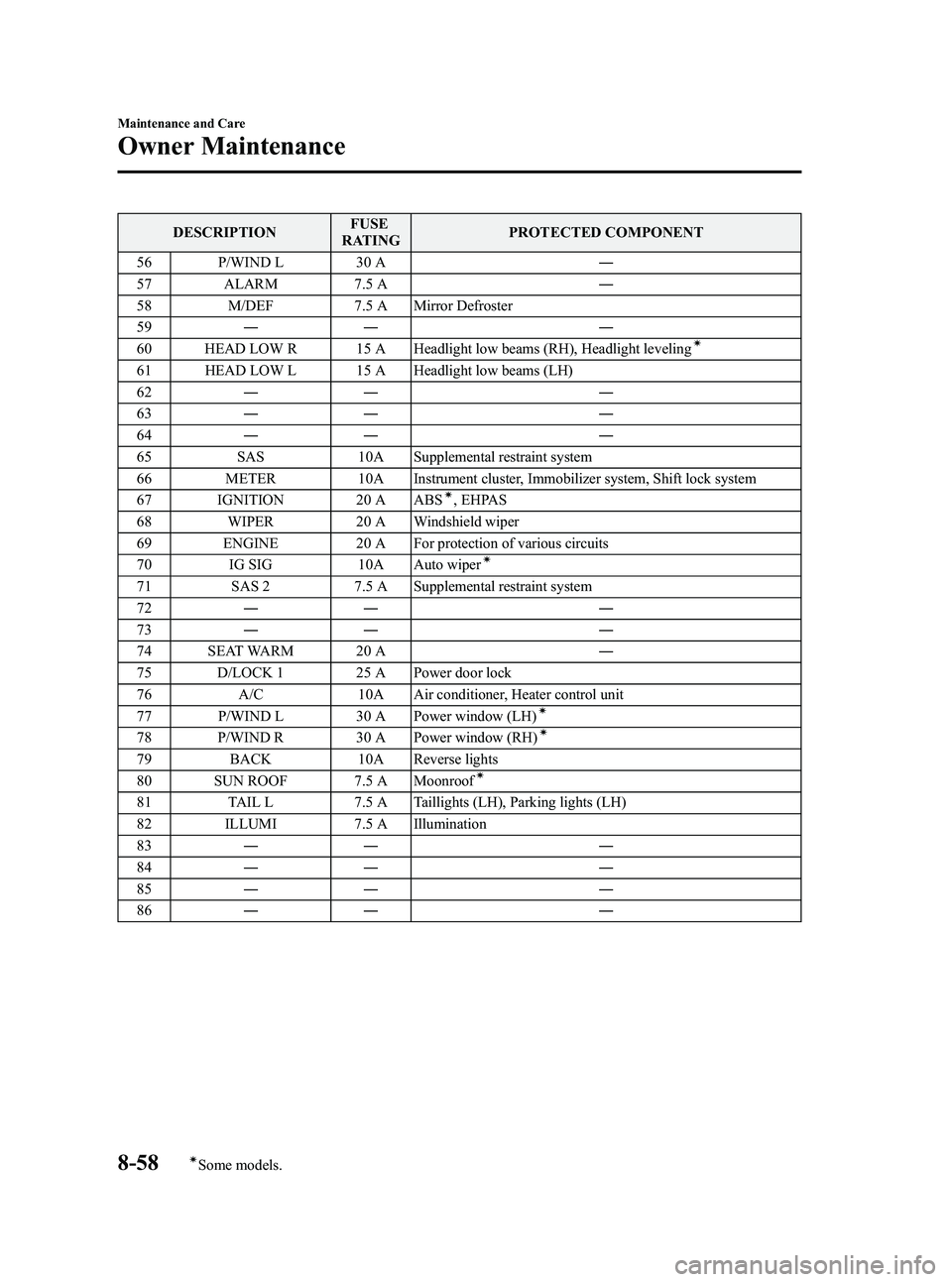

Black plate (306,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
56 P/WIND L 30 A ―
57 ALARM 7.5 A ―
58 M/DEF 7.5 A Mirror Defroster
59 ―― ―
60 HEAD LOW R 15 A Headlight low beams (RH), Headlight leveling
í
61 HEAD LOW L 15 A Headlight low beams (LH)
62 ―― ―
63 ―― ―
64 ―― ―
65 SAS 10A Supplemental restraint system
66 METER 10A Instrument cluster, Immobilizer system, Shift lock system
67 IGNITION 20 A ABS
í, EHPAS
68 WIPER 20 A Windshield wiper
69 ENGINE 20 A For protection of various circuits
70 IG SIG 10A Auto wiper
í
71 SAS 2 7.5 A Supplemental restraint system
72 ―― ―
73 ―― ―
74 SEAT WARM 20 A ―
75 D/LOCK 1 25 A Power door lock
76 A/C 10A Air conditioner, Heater control unit
77 P/WIND L 30 A Power window (LH)
í
78 P/WIND R 30 A Power window (RH)í
79 BACK 10A Reverse lights
80 SUN ROOF 7.5 A Moonroofí
81 TAIL L 7.5 A Taillights (LH), Parking lights (LH)
82 ILLUMI 7.5 A Illumination
83 ―― ―
84 ―― ―
85 ―― ―
86 ―― ―
8-58
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8U55-EA-05G_Edition3 Page306
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (307,1)
How to Minimize
Environmental Paint Damage
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
qEtching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
qDamage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
Maintenance and Care
Appearance Care
8-59
Mazda3_8U55-EA-05G_Edition3 Page307
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (308,1)
qWater Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.
qPaint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.
NOTE
lThe paint chipping zone varies with
the speed of the vehicle. For
example, when traveling at 90 km/h
(56 mph), the paint chipping zone is
50 m (164 ft).
lIn low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.
lChipped paint can lead to rust
forming on your Mazda. Before this
happens, repair the damage by using
Mazda touch-up paint according to
the instructions in this section.
Failure to repair the affected area
could lead to serious rusting and
expensive repairs.
8-60
Maintenance and Care
Appearance Care
Mazda3_8U55-EA-05G_Edition3 Page308
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (309,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
q Maintaining the Finish
Washing
CAUTION
When the wiper lever is in the AUTO
position and the ignition switch is in the
ON position, the wipers may move
automatically in the following cases:
lIf the windshield above the rain
sensor is touched.
lIf the windshield above the rain
sensor is wiped with a cloth.
lIf the windshield is struck with a
hand or other object.
lIf the rain sensor is struck with a
hand or other object from inside the
vehicle.
Be careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers. When washing or servicing
your Mazda, make sure the wiper lever
is in the OFF position.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur. Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for
scratches caused by automatic car
washes or improper washing.
lScratches are more noticeable on
vehicles with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDon't use abrasive cleansers or wax
that contain abrasives.
Maintenance and Care
Appearance Care
8-61
Mazda3_8U55-EA-05G_Edition3 Page309
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (310,1)
CAUTION
lDon't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage
the protective coating; also, cleaners
and detergents may discolor or
deteriorate the paint.
lTo prevent damaging the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.
Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.
Thoroughly rinse off all soap with
lukewarm or cold water. Don't allow soap
to dry on the finish.
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives. Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for metallic, mica, and solid colors.
3. When waxing, coat evenly with the sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas even if
the rest of the vehicle doesn't need it.
8-62
Maintenance and Care
Appearance Care
Mazda3_8U55-EA-05G_Edition3 Page310
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G
