MAZDA MODEL 6 2008 Owners Manual (in English)

Black plate (121,1)
Before Getting In
lBe sure the windows, outside mirrors,
and outside lights are clean.
lInspect inflation pressures and
condition of tires.
lLook under the vehicle for any sign of
fluid leaks.
lIf you plan to back up, make sure
nothing is in your way.
NOTE
Engine oil, engine coolant, brake/clutch fluid,
washer fluid, and other fluid levels should be
inspected. See Maintenance, Section 8.
After Getting In
lAre all doors closed and locked?lIs the seat adjusted properly?lAre the inside and outside mirrors
adjusted?
lIs everyone's seat belt fastened?lCheck all gauges.lCheck all warning lights when the
ignition switch is turned to the ON
position.
lRelease the parking brake and make
sure the brake warning light goes off.
Always be thoroughly familiar with your
Mazda.
Before Driving Your Mazda
Before Starting the Engine
4-5
Mazda6_8X47-EA-07G_Edition1 Page121
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (122,1)
Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
lDon't race the engine.lDon't maintain one constant speed,
either slow or fast, for a long period of
time.
lDon't drive constantly at full-throttle or
high engine rpm for extended periods
of time.
lAvoid unnecessary hard stops.lAvoid full-throttle starts.
Money-Saving Suggestions
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
lAvoid long warm-ups. Once the engine
runs smoothly, begin driving.
lAvoid fast starts.lKeep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
lUse the air conditioner only when
necessary.
lSlow down on rough roads.lKeep the tires properly inflated.lDon't carry unnecessary weight.lDon't rest your foot on the brake pedal
while driving.
lKeep the wheels in correct alignment.lKeep windows closed at high speeds.lSlow down when driving in crosswinds
and headwinds.
WARNING
Never stop the engine when going
down a hill:Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause
damage to the drivetrain. Any loss of
steering or braking control could
cause an accident.
4-6
Before Driving Your Mazda
Driving Tips
Mazda6_8X47-EA-07G_Edition1 Page122
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (123,1)
Hazardous Driving
WARNING
Be extremely careful if it is necessary to
downshift on slippery surfaces:Downshifting into lower gear while
driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid.
This could lead to loss of vehicle
control and an accident.
Do not rely on ABS as a substitute for
safe driving: The ABS cannot compensate for
unsafe and reckless driving, excessive
speed, tailgating (following another
vehicle too closely), driving on ice and
snow, and hydroplaning (reduced tire
friction and road contact because of
water on the road surface). You can
still have an accident.
When driving in water, mud, sand, or
similar hazards:
lBe cautious and allow extra distance
for braking.
lAvoid sudden braking and sudden
maneuvering.
lIf your vehicle is not equipped with
ABS, brake with the pedal by using a
light up-down motion. Do not hold the
pedal down constantly.
If your vehicle is equipped with ABS,
do not pump the brakes. Continue to
press down on the brake pedal.
Refer to Anti-Lock Brake System
(ABS) on page 5-7.
lIf you get stuck, select a lower gear and
accelerate slowly. Do not spin the front
wheels.
lFor more traction in starting on
slippery surfaces, use sand, rock salt,
carpeting, or other nonslip material
under the front wheels.
Before Driving Your Mazda
Driving Tips
4-7
Mazda6_8X47-EA-07G_Edition1 Page123
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (124,1)
Rocking the Vehicle
WARNING
Do not spin the wheels at more than 56
km/h (35 mph), and do not allow
anyone to stand behind a wheel when
pushing the vehicle:When the vehicle is stuck, spinning
the wheels at high speed is
dangerous. The spinning tire could
overheat and explode. This could
cause serious injuries.
CAUTION
Too much rocking may cause engine
overheating, transaxle failure, and
tire damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the
accelerator slightly and slowly move the
shift lever from 1 (D) to R.
Winter Driving
lCarry emergency gear, window
scraper, flares, a small shovel, jumper
cables, and a small bag of sand or salt.
Ask an Authorized Mazda Dealer to
perform the following precautions:
lHave the proper ratio of antifreeze in
the radiator.
Refer to Engine Coolant on page 8-20.
lInspect the battery and its cables. Cold
reduces battery capacity.
lInspect the ignition system for damage
and loose connections.
lUse washer fluid made with
antifreeze ―but don't use engine
coolant antifreeze for washer fluid
(page 8-26).
lDon't use the parking brake in freezing
weather as the parking brake may
freeze. Instead, shift to P with an
automatic transaxle and to 1 or R with
a manual transaxle. Block the rear
wheels.
q Snow Tires
Use snow tires on all four wheels
Don't go faster than 120 km/h (75 mph)
while driving with snow tires. Inflate
snow tires 30 kPa (0.3 kgf/cm
2, 4.3 psi)
more than recommended on the tire
pressure label (driver's door frame), but
never more than the maximum cold-tire
pressure shown on the tires.
Your vehicle is originally equipped with
all season radials designed to be used all
year around. In some extreme climates
you may find it necessary to replace them
with snow tires during the winter months
to further improve traction on snow and
ice covered roads.
4-8
Before Driving Your Mazda
Driving Tips
Mazda6_8X47-EA-07G_Edition1 Page124
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (125,1)
WARNING
Use only the same size and type tires
(snow, radial, or non-radial) on all four
wheels:Using tires different in size or type is
dangerous. Your vehicle's handling
could be greatly affected and result
in an accident.
CAUTION
Check local regulations before using
studded tires.
NOTE
If your vehicle is equipped with the tire
pressure monitoring system, the system may
not function correctly when using tires with
steel wire reinforcement in the sidewalls (page
5-29).
q Tire Chains
This vehicle cannot be operated with tire
chains because it could cause interference
with the vehicle body and scratching.
Driving In Flooded Area
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance returns to normal:
Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
CAUTION
Do not drive the vehicle on flooded
roads as it could cause short
circuiting of electrical/electronic
parts, or engine damage or stalling
from water absorption. If the vehicle
has been immersed in water, consult
an Authorized Mazda Dealer.
Before Driving Your Mazda
Driving Tips
4-9
Mazda6_8X47-EA-07G_Edition1 Page125
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (126,1)
Overloading
WARNING
Be careful not to overload your vehicle:The gross axle weight rating (GAWR)
and the gross vehicle weight rating
(GVWR) of your vehicle are on the
Motor Vehicle Safety Standard Label
on the driver's door frame. Exceeding
these ratings can cause an accident
or vehicle damage. You can estimate
the weight of your load by weighing
the items (or people) before putting
them in the vehicle.
4-10
Before Driving Your Mazda
Driving Tips
Mazda6_8X47-EA-07G_Edition1 Page126
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (127,1)
Trailer Towing
The Mazda6 is not designed for towing.
Never tow a trailer with your Mazda6.
Before Driving Your Mazda
Towing
4-11
Mazda6_8X47-EA-07G_Edition1 Page127
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (128,1)
4-12
Mazda6_8X47-EA-07G_Edition1 Page128
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (129,1)

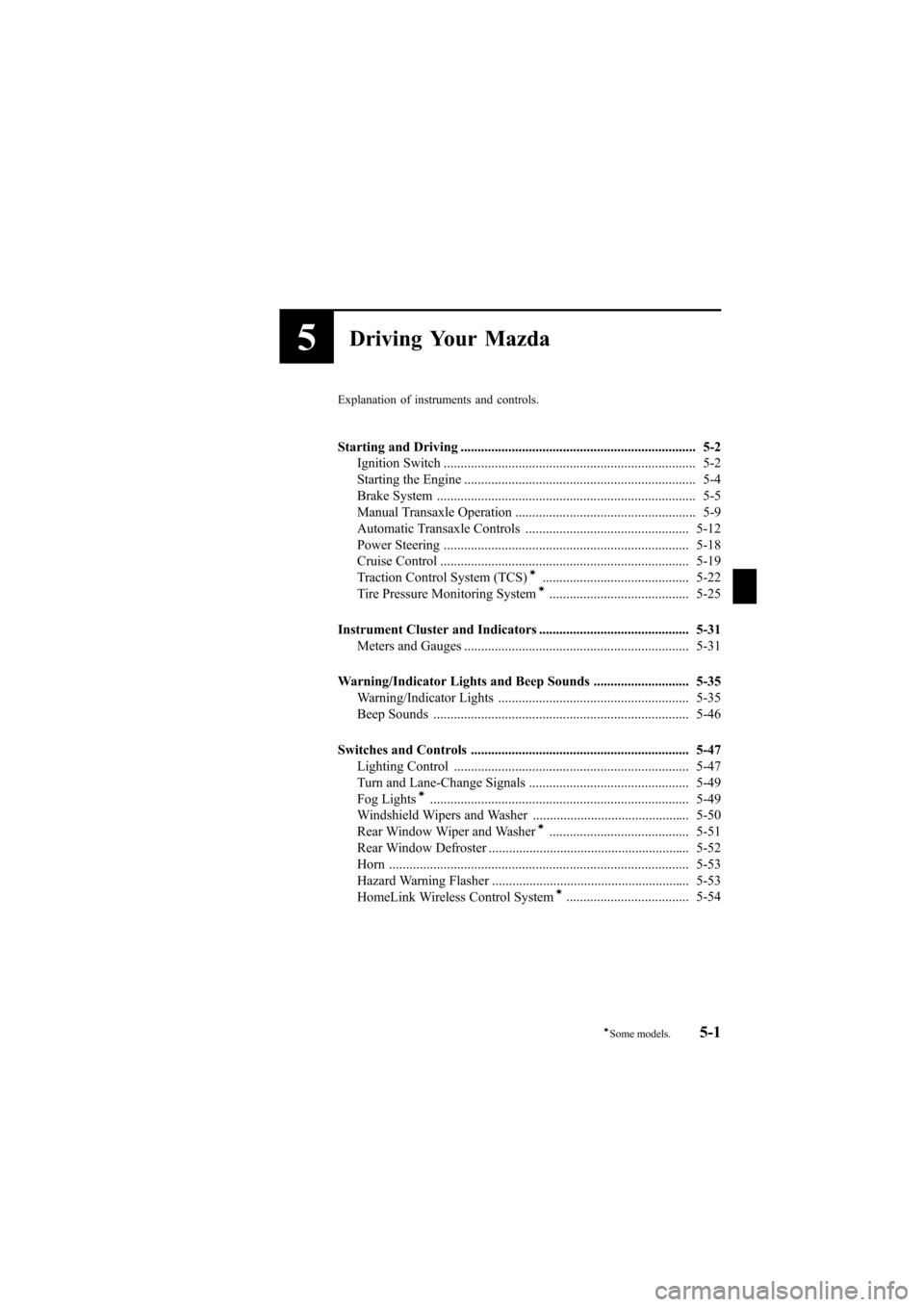

5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving ..................................................................... 5-2Ignition Switch .......................................................................... 5-2
Starting the Engine .................................................................... 5-4
Brake System ............................................................................ 5-5
Manual Transaxle Operation ..................................................... 5-9
Automatic Transaxle Controls ................................................ 5-12
Power Steering ........................................................................ 5-18
Cruise Control ......................................................................... 5-19
Traction Control System (TCS)
í........................................... 5-22
Tire Pressure Monitoring Systemí......................................... 5-25
Instrument Cluster and Indicators ............................................ 5-31 Meters and Gauges .................................................................. 5-31
Warning/Indicator Lights and Beep Sounds ............................ 5-35 Warning/Indicator Lights ........................................................ 5-35
Beep Sounds ........................................................................... 5-46
Switches and Controls ................................................................ 5-47 Lighting Control ..................................................................... 5-47
Turn and Lane-Change Signals ............................................... 5-49
Fog Lights
í............................................................................ 5-49
Windshield Wipers and Washer .............................................. 5-50
Rear Window Wiper and Washer
í......................................... 5-51
Rear Window Defroster ........................................................... 5-52
Horn ........................................................................................ 5-53
Hazard Warning Flasher .......................................................... 5-53
HomeLink Wireless Control System
í.................................... 5-54
5-1íSome models.
Mazda6_8X47-EA-07G_Edition1 Page129
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (130,1)
Ignition Switch
qIgnition Switch Positions
LOCK
The steering wheel locks to protect
against theft. Only in this position can the
key be removed.
Manual transaxle
To turn the key from the ACC to the
LOCK position, push the key in at the
ACC position, then turn it to the LOCK
position.
Push the key
Automatic transaxle
To turn the key from the ACC to the
LOCK position, the shift lever must be in
the P position.
Shift lever
engaged in P
(park)
5-2
Driving Your Mazda
Starting and Driving
Mazda6_8X47-EA-07G_Edition1 Page130
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G
