Black plate (111,1)
qMaintenance
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
NOTE
lThe keys carry a unique electronic code.
For this reason, and to assure your safety,
obtaining replacement key requires some
waiting time. They are only available
through an Authorized Mazda Dealer.
lAlways keep a spare key, in case one is lost.
If a key is lost, contact an Authorized
Mazda Dealer as soon as possible.
lIf you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to an
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has not
been reset is not possible.
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed to it.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
Theft-Deterrent Systemí
If the theft deterrent system detects an
inappropriate entry into the vehicle, which
could result in the vehicle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.
Refer to Operation on page 3-35.
NOTE
lThe theft-deterrent system operates with the
key or the keyless entry system transmitter.
lThe system will not function unless it is
properly armed. To properly secure the
vehicle, always make sure all windows are
completely closed and all doors and the
trunk lid/liftgate/hatch are locked before
leaving the vehicle. Remember to take your
key and transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 25
seconds when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
trunk lid/liftgate/hatch.
lUnlocking a door with the inside door-
lock knob.
lUnlocking a door with the door lock
switch.
lOpening a door by operating an inside
door-lock knob.
lOpening the hood by operating the
hood release handle.
lOpening the trunk lid by operating the
trunk lid release button.
Knowing Your Mazda
Security System
3-35íSome models.
Mazda6_8X47-EA-07G_Edition1 Page111
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (112,1)
If the system is triggered again, the lights
and horn will activate until a door is
unlocked or the trunk lid is opened with
the key or with the transmitter.
qHow to Arm the System
1. Remove the key from the ignition
switch.
2. Make sure the hood is closed. Close and lock all doors and the hatch/
liftgate/trunk lid from the outside using
the key or press the lock button on
your keyless entry system transmitter.
The following method will also arm the
theft-deterrent system:
Close the hood and the hatch/liftgate/
trunk lid . Press the area on the door-
lock switch marked “LOCK ”once.
Close all doors.
The theft deterrent system can also be
armed by activating the auto re-lock
function with all the doors, the hatch/
liftgate/trunk lid and the hood closed.
NOTE
Locking the doors with the inside door-lock
knob will not arm the system.
NOTEAuto re-lock function
After unlocking with the transmitter, all doors
and the hatch/liftgate will automatically lock if
one of the doors or the hatch/liftgate/trunk lid
is not opened within about 30 seconds.
q To Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and turn it to the ON position.
The hazard warning lights will flash twice
to indicate that the system is turned off.
NOTE
The trunk lid can be opened with the key or the
transmitter even when the system is armed. The
alarm will not come on and the system will
remain armed.
q To Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.lOpen the trunk lid with the key.lPress the unlock button or press and
hold the trunk button on the keyless
entry system transmitter.
lThe engine is started with the ignition
key or the start knob.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized Mazda
Dealer.
q Theft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove box.
3-36
Knowing Your Mazda
Security System
Mazda6_8X47-EA-07G_Edition1 Page112
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (113,1)
Mazda recommends that you affix it to the
lower rear corner of a front door window.
Knowing Your Mazda
Security System
3-37
Mazda6_8X47-EA-07G_Edition1 Page113
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (114,1)

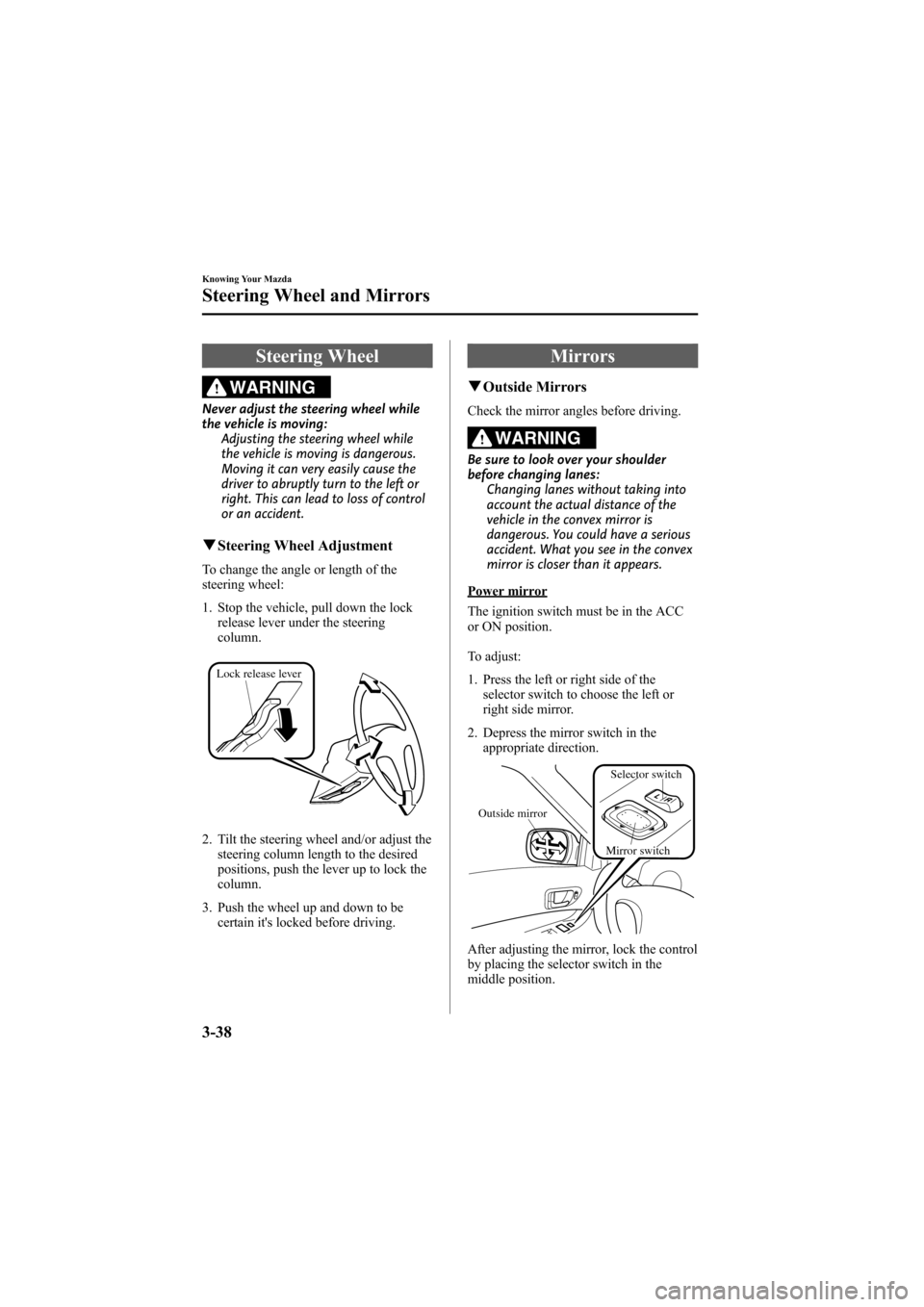

Steering Wheel
WARNING
Never adjust the steering wheel while
the vehicle is moving:Adjusting the steering wheel while
the vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident.
qSteering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, pull down the lock
release lever under the steering
column.
Lock release lever
2. Tilt the steering wheel and/or adjust thesteering column length to the desired
positions, push the lever up to lock the
column.
3. Push the wheel up and down to be certain it's locked before driving.
Mirrors
qOutside Mirrors
Check the mirror angles before driving.
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Power mirror
The ignition switch must be in the ACC
or ON position.
To adjust:
1. Press the left or right side of theselector switch to choose the left or
right side mirror.
2. Depress the mirror switch in the appropriate direction.
Outside mirror Selector switch
Mirror switch
After adjusting the mirror, lock the control
by placing the selector switch in the
middle position.
3-38
Knowing Your Mazda
Steering Wheel and Mirrors
Mazda6_8X47-EA-07G_Edition1 Page114
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (115,1)
Mirror defrosterí
To turn on the mirror defrosters, turn the
ignition switch to the ON position and
push the rear window defroster switch
(page 5-52).
qRearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Manual day/night mirror
Auto-dimming mirror
NOTEFor the manual day/night mirror, perform the
adjustment with the day/night lever in the day
position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from cars at the rear.
Night
Day Day/Night lever
Auto-dimming mirror
The auto-dimming mirror automatically
reduces glare of headlights from cars at
the rear when the ignition switch is in the
ON position.
Knowing Your Mazda
Steering Wheel and Mirrors
3-39íSome models.
Mazda6_8X47-EA-07G_Edition1 Page115
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (116,1)
Press the OFF button () to cancel the
automatic dimming function. The
indicator light will go off.
To reactivate the automatic dimming
function, press the ON button (
). The
indicator light will illuminate.
Indicator lightOFF button
ON button
NOTElDo not use glass cleaner or suspend objects
on or around the light sensor. Otherwise,
light sensor sensitivity will be affected and
may not operate normally.
Light sensor
Light sensor
lFor information regarding the 3 buttons
(,,) on the auto-dimming
mirror, refer to HomeLink Wireless Control
System (page 5-54).
3-40
Knowing Your Mazda
Steering Wheel and Mirrors
Mazda6_8X47-EA-07G_Edition1 Page116
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (117,1)
4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions ........................................ 4-2Fuel Requirements .................................................................... 4-2
Emission Control System .......................................................... 4-3
Engine Exhaust (Carbon Monoxide) ......................................... 4-4
Before Starting the Engine ........................................................... 4-5 Before Getting In ...................................................................... 4-5
After Getting In ......................................................................... 4-5
Driving Tips ................................................................................... 4-6 Break-In Period ......................................................................... 4-6
Money-Saving Suggestions ...................................................... 4-6
Hazardous Driving .................................................................... 4-7
Rocking the Vehicle .................................................................. 4-8
Winter Driving .......................................................................... 4-8
Driving In Flooded Area ........................................................... 4-9
Overloading ............................................................................ 4-10
Towing .......................................................................................... 4-11 Trailer Towing ......................................................................... 4-11
4-1
Mazda6_8X47-EA-07G_Edition1 Page117
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (118,1)
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
Your Mazda will perform best with fuel listed in the table.
FuelOctane Rating*(Anti-knock index)
Regular unleaded fuel 87 [ (R+M)/2 method] or above (91 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control system
to lose effectiveness. It could also cause engine knocking and serious engine damage.
CAUTION
Ø USE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead
to deterioration of the emission control system and or failures.
Ø Your vehicle can only use oxygenated fuels containing no more than 10% ethanol
by volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of
any kind if your vehicle engine is performing poorly.
Ø Never add fuel system additives. Never add cleaning agents other than those
specified by Mazda. Other cleaning agents and additives may damage the system.
Consult an Authorized Mazda Dealer.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10%. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name “Gasohol ”.
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
lGasohol containing more than 10% ethanol.lGasoline or gasohol containing methanol.lLeaded fuel or leaded gasohol.
4-2
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazda6_8X47-EA-07G_Edition1 Page118
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (119,1)
Emission Control System
Your vehicle is equipped with an emission control system (the catalytic converter is part of
this system) that enables your vehicle to comply with existing exhaust emissions
requirements.
WARNING
Never park over or near anything flammable:Parking over or near anything flammable, such as dry grass, is dangerous. Even with
the engine turned off, the exhaust system remains very hot after normal use and
could ignite anything flammable. A resulting fire could cause serious injury or death.
CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst
inside the converter or cause the converter to get very hot. Either condition will
damage the converter and cause poor performance.
ØUSE ONLY UNLEADED FUEL.
Ø Don't drive your Mazda with any sign of engine malfunction.
Ø Don't coast with the ignition switch turned off.
Ø Don't descend steep grades in gear with the ignition switch turned off.
Ø Don't operate the engine at high idle for more than 2 minutes.
Ø Don't tamper with the emission control system. All inspections and adjustments
must be made by a qualified technician.
Ø Don't push-start or pull-start your vehicle.
NOTE
Under U.S. federal law, any modification to the original-equipment emission control system before
the first sale and registration of a vehicle is subject to penalties. In some states, such modification
made on a used vehicle is also subject to penalties.
NOTEAfter driving some distance and turning off the engine, the sound of a valve opening and closing can
be heard at the rear of the vehicle, however this does not indicate an abnormality. Your vehicle has a
self-checking device and it operates after turning off the engine.
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
4-3
Mazda6_8X47-EA-07G_Edition1 Page119
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (120,1)
Engine Exhaust (Carbon Monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Do not run the engine when inside an enclosed area: Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss
of consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine: Exhaust gas is dangerous. When your vehicle is stopped with the windows closed
and the engine running for a long time even in an open area, exhaust gas, which
contains poisonous carbon monoxide, could enter the cabin. Loss of consciousness or
even death could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe,
before starting the engine: Running the engine when a vehicle is stopped in deep snow is dangerous. The
exhaust pipe could be blocked by the snow, allowing exhaust gas to enter the cabin.
Because exhaust gas contains poisonous carbon monoxide, it could cause loss of
consciousness or even death to occupants in the cabin.
4-4
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazda6_8X47-EA-07G_Edition1 Page120
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G
