MAZDA MODEL 6 2008 Owners Manual (in English)

Black plate (101,1)
NOTElThe two-step down function cannot be
canceled if the procedure is not completed
within the specified times, or the procedure
is changed along the way. To redo the
procedure, first turn the ignition switch to
the LOCK position and proceed from the
beginning.
lIf you are unable to cancel the function
despite carrying out the cancellation
procedure, consult an Authorized Mazda
Dealer.
Restoring the two-step down function
With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function on
each door switch and it will be restored.
NOTE
If you are unable to restore the function despite
doing the restore procedure, consult an
Authorized Mazda Dealer.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
stopping. If fingers are caught,
serious injuries could occur. NOTE
lDepending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is
similar to something blocking it.
In the event the jam-safe function activates
and the power window cannot be closed
automatically, pull and hold the switch fully
and the window will close.
lThe jam-safe window function does not
operate until the system is re-initialized.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition switch
is turned from the ON position to the
ACC or LOCK position with all doors
closed. If either front door is opened, the
power window will be inoperable.
NOTE
lFor engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.
lThe two-step down function is inoperable
during engine-off operation.
Knowing Your Mazda
Doors and Locks
3-25
Mazda6_8X47-EA-07G_Edition1 Page101
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (102,1)
qOperating the Rear Power Windows
The power windows may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.
The rear power windows may be opened
or closed using the power window master
control switches on the driver's door.
Left rear windowPower window lock switch Right rear window
To open the power window to the desired
position, hold down the switch.
To close the power window to the desired
position, pull up the switch.
Close
Open
Engine-off power window operation
The power windows can be operated for
about 40 seconds after the ignition switch
is turned from the ON position to the
ACC or LOCK position with all doors
closed. If either front door is opened, the
power windows will be inoperable.
q Power Window Lock Switch
With the lock switch in the unlocked
position, all power windows on each door
can be operated.
With the lock switch in the locked
position, only the driver's side power
window can be operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position: Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
3-26
Knowing Your Mazda
Doors and Locks
Mazda6_8X47-EA-07G_Edition1 Page102
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (103,1)
NOTEWhen the power window lock switch is in the
locked position, the light on front passenger's
power window switch turns off. The light may
be difficult to see depending on the
surrounding brightness.
qOpening/Closing the Power
Windows from Outside
The front power windows can be opened
or closed from outside the vehicle after
the doors and the hatch/liftgate/trunk lid
are closed.
The front power windows may be
operated when the power window lock
switch on the driver's door is in the lock
or unlocked position.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
NOTE
The power windows cannot be opened or
closed from outside the vehicle under the
following condition:
lA door or the hatch/liftgate/trunk lid is
opened.
lThe key is inserted into the ignition switch.
Opening
Because nobody likes getting into a very
hot car, Mazda has introduced a way to
open the two front windows as you
approach the vehicle to get the air moving
before you get in.
WARNING
Use the auto-window function only
when you can see the vehicle and it is
in a secure area: Do not let children play with your
keys. If they open the window
without your knowing, the open
windows are an even bigger
invitation to a thief than leaving the
doors unlocked.
The windows can be opened for
ventilating the cabin before getting in the
vehicle.
With unlock button (Keyless entry
system)
Press once, then press again within 1.5
seconds and hold.
After the doors and the hatch/liftgate/
trunk lid are unlocked, the two front
windows open while the unlock button is
pressed.
To stop the windows while opening,
release the button.
If the operation is performed from the
beginning again, the windows open.
Sedan
Lock button Unlock button
Trunk button Panic button
Knowing Your Mazda
Doors and Locks
3-27
Mazda6_8X47-EA-07G_Edition1 Page103
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (104,1)
5-Door/Sport Wagon
Lock buttonUnlock button
Panic button
NOTElThe unlock button does not operate unless
it is pressed twice sequentially.
lThe lock button cannot be used to close the
power windows.
With key
1. Insert the key in the driver's door key cylinder.
2. Turn the key toward the front and hold it. After the doors and the hatch/
liftgate/trunk lid are unlocked, the
windows fully open automatically.
Open
To stop this operation, turn the key to the
center position, then turn it toward the
front again. NOTE
The window opening operation also can be
stopped by turning the key toward the back.
However, the doors and the hatch/liftgate/trunk
lid will lock.
Closing
The windows can be closed in case they
are left open after getting out of the
vehicle.
With key
1. Insert the key in the driver's door key
cylinder.
2. Turn the key toward the back and hold it. After the doors and the hatch/
liftgate/trunk lid are locked, the
windows close as long as the key is
turned.
Close
3-28
Knowing Your Mazda
Doors and Locks
Mazda6_8X47-EA-07G_Edition1 Page104
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (105,1)
Fuel-Filler Lid and Cap
WARNING
When removing the fuel cap, loosen the
cap slightly and wait for any hissing to
stop. Then remove it:Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel cap is removed too
quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck: Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel
filler cap or not using a fuel filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until two or more clicks are heard.
Close
Open
Knowing Your Mazda
Doors and Locks
3-29
Mazda6_8X47-EA-07G_Edition1 Page105
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (106,1)
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap
isn't tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven,
and restarted the engine several
times), it may indicate a different
problem. Contact an Authorized
Mazda Dealer as soon as possible.
Hood
WARNING
Always check that the hood is closed
and securely locked:A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
2. Insert your hand into the hood opening
and slide the hood latch lever to the
right and lift the hood.
3-30
Knowing Your Mazda
Doors and Locks
Mazda6_8X47-EA-07G_Edition1 Page106
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (107,1)
3. Grasp the support rod and secure it inthe stay hole indicated by the arrow to
hold the hood open.
Clip
Support rod
q
Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
Moonroofí
The moonroof can be opened or closed
electrically only when the ignition switch
is in the ON position.

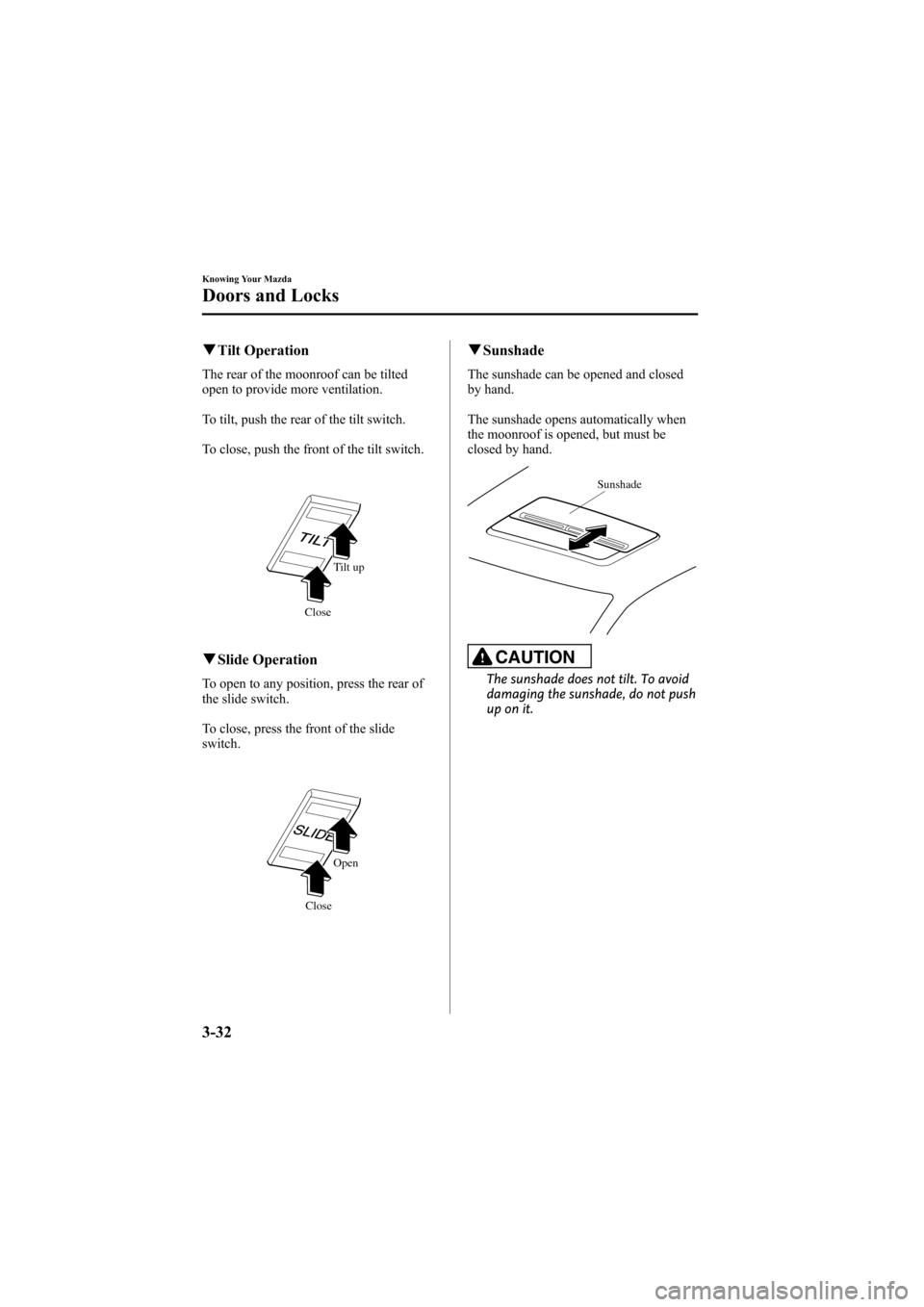

Tilt switch
Slide switch
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof: A closing moonroof is dangerous. The
hands, head, or even neck of a
person ―especially a child ―could
be caught in it as it closes, causing
serious injury or even death.
NOTE
After washing your Mazda or after it rains,
wipe the water off the moonroof before
operating it to avoid water penetration which
could cause rust and water damage to your
headliner.
Knowing Your Mazda
Doors and Locks
3-31íSome models.
Mazda6_8X47-EA-07G_Edition1 Page107
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (108,1)
qTilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To tilt, push the rear of the tilt switch.
To close, push the front of the tilt switch.
Tilt up
Close
q Slide Operation
To open to any position, press the rear of
the slide switch.
To close, press the front of the slide
switch.
Open
Close
q Sunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
Sunshade
CAUTION
The sunshade does not tilt. To avoid
damaging the sunshade, do not push
up on it.
3-32
Knowing Your Mazda
Doors and Locks
Mazda6_8X47-EA-07G_Edition1 Page108
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (109,1)
Immobilizer System
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
Ø To avoid damage to the key, do
not:
ØDrop the key.ØGet the key wet.ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not being
transmitted correctly.
ØA key ring rests on the key grip.
ØMetal parts of other keys or metal
objects touch the key grip.
ØSpare keys or keys for other
vehicles equipped with an
immobilizer system touch or come
near the key grip.
ØDevices for electronic purchases, or
security passage touch or come
near the key.
Knowing Your Mazda
Security System
3-33
Mazda6_8X47-EA-07G_Edition1 Page109
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (110,1)
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
qOperation
Arming
The system is armed when the ignition
switch is turned from the ON to the ACC
position.
The security indicator light in the
instrument panel flashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the correct ignition key.
The security indicator light illuminates for
about 3 seconds and goes out. If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
NOTE
lIf the security indicator light comes on and
stays on when the ignition switch is turned
to the ON position, the engine will not start.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone, could
interfere with your immobilizer system. If
you are using the proper key and your
engine fails to start, check the security
indicator light. If it is flashing, remove the
ignition key and wait 2 seconds or more,
then reinsert it and try starting the engine
again. If it doesn't start after 3 or more
tries, contact an Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, don't
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If you
shut off the engine while the light is
flashing you won't be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the keys
are needed. Bring all the existing keys to an
Authorized Mazda Dealer.
3-34
Knowing Your Mazda
Security System
Mazda6_8X47-EA-07G_Edition1 Page110
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G
