MAZDA MODEL 6 2015 Owners Manual (in English)

Black plate (391,1)
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
Do not put articles in storage spaces
with no lid:
Putting articles in storage spaces
with no lid is dangerous as they
could be thrown around the cabin if
the vehicle is suddenly accelerated
and cause injury depending on how
the article is stored.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qOverhead Console
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
qStorage Pocketí
To use, open the lid.
Interior Features
Interior Equipment
5-119íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page391
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (392,1)
qGlove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
qCenter Console
To open, pull the lower release handle.
Using the armrestí
CAUTION
ØWhen sliding the armrest, be
careful not to hit a drink cup
placed in a cup holder and spill its
contents. Remove cups or other
drink containers from the cup
holders before pulling out the
armrest.
ØBefore opening the center console,
store the armrest first. Otherwise,
the armrest or center console may
be damaged.
To use the armrest, slide it frontward.
To retract the armrest, slide it completely
to the rear.
5-120
Interior Features
íSome models.
Interior Equipment
Mazda6_8DQ8-EA-13L_Edition3 Page392
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (393,1)
qCargo Sub-Compartmentí
Lift the trunk mat.
Cargo sub-
compartmentTrunk mat
qRear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended
objects such as a coat hanger from
the assist grips or coat hooks is
dangerous as they can fly off and hit
an occupant in the cabin if a curtain
air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
qLuggage Compartment
Golf bags can be carried in the luggage
compartment.
Up to three golf bags can be carried in the
luggage compartment.
Place each of the three golf bags into the
luggage compartment with the bottom of
each bag pointed to the left, and then set
the top of each bag so that it is pointed to
the right.
Interior Features
Interior Equipment
5-121íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page393
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (394,1)

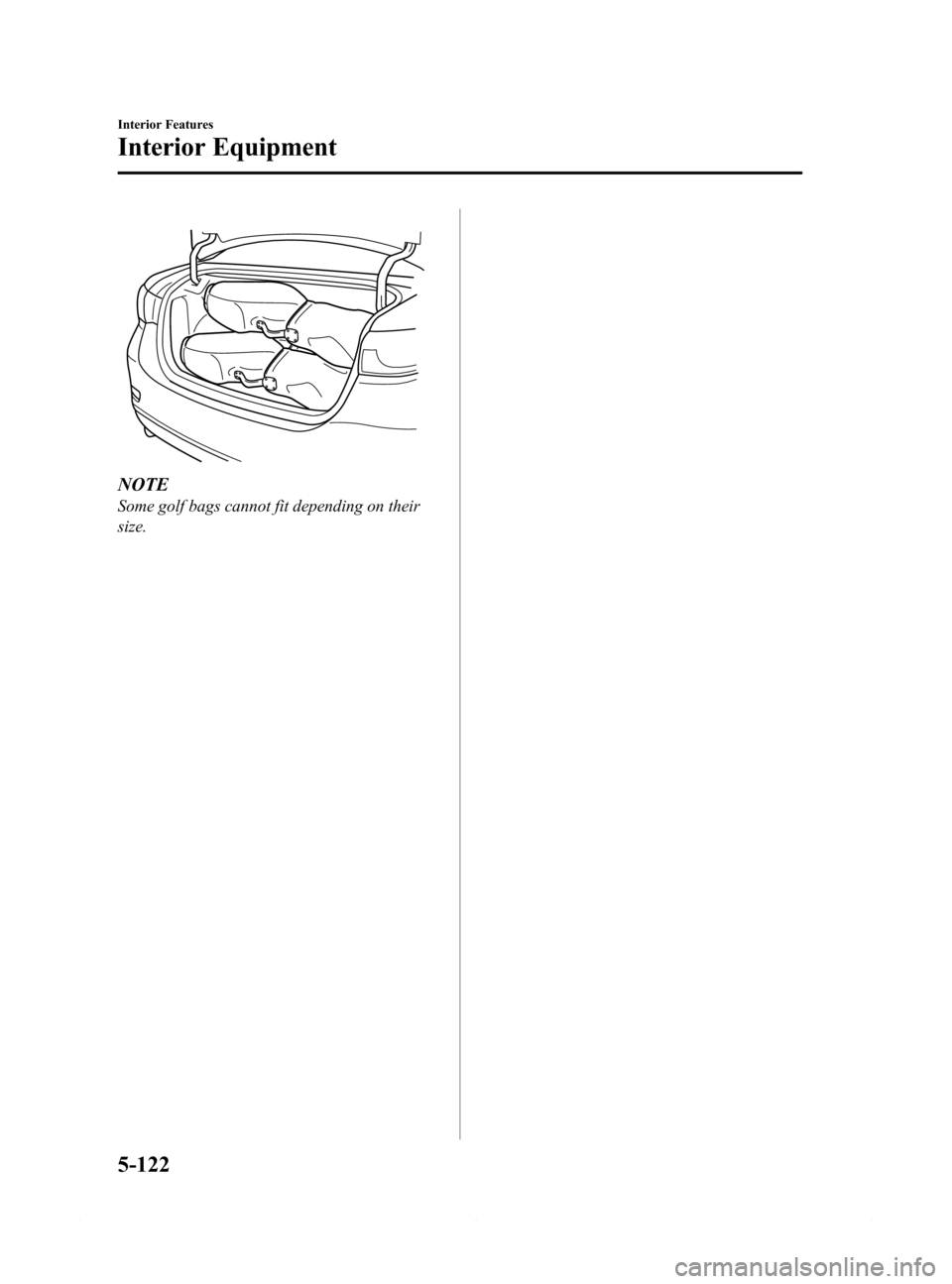

NOTE
Some golf bags cannot fit depending on their
size.
5-122
Interior Features
Interior Equipment
Mazda6_8DQ8-EA-13L_Edition3 Page394
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (395,1)
6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information ................................................................... 6-2
Introduction ............................................................................... 6-2
Scheduled Maintenance ................................................................ 6-4
Scheduled Maintenance (U.S.A., Canada, and Puerto Rico) .... 6-4
Scheduled Maintenance (Mexico) ............................................. 6-9
Owner Maintenance ................................................................... 6-16
Owner Maintenance Precautions ............................................. 6-16
Hood ....................................................................................... 6-18
Engine Compartment Overview .............................................. 6-20
Engine Oil ............................................................................... 6-21
Engine Coolant ....................................................................... 6-23
Brake/Clutch Fluid .................................................................. 6-25
Washer Fluid ........................................................................... 6-25
Body Lubrication .................................................................... 6-26
Wiper Blades ........................................................................... 6-27
Battery ..................................................................................... 6-30
Battery Replacement ............................................................... 6-32
Tires ........................................................................................ 6-34
Light Bulbs ............................................................................. 6-40
Fuses ....................................................................................... 6-51
Appearance Care ........................................................................ 6-58
Exterior Care ........................................................................... 6-58
Interior Care ............................................................................ 6-63
6-1
Mazda6_8DQ8-EA-13L_Edition3 Page395
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (396,1)
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you are unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
To continue warranty eligibility and to protect your investment, it is your responsibility to
properly maintain your vehicle according to factory recommended schedules outlined in
this manual. As part of this you must keep your maintenance records, receipts, repair orders
and any other documents as evidence this maintenance was performed. You must present
these documents, should any warranty coverage disagreement occur. Failure to do so can
result in your warranty being voided either in whole or in part.
This evidence may consist of the following:
lThe Mazda Scheduled Maintenance Record, refer to the Warranty Booklet, must be
completely filled out showing mileage, repair order number, date for each service, and
signed by a qualified automotive service technician who service vehicles.
lOriginal copies of repair orders or other receipts that include the mileage and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.
lFor self maintenance, a statement that you completed the maintenance yourself,
displaying mileage and the date the work was performed. Also, receipts for the
replacement parts (fluid, filters, etc.) indicating the date and mileage must accompany
this statement.
NOTE
If you elect to perform maintenance yourself or have your vehicle serviced at a location other than an
Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials must meet Mazda
standards for durability and performance as described in this manual.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
6-2
Maintenance and Care
Essential Information
Mazda6_8DQ8-EA-13L_Edition3 Page396
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (397,1)
Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance.But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Maintenance and Care
Essential Information
6-3
Mazda6_8DQ8-EA-13L_Edition3 Page397
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (398,1)
Scheduled Maintenance (U.S.A., Canada, and Puerto Rico)
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.
lRepeated short-distance drivinglDriving in dusty conditionslDriving with extended use of brakeslDriving in areas where salt or other corrosive materials are usedlDriving on rough or muddy roadslExtended periods of idling or low-speed operationlDriving for long periods in cold temperatures or extremely humid climateslDriving in extremely hot conditionslDriving in mountainous conditions continually
If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2).
NOTE
After the prescribed period, continue to follow the described maintenance at the recommended
intervals.
6-4
Maintenance and Care
Scheduled Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page398
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (399,1)
qSchedule 1
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
ENGINE
Drive belts I
Engine oilRRRRRRRR
Engine oil filterRRRRRRRR
COOLING SYSTEM
Engine coolantFL22 type
*1Replace at first 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years
OthersReplace at first 96,000 km (60,000 miles) or 4 years; after that,
every 2 years
FUEL SYSTEM
Air filter R
Fuel lines and hoses
*2II
Hoses and tubes for emission*2I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles)
CHASSIS and BODY
Brake lines, hoses and connections I I
Disc brakesIIII
Tire (Rotation) Rotate every 12,000 km (7,500 miles)
Steering operation and linkages I I
Front and rear suspension, ball joints and wheel
bearing axial playII
Driveshaft dust boots I I
Bolts and nuts on chassis and body T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years
All locks and hingesLLLLLLLL
Maintenance and Care
Scheduled Maintenance
6-5
Mazda6_8DQ8-EA-13L_Edition3 Page399
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (400,1)
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
AIR CONDITIONER SYSTEM
Cabin air filter R R
Chart symbols:
I:Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R:Replace
L:Lubricate
T:Tighten
Remarks:
*1 Use FL22 type coolant in vehicles with the inscription“FL22”on the radiator cap itself or the surrounding
area. Use FL22 when replacing the coolant.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
6-6
Maintenance and Care
Scheduled Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page400
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L
