NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. The period in which the tire was
manufactured (both week and year) is
indicated by a 4-digit number.
Refer to Tire Labeling on page 8-25.
qTemporary Spare Tireí
Inspect the temporary spare tire at least
monthly to make sure it is properly
inflated and stored.
NOTE
The temporary spare tire condition gradually
deteriorates even if it has not been used.
The temporary spare tire is easier to
handle because of its construction which
is lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.
Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Refer to Tires on page 9-7.
CAUTION
ØDo not use your temporary spare
tire rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage
both tire and rim.
ØThe temporary spare tire has a
tread life of less than 5,000 km
(3,000 miles). The tread life may
be shorter depending on driving
conditions.
ØThe temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator
appears, replace the tire with the
same type of temporary spare
(page 6-37).
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. The period in which the tire was
manufactured (both week and year) is
indicated by a 4-digit number.
Refer to Tire Labeling on page 8-25.
qReplacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident.
Maintenance and Care
Owner Maintenance
6-37íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page431
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (432,1)
CAUTION
A wrong-sized wheel may adversely
affect:
ØTire fit
ØWheel and bearing life
ØGround clearance
ØSnow-chain clearance
ØSpeedometer calibration
ØHeadlight aim
ØBumper height
ØTire Pressure Monitoring System
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset
(inset/outset).
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
6-38
Maintenance and Care
Owner Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page432
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (433,1)
MEMO
6-39
Mazda6_8DQ8-EA-13L_Edition3 Page433
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (434,1)
Light Bulbs
Overhead lights/
Front map lights
Vanity mirror
lights
Headlights (Low/High beam)
Daytime running lights/
Parking lightsHeadlights (Low beam)
Headlights (High beam)/
Daytime running lights Fog lights
Fog lights Front turn signal lights/
Front side-marker lightsFront turn signal lights/
Front side-marker lights
Parking lights
Brake lights/Taillights Rear side-marker lights
Rear turn signal lights Taillights (Trunk lid side)
Reverse lights High-mount brake light
License plate lights Trunk light Rear map lights Side turn signal lights Courtesy lights
Side turn signal lights Courtesy lights With Xenon Fusion Headlights With Halogen HeadlightsOverhead lights/
Front map lights
Vanity mirror
lights
Some models.
6-40
Maintenance and Care
Owner Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page434
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (435,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
qReplacing Exterior Light Bulbs
Headlights (With xenon fusion
headlights)
Low/High beam bulbs
You cannot replace the low/high beam
bulbs by yourself. The bulbs must be
replaced at an Authorized Mazda Dealer.
Headlights (With halogen headlights)
Low-beam bulbs
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right.
3. Pull the center of each plastic retainer
and remove the retainers.
Removal
Installation
Maintenance and Care
Owner Maintenance
6-41
Mazda6_8DQ8-EA-13L_Edition3 Page435
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (436,1)
4. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.
5. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.
6. Turn the socket and bulb assembly to
remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
7. Install the new bulb in the reverse order
of the removal procedure.
High-beam bulbs/Daytime running
lights
(Left side)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Remove the clip.
6-42
Maintenance and Care
Owner Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page436
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (437,1)

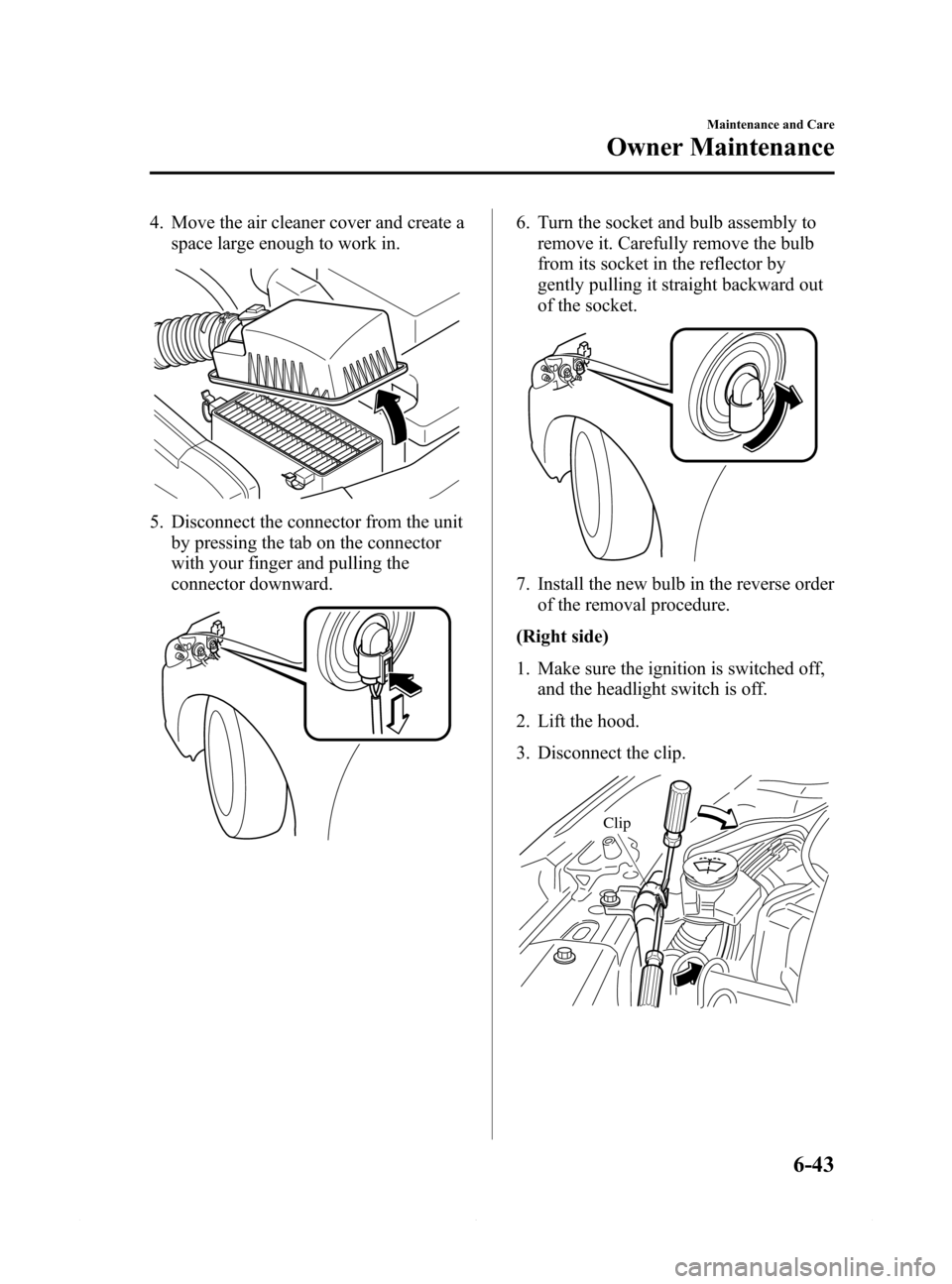

4. Move the air cleaner cover and create a
space large enough to work in.
5. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.
6. Turn the socket and bulb assembly to
remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
7. Install the new bulb in the reverse order
of the removal procedure.
(Right side)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Disconnect the clip.
Clip
Maintenance and Care
Owner Maintenance
6-43
Mazda6_8DQ8-EA-13L_Edition3 Page437
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (438,1)
4. Remove the windshield washer fluid
reservoir and bolts.
Windshield washer
fluid reservoirBolt
Guide
5. Remove the guide.
Guide
6. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.
7. Turn the socket and bulb assembly to
remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
8. Install the new bulb in the reverse order
of the removal procedure.
Daytime running lights/Parking lights
(With xenon fusion headlights)
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
Front turn signal lights/Front side-
marker lights, Parking lights (With
halogen headlights)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right.
6-44
Maintenance and Care
Owner Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page438
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (439,1)
3. Pull the center of each plastic retainer
and remove the retainers.
Removal
Installation
4. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.
5. Turn the socket and bulb assembly
counterclockwise and remove it.
6. Disconnect the bulb from the socket.Front turn signal lights/Front side-
marker lights
Parking lights (With halogen
headlights)
7. Install the new bulb in the reverse order
of the removal procedure.
Fog lightsí
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right.
Maintenance and Care
Owner Maintenance
6-45íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page439
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (440,1)
3. Pull the center of each plastic retainer
and remove the retainers.
Removal
Installation
4. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.
5. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.
6. Turn the socket and bulb assembly to
remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight back out of the
socket.
7. Install the new bulb in the reverse order
of the removal procedure.
Brake lights/Taillights, High-mount
brake light, Side-turn signal lights
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
