MAZDA MODEL 6 2015 Owners Manual (in English)

Black plate (441,1)
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
Rear turn signal lights, Rear side-
marker lights
1. Make sure the ignition is switched off,
and the turn signal switch is off.
2. Lift the trunk mat.
3.(Left side)
Pull the center of each plastic retainer
and remove the retainers and the
pocket.
(Right side)
Remove the pocket.
(Left side)
Removal
Installation
(Right side)
4. Pull the center of each plastic retainer
and remove the retainers and the trunk
end trim.
Removal
Installation
5. Pull the center of each plastic retainer
and remove the retainers and the trunk
side trim.
6. Turn the socket and bulb assembly
counterclockwise and remove it.
7. Disconnect the bulb from the socket.
Maintenance and Care
Owner Maintenance
6-47
Mazda6_8DQ8-EA-13L_Edition3 Page441
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

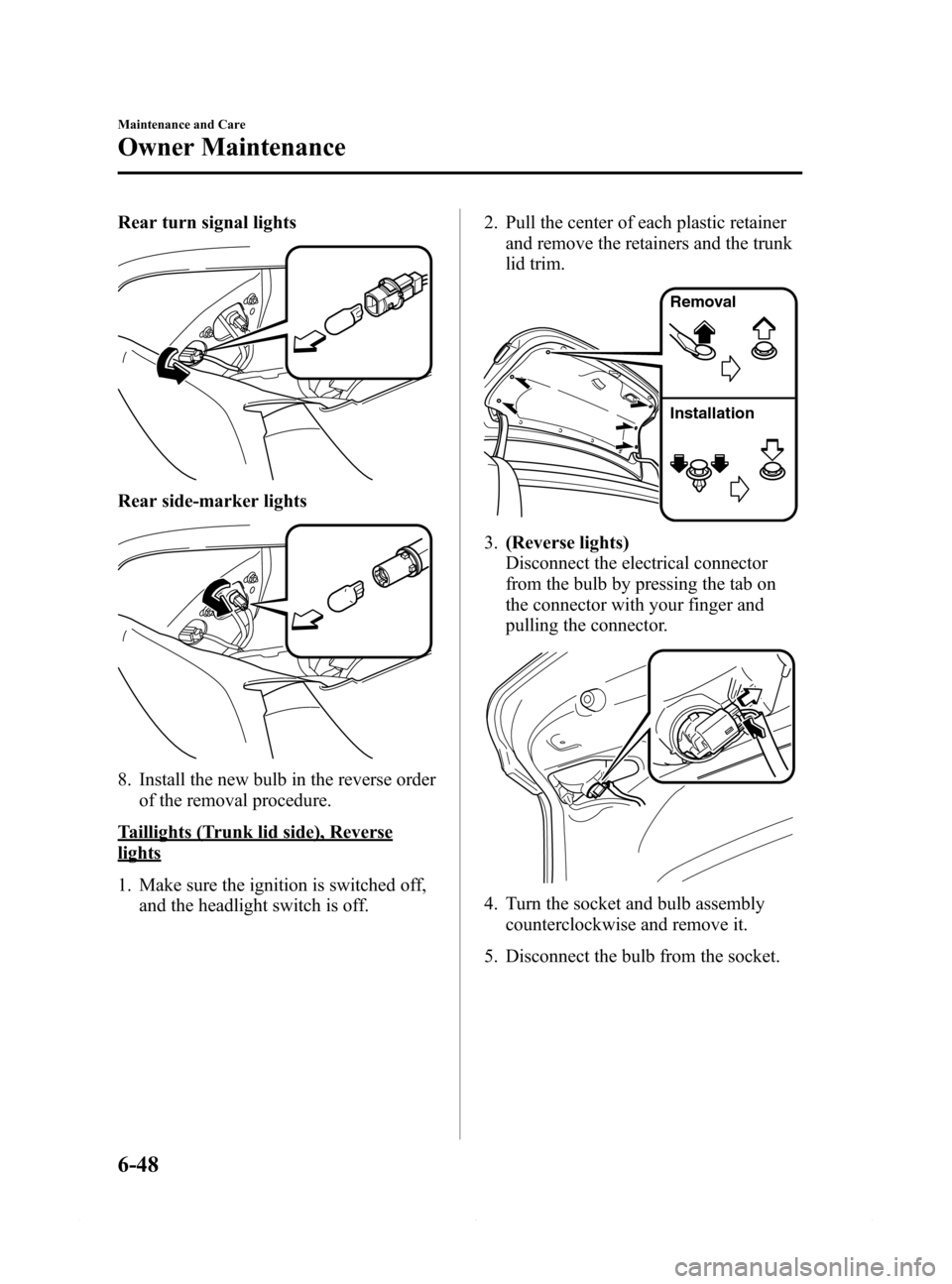

Black plate (442,1)
Rear turn signal lights
Rear side-marker lights
8. Install the new bulb in the reverse order
of the removal procedure.
Taillights (Trunk lid side), Reverse
lights
1. Make sure the ignition is switched off,
and the headlight switch is off.2. Pull the center of each plastic retainer
and remove the retainers and the trunk
lid trim.
Removal
Installation
3.(Reverse lights)
Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector.
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
6-48
Maintenance and Care
Owner Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page442
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (443,1)
Taillights (Trunk lid side)
Reverse lights
6. Install the new bulb in the reverse order
of the removal procedure.
License plate lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens,
and then remove the lens by carefully
prying on the edge of the lens with a
flathead screwdriver.3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order
of the removal procedure.
qReplacing Interior Light Bulbs
Overhead lights/Front map lights, Rear
map lights, Vanity mirror lightsí,
Courtesy lights
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Overhead lights/Front map lights
Maintenance and Care
Owner Maintenance
6-49íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page443
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (444,1)
Rear map lights
Vanity mirror lightsí
Courtesy lights
3. Install the new bulb in the reverse order
of the removal procedure.
Trunk light
1. Press both sides of the lens cap to
remove it.
6-50
Maintenance and Care
íSome models.
Owner Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page444
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (445,1)
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of the removal procedure.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
Maintenance and Care
Owner Maintenance
6-51
Mazda6_8DQ8-EA-13L_Edition3 Page445
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (446,1)
3. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it is
blown.
NormalBlown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage
the electric system.
6. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
6-52
Maintenance and Care
Owner Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page446
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (447,1)
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
4. Reinstall the cover and make sure that
it is securely installed.
Maintenance and Care
Owner Maintenance
6-53
Mazda6_8DQ8-EA-13L_Edition3 Page447
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (448,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 ADD FAN GE 30 A Cooling fan
2 IG2 30 A For protection of various circuits
3 INJECTOR 30 A Engine control system
4 FAN DE 40 A―
5 P.WINDOW1 30 A Power windows
í
6―― ―
7 ADD FAN DE 40 A―
8 EVVT 20 A Engine control system
9 DEFOG 40 A Rear window defogger
10 DCDC DE 40 A―
11 FAN GE 30 A Cooling fan
12―― ―
13―― ―
14―― ―
15 ENG.MAIN 40 A Engine control system
16 ABS/DSC M 50 A ABS, Dynamic stability control system
17
50 A For protection of various circuits
6-54
Maintenance and Care
íSome models.
Owner Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page448
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (449,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
18 WIPER 20 A Front window wiper and washer
19 HEATER 40 A Air conditioner
20 DCDC REG 30 A―
21 ENGINE.IG1 7.5 A Engine control system
22 C/U IG1 15 A For protection of various circuits
23H/L LOW L
HID L15 A Headlight (LH)
*1, Headlight low beam (LH)*2
24 H/L LOW R 15 A Headlight low beam (RH)*2
25 ENGINE3 15 A Engine control system
26 ENGINE2 15 A Engine control system
27 ENGINE1 15 A Engine control system
28 AT 15 A Transaxle control system
í
29 H/CLEAN 20 A―
30 A/C 7.5 A Air conditioner
31 AT PUMP 15 A―
32 STOP 10 A Brake lights
33 R.WIPER 15 A Theft-deterrent system
í
34 H/L HI 20 A Headlight high beam
35 HID R 15 A Headlight (RH)*1
36 FOG 15 A Fog lightsí
377.5 A Engine control system
38 AUDIO2 7.5 A Audio system
39 GLOW SIG 5 A―
40 METER2 7.5 A―
41 METER1 10 A Instrument cluster
42 SRS1 7.5 A Air bag
43 BOSE 25 A Bose
®Sound System-equipped modelí
44 AUDIO1 15 A Audio system
45 ABS/DSC S 30 A ABS, Dynamic stability control system
46 FUEL PUMP 15 A Fuel system
47 FUEL WARM 25 A―
48 TAIL 15 A Taillights, License plate lights
49 FUEL PUMP2 25 A―
50 HAZARD 25 AHazard warning flashers, Turn signal lights/Front side-marker
lights, Parking lights
51 DRL 15 A Daytime running lights
í
52 R.OUTLET2 15 A Accessory sockets
Maintenance and Care
Owner Maintenance
6-55íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page449
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (450,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
53 HORN 15 A Horn
54 ROOM 15 A Overhead light
*1 With xenon fusion headlights
*2 With halogen headlights
Fuse block (Left side)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 P.SEAT D 30 A Power seat
í
2 P.WINDOW3 30 A Power windowsí
3 R.OUTLET3 15 A―
4 P.WINDOW2 25 A Power windows
5 SRS2/ESCL 15 A Seat weight sensor
í
6 D.LOCK 25 A Power door locks
7 SEAT WARM 20 A Seat warmerí
8 SUNROOF 10 A Moonroofí
9 F.OUTLET 15 A Accessory sockets
10 MIRROR 7.5 A Power control mirror
11 R.OUTLET1 15 A―
12―― ―
6-56
Maintenance and Care
íSome models.
Owner Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page450
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L
