MAZDA MODEL 6 2015 Owners Manual (in English)

Black plate (461,1)
7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Instant Mobility System (IMS) Emergency Flat Tire Repair
Kit
í.......................................................................................... 7-7
Changing a Flat Tire (With spare tire) ..................................... 7-13
Battery Runs Out ........................................................................ 7-20
Jump-Starting .......................................................................... 7-20
Emergency Starting .................................................................... 7-23
Starting a Flooded Engine ....................................................... 7-23
Push-Starting ........................................................................... 7-23
Overheating ................................................................................. 7-24
Overheating ............................................................................. 7-24
Emergency Towing ..................................................................... 7-26
Towing Description ................................................................. 7-26
Tiedown Hooks
í.................................................................... 7-27
Warning/Indicator Lights and Warning Sounds ..................... 7-29
When Warning/Indicator Lights Illuminate/Flash ................... 7-29
Warning Sound is Activated ................................................... 7-38
When Trunk Lid Cannot be Opened ........................................ 7-42
When Trunk Lid Cannot be Opened ....................................... 7-42
7-1íSome models.
Mazda6_8DQ8-EA-13L_Edition3 Page461
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (462,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash. The hazard
warning indicator lights in the instrument
cluster flash simultaneously.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
If Trouble Arises
Parking in an Emergency
Mazda6_8DQ8-EA-13L_Edition3 Page462
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (463,1)
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Except Mexico
(With spare tire)
(Without spare tire)
Instant Mobility System (IMS)
Emergency Flat Tire Repair Kit
Tiedown eyelet
(Long type) Tiedown eyelet
(Long type) Tiedown eyelet
(Short type)
Tiedown eyelet
(Short type) Flat tire belt
Jack leverJack lever
Lug wrench
Spare tire Jack Spare tire hold-down bolt
If Trouble Arises
Flat Tire
7-3
Mazda6_8DQ8-EA-13L_Edition3 Page463
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (464,1)
Mexico
Lug wrench
Spare tire hold-down boltJack lever Tiedown eyelet
(Long type)Tiedown eyelet
(Short type)
Jack
Spare tire
7-4
If Trouble Arises
Flat Tire
Mazda6_8DQ8-EA-13L_Edition3 Page464
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (465,1)
qJackí
NOTE
Your vehicle may or may not be equipped with
a jack and lug wrench. For details, consult an
Authorized Mazda Dealer.
To remove the jack
1. Lift the trunk mat.
Trunk mat
2. Remove the pocket.
3. Turn the wing bolt and jack screw
counterclockwise.
Wing bolt
Jack screw
To secure the jack
1. Insert the wing bolt into the jack with
the jack screw pointing to the front and
turn the wing bolt clockwise to
temporarily tighten it.
2. Turn the jack screw in the direction
shown in the figure.
Wing bolt
Jack screw
3. Turn the wing bolt completely to
secure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
If Trouble Arises
Flat Tire
7-5íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page465
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (466,1)

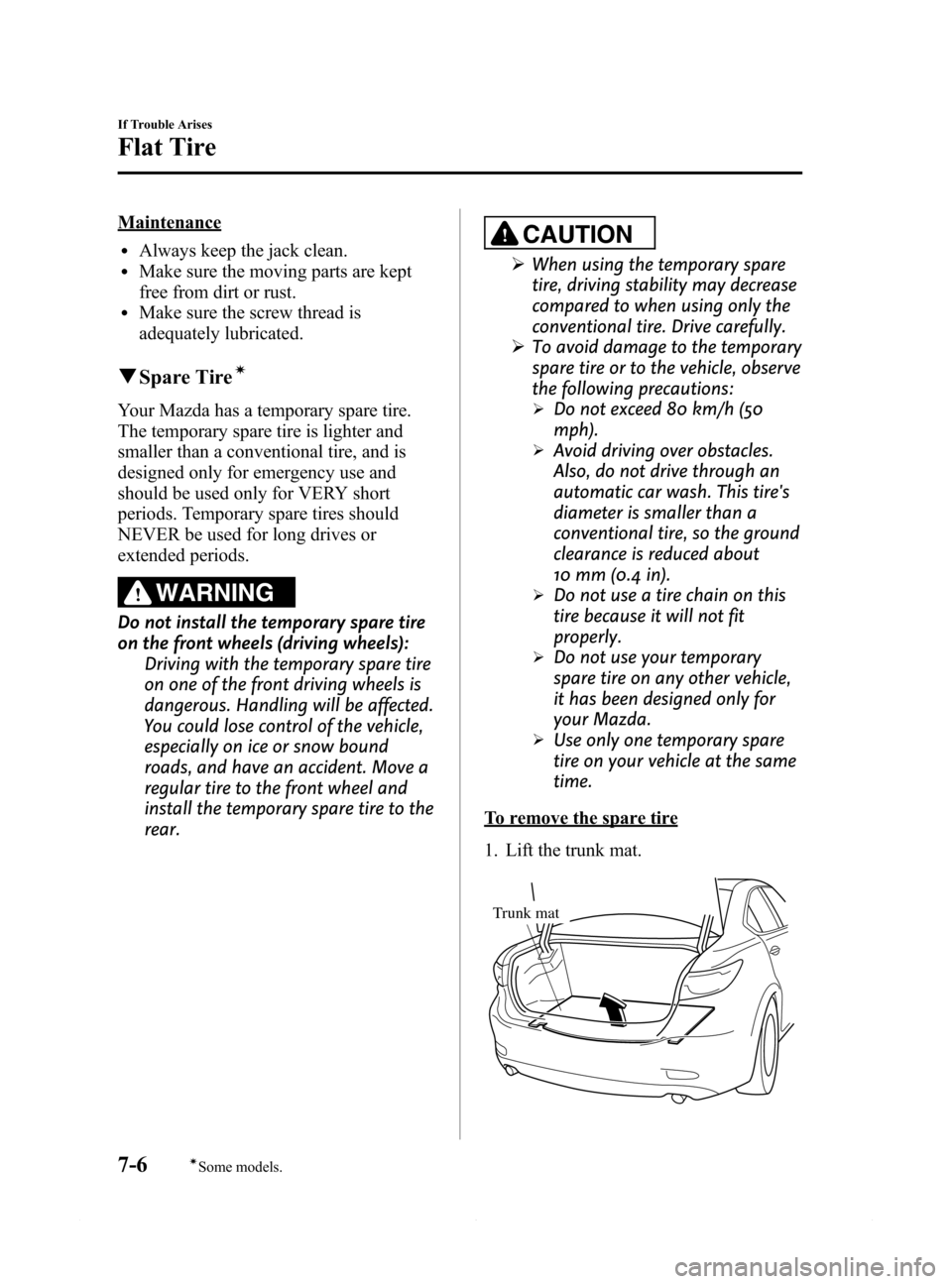

Maintenance
lAlways keep the jack clean.lMake sure the moving parts are kept
free from dirt or rust.
lMake sure the screw thread is
adequately lubricated.
qSpare Tireí
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
on the front wheels (driving wheels):
Driving with the temporary spare tire
on one of the front driving wheels is
dangerous. Handling will be affected.
You could lose control of the vehicle,
especially on ice or snow bound
roads, and have an accident. Move a
regular tire to the front wheel and
install the temporary spare tire to the
rear.
CAUTION
ØWhen using the temporary spare
tire, driving stability may decrease
compared to when using only the
conventional tire. Drive carefully.
ØTo avoid damage to the temporary
spare tire or to the vehicle, observe
the following precautions:
ØDo not exceed 80 km/h (50
mph).
ØAvoid driving over obstacles.
Also, do not drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire, so the ground
clearance is reduced about
10 mm (0.4 in).
ØDo not use a tire chain on this
tire because it will not fit
properly.
ØDo not use your temporary
spare tire on any other vehicle,
it has been designed only for
your Mazda.
ØUse only one temporary spare
tire on your vehicle at the same
time.
To remove the spare tire
1. Lift the trunk mat.
Trunk mat
7-6
If Trouble Arises
íSome models.
Flat Tire
Mazda6_8DQ8-EA-13L_Edition3 Page466
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (467,1)
2. Turn the spare tire hold-down bolt
counterclockwise.
Spare tire hold-down bolt
To secure the spare tire
Store the spare tire in the reverse order of
removal. After storing, verify that the
spare tire is stored securely.
Instant Mobility System
(IMS) Emergency Flat
Tire Repair Kit
í
The IMS emergency flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tire resulting from running over nails
or similar sharp objects on the road
surface.
Perform the emergency flat tire repair
without removing the nail or similar sharp
object which punctured the tire.
NOTE
Your vehicle is not equipped with a spare tire.
In the event of a flat tire, use the emergency
flat tire repair kit to repair the tire temporarily.
When doing the repair, refer to the instructions
included in the emergency flat tire repair kit. If
an emergency repair was performed on a flat
tire using the emergency flat tire repair kit,
have an Authorized Mazda Dealer, repair or
replace the tire as soon as possible.
If Trouble Arises
Flat Tire
7-7íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page467
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (468,1)
qAbout the IMS Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
includes the following items.
Sealant applied sticker
CompressorSealant bottle Speed restriction
sticker
Instructions
WARNING
Do not allow children to touch the tire
sealant:
Ingestion of tire sealant is dangerous.
In the event tire sealant is
accidentally swallowed, drink large
amounts of water immediately and
seek medical assistance.
Do not allow children to touch the tire
sealant:
Tire sealant that comes into contact
with the eyes and skin is dangerous.
If tire sealant enters the eyes or
contacts the skin, flush immediately
with large amounts of water and
seek medical assistance.NOTE
lThe tire sealant cannot be reused. Purchase
new tire sealant at an Authorized Mazda
Dealer.
lThe emergency flat tire repair kit cannot be
used in the following cases.
Consult an Authorized Mazda Dealer.
lThe period of effective use for the tire
sealant has expired. (The period of
effectiveness is indicated on the bottle
label.)
lThe tear or puncture exceeds about
4 mm (0.16 in).
lThe damage has occurred to an area of
the tire other than the tread.
lThe vehicle has been driven with nearly
no air remaining in the tire.
lThe tire has come off the wheel rim.lDamage to the wheel rim has occurred.lThe tire has two or more punctures.
qUsing the IMS Emergency Flat
Tire Repair Kit
1. Park on a level surface off the right-of-
way and set the parking brake.
2. Put a vehicle with an automatic
transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn
off the engine.
3. Turn on the hazard warning flasher.
7-8
If Trouble Arises
Flat Tire
Mazda6_8DQ8-EA-13L_Edition3 Page468
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (469,1)
4. Have passengers get out of the vehicle
and unload any luggage, and then
remove the emergency flat tire repair
kit.
NOTE
The tire sealant can be used at outside
temperatures down to_
30°C (_
22°F).
5. Remove the injection hose from the
compressor and insert the plug adaptor
to the sealant container orifice.
6. Remove the valve cap from the flat tire
and install the injection hose to the
valve of the flat tire securely.
Hose Valve cap Valve
7. Install the sealant container to the
compressor and press it in until the tab
clicks into place.
Ta b
If Trouble Arises
Flat Tire
7-9
Mazda6_8DQ8-EA-13L_Edition3 Page469
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (470,1)
8. Insert the compressor plug into the
interior accessory socket.
Center console
Compressor Compressor plug
CAUTION
ØBefore pulling out the compressor
plug from the electrical socket,
make sure the compressor power
switch is off.
ØThe compressor turns on and off
with the push-button switch.
9. Adhere the speed restriction sticker to
the speedometer at the location
indicated in the illustration, and the
sealant applied sticker to a flat surface
on the tire wheel.Speed restriction sticker
Sealant applied sticker
7-10
If Trouble Arises
Flat Tire
Mazda6_8DQ8-EA-13L_Edition3 Page470
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L
