When Driving
i-ACTIVSENSE
NOTE
 If you have set the lane departure warning sound to the beep sound/rumble sound*1
setting, the warning sound may not be heard depending on the surrounding noise
conditions.
 If you have set the lane departure warning system to the steering wheel vibrations setting,
the vibration may not be felt depending on the road surface conditions.
 When the setting for the steering operation assist is changed to operati\
onal, the warnings
can be set to activate/not activate. (When the setting for the steering\
operation assist is
changed to non-operational, the warnings cannot be set to not activate.)\
Refer to Setting Change (Personalization Features) on page 9-10.
 The Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) can be
changed to the following settings regardless of whether the steering operation assist has
been set to operational/non-operational. Always check the setting status when driving the
vehicle and make setting changes if necessary.
Refer to Setting Change (Personalization Features) on page 9-10.
 Steering wheel vibration: Strong/weak Warning sound volume Types of warnings (steering wheel vibration/beep sound/rumble sound*1)
*1 A rumble strip is a series of grooves in the road pavement surface positioned at specific
intervals, and when the vehicle passes over it a vibration and rumble so\
und is produced
which alerts the driver that the vehicle is departing from the lane.
The rumble sound is a reproduction of the sound which occurs when a vehicle passes
over a rumble strip.
Rumble
Groove
Mazda6_8FH2-EA-16F_Edition2.indb 1372016/07/07 13:45:19

4–138
When Driving
i-ACTIVSENSE
*Some models.
Smart City Brake Support (SCBS)*
The Smart City Brake Support (SCBS) system alerts the driver of a possible collision using
an indication in the display and a warning sound when the Forward Sensin\
g Camera (FSC)
detects a vehicle ahead and determines that a collision with a vehicle a\
head is unavoidable
while the vehicle is being driven at a vehicle speed of about 4 to 80 km\
/h (2 to 50 mph).
In addition, the system reduces damage in the event of a collision by op\
erating the brake
control (SCBS brake) when the system determines that a collision is unavoidable while the
vehicle is being driven at a vehicle speed of about 4 to 30 km/h (2 to \
18 mph). It may also
be possible to avoid a collision if the relative speed between your vehi\
cle and the vehicle in
front of you is less than about 20 km/h (12 mph). In addition, when th\
e driver depresses the
brake pedal while the system is in the operation range at about 4 to 30 \
km/h (2 to 18 mph),
the brakes are applied firmly and quickly to assist. (Brake Assist (SCBS brake assist))
Forward Sensing
Camera (FSC)
Mazda6_8FH2-EA-16F_Edition2.indb 1382016/07/07 13:45:19

4–139
When Driving
i-ACTIVSENSE

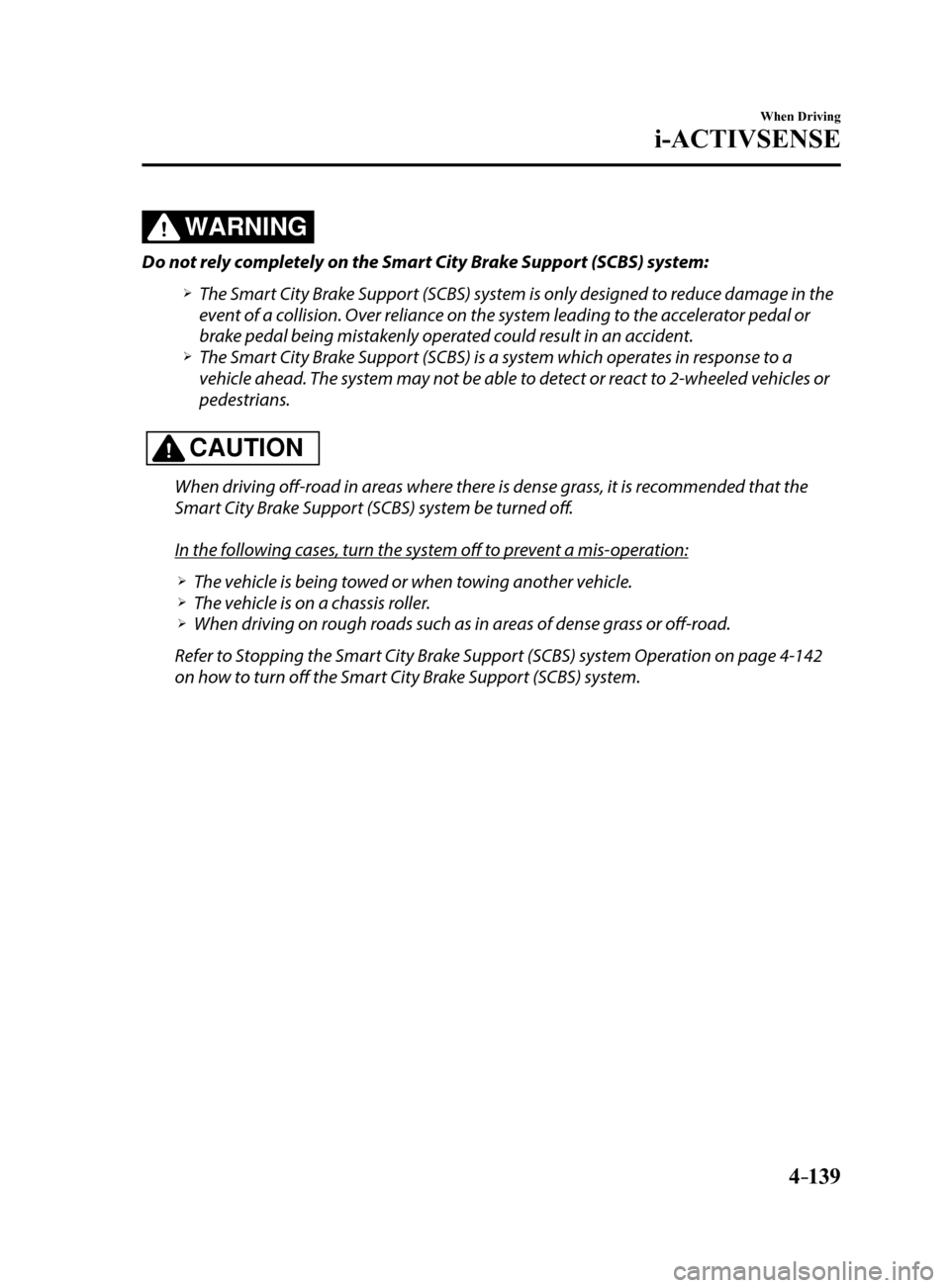

WARNING
Do not rely completely on the Smart City Brake Support (SCBS) system:
 The Smart City Brake Support (SCBS) system is only designed to reduce damage in the
event of a collision. Over reliance on the system leading to the accelerator pedal or
brake pedal being mistakenly operated could result in an accident.
 The Smart City Brake Support (SCBS) is a system which operates in response to a
vehicle ahead. The system may not be able to detect or react to 2-wheeled vehicles or
pedestrians.
CAUTION
When driving off-road in areas where there is dense grass, it is recommended that the
Smart City Brake Support (SCBS) system be turned off.
In the following cases, turn the system off to prevent a mis-operation:
 The vehicle is being towed or when towing another vehicle. The vehicle is on a chassis roller. When driving on rough roads such as in areas of dense grass or off-road.
Refer to Stopping the Smart City Brake Support (SCBS) system Operation on page 4-142
on how to turn off the Smart City Brake Support (SCBS) system.
Mazda6_8FH2-EA-16F_Edition2.indb 1392016/07/07 13:45:19

4–14 0
When Driving
i-ACTIVSENSE
NOTE
 The Smart City Brake Support (SCBS) system will operate under the foll\
owing conditions.
 The engine is running. “Smart City Brake Support Malfunction. Forward SCBS Disabled.” is not displayed in
the multi-information display. (with multi-information display)
 The Smart Brake Support/Smart City Brake Support (SBS/SCBS) system war\
ning
indication/warning light (amber) does not illuminate.
 (Rear-end collision warning)
The vehicle speed is about 4 to 80 km/h (2 to 50 mph).
 (Brake control (SCBS brake))
The vehicle speed is about 4 to 30 km/h (2 to 18 mph).
 The Smart City Brake Support (SCBS) system is not turned off.
 Under the following conditions, the Smart City Brake Support (SCBS) sy\
stem may not
operate normally:
 The Smart City Brake Support (SCBS) system will not operate if the dri\
ver is
deliberately performing driving operations (accelerator pedal and steer\
ing wheel).
 If there is the possibility of partial contact with a vehicle ahead. The vehicle is driven on a slippery road surface such as wet roads or icy or snow-
bound roads.
 The braking performance is adversely affected due to cold temperatures or wet brakes. The vehicle is driven at the same speed as the vehicle ahead. The accelerator pedal is depressed. The brake pedal is depressed. The steering wheel is being operated. The selector lever is being operated.
 In the following cases, the Forward Sensing Camera (FSC) determines that there is a
vehicle ahead and the Smart City Brake Support (SCBS) may operate.
 Objects on the road at the entrance to a curve. Vehicles passing in the opposite lane while making a curve. Metal objects, bumps, or protruding objects on the road. When passing through a toll gate. When passing through low gates, narrow gates, car washing machines, or tunnels. If you suddenly come close to a vehicle ahead. 2-wheeled vehicles, pedestrians, animals or standing trees. Vehicle is driven with some of the tires having significant wear.
 (Manual transaxle)
If the vehicle is stopped by the SCBS operation and the clutch pedal is \
not depressed, the
engine stops.
Mazda6_8FH2-EA-16F_Edition2.indb 1402016/07/07 13:45:19

4–141
When Driving
i-ACTIVSENSE
Smart City Brake Support (SCBS)
Indicator Light (Red) (Type B
Instrument Cluster)
If the Smart City Brake Support (SCBS) is
operating, the indicator light (red) flashes.
Collision Warning
If there is the possibility of a collision
with a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the multi-information display or the active
driving display.
Multi-information Display
Active Driving Displa
y
NOTE
The operation distance and volume of the
collision warning can be changed. Refer to
Personalization Features on page 9-10.
Automatic Brake Operation
Display (Type A Instrument
Cluster)
“Smart City Brake Support activated” is
indicated in the active driving display, and
“Smart City Brake Support Activated” is
indicated in the multi-information display
after the SCBS brakes or the brake assist
(SCBS brake assist) is operated.
Active Driving Display
Multi-inf ormation Displa y
NOTE
 The collision warning beep sounds
intermittently while the SCBS brake
or brake assist (SCBS brake assist) is
operating.
 If the vehicle is stopped by the SCBS
operation and the brake pedal is not
depressed, the warning beep sounds
one time after about 2 seconds and the
SCBS brake is automatically released.
Mazda6_8FH2-EA-16F_Edition2.indb 1412016/07/07 13:45:19

4–142
When Driving
i-ACTIVSENSE
Stopping the Smart City Brake
Support (SCBS) System Operation
The Smart City Brake Support (SCBS)
system can be temporarily deactivated.
Refer to Personalization Features on page
9-10.
When the Smart City Brake Support
(SCBS) system is turned off, the Smart
City Brake Support (SCBS) OFF indicator
light turns on.
When the engine is restarted, the system
becomes op onal.
Mazda6_8FH2-EA-16F_Edition2.indb 1422016/07/07 13:45:20

4–14 3
When Driving
i-ACTIVSENSE
*Some models.
Smart Brake Support (SBS)*
The Smart Brake Support (SBS) system alerts the driver of a possible collision using a
display and warning sound if the radar sensor (front) and the Forward \
Sensing Camera
(FSC) determine that there is the possibility of a collision with a ve\
hicle ahead while the
vehicle is being driven at about 15 km/h or faster (10 mph or faster).\
Furthermore, if the
radar sensor (front) and the Forward Sensing Camera (FSC) determines\
that a collision is
unavoidable, the automatic brake control is performed to reduce damage i\
n the event of a
collision.
In addition, when the driver depresses the brake pedal, the brakes are applied firmly and
quickly to assist. (Brake Assist (SBS brake assist))
WARNING
Do not rely completely on the Smart Brake Support (SBS) system and always drive
carefully:The Smart Brake Support (SBS) is designed to reduce damage in the event of a collision,
not avoid an accident. The ability to detect an obstruction is limited depending on the
obstruction, weather conditions, or traffic conditions. Therefore, if the accelerator pedal
or brake pedal is mistakenly operated it could result in an accident. Always verify the
safety of the surrounding area and depress the brake pedal or accelerator pedal while
keeping a safer distance from vehicles ahead or on-coming vehicles.
CAUTION
In the following cases, turn the system off to prevent a mis-operation:
 The vehicle is being towed or when towing another vehicle. The vehicle is on a chassis roller. When driving on rough roads such as in areas of dense grass or off-road.
Mazda6_8FH2-EA-16F_Edition2.indb 1432016/07/07 13:45:20

4–14 4
When Driving
i-ACTIVSENSE
NOTE
 The Smart Brake Support (SBS) system operates when all of the followin\
g conditions are
met:
 The ignition is switched ON. The Smart Brake Support (SBS) system is on. The vehicle speed is about 15 km/h or faster (10 mph or faster). The relative speed between your vehicle and the vehicle ahead is about 15 km/\
h or
faster (10 mph or faster).
 The Dynamic Stability Control (DSC) is not operating.
 The Smart Brake Support (SBS) system may not operate under the followi\
ng conditions:
 If the vehicle is accelerated rapidly and it comes close to a vehicle ah\
ead. The vehicle is driven at the same speed as the vehicle ahead. The accelerator pedal is depressed. The brake pedal is depressed. The steering wheel is being operated. The selector lever is being operated. The turn signal is being used. When the vehicle ahead is not equipped with taillights or the taillights\
are turned off. When warnings and messages, such as a dirty windshield, related to the Forward
Sensing Camera (FSC) are being displayed in the multi-information display.
 Although the objects which activate the system are four-wheeled vehicles, the radar
sensor (front) could detect the following objects, determine them to be an obstru\
ction, and
operate the Smart Brake Support (SBS) system.
 Objects on the road at the entrance to a curve (including guardrails and snow banks). A vehicle appears in the opposite lane while cornering or rounding a curve. When crossing a narrow bridge. When passing under a low gate or through a tunnel or narrow gate. When entering an underground parking area. Metal objects, bumps, or protruding objects on the road. If you suddenly come close to a vehicle ahead. When driving in areas where there is high grass or forage. Two-wheeled vehicles such as motorbikes or bicycles. Pedestrians or non-metallic objects such as standing trees.
 When the system operates, the user is notified by the multi-information display. The Smart Brake Support (SBS) warning indication (amber) turns on wh\
en the system has
a malfunction.
Refer to Warning Indication/Warning Lights on page 4-32.
Mazda6_8FH2-EA-16F_Edition2.indb 1442016/07/07 13:45:20

4–14 5
When Driving
i-ACTIVSENSE
Collision Warning
If there is the possibility of a collision
with a vehicle ahead, the beep sounds
continuously and a warning is indicated
in the multi-information display and the
active driving display.
Multi-information Display
Active Driving Displa
y
Stopping The Smart Brake
Support (SBS) System Operation
The Smart Brake Support (SBS) system
can be temporarily deactivated.
Refer to Personalization Features on page
9-10.
When the Smart Brake Support (SBS)
system is turned off, the Smart Brake
Support (SBS) OFF indicator light turns
on.
When the engine is restarted, the system
becomes operational.
NOTE
If the Smart Brake Support (SBS) system
operation is turned off, the Smart City
Brake Support (SCBS) system operation is
turned off simultaneously.
Mazda6_8FH2-EA-16F_Edition2.indb 1452016/07/07 13:45:20

4–14 6
When Driving
i-ACTIVSENSE
*Some models.
Forward Sensing Camera (FSC)*
Your vehicle is equipped with a Forward Sensing Camera (FSC). The Forward Sensing
Camera (FSC) is positioned near the rearview mirror and used by the fo\
llowing systems.
 High Beam Control System (HBC) Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Traffic Sign Recognition System (TSR) Smart City Brake Support (SCBS) Smart Brake Support (SBS)
The Forward Sensing Camera (FSC) determines the conditions ahead of th\
e vehicle while
traveling at night and detects traffic lanes. The distance in which the Forward Sensing
Camera (FSC) can detect objects varies depending on the surrounding co\
nditions.
WARNING
Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly
detect vehicles ahead. This will result in the system not operating normally or mistakenly
operating, which could cause a serious accident.
CAUTION
 Do not apply accessories, stickers or film to the windshield near the Forward Sensing
Camera (FSC).
If the area in front of the Forward Sensing Camera (FSC) lens is obstructed, it will cause
the system to not operate correctly. Consequently, each system may not operate normally
which could lead to an unexpected accident.
 Do not disassemble or modify the Forward Sensing Camera (FSC).
Disassembly or modification of the Forward Sensing Camera (FSC) will cause a malfunction
or mistaken operation. Consequently, each system may not operate normally which could
lead to an unexpected accident.
Mazda6_8FH2-EA-16F_Edition2.indb 1462016/07/07 13:45:20
