xIf the ignition is switched OFF while
you have cancelled the system using
the i-ACTIVSENSE switch, the system
is automatically enabled the next
time the ignition is switched ON.
However, if the system is cancelled
using the personalisation features,
the system is not automatically
enabled.
▼Vehicle Ahead Close Proximity
Warn in g
When the system determines that the
distance between your vehicle and a
vehicle ahead is close, the
i-ACTIVSENSE status symbol (warning/
risk avoidance support system)
changes from green to amber and the
warning indication is displayed on the
multi-information display. While
checking the safety of the surrounding
area, depress the brake pedal while
keeping a safe distance from the
vehicle ahead.
Driver Attention Alert
(DAA)
*
▼Driver Attention Alert (DAA)
The DAA is a system which detects
driver fatigue and decreased
attentiveness, and encourages the
driver to take a rest.
When the vehicle is driven inside traffic
lane lines at about 65 to 140 km/h
(41 to 86 mph), the DAA estimates the
amount of accumulated fatigue and
decreased attentiveness of the driver
based on the information from the
Forward Sensing Camera (FSC) and
other vehicle information, and
encourages the driver to take a rest
using an indication on the
multi-information display and a
warning sound.
Use the DAA on expressways or
highways.
Refer to Forward Sensing Camera
(FSC) on page 4-216.
When Driving
i-ACTIVSENSE
*Some models.4-119

WARNING
Do not rely completely on DAA and
always drive carefully:
The DAA detects driver fatigue and
decreased attentiveness and
encourages the driver to take a rest,
however, it is not designed to prevent
the vehicle from straying. If you rely too
much on the DAA it could lead to an
accident. Drive carefully and operate
the steering wheel appropriately.
In addition, the system may not be
able to detect driver fatigue and
decreased attentiveness correctly
depending on the
traffic and driving
conditions. The driver must take
sufficient rest in order to drive safely.
NOTE
xThe DAA operates when all of the
following conditions are met.
xThe vehicle speed is about 65 to
140 km/h (41 to 86 mph).
xThe system detects white (yellow)
lane lines.
xThe system has completed learning
of the driver’s driving data after 60
minutes have passed since the
driver began driving vehicle.
xThe DAA does not operate under the
following conditions.
xThe vehicle speed is less than
about 65 km/h (41 mph).
xThe vehicle speed exceeds about
140 km/h (86 mph)
xThe vehicle is making a sharp turn.xThe vehicle is changing lanes.xThe system cannot detect white
(yellow) lane lines.
xThe DAA may not operate normally
under the following conditions.
xWhite (yellow) lane lines are less
visible because of dirt or fading/
patchiness.
xThe vehicle is jolted or swayed
continuously by strong winds or
rough roads.
xThe vehicle is driven aggressively.xWhen making frequent lane
changes.
xThe vehicle is making a curve.xThe DAA detects driver fatigue and
decreased attentiveness based on
the driving data when the vehicle is
driven at about 65 to 140 km/h (41
to 86 mph) for about 20 minutes.
The driving data will be reset under
the following conditions.
xThe vehicle is stopped for 15
minutes or longer.
xThe vehicle is driven at less than
about 65 km/h (41 mph) for
about 30 minutes.
xThe ignition is switched
off.xAfter the DAA has displayed the first
message encouraging rest, it does
not display the next one until 60
minutes have passed.
▼Driver Attention Alert (DAA)
Display
When the system detects driver fatigue
or decreased attentiveness, it activates
the warning sound and displays an
alert in the multi-information display.
When Driving
i-ACTIVSENSE
4-120

xThe battery voltage has decreased.xThe front side radar sensor of the
FCTA may be regulated under the
radio wave related laws of the
country where the vehicle is driven.
If this system is used abroad, it may
be necessary to turn off the system.
Refer to Front Side Radar Sensor
on page 4-222.
▼Cancelling Operation of Front
Cross Traffic Alert (FCTA)
The FCTA can be set to inoperable.
x(If only the FCTA is turned
off)
Refer to the Settings section in the
Mazda Connect Owner's Manual.
x(If the FCTA is turned off by
operating the i-ACTIVSENSE switch)
Refer to i-ACTIVSENSE Switch on
page 4-97.
NOTE
If the ignition is switched OFF while
you have cancelled the system using
the i-ACTIVSENSE switch, the system is
automatically enabled the next time
the ignition is switched ON. However,
if the system is cancelled using the
personalisation features, the system is
not automatically enabled.
Rear Cross Traffic Alert
(RCTA)
*
▼Rear Cross Traffic Alert (RCTA)
The RCTA system is designed to assist
the driver in checking the area to the
rear left and right sides of your vehicle
while your vehicle is reversing by
alerting the driver to the presence of
vehicles approaching the rear of your
vehicle.
The RCTA system detects vehicles
approaching from the rear left and
right sides of your vehicle and the rear
of your vehicle while your vehicle is
being reversed out of a parking space,
and notifies the driver of possible
danger using the Blind Spot Monitoring
(BSM) warning indicator lights and the
warning buzzer.
1. Your vehicle
2. Detection areas
When Driving
i-ACTIVSENSE
4-126*Some models.

xIn the following cases, it may be
difficult to view the illumination/
flashing of the Blind Spot Monitoring
(BSM) warning indicator lights
equipped on the door mirrors.
xSnow or ice adheres to the door
mirrors.
xThe front door glass is fogged or
covered in snow, frost or dirt.
xTurn off the RCTA system while
pulling a trailer or while an accessory
such as a bicycle carrier is installed to
the rear of the vehicle. Otherwise,
the radio waves emitted by the radar
will be blocked causing the system to
not operate normally.
xThe rear side radar sensor of the
RCTA may be regulated under the
radio wave related laws of the
country where the vehicle is driven. If
this system is used abroad, it may be
necessary to turn off the system.
Refer to Rear Side Radar Sensor on
page 4-224.
xIf a Mazda genuine trailer hitch is
used, the RCTA is automatically
turned off.
▼Cancelling Operation of Rear
Cross
Tra ffi c Alert (RCTA)
The RCTA can be set to inoperable.
x(If only the RCTA is turned off)
Refer to the Settings section in the
Mazda Connect Owner's Manual.
x(If the RCTA is turned off by
operating the i-ACTIVSENSE switch)
Refer to i-ACTIVSENSE Switch on
page 4-97.
NOTE
If the ignition is switched OFF while
you have cancelled the system using
the i-ACTIVSENSE switch, the system is
automatically enabled the next time
the ignition is switched ON. However,
if the system is cancelled using the
personalisation features, the system is
not automatically enabled.
When Driving
i-ACTIVSENSE
4-129

3. MRCC switch

When the MRCC switch is pressed once, the MRCC system turns on, and the MRCC
standby indication (white) turns on and the vehicle speed and the distance between
the vehicles while in headway control can be set.
In addition, the MRCC system display indication is displayed on the
multi-information display and the active driving display at the same time.
NOTE
If the ignition is switched off while the MRCC system is operating, the system will be
operable when the ignition is switched ON the next time.
How to set the speed
Adjust the vehicle speed to the desired setting using the accelerator pedal and press
the RES switch up (SET+) or down (SET-) to start headway control.
The set speed is indicated on the display. At the same time, the MRCC standby
indication (white) changes to the MRCC set indication (green).
Travel statusIndication on multi-information
displayIndication on active driving dis-
play
During travel at constant speed
During travel under headway
control
When Driving
i-ACTIVSENSE
4-135

Distance-between-vehicles
guideline
(at 80 km/h (50 mph) vehicle
speed)Indication on multi-information
displayIndication on active driving dis-
play
*1
Extremely short (about 25 m (82
ft))
*1 Displays a pop-up image in the active driving display only when the driver operates the switch.
NOTE
xThe distance-between-vehicles differs depending on the vehicle speed, and the
slower the vehicle speed, the shorter the distance.
xWhen the ignition is switched to ACC or OFF and then the engine is started again,
the system automatically sets the distance-between-vehicles to the previous
setting.
Changing the Set Vehicle Speed
(To accelerate/decelerate using the
RES switch)
When the RES switch is pressed up
(SET+), the vehicle accelerates and
when the RES switch is pressed down
(SET-), it decelerates.
xPress and release immediately: 1
km/h (1 mph)
xPress and hold: 10 km/h (5 mph)
(To increase speed using accelerator
pedal)
Depress the accelerator pedal and
press the RES switch up (SET+) or
down (SET-) at the desired speed. If
the switch is not operated, the system
returns to the set speed after you
release your foot from the accelerator
pedal.
NOTE
xThe warnings and brake control do
not operate while the accelerator
pedal is depressed.
x(European models)
When switching to a passing lane
and operating the direction
indicator, the system provides more
acceleration automatically if it
determines that more acceleration is
required. Drive while being careful of
the road ahead because you could
approach the vehicle ahead too
closely.
Cancelling the system
When the following operations are
performed, the MRCC system is
cancelled, and the MRCC set
indication (green) switches to the
MRCC standby indication (white) at
the same time.
xThe CANCEL switch is pressed.xThe brake pedal is depressed.x(Manual transmission)
The shift lever is in the reverse (R)
position.
x(Automatic transmission)
When Driving
i-ACTIVSENSE
4-137

3. MRCC switch

When the MRCC switch is pressed once, the MRCC with Stop & Go function system
turns on, and the MRCC with Stop & Go function standby indication (white) turns
on and the vehicle speed and the distance between the vehicles while in headway
control can be set.
In addition, the MRCC with Stop & Go function system display indication is
displayed on the multi-information display and the active driving display at the same
time.
NOTE
If the ignition is switched off while the MRCC with Stop & Go function system is
operating, the system will be operable when the ignition is switched ON the next
time.
How to set the speed
Adjust the vehicle speed to the desired setting using the accelerator pedal and press
the RES switch up (SET+) or down (SET-) to start headway control.
The set speed is indicated on the display. At the same time, the MRCC standby
indication (white) changes to the MRCC set indication (green).
Travel statusIndication on multi-information
displayIndication on active driving dis-
play
During travel at constant speed
During travel under headway
control
When Driving
i-ACTIVSENSE
4-144

Distance-between-vehicles
guideline
(at 80 km/h (50 mph) vehicle
speed)Indication on multi-information
displayIndication on active driving dis-
play
*1
Extremely short (about 25 m (82
ft))
*1 Displays a pop-up image in the active driving display only when the driver operates the switch.
NOTE
xThe distance-between-vehicles differs depending on the vehicle speed, and the
slower the vehicle speed, the shorter the distance.
xWhen the ignition is switched to ACC or OFF and then the engine is started again,
the system automatically sets the distance-between-vehicles to the previous
setting.
Changing the Set Vehicle Speed
(To accelerate/decelerate using the
RES switch)
When the RES switch is pressed up
(SET+), the vehicle accelerates and
when the RES switch is pressed down
(SET-), it decelerates.
xPress and release immediately: 1
km/h (1 mph)
xPress and hold: 10 km/h (5 mph)
(To increase speed using accelerator
pedal)
Depress the accelerator pedal and
press the RES switch up (SET+) or
down (SET-) at the desired speed. If
the switch is not operated, the system
returns to the set speed after you
release your foot from the accelerator
pedal.
NOTE
xThe warnings and brake control do
not operate while the accelerator
pedal is depressed.
x(European models)
When switching to a passing lane
and operating the direction
indicator, the system provides more
acceleration automatically if it
determines that more acceleration is
required. Drive while being careful of
the road ahead because you could
approach the vehicle ahead too
closely.
Cancelling the system
When the following operations are
performed, the MRCC with Stop & Go
function system is cancelled, and the
MRCC with Stop & Go function set
indication (green) switches to the
MRCC with Stop & Go function
standby indication (white) at the same
time.
xThe CANCEL switch is pressed.xThe brake pedal is depressed.
When Driving
i-ACTIVSENSE
4-146

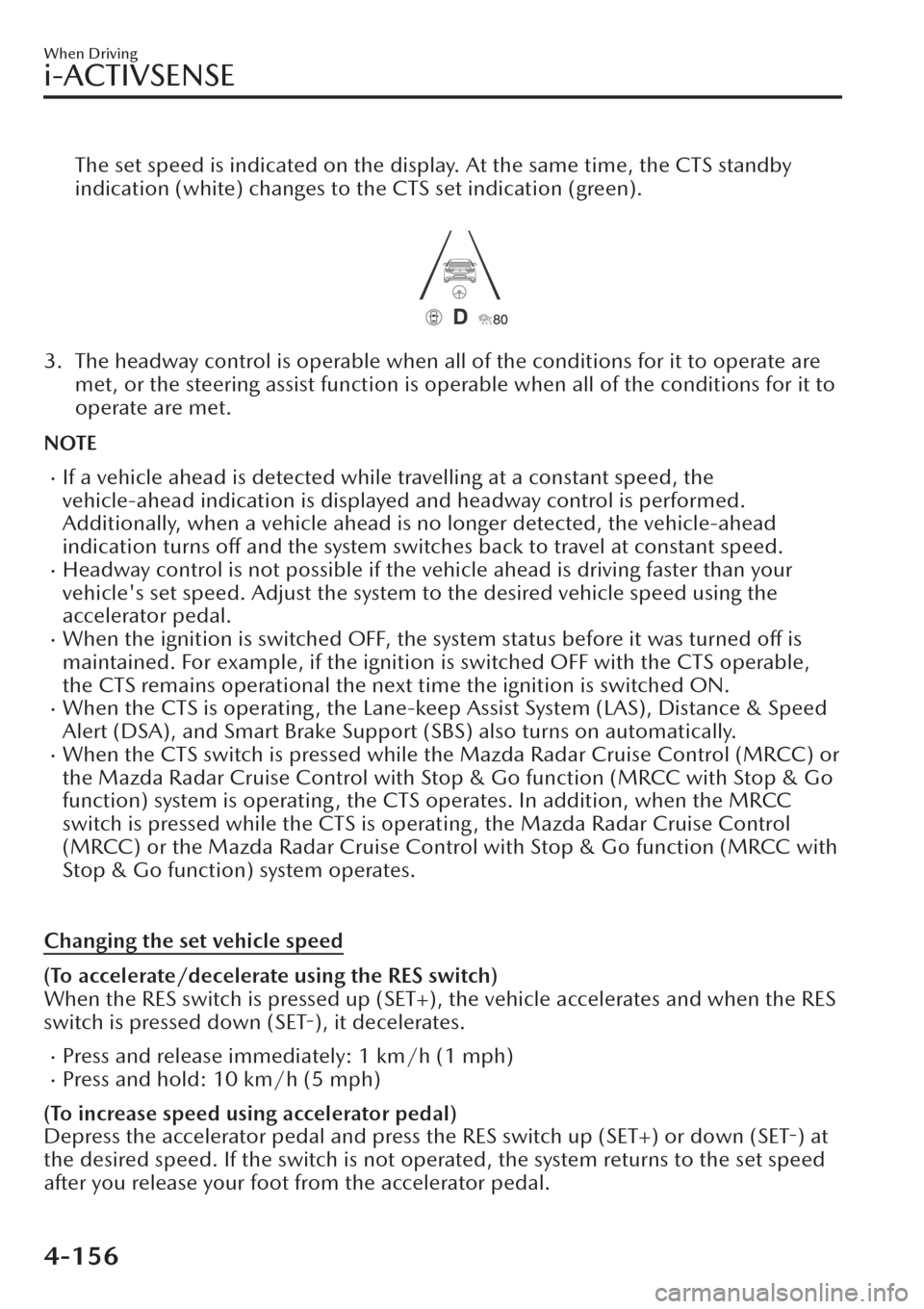

The set speed is indicated on the display. At the same time, the CTS standby
indication (white) changes to the CTS set indication (green).
3. The headway control is operable when all of the conditions for it to operate are
met, or the steering assist function is operable when all of the conditions for it to
operate are met.
NOTE
xIf a vehicle ahead is detected while travelling at a constant speed, the
vehicle-ahead indication is displayed and headway control is performed.
Additionally, when a vehicle ahead is no longer detected, the vehicle-ahead
indication turns off and the system switches back to travel at constant speed.
xHeadway control is not possible if the vehicle ahead is driving faster than your
vehicle's set speed. Adjust the system to the desired vehicle speed using the
accelerator pedal.
xWhen the ignition is switched OFF, the system status before it was turned off is
maintained. For example, if the ignition is switched OFF with the CTS operable,
the CTS remains operational the next time the ignition is switched ON.
xWhen the CTS is operating, the Lane-keep Assist System (LAS), Distance & Speed
Alert (DSA), and Smart Brake Support (SBS) also turns on automatically.
xWhen the CTS switch is pressed while the Mazda Radar Cruise Control (MRCC) or
the Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) system is operating, the CTS operates. In addition, when the MRCC
switch is pressed while the CTS is operating, the Mazda Radar Cruise Control
(MRCC) or the Mazda Radar Cruise Control with Stop & Go function (MRCC with
Stop & Go function) system operates.

Changing the set vehicle speed
(To accelerate/decelerate using the RES switch)
When the RES switch is pressed up (SET+), the vehicle accelerates and when the RES
switch is pressed down
(SET-), it decelerates.
xPress and release immediately: 1 km/h (1 mph)xPress and hold: 10 km/h (5 mph)
(To increase speed using accelerator pedal)
Depress the accelerator pedal and press the RES switch up (SET+) or down (SET-) at
the desired speed. If the switch is not operated, the system returns to the set speed
after you release your foot from the accelerator pedal.
When Driving
i-ACTIVSENSE
4-156

Distance-between-vehicles
guideline
(at 80 km/h (50 mph) vehicle
speed)Indication on display
Indication on multi-information
displayIndication on active driving dis-
play
*1
Extremely short (about 25 m (82
ft))
*1 Displays a pop-up image when the CANCEL switch is operated.
NOTE
xThe distance-between-vehicles differs depending on the vehicle speed, and the
slower the vehicle speed, the shorter the distance.
xWhen the ignition is switched to ACC or OFF, the set distance-between-vehicles is
taken over automatically even when the engine is started again.

The function is temporarily cancelled.
Headway control function
When the following operations are performed, the headway control function is
temporarily cancelled and the CTS set indication (green) changes to the CTS standby
indication (white) at the same time.
xThe CANCEL switch is pressed one time.xThe brake pedal is depressed.x(Automatic transmission vehicle)
The selector lever is in the P, N, or R position.
x(Manual transmission vehicle)
The shift lever is in the R position.

In the following cases, the CTS cancel indication is displayed and a sound is
activated one time.
xThe DSC has operated.xThe Smart Brake Support (SBS) has operated.xThe vehicle is driven on a downslope for a long time.xThere is a problem with the system.xThe front radar sensor cannot detect target objects (during rain, fog, snow or other
inclement weather conditions, or when the radiator grille is dirty).
xThe parking brake is applied.xAny of the doors is opened.xThe driver's seat belt is unfastened.
When Driving
i-ACTIVSENSE
4-158
