xStrong light is directed from the front
of the vehicle (such as sunlight, or
headlights (high-beam) of
on-coming vehicles).
▼System Operation
When the ignition is switched ON, the
i-ACTIVSENSE status symbol (warning/
risk avoidance support system) (white)
turns on and the system goes on
standby.
NOTE
If the i-ACTIVSENSE status symbol
(warning/risk avoidance support
system) (white) does not turn on, the
system is cancelled using the
i-ACTIVSENSE switch or the
personalisation feature.
Operation conditions
When all of the following conditions
are met, the i-ACTIVSENSE status
symbol (warning/risk avoidance
support system) on the
multi-information display changes
from white to green and the system
becomes operational.
xThe vehicle speed is about 60 km/h
(37 mph) or faster.
xThe system detects white (yellow)
lane lines.
NOTE
When the system does not detect a
white (yellow) lane line on one side
only, the system does not operate on
the side that is not being detected.
When temporarily cancelling the
system
The LAS goes on standby in the
following cases: The LAS operation is
automatically restored when the
system's operation conditions are met.
xThe system cannot detect white
(yellow) lane lines.
xThe vehicle speed is less than about
55 km/h (34 mph).
xThe direction indicator lever is
operated.
xThe accelerator pedal is depressed
abruptly.
xThe TCS/DSC is operating.xThe TCS is turned
off.xThe steering wheel is operated.xThe brake pedal is operated.
The function is temporarily stopped.
The LAS stops functioning in the
following cases:
xThe temperature in the forward
sensing camera (FSC) is too high or
too low.
xThe windscreen around the forward
sensing camera (FSC) is foggy.
xThe windscreen around the forward
sensing camera (FSC) is blocked by
an obstruction, causing poor forward
visibility.
xStrong light (such as sunlight, or
headlights (high-beam) of
on-coming vehicles) is directed at
the forward sensing camera (FSC).
System malfunction
If there is a problem with the system,
the i-ACTIVSENSE status symbol
When Driving
i-ACTIVSENSE
4-164

(warning/risk avoidance support
system) (white) and the i-ACTIVSENSE
warning indication/warning light on
the multi-information display turns on
and a message is indicated.
Refer to i-ACTIVSENSE Status Symbol
(Warning/Risk Avoidance Support
System) on page 4-96.
▼Steering Wheel Operation Assist
When the system determines that the
vehicle might be deviating from its
lane, the steering wheel operation
assist operates.
The system notifies the driver that it
provided steering wheel operation
assistance on the multi-information
display and the active driving display.
Multi-information display (Basic
display)
Multi-information display
(i-ACTIVSENSE display)
Active driving display
NOTE
When the driver operates the steering
wheel while the steering wheel
operation assist is operating , the
steering wheel operation assistance is
cancelled.
▼System Cancelling
The LAS can be set to inoperable.
x(If only the LAS is turned
off)
Refer to the Settings section in the
Mazda Connect Owner's Manual.
x(If the LAS is turned off by operating
the i-ACTIVSENSE switch)
Refer to i-ACTIVSENSE Switch on
page 4-97.
NOTE
If the ignition is switched OFF while
you have cancelled the system using
the i-ACTIVSENSE switch, the system is
automatically enabled the next time
the ignition is switched ON. However,
if the system is cancelled using the
personalisation features, the system is
not automatically enabled.
When Driving
i-ACTIVSENSE
4-165

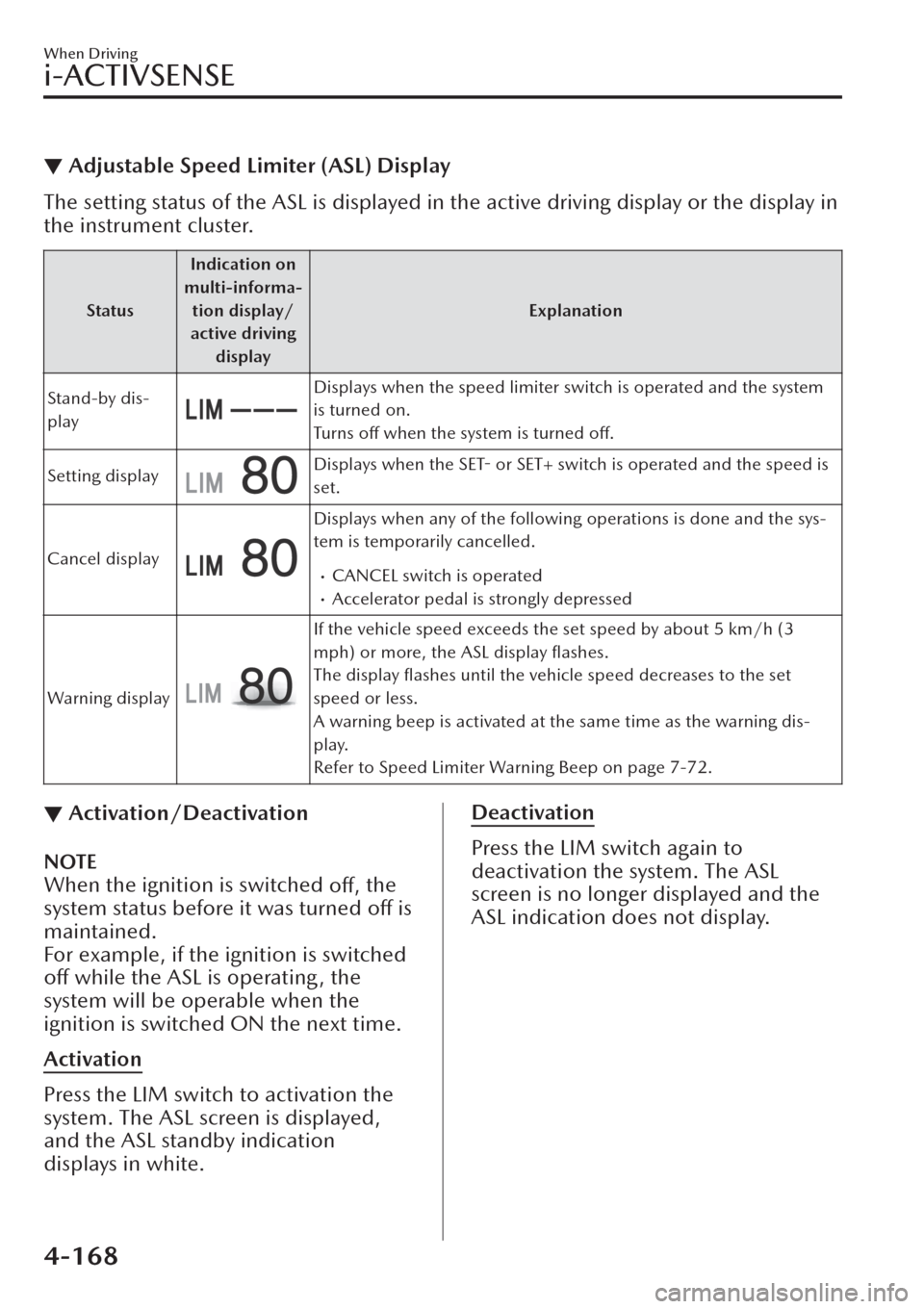

▼Adjustable Speed Limiter (ASL) Display
The setting status of the ASL is displayed in the active driving display or the display in
the instrument cluster.
StatusIndication on
multi-informa-
tion display/
active driving
displayExplanation
Stand-by dis-
play
Displays when the speed limiter switch is operated and the system
is turned on.
Turns off when the system is turned off.
Setting display
Displays when the SET- or SET+ switch is operated and the speed is
set.
Cancel display
Displays when any of the following operations is done and the sys-
tem is temporarily cancelled.
xCANCEL switch is operatedxAccelerator pedal is strongly depressed
Warning display
If the vehicle speed exceeds the set speed by about 5 km/h (3
mph) or more, the ASL display
flashes.
The display flashes until the vehicle speed decreases to the set
speed or less.
A warning beep is activated at the same time as the warning dis-
play.
Refer to Speed Limiter Warning Beep on page 7-72.
▼Activation/Deactivation
NOTE
When the ignition is switched
off, the
system status before it was turned
off is
maintained.
For example, if the ignition is switched
off while the ASL is operating , the
system will be operable when the
ignition is switched ON the next time.
Activation
Press the LIM switch to activation the
system. The ASL screen is displayed,
and the ASL standby indication
displays in white.
Deactivation
Press the LIM switch again to
deactivation the system. The ASL
screen is no longer displayed and the
ASL indication does not display.
When Driving
i-ACTIVSENSE
4-168

▼Intelligent Speed Assistance (ISA) Display
The setting status of the ISA is displayed in the active driving display or the display in
the instrument cluster.
StatusIndication on
multi-informa-
tion display/
active driving
displayExplanation
Stand-by dis-
play
Displays when the speed limiter switch is operated and the system
is turned on.
Turns off when the system is turned off.
Setting display
Displays when the RES switch up (SET+) or down (SET-) is operated
(while the ISA set indication is displayed), and the speed is set.
Cancel display
Displays when any of the following operations is done and the sys-
tem is temporarily cancelled.
xCANCEL switch is operatedxAccelerator pedal is strongly depressedxAny door is openedxThe driver’s seat belt is unfastened
Warning display
If the vehicle speed exceeds the set speed by about 5 km/h (3
mph) or more, the ISA display
flashes.
The display flashes until the vehicle speed decreases to the set
speed or less.
A warning beep is activated at the same time as the warning dis-
play.
Refer to Speed Limiter Warning Beep on page 7-72.
▼Activation/Deactivation
NOTE
When the ignition is switched
off, the
system status before it was turned
off is
maintained.
For example, if the ignition is switched
off while the ISA is operating, the
system will be operable when the
ignition is switched ON the next time.
Activation
Press the LIM switch to activation the
system. The ISA screen is displayed,
and the ISA standby indication displays
in white.
Deactivation
Press the LIM switch again to
deactivation the system. The ISA screen
is no longer displayed and the ISA
indication does not display.
When Driving
i-ACTIVSENSE
4-172

Smart Brake Support
(SBS)
*
▼Smart Brake Support (SBS)
The SBS alerts the driver of a possible
collision using the warning indications
in the display and a warning sound if
the front radar sensor and Forward
Sensing Camera (FSC) determine that
there is the possibility of a collision
with a vehicle ahead, pedestrian, or a
bicycle. Furthermore, if a collision is
unavoidable, the automatic brake
control is performed to reduce damage
in the event of a collision. In addition,
when the driver depresses the brake
pedal, the brakes are applied firmly
and quickly to assist.
(Vehicles with Driver Monitoring
(DM))
When the SBS determines that the
driver is not paying attention to the
road using the driver monitoring
camera and it determines that there is
the possibility of a collision with an
obstruction, the SBS activates the
collision warning earlier than normal.
WARNING
Do not rely completely on the
SBS:
The SBS is only designed to reduce
damage in the event of a collision.
The ability to detect obstructions is
limited depending on the obstructions,
weather conditions, or
traffic
conditions. Over reliance on the
system leading to the accelerator pedal
or brake pedal being mistakenly
operated could result in an accident.
CAUTION
In the following cases, turn the system
off to prevent an unexpected
operation.
¾The vehicle is being towed or when
towing another vehicle.
¾The vehicle is on a chassis roller.
¾When driving on rough roads such as
in areas of dense grass or off-road.
See the next page on how to turn
off
the system.
Refer to Stopping the Smart Brake
Support (SBS) System Operation on
page 4-177.
Operation conditions
The SBS operates when all of the
following conditions are met.
xThe ignition is switched ON.xThe SBS is on.xThe i-ACTIVSENSE warning
indication/warning light is not
turned on.
x(Object is vehicle ahead)
The vehicle speed is about 4 km/h
(2 mph) or higher.
x(Object is a pedestrian or bicycle)
The vehicle speed is between about
10 to 80 km/h (6.2 to 50 mph).
xThe DSC does not operate.
NOTE
xUnder the following conditions, the
SBS may not operate.
xIf there is the possibility of hitting
only a part of a vehicle or
obstruction ahead.
xYou are driving your vehicle at the
same speed as the vehicle ahead.
xWhen the driver deliberately
performs driving operations
(accelerator operation, steering
wheel operation).
When Driving
i-ACTIVSENSE
*Some models.4-175

1. “BRAKE!” message is displayed
NOTE
xThe collision warning sound is
activated intermittently while the SBS
brake or brake assist (SBS brake
assist) is operating.
xThe operation distance and volume
of the collision warning can be
changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼Stopping the Smart Brake Support
(SBS) System Operation
The SBS can be changed to inoperable.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
When the SBS is cancelled, the SBS
OFF indicator light turns on.
NOTE
When the ignition is switched OFF
while the SBS is cancelled, the SBS is
automatically enabled the next time
the ignition is switched ON.
Smart Brake Support
[Rear] (SBS-R)
*
▼Smart Brake Support [Rear]
(SBS-R)
The SBS-R is a system which is
designed to reduce damage in the
event of a collision by operating the
brake control (SBS brake) when the
system’s sensors detect an obstruction
at the rear of the vehicle while driving
at a speed of about 2 to 8 km/h (2 to
4 mph) and the system determines that
a collision is unavoidable.
WARNING
Do not rely completely on the SBS-R
system:
¾The
SBS-R system is only designed to
reduce damage in the event of a
collision. Over reliance on the system
leading to the accelerator pedal or
brake pedal being mistakenly
operated could result in an accident.
¾To assure the correct operation of
the
SBS-R, heed the following
cautions.
When Driving
i-ACTIVSENSE
*Some models.4-177

xAn exterior accessory such as a
bicycle carrier is installed around a
rear ultrasonic sensor.
x(Manual transmission)
If the vehicle is stopped by the SBS-R
operation and the clutch pedal is not
depressed, the engine stops.
xWhen the system operates, the user
is notified by the multi-information
display.
xThe collision warning beep sounds
intermittently while the SBS-R brake
is operating.
xIf the vehicle is stopped by the SBS-R
operation and the brake pedal is not
depressed, displaying in meter
“Emergency Braking Activated.
Depress Brake Pedal to Hold Stop”,
after about 2 seconds and the SBS-R
brake is automatically released.
xIf a Mazda genuine trailer hitch is
used, the SBS-R is automatically
turned off.
xTurn off the SBS-R system while
pulling a trailer or while an accessory
such as a bicycle carrier is installed to
the rear of the vehicle.
▼Collision Warning
If there is a possibility of a collision, the
collision warning sound is activated
continuously and a warning is
displayed on the active driving display
and the multi-information display.
Multi-information display
1. “BRAKE!” message is displayed

Active driving display
1. “BRAKE!” message is displayed
▼Stopping the Smart Brake Support
[Rear] (SBS-R) System Operation
The SBS-R can be changed to
inoperable.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
When the SBS-R is cancelled, the SBS
OFF indicator light turns on.
NOTE
xWhen the ignition is switched OFF
while the SBS-R is cancelled, the
SBS-R is automatically enabled the
next time the ignition is switched
ON.
xWhen the SBS-R is cancelled, the
Smart Brake Support [Rear Crossing]
(SBS-RC) is also cancelled.
When Driving
i-ACTIVSENSE
4-180

x(Manual transmission)
If the vehicle is stopped by the
SBS-RC operation and the clutch
pedal is not depressed, the engine
stops.
xWhen the system operates, the user
is notified by the multi-information
display.
xThe collision warning beep sounds
intermittently while the SBS-RC
brake is operating.
xIf the vehicle is stopped by the
SBS-RC operation and the brake
pedal is not depressed, displaying in
meter “Emergency Braking Activated.
Depress Brake Pedal to Hold Stop”,
after about 2 seconds and the
SBS-RC brake is automatically
released.
xIf a Mazda genuine trailer hitch is
used, the SBS-RC is automatically
turned off.
▼Collision Warning
If there is a possibility of a collision, the
collision warning sound is activated
continuously and a warning is
displayed on the active driving display
and the multi-information display.
Multi-information display
1. “BRAKE!” message is displayed

Active driving display
1. “BRAKE!” message is displayed
▼Stopping the Smart Brake Support
[Rear Crossing]
(SBS-RC) System
Operation
The SBS-RC can be changed to
inoperable.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
When the SBS-RC is cancelled, the SBS
OFF indicator light turns on.
NOTE
xWhen the ignition is switched OFF
while the SBS-RC is cancelled, the
SBS-RC is automatically enabled the
next time the ignition is switched
ON.
xWhen the SBS-RC is cancelled, the
Smart Brake Support [Rear] (SBS-R)
is also cancelled.
When Driving
i-ACTIVSENSE
4-184

Top view/Rear wide view
Displays the image of the area around the vehicle and the rear of the vehicle
(wide-area).
1. Top view screen
2. Rear wide view screen
3. “Check surroundings for safety.” message is displayed
▼How to Use the System
Top view/Front view, Top view/Front wide view, Side view
Indication
Images are displayed on the screen when the 360°View Monitor switch is pressed
with all of the following conditions met.
xThe ignition is switched ON.
When Driving
i-ACTIVSENSE
4-192

x(Automatic transmission)
The selector lever is shifted to P position (displayed when the selector lever is in
a position other than P).
x(Displayed when vehicle speed is less than 15 km/h (9.3 mph))
x4 minutes and 30 seconds have passed.xThe vehicle speed is about 15 km/h (9.3 mph) or faster.x(Displayed when the vehicle speed is about 15 km/h (9.3 mph) or faster)
xThe vehicle speed is about 15 km/h (9.3 mph) or faster after 8 seconds have
passed since pressing the 360°View Monitor switch.
xFour minutes and 22 seconds have passed from the point when the vehicle
speed was less than 15 km/h (9.3 mph) after 8 seconds have passed since
pressing the 360°View Monitor switch.
xThe 360°View Monitor settings can be changed as follows.
Refer to the Settings section in the Mazda Connect Owner's Manual.
xAutomatic display of the 360°View Monitor when the ultrasonic senor detects
an obstruction.
xAutomatic display of the 360°View Monitor when the ignition is switched ON.xScreen priority level when the system launches.
Top view/Rear view, Top view/Rear wide view
The top view/rear view, top view/rear wide view displays when all of the following
conditions are met.
xThe ignition is switched ON.xShift lever/selector lever is in R position.
Display switching
The displayed screen can be changed each time the 360°view monitor switch is
pressed.
1. Top view/Rear view
2. Top view/Rear wide view
NOTE
xThe top view/rear view and top view/rear wide view automatically display
whether or not the 360°View Monitor switch is turned on or off when shifting the
shift lever/selector lever to R position.
xThe top view/rear view and top view/rear wide view displays the previously
displayed screen.
When Driving
i-ACTIVSENSE
4-194
