Refer to Table B to identify the required maintenance items.
Azerbaijan/Armenia
The vehicle status monitor feature alerts you of maintenance needs by turning on the
wrench indicator light or displaying a message in the instrument panel, or both.
Every maintenance must be done when the display/wrench indication comes on.
The display/wrench indication will come on before reaching the maximum interval.
Refer to Table B to identify the required maintenance items.

Maximum interval 5,000 km or 6 months, whichever comes
first

Manually set Next Service Distance of Vehicle Status Monitor to a shorter mileage
than 5,000 km if the vehicle is driven primarily under any of the following condi-
tions:
Refer to the Information section in the Mazda Connect Owner's Manual about the
manual setting procedure.
1. The vehicle is idled for long periods or driven at low speeds, such as with police
cars, taxis, or driver's education school car.
2. Driving under dusty conditions.
3. Driving for long periods in cold temperatures or driving regularly for short distan-
ces only.
4. Driving under extremely high temperature conditions.
5. Driving continuously in mountainous regions.
Refer to Table B to identify the required maintenance items.
Ta b l e A
Maintenance item 1st2nd3rd 4th 5th 6th 7th 8th 9th10th 11th 12th
Engine oil &
filter *1RRRRRRRRRRRR
Spark plug IIIIIIIRIIII
Drive belts
*2IIIIIIIIIIII
Engine coolant level IIIIIIIIIIII
Battery
*3*4IIIIIIIIIIII
Vacuum brake booster and
hoseWith vacuum
boosterIIIIII
Brake lines, hoses and connections I I I I I I I I I I I I
Disc brakes IIIIIIIIIIII
Steering operation and linkages I I I I I I I I I I I I
Bolts and nuts on chassis and body T T T T T T T T T T T T
Front and rear suspension, ball joints and
wheel bearing axial playIIIIIIIIIIII
Driveshaft dust boot IIIIIIIIIIII
Maintenance and Care
Scheduled Maintenance
6-9

Maintenance item 1st2nd3rd 4th 5th 6th 7th 8th 9th10th 11th 12th
Exhaust system and heat shields IIIIIIIIIIII
Function of all lights I I I I I I I I I I I I
Body condition (for rust, corrosion and per-
foration)IIIIIIIIIIII
Tyre inflation pressure and tyre wear
*5*6IIIIIIIIIIII
Emergency flat tyre repair kit (if installed)
*7IIIIIIIIIIII
Fuel lines & hoses IIIIII
Brake
fluid
*8RRRRRR
Cabin air filter (if installed) R R R R R R
Hoses and tubes for emission I I I
Air
filter
*9RRRR
Manual transmission oil R R
Fuel filterExcept below
countriesReplace every 120,000 km.
Azerbaijan/
ArmeniaReplace every 60,000 km.
Engine coolant
*10Replace at first 195,000 km or 120 months; after that,
every 90,000 km or 60 months.
Rear differential oil
*11
Transfer oil*11
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust,
fill up, or replace if necessary.
T: Tighten
R: Replace
Remarks:
*1 Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench
indicator light display.
*2 Also inspect the air conditioner drive belts, if installed.
If the vehicle is driven primarily under any of the following conditions, inspect the drive belts at every
7,500 km or 6 months.
a) Driving for long period in extremely wet or heavy rain condition.
*3 Inspect the battery electrolyte level, specific gravity and outer appearance. The sealed battery only
requires an outer appearance inspection.
*4 Inspection is only subjected for lead-acid battery.*5 Tyre rotation is recommended every 15,000 km.*6 Inspect a spare tyre if installed.
Maintenance and Care
Scheduled Maintenance
6-10

*7 Check the tyre repair fluid expiration date every year when performing the periodic maintenance.
Replace the tyre repair fluid bottle with new one before the expiration date.
*8 If the brakes are used extensively (for example, continuous hard driving or mountain driving) or if the
vehicle is operated in extremely humid climates, replace the brake fluid annually.
*9 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air filter
more often than the recommended intervals.
*10 Use of
FL-22 is recommended when replacing engine coolant. Using engine coolant other than
FL-22
may cause serious damage to the engine and cooling system.
*11 If this component has been submerged in water, the oil should be replaced.
Ta b l e B
Maintenance item 1st2nd3rd 4th 5th 6th 7th 8th 9th10th 11th 12th
Engine oil &
filter *1RRRRRRRRRRRR
Drive beltsRussia/
Belarus/
KazakhstanIIIIIIIIIIII
Azerbaijan/
ArmeniaIIIIII
Maintenance items other than above
*21st2nd3rd 4th 5th 6th
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
Remarks:
*1 Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench
indicator light display.
*2 Refer to Table A to identify the required maintenance items.
Except Israel/Russia/Belarus/Azerbaijan/Kazakhstan/Armenia
Vehicles utilizing the vehicle status monitor feature
The vehicle status monitor feature alerts you of maintenance needs by turning on the
wrench indicator light or displaying a message in the instrument panel, or both.
Every maintenance must be done when the display/wrench indication comes on.
The display/wrench indication will come on before reaching the maximum interval.
Burundi, Cambodia, Cameroon, Gabon, Georgia, Ghana, Mongolia, Mozambique
and Tanzania.
Maximum interval 5,000 km (3,250 miles) or 6 months, whichever comes first.
Except Burundi, Cambodia, Cameroon, Gabon, Georgia, Ghana, Mongolia, Mo-
zambique and Tanzania.
Maximum interval 10,000 km (6,250 miles) or 6 months, whichever comes
first.
Maintenance and Care
Scheduled Maintenance
6-11

Manually set Next Service Distance of Vehicle Status Monitor to a shorter mileage
than maximum interval (50 % of maximum mileage is recommended) if the vehicle
is driven primarily under any of the following conditions: Refer to the Information
section in the Mazda Connect Owner's Manual about the manual setting proce-
dure.
1. The vehicle is idled for long periods or driven at low speeds, such as with police
cars, taxis, or driver's education school car.
2. Driving under dusty conditions.
3. Driving for long periods in cold temperatures or driving regularly for short distan-
ces only.
4. Driving under extremely high temperature conditions.
5. Driving continuously in mountainous regions.
Maintenance item1st 2nd 3rd 4th 5th 6th 7th 8th 9th10t
h11t
h12t
h13t
h14t
h15t
h16t
h
SKYACTIV-G 2.0, SKYACTIV-G 2.5, AND SKYACTIV-X 2.0
Engine oil & filter
*1RRRRRRRRRRRRRRRR
Air filter
*2RR
Fuel filterExcept Tai-
wanReplace every 60,000 km (37,500 miles).
Taiwan Replace every 80,000 km (50,000 miles).
Spark plugs
*3
SKYACTIV-X
2.0Replace every 64,000 km (40,000 miles).
SKYAC-
TIV-G 2.0/
SKYAC-
TIV-G 2.5Replace every 120,000 km (75,000 miles).
SKYACTIV-D 1.8
Engine oil & filter
*1RRRRRRRRRRRRRRRR
Air
filter
*2CC R CC R CC
Fuel filter RRRR
SKYACTIV-G 2.0, SKYACTIV-G 2.5, SKYACTIV-X 2.0, AND SKYACTIV-D 1.8
Drive belts
*4IIIIIIIIIIIIIIII
Engine coolant level IIIIIIIIIIIIIIII
Brake & Clutch fluid level IIIIIIIIIIIIIIII
Disc brakes IIIIIIIIIIIIIIII
Bonnet striker IIIIIIIIIIIIIIII
Function of all lights IIIIIIIIIIIIIIII
Fuel lines and hoses IIIIIIII
Maintenance and Care
Scheduled Maintenance
6-12

Maintenance item1st 2nd 3rd 4th 5th 6th 7th 8th 9th10t
h11t
h12t
h13t
h14t
h15t
h16t
h
Battery*5*6IIIIIIII
Va c u u m b ra ke
booster and hoseWith vac-
uum boos-
terIIIIIIII
Brake lines, hoses and connec-
tionsIIIIIIII
Steering operation and linkages I I I I I I I I
Front and rear suspension, ball
joints and wheel bearing axial
playIIIIIIII
Bolts and nuts on chassis and
bodyTTTTTTTT
Body condition (for rust, corro-
sion and perforation)IIIIIIII
Tyre inflation pressure and tyre
wear
*7IIIIIIIIIIIIIIII
Tyre rotation Rotate every 10,000 km (6,250 miles).
Emergency flat tyre repair kit (if
installed)
*8IIIIIIII
Cabin air filter (if installed) R R R R R R R R
Hoses and tubes for emission IIII
Driveshaft dust boots IIII
Brake fluid
*9RRRR
Exhaust system and heat shields Inspect every 80,000 km (50,000 miles).
Manual transmission oil Replace every 100,000 km or 60 months.
Engine coolant
*10Replace at first 200,000 km (125,000 miles) or 10 years; after that,
every 100,000 km (62,500 miles) or 5 years.
Rear differential oil
*11
Transfer oil*11
Maintenance and Care
Scheduled Maintenance
6-13

Maintenance item1st 2nd 3rd 4th 5th 6th 7th 8th 9th10t
h11t
h12t
h13t
h14t
h15t
h16t
h
Self-test with Maz-
da Modular Diag-
nostic System
(M-MDS)
*12*13*14
SKYACTIV-G &
SKYACTIV-XExcept be-
low coun-
triesIIIIIIIIIIIIIIII
Burundi/
Cambodia/
Cameroon/
Gabon/
Ghana/
Mongolia/
TanzaniaIIIIIIII
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
C: Clean
T: Tighten
R: Replace
Remarks:
*1 Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench
indicator light display.
*2 If the vehicle is driven in very dusty or sandy areas, clean and if necessary, replace the air filter more
often than the recommended intervals.
*3 In the countries below, inspect the spark plugs at every 10,000 km (6,250 miles) or 1 year before
replacing them at the said interval.
Algeria, Armenia, Angola, Bahrain, Bolivia, Burundi, B.Virgin, Cambodia, Cameroon, Chile, Costa
Rica, Cote d'Ivoire, Curacao, El Salvador, Gabon, Georgia, Ghana, Guatemala, Haiti, Honduras,
Hong Kong, Jordan, Kenya, Macau, Madagascar, Malaysia, Mongolia, Mozambique, Myanmar,
Nigeria, Nicaragua, Oman, Panama, Papua New Guinea, Peru, Philippines, Senegal, Seychelles, Syria,
Tanzania, UAE, Vietnam, Zaire, Zimbabwe
*4 Also inspect the air conditioner drive belts, if installed.
If the vehicle is driven primarily under any of the following conditions, inspect the drive belts more
often than the recommended intervals.
a) Driving for long period in extremely wet or heavy rain condition.
*5 Inspect the battery electrolyte level,
specific gravity and outer appearance. The sealed battery only
requires an outer appearance inspection.
*6 Inspection is only subjected for lead-acid battery.*7 Inspect a spare tyre if installed.*8 Check the tyre repair fluid expiration date every year when performing the periodic maintenance.
Replace the tyre repair fluid bottle with new one before the expiration date.
*9 If the brakes are used extensively (for example, continuous hard driving or mountain driving) or if the
vehicle is driven in extremely humid climates, replace the brake
fluid annually.
Maintenance and Care
Scheduled Maintenance
6-14

*10 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22
may cause serious damage to the engine and cooling system.
*11 If this component has been submerged in water, the oil should be replaced.*12 If DTC P1200 is stored, clean the fuel system by Mazda genuine deposit cleaner.
If the required tool (M-MDS) is not available, clean the fuel system by Mazda genuine deposit
cleaner without performing self-test.
Using non-genuine deposit cleaner would cause an internal failure in the fuel system.
*13 If the vehicle is driven primarily under any of the following conditions, perform "Self-test with Mazda
Modular Diagnostic System
(M-MDS)" at every 5,000 km.
a) The vehicle is idled for long periods or driven at low speeds, such as with police cars, taxis, or
driver's education school car.
b) Driving under extremely high temperature conditions.
*14 Applicable countries are as follows:
SKYACTIV-G: Algeria, Angola, Antigua, Aruba, Bahrain, Barbados, Bermuda, Bolivia, Botswana,
Brunei, Burundi, Cambodia, Cameroon, Colombia, Common Wealth of Dominica, Curacao,
Ecuador, El Salvador, Gabon, Ghana, Grenada, Haiti, Honduras, Indonesia, Iraq, Ivory coast, Jordan,
Kenya, Kuwait, Laos, Lesotho, Libya, Macau, Madagascar, Malaysia, Marshall islands, Mongolia,
Morocco, Myanmar, Namibia, Nicaragua, Nigeria, Oman, Peru, Qatar, Seychelles, South Africa,
Srilanka, St. Lucia, St. Martin, St. Vincent, Syria, Tanzania, Thailand, Philippines, Trinidad and Tobago,
Tunisia, USTT, Vanuatu, Vietnam, Zimbabwe
SKYACTIV-X: Chile, Hong Kong, Macau, Mauritius, New Caledonia, Papua New Guinea, Saudi
Arabia, Singapore, Thailand, Trinidad and Tobago, UAE
Maintenance and Care
Scheduled Maintenance
6-15

Owner Maintenance
Precautions
▼Owner Maintenance Precautions
Routine Service
We highly recommend that these items
be inspected daily, or at least every
week.
xEngine Oil Level (page 6-27)xEngine Coolant Level (page 6-28)xBrake and clutch Fluid Level (page
6-30)
xWasher Fluid Level (page 6-31)xBattery Maintenance (page 6-37)xTy re
Inflation Pressure (page 6-41)

Improper or incomplete service may
result in problems. This section gives
instructions only for items that are easy
to perform.

As explained in the Introduction (page
6-2), several procedures can be done
only by a
qualified service technician
with special tools.

Improper do-it yourself maintenance
during the warranty period may affect
warranty coverage. For details, read the
separate Mazda Warranty statement
provided with the vehicle. If you are
unsure about any servicing or
maintenance procedure, have it done
by an expert repairer (we recommend
an Authorised Mazda Repairer).

There are strict environmental laws
regarding the disposal of waste oil and
fluids. Please dispose of your waste
properly and with due regard to the
environment.

We recommend that you entrust the oil
and fluid changes of your vehicle to an
expert repairer (we recommend an
Authorised Mazda Repairer).
WARNING
Do not perform maintenance work if
you lack sufficient knowledge and
experience or the proper tools and
equipment to do the work. Have
maintenance work done by a
qualified technician:
Performing maintenance work on a
vehicle is dangerous if not done
properly. You can be seriously injured
while performing some maintenance
procedures.
If you must run the engine while
working under the bonnet, make
certain that you remove all jewellery
(especially rings, bracelets, watches,
and necklaces) and all neckties,
scarves, and similar loose clothing
before getting near the engine or
cooling fan which may turn on
unexpectedly:
Working under the bonnet with the
engine running is dangerous. It
becomes even more dangerous when
you wear jewellery, loose clothing or
have long hair or a long beard.
Either can become entangled in
moving parts and result in injury.
Maintenance and Care
Owner Maintenance
6-16

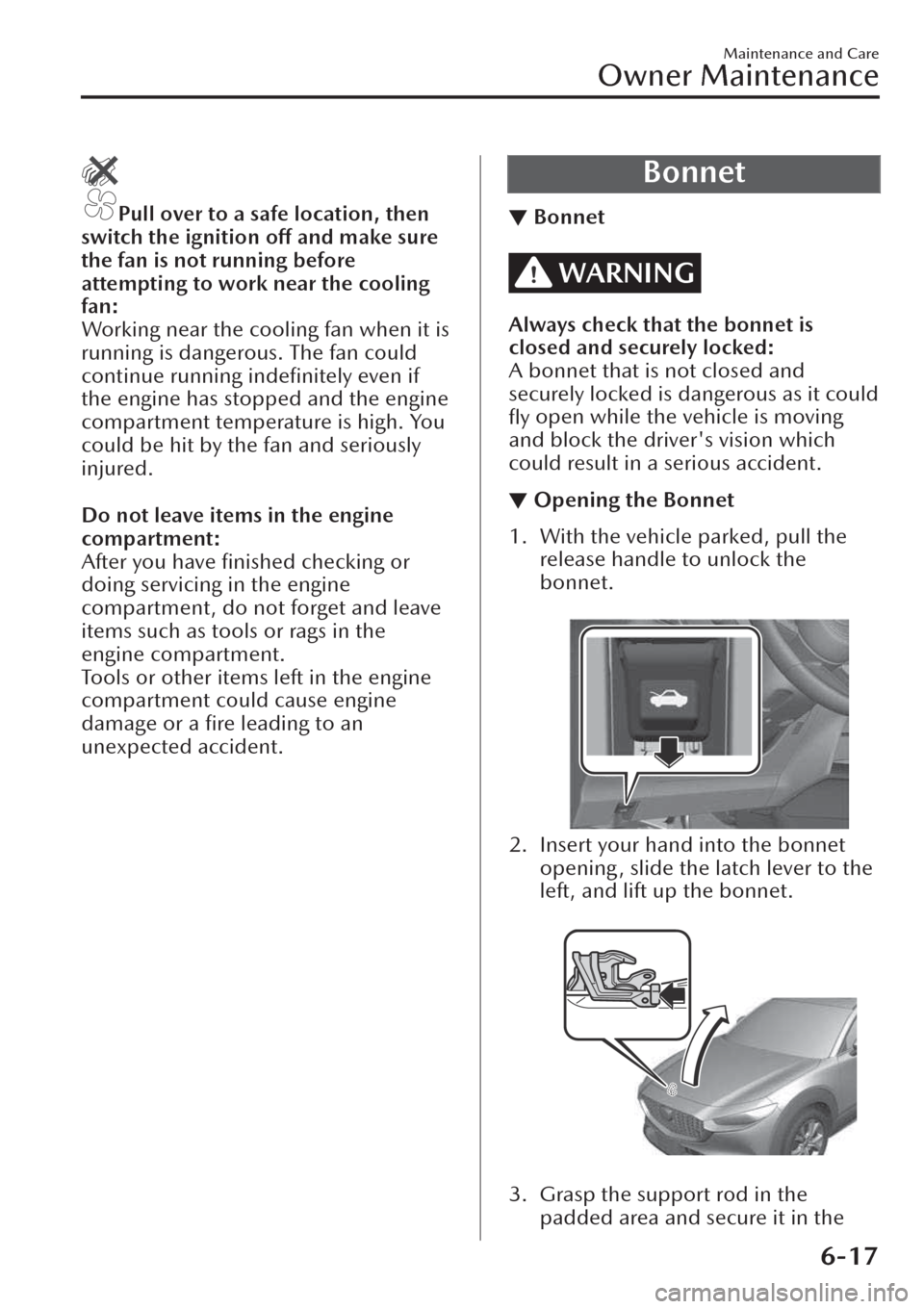

Pull over to a safe location, then
switch the ignition off and make sure
the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not leave items in the engine
compartment:
After you have finished checking or
doing servicing in the engine
compartment, do not forget and leave
items such as tools or rags in the
engine compartment.
Tools or other items left in the engine
compartment could cause engine
damage or a fire leading to an
unexpected accident.
Bonnet
▼Bonnet
WARNING
Always check that the bonnet is
closed and securely locked:
A bonnet that is not closed and
securely locked is dangerous as it could
fly open while the vehicle is moving
and block the driver's vision which
could result in a serious accident.
▼Opening the Bonnet
1. With the vehicle parked, pull the
release handle to unlock the
bonnet.

2. Insert your hand into the bonnet
opening , slide the latch lever to the
left, and lift up the bonnet.


3. Grasp the support rod in the
padded area and secure it in the
Maintenance and Care
Owner Maintenance
6-17

support rod hole indicated by the
arrow to hold the bonnet open.

1. Pad
2. Support rod
▼Closing the Bonnet
CAUTION
>&
SKYACTIV-X 2.0)
Do not close the bonnet with the
engine cover open. Otherwise, the
engine cover may fall and cause injury.
For the opening/closing of the engine
cover, refer to the “Engine
Compartment Overview” 6-19.
1. Check under the bonnet area to
make certain all
filler caps are in
place and all loose items (e.g.
tools, oil containers, etc.) have
been removed.
2. Lift the bonnet, grasp the padded
area on the support rod, and secure
the support rod in the clip. Verify
that the support rod is secured in
the clip before closing the bonnet.

1. Clip

3. Lower the bonnet slowly to a height
of about 20 cm (7.9 in) above its
closed position and then let it drop.
CAUTION
When closing the bonnet, do not push
it excessively such as by applying your
weight. Otherwise, the bonnet could
be deformed.
Maintenance and Care
Owner Maintenance
6-18
