MAZDA MODEL CX-30 2019 Owners Manual (in English)

▼Fuse Panel Description
Fuse block (Engine compartment)
No.FUSE RAT-
INGPROTECTED COMPONENT
F1ŠŠ
F2 20 A
Windscreen wiper de-icer
*
F330 A
Engine control system*
20 A/30 A
Injector*
F4 20 A
S-VT*
F5 40 A Engine control system
F6 20 A
S-VT
*
Maintenance and Care
Owner Maintenance
*Some models.6-49

No.FUSE RAT-
INGPROTECTED COMPONENT
F715 A
Fuel warmer
*
20 A
Fuel pump*
F8 15 A Engine control system
F9 15 A
Transmission control system
*
F10 15 A Engine control system
F11 7.5 A Air conditioner
F12 15 A Engine control system
F13 15 A
NOx sensor
*
F14 20 A
Front seat warmer*
F15 20 A
Headlight washer*
F16 15 A For protection of various circuits
F17ŠŠ
F18 15 A Accessory sockets
F19 60 A Power steering system
F20 15 A Headlight (LH) 1
F21 15 A Headlight (RH) 1
F22 15 A Keyless system
F23 30 A ABS, Dynamic stability control system
F24 15 A Headlight (LH) 2
F25 15 A Headlight (RH) 2
F26 7.5 A On board diagnostics
F27 25 A For protection of various circuits
F28 25 A For protection of various circuits
F29 15 A Windscreen washer
F30ŠŠ
F31 15 A Horn
F32 15 A Headlights
F33ŠŠ
F34ŠŠ
F35 50A ABS, Dynamic stability control system
F36ŠŠ
F37 40 A Rear window defogger
F38 50 A For protection of various circuits
Maintenance and Care
Owner Maintenance
6-50*Some models.

No.FUSE RAT-
INGPROTECTED COMPONENT
F39ŠŠ
F40 40 A Air conditioner
F41ŠŠ
F42 20 A Windscreen wiper
F43 30 A
Cooling fan
*
F44 30 A Starter
F45 10 A Engine control system
F46 15 A Audio
F47 15 A For protection of various circuits
F48 7.5 A Air bag
F49 15 A Instrument cluster
F50 15 A Room light
F51 25 A Audio
F52 10 A
Sunroof
*
F53 15 A Engine control system
F54 15 A i-ACTIVSENSE
F55 50 A
For protection of various circuits
*
F56 50 AŠ
Maintenance and Care
Owner Maintenance
*Some models.6-51

Fuse block (Left side)
No.FUSE RAT-
INGPROTECTED COMPONENT
F1ŠŠ
F2ŠŠ
F3ŠŠ
F4 15 A Power door locks (Driver)
F5 15 A Power door locks (Passenger)
F6ŠŠ
F7 25 A
Power liftgate
*
F8ŠŠ
F9 30 A Power windows (Driver)
F10 30 A Power windows (Passenger)
F11 30 A
Power seat (Driver)
*
F12ŠŠ
F13 15 A Audio
F14ŠŠ
F15 15 A Liftgate lock
Maintenance and Care
Owner Maintenance
6-52*Some models.

No.FUSE RAT-
INGPROTECTED COMPONENT
F16 15 A Illumination
F17 10 A Brake lights
F18 10 A Reverse lights
F19 10 A Rear direction indicator lights
F20 10 A Tail lights
F21 10 A Tail lights
F22 7.5 A Electric steering lock
F23ŠŠ
Maintenance and Care
Owner Maintenance
6-53

Exterior Care
▼Exterior Care
The paintwork on your Mazda
represents the latest technical
developments in composition and
methods of application.

Environmental hazards, however, can
harm the paint's protective properties,
if proper care is not taken.

Here are some examples of possible
damage, with tips on how to prevent
them.
Etching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle
emissions drift into the air and mix
with rain or dew to form acids. These
acids can settle on a vehicle's
finish. As
the water evaporates, the acid
becomes concentrated and can
damage the
finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according
to the instructions in this section.
These steps should be taken
immediately after you suspect that acid
rain has settled on your vehicle's finish.
Damage Caused by Bird Dropping,
Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
are not removed they can eat away the
clear and colour base coat of the
vehicle's paintwork.

When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and
colour base coat of the vehicle's
paintwork if they are not removed.

Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard,
some vehicle paint could come off
with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its
finish according to the instructions in
this section. This should be done as
soon as possible.

Bird droppings can be removed with a
soft sponge and water. If you are
travelling and these are not available, a
moistened tissue may also take care of
the problem. The cleaned area should
be waxed according to the instructions
in this section.
Insects and tree sap are best removed
with a soft sponge and water or a
commercially available chemical
cleaner.

Another method is to cover the
affected area with dampened
newspaper for 1 to 2 hours. After
removing the newspaper, rinse off the
loosened debris with water.
Water Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt
and lime. If moisture containing these
minerals settles on the vehicle and
Maintenance and Care
Appearance Care
6-54

evaporates, the minerals will
concentrate and harden to form white
rings. The rings can damage your
vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its
finish according
to the instructions in this section.
These steps should be taken
immediately after you find water marks
on your vehicle's finish.
Paint Chipping
Occurrence
Paint chipping occurs when gravel
thrown in the air by another vehicle's
tyres hits your vehicle.
How to avoid paint chipping
Keeping a safe distance between you
and the vehicle ahead reduces the
chances of having your paint chipped
by
flying gravel.
NOTE
xThe paint chipping zone varies with
the speed of the vehicle. For
example, when travelling at 90 km/h
(56 mph), the paint chipping zone is
50 m (164 ft).
xIn low temperatures a vehicle's
finish
hardens. This increases the chance of
paint chipping.
xChipped paint can lead to rust
forming on your Mazda. Before this
happens, repair the damage by using
Mazda touch-up paint according to
the instructions in this section.
Failure to repair the affected area
could lead to serious rusting and
expensive repairs.

Follow all label and container
directions when using a chemical
cleaner or polish. Read all warnings
and cautions.
▼Maintaining the Finish
Washing
CAUTION
¾Before lifting the windscreen wiper
blades off the windscreen, always
follow the procedure for moving the
windscreen wiper blades. Otherwise,
a wiper blade, wiper arm, or the
bonnet could be damaged.
Refer to the Replacing Windscreen
Wiper Blades (page 6-32) section for
the procedure on how to move the
windscreen wiper blades to the
service position.
¾When the wiper lever is in the AUTO
position and the ignition is switched
ON, the wipers may move
automatically in the following cases:
¾If the windscreen above the rain
sensor is touched or wiped with a
cloth.
¾If the windscreen is struck with a
hand or other object from either
outside or inside the vehicle.
Keep hands and scrapers clear of the
windscreen when the wiper lever is
in the AUTO position and the
ignition is switched ON as
fingers
could be pinched or the wipers and
wiper blades damaged when the
wipers activate automatically.
If you are going to clean the
windscreen, be sure the wipers are
turned off completely (when it is
most likely that the engine is left
running) this is particularly important
when clearing ice and snow.
Maintenance and Care
Appearance Care
6-55

¾Do not spray water in the engine
compartment. Otherwise, it could
result in engine-starting problems or
damage to electrical parts.
¾When washing and waxing the
vehicle, be careful not to apply
excessive force to any single area of
the vehicle roof. Otherwise, you
could dent the vehicle.
¾Make sure that the fuel-filler flap is
closed and lock the doors.
Otherwise, the fuel-filler flap may be
forcefully opened by water pressure
causing damage to the vehicle or
fuel-filler flap.
To help protect the
finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least
once a month, with lukewarm or cold
water.

If the vehicle is washed improperly, the
paint surface could be scratched. Here
are some examples of how scratching
could occur.

Scratches occur on the paint surface
when:
xThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
xThe vehicle is washed with a rough,
dry, or dirty cloth.
xThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
xCleansers or wax containing
abrasives are used.
NOTE
xMazda is not responsible for
scratches caused by automatic car
washes or improper washing.
xScratches are more noticeable on
vehicles with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
xRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
xUse plenty of lukewarm or cold
water and a soft cloth when washing
the vehicle. Do not use a nylon cloth.
xRub gently when washing or drying
the vehicle.
xTake your vehicle only to a car wash
that keeps its brushes well
maintained.
xDo not use abrasive cleansers or wax
that contain abrasives.
CAUTION
¾Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or
anodised aluminium parts. This may
damage the protective coating; also,
cleaners and detergents may
discolour or deteriorate the paint.
Pay special attention to removing salt,
dirt, mud, and other foreign material
from the underside of the wings, and
make sure the drain holes in the lower
edges of the doors and rocker panels
are clean.

Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits
can damage the finish if not removed
immediately. When prompt washing
Maintenance and Care
Appearance Care
6-56

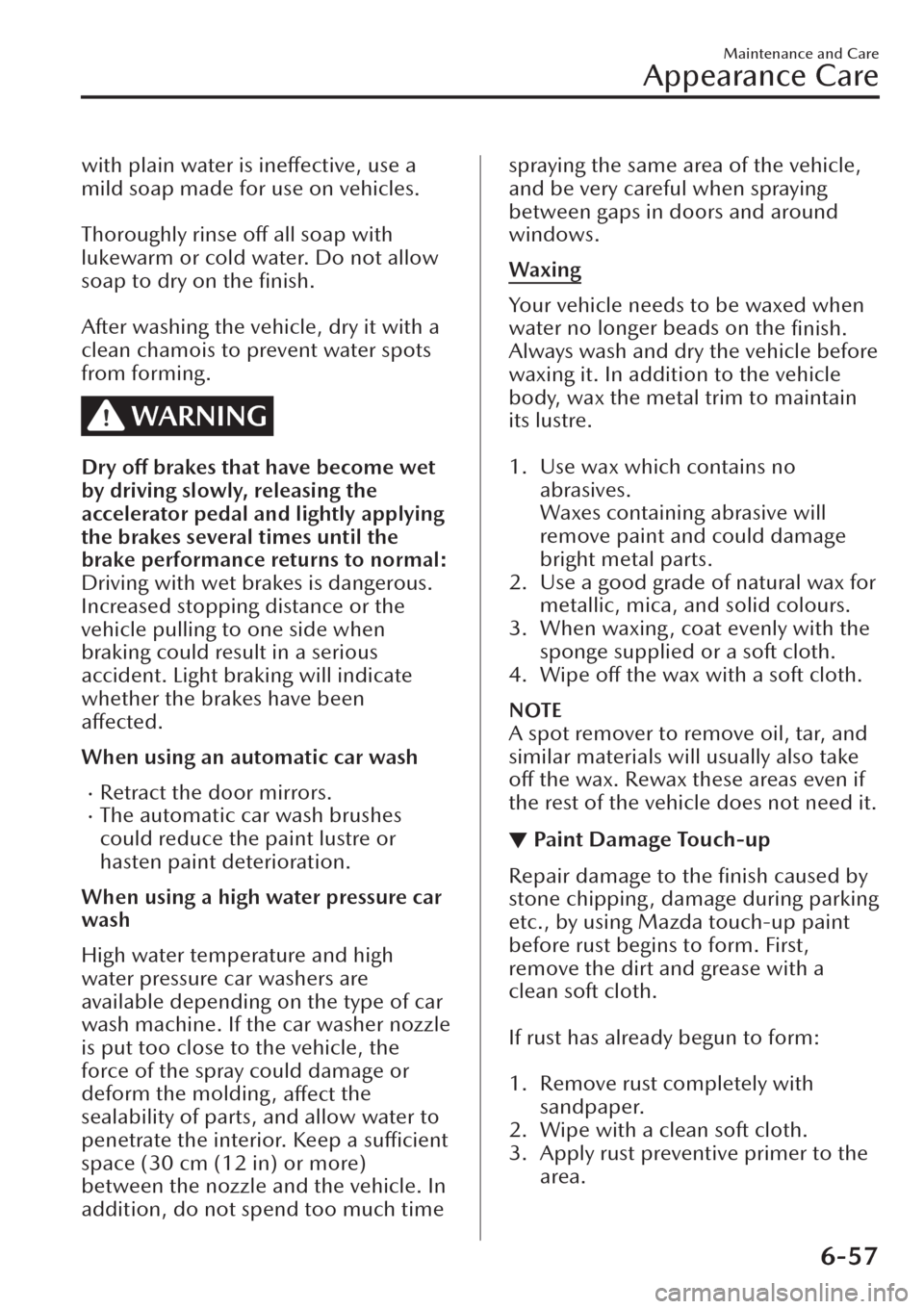

with plain water is ineffective, use a
mild soap made for use on vehicles.

Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the finish.

After washing the vehicle, dry it with a
clean chamois to prevent water spots
from forming.
WARNING
Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the
brake performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected.
When using an automatic car wash
xRetract the door mirrors.xThe automatic car wash brushes
could reduce the paint lustre or
hasten paint deterioration.
When using a high water pressure car
wash
High water temperature and high
water pressure car washers are
available depending on the type of car
wash machine. If the car washer nozzle
is put too close to the vehicle, the
force of the spray could damage or
deform the molding,
affect the
sealability of parts, and allow water to
penetrate the interior. Keep a
sufficient
space (30 cm (12 in) or more)
between the nozzle and the vehicle. In
addition, do not spend too much time
spraying the same area of the vehicle,
and be very careful when spraying
between gaps in doors and around
windows.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the
finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle
body, wax the metal trim to maintain
its lustre.

1. Use wax which contains no
abrasives.
Waxes containing abrasive will
remove paint and could damage
bright metal parts.
2. Use a good grade of natural wax for
metallic, mica, and solid colours.
3. When waxing, coat evenly with the
sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas even if
the rest of the vehicle does not need it.
▼Paint Damage Touch-up
Repair damage to the finish caused by
stone chipping, damage during parking
etc., by using Mazda touch-up paint
before rust begins to form. First,
remove the dirt and grease with a
clean soft cloth.

If rust has already begun to form:

1. Remove rust completely with
sandpaper.
2. Wipe with a clean soft cloth.
3. Apply rust preventive primer to the
area.
Maintenance and Care
Appearance Care
6-57

4. After drying it completely, apply a
suitable top coat material to the
area.
Of course there will be no problem if
you assign the work to an expert
repairer (we recommend an
Authorised Mazda Repairer).
▼Cavity Protection
Cavities are treated for protection at
the factory, but additional protective
treatment after the vehicle has been
put into use will extend the life of the
body.
We recommend that you consult an
expert repairer (we recommend an
Authorised Mazda Repairer)
concerning this additional precaution.
▼Bright-Metal Maintenance
xUse tar remover to remove road tar
and insects. Never do this with a
knife or similar tool.
xTo prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high
lustre.
xDuring cold weather or in coastal
areas, cover bright-metal parts with a
coating of wax or preservative
heavier than usual. It would also help
to coat them with noncorrosive
petroleum jelly or some other
protective compound.
CAUTION
Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodised
aluminium parts. This may result in
damage to the protective coating and
cause discolouration or paint
deterioration.
▼Undercoating
This special coating is applied to the
critical parts of the underside to
protect vehicles from damage caused
by chemicals or stones. This coating is
liable to be damaged with time. Check
this coating periodically.

Should repairs be necessary, consult an
expert repairer (we recommend an
Authorised Mazda Repairer). They are
well informed on how repairs should
be made.
▼Aluminium Wheel Maintenance*
A protective coating is provided over
the aluminium wheels. Special care is
needed to protect this coating.
CAUTION
Do not use any detergent other than
mild detergent. Before using any
detergent, verify the ingredients.
Otherwise, the product could
discolour or stain the aluminium
wheels.
NOTE
xDo not use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminium
wheels. They may damage the
coating.
xAlways use a sponge or soft cloth to
clean the wheels.
Rinse the wheels thoroughly with
lukewarm or cold water. Also, be
sure to clean the wheels after driving
on dusty or salted roads to help
prevent corrosion.
xAvoid washing your vehicle in an
automatic car wash that uses
high-speed or hard brushes.
Maintenance and Care
Appearance Care
6-58*Some models.
