NOTE
When locking the door this way:lBe careful not to leave the key inside the
vehicle.
lThe driver's door lock knob cannot be used
while the driver's door is open.
lThe red indication can be seen when the
door-lock knob is unlocked.
Red indication
qRear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them both whenever a
child rides in the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.
LockUnlock
3-18
Before Driving
Doors and Locks
CX-5_8CA5-EA-11L_Edition3 Page90
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (91,1)

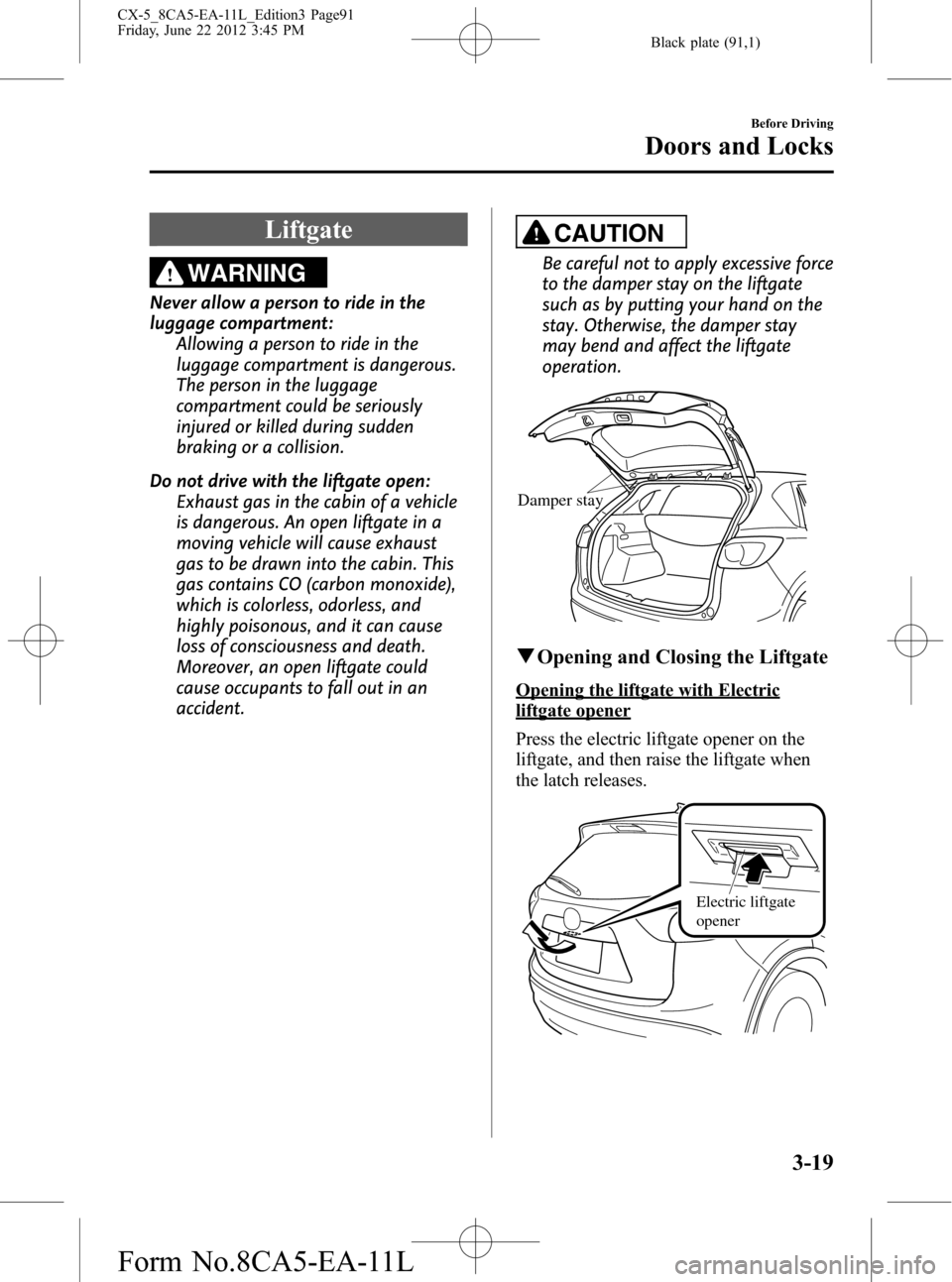

Liftgate
WARNING
Never allow a person to ride in the
luggage compartment:
Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open:
Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.
CAUTION
Be careful not to apply excessive force
to the damper stay on the liftgate
such as by putting your hand on the
stay. Otherwise, the damper stay
may bend and affect the liftgate
operation.
Damper stay
qOpening and Closing the Liftgate
Opening the liftgate with Electric
liftgate opener
Press the electric liftgate opener on the
liftgate, and then raise the liftgate when
the latch releases.
Electric liftgate
opener
Before Driving
Doors and Locks
3-19
CX-5_8CA5-EA-11L_Edition3 Page91
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (92,1)
While the ignition is switched ON, the
liftgate can be opened only when the
vehicle is stopped with the parking brake
applied (manual transaxle), or with the
selector lever in the P position (automatic
transaxle).
NOTE
l(With the advanced keyless function)lA locked liftgate can also be opened
while the key is being carried.
lWhen using the advanced keyless
function to open the liftgate, it may
require a few seconds for the liftgate to
unlock after the electric liftgate opener
is pressed.
lThe liftgate can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent leaving the
key in the vehicle, the liftgate can be
opened by pressing the electric liftgate
opener.
lWhen the liftgate is unlocked by pressing
the electric liftgate opener, the liftgate
raises slightly to allow it to be opened. If
the liftgate is not operated for a certain
period of time after the electric liftgate
opener has been pressed, the liftgate cannot
be raised any more from its slightly raised
position. Press the electric liftgate opener
again to fully open the liftgate. To close the
liftgate from its slightly raised position,
open it first by pressing the electric liftgate
opener, and waiting for 1 second or longer
then close it.
The door-ajar warning light will illuminate
if the liftgate is not fully closed.
lThe sound of the latch may be heard for a
few seconds after the electric liftgate
opener has been pressed, however, this does
not indicate a malfunction.
Closing the liftgate
To close, lower the liftgate slowly using
the liftgate grip recess, and then push the
liftgate closed using both hands.
Do not slam it. Pull up on the liftgate to
make sure it is secure.
Liftgate griprecess
3-20
Before Driving
Doors and Locks
CX-5_8CA5-EA-11L_Edition3 Page92
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (95,1)
qEngine Exhaust (Carbon monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:
Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Do not run the engine when inside an enclosed area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss
of consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine:
Exhaust gas is dangerous. When your vehicle is stopped with the windows closed
and the engine running for a long time even in an open area, exhaust gas, which
contains poisonous carbon monoxide, could enter the cabin. Loss of consciousness or
even death could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe,
before starting the engine:
Running the engine when a vehicle is stopped in deep snow is dangerous. The
exhaust pipe could be blocked by the snow, allowing exhaust gas to enter the cabin.
Because exhaust gas contains poisonous carbon monoxide, it could cause loss of
consciousness or even death to occupants in the cabin.
Before Driving
Fuel and Emission
3-23
CX-5_8CA5-EA-11L_Edition3 Page95
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (96,1)
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
(U.S.A. and Canada)
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
qFuel-Filler Lid
To open, pull the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.
To close the fuel-filler cap, turn it
clockwise until a click is heard.
Open
Close
3-24
Before Driving
Fuel and Emission
CX-5_8CA5-EA-11L_Edition3 Page96
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (98,1)
Steering Wheel
WARNING
Never adjust the steering wheel while
the vehicle is moving:
Adjusting the steering wheel while
the vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident.
qSteering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, and then pull down
the lock release lever under the steering
column.
Lock release lever
2. Tilt the steering wheel and/or adjust the
steering column length to the desired
positions, and then push the lever up to
lock the column.
3. Attempt to push the steering wheel up
and down to make sure it's locked
before driving.
3-26
Before Driving
Steering Wheel
CX-5_8CA5-EA-11L_Edition3 Page98
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (99,1)
Mirrors
Before driving, adjust the inside and
outside mirrors.
qOutside Mirrors
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
Power mirror adjustment
The ignition must be switched to ACC or
ON position.
To adjust:
1. Rotate the mirror adjusting switch to
the left or right to choose the left or
right side mirror.2. Depress the mirror switch in the
appropriate direction.
Mirror switch
Center position
After adjusting the mirror, lock the control
by rotating the switch in the center
position.
Folding mirror
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
Fold the outside mirror rearward until it is
flush with the vehicle.
Before Driving
Mirrors
3-27
CX-5_8CA5-EA-11L_Edition3 Page99
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (100,1)
qRearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
NOTE
For the manual day/night mirror, perform the
adjustment with the day/night lever in the day
position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from cars at the rear.
Night DayDay/Night lever
Auto-dimming mirror
The auto-dimming mirror automatically
reduces glare of headlights from cars at
the rear when the ignition is switched ON.
Press the OFF button (
) to cancel the
automatic dimming function. The
indicator light will turn off.
To reactivate the automatic dimming
function, press the ON button (
). The
indicator light will illuminate.
Indicator lightOFF button
ON button
3-28
Before Driving
Mirrors
CX-5_8CA5-EA-11L_Edition3 Page100
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (102,1)
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death. This warning applies
especially to children.
Never allow children to play with
power window switches:
Power window switches that are not
locked with the power window lock
switch would allow children to
operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
qOperating the Driver's Side
Power Window
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Driver's window
Open Close Master control switches
Auto-opening/closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.
To stop the window partway, pull or press
the switch in the opposite direction and
then release it.
3-30
Before Driving
Windows
CX-5_8CA5-EA-11L_Edition3 Page102
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (103,1)
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
window will not fully open and close
automatically.
The power window auto function will
only resume on the power window that
has been reset.
1 Switch the ignition ON.
2 Make sure that the power window lock
switch located on the driver's door is
not depressed.
3 Press the switch and fully open the
window.
4 Pull up the switch to fully close the
window and continue holding the
switch for about 2 seconds after the
window fully closed.
Jam-safe window
If a person's hands, head or an object
blocks the window during the auto-
closing operation, the window will stop
and open halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while holding up the power
window switch:
Blocking the power window just
before it reaches the fully closed
position or while holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.NOTE
lDepending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is
similar to something blocking it.
In the event the jam-safe function activates
and the power window cannot be closed
automatically, pull and hold the switch and
the window will close.
lThe jam-safe window function does not
operate until the system has been reset.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to off with all doors
closed. If any door is opened, the power
window will stop operating.
NOTE
For engine-off operation of the power window,
the switch must be held up firmly throughout
window closure because the auto-closing
function will be inoperable.
Before Driving
Windows
3-31
CX-5_8CA5-EA-11L_Edition3 Page103
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L
