Black plate (10,1)
Interior Equipment (View C)
Seat belts ............................................................................................................ page 2-13
SRS curtain air bag ............................................................................................ page 2-38
Remote fuel-filler lid release ............................................................................. page 3-24
Bottle holder .................................................................................................... page 5-102
Vanity mirror ...................................................................................................... page 5-95
Moonroof switch ............................................................................................... page 3-33
Overhead lights .................................................................................................. page 5-96
Rearview mirror ................................................................................................. page 3-28
Sunvisor ............................................................................................................. page 5-95
Cup holders ...................................................................................................... page 5-101
Front seat ............................................................................................................. page 2-4
Center console ................................................................................................. page 5-103
Rear seat .............................................................................................................. page 2-7
1-4
Pictorial Index
The equipment and installation position varies by vehicle
Interior Overview
CX-5_8CA5-EA-11L_Edition3 Page10
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (11,1)
Hood .................................................................................................................. page 6-18
Windshield wiper blades .................................................................................... page 6-27
Moonroof ........................................................................................................... page 3-33
Doors and keys .................................................................................................. page 3-12
Fuel-filler lid ...................................................................................................... page 3-24
Wheels and Tires ............................................................................................... page 6-35
Exterior lights .................................................................................................... page 6-40
Rear window wiper blade .................................................................................. page 6-29
Liftgate .............................................................................................................. page 3-19
Antenna ............................................................................................................. page 5-13
Child safety locks .............................................................................................. page 3-18
Outside mirror .................................................................................................... page 3-27
Pictorial Index
Exterior Overview
1-5The equipment and installation position varies by vehicle CX-5_8CA5-EA-11L_Edition3 Page11
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (99,1)
Mirrors
Before driving, adjust the inside and
outside mirrors.
qOutside Mirrors
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
Power mirror adjustment
The ignition must be switched to ACC or
ON position.
To adjust:
1. Rotate the mirror adjusting switch to
the left or right to choose the left or
right side mirror.2. Depress the mirror switch in the
appropriate direction.
Mirror switch
Center position
After adjusting the mirror, lock the control
by rotating the switch in the center
position.
Folding mirror
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
Fold the outside mirror rearward until it is
flush with the vehicle.
Before Driving
Mirrors
3-27
CX-5_8CA5-EA-11L_Edition3 Page99
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (100,1)
qRearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
NOTE
For the manual day/night mirror, perform the
adjustment with the day/night lever in the day
position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from cars at the rear.
Night DayDay/Night lever
Auto-dimming mirror
The auto-dimming mirror automatically
reduces glare of headlights from cars at
the rear when the ignition is switched ON.
Press the OFF button (
) to cancel the
automatic dimming function. The
indicator light will turn off.
To reactivate the automatic dimming
function, press the ON button (
). The
indicator light will illuminate.
Indicator lightOFF button
ON button
3-28
Before Driving
Mirrors
CX-5_8CA5-EA-11L_Edition3 Page100
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (121,1)
qSafety Chains
Safety chains must be used as a precautionary measure should the trailer become
unintentionally unhitched. They should cross under the trailer tongue and attach to the
hitch. Leave enough slack to allow full turns. Consult literature published by your trailer or
hitch manufacturer for more details.
WARNING
Make sure the safety chain is securely attached to both the trailer and the vehicle
prior to departure:
Towing a trailer without using a safety chain securely attached to both the trailer
and the vehicle is dangerous. If damage occurs to the coupling unit or hitch ball, the
trailer could wander into another lane and cause a collision.
qTrailer Lights
Trailer lights must comply with all federal, state, and local regulations. Equip your trailer
as required before towing it day or night.
CAUTION
Do not connect a trailer lighting system directly to the lighting system of your
Mazda. This may damage your vehicle's electrical system and lighting systems. Have
a recreational vehicle dealer or trailer rental agency connect the system, and inspect
the brake lights and turn signals yourself before each trip.
qTrailer Brakes
If the total trailer weight exceeds 450 kg (1,000 lb), trailer brakes are required. If your
trailer has brakes, make sure they comply with all federal, state, and local regulations.
WARNING
Do not connect a hydraulic trailer-brake system to your vehicle's brake system:
Connecting a hydraulic trailer-brake system directly to the vehicle brake system is
dangerous and will result in inadequate braking and possible injury.
qTrailer Towing Tips
lVerify that your Mazda maintains a near-normal attitude when a loaded or unloaded
trailer is connected. Do not drive if it has an abnormal front-up or front-down position.
Inspect for incorrect tongue load, worn suspension parts, and trailer overloading.
lMake sure the trailer is properly loaded and the cargo is secure to prevent it from
shifting.
lMake sure the mirrors conform to all government regulations. If they do not, install
required rear view mirrors appropriate for towing purposes.
Before Driving
Towing
3-49
CX-5_8CA5-EA-11L_Edition3 Page121
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (206,1)
qViewing the Display
Guide lines which indicate the width of the vehicle (yellow) are displayed on the screen as
a reference to the approximate width of the vehicle in comparison to the width of the
parking space you are about to back into.
Use this display view for parking your vehicle in a parking space or garage.
b
a
a) Vehicle width guide lines (yellow)
Guide lines serve as a reference to the approximate width of the vehicle.
b) Distance guide lines
These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).
The red and yellow lines indicate the points about 50 cm (red) and 1 meter (yellow)
from the rear bumper (at the center point of each of the lines).
CAUTION
The guide lines on the screen are fixed lines. They are not synced to the driver's
turning of the steering wheel. Always be careful and check the area to the vehicle's
rear and the surrounding area directly with your eyes while backing up.
qRear View Monitor Operation
The operation of the rear view monitor when reversing the vehicle varies depending on the
traffic, road, and vehicle conditions. The amount of steering and the timing also varies
depending on conditions, so confirm the surrounding conditions directly with your eyes
and steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.
NOTE
Images displayed on the monitor from the rear view parking camera are reversed images (mirror
images).
1. Shift the shift lever to R to switch the display to the rear view monitor display.
4-82
When Driving
Rear View Monitor
CX-5_8CA5-EA-11L_Edition3 Page206
Friday, June 22 2012 3:46 PM
Form No.8CA5-EA-11L

Black plate (309,1)

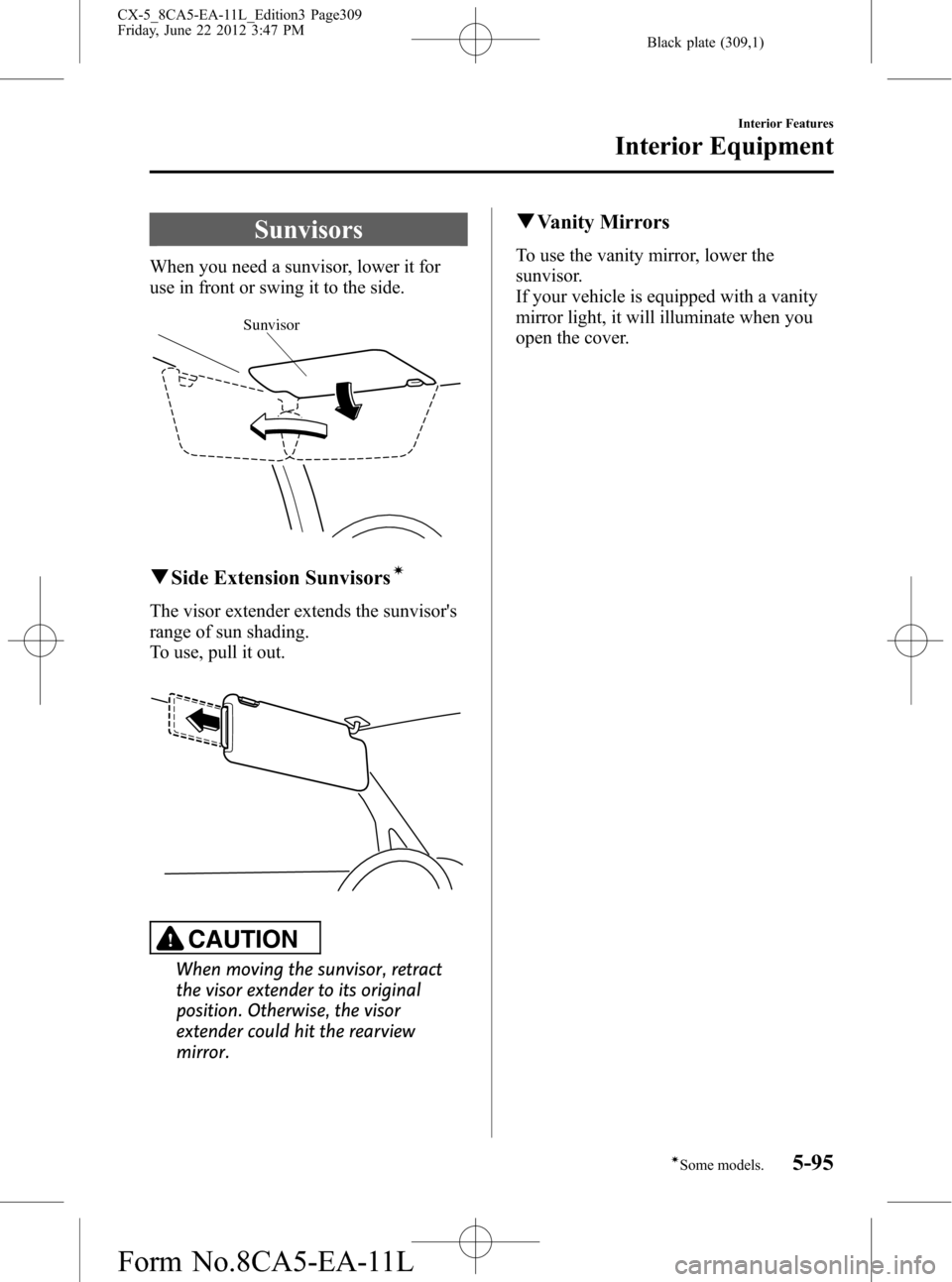

Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qSide Extension Sunvisorsí
The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.
CAUTION
When moving the sunvisor, retract
the visor extender to its original
position. Otherwise, the visor
extender could hit the rearview
mirror.
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will illuminate when you
open the cover.
Interior Features
Interior Equipment
5-95íSome models. CX-5_8CA5-EA-11L_Edition3 Page309
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (483,1)
C
Capacities ............................................ 9-5
Carbon Monoxide ............................. 3-23
Cargo Securing Loops .................... 5-103
Cell Phones ....................................... 8-21
Center Console ................................ 5-103
Child Restraint
Child-restraint system installation
position ...................................... 2-27
Installing child-restraint
systems ....................................... 2-28
LATCH child-restraint
systems ....................................... 2-35
Child Safety Locks for Rear Doors ... 3-18
Climate Control System ...................... 5-2
Fully Automatic Type .................. 5-9
Gas specifications ........................ 9-6
Manual Type ................................ 5-5
Operating Tips .............................. 5-2
Vent Operation ............................. 5-3
Clock ................................................. 5-98
Cruise Control ................................... 4-68
Cup Holder ...................................... 5-101
Customer Assistance ........................... 8-2
D
Dashboard Illumination .................... 4-11
Daytime Running Lights ................... 4-45
Defroster
Mirror ......................................... 4-52
Rear window .............................. 4-51
Dimensions ......................................... 9-5
Door Locks ....................................... 3-11
Driving In Flooded Area ................... 3-43
Driving on Uneven Road .................. 3-44
D
Driving Tips ...................................... 3-39
Automatic transaxle ................... 4-39
Break-in ..................................... 3-39
Driving in flooded area .............. 3-43
Driving on uneven road ............. 3-44
Floor mat .................................... 3-40
Hazardous driving ...................... 3-40
Money-saving suggestions ......... 3-39
Overloading ............................... 3-43
Rocking the vehicle .................... 3-41
Winter driving ............................ 3-41
Dynamic Stability Control (DSC) ..... 4-64
E
Emergency Starting
Push-Starting .............................. 7-17
Starting a Flooded Engine .......... 7-17
Emergency Towing
Tiedown Hooks .......................... 7-21
Towing Description .................... 7-20
Emission Control System .................. 3-22
Engine
Coolant ....................................... 6-23
Engine Compartment
Overview .................................... 6-20
Exhaust gas ................................ 3-23
Hood release .............................. 6-18
Oil .............................................. 6-21
Starting ......................................... 4-3
Essential information .......................... 6-2
Event Data Recorder ......................... 8-22
Exhaust Gas ...................................... 3-23
Index
10-3
CX-5_8CA5-EA-11L_Edition3 Page483
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (485,1)
I
Inspecting Brake/Clutch Fluid
Level ................................................. 6-25
Inspecting Coolant Level .................. 6-23
Inspecting Engine Oil Level ............. 6-22
Inspecting Washer Fluid Level ......... 6-26
Instrument Cluster ............................... 4-9
Interior Care ...................................... 6-60
Cleaning the Lap/Shoulder Belt
Webbing ..................................... 6-62
Cleaning the Upholstery and Interior
Trim ............................................ 6-60
Cleaning the Window Interiors ... 6-62
Dashboard Precautions ............... 6-60
Interior Lights ................................... 5-96
Luggage Compartment Light ..... 5-96
Map Lights ................................. 5-96
Overhead Lights ......................... 5-96
J
Jack ..................................................... 7-5
Jump-Starting .................................... 7-14
K
Key Suspend Function ........................ 3-7
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
Key suspend function ................... 3-7
Transmitter ................................... 3-4
L
Label Information ............................... 9-2
Lane-Change Signals ........................ 4-46
Liftgate .............................................. 3-19
L
Light Bulbs
Replacement ............................... 6-40
Specifications ............................... 9-6
Lighting Control ............................... 4-40
Lubricant Quality ................................ 9-4
Luggage Compartment ................... 5-104
Luggage Compartment Light ............ 5-96
M
Maintenance and Care ........................ 6-2
Manual Transaxle Operation ............. 4-31
Recommendations for shifting.... 4-32
Map Lights ........................................ 5-96
Meters and Gauges ............................. 4-9
Mirror Defroster ................................ 4-52
Mirrors
Outside mirrors .......................... 3-27
Rearview mirror ......................... 3-28
Money-Saving Suggestions .............. 3-39
O
Odometer and Trip Meter .................. 4-10
Outside Mirrors ................................. 3-27
Outside Temperature Display ............ 4-12
Overhead Console ........................... 5-102
Overhead Lights ................................ 5-96
Overheating ....................................... 7-18
Overloading ...................................... 3-43
Owner Maintenance
Closing the Hood ....................... 6-19
Engine Compartment
Overview .................................... 6-20
Opening the Hood ...................... 6-18
Owner Maintenance
Precautions ................................. 6-16
Replace Electrical Battery .......... 6-33
Index
10-5
CX-5_8CA5-EA-11L_Edition3 Page485
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (486,1)
P
Parking Brake ................................... 4-58
Personalization Features ..................... 9-9
Power Steering .................................. 4-67
Power Windows ................................ 3-30
R
Rear Coat Hooks ............................. 5-104
Rear Door Child Safety Locks .......... 3-18
Rear Seat ............................................. 2-7
Rear View Monitor ........................... 4-79
Rear Window Defroster .................... 4-51
Rear Window Washer ....................... 4-51
Rear Window Wiper .......................... 4-51
Rearview Mirror ................................ 3-28
Recommended Oil ............................ 6-21
Recreational Towing ......................... 7-23
Registering Your Vehicle in A Foreign
Country ............................................. 8-19
Replacement
Electrical battery ......................... 6-33
Fuse ............................................ 6-49
Light Bulbs ................................ 6-40
Tires ........................................... 6-37
Wheel ......................................... 6-38
Wiper .......................................... 6-27
Rocking the Vehicle .......................... 3-41
S
Safety Defects, Reporting ................. 8-15
Satellite Radio ................................... 5-44
Scheduled Maintenance ...................... 6-4
S
Seat Belt System
3-point type ................................ 2-16
Automatic locking ...................... 2-15
Emergency locking .................... 2-15
Extender ..................................... 2-20
Pregnant women ........................ 2-15
Seats
Front seat ...................................... 2-4
Head restraint ............................. 2-11
Rear seat ....................................... 2-7
Seat warmer .................................. 2-6
Security System
Immobilizer system .................... 3-35
Theft-deterrent system ............... 3-37
Service Publications .......................... 8-49
Spare Tire ............................................ 7-5
Specifications ...................................... 9-4
Speedometer ...................................... 4-10
SRS Air Bags
Driver and front passenger occupant
classification system .................. 2-53
How the SRS air bags work ....... 2-46
Limitations to SRS air bag ......... 2-51
Monitoring ................................. 2-59
SRS air bag deployment
criteria ........................................ 2-50
Supplemental restraint system
components ................................ 2-45
Starting the Engine .............................. 4-3
Steering Wheel .................................. 3-26
Horn ........................................... 4-52
Storage Compartments .................... 5-102
Cargo securing loops ................ 5-103
Center console .......................... 5-103
Glove compartment .................. 5-103
Luggage Compartment ............. 5-104
Overhead console ..................... 5-102
Rear coat hooks ........................ 5-104
10-6
Index
CX-5_8CA5-EA-11L_Edition3 Page486
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L
