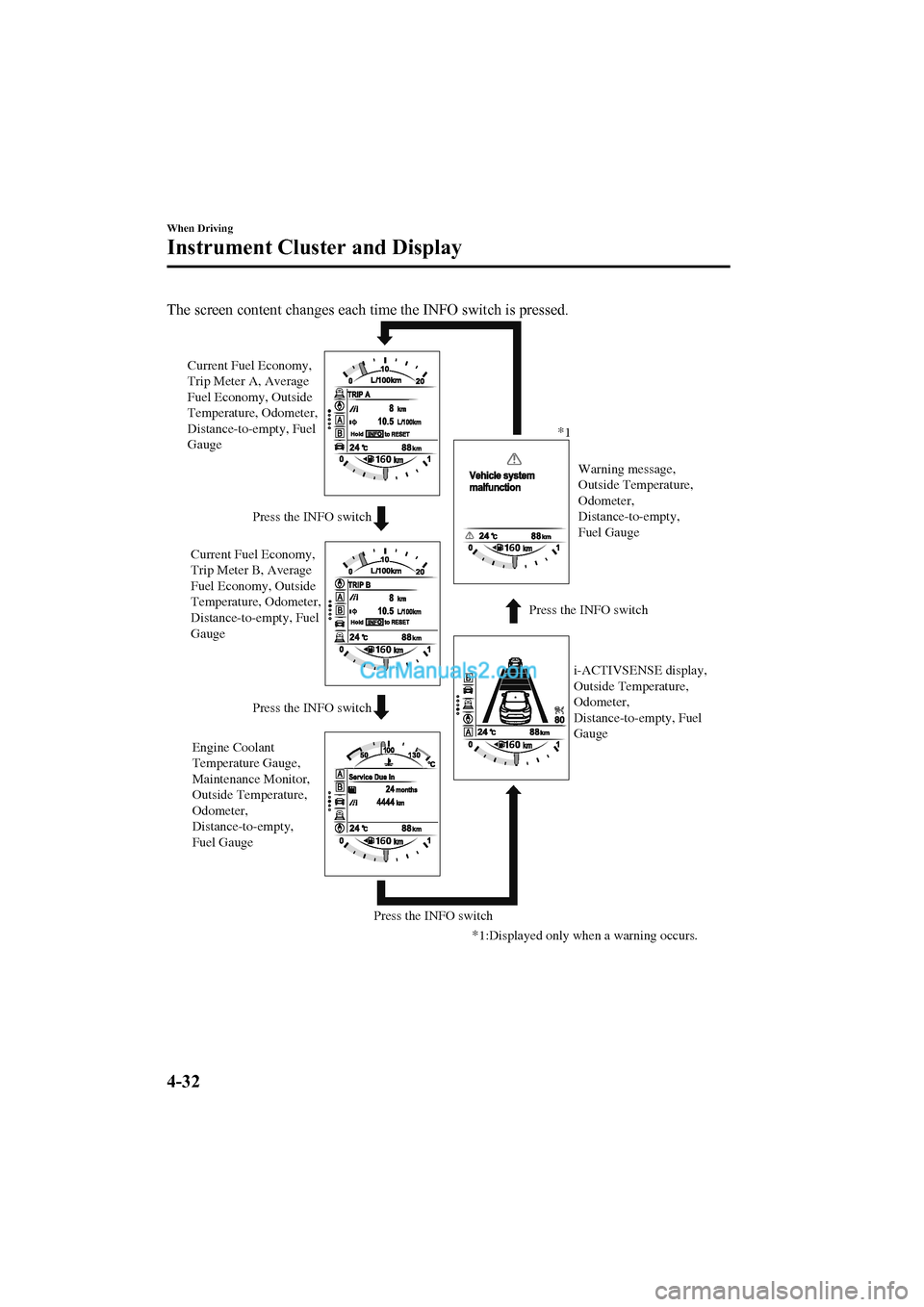

The screen content changes each time the INFO switch is pressed.
Press the INFO switch Press the INFO switchPress the INFO switch
Press the INFO switch
Current Fuel Economy,
Trip Meter A, Average
Fuel Economy, Outside
Temperature, Odometer,
Distance-to-empty, Fuel
Gauge
Current Fuel Economy,
Trip Meter B, Average
Fuel Economy, Outside
Temperature, Odometer,
Distance-to-empty, Fuel
Gauge
Engine Coolant
Temperature Gauge,
Maintenance Monitor,
Outside Temperature,
Odometer,
Distance-to-empty,
Fuel Gauge i-ACTIVSENSE display,
Outside Temperature,
Odometer,
Distance-to-empty, Fuel
GaugeWarning message,
Outside Temperature,
Odometer,
Distance-to-empty,
Fuel Gauge
*1
*1:Displayed only when a warning occurs.
When Driving
Instrument Cluster and Display
4-32
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

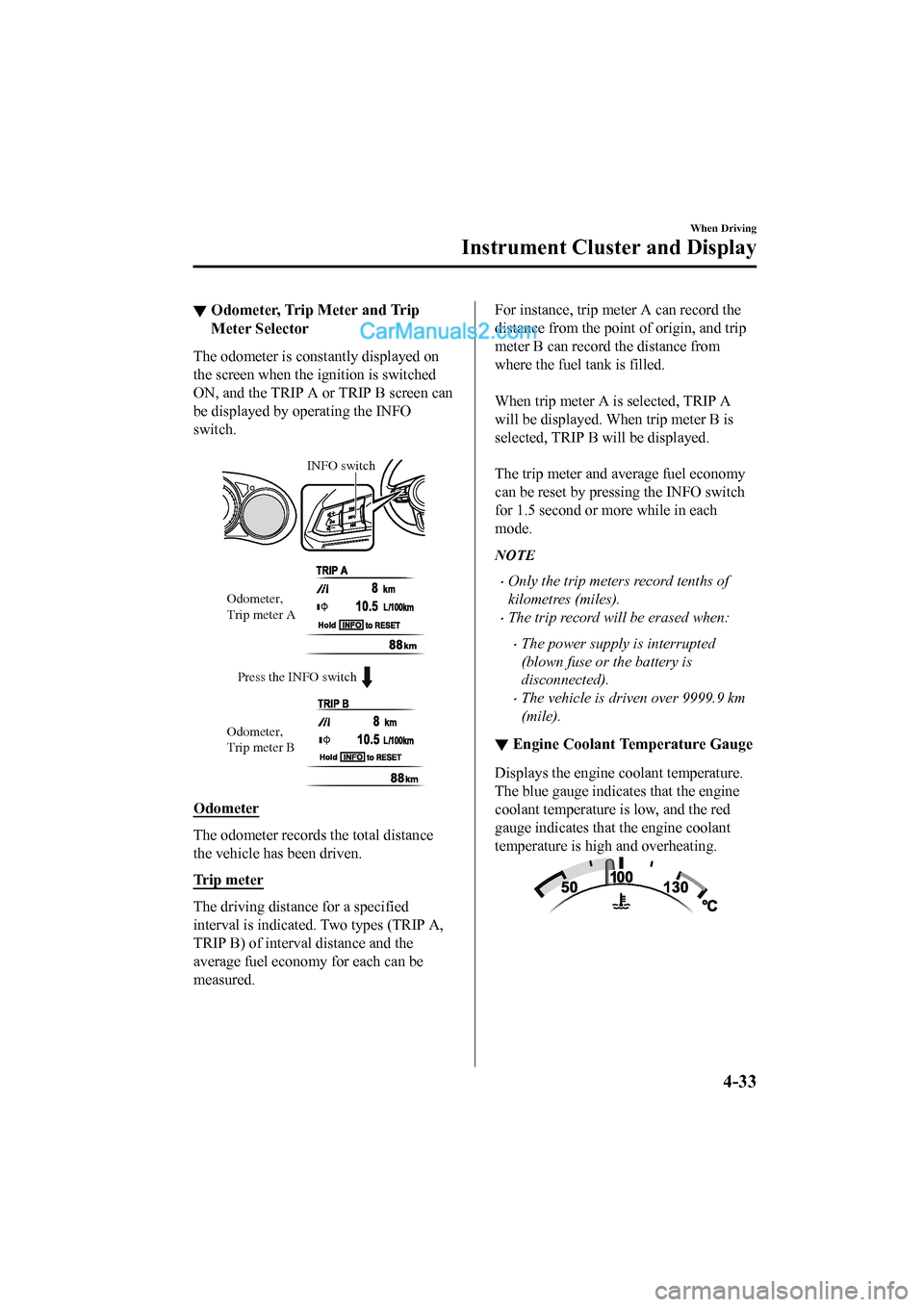

▼Odometer, Trip Meter and Trip
Meter Selector
The odometer is constantly displayed on
the screen when the ignition is switched
ON, and the TRIP A or TRIP B screen can
be displayed by operating the INFO
switch.

Press the INFO switch INFO switch
Odometer,
Trip meter A
Odometer,
Trip meter B
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The driving distance for a specified
interval is indicated. Two types (TRIP A,
TRIP B) of interval distance and the
average fuel economy for each can be
measured.

For instance, trip me ter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.

When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.

The trip meter and average fuel economy
can be reset by pressing the INFO switch
for 1.5 second or more while in each
mode.
NOTE
•Only the trip meters record tenths of
kilometres (miles).
•The trip record will be erased when:
•The power supply is interrupted
(blown fuse or the battery is
disconnected).
•The vehicle is driven over 9999.9 km
(mile).
▼ Engine Coolant Temperature Gauge
Displays the engine coolant temperature.
The blue gauge indicates that the engine
coolant temperature is low, and the red
gauge indicates that the engine coolant
temperature is high and overheating.
When Driving
Instrument Cluster and Display
4-33
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

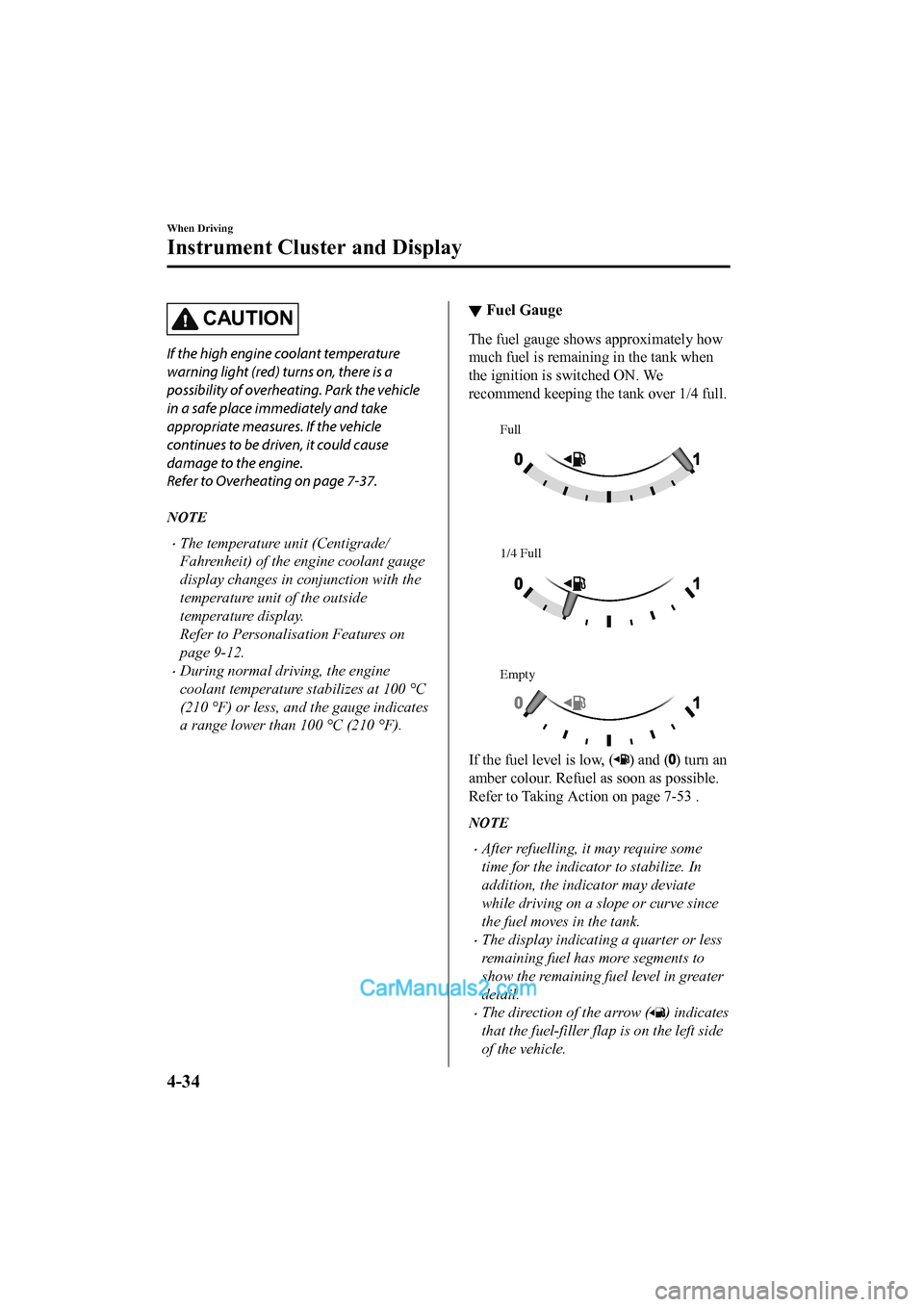

CAUTION
If the high engine coolant temperature
warning light (red) turns on, there is a
possibility of overheating. Park the vehicle
in a safe place immediately and take
appropriate measures. If the vehicle
continues to be driven, it could cause
damage to the engine.
Refer to Overheating on page 7-37.
NOTE
•The temperature unit (Centigrade/
Fahrenheit) of the engine coolant gauge
display changes in conjunction with the
temperature unit of the outside
temperature display.
Refer to Personalisation Features on
page 9-12.
•During normal driving, the engine
coolant temperature stabilizes at 100 °C
(210 °F) or less, and the gauge indicates
a range lower than 100 °C (210 °F).
▼Fuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.

Full
1/4 Full
Empty
If the fuel level is low, () and () turn an
amber colour. Refuel as soon as possible.
Refer to Taking Action on page 7-53 .
NOTE
•After refuelling, it may require some
time for the indicato r to stabilize. In
addition, the indicator may deviate
while driving on a slope or curve since
the fuel moves in the tank.
•The display indicating a quarter or less
remaining fuel has more segments to
show the remaining fu el level in greater
detail.
•The direction of the arrow () indicates
that the fuel-filler flap is on the left side
of the vehicle.
When Driving
Instrument Cluster and Display
4-34
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

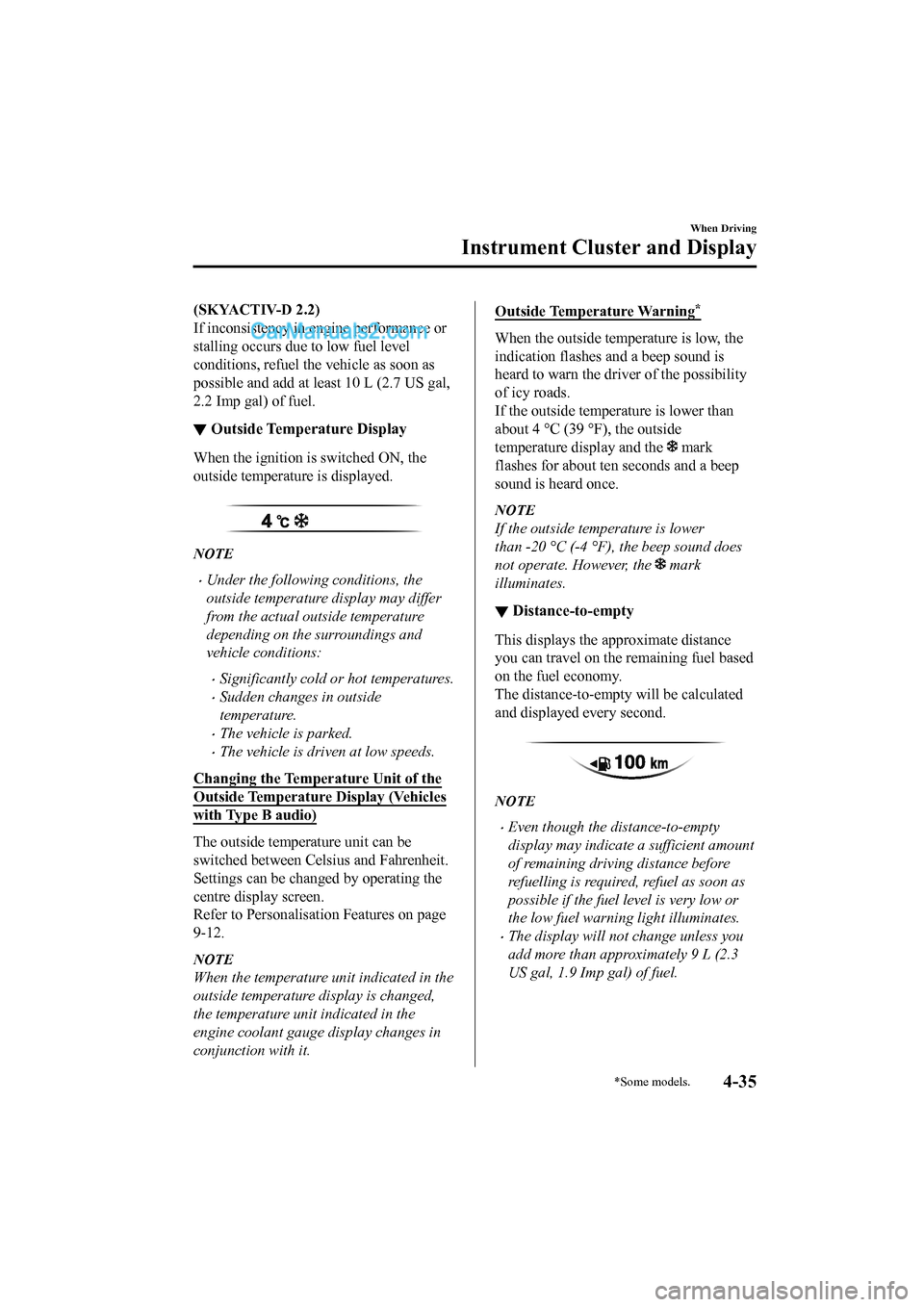

(SKYACTIV-D 2.2)
If inconsistency in engine performance or
stalling occurs due to low fuel level
conditions, refuel the vehicle as soon as
possible and add at least 10 L (2.7 US gal,
2.2 Imp gal) of fuel.
▼ Outside Temperature Display
When the ignition is switched ON, the
outside temperatur
e is displayed.

NOTE
•Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:
•Significantly cold or hot temperatures.
•Sudden changes in outside
temperature.
•The vehicle is parked.
•The vehicle is driven at low speeds.
Changing the Temperature Unit of the
Outside Temperature Display (Vehicles
with Type B audio)
The outside temperature unit can be
switched between Celsius and Fahrenheit.
Settings can be changed by operating the
centre display screen.
Refer to Personalisation Features on page
9-12.
NOTE
When the temperature unit indicated in the
outside temperature display is changed,
the temperature unit indicated in the
engine coolant gauge display changes in
conjunction with it.
Outside Temperature Warning*
When the outside temperature is low, the
indication flashes and a beep sound is
heard to warn the driv er of the possibility
of icy roads.
If the outside temperature is lower than
about 4 °C (39 °F), the outside
temperature display and the
mark
flashes for about ten seconds and a beep
sound is heard once.
NOTE
If the outside temperature is lower
than -20 °C (-4 °F), the beep sound does
not operate. However, the
mark
illuminates.
▼ Distance-to-empty
This displays the approximate distance
you can travel on the remaining fuel based
on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.

NOTE
•Even though the distance-to-empty
display may indicate a sufficient amount
of remaining driving distance before
refuelling is required, refuel as soon as
possible if the fuel level is very low or
the low fuel warning light illuminates.
•The display will not change unless you
add more than approximately 9 L (2.3
US gal, 1.9 Imp gal) of fuel.
When Driving
Instrument Cluster and Display
*Some models.4-35
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

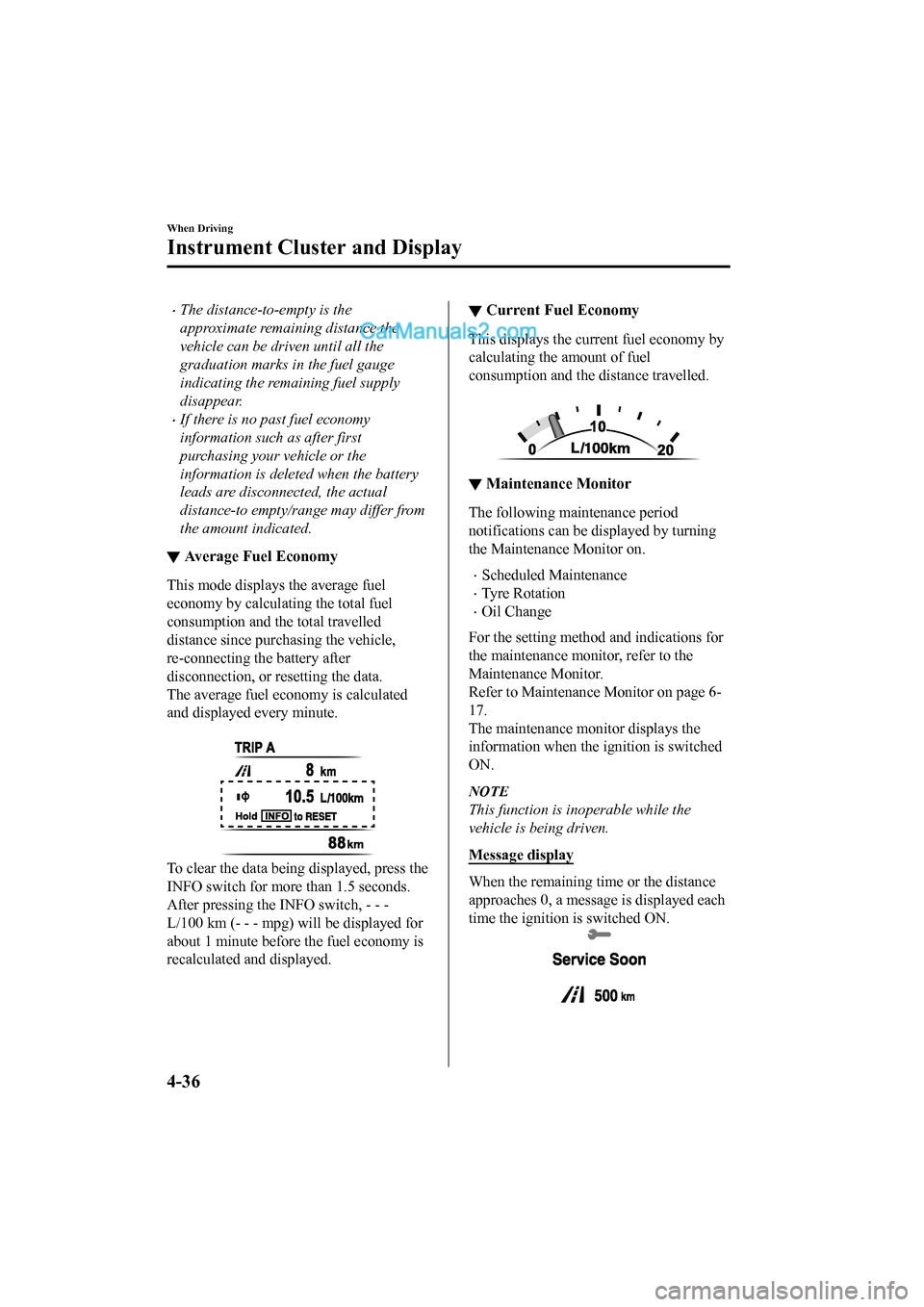

•The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
indicating the remaining fuel supply
disappear.
•If there is no past fuel economy
information such as after first
purchasing your vehicle or the
information is deleted when the battery
leads are disconnected, the actual
distance-to empty/range may differ from
the amount indicated.
▼Average Fuel Economy
This mode displays the average fuel
economy by calculating the total fuel
consumption and th
e total travelled
distance since purchasing the vehicle,
re-connecting the battery after
disconnection, or resetting the data.
The average fuel economy is calculated
and displayed every minute.

To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch, - - -
L/100 km (- - - mpg) will be displayed for
about 1 minute before the fuel economy is
recalculated and displayed.
▼ Current Fuel Economy
This displays the current fuel economy by
calculating the amount of fuel
consumption and the distance travelled.

▼Maintenance Monitor
The following maintenance period
notifications can be
displayed by turning
the Maintenance Monitor on.
•Scheduled Maintenance
•Tyre Rotation
•Oil Change
For the setting method and indications for
the maintenance monitor, refer to the
Maintenance Monitor.
Refer to Maintenance Monitor on page 6-
17.
The maintenance mo nitor displays the
information when the i gnition is switched
ON.
NOTE
This function is inoperable while the
vehicle is being driven.
Message display
When the remaining time or the distance
approaches 0, a message is displayed each
time the ignition is switched ON.
When Driving
Instrument Cluster and Display
4-36
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

NOTE
•If any of the INFO switch is pressed
while a message is displayed, it will no
longer be displayed the next time the
ignition is switched ON.
•After the vehicle is serviced and the
remaining time/distance is reset, the
message for the next maintenance
period will be displayed when the
remaining distance or time to the next
maintenance period approaches 0
(displays when engine is started).
•If there are multiple messages, they are
displayed according to their order.
•If OFF is set for Messages, messages
are not displayed.
▼Blind Spot Monitoring (BSM)
Display
Displays the system status.

Refer to Blind Spot Monitoring (BSM) on
page 4-115.
▼Distance Recognition Support
System (DRSS) Display*
Displays the distance between your
vehicle and the vehicle ahead.

Refer to Distance Recognition Support
System (DRSS) on page 4-127.
▼Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) Display
*
Displays the currently set system status.

Refer to Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop &
Go function) on page 4-149.
▼Mazda Radar Cruise Control
(MRCC) Display*
Displays the currently set system status.

Refer to Mazda Radar Cruise Control
(MRCC) on page 4-137.
When Driving
Instrument Cluster and Display
*Some models.4-37
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

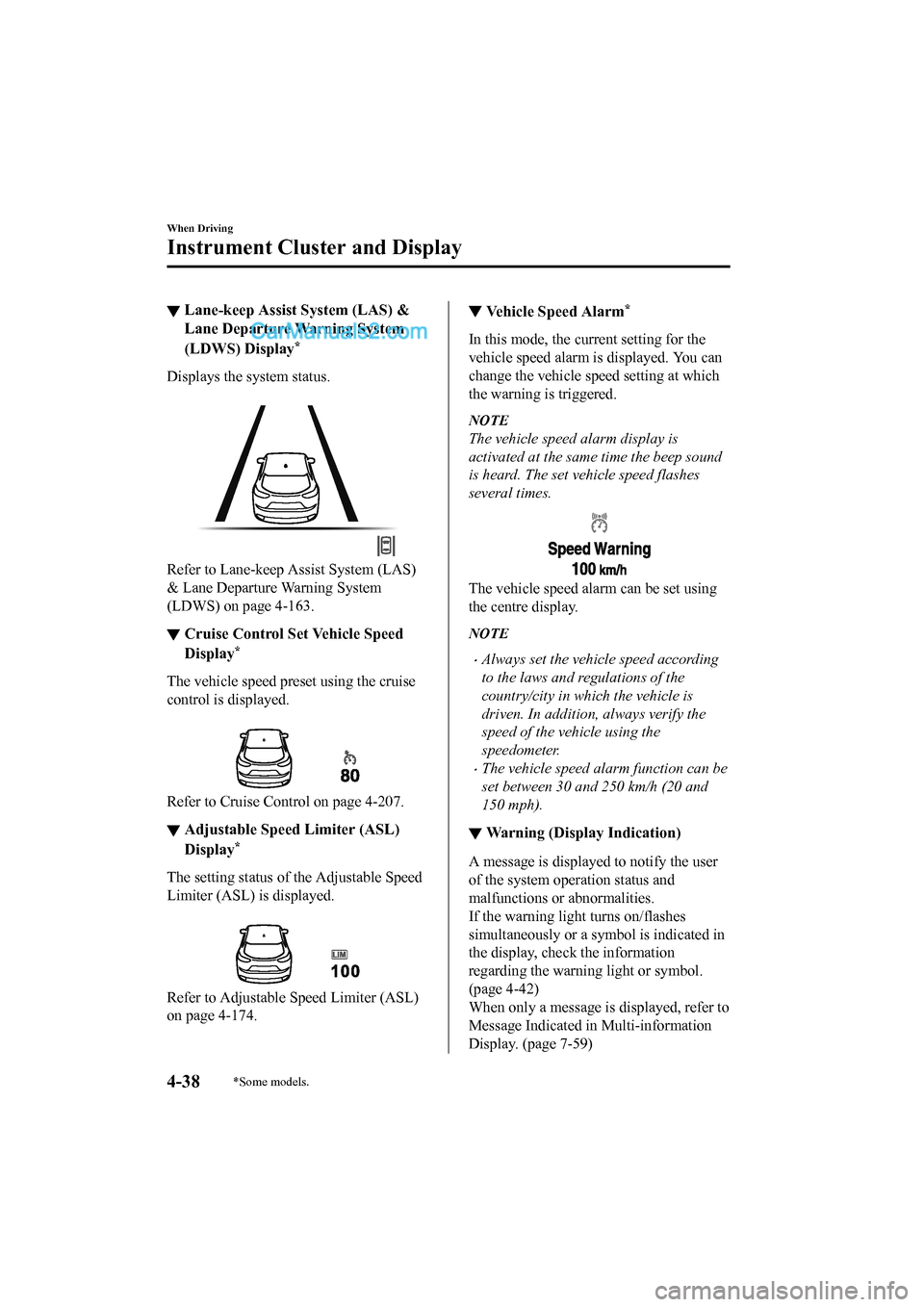

▼Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) Display
*
Displays the system status.

Refer to Lane-keep A
ssist System (LAS)
& Lane Departure Warning System
(LDWS) on page 4-163.
▼ Cruise Control Set Vehicle Speed
Display*
The vehicle speed preset using the cruise
control is displayed.

Refer to Cruise Con
trol on page 4-207.
▼Adjustable Speed Limiter (ASL)
Display*
The setting status of the Adjustable Speed
Limiter (ASL) is displayed.

Refer to Adjustable
Speed Limiter (ASL)
on page 4-174.
▼ Vehicle Speed Alarm*
In this mode, the curr
ent setting for the
vehicle speed alarm is displayed. You can
change the vehicle speed setting at which
the warning is triggered.
NOTE
The vehicle speed alarm display is
activated at the same time the beep sound
is heard. The set vehicle speed flashes
several times.
The vehicle speed alarm can be set using
the centre display.
NOTE
•Always set the vehicle speed according
to the laws and regulations of the
country/city in which the vehicle is
driven. In addition, always verify the
speed of the vehicle using the
speedometer.
•The vehicle speed alarm function can be
set between 30 and 250 km/h (20 and
150 mph).
▼ Warning (Display Indication)
A message is displayed to notify the user
of the system operation status and
malfunctions or abnormalities.
If the warning light
turns on/flashes
simultaneously or a symbol is indicated in
the display, check the information
regarding the warning light or symbol.
(page 4-42)
When only a message is displayed, refer to
Message Indicated i n Multi-information
Display. (page 7-59)
When Driving
Instrument Cluster and Display
4-38*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

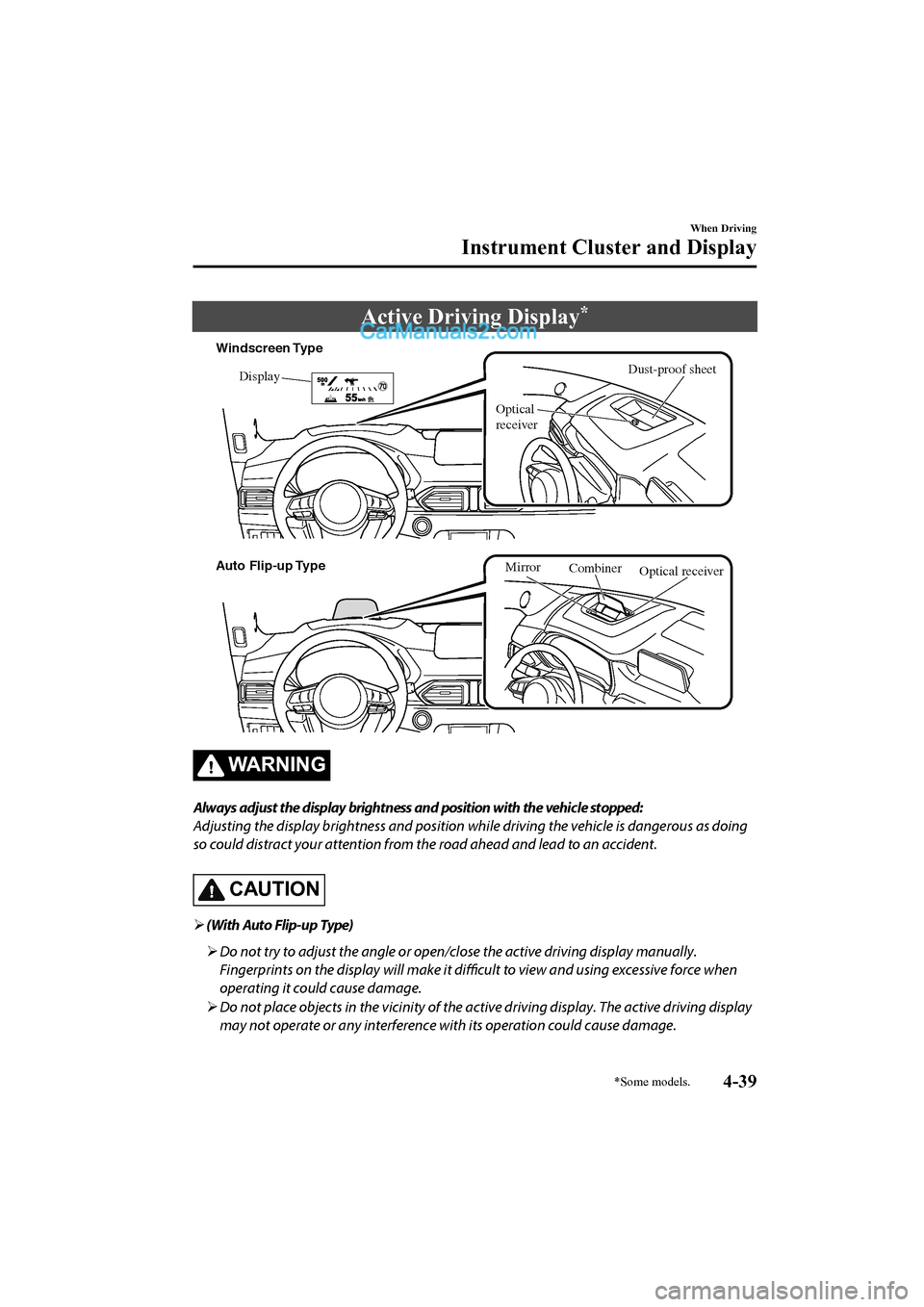

Active Driving Display*
Dust-proof sheet
Display
Optical
receiver
Windscreen Type
Auto Flip-up Type
Combiner
Optical receiver
Mirror
WA R N I N G
Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position wh ile driving the vehicle is dangerous as doing
so could distract your attention from the road ahead and lead to an accident.
CAUTION
 (With Auto Flip-up Type)
 Do not try to adjust the angle or open/c lose the active driving display manually.
Fingerprints on the display will make it diffic ult to view and using excessive force when
operating it could cause damage.
 Do not place objects in the vicinity of the acti ve driving display. The active driving display
may not operate or any interference wi th its operation could cause damage.
When Driving
Instrument Cluster and Display
*Some models.4-39
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Do not place beverages near the active driving display. If water or other liquids are splashed
on the active driving display, it could cause damage.
 Do not place objects above the active driving display or apply stickers to the dust-proof
sheet/optical receiver as they will cause interference.
 A sensor is integrated to control the display's luminosity. If the optical receiver is covered,
the display's luminosity will lower ma king the display difficult to view.
 Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.
NOTE
•Wearing polarized sunglasses will reduce the visi bility of the active driving display due to
the characteristics of the display.
•If the battery has been removed and re-installed or the battery voltage is low, the adjusted
position may deviate.
•The display may be difficult to view or temporarily affected by weather conditions such as
rain, snow, light, and temperature.
•If the audio system is removed, the active driving display cannot be operated.
The active driving display indica tes the following information:
•Blind Spot Monitoring (BSM) Operation Conditions and Warnings
Refer to Blind Spot Monitoring (BSM) on page 4-115.
•Distance Recognition Support System (DRSS) Warnings
Refer to Distance Recognition Support System (DRSS) on page 4-1 27.
•Traffic Sign Recognition System (TSR) traffic signs and Warnings
Refer to Traffic Sign Recognition System (TSR) on page 4-120.
•Mazda Radar Cruise Control with S top & Go function (MRCC with Stop & Go function)
Operation Conditions and Warnings
Refer to Mazda Radar Cruise Con trol with Stop & Go function (MR CC with Stop & Go
function) on page 4-149.
•Mazda Radar Cruise Control (MRCC) Operation Conditions and Warn ings
Refer to Mazda Radar Cruise C ontrol (MRCC) on page 4-137.
•Lane-keep Assist System (LAS) & Lane Departure Warning System ( LDWS) Operation
Conditions and Warnings
Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) on
page 4-163.
•Smart Brake Support (SBS) Operation Conditions and Warnings
Refer to Smart Brake Support (SBS) on page 4-193.
•Adjustable Speed Limiter (ASL) Operation Conditions and Warning s
Refer to Adjustable Speed Li miter (ASL) on page 4-174.
When Driving
Instrument Cluster and Display
4-40
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

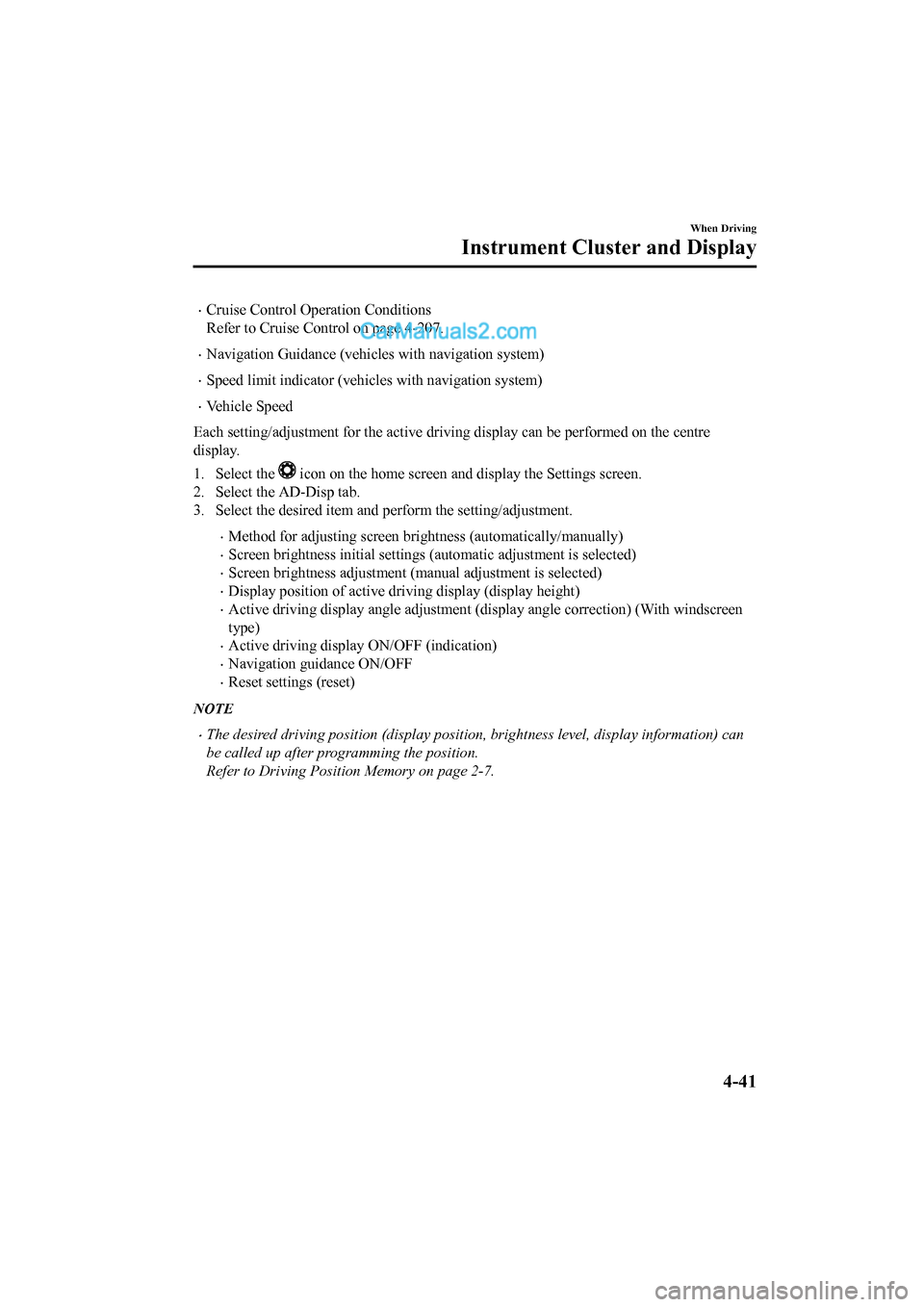

•Cruise Control Operation Conditions
Refer to Cruise Control on page 4-207.
•Navigation Guidance (vehicles with navigation system)
•Speed limit indicator (vehicles with navigation system)
•Vehicle Speed
Each setting/adjustment for the active driving display can be p erformed on the centre
display.
1. Select the
icon on the home screen and display the Settings screen.
2. Select the AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.
•Method for adjusting screen brightness (automatically/manually)
•Screen brightness initial settings (automatic adjustment is sel ected)
•Screen brightness adjustment (manual adjustment is selected)
•Display position of active driving display (display height)
•Active driving display angle adjustment (display angle correcti on) (With windscreen
type)
•Active driving display ON/OFF (indication)
•Navigation guidance ON/OFF
•Reset settings (reset)
NOTE
•The desired driving position (display position, brightness level, display information) can
be called up after programming the position.
Refer to Driving Position Memory on page 2-7.
When Driving
Instrument Cluster and Display
4-41
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
