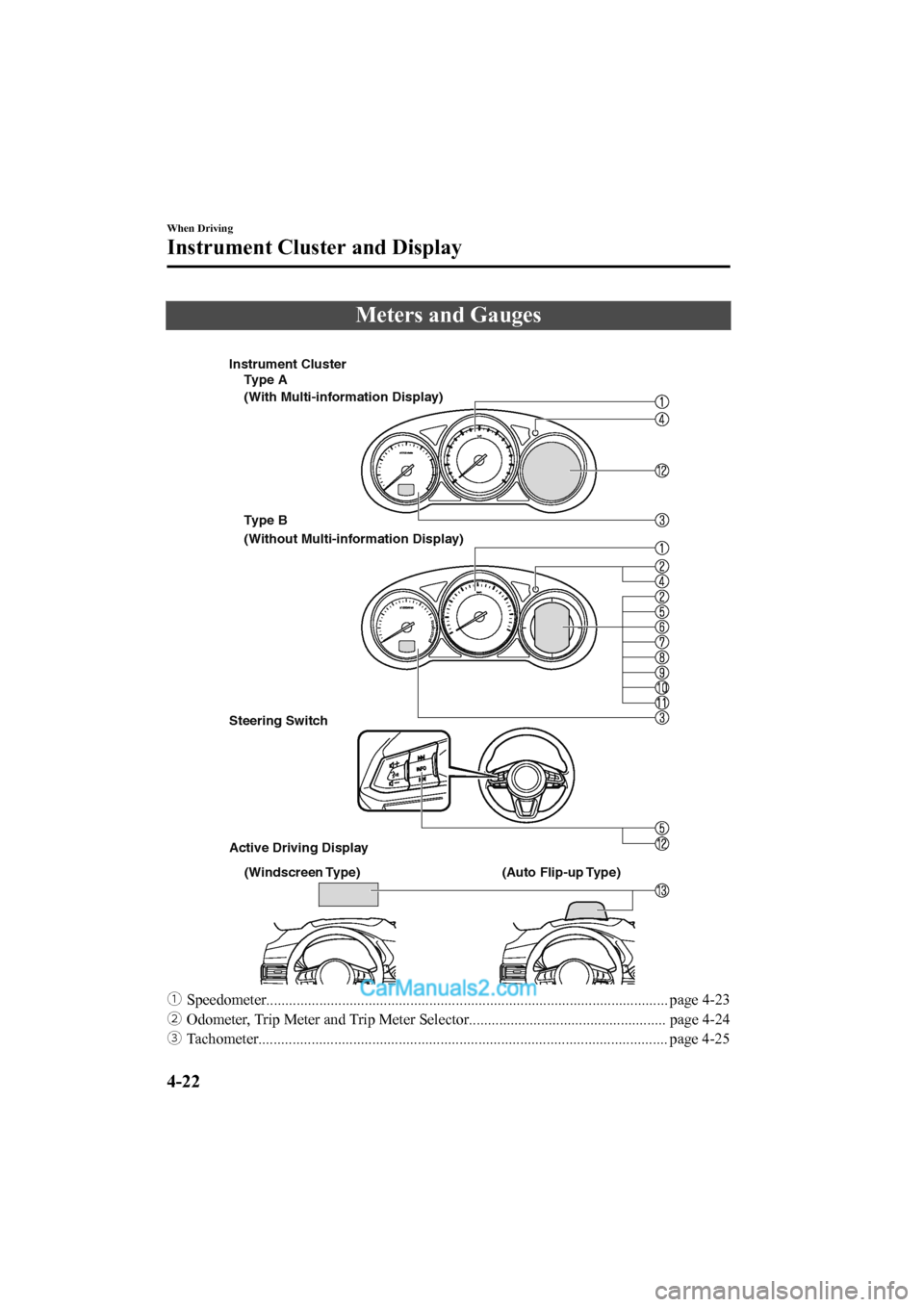

MAZDA MODEL CX-5 2017  Owners Manual - RHD (UK, Australia) (in English) Meters and Gauges

Steering Switch
Active Driving Display
Type A
(With Multi-information Display)
(Without Multi-information Display)
Instrument Cluster
Type B
(Windscreen Type) (Auto  Flip-up Type)

Page 182 of 772

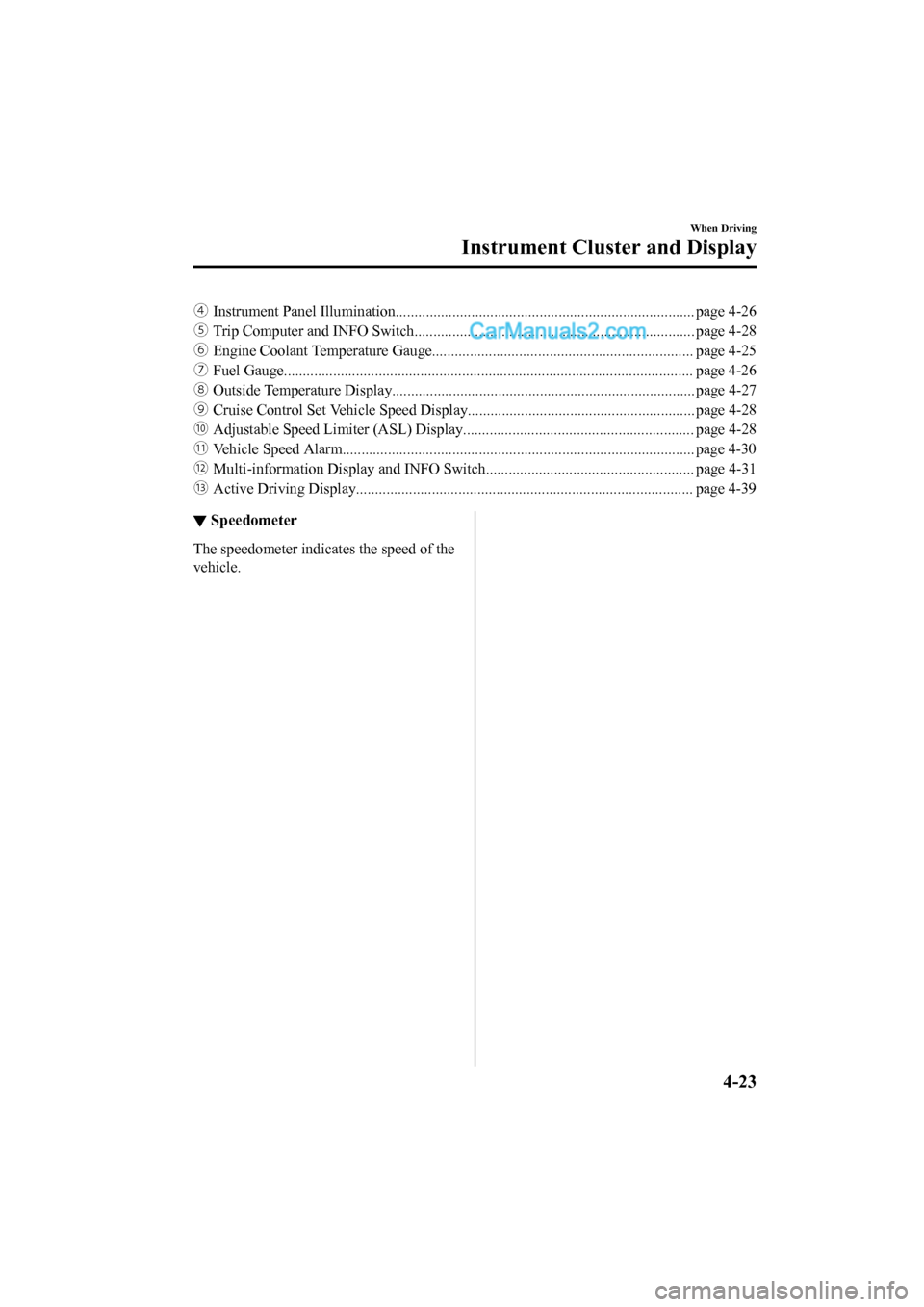

MAZDA MODEL CX-5 2017  Owners Manual - RHD (UK, Australia) (in English) †Instrument Panel Illumin ation............................................................................... page 4-26
‡ Trip Computer and INFO Switch.................................. .......

Page 183 of 772

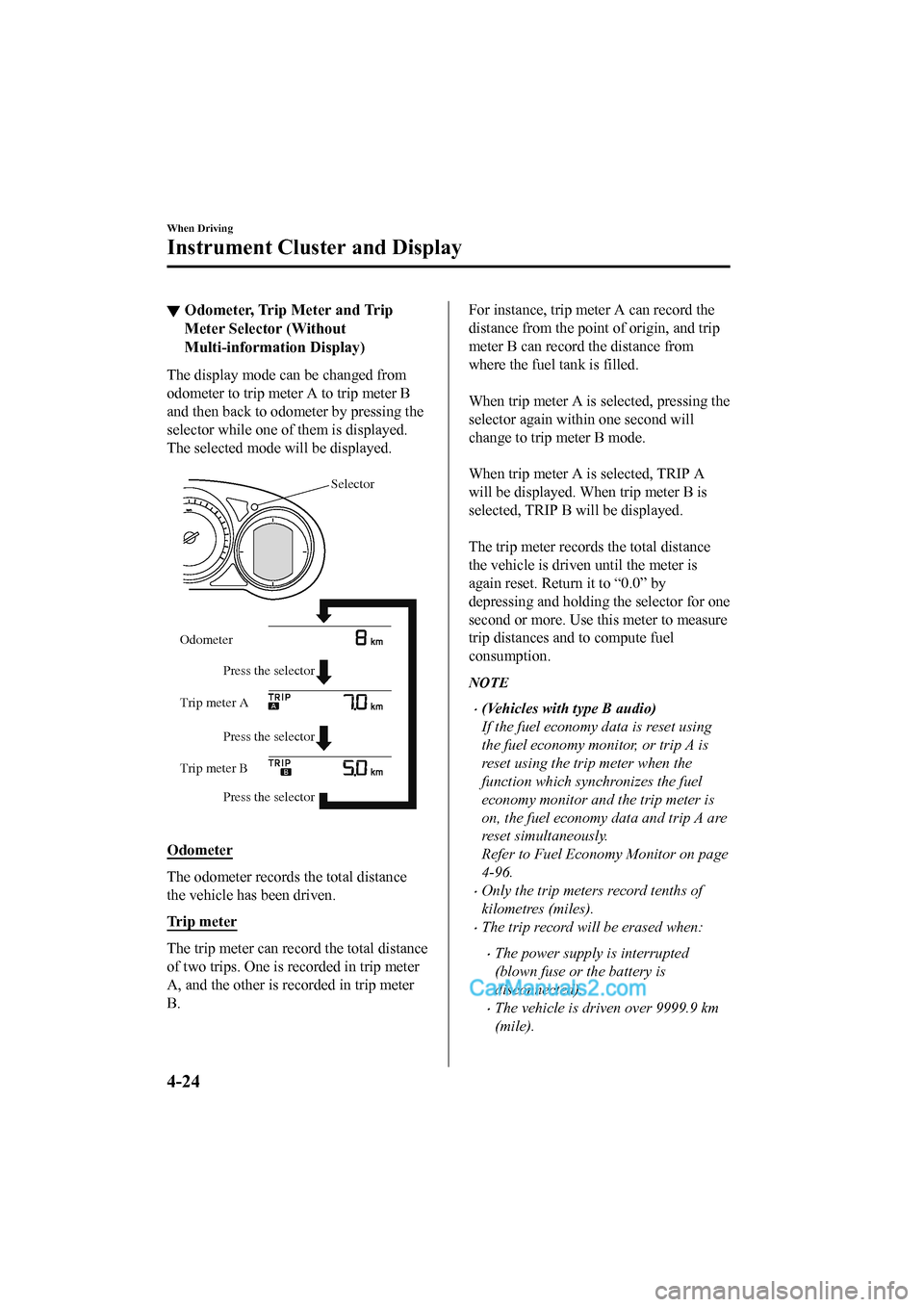

MAZDA MODEL CX-5 2017  Owners Manual - RHD (UK, Australia) (in English) ▼Odometer, Trip Meter and Trip
Meter Selector (Without
Multi-information Display)
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing

Page 184 of 772

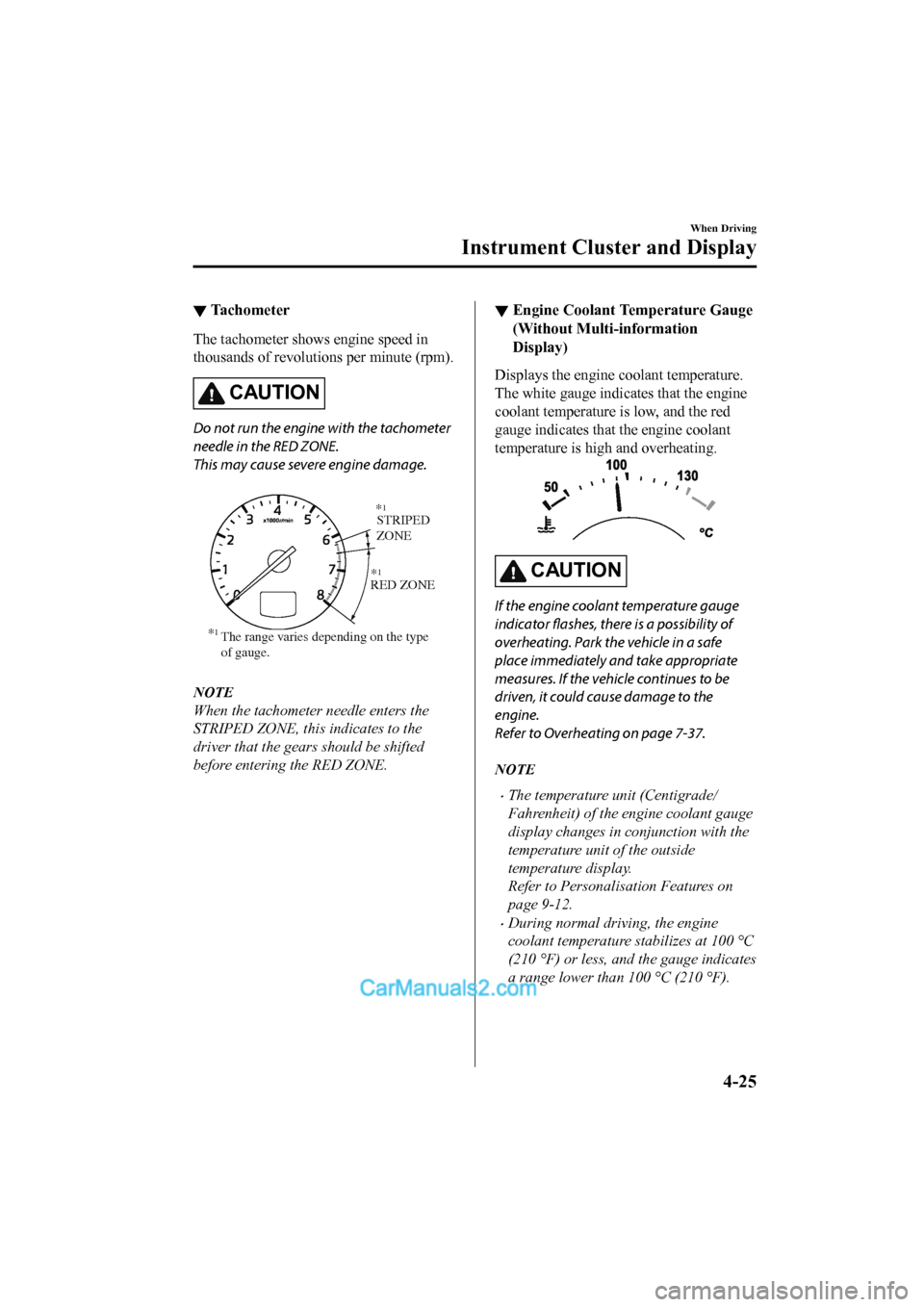

MAZDA MODEL CX-5 2017  Owners Manual - RHD (UK, Australia) (in English) ▼Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the tachometer
needle in the RED ZONE.
This may cause severe engine dam

Page 185 of 772

MAZDA MODEL CX-5 2017  Owners Manual - RHD (UK, Australia) (in English) ▼Fuel Gauge (Without
Multi-information Display)
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is
switched ON. We
recommend keeping the tank over 1/4 fu

Page 186 of 772

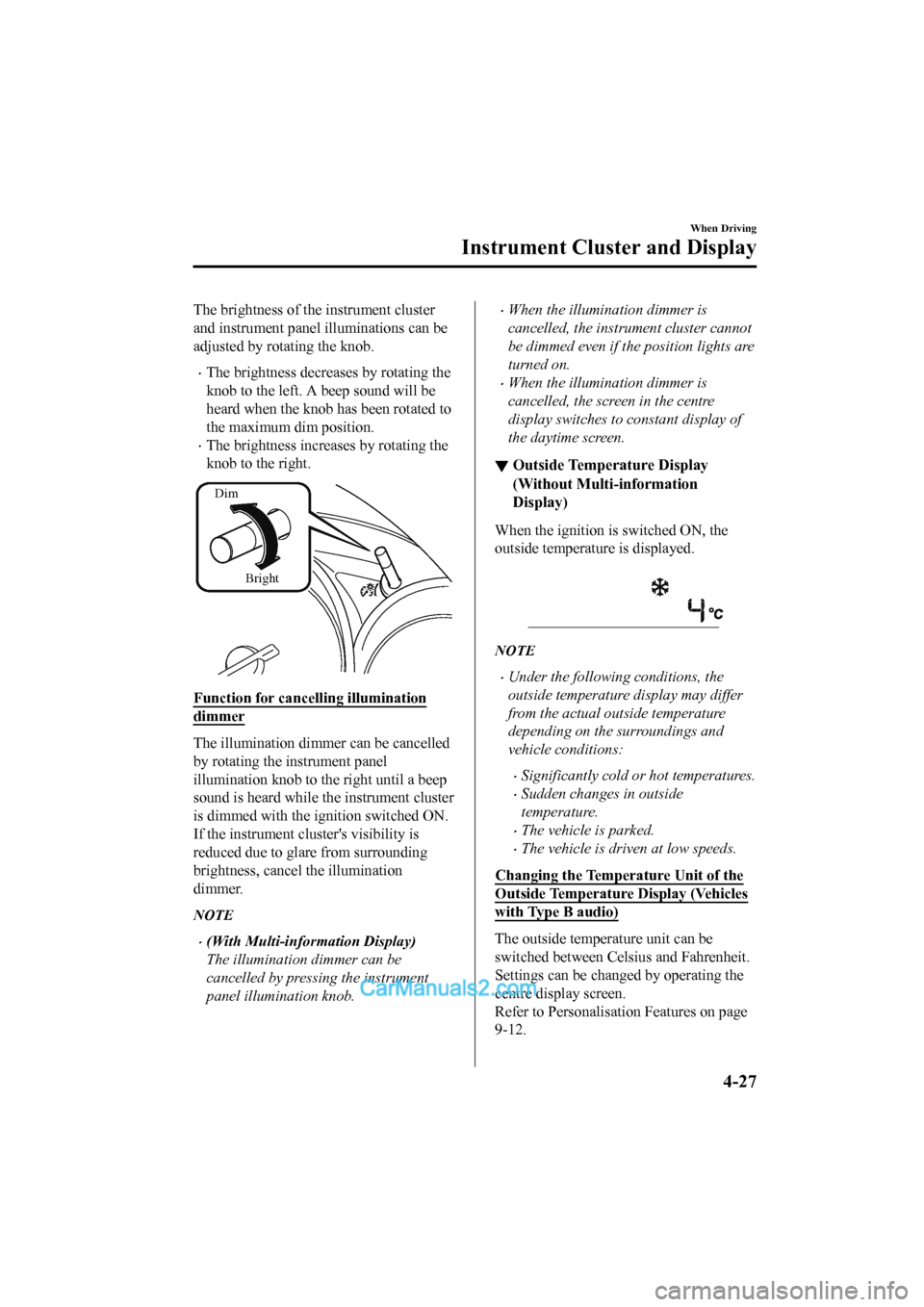

MAZDA MODEL CX-5 2017  Owners Manual - RHD (UK, Australia) (in English) The brightness of the instrument cluster
and instrument panel illuminations can be
adjusted by rotating the knob.
•The brightness decreases by rotating the
knob to the left. A beep sound will be
hea

Page 187 of 772

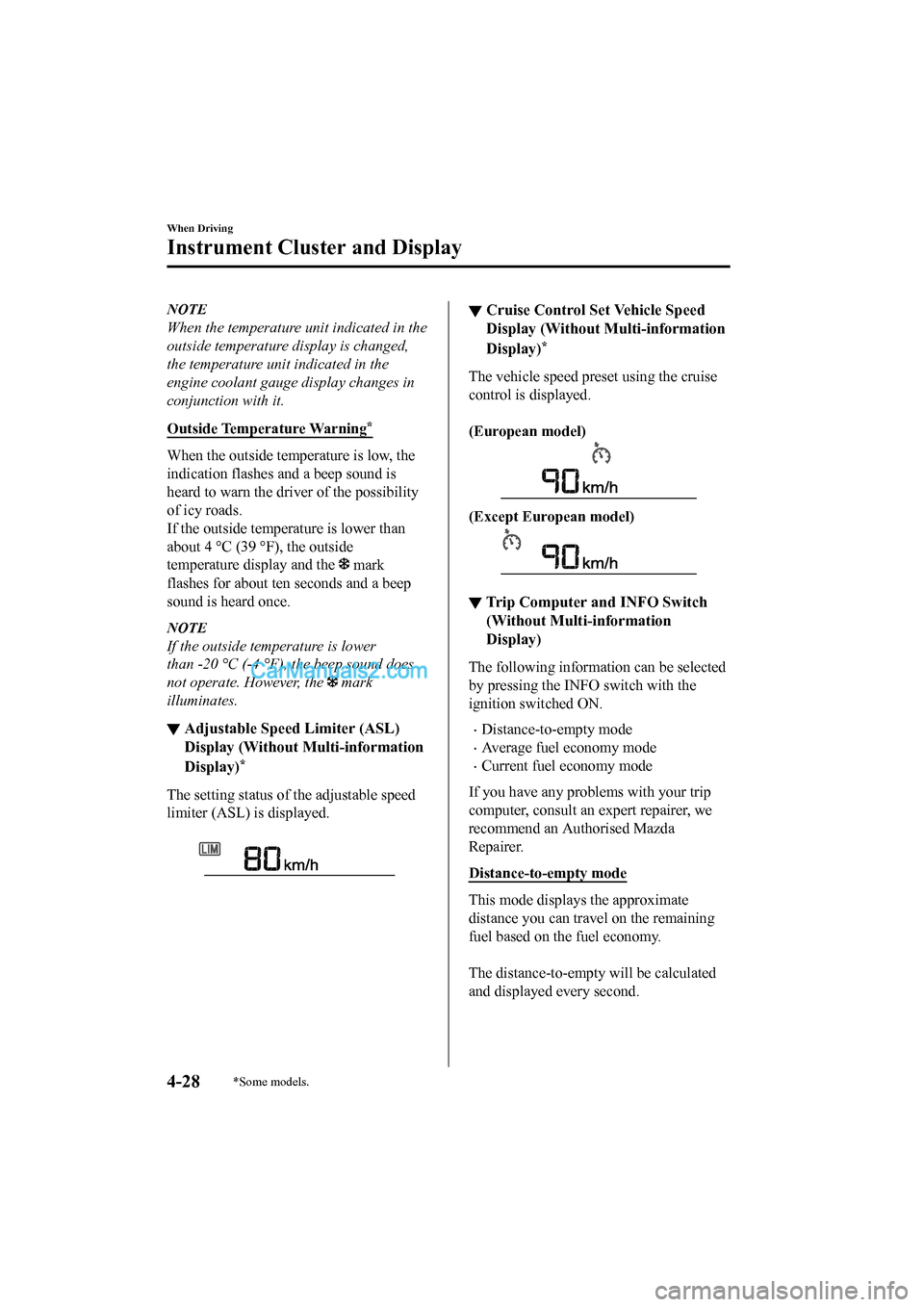

MAZDA MODEL CX-5 2017  Owners Manual - RHD (UK, Australia) (in English) NOTE
When the temperature unit indicated in the
outside temperature display is changed,
the temperature unit indicated in the
engine coolant gauge display changes in
conjunction with it.
Outside Tempe

Page 188 of 772

MAZDA MODEL CX-5 2017  Owners Manual - RHD (UK, Australia) (in English) (European model)
(Except European model)
NOTE

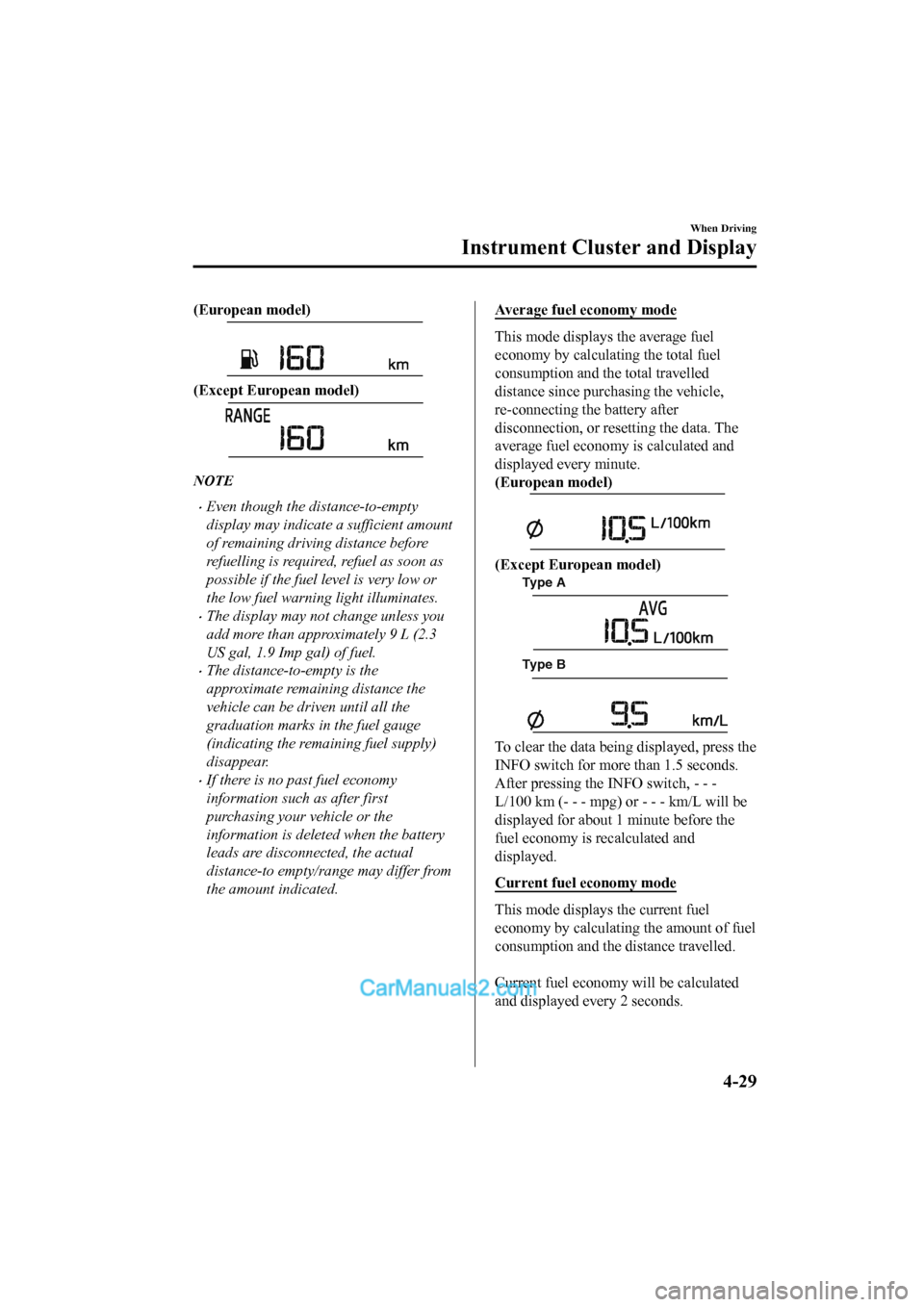

•Even though the distance-to-empty
display may indicate a sufficient amount
of remaining driving distance before
refuelling is required, refuel as soon

Page 189 of 772

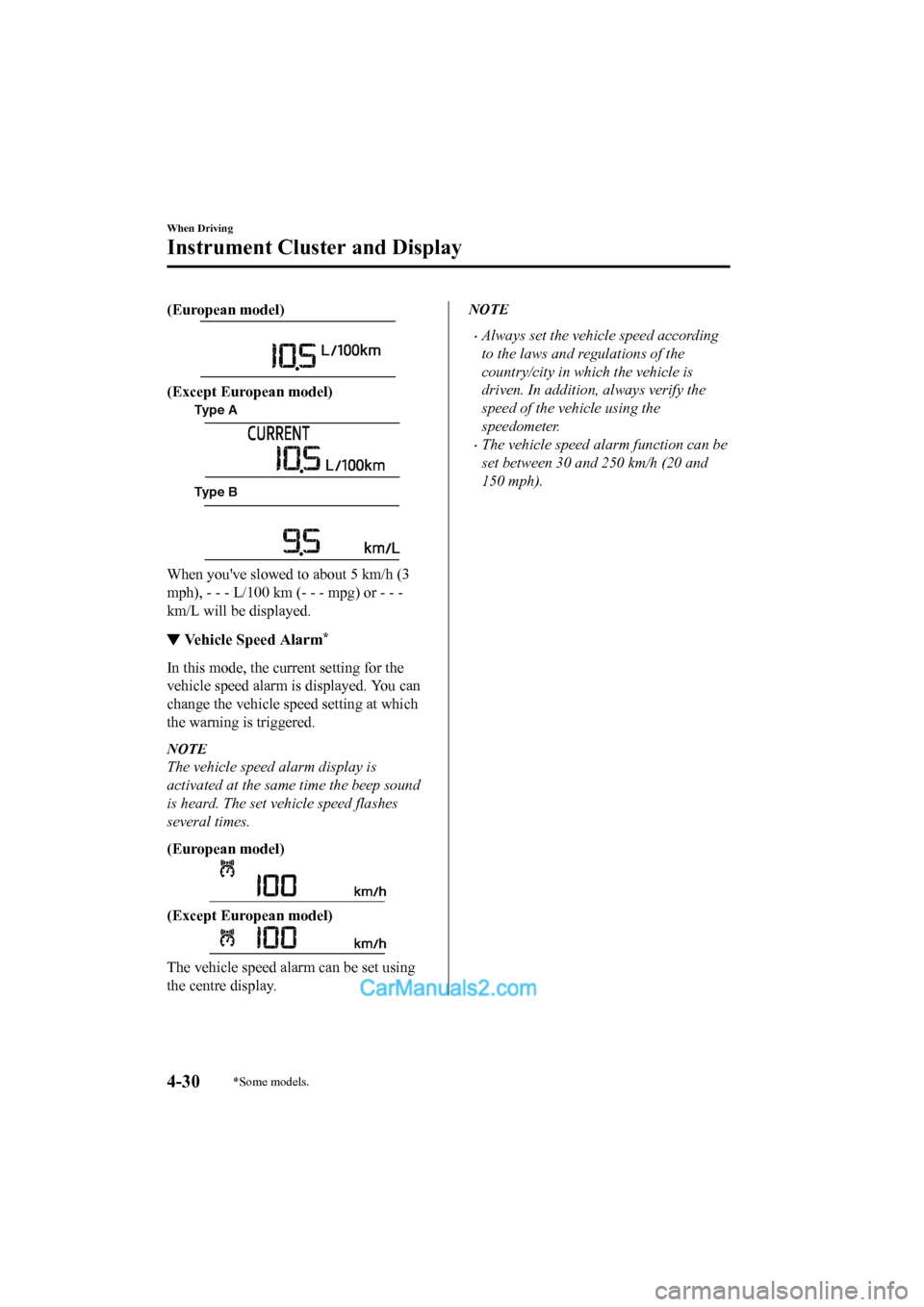

MAZDA MODEL CX-5 2017  Owners Manual - RHD (UK, Australia) (in English) (European model)
(Except European model)
Type A
Type B
When youve slowed to about 5 km/h (3
mph), - - - L/100 km (- - - mpg) or - - -
km/L will be displayed.
▼ Vehicle Speed Alarm*
In this mode, th

Page 190 of 772

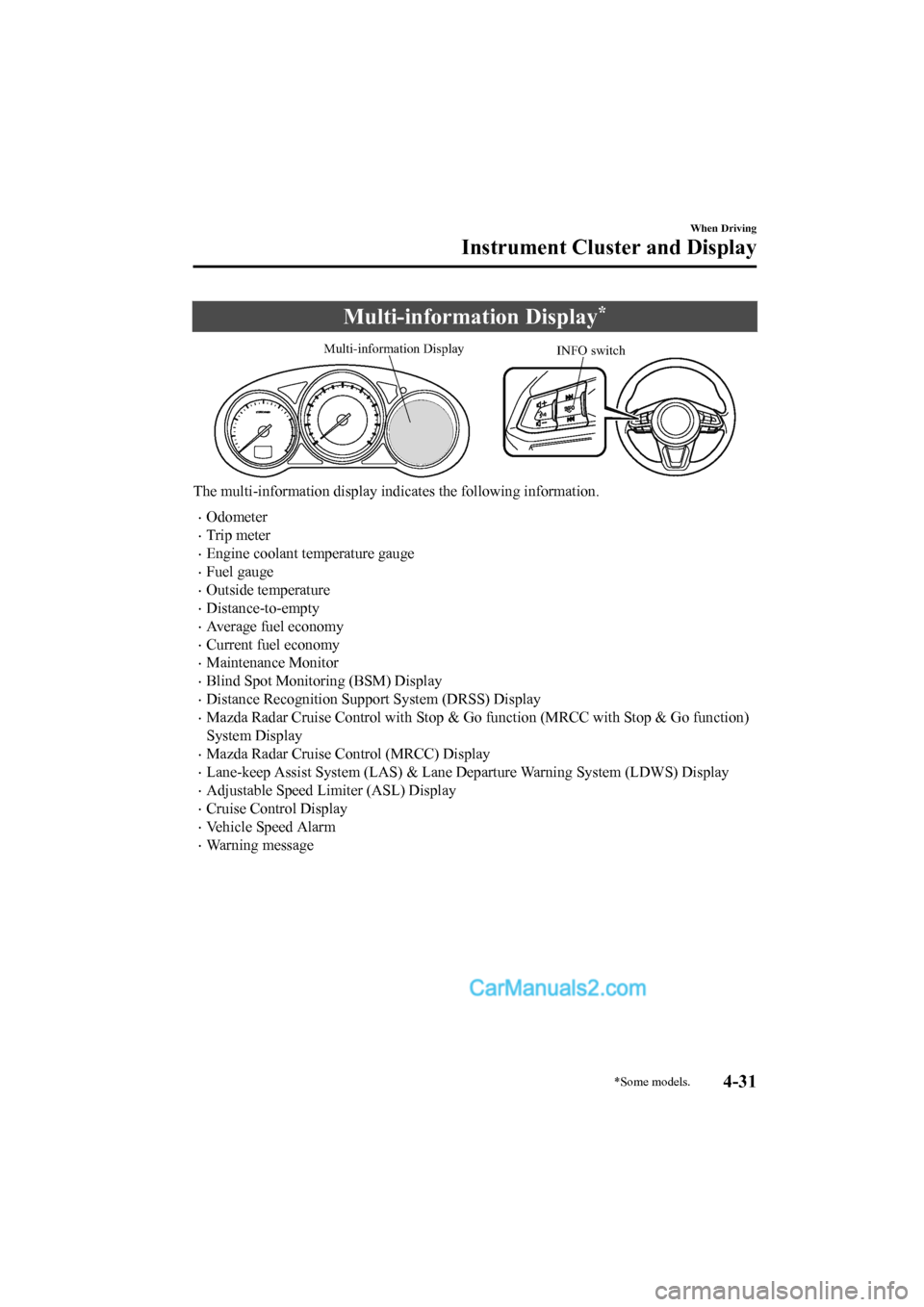

MAZDA MODEL CX-5 2017  Owners Manual - RHD (UK, Australia) (in English) Multi-information Display*
INFO switch
Multi-information Display
The multi-information display indi
cates the following information.
•Odometer
•Trip meter
•Engine coolant temperature gauge
•Fu
